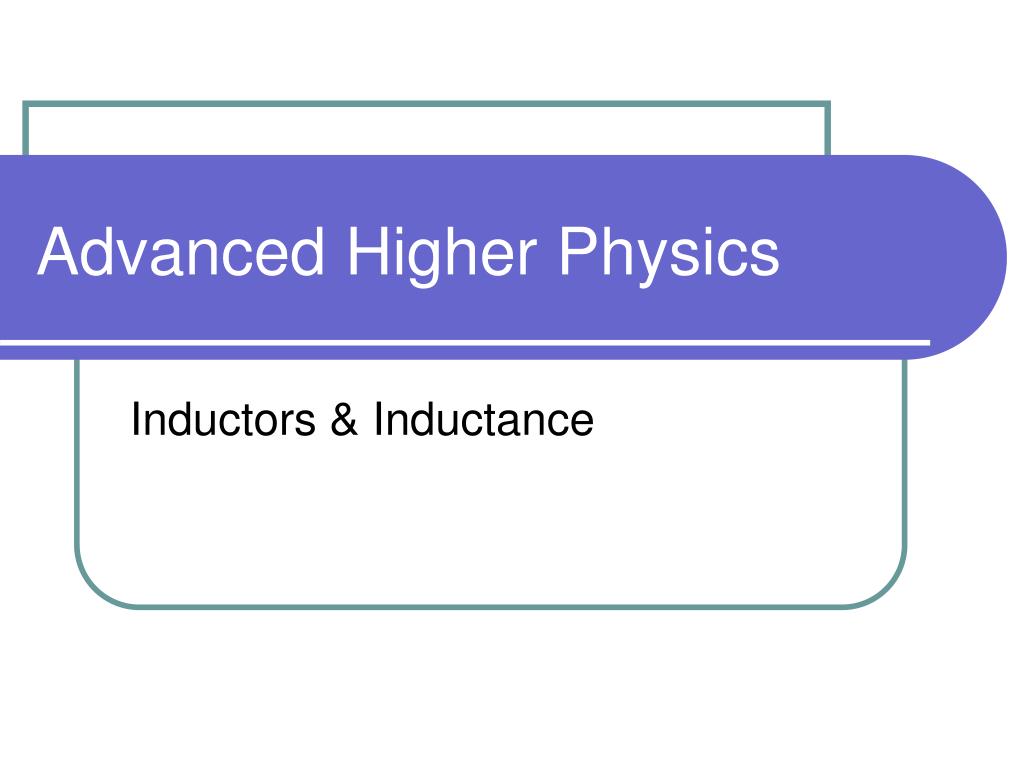

  1. Advanced Higher Physics Inductors & Inductance

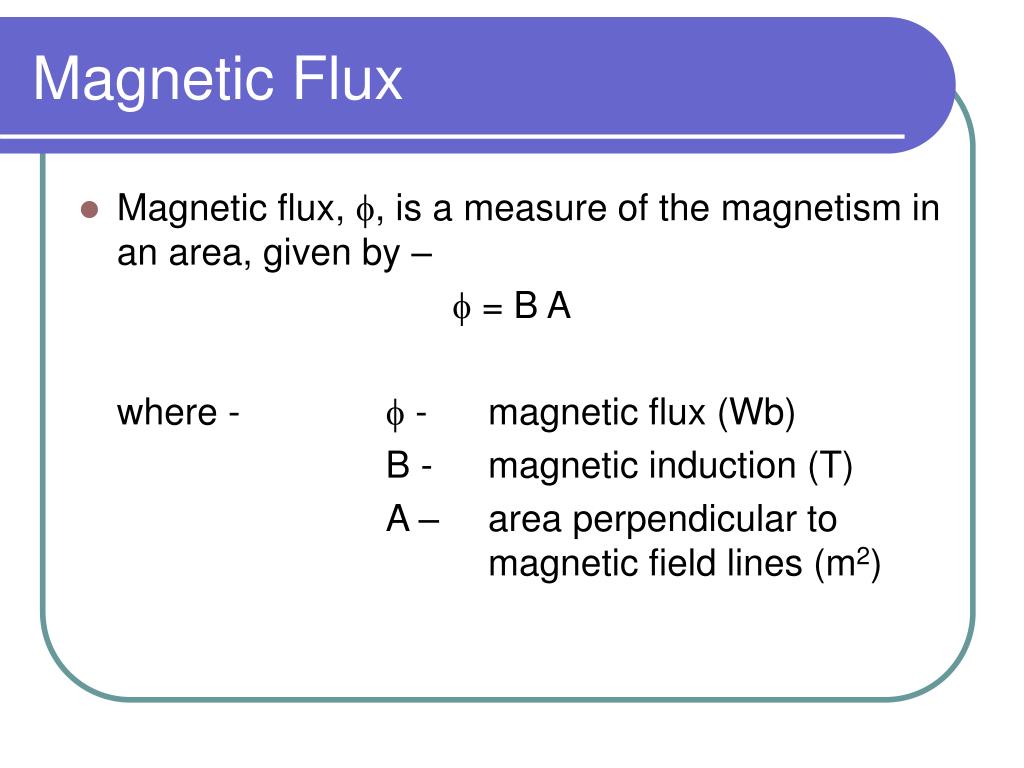

  2. Magnetic Flux • Magnetic flux, , is a measure of the magnetism in an area, given by –  = B A where -  - magnetic flux (Wb) B - magnetic induction (T) A – area perpendicular to magnetic field lines (m2)

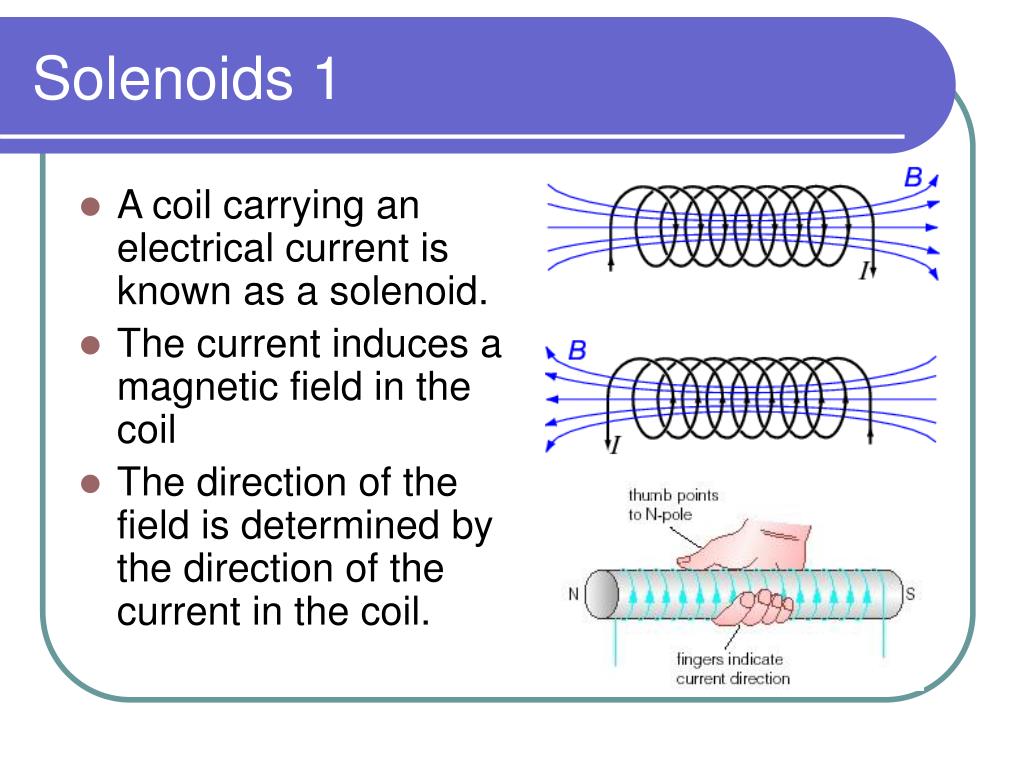

  3. Solenoids 1 • A coil carrying an electrical current is known as a solenoid. • The current induces a magnetic field in the coil • The direction of the field is determined by the direction of the current in the coil.

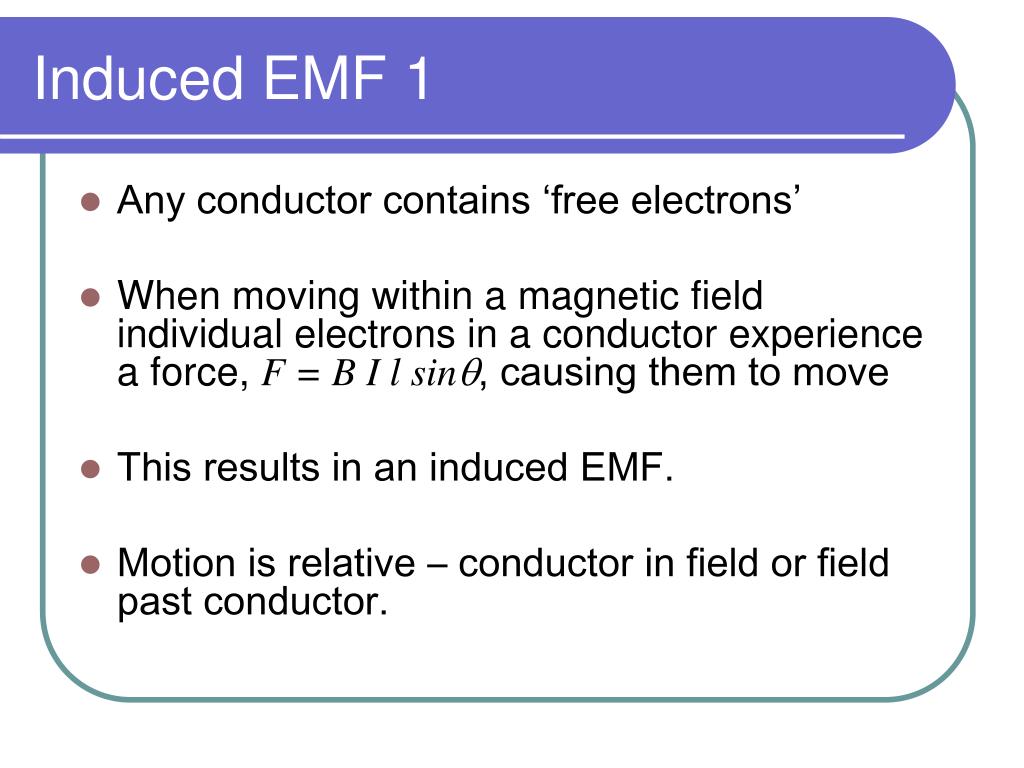

  4. Induced EMF 1 • Any conductor contains ‘free electrons’ • When moving within a magnetic field individual electrons in a conductor experience a force, F = B I l sin, causing them to move • This results in an induced EMF. • Motion is relative – conductor in field or field past conductor.

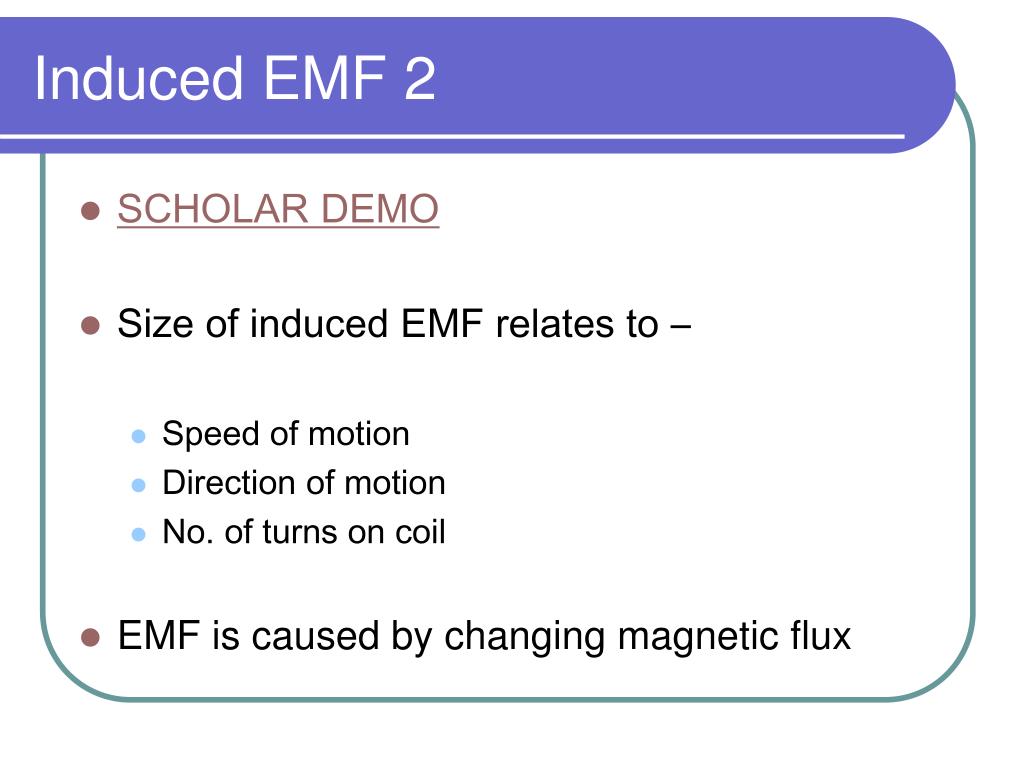

  5. Induced EMF 2 • SCHOLAR DEMO • Size of induced EMF relates to – • Speed of motion • Direction of motion • No. of turns on coil • EMF is caused by changing magnetic flux

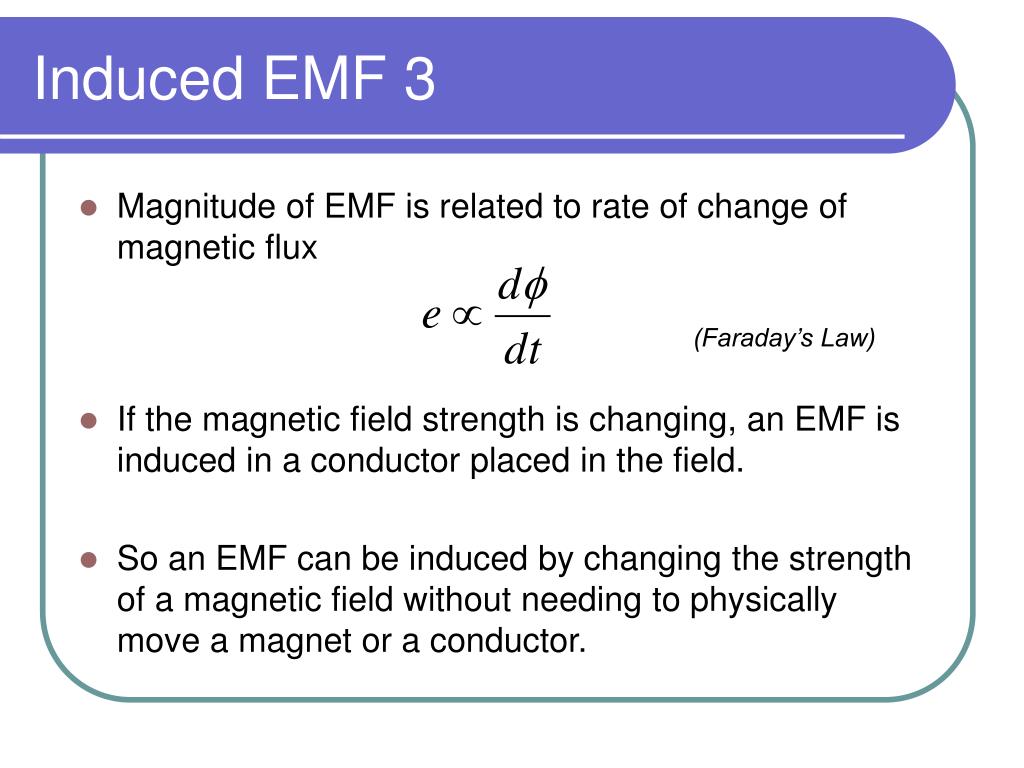

  6. Induced EMF 3 • Magnitude of EMF is related to rate of change of magnetic flux (Faraday’s Law) • If the magnetic field strength is changing, an EMF is induced in a conductor placed in the field. • So an EMF can be induced by changing the strength of a magnetic field without needing to physically move a magnet or a conductor.

  7. Uses of Magnetic Induction 1 • Video & audio cassette players, hard drives are magnetic media. • Information is recorded onto a magnetic tape or disc, which passes a coil with an iron core (reading head), inducing a current. • The current provides the signal required for the system

  8. Uses of Magnetic Induction 2 • Electric guitars use steel strings and magnetic pick-ups • As the strings vibrate, the magnetic field of the pick-up changes • A coil wrapped around the magnet has a current induced, producing a signal • The signal is amplified and sent to a loudspeaker

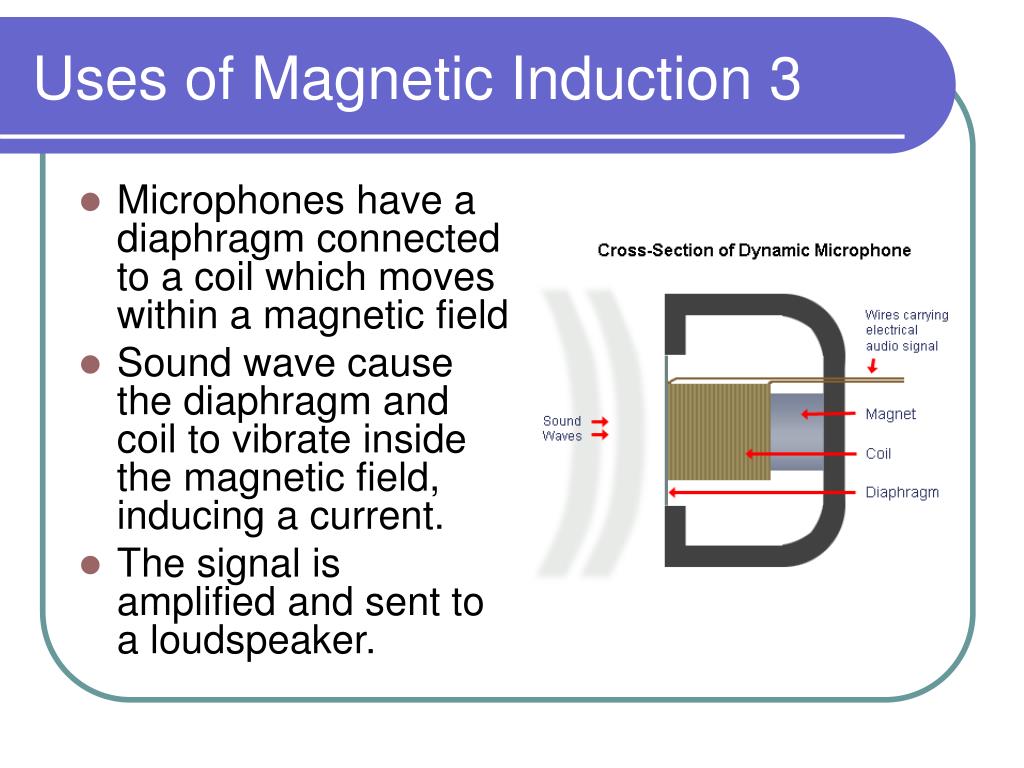

  9. Uses of Magnetic Induction 3 • Microphones have a diaphragm connected to a coil which moves within a magnetic field • Sound wave cause the diaphragm and coil to vibrate inside the magnetic field, inducing a current. • The signal is amplified and sent to a loudspeaker.
