Approximation algorithms for TSP with neighborhoods in the plane

1. Approximation algorithms for TSP with neighborhoods in the plane R90922026 郭秉鈞 R90922038 林傳健

2. The Problem • TSPN: Euclidean TSP with neighborhoods in the plane, i.e., dimention = 2 • Definition: A salesman wants to meet a set of potential buyers. Each buyer specifies a region of the plane, his neighborhood. The salesman wants to find a tour of shortest length that visit all buyers’ neighborhoods.

3. Part 1: Introduction

4. Introduction • O(1)-approximation algorithm for TSPN on disks of the same size • A PTAS for disjoint equal disks • O(1)-approximation algorithm for TSPN on connected regions of the same diameter • O(1)-approximation algorithm running in linear time for TSPN on lines

5. Part 2: O(1)-approximation for TSPN on disks of the same size

6. Equal Disks • Assume that all disks are unit • Simplify the problem to unit disks • First case on disjoint unit disks • Simply approximate on centers of disks • Argue with the bounds:Tc for center tour, Tr for region tour

7. Disjoint Unit Disks

8. Disjoint Unit Disks (cont.) • Sweep along center tour with a disk of radius 2 • Ratio <= 3.55 for n large

9. Disjoint Unit Disks (cont.)

10. Disjoint Unit Disks (cont.)

11. Disjoint Unit Disks (cont.) • Expect ration cannot smaller than 2

12. Overlapping Unit Disks • Algorithm: • Compute maximal independent pairwise-disjoint set of disks • Compute Ci, the approximation of the center tour above • Output R, obtained by going along Ci and boundaries of each disks in the set • Argue with the ratio <= 11.15

13. Overlapping Unit Disks (cont.) • OPT: optimal tour of the problem • OPTi: optimal tour of independent set • R: approximated result • Ci: center tour of independent set

14. Overlapping Unit Disks (cont.)

15. Part 3: A PTAS for disjoint equal disks

16. Slide not finished

17. Part 4: O(1)-approximation algorithm for TSPN on connected regions of the same diameter

18. Definition 4.1. (diameter of a region) • The diameter of a region, δ, is the distance between two points in the region that are farthest apart • In the problem here we deal with connected regions of the same diameter. Without loss of generality, we assume that all regions have unit diamter, δ = 1.

19. Lemma 4.2.(Combination Lemma) • Given regions that can be partitioned into two types, and constants c1, c2 bounding the error ratios with which we can approximate optimal tours on regions of type 1 and 2, then we can approximate the optimal tour on all regions with an error ratio bounded by c1 + c2 + 2

20. Two types of connected regions • (1) Those for which the selected diameter is almost horizontal, by which we mean its slope is between -45° and 45°; • (2) Those for which the selected diameter is almost vertical , by which we mean all others. • The paper provide an constant ratio approximation algorithm for each of these two region types, and then apply Lemma 4.2.

21. Fig 4.a. (two types of regions)

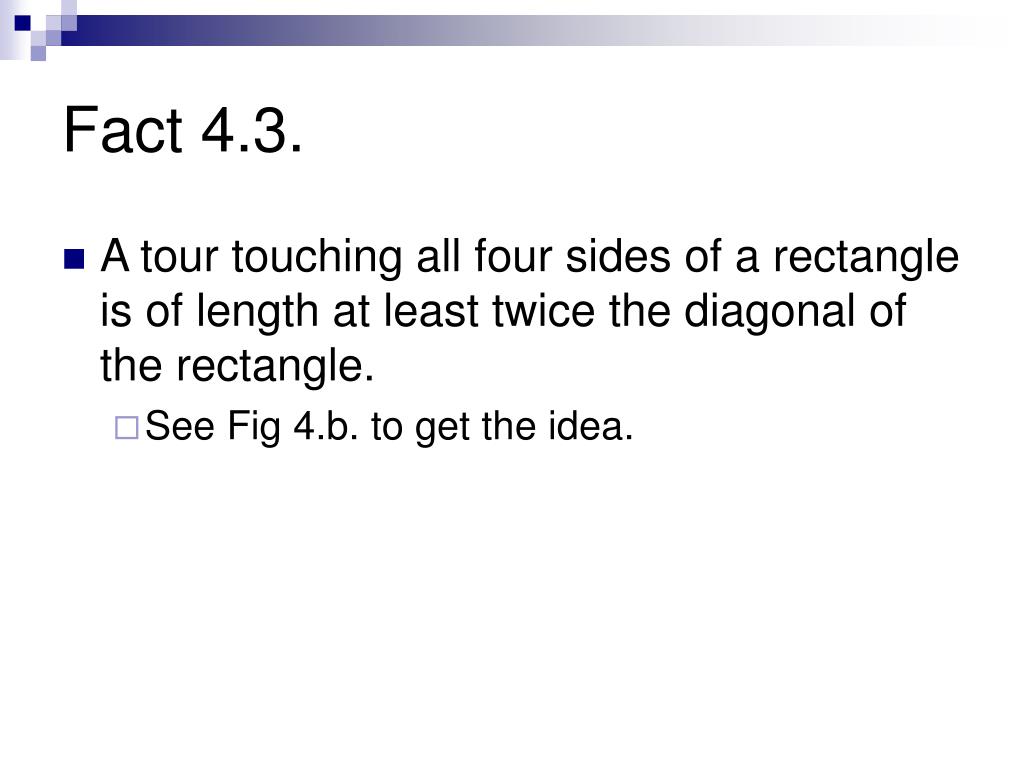

22. Fact 4.3. • A tour touching all four sides of a rectangle is of length at least twice the diagonal of the rectangle. • See Fig 4.b. to get the idea.

23. Fig 4.b. The shortest tour hits each side is equal to the angle with which it departs that side, by Snell’s law

24. Fact 4.4. • For positive a, b, w, h the following inequality holds.

25. Definition 4.5.(covering lines) • A set of lines is a cover of a set of regions if each region is intersected by at least one line from the covering set. We refer to this set of lines as covering lines.

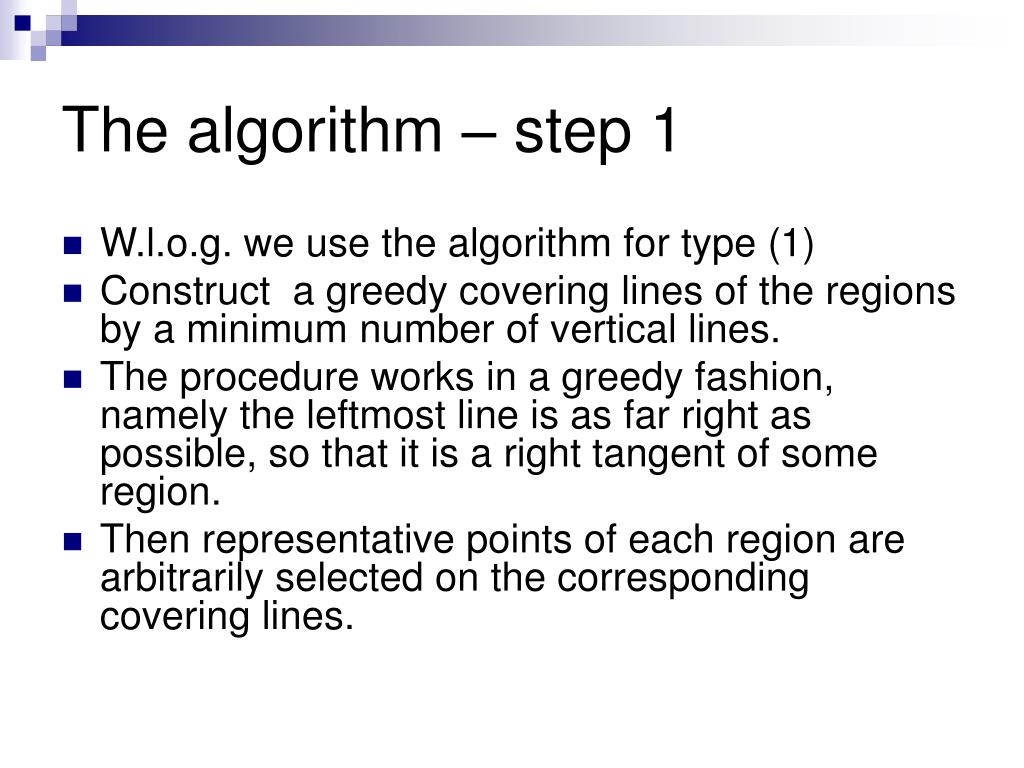

26. The algorithm – step 1 • W.l.o.g. we use the algorithm for type (1) • Construct a greedy covering lines of the regions by a minimum number of vertical lines. • The procedure works in a greedy fashion, namely the leftmost line is as far right as possible, so that it is a right tangent of some region. • Then representative points of each region are arbitrarily selected on the corresponding covering lines.

27. Fig 4.c.(greedy covering lines & representative points)

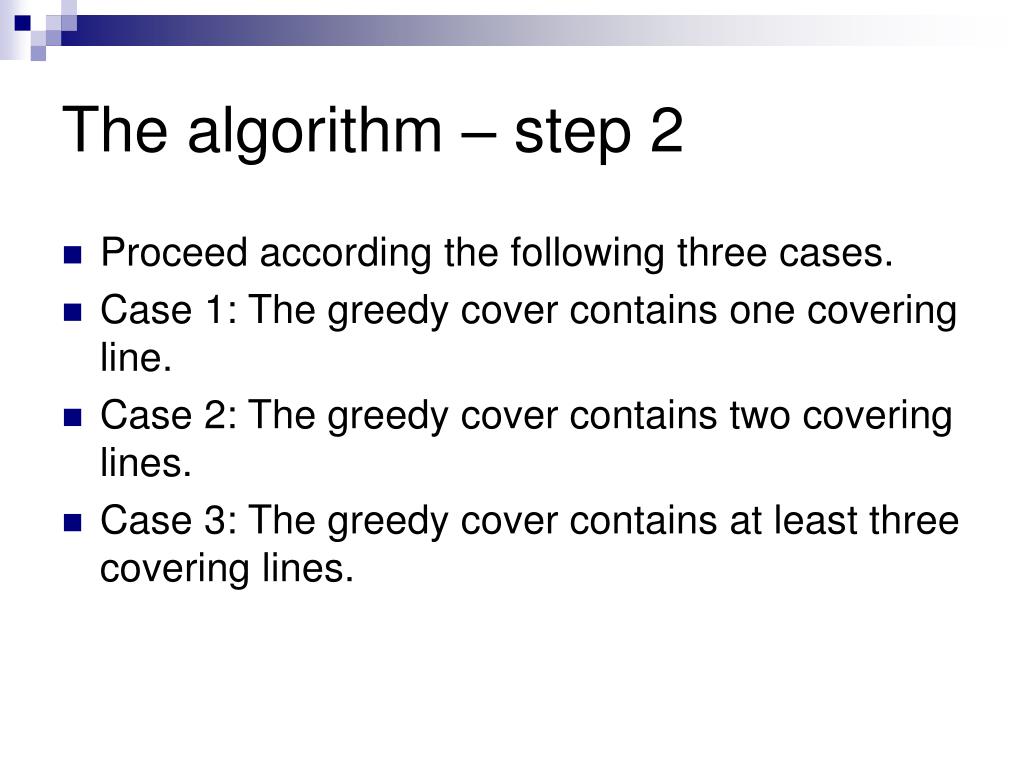

28. The algorithm – step 2 • Proceed according the following three cases. • Case 1: The greedy cover contains one covering line. • Case 2: The greedy cover contains two covering lines. • Case 3: The greedy cover contains at least three covering lines.

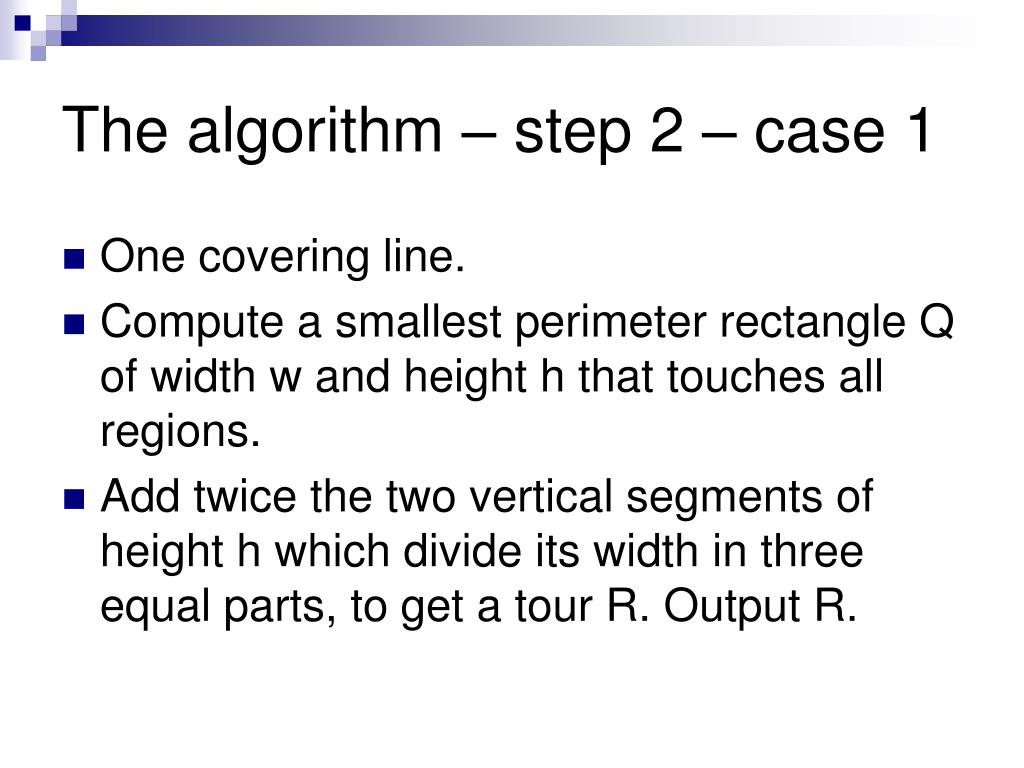

29. The algorithm – step 2 – case 1 • One covering line. • Compute a smallest perimeter rectangle Q of width w and height h that touches all regions. • Add twice the two vertical segments of height h which divide its width in three equal parts, to get a tour R. Output R.

30. Fig 4.d.

31. Fig 4.e.

32. Fig 4.f.

33. Proof of step 2 - case 1

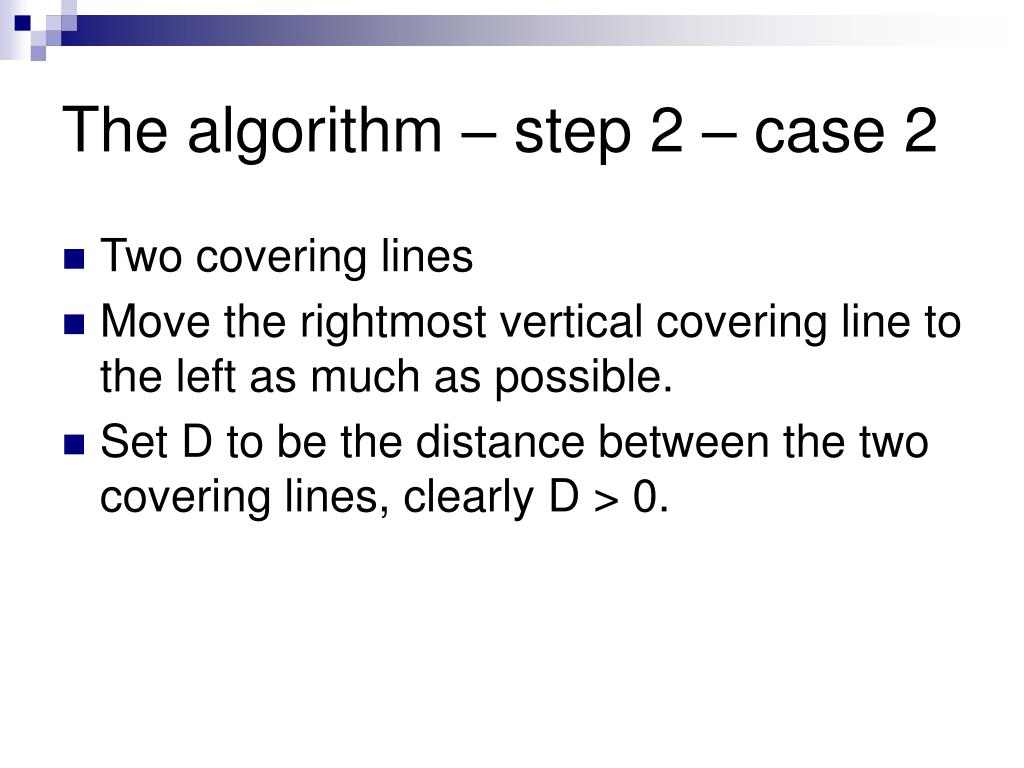

34. The algorithm – step 2 – case 2 • Two covering lines • Move the rightmost vertical covering line to the left as much as possible. • Set D to be the distance between the two covering lines, clearly D > 0.

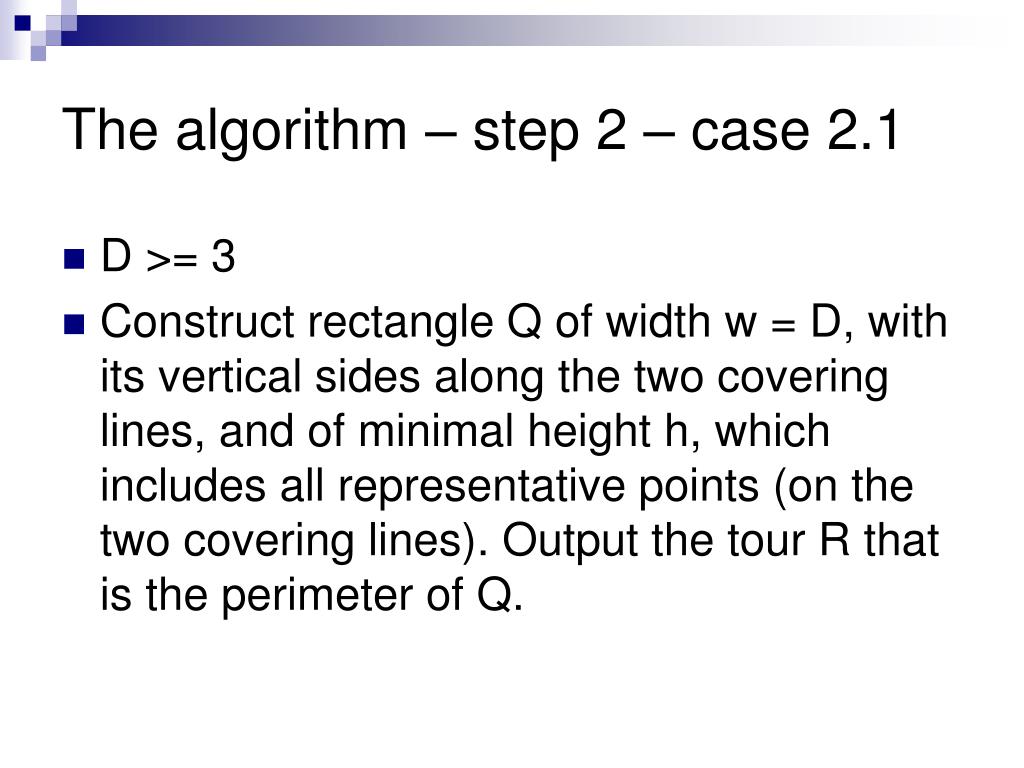

35. The algorithm – step 2 – case 2.1 • D >= 3 • Construct rectangle Q of width w = D, with its vertical sides along the two covering lines, and of minimal height h, which includes all representative points (on the two covering lines). Output the tour R that is the perimeter of Q.

36. Fig 4.g.

37. Proof of step 2 – case 2.1 • Case 2.1.a. h<=2 • Case 2.1.b. h>=2

38. The algorithm – step 2 – case 2.2 • D <= 3 • Compute a smallest perimeter rectangle Q with width w and height h that touches all regions. Add twice the seven vertical segments of height h which divide its width into eight equal parts, to get a tour R. Output R.

39. Fig 4.h.

40. Proof of step 2 – case 2.2

41. The algorithm – step 2 – case 3 • At least three covering lines • Construct R, a (1+ε)-approximation tour of the representative points as the output tour.

42. Proof of step2 – case 3 • Partition the optimal tour OPT into blocks OPTi, with i >= 1. OPTi starts at an arbitrary point of intersection of OPT with the ith covering line from left, and ends at the last intersection of OPT with the (i+1)th covering line from left. • Consider the bounding box of OPTi, the smallest perimeter aligned rectangle which includes OPTi, w for its width and h for its height.

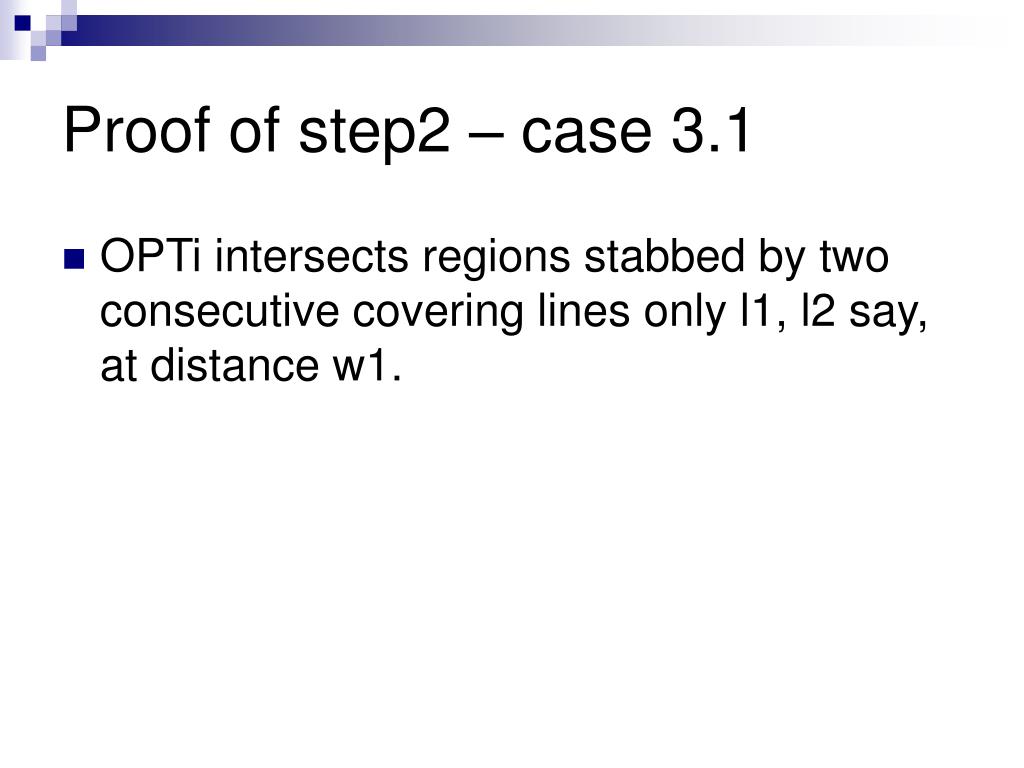

43. Proof of step2 – case 3.1 • OPTi intersects regions stabbed by two consecutive covering lines only l1, l2 say, at distance w1.

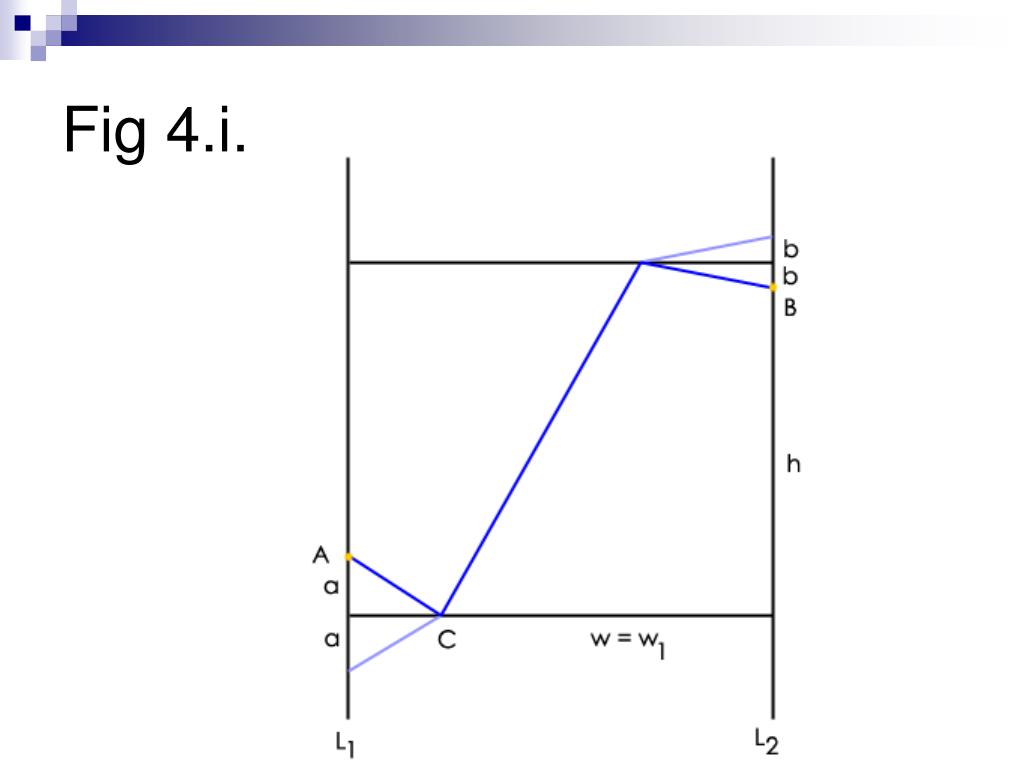

44. Fig 4.i.

45. Fig 4.j.

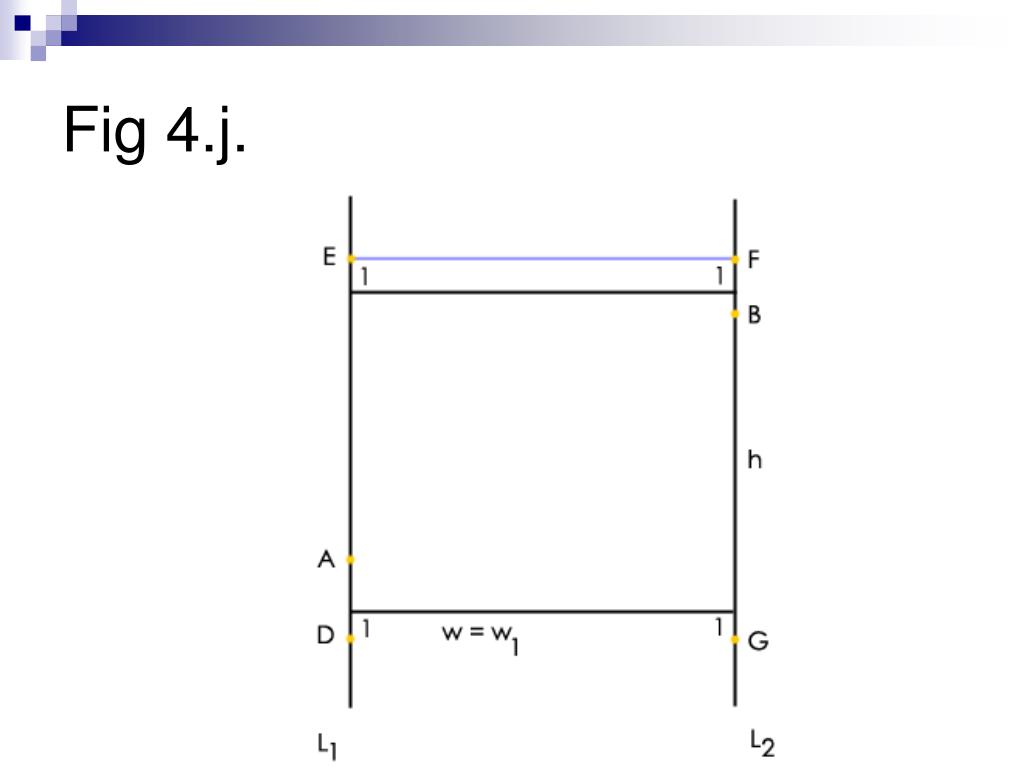

46. Proof of step 2 – case 3.2 • OPTi intersects regions stabbed by three consecutive covering lines only, l1, l2, l3 say at distances w1, w2.

47. Fig 4.k.

48. Fig 4.l.

49. Some special cases • Parallel equal segments • Convex region

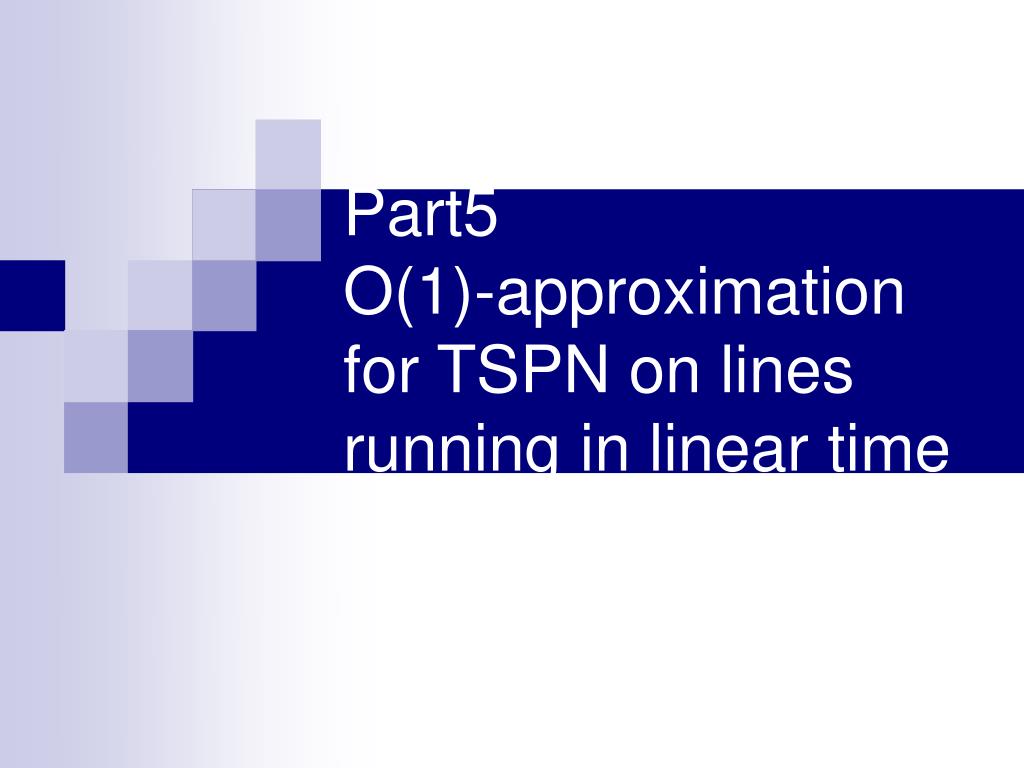

50. Part5O(1)-approximation for TSPN on lines running in linear time
