DEVELOPMENT OF THE CNS

DEVELOPMENT OF THE CNS. DR JAMILA ELMEDANY. NEURO ECTODERM. It is the source of the Central nervous system. It is derived from: Ectoderm which is Differentiated in the 2 nd Week. NEUROECTODERM (THIRD WEEK) . Neural Plate :

kory
Télécharger la présentation

DEVELOPMENT OF THE CNS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. DEVELOPMENT OF THE CNS DR JAMILA ELMEDANY

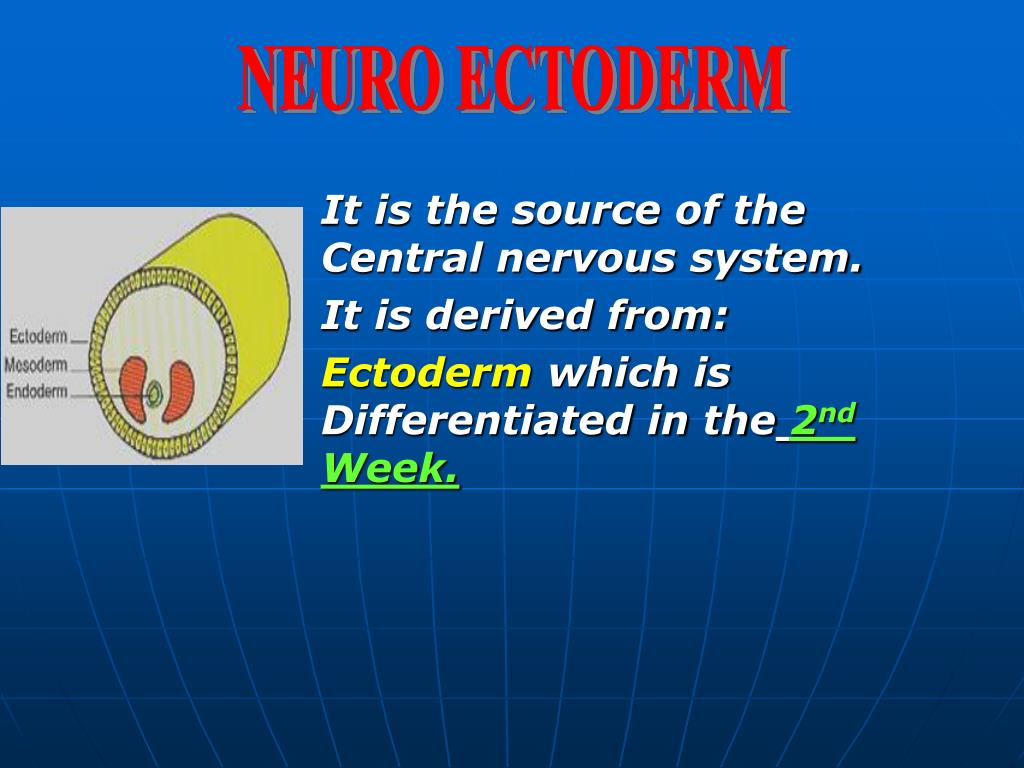

  2. NEURO ECTODERM It is the source of the Central nervous system. It is derived from: Ectodermwhich is Differentiated in the2ndWeek.

  3. NEUROECTODERM (THIRD WEEK) • Neural Plate : • A Dorsal Midline Thickening of the Ectoderm overlying the Notochord. • Neural Folds : • Elevated Lateral Margins of the Neural Plate. • They are on each side ofNeural Groove(Longitudinal Midline Groove).

  4. NEUROECTODERM (THIRD WEEK) • Neural Tube: • Apposition and Fusion of the Neural Folds. • They seal the Neural Groove and Create the Tube.

  5. CNS (FOURTH WEEK) • Growth of the Neural tube is Maximal at the Cranial Part. • It becomes the Brain. • The Caudal Part becomes: • Spinal Cord. • Neuroaxis : • Axis of the tube is Straight.

  6. NEURAL GROOVE • Central Cavity within the Neural Tube. • Differentiates into: • Ventricles of the Brain. • Central Canalof the Spinal Cord.

  7. NEURAL CREST CELLS • Separated Cells from the Apices of the Neural Folds. • Position: • Dorsolateral to the Neural Tube. • Give rise to : • 1. Autonomic Ganglia. • 2. Sensory Ganglia of Spinal and Cranial nerves. • 3. Melanocytes. • 4. Cells of Suprarenal Medulla.

  8. INTERNAL STRUCTURE OF SC • Grey matter:Located Centrally around the Central Canal. • White matter: • Forms the Outer Coat.

  9. SULCUS LIMITANS • A longitudinal Groove along the Inner surface of the Lateral Walls of thedeveloping Spinal Cord. • It differentiates the Gray Matter into: • Dorsal (Alar) plate. • It is predominantly Sensory. • Ventral (Basal) plate. • It is predominantly Motor.

  10. FIFTH WEEK • Three Primary Brain Vesicles appear. • Fore Brain (Prosencephalon). • Mid Brain (Mesencephalon). • Hind Brain (Rombencephalon).

  11. FLEXURES • Bending of the Neuraxis is by Two FLexures : • Cephalic( Midbrain)Flexure: • At the junction of the Fore and Mid Brains. • Cervical Flexure : • Between the Brain and Spinal Cord.

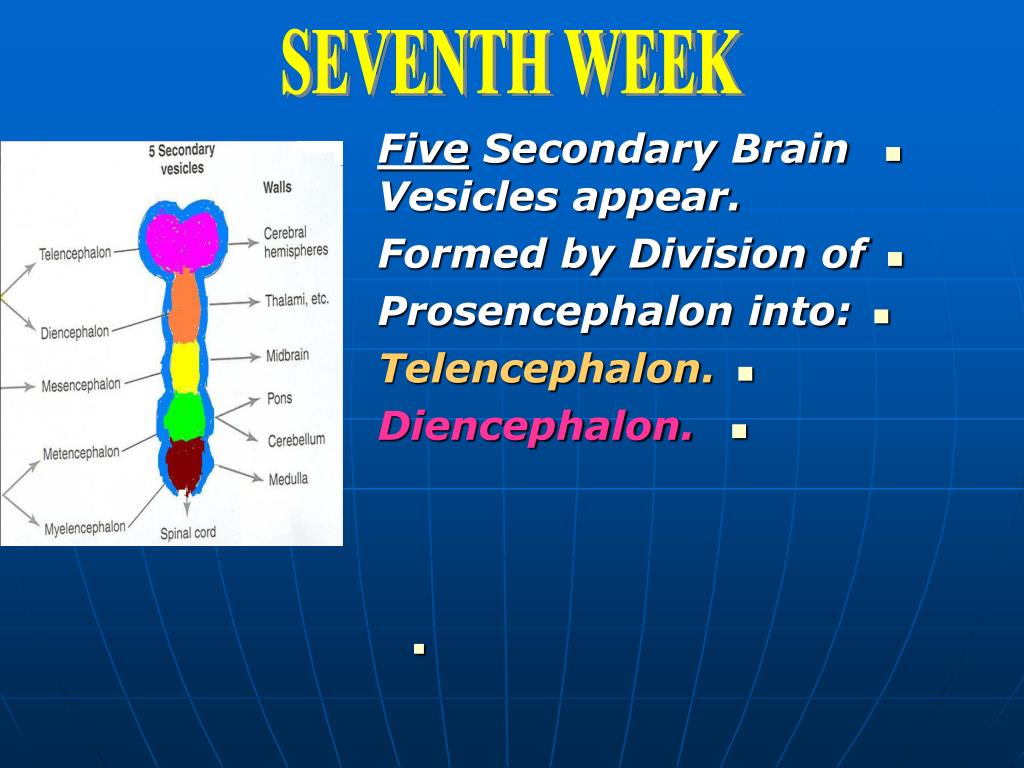

  12. SEVENTH WEEK • Five Secondary Brain Vesicles appear. • Formed by Division of • Prosencephalon into: • Telencephalon. • Diencephalon.

  13. TELENCEPHALON • Largest Brain Vesicle. • Has the Greatest Degree of Development. • Forms: • The Cerebral Hemispheres.

  14. DIENCEPHALON • Thalamusis its Main Part. • It is connected to the Cerebral Cortex.

  15. ROMBENCEPHALON • Differntiated into : • Metencephalon. • Mylencephalon.

  16. PONTINE FLEXURE • The Third Flexure. • Appears between:Metencephalonand Myelencephalon.

  17. DIFFERENTIATION • Metencephalon: • Pons . • Cerebellum. • Myelencephalon: • Medulla Oblongata.

  18. MESENCEPHALON • Remains Undifferentiated. • It keeps the Embryonic Picture : • Grey Matter surrounds the Central canal.

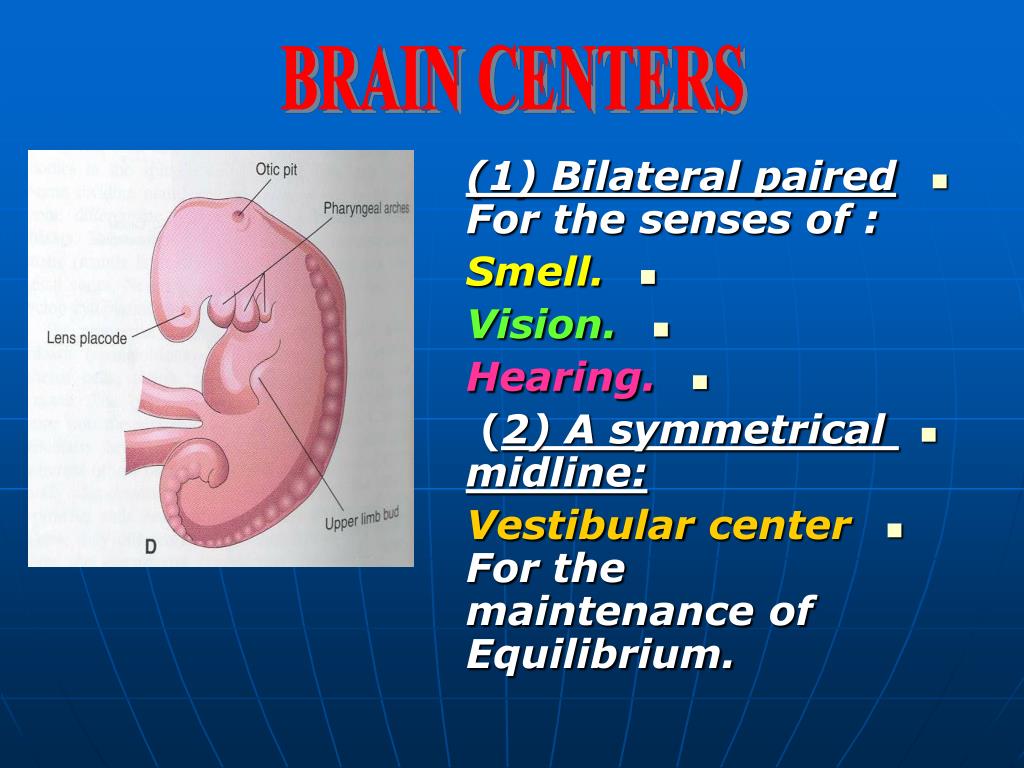

  19. BRAIN CENTERS • (1) Bilateral pairedFor the senses of : • Smell. • Vision. • Hearing. • (2) A symmetrical midline: • VestibularcenterFor the maintenance of Equilibrium.

  20. DEVELOPMENT OF THE CENTERS • They are Expansions from: • Dorsal Aspectof the simple Tubular Brain. • Composed of : • Outer Cortex of NerveCells. • Underlying Core of Nerve Fibers.

  21. REFLEX CENTERS • Centers for Vision and Hearing will have Automatic Reflex Functions. • These are represented by: Superior & Inferior Colliculi.

  22. PROSENCEPHALISATION • The massive cerebral hemispheres will take an Exclusive Role in many functions of the brain. • They become: • The Highest Levels for: Perception and Correlation ofall Sensory Modalities. • The Highest Level for Motor Control. • Other Centers: • Become progressively Subservient to the Cerebral Centers.

  23. CONGENITAL ANOMALIES • (1) Anencephaly • The Brain and Skull are minute. • Incompatible for living.

  24. (2) SPINA BIFIDA • Underdeveloped Lower part of the Spinal Cord and the Associated Nerve Roots. • It may be associated with underdevelopment of the Bone and Skin.

  25. MANIFESTATIONS • Anesthetic Lower Limbs. • Paralysis. • Incontinence of urine and stool.

  26. CONGENITAL ANOMALIES • (3) Meningomyelocele: • It is Spina Bifida with • The appearance of the Meninges of the Spinal Cord on the Back of the Body.
