Chapter 2 - Motion

Part I - KINEMATICS physics how objects move why objects move how objects interact (environment) KINEMATICS - how objects move (not why). Chapter 2 - Motion. Description of motion - change in position cars sports: baseball, football, soccer, etc.

kosey
Télécharger la présentation

Chapter 2 - Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

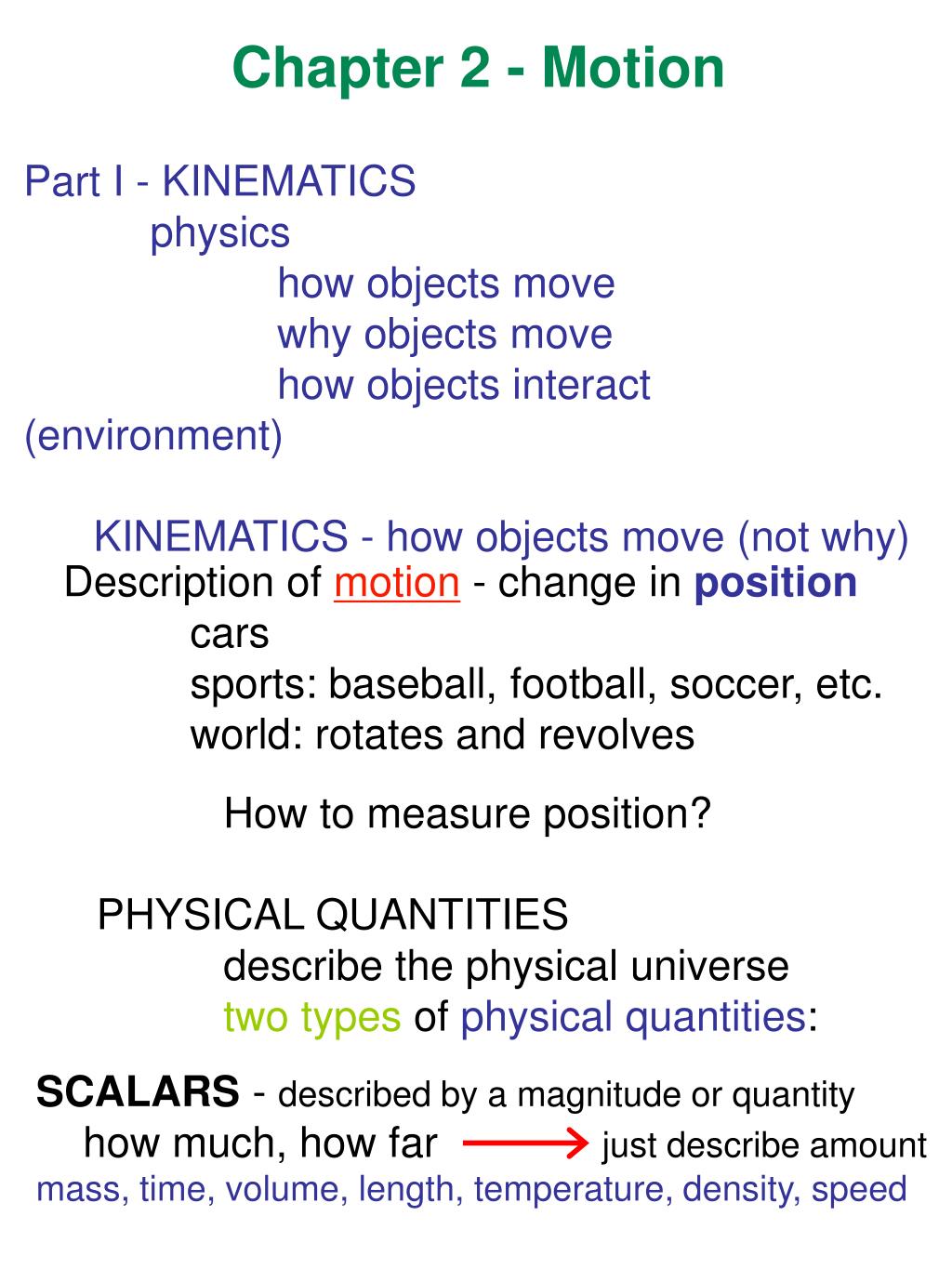

  1. Part I - KINEMATICS physics how objects move why objects move how objects interact (environment) KINEMATICS - how objects move (not why) Chapter 2 - Motion Description of motion - change in position cars sports: baseball, football, soccer, etc. world: rotates and revolves How to measure position? PHYSICAL QUANTITIES describe the physical universe two types of physical quantities: SCALARS - described by a magnitude or quantity how much, how far just describe amount mass, time, volume, length, temperature, density, speed

  2. Vectors: magnitude and direction! quantities for which direction is important i.e., where? (displacement - distance and direction) velocity, acceleration, force, momentum, magnetic &electric field displacement - like directions on map Difference between scalars and vectors 1 step = 2 ft 20 feet Distance= displacement =

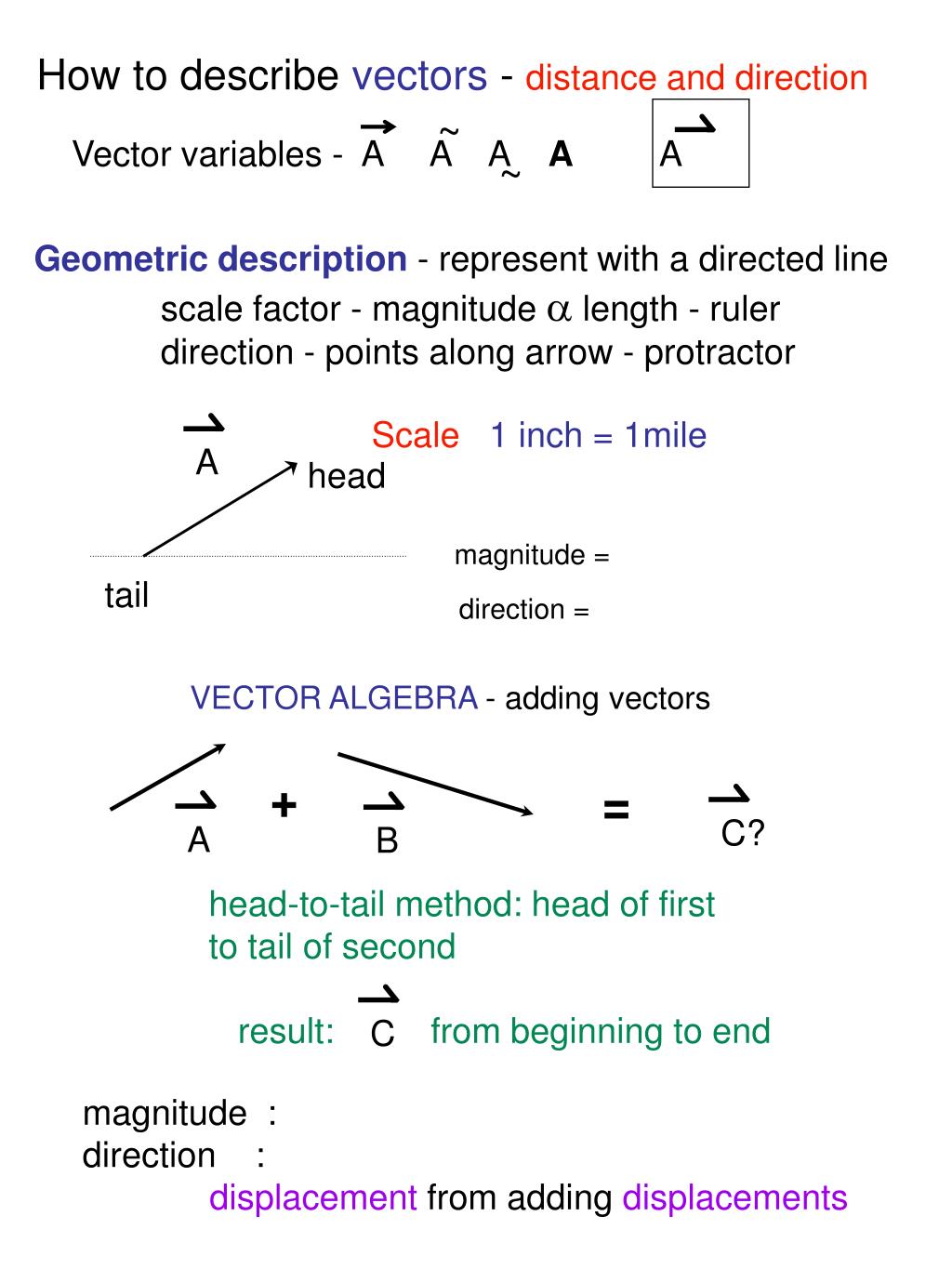

  3. A C? B A C ~ How to describe vectors - distance and direction Vector variables - A A A A A ~ Geometric description - represent with a directed line scale factor - magnitude  length - ruler direction - points along arrow - protractor Scale1 inch = 1mile head magnitude = tail direction = VECTOR ALGEBRA - adding vectors + = head-to-tail method: head of first to tail of second result: from beginning to end magnitude : direction : displacement from adding displacements

  4. A Ax Ay A Ax Ay Resolution of Vectors - component description Break vectors into components up/down - left/right scale built in components give direction y m in miles x Looks like two perpendicular rulers = + x-component and y-component specifies vector easy component directions (perpendicular) like treasure map Vector - TWO SCALAR COMPONENTS Can treat each direction separately as a vector

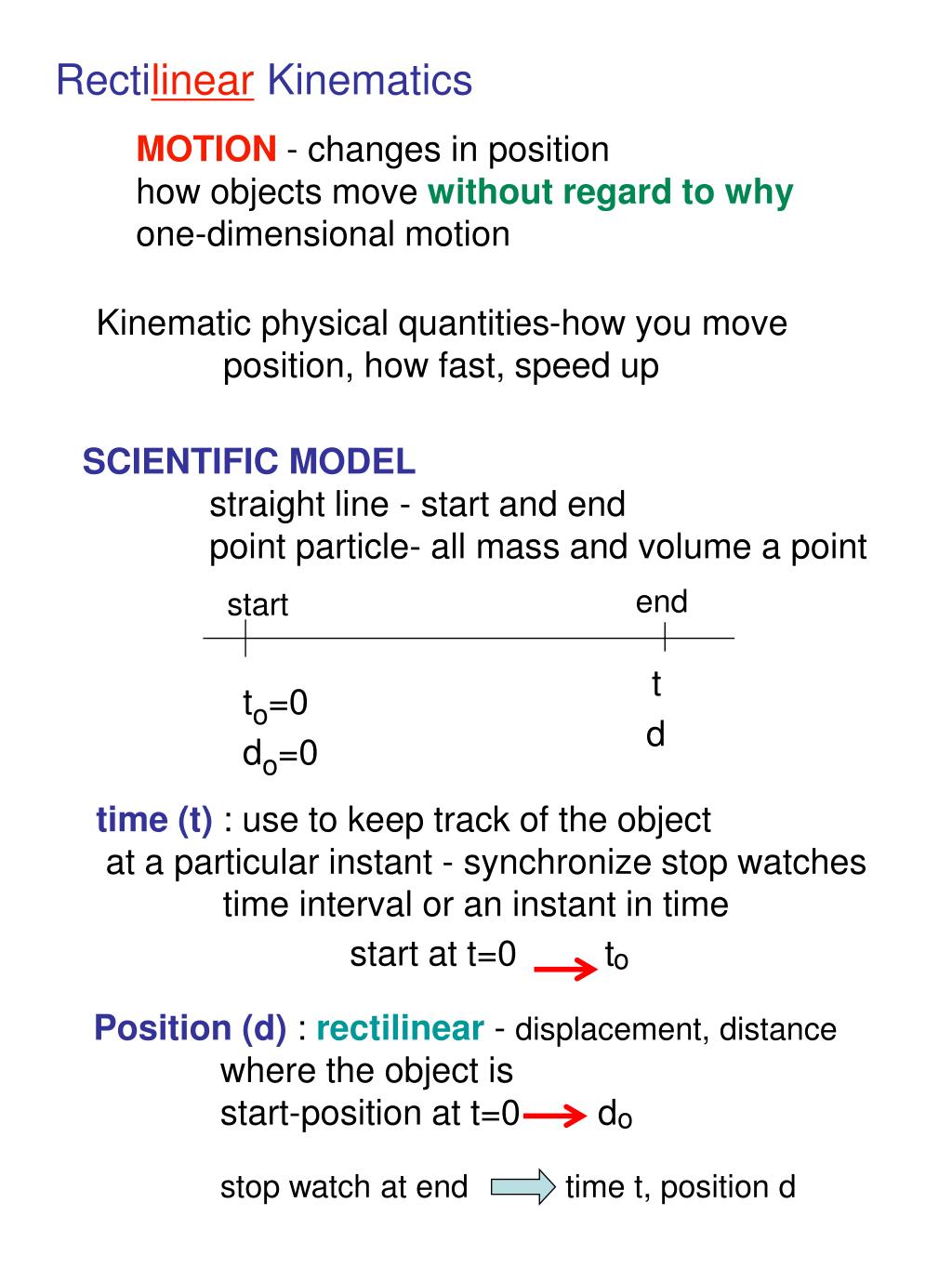

  5. Rectilinear Kinematics MOTION- changes in position how objects move without regard to why one-dimensional motion Kinematic physical quantities-how you move position, how fast, speed up SCIENTIFIC MODEL straight line - start and end point particle- all mass and volume a point end start t to=0 d do=0 time (t) : use to keep track of the object at a particular instant - synchronize stop watches time interval or an instant in time start at t=0 to Position (d) : rectilinear - displacement, distance where the object is start-position at t=0 do stop watch at end time t, position d

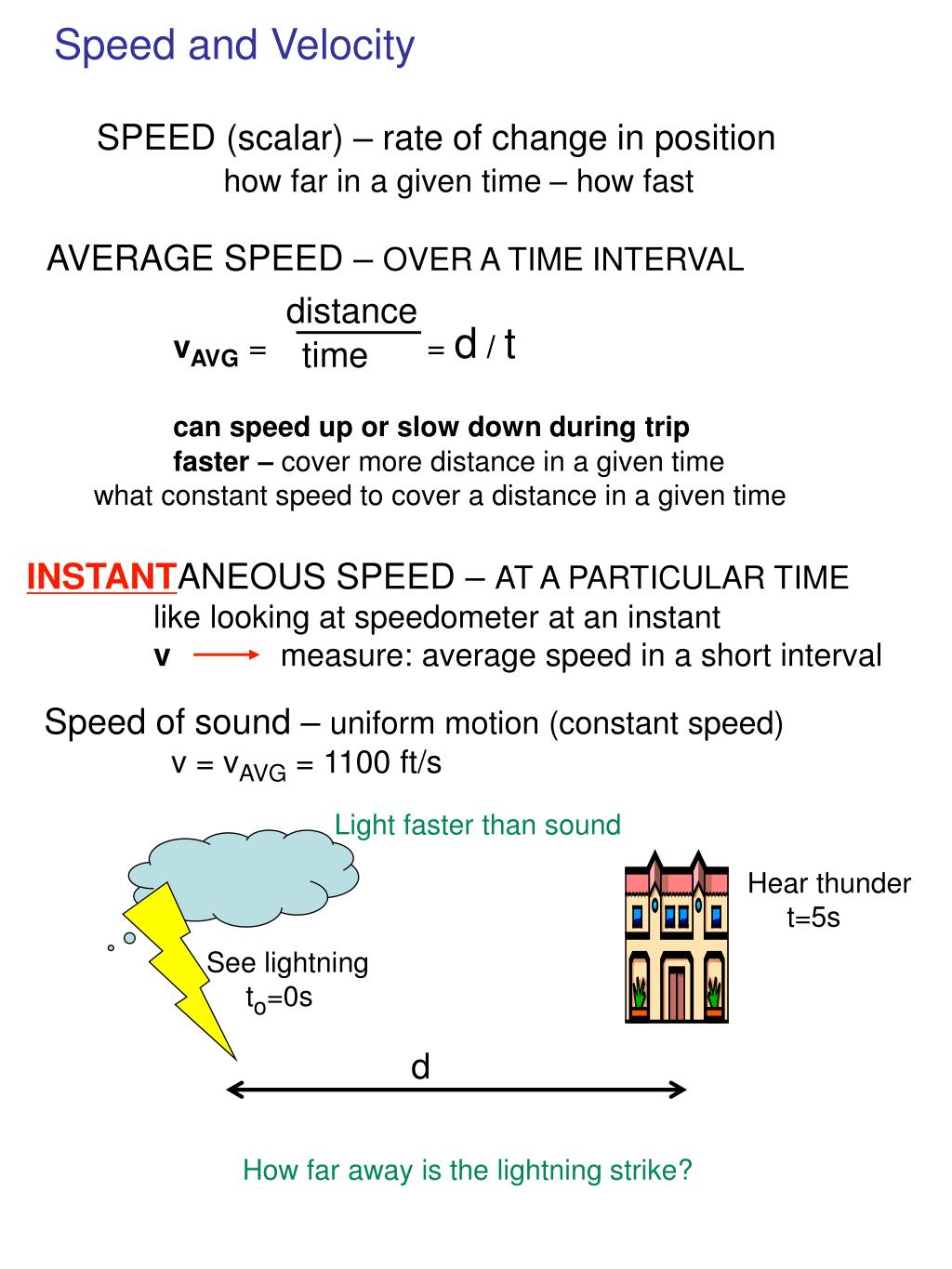

  6. SPEED (scalar) – rate of change in position how far in a given time – how fast Speed and Velocity AVERAGE SPEED – OVER A TIME INTERVAL vAVG = = d/t can speed up or slow down during trip faster – cover more distance in a given time what constant speed to cover a distance in a given time distance time INSTANTANEOUS SPEED – AT A PARTICULAR TIME like looking at speedometer at an instant v measure: average speed in a short interval Speed of sound – uniform motion (constant speed) v = vAVG = 1100 ft/s Light faster than sound Hear thunder t=5s See lightning to=0s d How far away is the lightning strike?

  7. Velocity – how fast and what direction VECTOR! Magnitude – speed Direction - which way it’s going Rectilinear – speed is magnitude of velocity direction – left/right or up/down y + Direction using normal coordinate directions - x + - AVERAGE VELOCITY – time interval again vavg = = d / t displacement time INSTANTANEOUS VELOCITY at each instant during the interval -- short piece of time interval Speed and velocity t = 10 min. Not same for 2D 20 feet

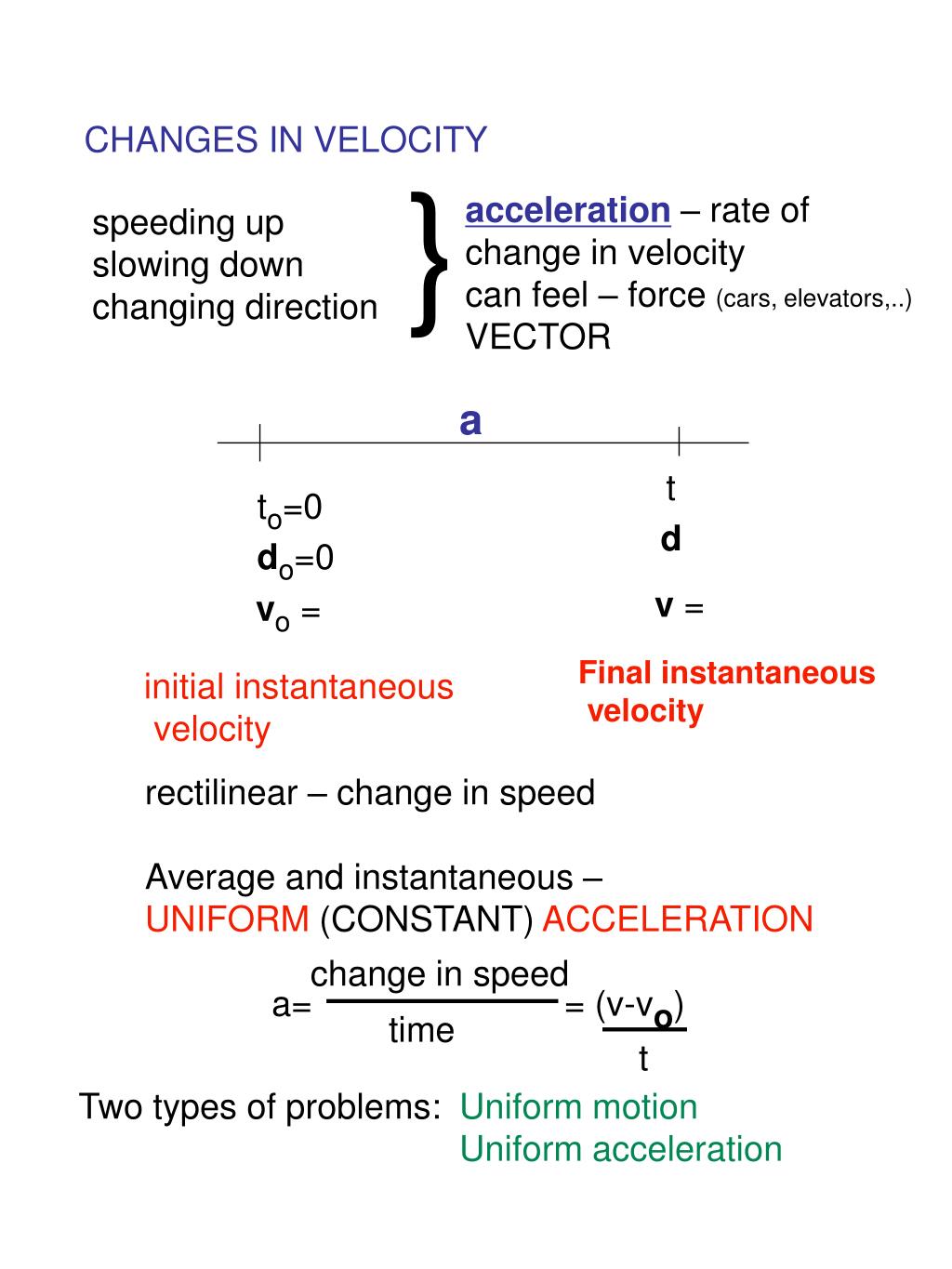

  8. t to=0 d do=0 CHANGES IN VELOCITY } acceleration – rate of change in velocity can feel – force (cars, elevators,..) VECTOR speeding up slowing down changing direction a v = vo = Final instantaneous velocity initial instantaneous velocity rectilinear – change in speed Average and instantaneous – UNIFORM (CONSTANT) ACCELERATION a= = (v-vo) change in speed time t Two types of problems: Uniform motion Uniform acceleration

  9. a v = vo = t to=0 d do=0 DEFINITIONS : vavg = d / t a = (v-vo)/ t DERIVATIONS : not magic – use math to rearrange definitions Tools for 1D Uniform Acceleration - formulae UNIFORM ACCELERATION FORMULA d=vot + ½ at2 v=vo + at vavg= (v+vo)/2 vavg=d / t can find out how objects move Only works for constant acceleration. Identifies when acceleration begins Fill out line diagram and apply formula How to pick right formula -pick two with variable of interest (v, t, a, d) -find variable you don’t care about

  10. 1D uniform acceleration - examples • An airplane starts from rest and reaches the • final take-off velocity in 50 s. What is its acceleration? • 2. Space shuttle rocket accelerates 2 m/s2. a) What is • the velocity 90 s after lift-off? • b) How far did it go? Finish description • 3. A car travels 75 ft/s east and slams on brakes. a) If it • stops in a distance of 200 ft, then how long did it take • to stop? • b) What is the acceleration? • 4. Car accelerates on I-10 uniformly along ramp. The • speed is 30 ft/s at one instant and 5 s later it is • going 110 ft/s. What is the acceleration of the car?

  11. 2D Motion (planar) - projectiles supported by Church 2000 yrs Unnatural motion to Aristotle four elements natural state – rest (he said so) medium adds resistance to speed slow / fast – depends on object unnatural – medium pushes object DEMO – weight vs. crumpled paper ARISTOTLE RIGHT? Galileo – scientific method measure the motion - kinematics compare quantitatively inclined plane all objects fall the same rate: ay = - g = -10 m/s2 (ay = - g g = 10 m/s2) natural state – constant velocity everything we need to treat complex 2D motion projectile motion :objects projected

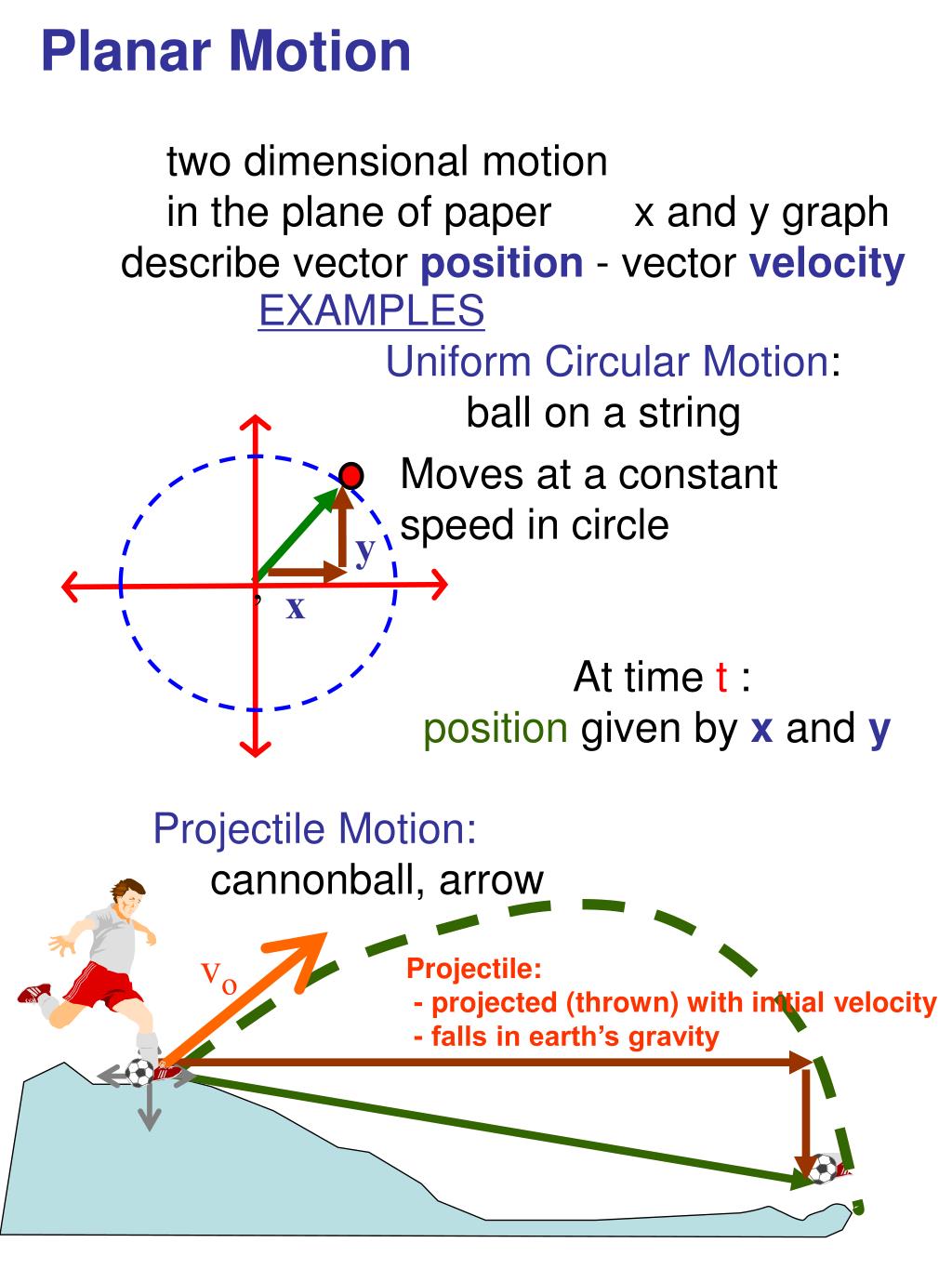

  12. , y x Planar Motion two dimensional motion in the plane of paper x and y graph describe vector position - vector velocity EXAMPLES Uniform Circular Motion: ball on a string Moves at a constant speed in circle At time t : position given by x and y Projectile Motion: cannonball, arrow vo Projectile: - projected (thrown) with initial velocity - falls in earth’s gravity

  13. to=0 to=0 t= t= yo=0 xo=0 y= x= vy= vx= voy= vox= Projectile motion thrown in the earth’s gravity separate into component directions(x,y) work with each component separately! VERTICAL DIRECTION Galileo: ALL objects fall the same ay= -g g =10 m/s2 approx. HORIZONTAL DIRECTION No acceleration if no force (friction) ax=0 (ignore air resistance) ay= - g =-10 m/s2 ax=0

  14. to=0 t= yo=0 y= vy= voy= Two Cases We Will Deal With: Vertical Projectile - Jump ball FREE FALL - freely falling in gravity thrown straight up-fall straight down rectilinear - y direction ay a) time to highest point? b) how high? EXAMPLES A baseball is thrown straight up with a speed of 35 m/s. a)How long does it take to reach the highest point? b) How high does the ball go? An egg is thrown straight downward with a speed of 12 m/s. What is its speed 3 seconds later?

  15. to=0 t= yo=0 y= vy= voy= Horizontal projectile - cannonball, soccer, gun Projected with a horizontal velocity -no initial velocity in vertical (y) direction -must work in two directions - separate ! -time connects the directions Separate components vertical free fall horizontal uniform motion two rectilinear problems vo=40 m/s 12 m range a) How much time to hit ground? what direction?

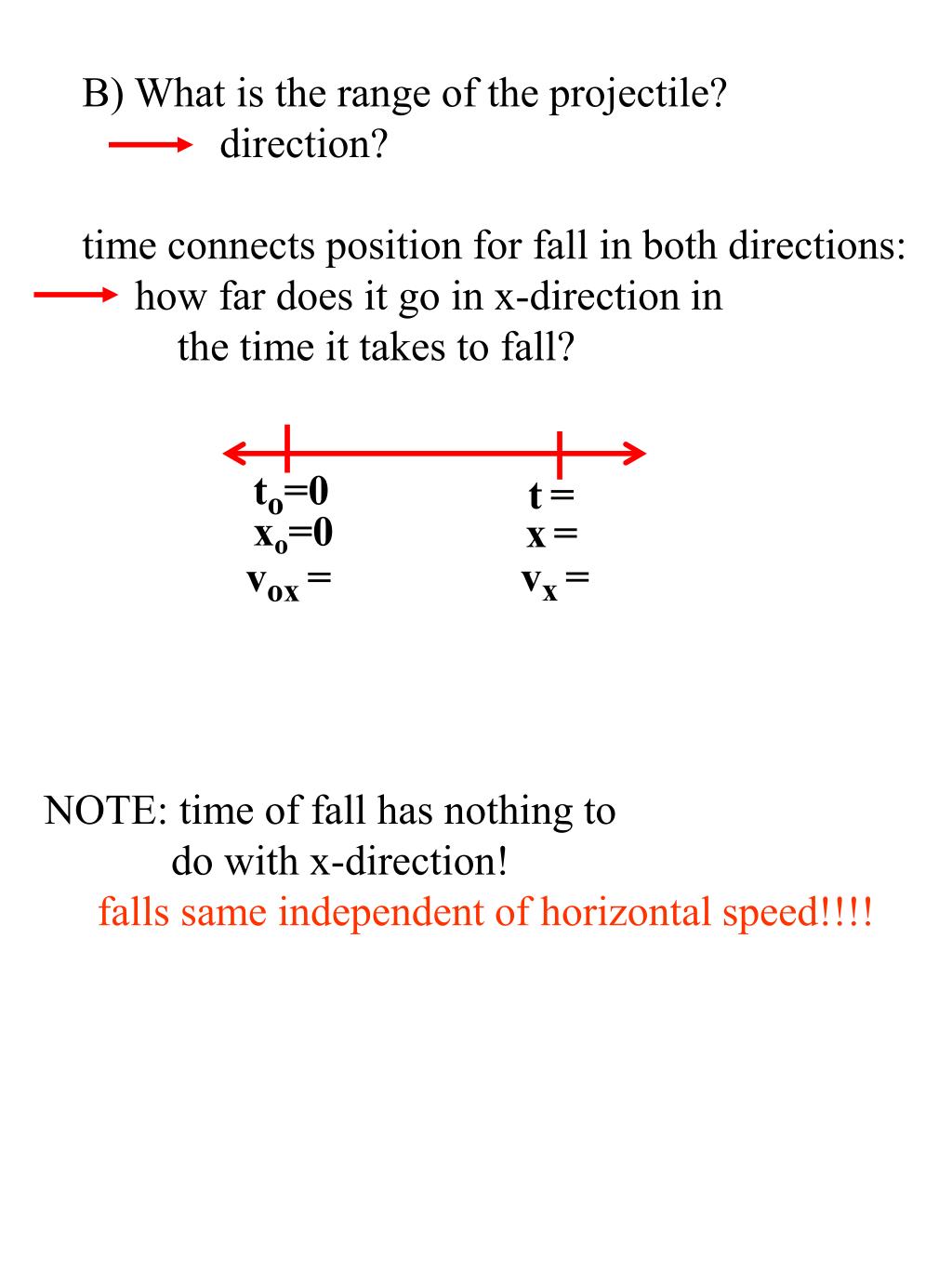

  16. to=0 t= xo=0 x= vx= vox= B) What is the range of the projectile? direction? time connects position for fall in both directions: how far does it go in x-direction in the time it takes to fall? NOTE: time of fall has nothing to do with x-direction! falls same independent of horizontal speed!!!!

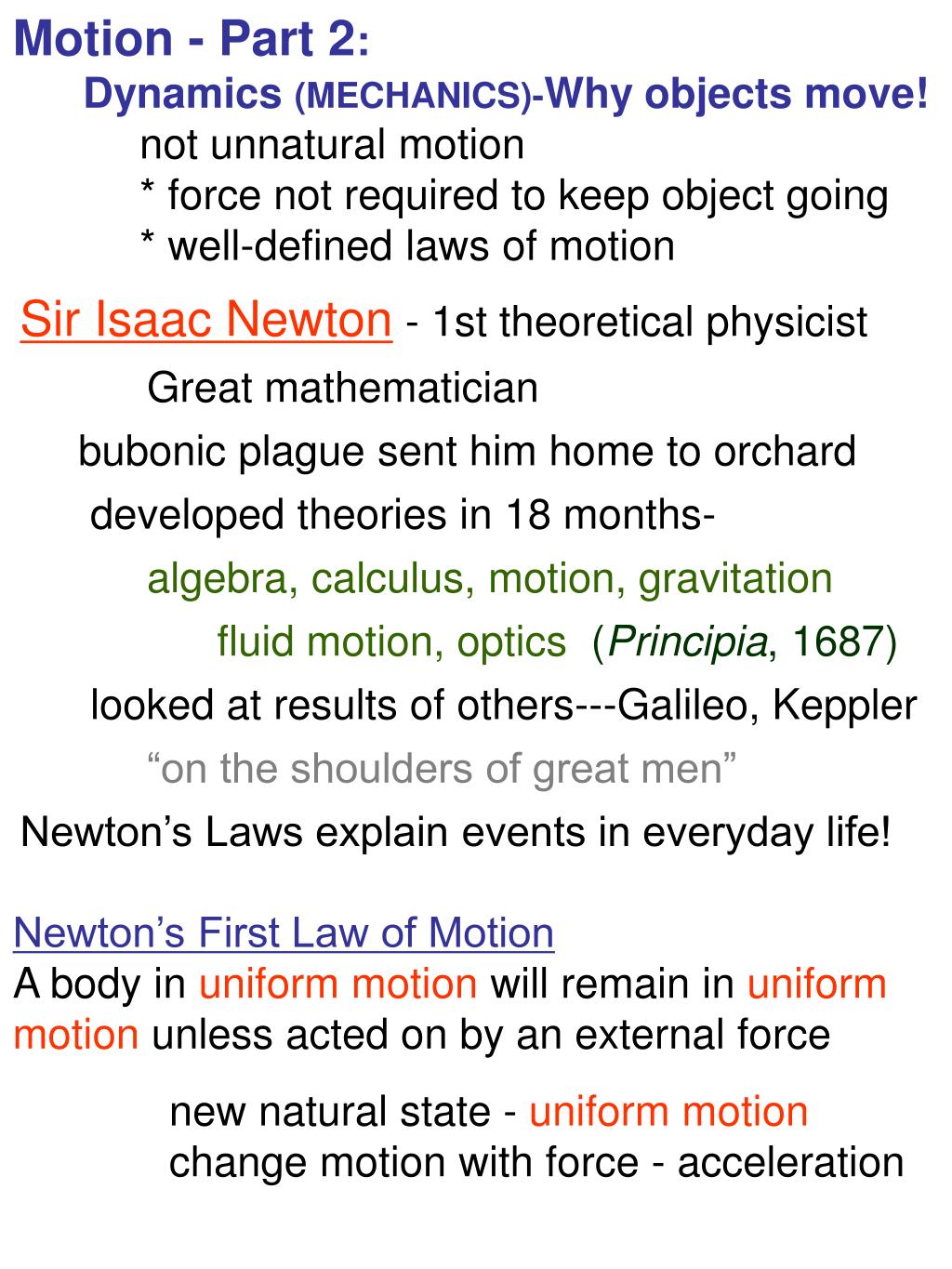

  17. Motion - Part 2: Dynamics (MECHANICS)-Why objects move! not unnatural motion * force not required to keep object going * well-defined laws of motion Sir Isaac Newton - 1st theoretical physicist Great mathematician bubonic plague sent him home to orchard developed theories in 18 months- algebra, calculus, motion, gravitation fluid motion, optics (Principia, 1687) looked at results of others---Galileo, Keppler “on the shoulders of great men” Newton’s Laws explain events in everyday life! Newton’s First Law of Motion A body in uniform motion will remain in uniform motion unless acted on by an external force new natural state - uniform motion change motion with force - acceleration

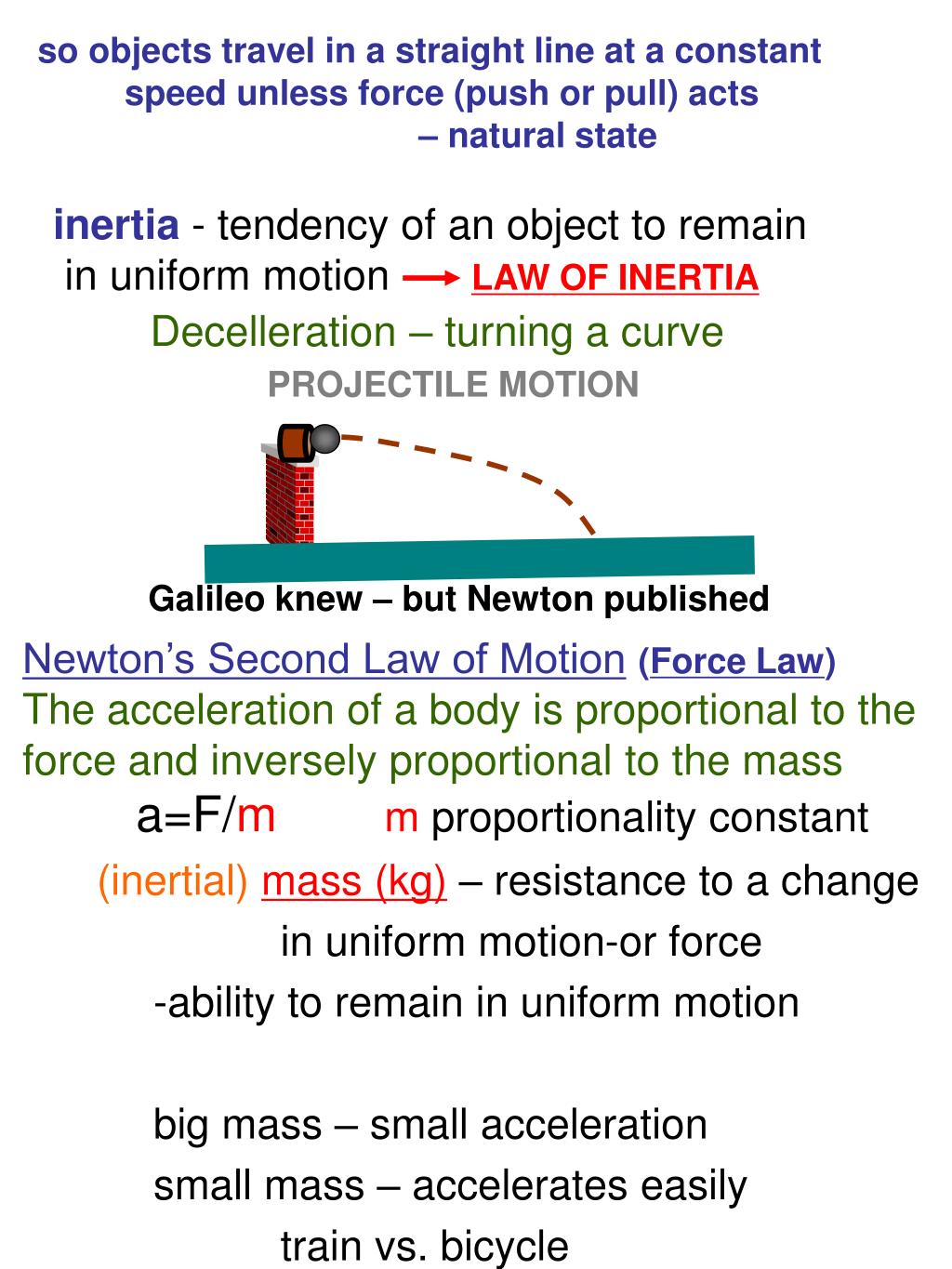

  18. so objects travel in a straight line at a constant speed unless force (push or pull) acts – natural state inertia - tendency of an object to remain in uniform motion LAW OF INERTIA Decelleration – turning a curve PROJECTILE MOTION Galileo knew – but Newton published Newton’s Second Law of Motion(Force Law) The acceleration of a body is proportional to the force and inversely proportional to the mass a=F/mm proportionality constant (inertial)mass (kg) – resistance to a change in uniform motion-or force -ability to remain in uniform motion big mass – small acceleration small mass – accelerates easily train vs. bicycle

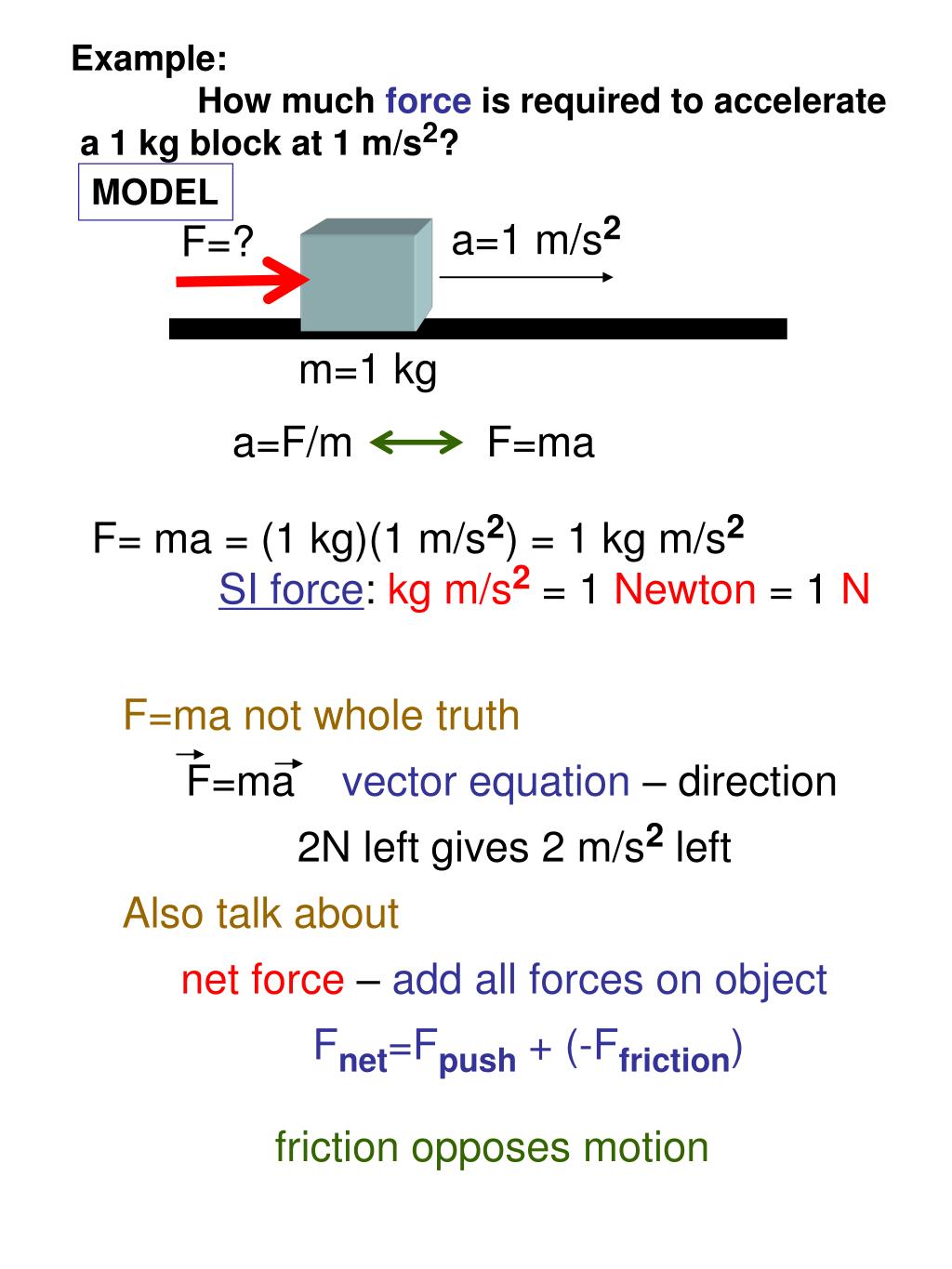

  19. a=F/m F=ma Example: How much force is required to accelerate a 1 kg block at 1 m/s2? MODEL a=1 m/s2 F=? m=1 kg F= ma = (1 kg)(1 m/s2) = 1 kg m/s2 SI force: kg m/s2 = 1 Newton = 1 N • F=ma not whole truth • F=ma vector equation – direction • 2N left gives 2 m/s2 left • Also talk about • net force – add all forces on object • Fnet=Fpush + (-Ffriction) friction opposes motion

  20. Second Law Examples: m=1000 kg 1. F=? a=1 m/s2 2. two people m=1000 kg F1=500 N a=? F2=800 N Fnet = 3. m=1000 kg F1=500 N a=? F2= 800 N Direction – be careful!!!

  21. Weight and mass Mass – intrinsic property of matter - doesn’t change -always resistance to force Weight – force of gravity on an object - depends on location -difficulty in lifting an object -weightless in space, but F=ma still no effort to lift! weight – force of gravity W= F = ma = mg on Earth surface g=10 m/s2 acc. due to gravity Surface gravity : depends on gsurface Moon gmoon=1/6 gearth =1.66 m/s2 M=100 kg Wearth= 1000 N Wmoon= 166 N Wspace= 0 g=0 weightless F=ma still

  22. Newton’s laws good for more than 200 years NO DISCREPANCIES Tribute to Newton 20th century- new observations measurement techniques improved failures in F=ma Jet planes, rockets – very very fast scale Einstein’s Theory of Special Relativity E-Microscope, scattering – very very small scale Quantum Mechanical Theory (Bohr, Scrodinger) Telescopy (BH, Neutron stars) – very very massive scale Einstein’s Theory of General Relativity ALL theories reduce to F=ma in the scale of everyday experience: - use Newton’s 2nd law for our purposes - F=ma valid for cars, buildings, etc. less complicated math!!!! - use other theories when needed….

  23. Forces of Nature: accelerate objects Gravitational – force between masses suns, planets, people Electromagnetic – force between charges opposites attract-likes repel “contact force” Strong Nuclear – nucleus of an atom keeps atom together “ likes repel” Weak Nuclear – nuclear decay gamma rays, beta-decay, nuclear reactions UNIFYING THEORY – binds all forces together at times beginning -all forces have same form HOLY GRAIL

  24. Newton’s Third Law of Motion(Action-Reaction) If one body exerts a force on a second, then the second exerts a force back on the first which is equal in magnitude and opposite in direction Easy statement: How objects push on one another - Forces exerted in pairs -Always exerts force back -Large mass, small acceleration pendulum toy leaning on wall walking Fhand Fwall

  25. Application of Newton’s Laws: Circular Motion Uniform Circular motion object traveling in a circle of constant radius at uniform speed Like planet motion Or a ball on a string 1st law – inertial movement constant speed in straight line - velocity R Velocity – tangent Acceleration - radial 2nd law – forced falls in toward center – direction change - acceleration Centripetal (center-seeking) acceleration - FORCE acceleration required to keep object on circle too fast, spirals in – too slow, spirals out ac=v2 / R depends on particular circle and speed

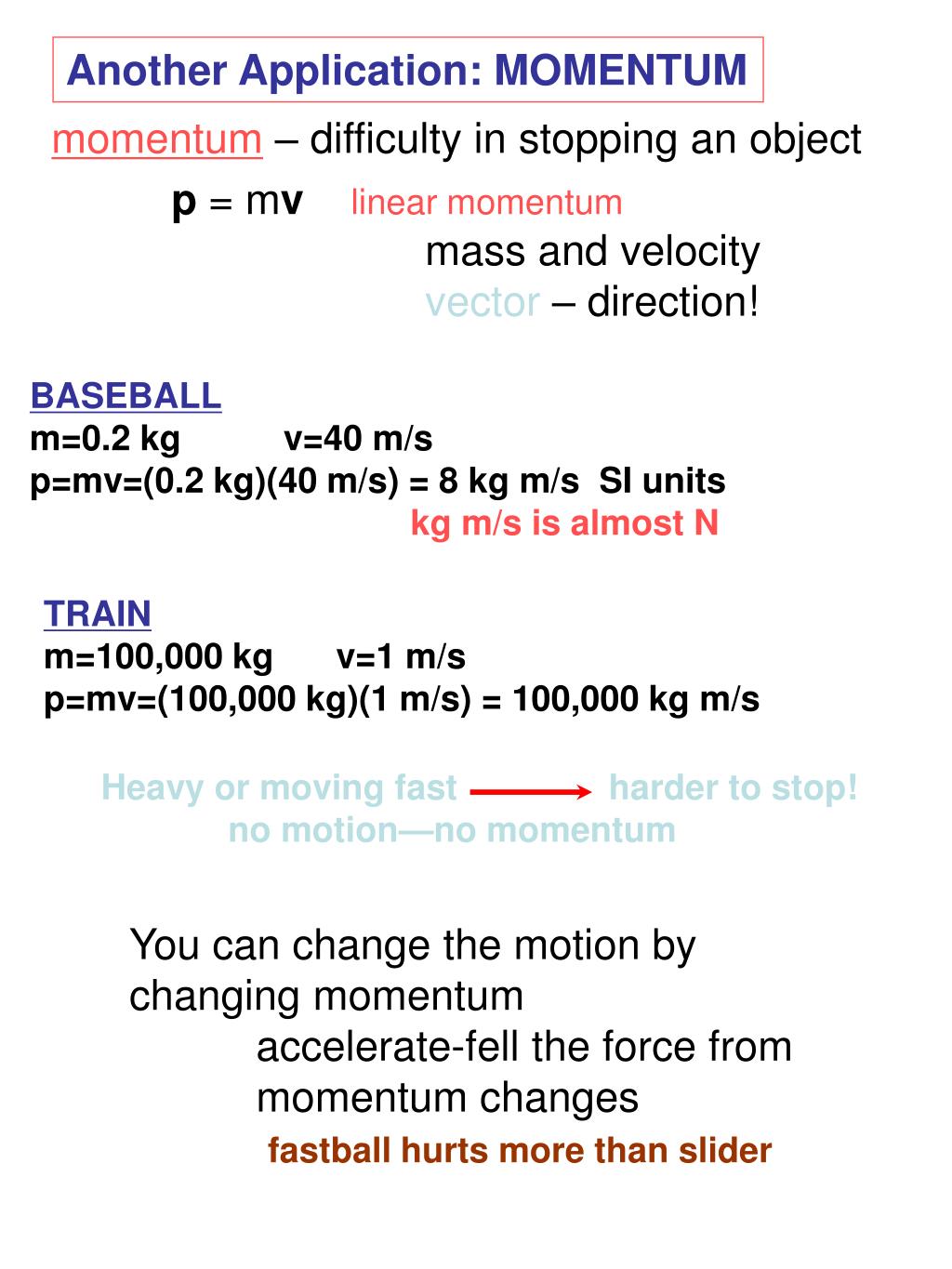

  26. Another Application: MOMENTUM momentum – difficulty in stopping an object p = mv linear momentum mass and velocity vector – direction! BASEBALL m=0.2 kg v=40 m/s p=mv=(0.2 kg)(40 m/s) = 8 kg m/s SI units kg m/s is almost N TRAIN m=100,000 kg v=1 m/s p=mv=(100,000 kg)(1 m/s) = 100,000 kg m/s Heavy or moving fast harder to stop! no motion—no momentum You can change the motion by changing momentum accelerate-fell the force from momentum changes fastball hurts more than slider

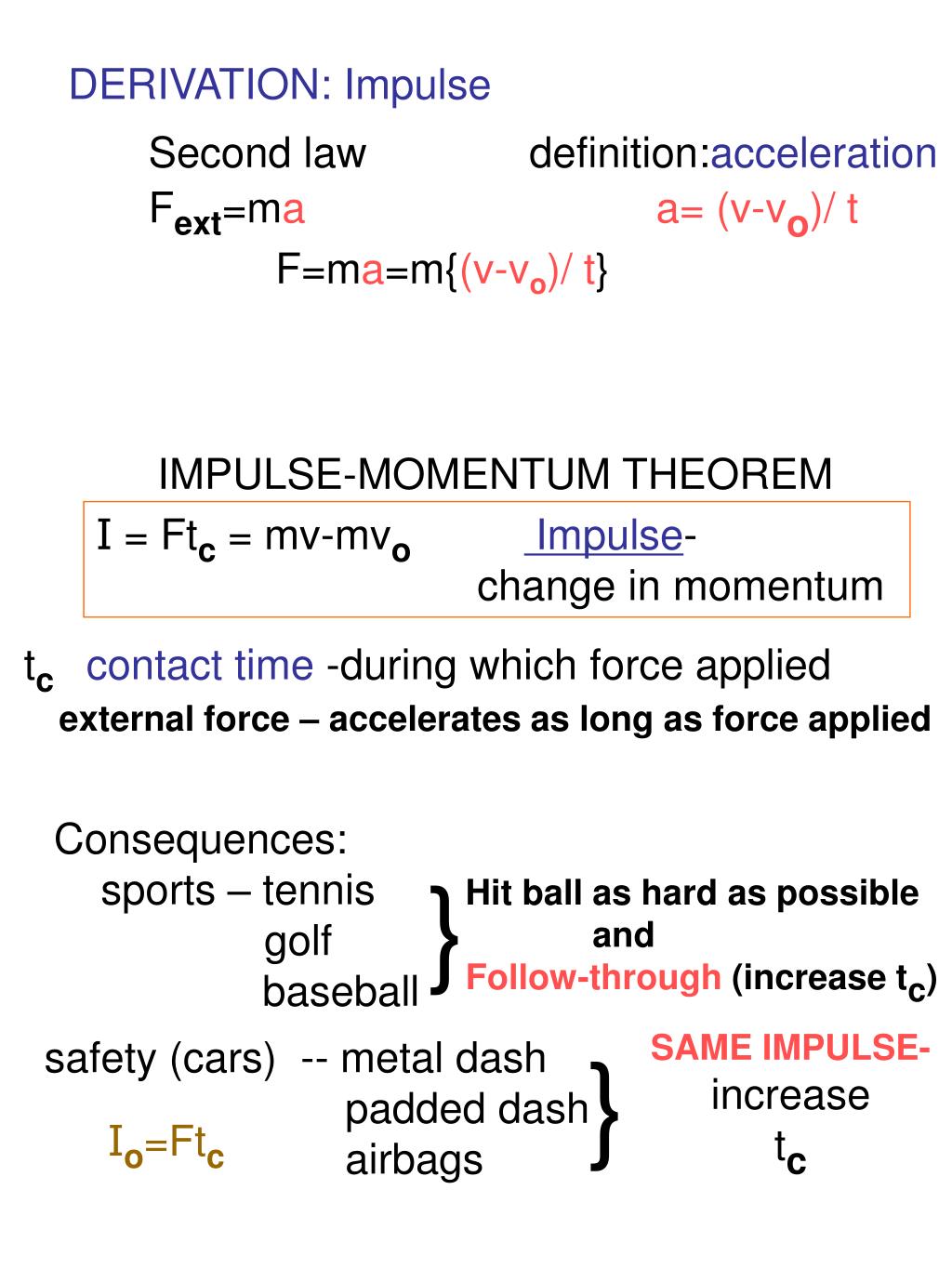

  27. DERIVATION: Impulse Second law definition:acceleration Fext=maa= (v-vo)/ t F=ma=m{(v-vo)/ t} IMPULSE-MOMENTUM THEOREM I = Ftc = mv-mvo Impulse- change in momentum tc contact time -during which force applied external force – accelerates as long as force applied Consequences: sports – tennis golf baseball } Hit ball as hard as possible and Follow-through (increase tc) SAME IMPULSE- increase tc safety (cars) -- metal dash padded dash airbags } Io=Ftc

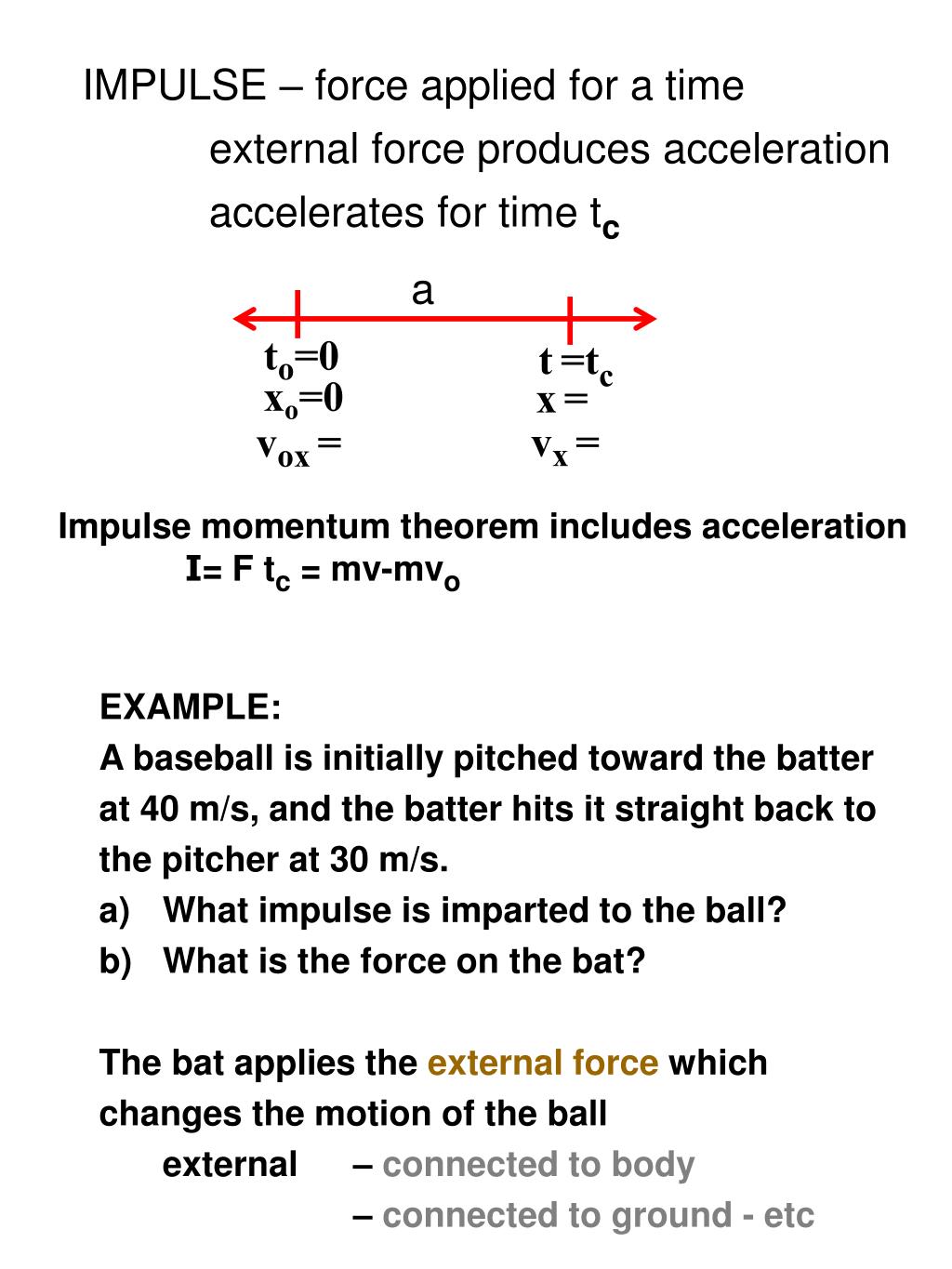

  28. to=0 t=tc xo=0 x= vx= vox= IMPULSE – force applied for a time external force produces acceleration accelerates for time tc a Impulse momentum theorem includes acceleration I= F tc = mv-mvo • EXAMPLE: • A baseball is initially pitched toward the batter • at 40 m/s, and the batter hits it straight back to • the pitcher at 30 m/s. • What impulse is imparted to the ball? • What is the force on the bat? • The bat applies the external force which • changes the motion of the ball • external – connected to body • – connected to ground - etc

  29. Conservation of Momentum - COLLISIONS Momentum important in collisions COLLISION MODEL v2 Isolated System No external forces v1 BEFORE m2 m1 individual impulses cancel –equal & opposite F21 F12 DURING accelerated m1 internal forces 3rd lawaction-reaction pair m2 v2 v1 AFTER m2 m1 Momentum exchanged : I is change in momentum I12=-I21 one gains, other loses momentum

  30. Conservation laws conserved – same before as after constant if assumptions true Conservation of momentum ptot=m1v1+m2v2 if no external forces INTERACTING OBJECTS For collisions, conserved before and after collision =(m1v1+m2v2)after ptot= (m1v1+m2v2)before Internal forces transfer momentum ISOLATED FROM OUTSIDE FORCES No momentum lost transferred EXAMPLE: perfectly inelastic – stick together after colliding

  31. R Newton’s Law of Universal Gravitation Newton described how a gravitational force would act MOTIVATION: ASTRONOMY – circular motion inertial- - linear centripetal Falls toward center of earth MOON Moon falls like apple Earth What caused moon to fall? APPLES and the MOON fall due to same force -- gravity LAW OF UNIVERSAL GRAVITATION All objects with mass attract all other objects with mass -attractive force -smallest force in nature -universal (all objects the same) falling apples-orbiting planets-satellites EXPLAINED Heliocentric Model!

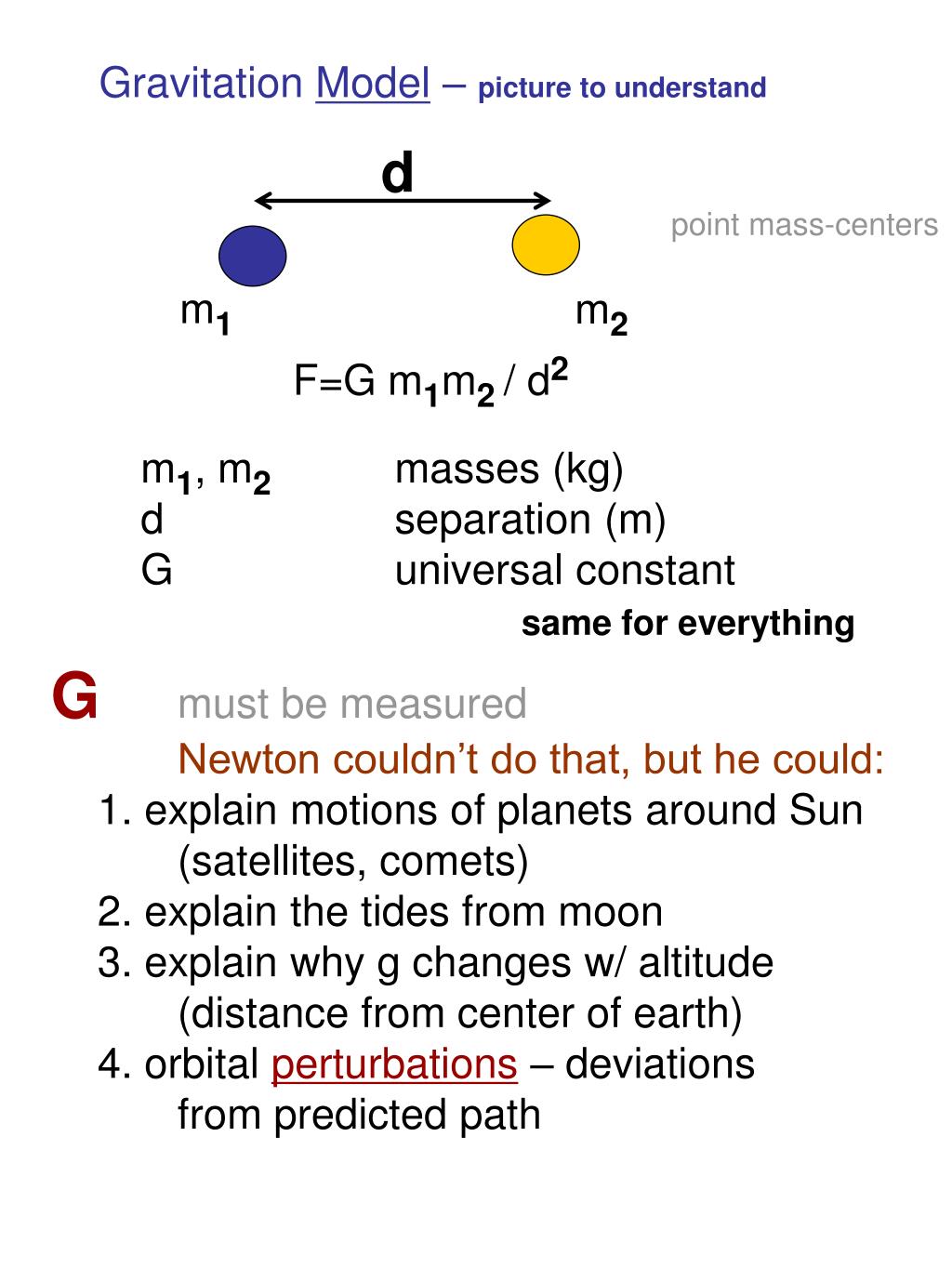

  32. Gravitation Model – picture to understand d point mass-centers m1 m2 F=G m1m2 / d2 m1, m2 masses (kg) d separation (m) G universal constant same for everything Gmust be measured Newton couldn’t do that, but he could: 1. explain motions of planets around Sun (satellites, comets) 2. explain the tides from moon 3. explain why g changes w/ altitude (distance from center of earth) 4. orbital perturbations – deviations from predicted path

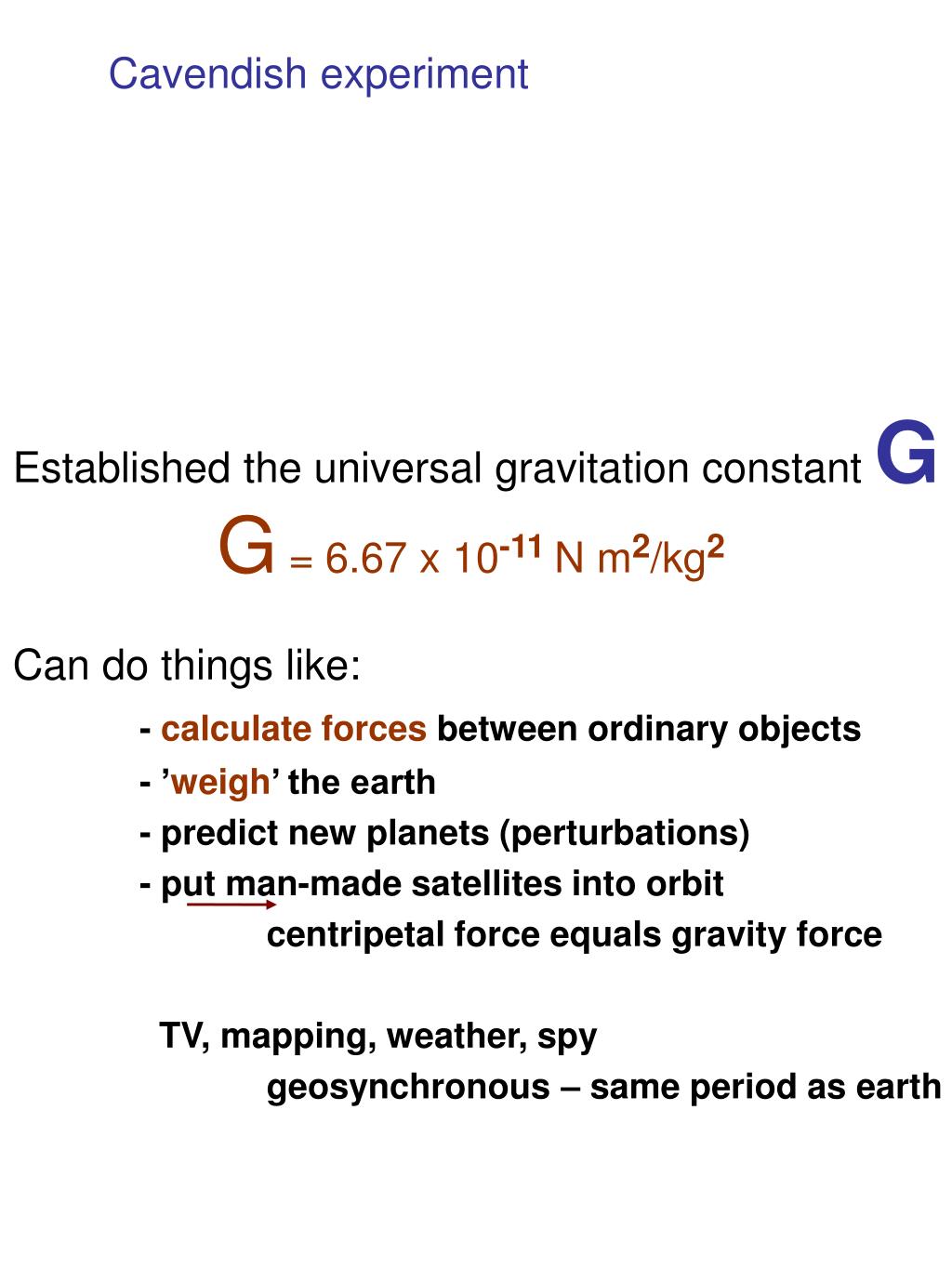

  33. Cavendish experiment Established the universal gravitation constant G G = 6.67 x 10-11 N m2/kg2 Can do things like: - calculate forces between ordinary objects - ’weigh’ the earth - predict new planets (perturbations) - put man-made satellites into orbit centripetal force equals gravity force TV, mapping, weather, spy geosynchronous – same period as earth
