  1. DIGITAL LOGIC DESIGN by Dr. Fenghui Yao Tennessee State University Department of Computer Science Nashville, TN Gate-Level Minimization

  2. What is minimization? • Simplifying boolean expressions • Algebraic manipulations is hard since there is not a uniform way of doing it • Karnaugh map or K-map techniques is very commonly used Gate-Level Minimization

  3. Two-Variable K-Map Gate-Level Minimization

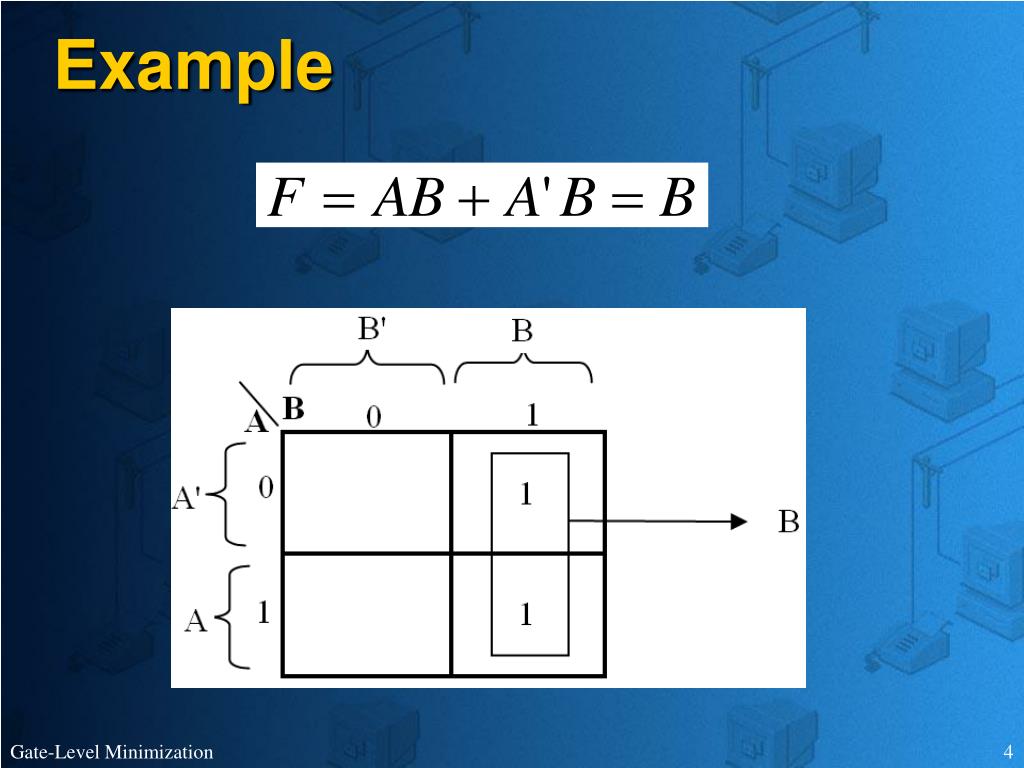

  4. Example Gate-Level Minimization

  5. Example Example Gate-Level Minimization

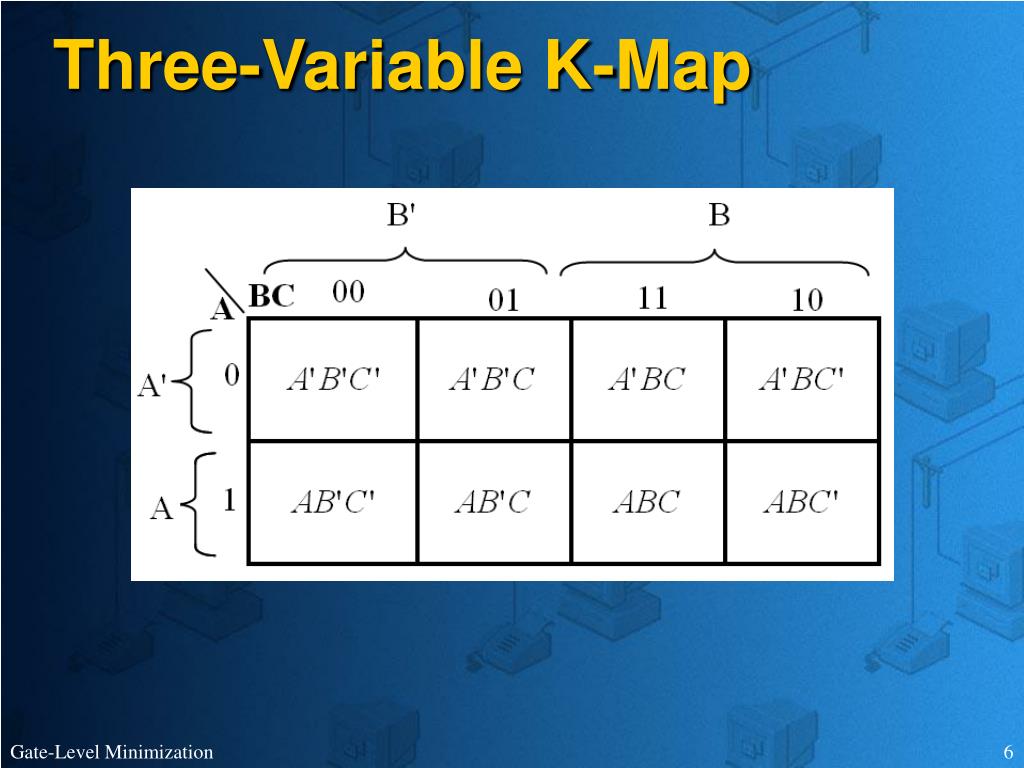

  6. Three-Variable K-Map Gate-Level Minimization

  7. Three-Variable K-Map Gate-Level Minimization

  8. Example Gate-Level Minimization

  9. Note • In K-maps, you can have groups of 2, 4, 8, or 16 • You cannot have groups of other combinations such as a group of 6 Gate-Level Minimization

  10. Exercises Gate-Level Minimization

  11. Example • Represent F in the minimal format and draw the network diagram Gate-Level Minimization

  12. Example • Represent F in the minimal format and draw the network diagram Gate-Level Minimization

  13. Example • Represent F in the minimal format and draw the network diagram Gate-Level Minimization

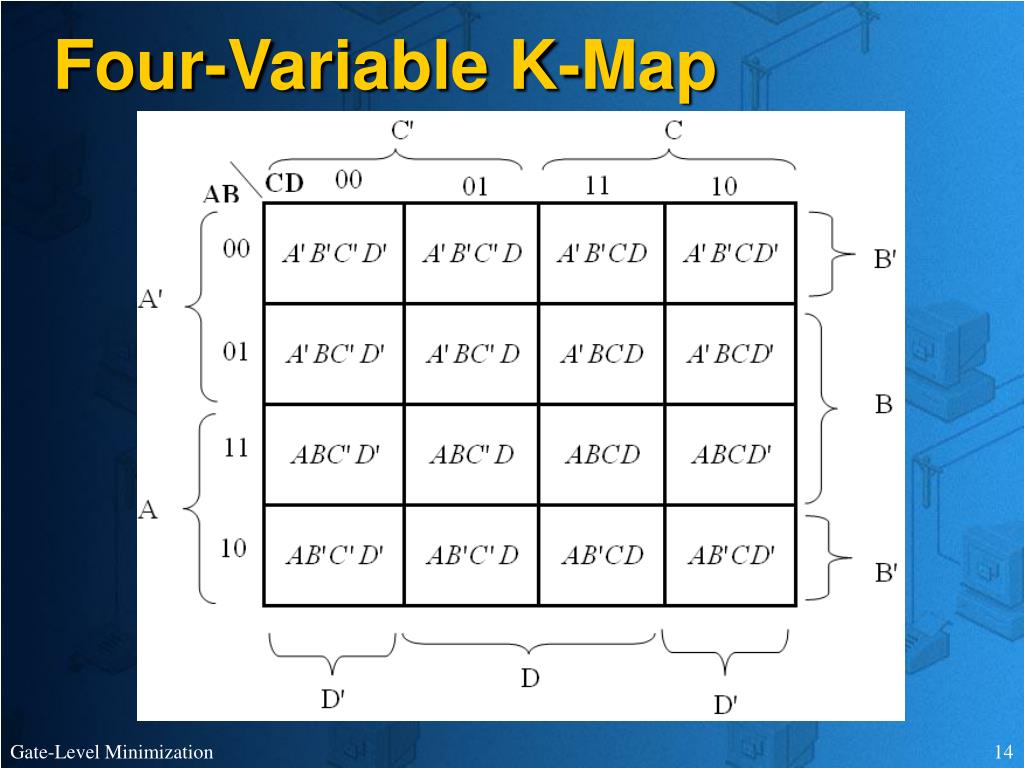

  14. Four-Variable K-Map Gate-Level Minimization

  15. Four-Variable K-Map Gate-Level Minimization

  16. Example • Represent F in the minimal format and draw the network diagram Gate-Level Minimization

  17. Example • Represent F in the minimal format and draw the network diagram Gate-Level Minimization

  18. Example • Represent F in the minimal format and draw the network diagram Gate-Level Minimization

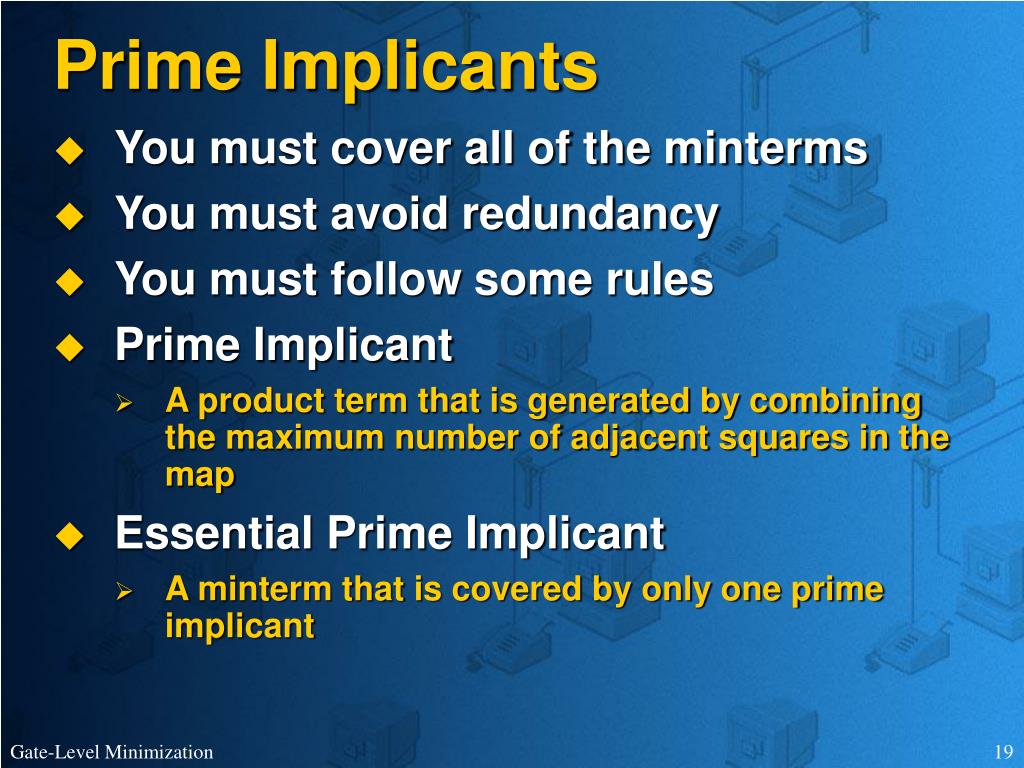

  19. Prime Implicants • You must cover all of the minterms • You must avoid redundancy • You must follow some rules • Prime Implicant • A product term that is generated by combining the maximum number of adjacent squares in the map • Essential Prime Implicant • A minterm that is covered by only one prime implicant Gate-Level Minimization

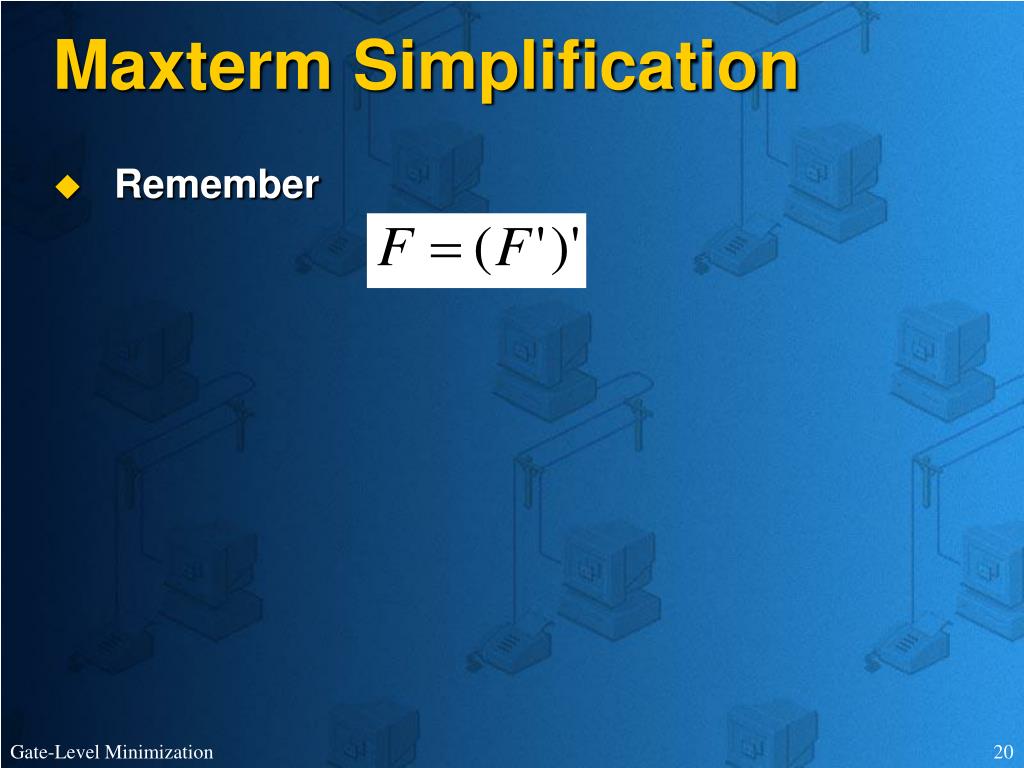

  20. Maxterm Simplification • Remember Gate-Level Minimization

  21. Example • Simplify F in product of sums Gate-Level Minimization

  22. Example (cont) • Step – 1 • Fill the K-map for F Gate-Level Minimization

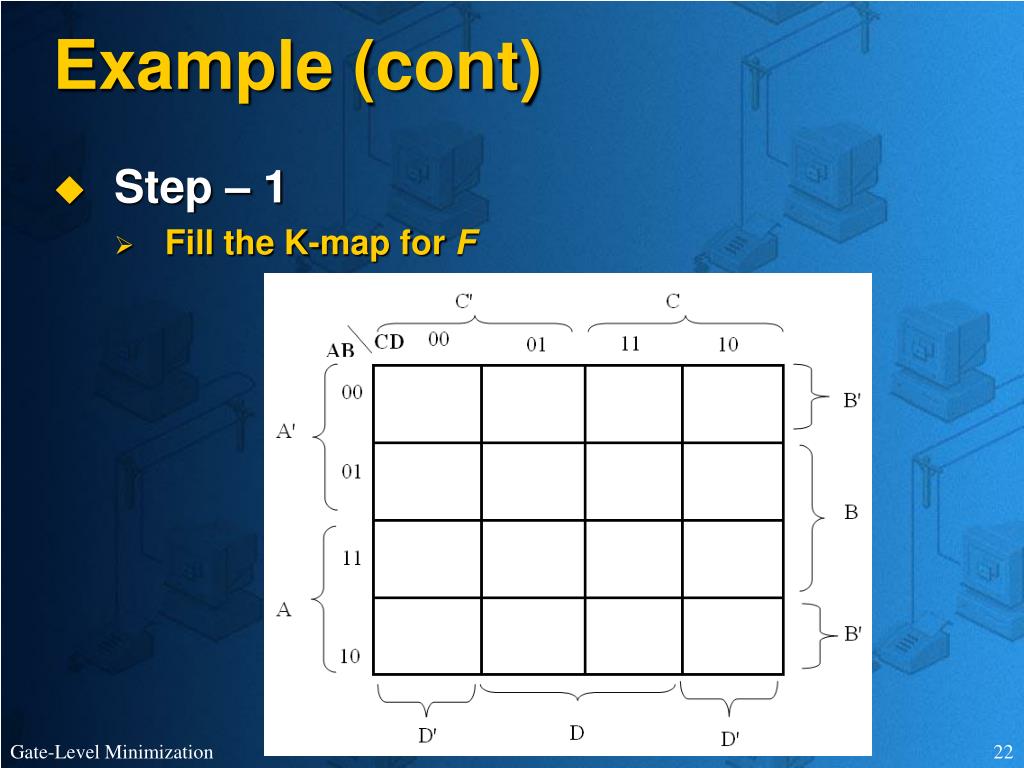

  23. Example (cont) • Step – 1 • Fill the K-map for F Gate-Level Minimization

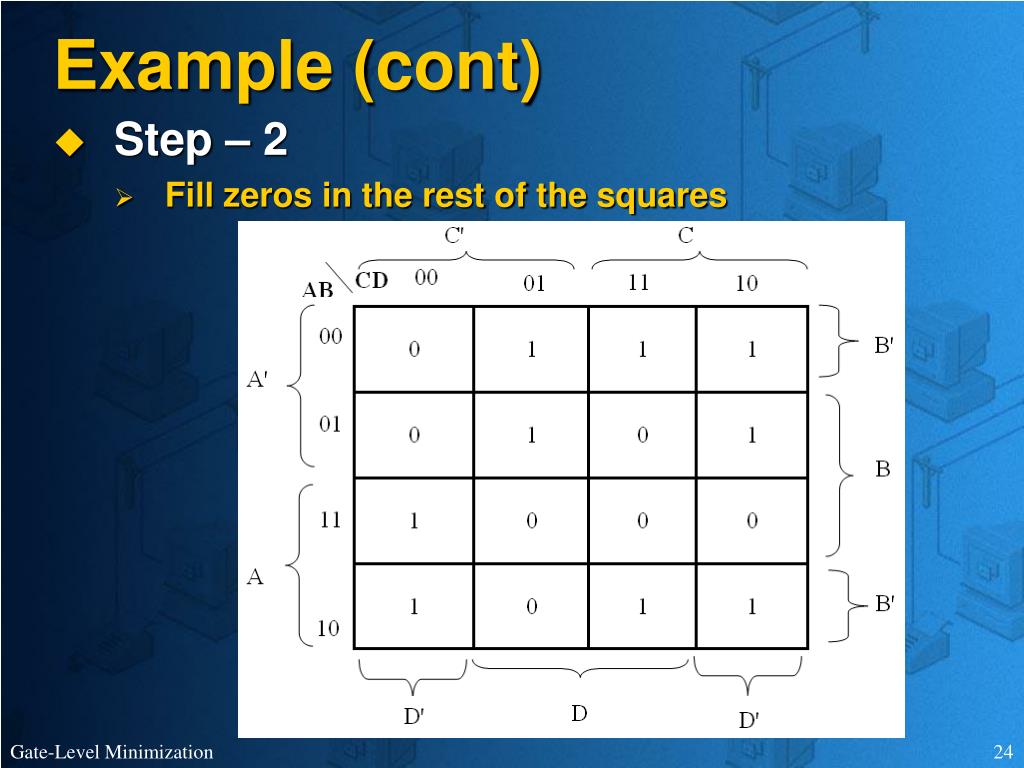

  24. Example (cont) • Step – 2 • Fill zeros in the rest of the squares Gate-Level Minimization

  25. Example (cont) • Step – 3 • Cover zeros. This is your F’ Gate-Level Minimization

  26. Important Gate-Level Minimization

  27. Don’t Care Conditions • A network is usually composed of sub-networks • Net-1 may not produce all combinations of A,B, and C • In this case, F don’t care about those combinations A B C Net-1 Net-2 F Gate-Level Minimization

  28. Don’t Care Conditions X can be considered as 0 or 1, whichever is more convenient 0 0 0 1 0 0 1 x 0 1 0 0 0 1 1 1 1 0 0 0 1 0 1 0 1 1 0 x 1 1 1 1 Gate-Level Minimization

  29. NAND/NOR Implementations • AND, OR, and NOT gates can be used to construct the digital systems • However, it is easier to fabricate NAND and NOR gates • So try to replace AND, OR, and NOT gates with NAND or NOR gates Gate-Level Minimization

  30. NAND Implementation • First implement with AND-OR • Put bubble at the output of each AND gate • Put bubbles at the inputs of each OR gate • Place necessary inverters Gate-Level Minimization

  31. Example Gate-Level Minimization

  32. Example Gate-Level Minimization

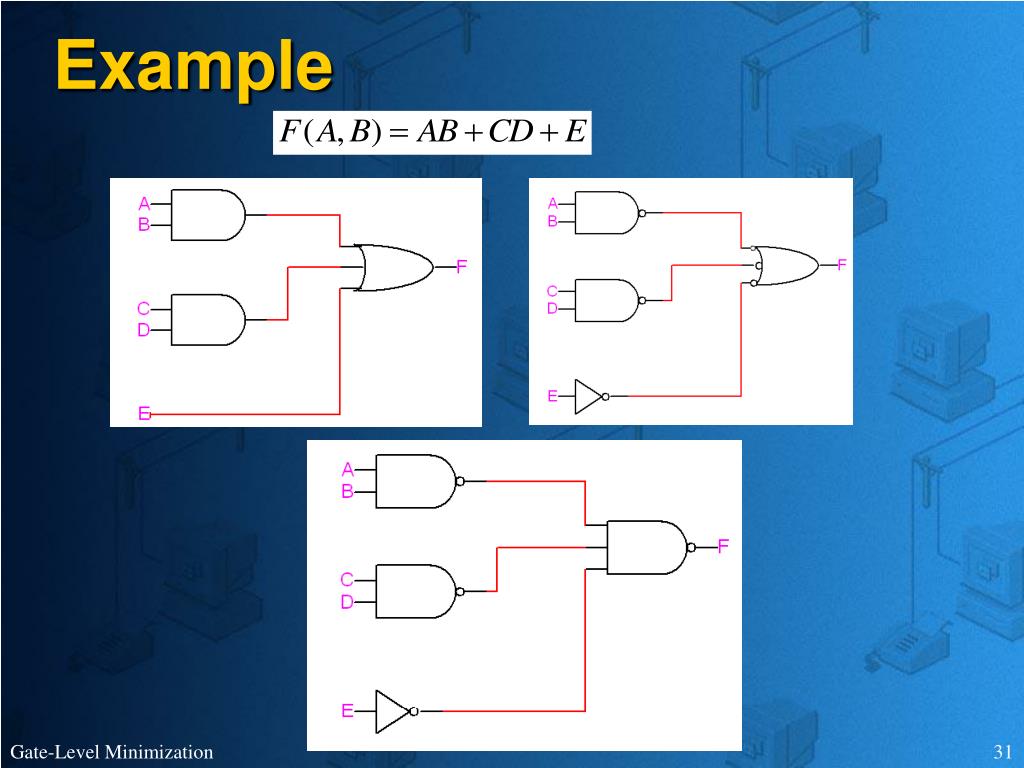

  33. Example Gate-Level Minimization

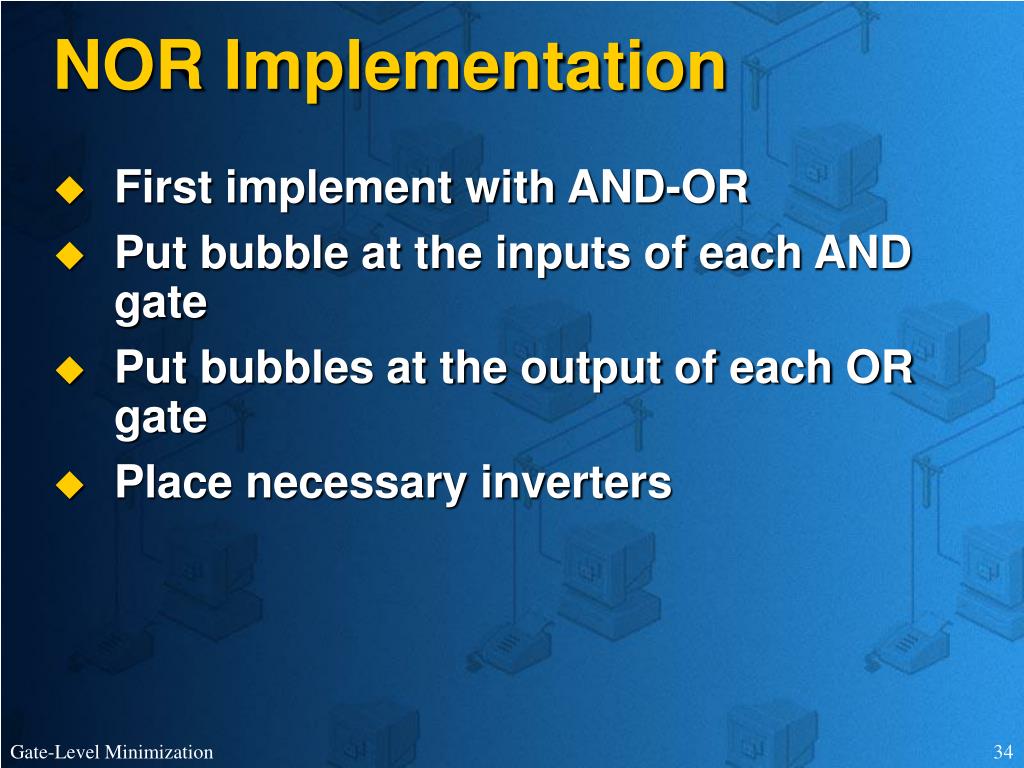

  34. NOR Implementation • First implement with AND-OR • Put bubble at the inputs of each AND gate • Put bubbles at the output of each OR gate • Place necessary inverters Gate-Level Minimization

  35. Example Gate-Level Minimization

  36. Study Problems • Course Book Chapter – 3 Problems • 3– 1 • 3 – 3 • 3 – 5 • 3 – 7 • 3 – 12 • 3 – 15 • 3 – 18 Gate-Level Minimization

  37. Questions Gate-Level Minimization
