  1. Player Modeling Chris Boston Mike Pollock Kipp Hickman

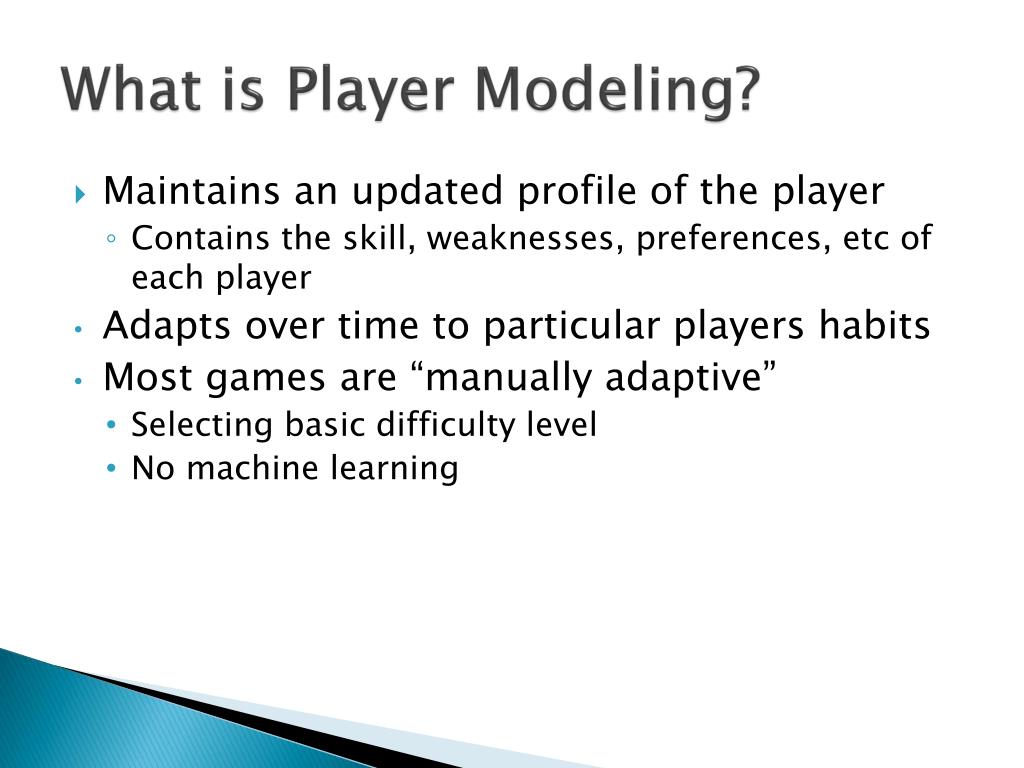

  2. What is Player Modeling? • Maintains an updated profile of the player • Contains the skill, weaknesses, preferences, etc of each player • Adapts over time to particular players habits • Most games are “manually adaptive” • Selecting basic difficulty level • No machine learning

  3. Designing a player model • List of numeric values for each trait • Usually an array of values between 0 and 1 for each trait, initialized to 0.5 • Each represents a single aspect of behavior (strategy, maneuvers, skills) • Chose traits that correlate well with AI actions • Balance between fine statistics that will cost a lot to compute and coarse statistics that don’t represent enough info. • FSM can also be used • Decouples player model from game code allowing for easier tuning

  4. Updating the Player Model • Determine when to update the model • Some detection routines can be labor intensive • Fix: Keep a log of player actions for later background computations or try to use info already being computed by AI code • Update the model • Least Means Squares algorithm • traitValue = k*observedValue + (1-k)*traitValue • K (learning rate) usually 0.1-0.3

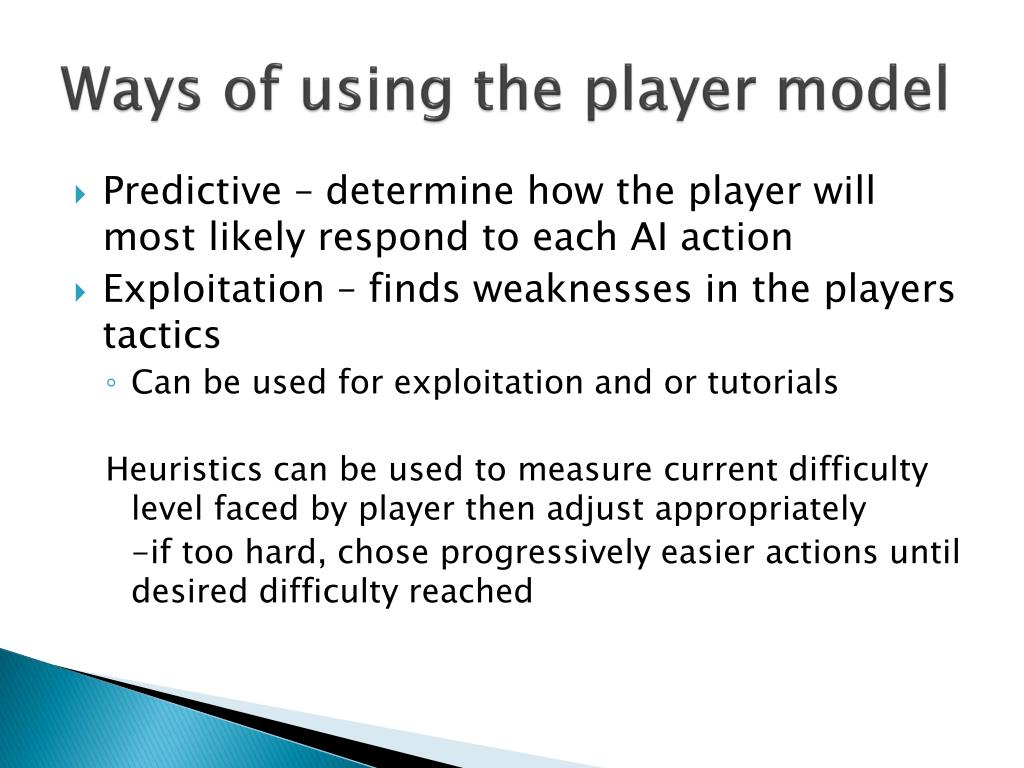

  5. Ways of using the player model • Predictive – determine how the player will most likely respond to each AI action • Exploitation – finds weaknesses in the players tactics • Can be used for exploitation and or tutorials Heuristics can be used to measure current difficulty level faced by player then adjust appropriately -if too hard, chose progressively easier actions until desired difficulty reached

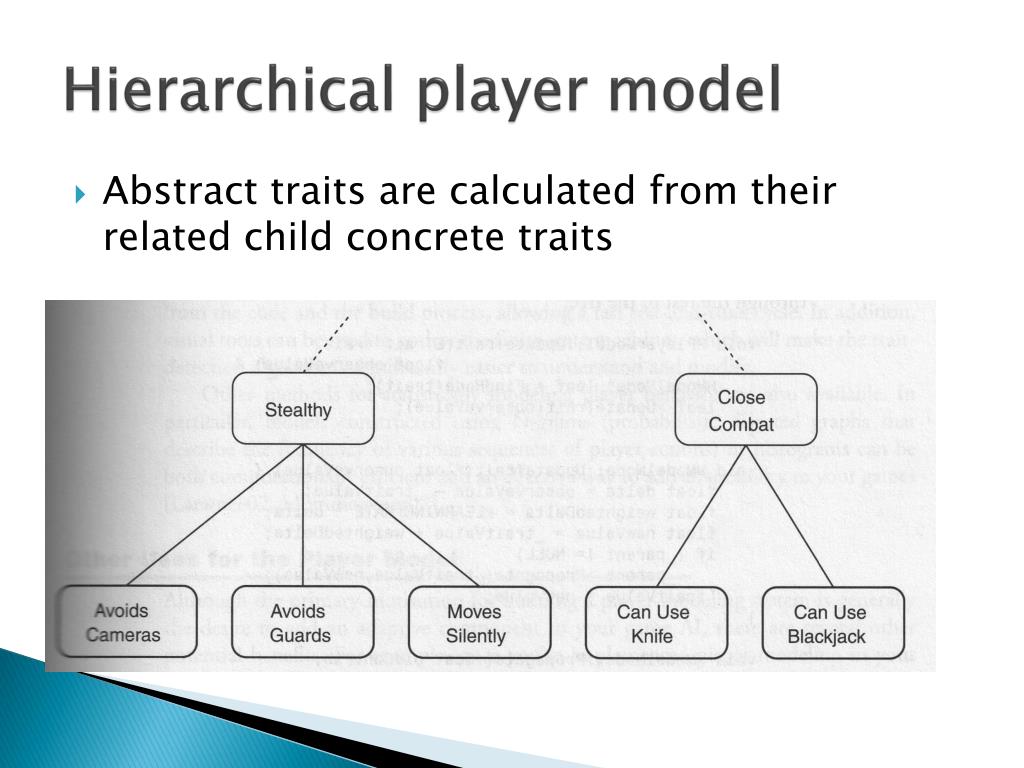

  6. Hierarchical player model • Abstract traits are calculated from their related child concrete traits

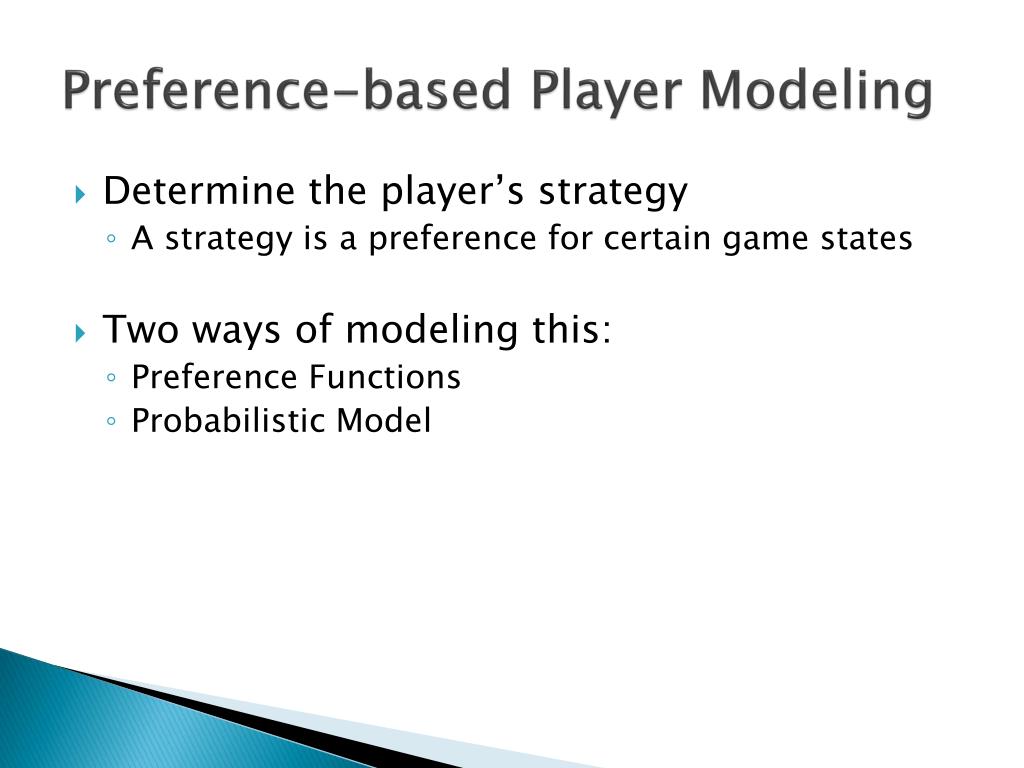

  7. Preference-based Player Modeling • Determine the player’s strategy • A strategy is a preference for certain game states • Two ways of modeling this: • Preference Functions • Probabilistic Model

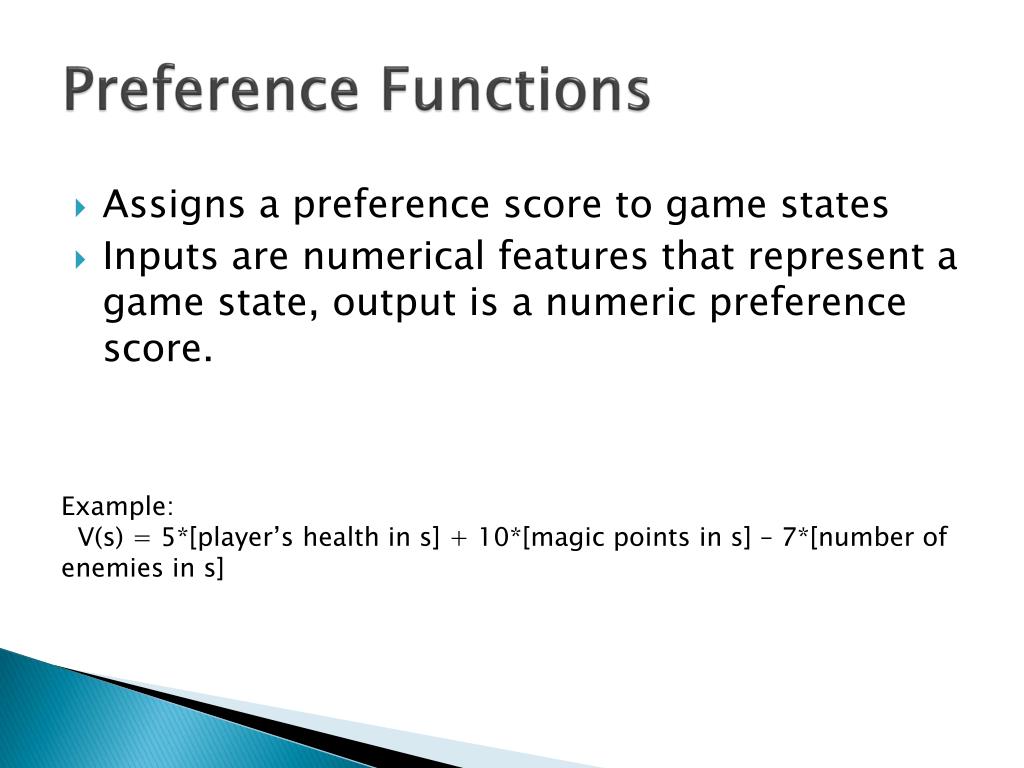

  8. Preference Functions • Assigns a preference score to game states • Inputs are numerical features that represent a game state, output is a numeric preference score. Example: V(s) = 5*[player’s health in s] + 10*[magic points in s] – 7*[number of enemies in s]

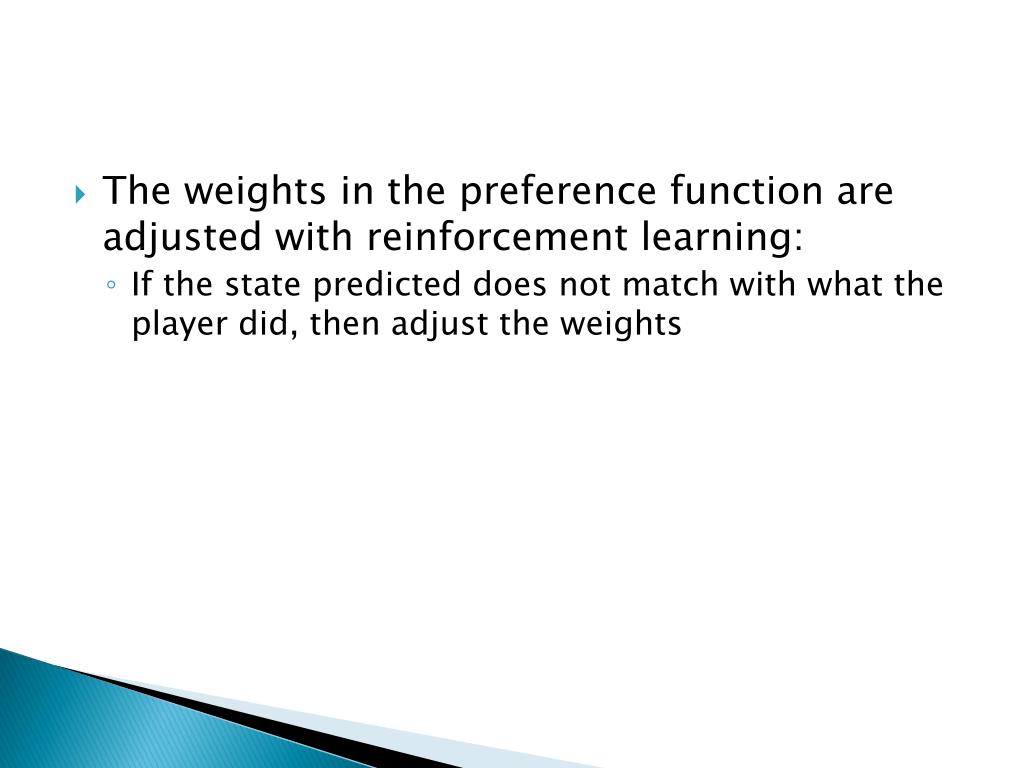

  9. The weights in the preference function are adjusted with reinforcement learning: • If the state predicted does not match with what the player did, then adjust the weights

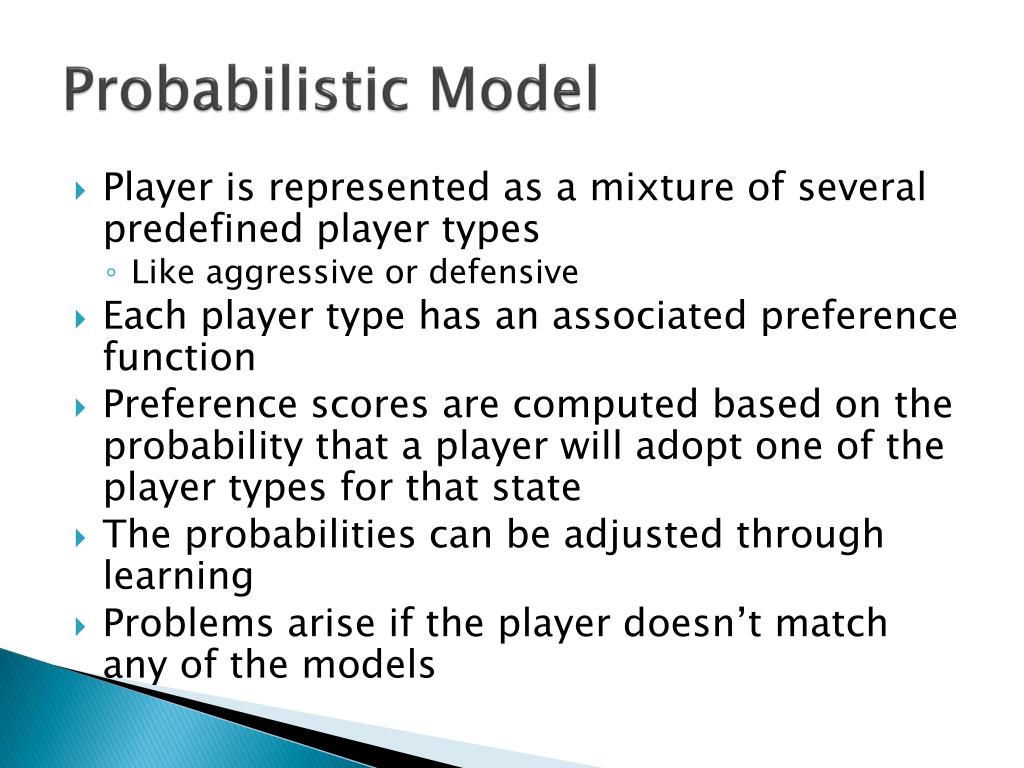

  10. Probabilistic Model • Player is represented as a mixture of several predefined player types • Like aggressive or defensive • Each player type has an associated preference function • Preference scores are computed based on the probability that a player will adopt one of the player types for that state • The probabilities can be adjusted through learning • Problems arise if the player doesn’t match any of the models

  11. Example Aggressive type: V(s) = 4*[player’s health in s] – 8*[number of enemies in s] Defensive type: V(s) = 8*[player’s health in s] – 8*[number of enemies in s]

  12. Minimax • Algorithm for finding the optimal move in a zero-sum game • The player tries to maximize the value, while the computer tries to minimize it • The player’s turns are squares, the computer’s are circles • Actions are left or right • animated example

  13. PM search • Basic idea: use preference functions for the values of each node and then apply Minimax • V0 is the computer’s preference function, V1 is the players

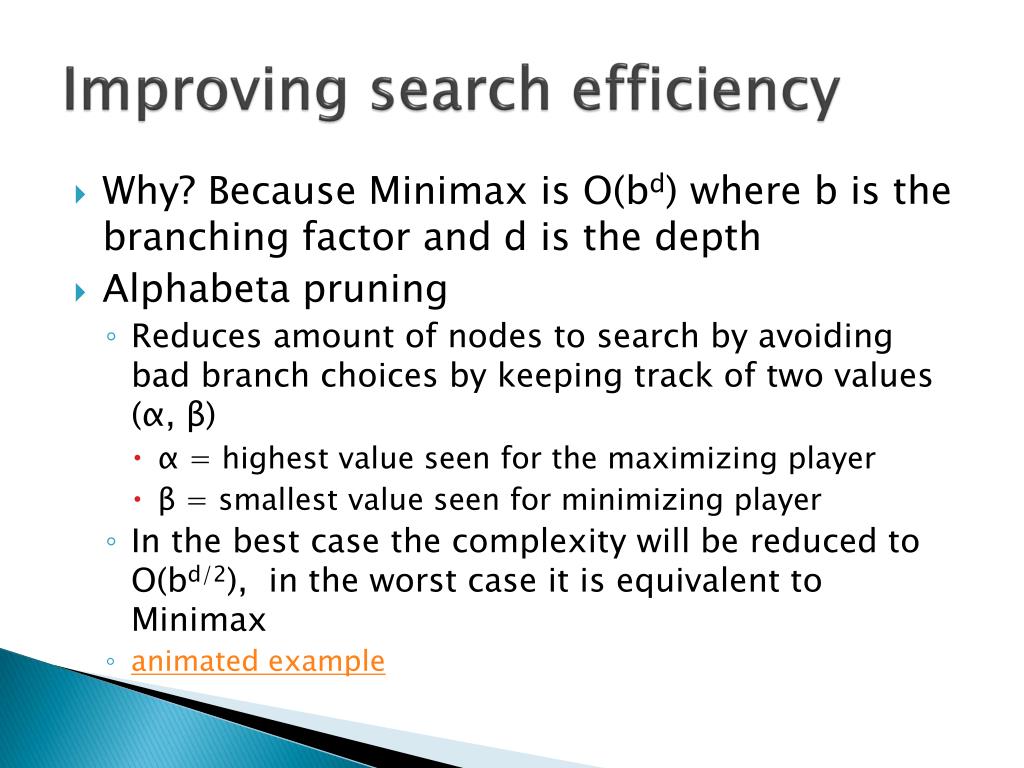

  14. Improving search efficiency • Why? Because Minimax is O(bd) where b is the branching factor and d is the depth • Alphabeta pruning • Reduces amount of nodes to search by avoiding bad branch choices by keeping track of two values (α, β) • α = highest value seen for the maximizing player • β = smallest value seen for minimizing player • In the best case the complexity will be reduced to O(bd/2), in the worst case it is equivalent to Minimax • animated example

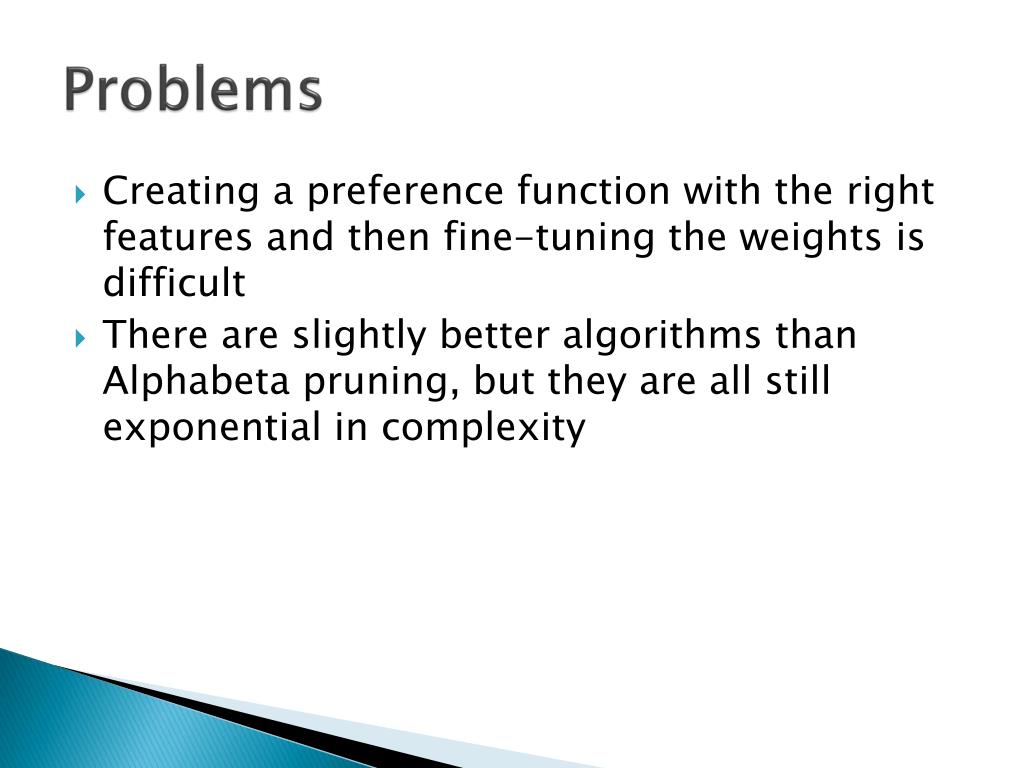

  15. Problems • Creating a preference function with the right features and then fine-tuning the weights is difficult • There are slightly better algorithms than Alphabeta pruning, but they are all still exponential in complexity

  16. Tomb Raider: Underworld • Data from 1365 players who completed all levels of TRU • Four player types: • Veteran – low death count mostly from environment, fast completion, low to average HOD • Solver – high death count mostly from falling, long completion time, minimal HOD • Pacifist – death count varies but mostly from opponents, below average completion time, minimal HOD • Runner – die often mainly from opponents and environment, fast completion time, varying HOD • game statistics used to determine type: • Cause of death • Opponent (28.9% average, 6.32% min, 60.86% max) • Environment (13.7% average, 2.43% min, 45.31% max) • Falling (57.2% average, 27.19% min, 83.33% max) • Total number of deaths (140 average, 16 min, 458 max) • Completion time in minutes (550.8 average, 171min, 1738 max) • Help on demand (29.4 average, 0 min, 148 max) • http://www.youtube.com/watch?v=HJS-SxgXAI4

  17. Tomb Raider Clustering • K-means clustering algorithm for 0<k<20 • Mean quantization error for k=3 is 19.06% and 4 is 13.11%, k>4 is between 7% and 2% • Ward’s clustering method • Emergent Self-Organizing Maps(ESOM) • U-matrix: high mountain ranges indicate borders • P-matrix: larger values indicate higher density regions

  18. Six components used to determine characteristics of each group

  19. Black and White • Uses player modeling to determine how “good” or “evil” a player is. • Alignment: Scalar value from -1 to 1. • Players start at 0. • Each good action increases it a little. • Each evil action decreases it a little.

  20. Black and White Alignment affects how people react to you, and how the land under your control looks.

  21. Black and White • Alignment also affects which advisor is dominant in giving you advice. -i.e. If you’re too evil, your good advisor will simply give up.

  22. Player Models and Storylines

  23. Types of storylines • Linear • Branching • Player Created • Layered • Player Specific

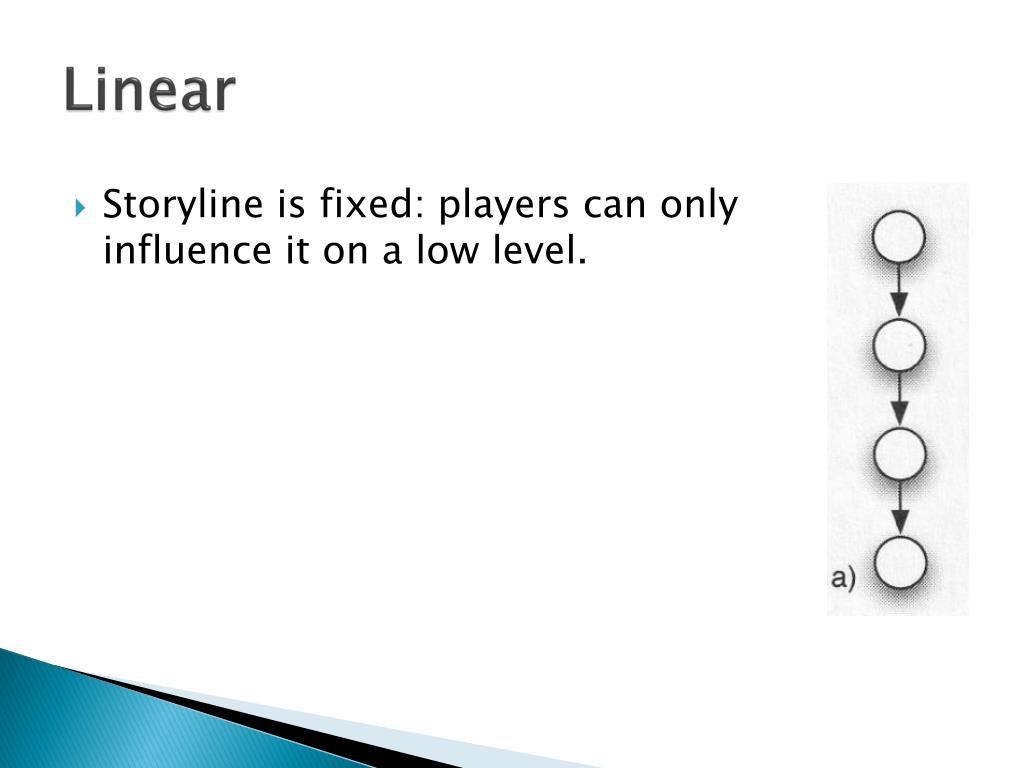

  24. Linear • Storyline is fixed: players can only influence it on a low level.

  25. Linear: Half Life 2 • All story events happen in sequence every playthrough.

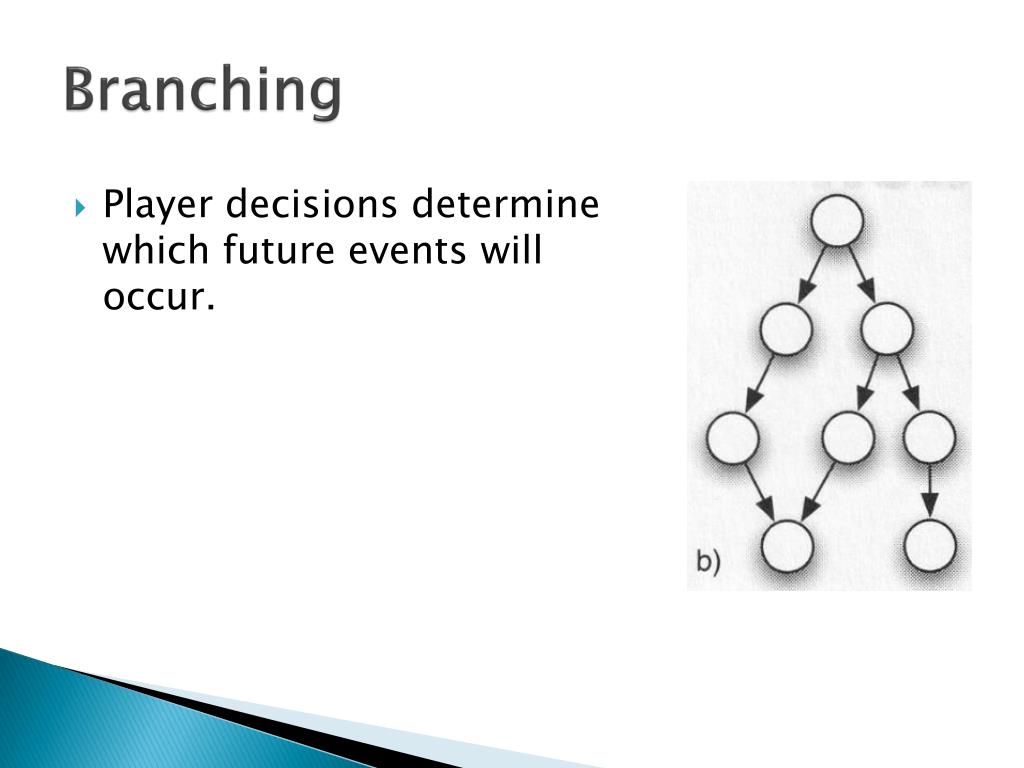

  26. Branching • Player decisions determine which future events will occur.

  27. Branching: Star Fox 64 • Player actions in a level affect which level you can access next.

  28. Player Created • Players act within predefined rules to create unique events on each playthrough.

  29. Player Created: Spore • Players can create their own species. • Certain traits (predatory/herbivorous etc.) determine future gameplay (warlike/peaceful).

  30. Layered • There is one main linear story, but players can complete side quests in different orders.

  31. Layered: Oblivion • Each player may complete different side quests, but the main storyline is the same.

  32. Player Specific • Story events occur based on what the player would most enjoy. • To do this, we need to model the player’s preferences, then select the best event.

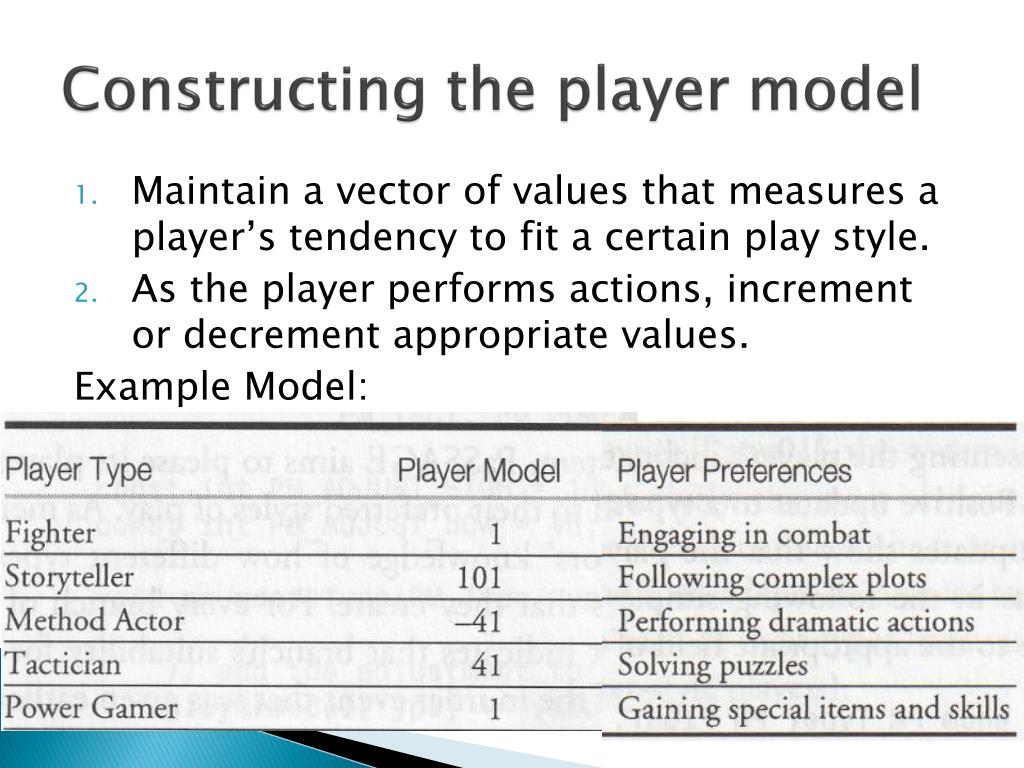

  33. Constructing the player model • Maintain a vector of values that measures a player’s tendency to fit a certain play style. • As the player performs actions, increment or decrement appropriate values. Example Model:

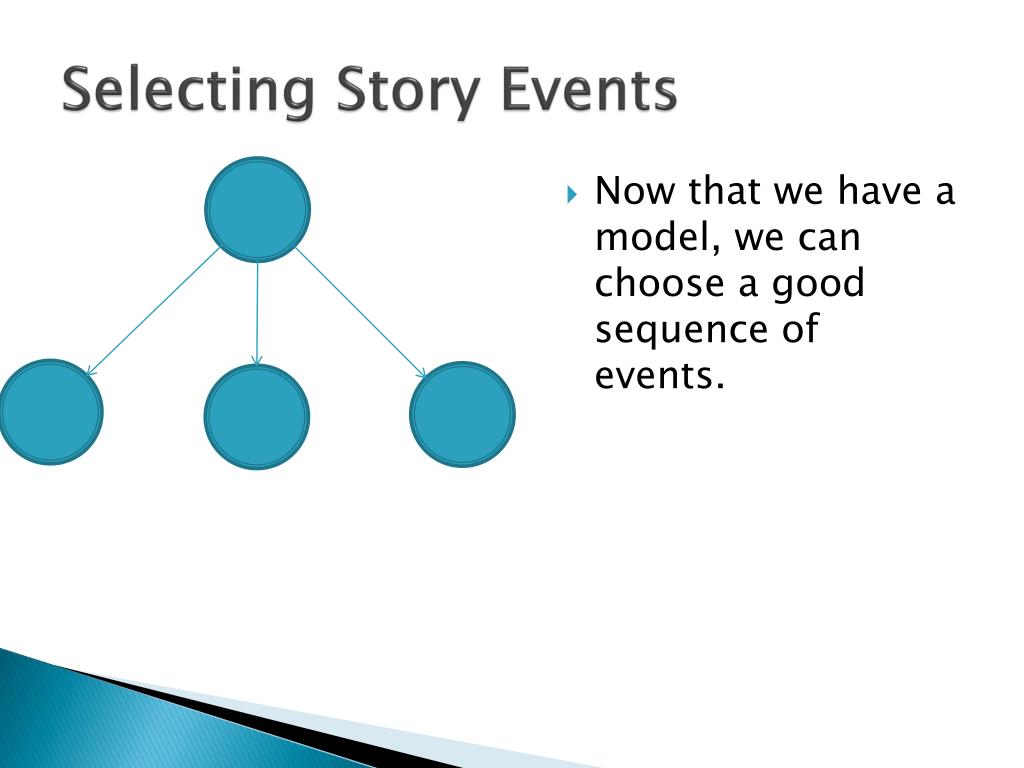

  34. Selecting Story Events • Now that we have a model, we can choose a good sequence of events.

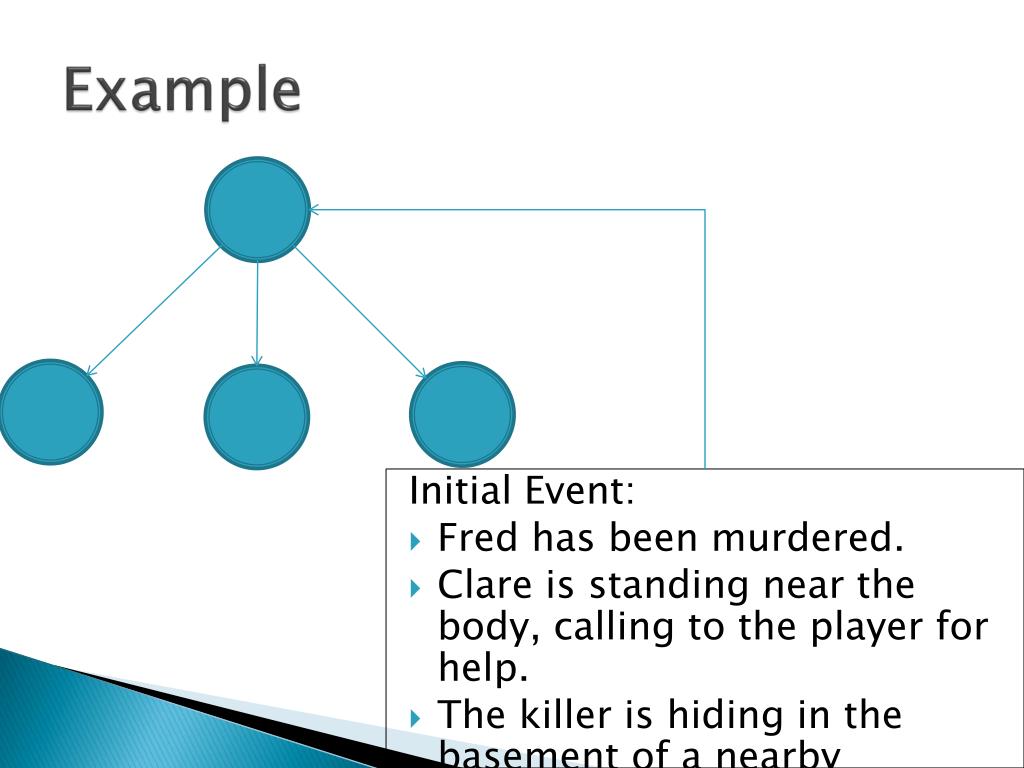

  35. Example Initial Event: • Fred has been murdered. • Clare is standing near the body, calling to the player for help. • The killer is hiding in the basement of a nearby mansion.

  36. Example Converse with killer: Player discovers the killer’s side of the story Subtle Approach: Clare gives the player a key to the basement Headlong Approach: The killer waits in the basement for the player, and attacks on sight

  37. Rate the Potential Events

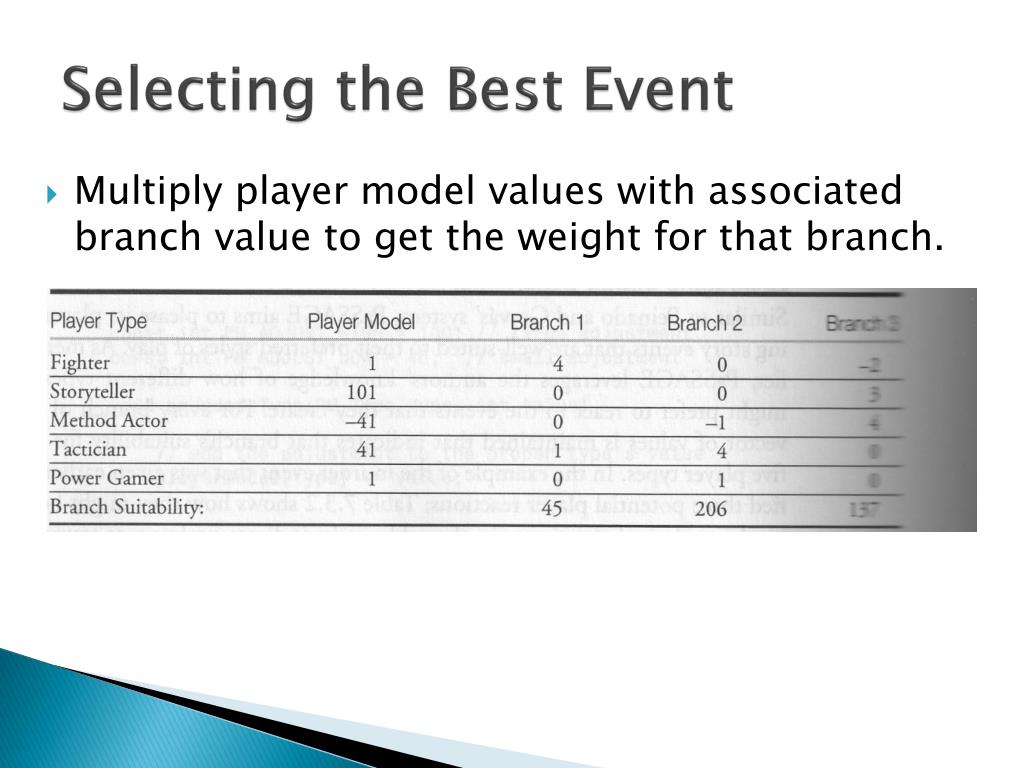

  38. Selecting the Best Event • Multiply player model values with associated branch value to get the weight for that branch.

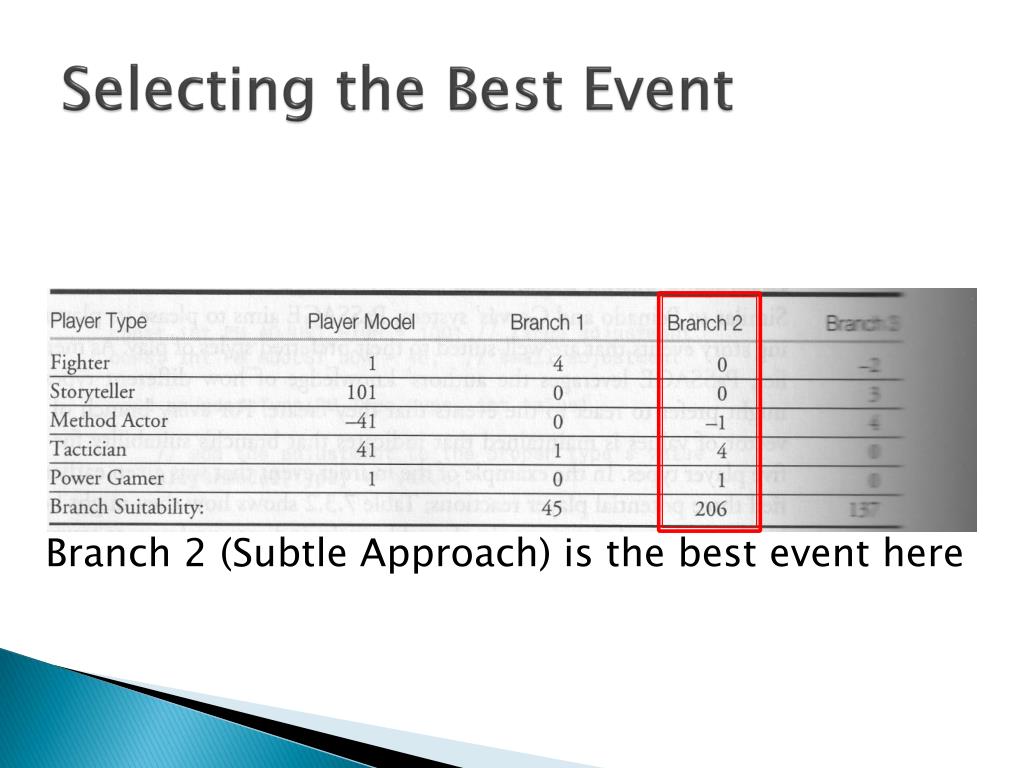

  39. Selecting the Best Event Branch 2 (Subtle Approach) is the best event here

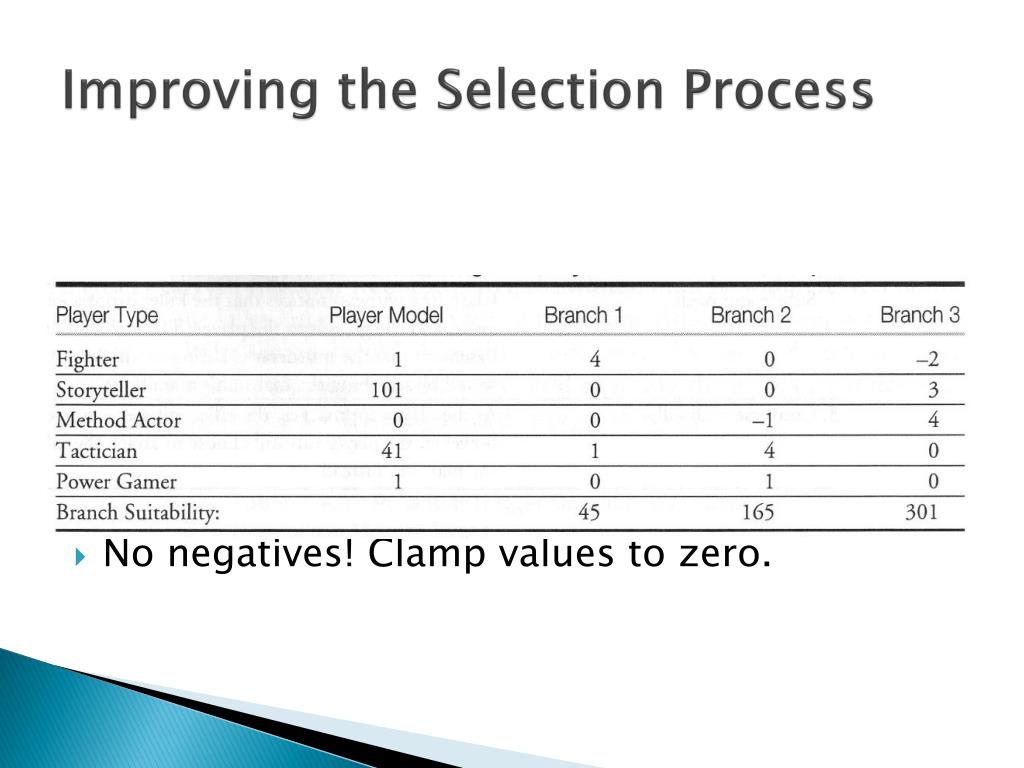

  40. Improving the Selection Process • No negatives! Clamp values to zero.

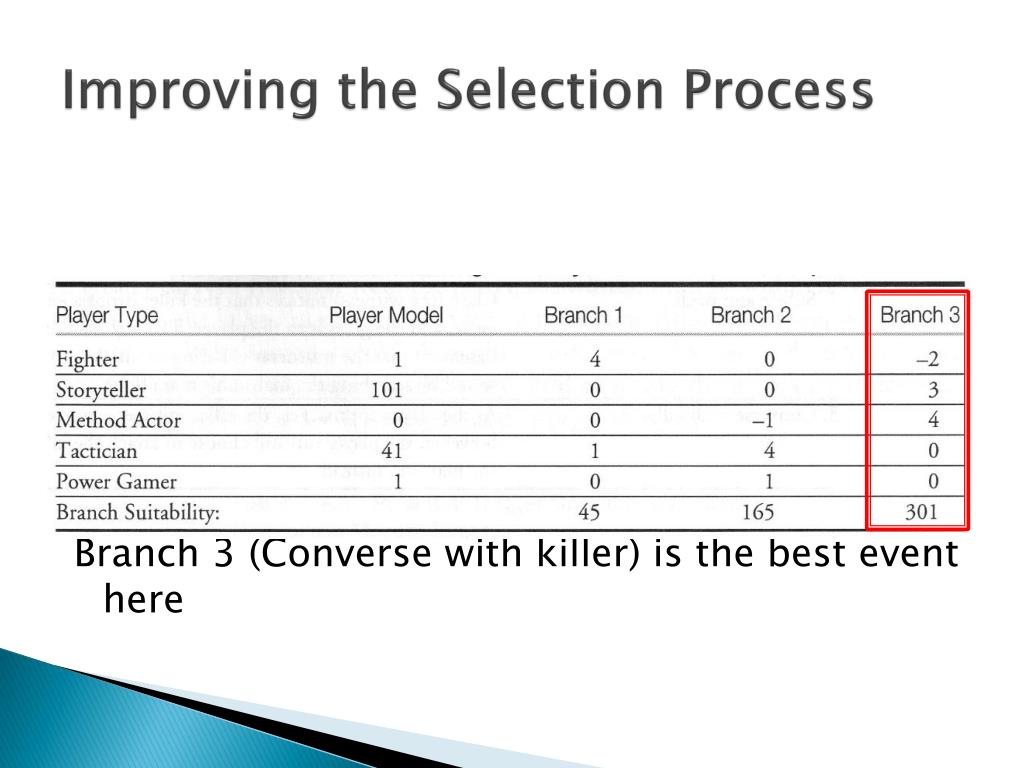

  41. Improving the Selection Process Branch 3 (Converse with killer) is the best event here

  42. Evaluating user satisfaction • Eight elements of player satisfaction: • Concentration, challenge, player skills, controls, goals, feedback, immersion, social interaction • User satisfaction questionnaires and post-play interviews can be used during development to adjust the player model

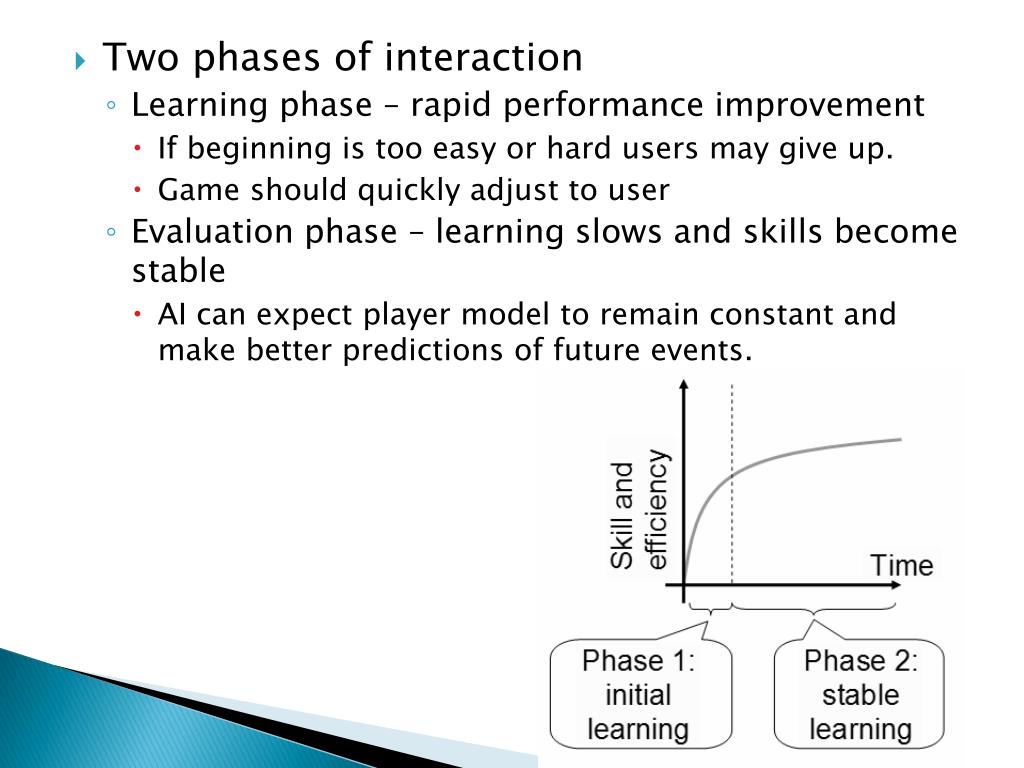

  43. Two phases of interaction • Learning phase – rapid performance improvement • If beginning is too easy or hard users may give up. • Game should quickly adjust to user • Evaluation phase – learning slows and skills become stable • AI can expect player model to remain constant and make better predictions of future events.

  44. Case Study :Knock’Em • Four agent types: • FSM (SM) • Genetic Learning (GL) • Traditional Reinforcement Learning (TRL) • Challenge-Sensitive Reinforcement Learning (CSRL) • Learning phase – one of 4 agents randomly chosen to fight player • if player defeats the random agent he/she faces a harder opponent using Reinforcement Learning with offline training against random agents. Player must defeat this opponent to leave the learning phase. • Evaluation Phase – constant 20 fights, 5 of each agent type • Pre-play questionnaire used to determine if player is beginner or expert • Observer watches game play and conducts post-play interview to gauge satisfaction

  45. Results • 2 beginners and 2 experts polled • Beginners took 18 and 13 fights to complete learning phase • Experts took 3 to 8 fights • 3 players chose CSRL as most enjoyable, 1 chose GL • SM and GL too predictable • TRL too difficult

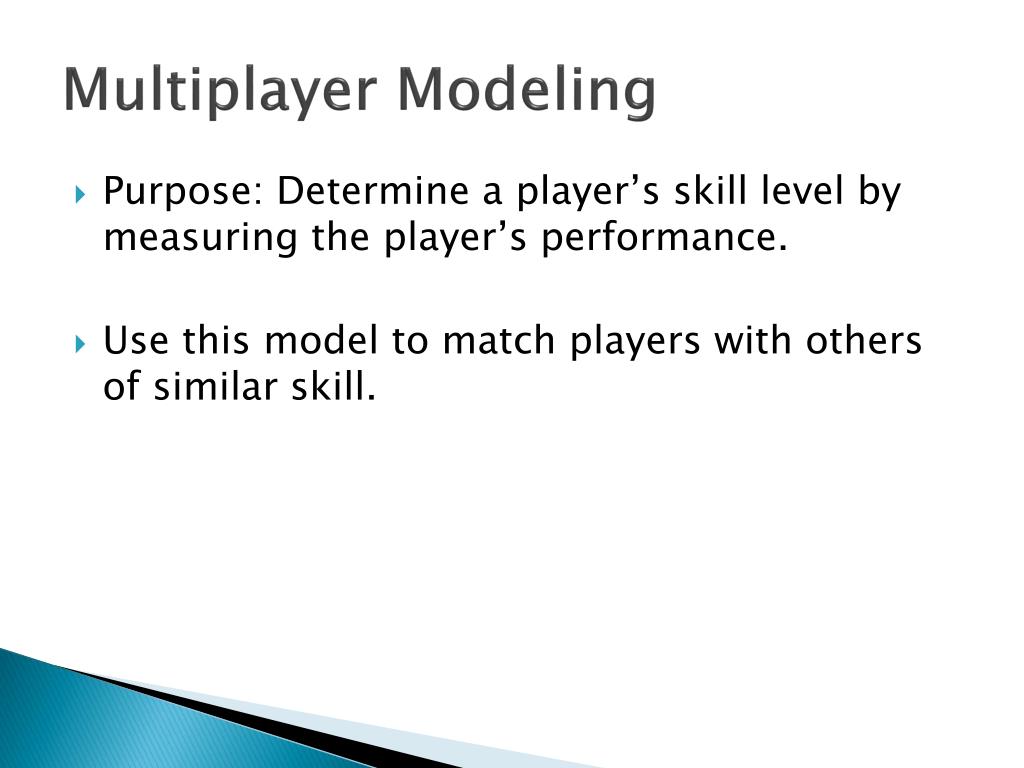

  46. Multiplayer Modeling • Purpose: Determine a player’s skill level by measuring the player’s performance. • Use this model to match players with others of similar skill.

  47. Warcraft III • Each player has a level and gains experience with every win • Players use levels for bragging rights, Battlenet uses them to match players.

  48. Experience Rewards • If your opponent is higher level than you… • You gain more experience if you beat him • You lose less experience if you are defeated by him • This causes player levels to converge asymptotically to the value which accurately represents the skill of the player.

  49. Starcraft 2 • Will use a similar model with ratings instead of levels • This model is more detailed, and can be used to determine who is “favored” in a match
