Application-Specific Customization of FPGA Soft-core Processors

1. Journal Paper Presentation Application-Specific Customization of FPGA Soft-core Processors Presented by: Ahmad Sghaier Course Instructor: Dr. Shawki Areibi Course: ENGG 6090*6 – Winter07 Date: Apr. 5th, 2007

2. Outlines • Introduction. • Parameterized Soft-cores. • Micro-architectural Trade-offs and ISA Sub-setting. • Fast Application-specific Customization. • Conclusion.

3. Resources • P. Yiannacouras, J. Steffan and J. Rose, “Exploration and Customization of FPGA-Based Soft Processors” in IEEE Transactions on Computer-aided Design of integrated Circuits and Systems, Vol. 26, NO. 2, Feb. 2007. • D. Sheldon, R. Kumar, R. Lysecky, F. Vahid and D. Tullsen, “Application-Specific Customization of Parameterized FPGA Soft-Core Processors” in IEEE/ACM Int. Conf. on Computer-Aided Deisgn, Nov. 2006.

4. Soft-core vs. Hard-core • A hard-core processor is laid out on the chip next to the FPGA’s configurable logic fabric • A soft-core processor is synthesized onto the FPGA’s fabric, just like any other circuit. • soft-core processors advantages: • Utilizing standard mass-produced • Enabling a custom number of microprocessors • Soft-core processors disadvantages: • Reduced processor performance • Higher power consumption • Larger size.

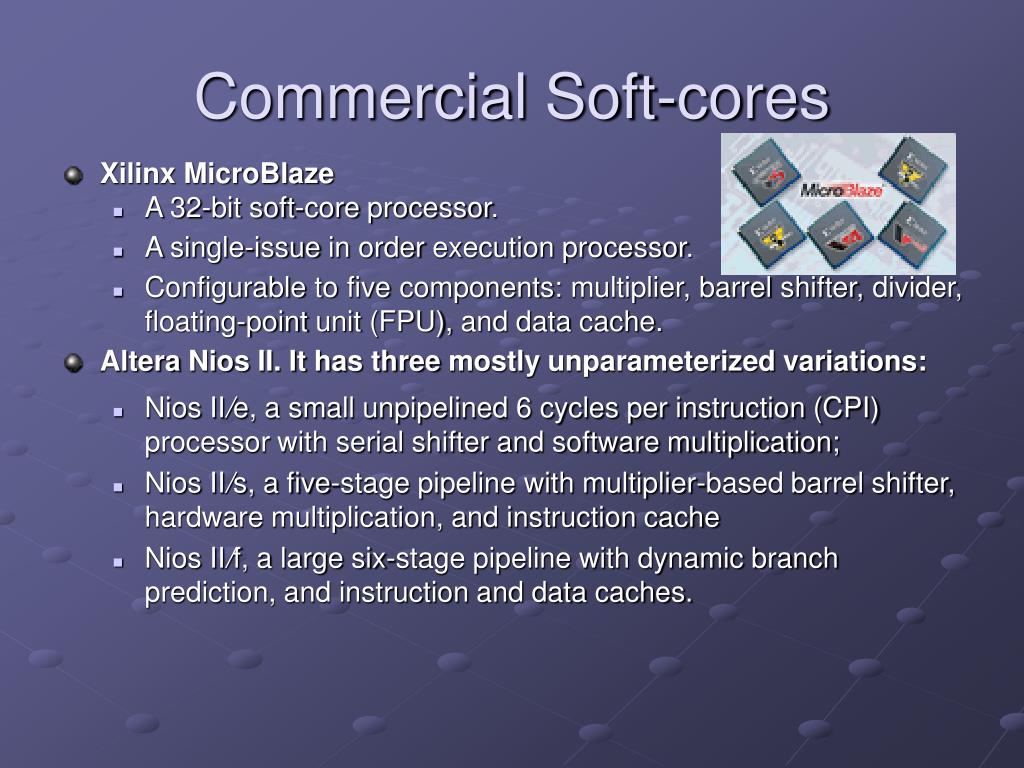

5. Commercial Soft-cores • Xilinx MicroBlaze • A 32-bit soft-core processor. • A single-issue in order execution processor. • Configurable to five components: multiplier, barrel shifter, divider, floating-point unit (FPU), and data cache. • Altera Nios II. It has three mostly unparameterized variations: • Nios II/e, a small unpipelined 6 cycles per instruction (CPI) processor with serial shifter and software multiplication; • Nios II/s, a five-stage pipeline with multiplier-based barrel shifter, hardware multiplication, and instruction cache • Nios II/f, a large six-stage pipeline with dynamic branch prediction, and instruction and data caches.

6. Parameterized Soft-cores • Configurability. • Application Specific. • Size, performance and power constraints. • Configurable Parameters: • Instantiating Functional Units (0,1). • Unit-Specific Parameters (Cache type/size). • Instruction Set Architecture. • Pipelining (Depth).

7. Exploration and Customization of FPGA-Based Soft Processors • Exploration of the micro-architectural tradeoffs for soft processors • A set of customization techniques: • Tuning the micro-architecture to the application. • Subsetting the ISA • Hybrid approach • To improve the performance/area of a soft processor for a specific application. • A CAD Tool.

8. Approach • Developing a customization tool that will generate the most customized soft-core. • SPREE (soft-processor rapid exploration environment). • Targeting functional unit customization and ISA subsetting.

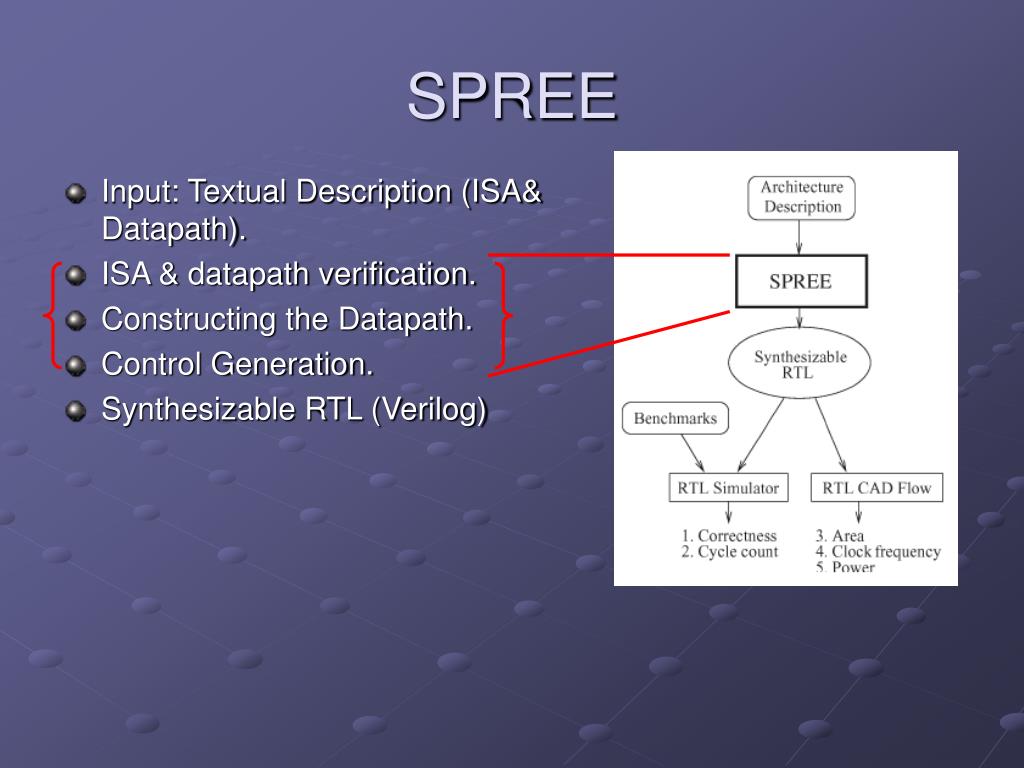

9. SPREE • Input: Textual Description (ISA& Datapath). • ISA & datapath verification. • Constructing the Datapath. • Control Generation. • Synthesizable RTL (Verilog)

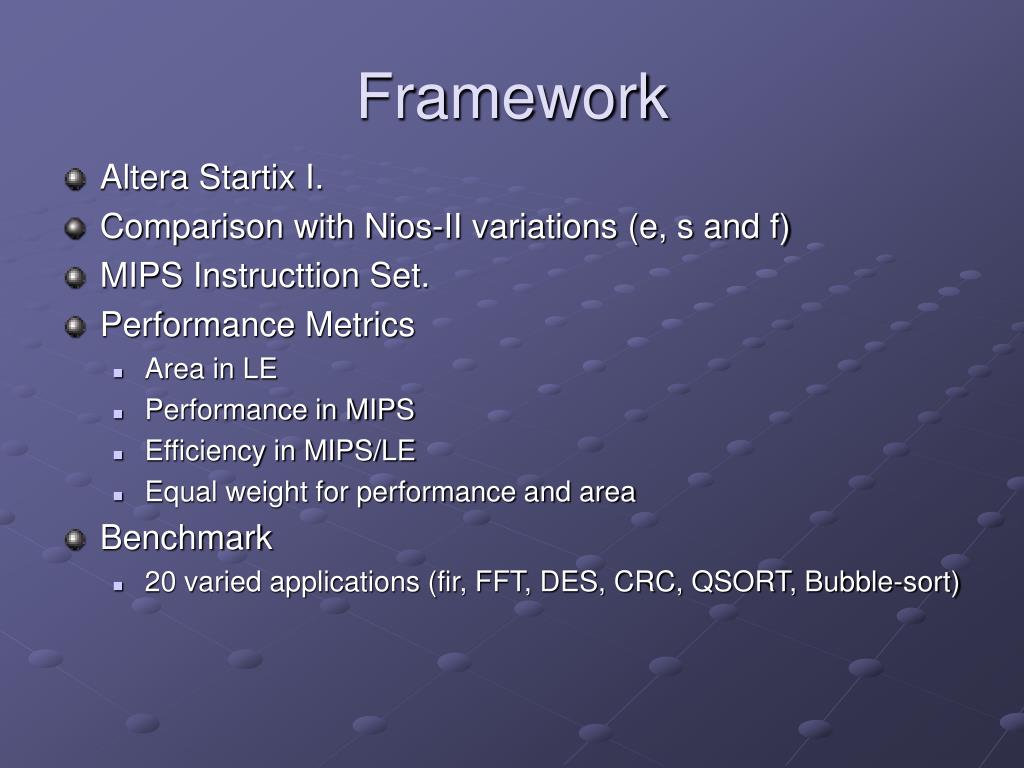

10. Framework • Altera Startix I. • Comparison with Nios-II variations (e, s and f) • MIPS Instructtion Set. • Performance Metrics • Area in LE • Performance in MIPS • Efficiency in MIPS/LE • Equal weight for performance and area • Benchmark • 20 varied applications (fir, FFT, DES, CRC, QSORT, Bubble-sort)

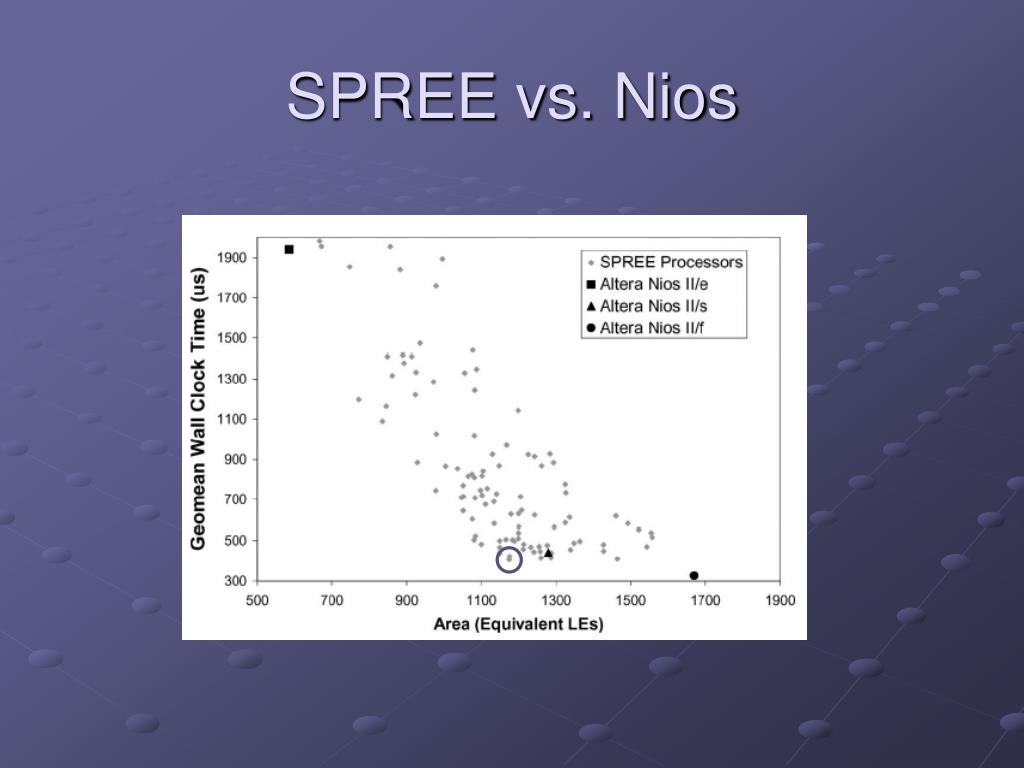

11. SPREE vs. Nios

12. Micro-architecture Exploration (1) • Functional Units • Shifter Implementation (serial, shared multiplier) • Multiplication (SW, HW).

13. Micro-architecture Exploration (2) • Pipelining • Depth • Organization

14. Micro-architecture Customization • 6 micro-architectural axes • Exhaustive search for the generated solutions.

15. ISA Subsetting • Eliminate the unused instruction • Simplify Control Unit  Reduce Area • Less than 50% utilization of the ISA.

16. Impact of ISA subsetting Impact on Performance Impact on Area

17. Results • Fine Customization Environment • an improvement in performance per area of 14.1% on average across all benchmarks. • Combined approach improved the performance per area by 24.5% on average across all applications.

18. Application-Specific Customization of Parameterized FPGA Soft-Core Processors • A methodology for fast application-specific customization of a parameterized FPGA soft core. • Targeting 1-2 hours Runtime • Near-optimal Results • Traditional CAD with 0-1 Knapsack Algorithm • Synthesis-in-the-loop exploration.

19. Framework • Xilinx MB on Virtex-II Pro FPGA • Comparison with Base and Full MB • Performance Metrics • Area in equivalent LUTs • Performance by the application runtime in (ms) • Benchmark • 11 applications from EEMBC

20. Justification

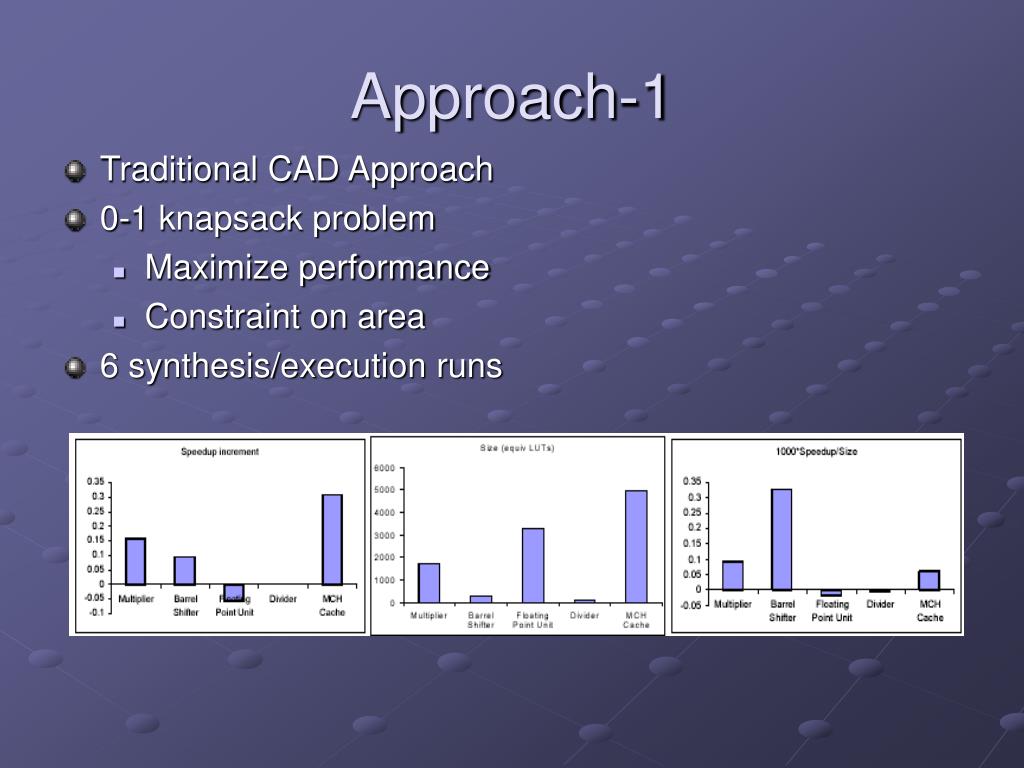

21. Approach-1 • Traditional CAD Approach • 0-1 knapsack problem • Maximize performance • Constraint on area • 6 synthesis/execution runs

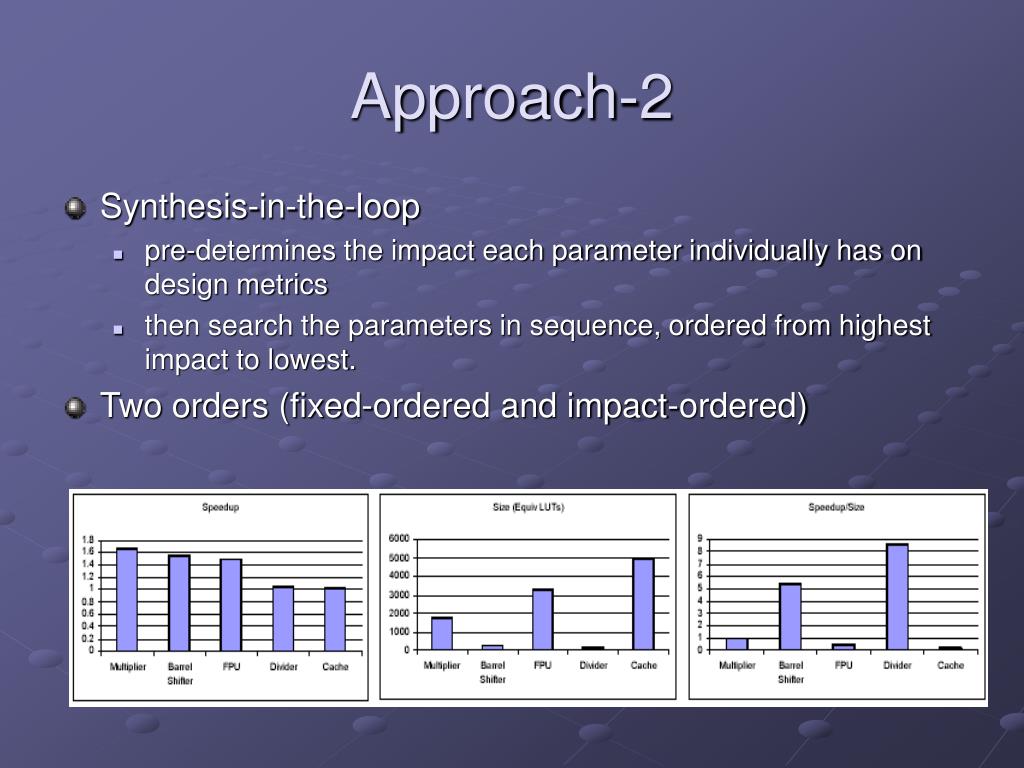

22. Approach-2 • Synthesis-in-the-loop • pre-determines the impact each parameter individually has on design metrics • then search the parameters in sequence, ordered from highest impact to lowest. • Two orders (fixed-ordered and impact-ordered)

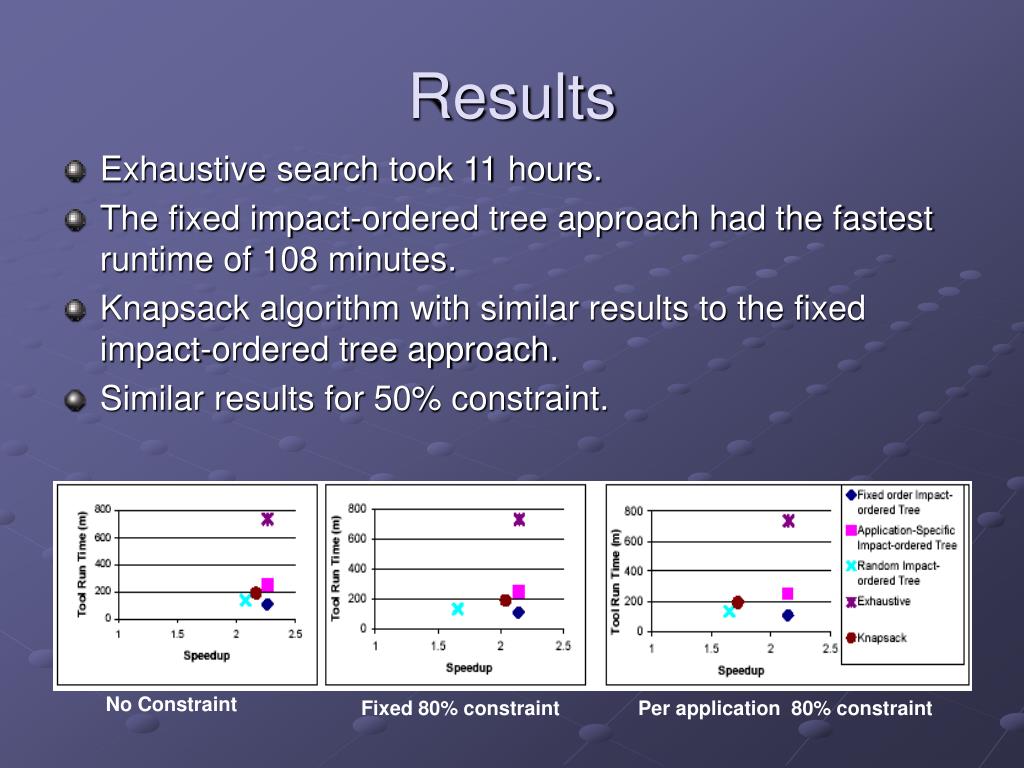

23. Results • Exhaustive search took 11 hours. • The fixed impact-ordered tree approach had the fastest runtime of 108 minutes. • Knapsack algorithm with similar results to the fixed impact-ordered tree approach. • Similar results for 50% constraint. No Constraint Fixed 80% constraint Per application 80% constraint

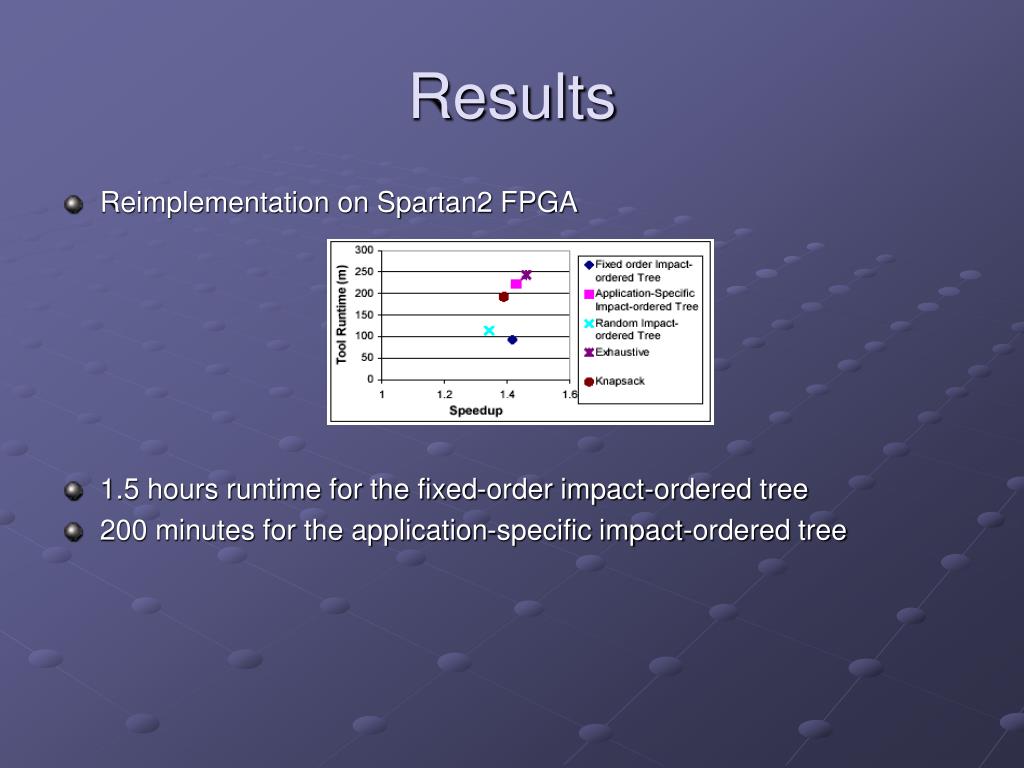

24. Results • Reimplementation on Spartan2 FPGA • 1.5 hours runtime for the fixed-order impact-ordered tree • 200 minutes for the application-specific impact-ordered tree

25. Scalability • Increasing the number of parameters • Increase the runtime. • Fixed-order impact-ordered tree and knapsack scale well.

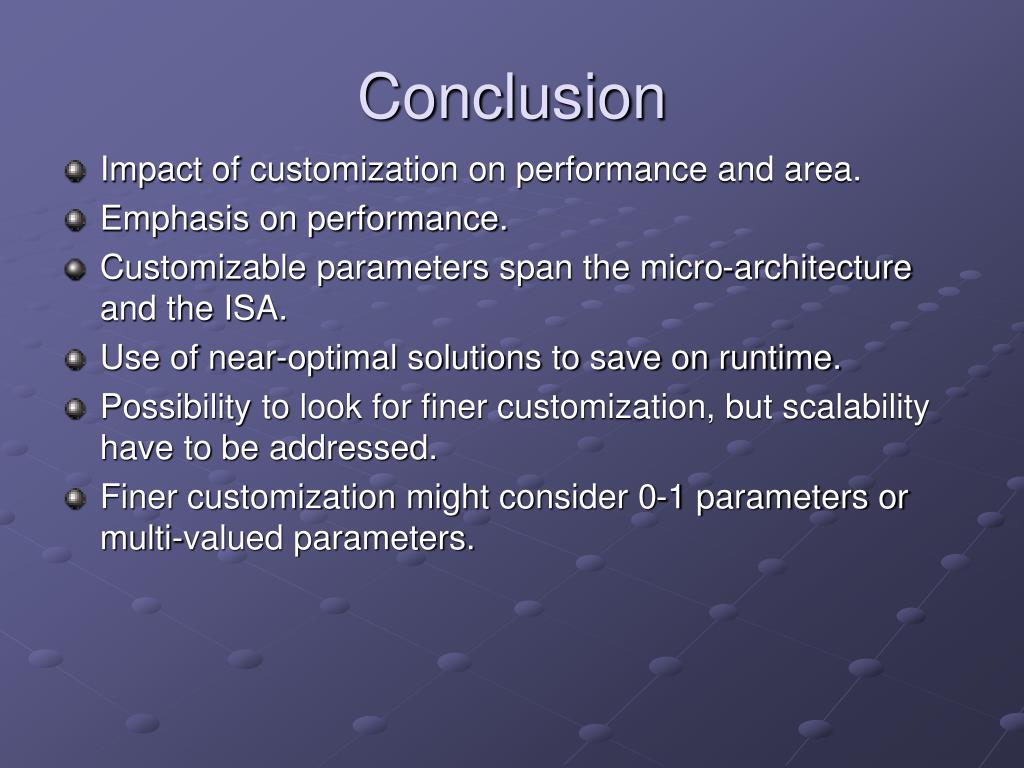

26. Conclusion • Impact of customization on performance and area. • Emphasis on performance. • Customizable parameters span the micro-architecture and the ISA. • Use of near-optimal solutions to save on runtime. • Possibility to look for finer customization, but scalability have to be addressed. • Finer customization might consider 0-1 parameters or multi-valued parameters.

27. THANK YOU Q&A
