  1. MultiPARTES Towards Model-Driven Engineering for Mixed-Criticality Systems: MultiPARTES Approach A. Alonso, C. Jouvray, S. Trujillo, M.A. de Miguel, C. Grepet, J. Simó WICERT 2013, March 22nd

  2. Motivation and goals • Modern electronic systems used in industry (avionics, automotive, etc) combine applications: • with real-time (hard and soft) & no real-time requirements • with different levels of security • that can be independently qualified (certified) • This trend can imply increased validation and certification costs • This extra cost can be reduced by: • Isolate the execution of different applications • Methodology with higher abstraction level

  3. MultiPARTES goals • MultiPARTES • FP7, in the area of ICT • http://www.multipartes.eu • MultiPARTES goals: • To develop a multicore platform virtualization layer for critical and secure embedded systems. • To propose a methodology to enforce the rapid development of new applications based on partitioned systems • To develop methods and tools to support the application development

  4. VL Processor VL Approach Overview Processor • Design an embedded system composed by a set of applications • Execute this embedded system in a: • Partitioned execution environment • Multi-core platform • Supported by a virtualization layer • Heterogenous system • Different processors (+/- predictable, +/- powerful)

  5. Hypervisor • Hypervisor based system permits to build partitioned systems where partition: • Are temporal & spatial isolated • Use the appropriated OS for each application • Execute mono-core OSs in a multicore platform

  6. XtratuM Hypervisor • Open source bare-metal hypervisor for critical real-time partitioned systems • Uses para-virtualization techniques • Strong temporal isolation: fixed cyclic scheduler • Strong spatial isolation: every partition is executed in processor user mode and does not share memory. • Robust communication mechanisms (ARINC ports) • Robust error management via the Health-Monitor • Devices can be directly managed by partitions. Shared devices can be organized in a IOServer • Resources are allocated statically through a Configuration file (XML)

  7. Development process www.multipartes.eu • High level system model:Set of applications and interconnections • Mixed-criticallity • High level model of hardware resources:Types of devices and properties • Resources management models Application constraints: criticality, time, device usageresource availability Methodology to enforce the rapid development and production of new applications based on partitioned systems

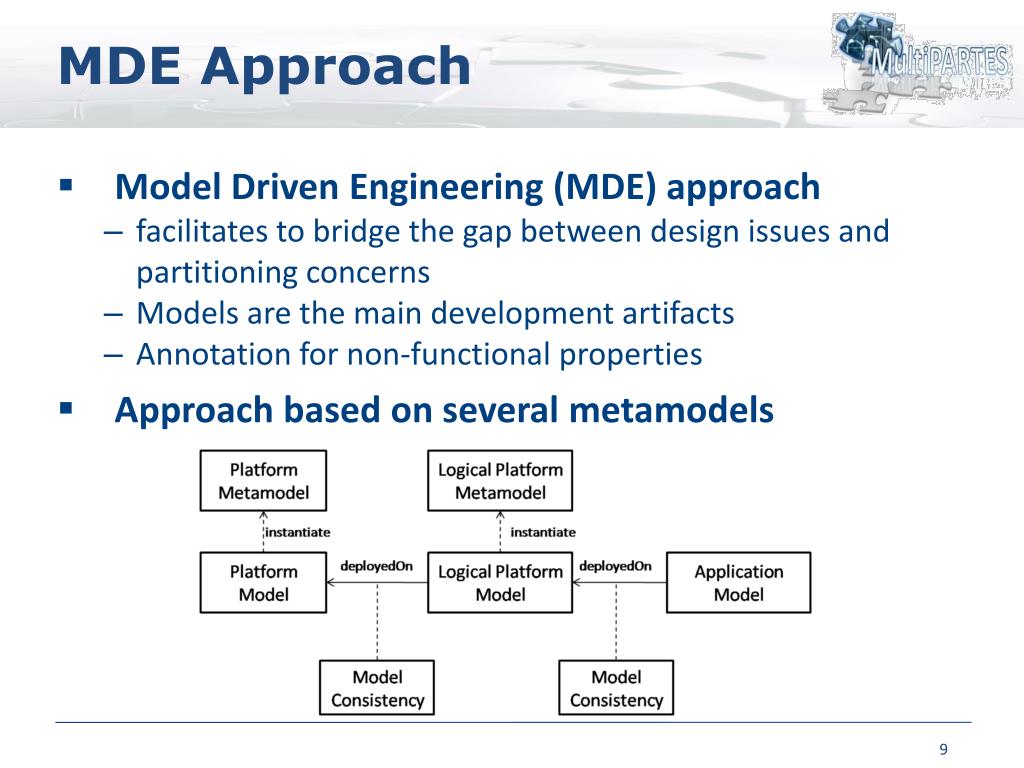

  8. MDE Approach • Model Driven Engineering (MDE) approach • facilitates to bridge the gap between design issues and partitioning concerns • Models are the main development artifacts • Annotation for non-functional properties • Approach based on several metamodels

  9. Toolset Multipartestoolchain withUML profiles

  10. Platform model • This model defines the relevant properties of the platform

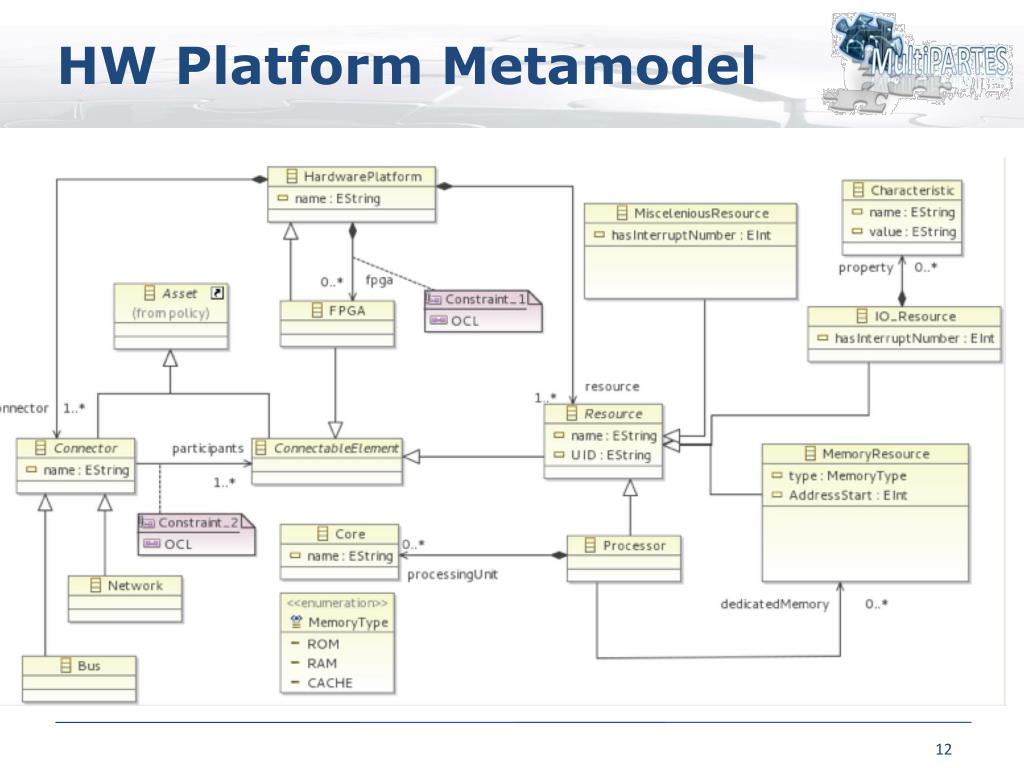

  11. HW Platform Metamodel

  12. Application model • Described using UML • Enriched with non-functional annotations • Criticality requirements: in terms of safety levels • Time requirements: based on UML MARTE • Resource needs requirements: for guaranteeing QoS • Device usage requirements

  13. Partitioning • Information to be used for partitioning • Components that must be in the same partition (App) • Level of criticality (App) • Time requirements granularity (App) • Requirements on OS (App) • Components that must be executed on a processor (Par) • Hardware platform (HW) • Defining a metamodel for the partitioning model • Requirements on partitioning that relates the platform and the application. • Deployment model for code and configuration generation 3 3

  14. Reference platform • A heterogeneous platform based on • One Atom multicore processor (general platform) • Less critical applications • Higher computation capabilities • General Purpose OSs • Two LEON3 synthesized in FPGA • Higher predictability • More critical applications • Lower computation capabilities • Real-time OSs

  15. Conclusions • Mixed-criticality systems are required for industry and are a challenging topic • MultiPARTES approach • Based on an XtratuM: hypervisor that provides spatial and time isolation • MDE: basis to facilitate system development • Tool framework: • Allows to define non-functional requirements related with partitioning • Time and safety requirements are validated • Generation of code and configuration files

  16. Questions? • More information:http://www.multipartes.eu
