  1. Integration of GIS and SAP:A Use Case for SOA Gero Bieser IBU Utilities, SAP AG

  2. Agenda • 1. Integration of SAP and GIS with SAP NetWeaver • New Possibilities offered by SOA • Waterworks‘ SAP-GIS Integration • 4. Integration of further Systems

  3. Enterprise Asset Management:(Simplified) System Landscape MAM for Utilities Scheduling SAP ERP SAP BW GIS Network Management OMS, DMS, SCADA

  4. Different Levels of a GIS-SAP Integration SAP GUI Composite GIS Composite Business Processes & Services SAP Functionalities GIS Functionalities SAP GIS Data Synchronization

  5. GIS and SAP NetWeaver Mobile SAP-GIS Integration SAP NetWeaver™ INTEGRATION OF PEOPLE GIS as part of a portal Multichannel access Analysis of geospatial related data Portal Collaboration INTEGRATION OF INFORMATIONEN Bus. Intelligence Knowledge Mgmt Consolidation of master data Master Data Management Composite Application Framework Life Cycle Management INTEGRATION OF PROCESSES Integration Broker BusinessProcess Mgmt APPLIKATION PLATFORM Process integration GIS as part of a composite J2EE ABAP DB- und OS system application

  6. Agenda • 1. Integration of SAP and GIS with SAP NetWeaver • New Possibilities offered by SOA • Waterworks‘ SAP-GIS Integration • 4. Integration of further Systems

  7. What makes a Service an Enterprise Service? • An Enterprise Service • is technically a web service • is based on standardized semantics and business rules • is published in a central repository, the SAP Enterprise Service Repository ESR

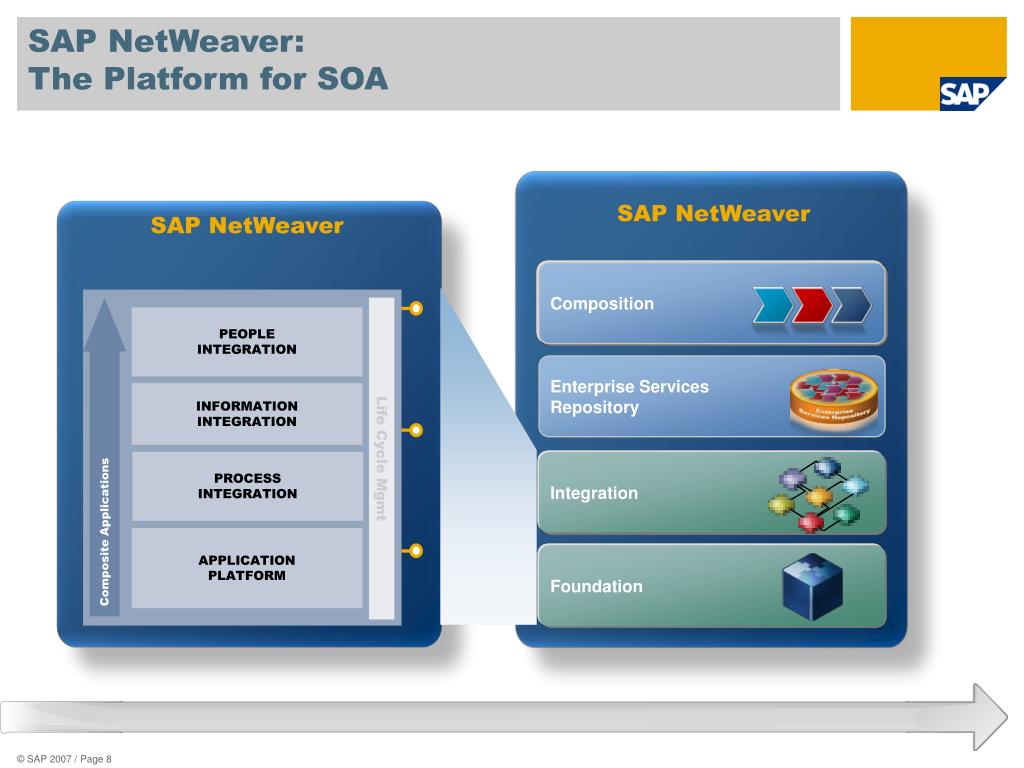

  8. SAP NetWeaver SAP NetWeaver Composition PEOPLEINTEGRATION Enterprise ServicesRepository INFORMATIONINTEGRATION Integration Composite Applications Life Cycle Mgmt PROCESSINTEGRATION Foundation APPLICATIONPLATFORM SAP NetWeaver:The Platform for SOA

  9. Enterprise Services Workplace • Explore Enterprise Services in the ES Workplace of the SAP Developer Network: • www.sdn.sap.com Service-Oriented Architecture  Explore Enterprise Services ES Workplace • Find Enterprise Services by • Enterprise Service Index • Solution Map • Enterprise Service Bundles Test-drive Enterprise Servicesusing the ES Workplace testing system landscape

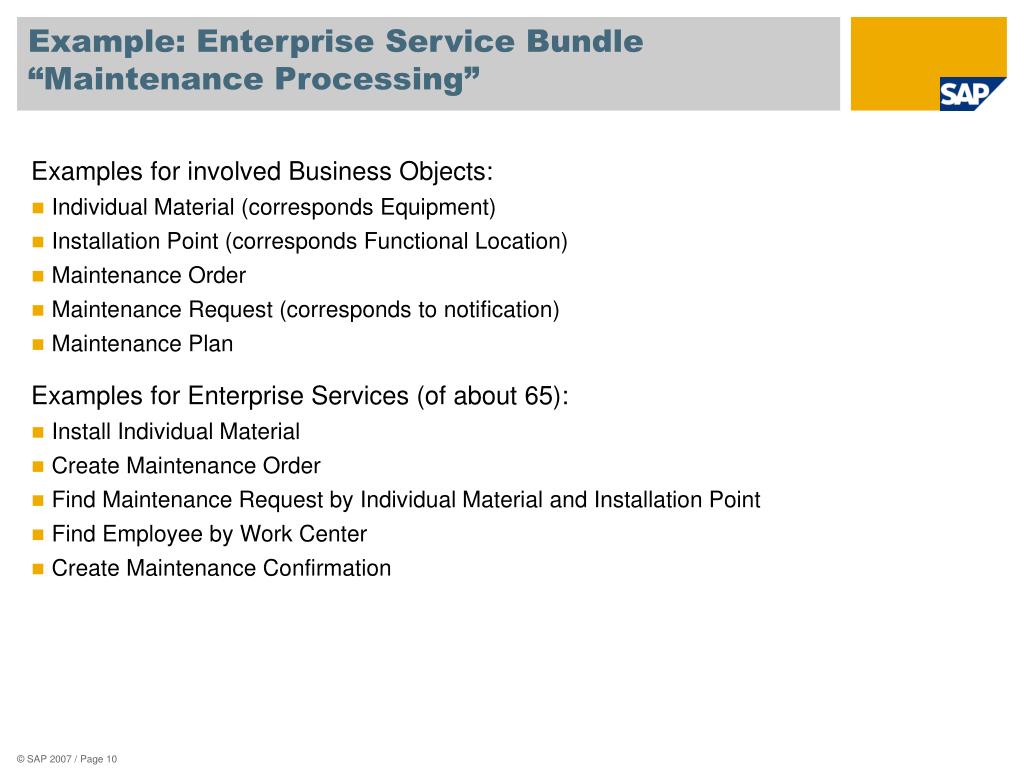

  10. Example: Enterprise Service Bundle“Maintenance Processing” • Examples for involved Business Objects: • Individual Material (corresponds Equipment) • Installation Point (corresponds Functional Location) • Maintenance Order • Maintenance Request (corresponds to notification) • Maintenance Plan • Examples for Enterprise Services (of about 65): • Install Individual Material • Create Maintenance Order • Find Maintenance Request by Individual Material and Installation Point • Find Employee by Work Center • Create Maintenance Confirmation

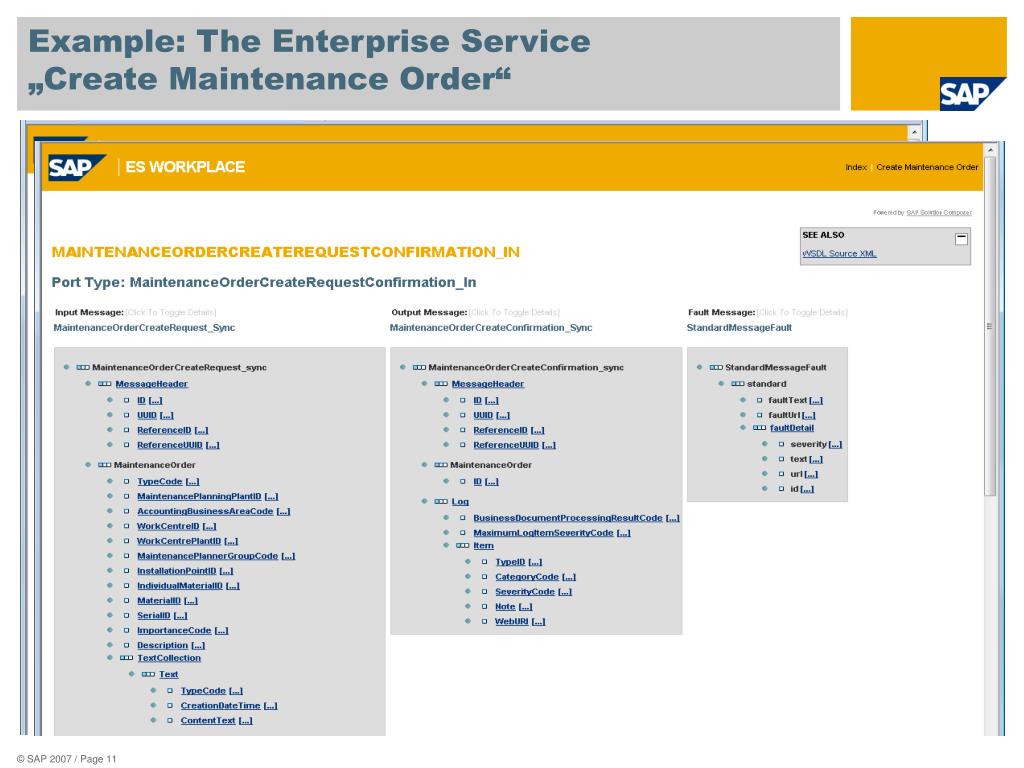

  11. Example: The Enterprise Service„Create Maintenance Order“

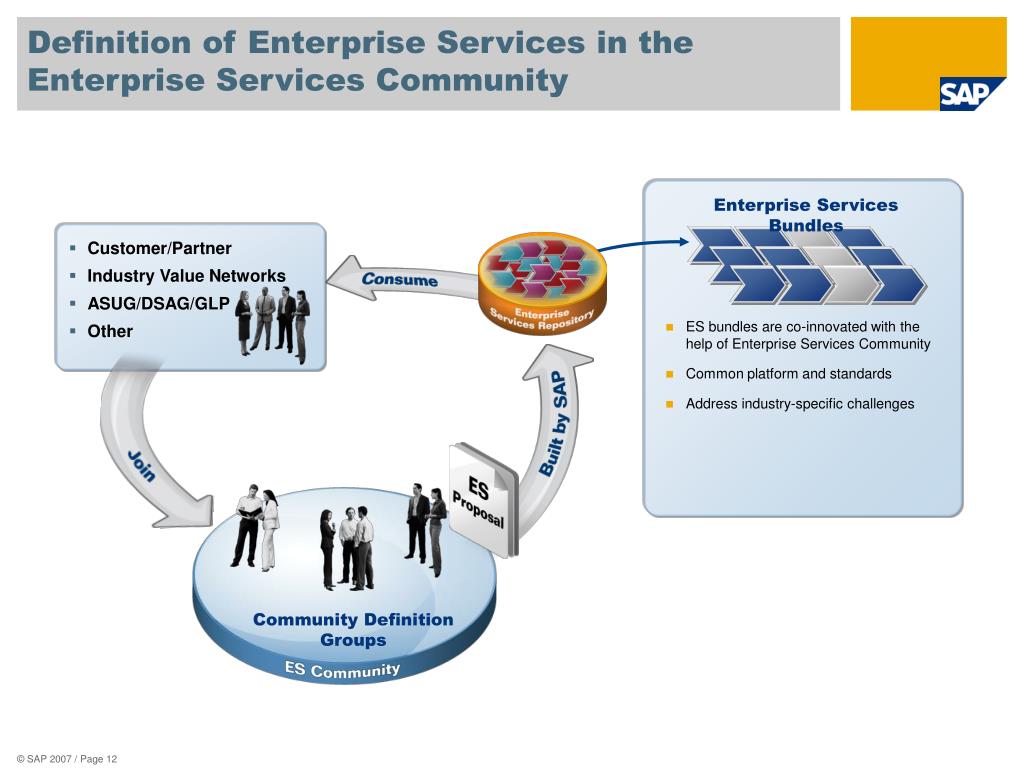

  12. Definition of Enterprise Services in theEnterprise Services Community Enterprise Services Bundles • Customer/Partner • Industry Value Networks • ASUG/DSAG/GLP • Other • ES bundles are co-innovated with the help of Enterprise Services Community • Common platform and standards • Address industry-specific challenges Community Definition Groups

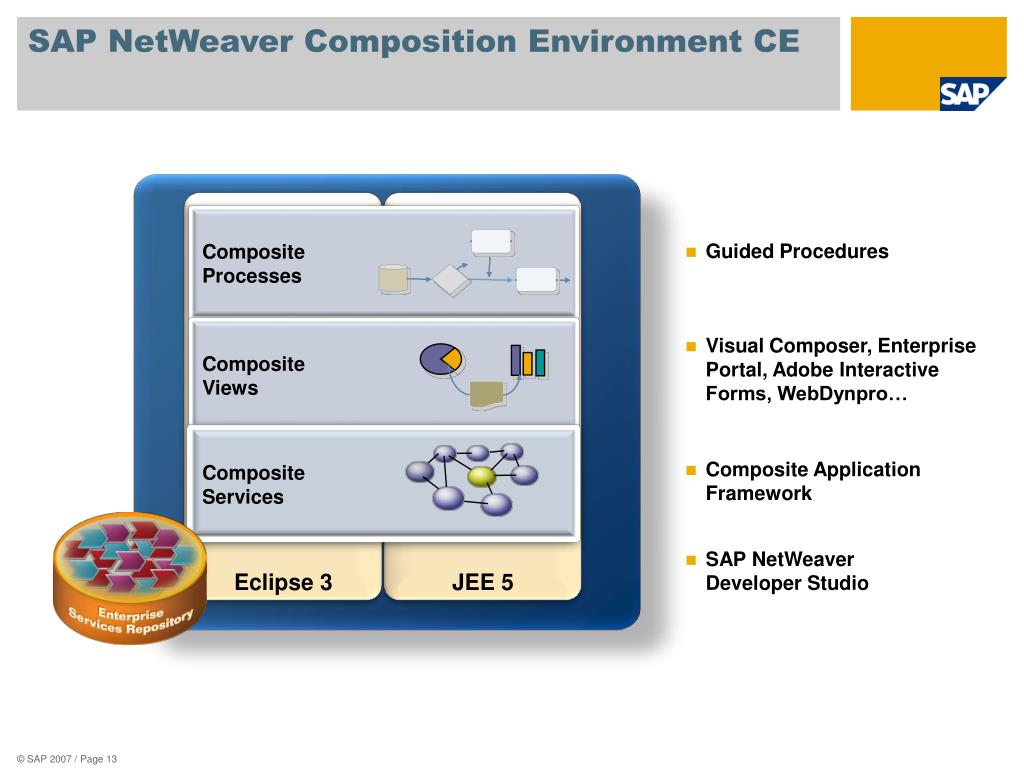

  13. CompositeProcesses CompositeViews Eclipse 3 JEE 5 CompositeServices SAP NetWeaver Composition Environment CE • Guided Procedures • Visual Composer, Enterprise Portal, Adobe Interactive Forms, WebDynpro… • Composite Application Framework • SAP NetWeaver Developer Studio

  14. Agenda • 1. Integration of SAP and GIS with SAP NetWeaver • New Possibilities offered by Enterprise SOA • Waterworks‘ SAP-GIS Integration • 4.Integration of further Systems

  15. Agenda • 1. Integration of SAP and GIS with SAP NetWeaver • New Possibilities offered by Enterprise SOA • Waterworks‘ SAP-GIS Integration • 4. Integration of further Systems

  16. Architecture of an EAM Solution EAM Analytics EAMProcesses SAP NetWeaver GIS DMS OMS SCADA BW MRS ERP CRM MRS = Multi Resource Scheduling DMS = Distribution Management System OMS = Outage Management System

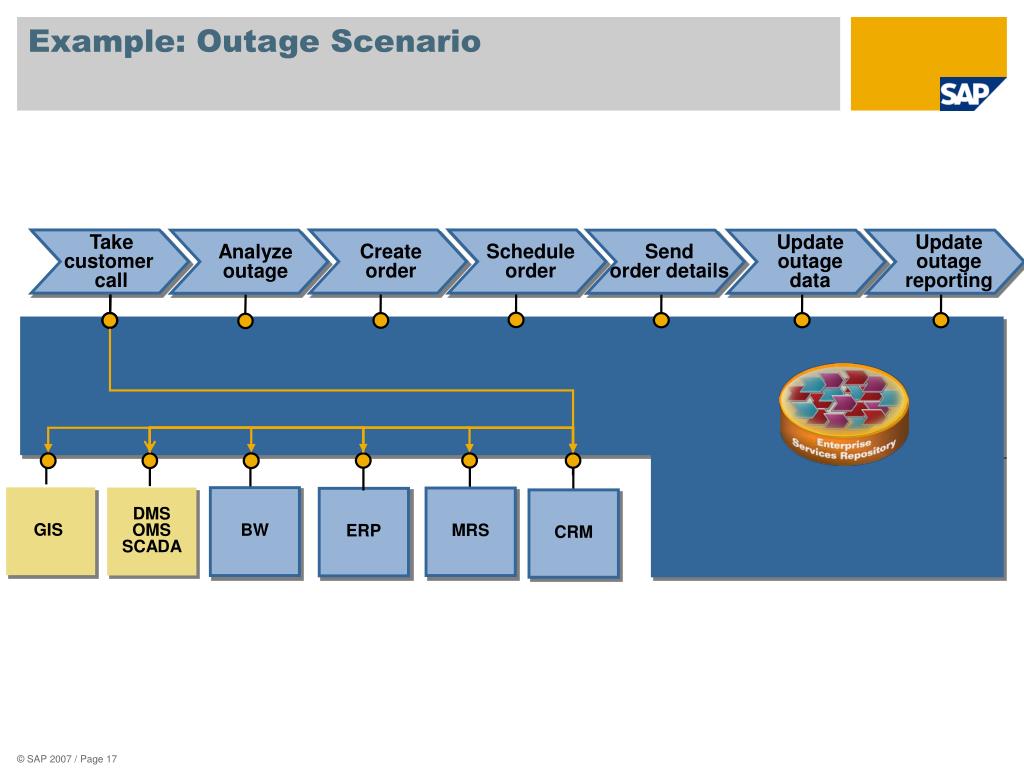

  17. Analyzeoutage Createorder Scheduleorder Sendorder details Updateoutagedata Updateoutagereporting Example: Outage Scenario Takecustomer call GIS DMS OMS SCADA BW MRS ERP CRM

  18. Summary • SAP NetWeaver supports integration of master data, processes and user interfaces of SAP and GIS systems. • SAP NetWeaver and the Enterprise Service Repository are the basis for deploying Enterprise Services. • With Enterprise Services you have access to most of the business objects and functionalities in SAP ERP. Thus, you can compose integrated SAP-GIS applications very flexibly. • In the Enterprise Service Workplace you find details on Enterprise Services. • In addition to GIS you can also integrate further systems of your EAM system landscape.
