  1. gene prediction roderic guigó i serra IMIM/UPF/CRG

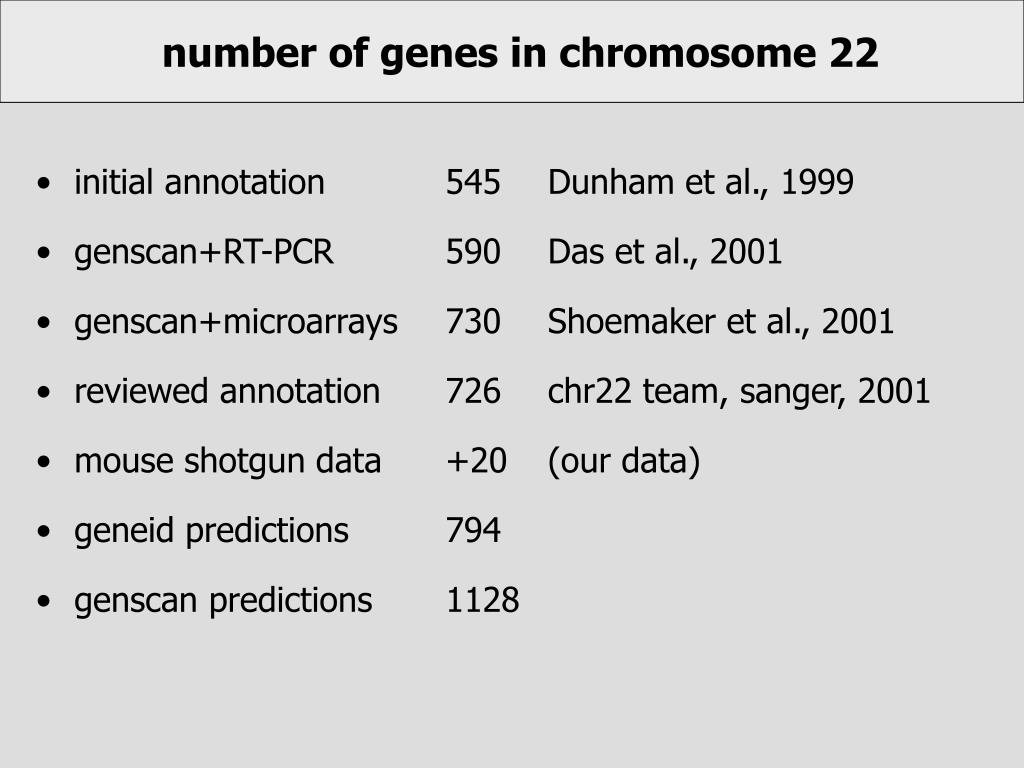

  2. number of genes in chromosome 22 • initial annotation 545 Dunham et al., 1999 • genscan+RT-PCR 590 Das et al., 2001 • genscan+microarrays 730 Shoemaker et al., 2001 • reviewed annotation 726 chr22 team, sanger, 2001 • mouse shotgun data +20 (our data) • geneid predictions 794 • genscan predictions 1128

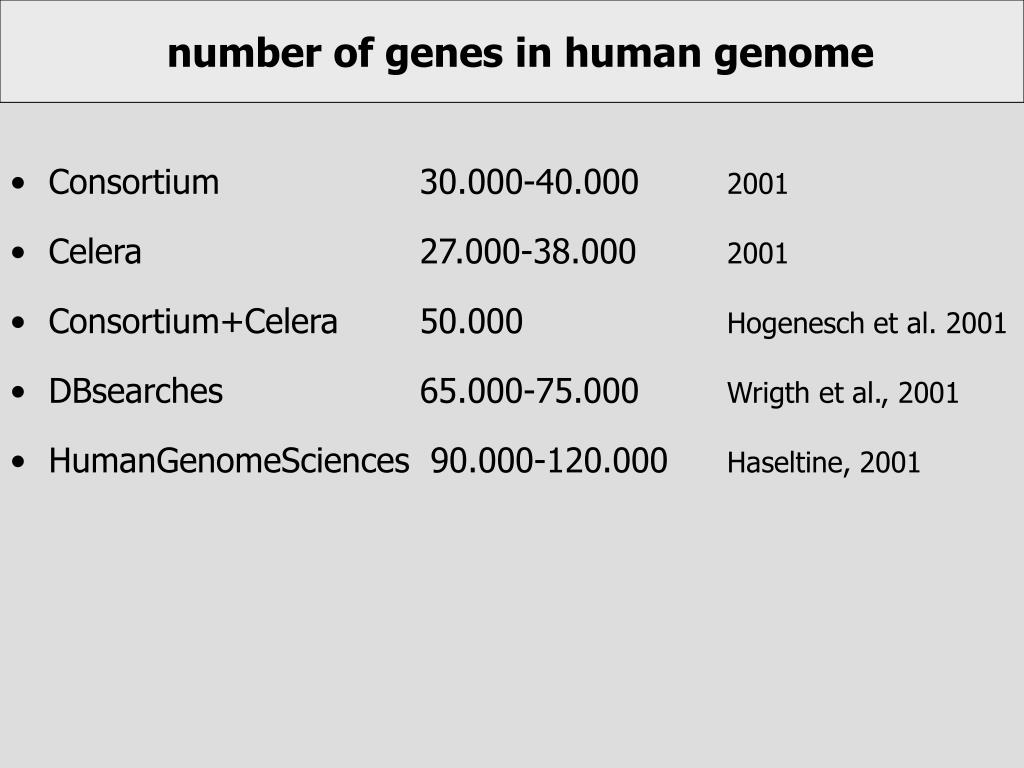

  3. number of genes in human genome • Consortium 30.000-40.000 2001 • Celera 27.000-38.000 2001 • Consortium+Celera 50.000 Hogenesch et al. 2001 • DBsearches 65.000-75.000 Wrigth et al., 2001 • HumanGenomeSciences 90.000-120.000 Haseltine, 2001

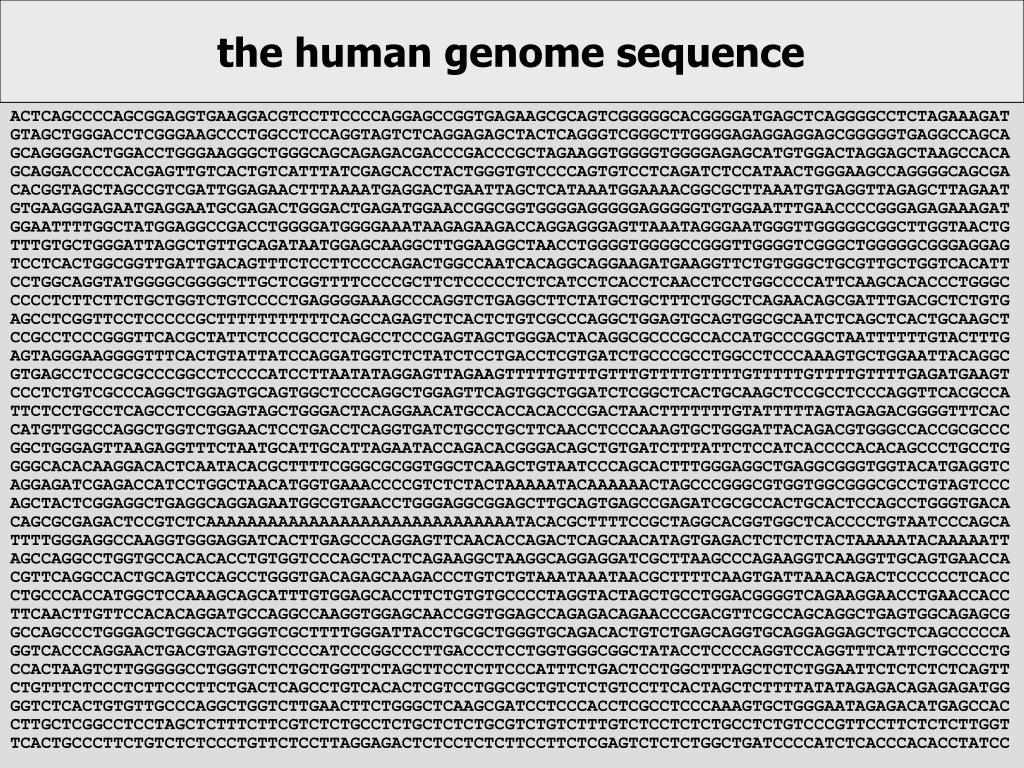

  4. the human genome sequence decodificació del genoma ACTCAGCCCCAGCGGAGGTGAAGGACGTCCTTCCCCAGGAGCCGGTGAGAAGCGCAGTCGGGGGCACGGGGATGAGCTCAGGGGCCTCTAGAAAGATGTAGCTGGGACCTCGGGAAGCCCTGGCCTCCAGGTAGTCTCAGGAGAGCTACTCAGGGTCGGGCTTGGGGAGAGGAGGAGCGGGGGTGAGGCCAGCAGCAGGGGACTGGACCTGGGAAGGGCTGGGCAGCAGAGACGACCCGACCCGCTAGAAGGTGGGGTGGGGAGAGCATGTGGACTAGGAGCTAAGCCACAGCAGGACCCCCACGAGTTGTCACTGTCATTTATCGAGCACCTACTGGGTGTCCCCAGTGTCCTCAGATCTCCATAACTGGGAAGCCAGGGGCAGCGACACGGTAGCTAGCCGTCGATTGGAGAACTTTAAAATGAGGACTGAATTAGCTCATAAATGGAAAACGGCGCTTAAATGTGAGGTTAGAGCTTAGAATGTGAAGGGAGAATGAGGAATGCGAGACTGGGACTGAGATGGAACCGGCGGTGGGGAGGGGGAGGGGGTGTGGAATTTGAACCCCGGGAGAGAAAGATGGAATTTTGGCTATGGAGGCCGACCTGGGGATGGGGAAATAAGAGAAGACCAGGAGGGAGTTAAATAGGGAATGGGTTGGGGGCGGCTTGGTAACTGTTTGTGCTGGGATTAGGCTGTTGCAGATAATGGAGCAAGGCTTGGAAGGCTAACCTGGGGTGGGGCCGGGTTGGGGTCGGGCTGGGGGCGGGAGGAGTCCTCACTGGCGGTTGATTGACAGTTTCTCCTTCCCCAGACTGGCCAATCACAGGCAGGAAGATGAAGGTTCTGTGGGCTGCGTTGCTGGTCACATTCCTGGCAGGTATGGGGCGGGGCTTGCTCGGTTTTCCCCGCTTCTCCCCCTCTCATCCTCACCTCAACCTCCTGGCCCCATTCAAGCACACCCTGGGCCCCCTCTTCTTCTGCTGGTCTGTCCCCTGAGGGGAAAGCCCAGGTCTGAGGCTTCTATGCTGCTTTCTGGCTCAGAACAGCGATTTGACGCTCTGTGAGCCTCGGTTCCTCCCCCGCTTTTTTTTTTTCAGCCAGAGTCTCACTCTGTCGCCCAGGCTGGAGTGCAGTGGCGCAATCTCAGCTCACTGCAAGCTCCGCCTCCCGGGTTCACGCTATTCTCCCGCCTCAGCCTCCCGAGTAGCTGGGACTACAGGCGCCCGCCACCATGCCCGGCTAATTTTTTGTACTTTGAGTAGGGAAGGGGTTTCACTGTATTATCCAGGATGGTCTCTATCTCCTGACCTCGTGATCTGCCCGCCTGGCCTCCCAAAGTGCTGGAATTACAGGCGTGAGCCTCCGCGCCCGGCCTCCCCATCCTTAATATAGGAGTTAGAAGTTTTTGTTTGTTTGTTTTGTTTTGTTTTTGTTTTGTTTTGAGATGAAGTCCCTCTGTCGCCCAGGCTGGAGTGCAGTGGCTCCCAGGCTGGAGTTCAGTGGCTGGATCTCGGCTCACTGCAAGCTCCGCCTCCCAGGTTCACGCCATTCTCCTGCCTCAGCCTCCGGAGTAGCTGGGACTACAGGAACATGCCACCACACCCGACTAACTTTTTTTGTATTTTTAGTAGAGACGGGGTTTCACCATGTTGGCCAGGCTGGTCTGGAACTCCTGACCTCAGGTGATCTGCCTGCTTCAACCTCCCAAAGTGCTGGGATTACAGACGTGGGCCACCGCGCCCGGCTGGGAGTTAAGAGGTTTCTAATGCATTGCATTAGAATACCAGACACGGGACAGCTGTGATCTTTATTCTCCATCACCCCACACAGCCCTGCCTGGGGCACACAAGGACACTCAATACACGCTTTTCGGGCGCGGTGGCTCAAGCTGTAATCCCAGCACTTTGGGAGGCTGAGGCGGGTGGTACATGAGGTCAGGAGATCGAGACCATCCTGGCTAACATGGTGAAACCCCGTCTCTACTAAAAATACAAAAAACTAGCCCGGGCGTGGTGGCGGGCGCCTGTAGTCCCAGCTACTCGGAGGCTGAGGCAGGAGAATGGCGTGAACCTGGGAGGCGGAGCTTGCAGTGAGCCGAGATCGCGCCACTGCACTCCAGCCTGGGTGACACAGCGCGAGACTCCGTCTCAAAAAAAAAAAAAAAAAAAAAAAAAAAAAATACACGCTTTTCCGCTAGGCACGGTGGCTCACCCCTGTAATCCCAGCATTTTGGGAGGCCAAGGTGGGAGGATCACTTGAGCCCAGGAGTTCAACACCAGACTCAGCAACATAGTGAGACTCTCTCTACTAAAAATACAAAAATTAGCCAGGCCTGGTGCCACACACCTGTGGTCCCAGCTACTCAGAAGGCTAAGGCAGGAGGATCGCTTAAGCCCAGAAGGTCAAGGTTGCAGTGAACCACGTTCAGGCCACTGCAGTCCAGCCTGGGTGACAGAGCAAGACCCTGTCTGTAAATAAATAACGCTTTTCAAGTGATTAAACAGACTCCCCCCTCACCCTGCCCACCATGGCTCCAAAGCAGCATTTGTGGAGCACCTTCTGTGTGCCCCTAGGTACTAGCTGCCTGGACGGGGTCAGAAGGAACCTGAACCACCTTCAACTTGTTCCACACAGGATGCCAGGCCAAGGTGGAGCAACCGGTGGAGCCAGAGACAGAACCCGACGTTCGCCAGCAGGCTGAGTGGCAGAGCGGCCAGCCCTGGGAGCTGGCACTGGGTCGCTTTTGGGATTACCTGCGCTGGGTGCAGACACTGTCTGAGCAGGTGCAGGAGGAGCTGCTCAGCCCCCAGGTCACCCAGGAACTGACGTGAGTGTCCCCATCCCGGCCCTTGACCCTCCTGGTGGGCGGCTATACCTCCCCAGGTCCAGGTTTCATTCTGCCCCTGCCACTAAGTCTTGGGGGCCTGGGTCTCTGCTGGTTCTAGCTTCCTCTTCCCATTTCTGACTCCTGGCTTTAGCTCTCTGGAATTCTCTCTCTCAGTTCTGTTTCTCCCTCTTCCCTTCTGACTCAGCCTGTCACACTCGTCCTGGCGCTGTCTCTGTCCTTCACTAGCTCTTTTATATAGAGACAGAGAGATGGGGTCTCACTGTGTTGCCCAGGCTGGTCTTGAACTTCTGGGCTCAAGCGATCCTCCCACCTCGCCTCCCAAAGTGCTGGGAATAGAGACATGAGCCACCTTGCTCGGCCTCCTAGCTCTTTCTTCGTCTCTGCCTCTGCTCTCTGCGTCTGTCTTTGTCTCCTCTCTGCCTCTGTCCCGTTCCTTCTCTCTTGGTTCACTGCCCTTCTGTCTCTCCCTGTTCTCCTTAGGAGACTCTCCTCTCTTCCTTCTCGAGTCTCTCTGGCTGATCCCCATCTCACCCACACCTATCC

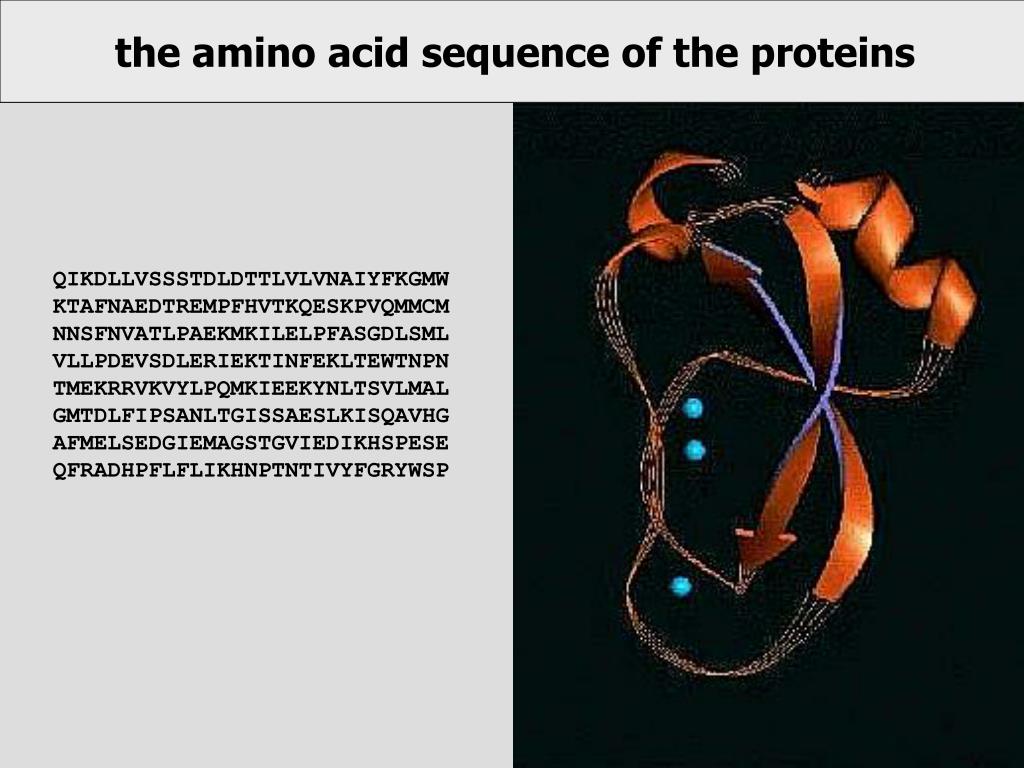

  5. the amino acid sequence of the proteins QIKDLLVSSSTDLDTTLVLVNAIYFKGMWKTAFNAEDTREMPFHVTKQESKPVQMMCMNNSFNVATLPAEKMKILELPFASGDLSMLVLLPDEVSDLERIEKTINFEKLTEWTNPNTMEKRRVKVYLPQMKIEEKYNLTSVLMALGMTDLFIPSANLTGISSAESLKISQAVHGAFMELSEDGIEMAGSTGVIEDIKHSPESEQFRADHPFLFLIKHNPTNTIVYFGRYWSP

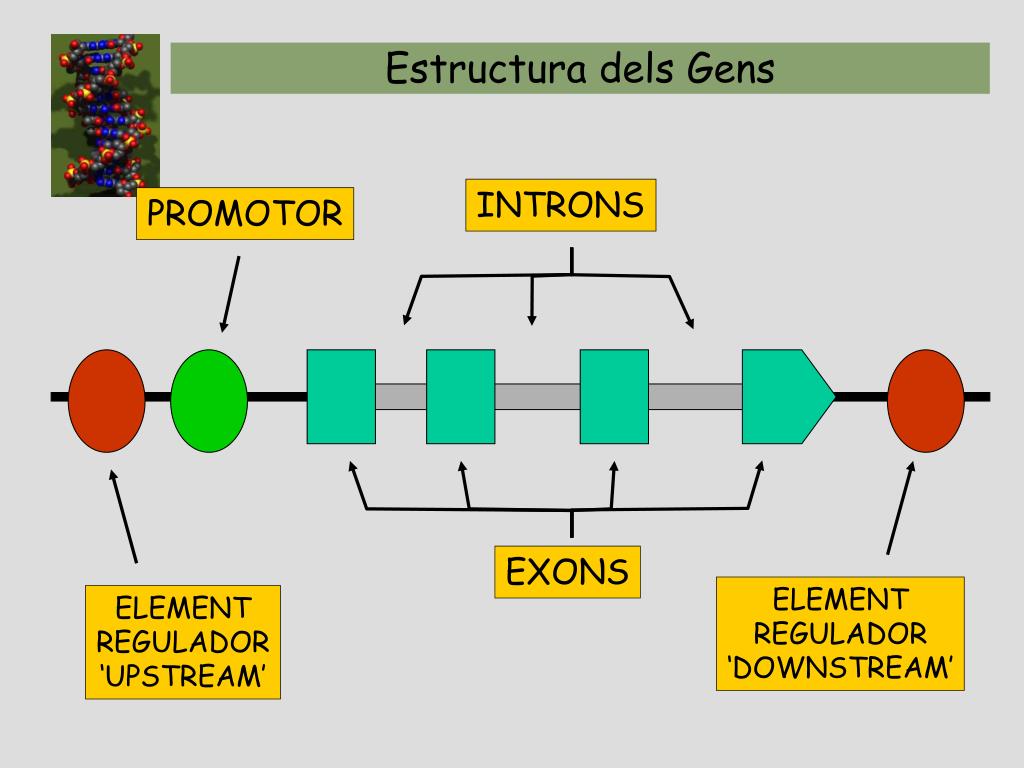

  6. INTRONS PROMOTOR EXONS ELEMENT REGULADOR ‘DOWNSTREAM’ ELEMENT REGULADOR ‘UPSTREAM’ Estructura dels Gens

  7. Del DNA al RNA

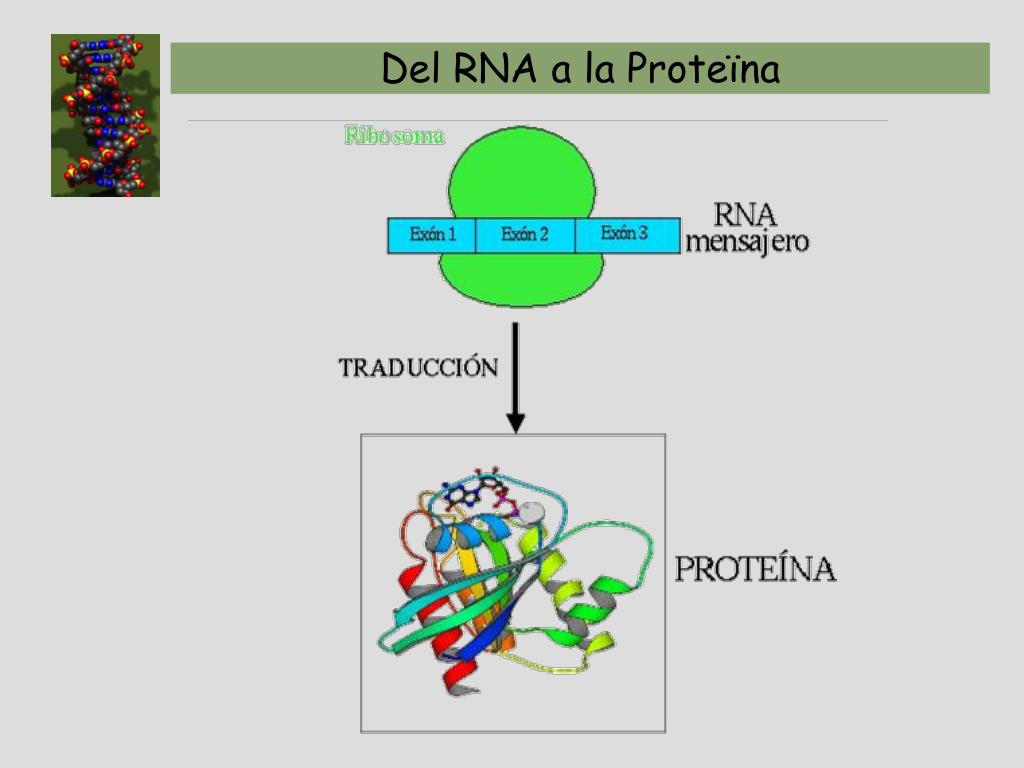

  8. Del RNA a la Proteïna

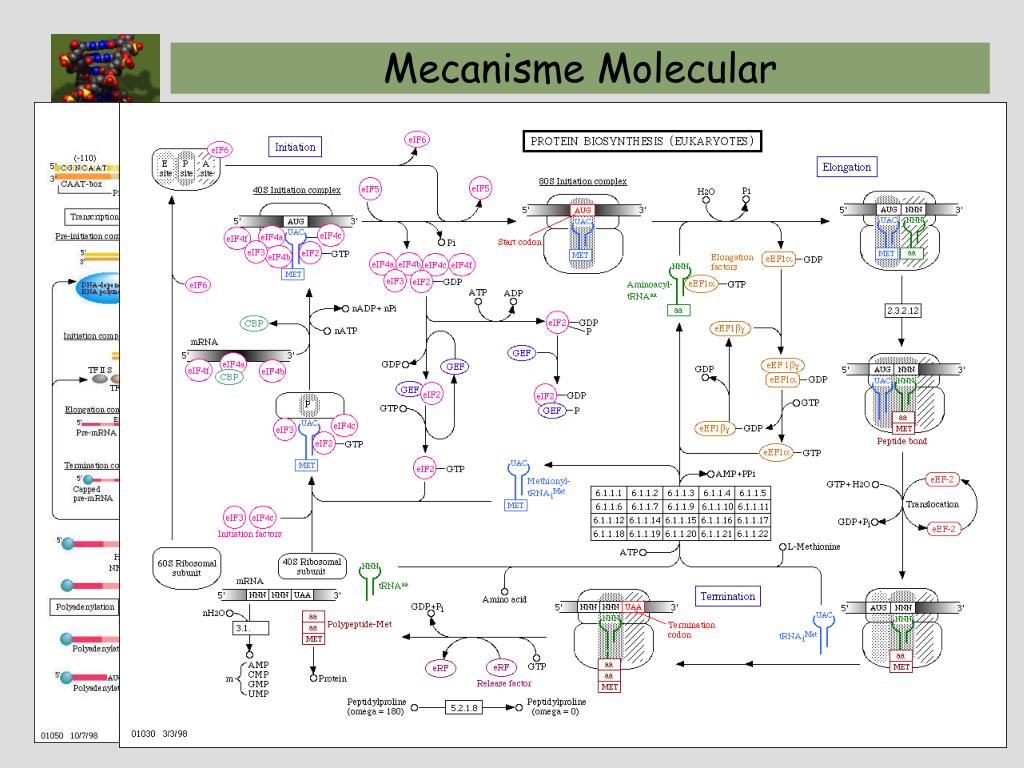

  9. Mecanisme Molecular

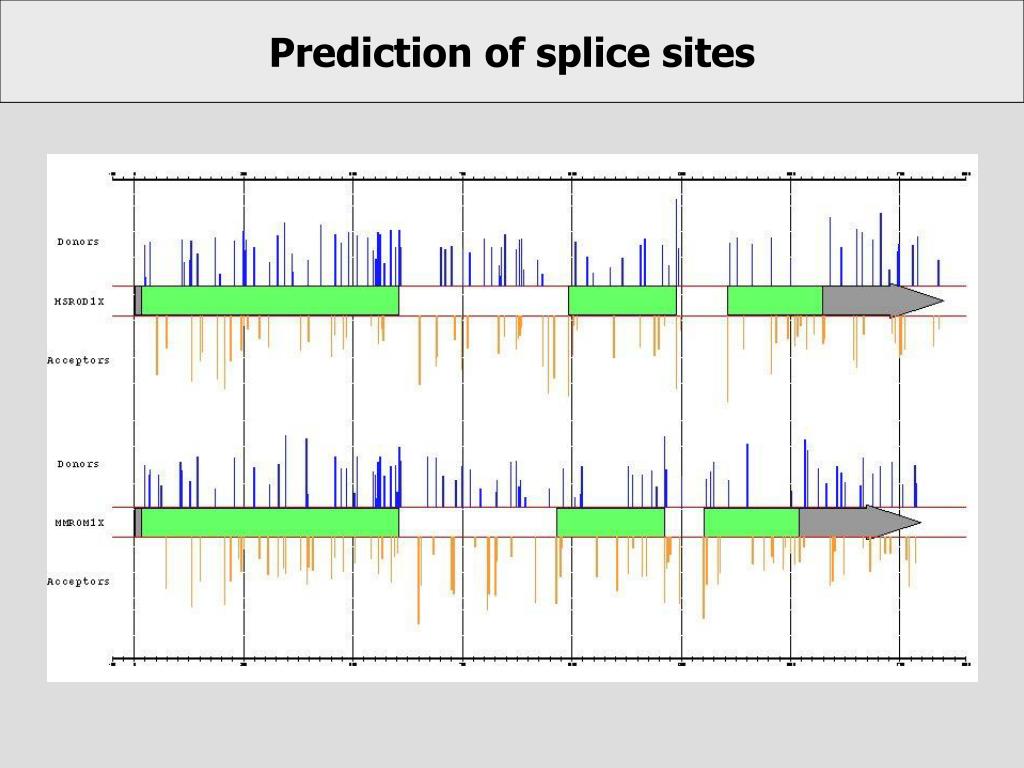

  10. Prediction of splice sites

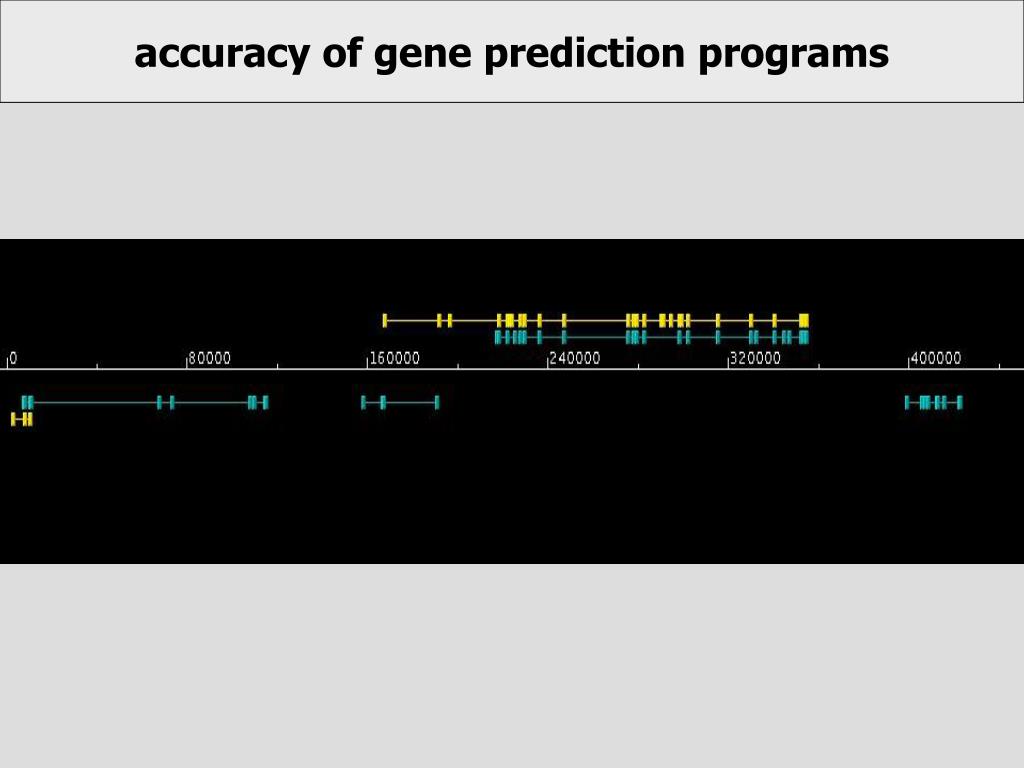

  11. accuracy of gene prediction programs

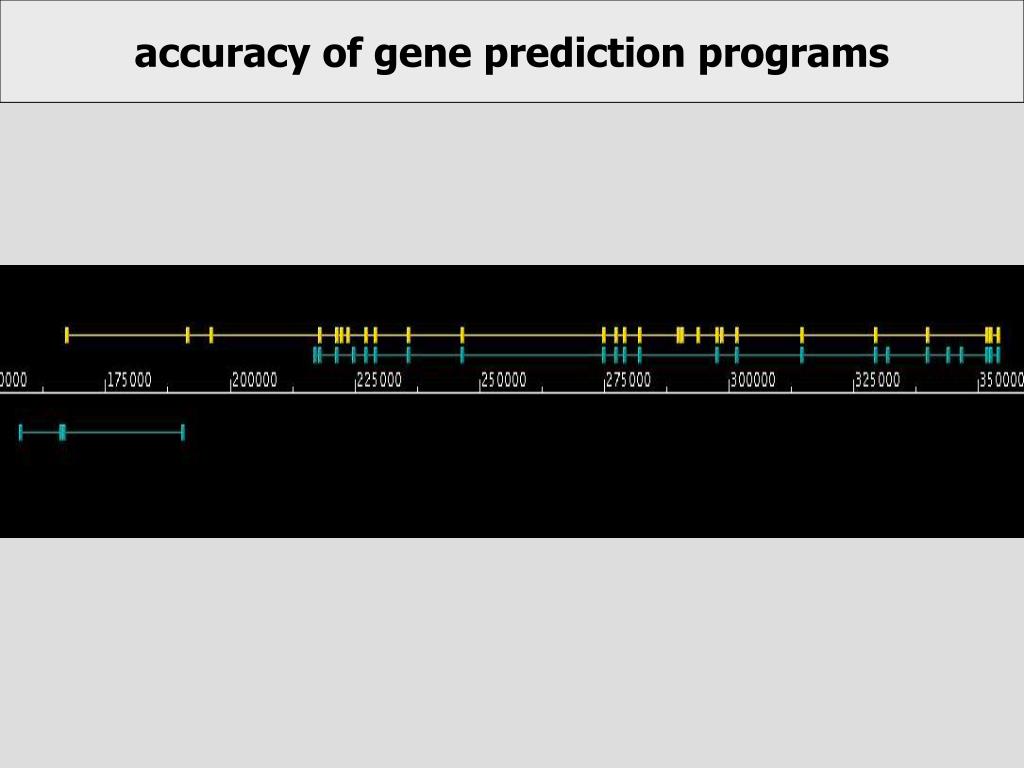

  12. accuracy of gene prediction programs

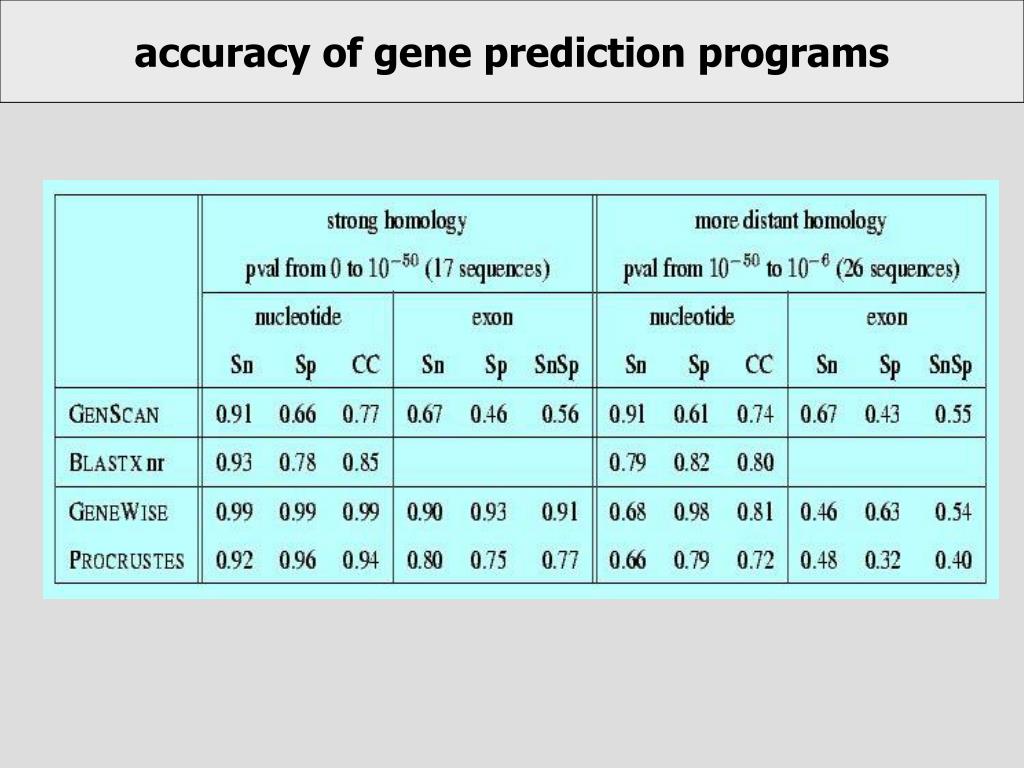

  13. accuracy of gene prediction programs

  14. comparative gene prediciton • rosseta (Batzoglou et al., 2000) • cem (Bafna and Huson, 2000) • sgp1 (Wiehe et al., 2000) • twinscan (Korf et al., 2001) • slam ( Patcher et al., 2001) • sgp2 (Guigó et al., in preparation)

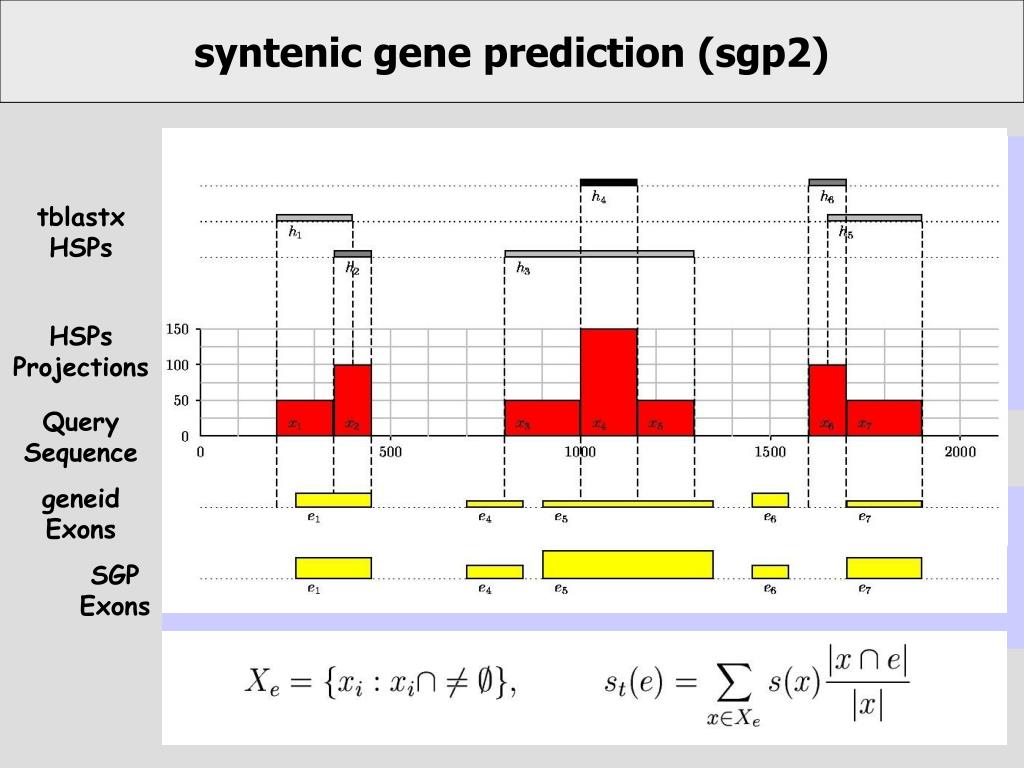

  15. tblastxHSPs HSPsProjections QuerySequence geneidExons SGPExons syntenic gene prediction (sgp2)

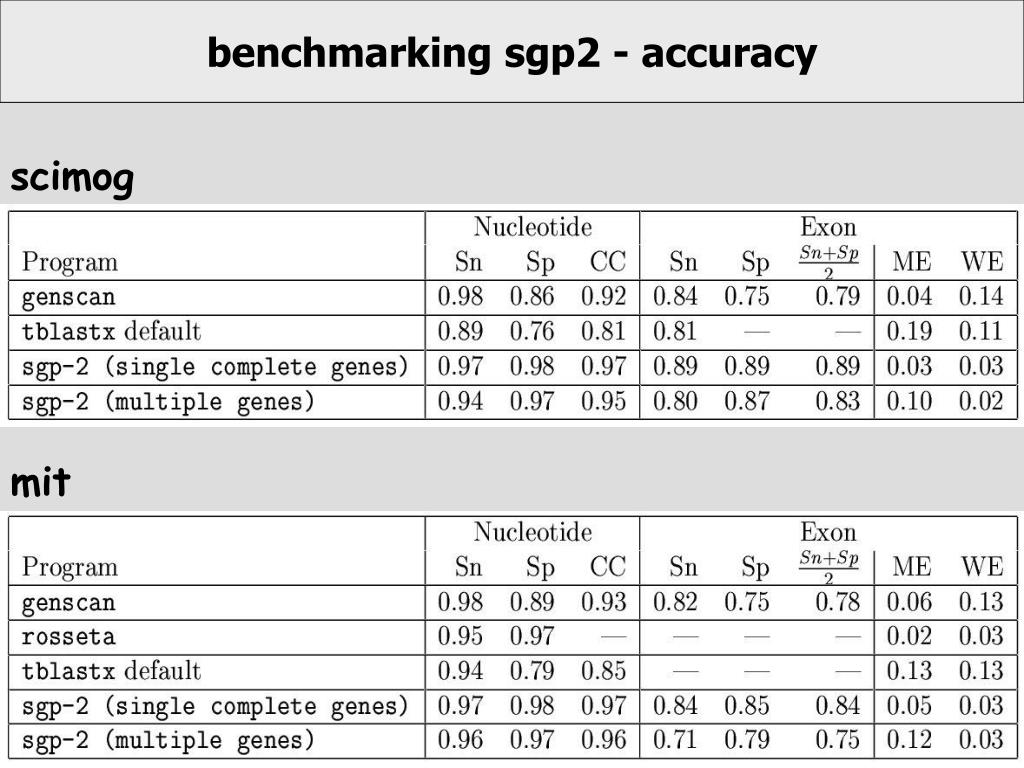

  16. benchmarking sgp2 - accuracy scimog mit

  17. golden path annotations golden path annotations additional blastn matches to ENSEMBL + REFSEQ additional blastn matches to ENSEMBL + REFSEQ tblastx tblastx geneid exons sgp genes Predicting “novel” genes in the human genome Golden Path Oct 7, 2000 freeze. RepeatMasked TraceDB, as on February 2001

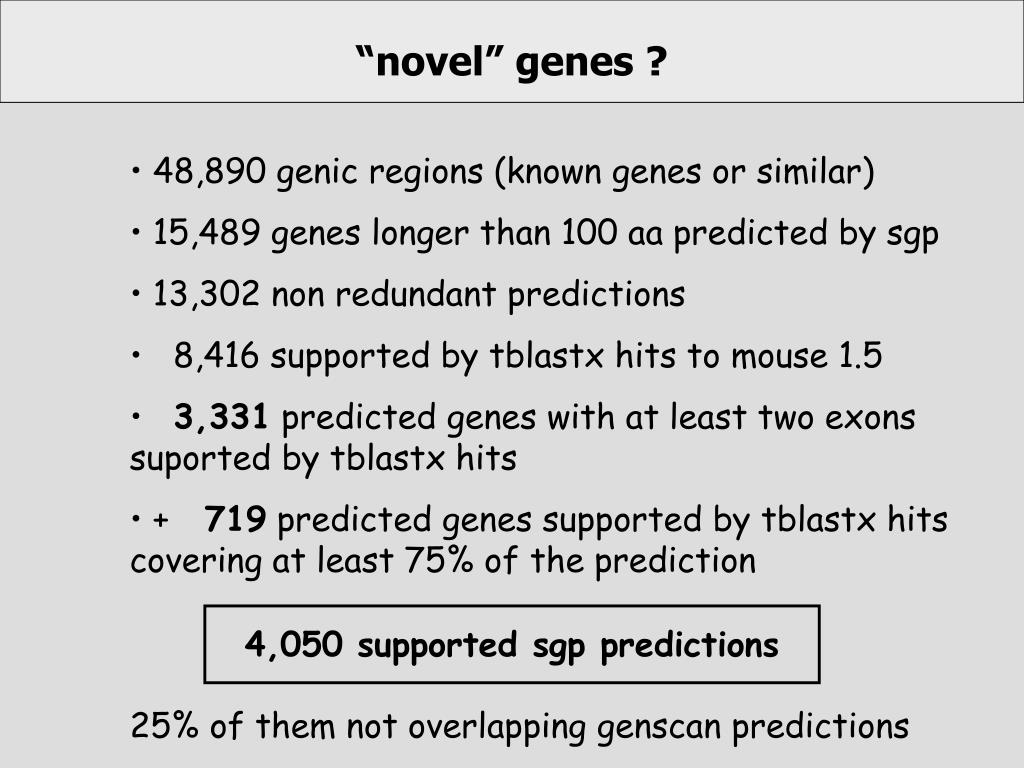

  18. “novel” genes ? • 48,890 genic regions (known genes or similar) • 15,489 genes longer than 100 aa predicted by sgp • 13,302 non redundant predictions • 8,416 supported by tblastx hits to mouse 1.5 • 3,331 predicted genes with at least two exons suported by tblastx hits • + 719 predicted genes supported by tblastx hits covering at least 75% of the prediction 4,050 supported sgp predictions 25% of them not overlapping genscan predictions

  19. validation of predictions

  20. Experimental validation

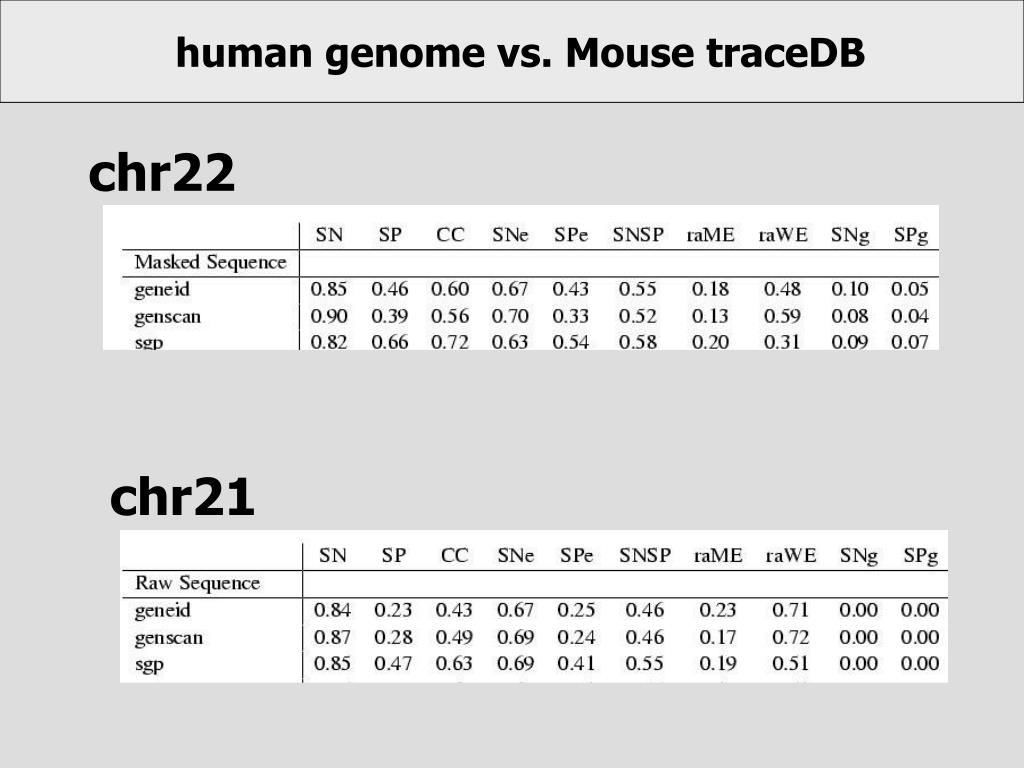

  21. chr22 human genome vs. Mouse traceDB chr21

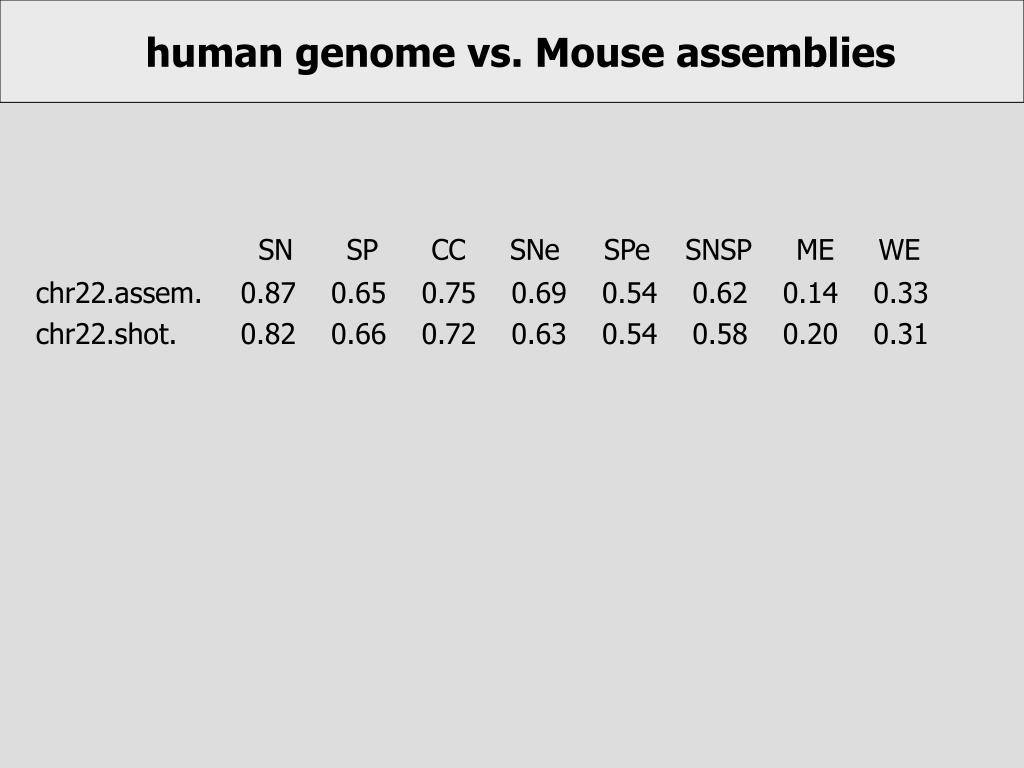

  22. human genome vs. Mouse assemblies SN SP CC SNe SPe SNSP ME WE chr22.assem. 0.87 0.65 0.75 0.69 0.54 0.62 0.14 0.33 chr22.shot. 0.82 0.66 0.72 0.63 0.54 0.58 0.20 0.31

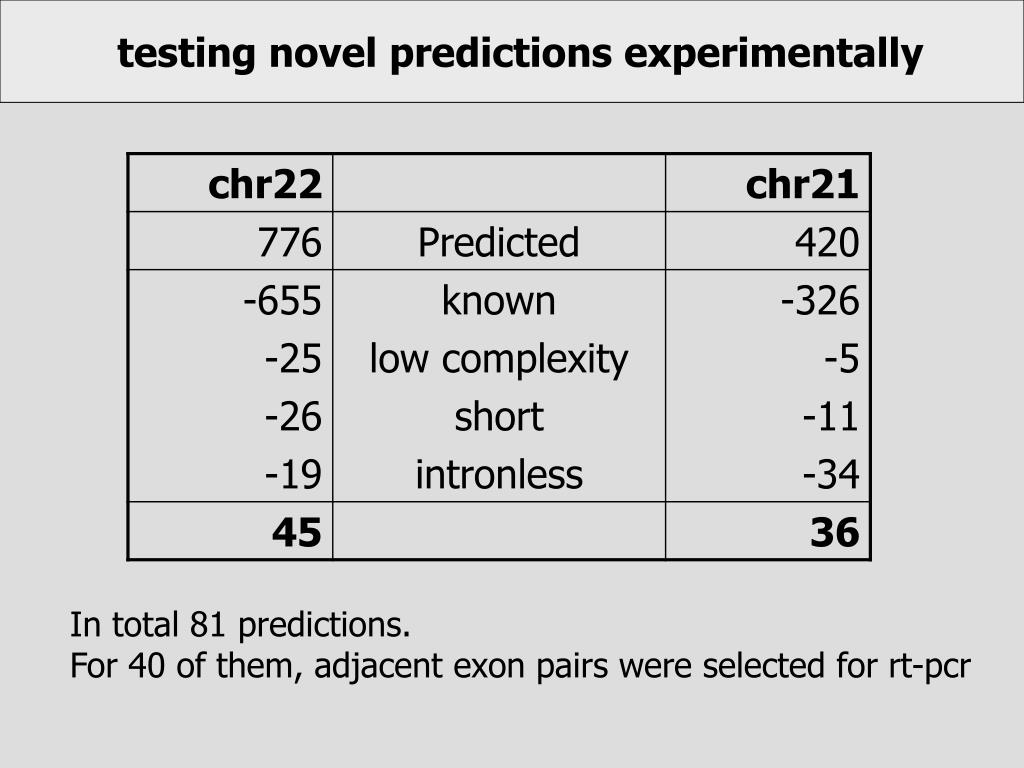

  23. testing novel predictions experimentally In total 81 predictions. For 40 of them, adjacent exon pairs were selected for rt-pcr

  24. preliminary results

  25. aknowledgments IMIM-UPF-CRG, Barcelona • Josep F. Abril • Genís Parra • Roderic Guigó GlaxoSmithKline, King of Prussia • Pankaj Agarwal Max Plank Institute for Chemical Ecology, Jena • Thomas Wiehe Whitehead Institute/MIT Center for Genome Research, Cambridge • Gwen Acton • Dan Brown • Kerstin Mouse Sequence Consortium
