  1. common Network Information Service (cNIS) Andreas Hanemann, DFN October 12, 2006 Montpellier, France

  2. Motivation for cNIS • Observation that different GN2 activities need network information • JRA1: Network topologies including geographical information needed for CNM, Nemo, VisualperfSONAR (layer 3) • SA3: Network topology and path/routing information needed for path finding and provisioning system (AMPS, layer3) • JRA3: Technology-dependent network topology needed for bandwidth-on-demand activity • JRA4: Database for optical network paths required

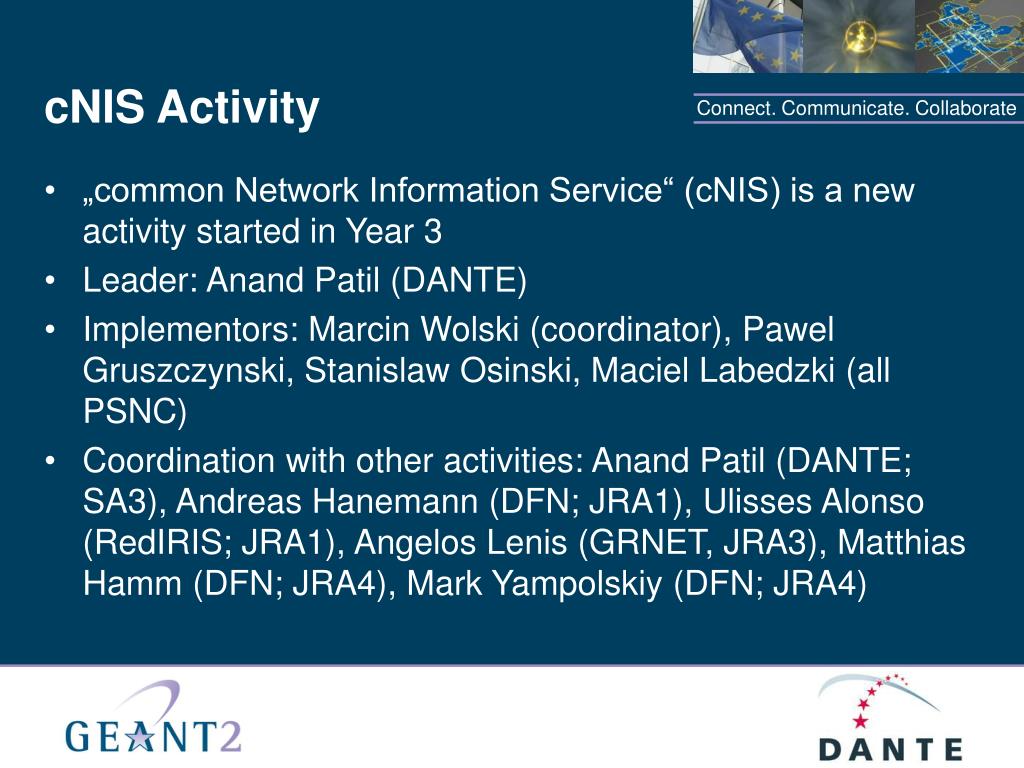

  3. cNIS Activity • „common Network Information Service“ (cNIS) is a new activity started in Year 3 • Leader: Anand Patil (DANTE) • Implementors: Marcin Wolski (coordinator), Pawel Gruszczynski, Stanislaw Osinski, Maciel Labedzki (all PSNC) • Coordination with other activities: Anand Patil (DANTE; SA3), Andreas Hanemann (DFN; JRA1), Ulisses Alonso (RedIRIS; JRA1), Angelos Lenis (GRNET, JRA3), Matthias Hamm (DFN; JRA4), Mark Yampolskiy (DFN; JRA4)

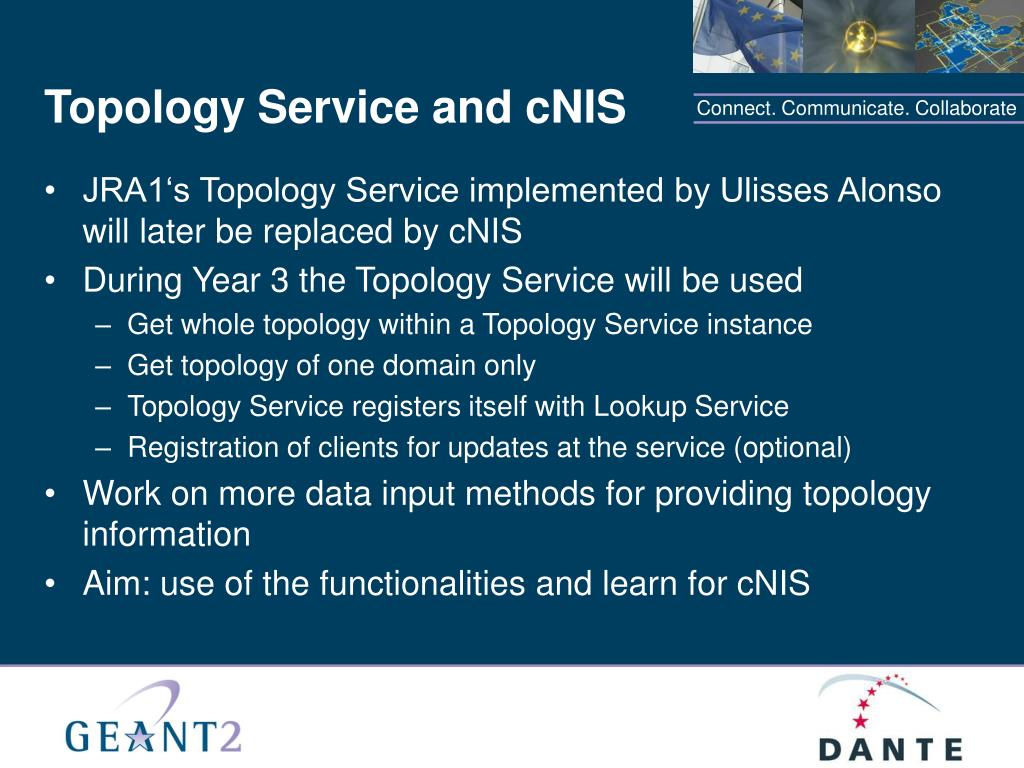

  4. Topology Service and cNIS • JRA1‘s Topology Service implemented by Ulisses Alonso will later be replaced by cNIS • During Year 3 the Topology Service will be used • Get whole topology within a Topology Service instance • Get topology of one domain only • Topology Service registers itself with Lookup Service • Registration of clients for updates at the service (optional) • Work on more data input methods for providing topology information • Aim: use of the functionalities and learn for cNIS

  5. Topology Service Architecture NMWG interface Specific data filling method (e.g. script using CDP/LLDP, script using routing protocol information, database output, NAV) for perfSONAR Topology Service Postgres DB : NMWG message

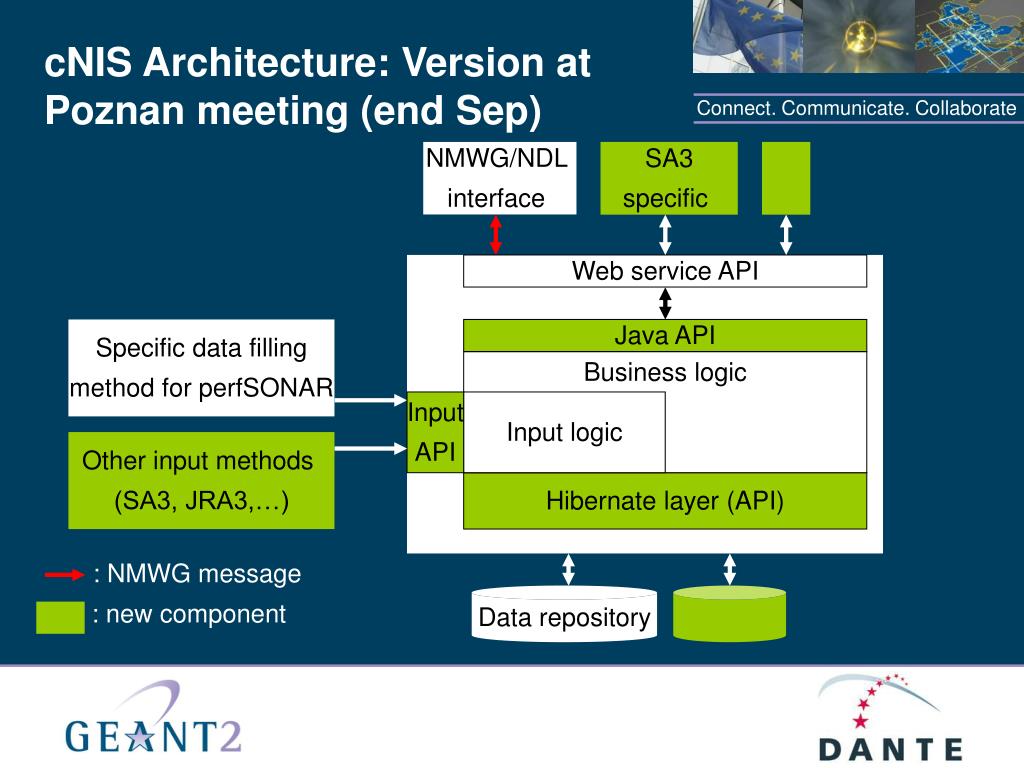

  6. cNIS Architecture: Version at Poznan meeting (end Sep) NMWG/NDL interface SA3 specific Web service API Specific data filling method for perfSONAR Java API Business logic Input API Inputlogic Other input methods (SA3, JRA3,…) Hibernatelayer (API) : NMWG message Data repository : new component

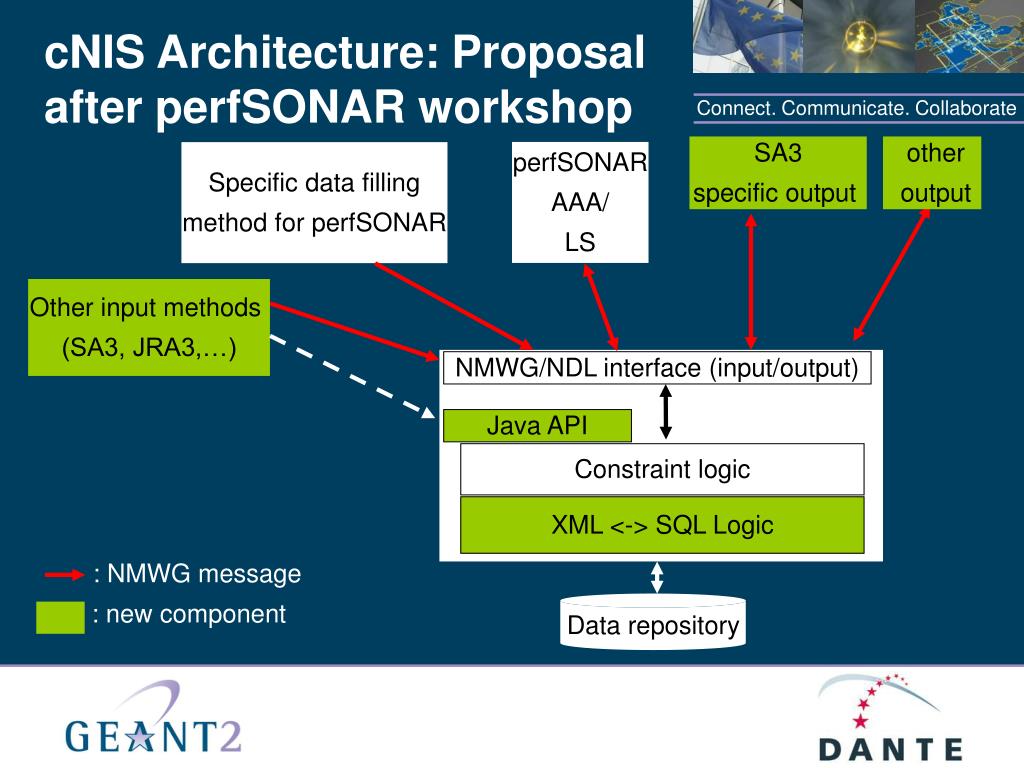

  7. cNIS Architecture: Proposal after perfSONAR workshop SA3 specific output other output perfSONAR AAA/ LS Specific data filling method for perfSONAR Other input methods (SA3, JRA3,…) NMWG/NDL interface (input/output) Java API Constraint logic XML <-> SQL Logic : NMWG message : new component Data repository

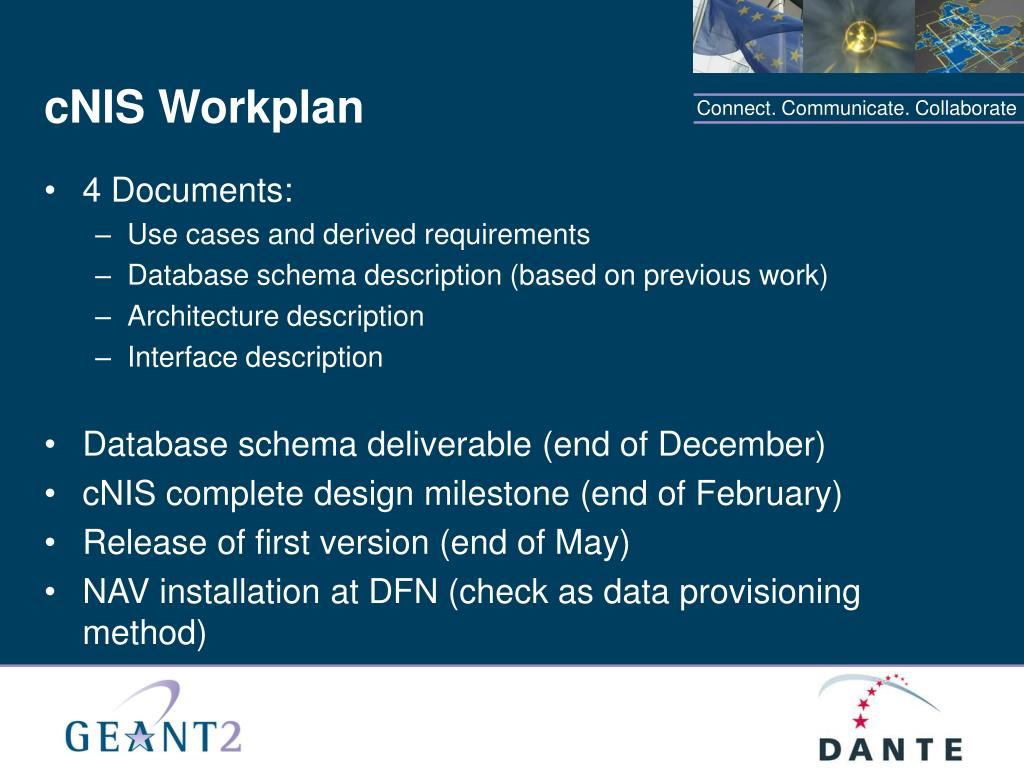

  8. cNIS Workplan • 4 Documents: • Use cases and derived requirements • Database schema description (based on previous work) • Architecture description • Interface description • Database schema deliverable (end of December) • cNIS complete design milestone (end of February) • Release of first version (end of May) • NAV installation at DFN (check as data provisioning method)
