PISE-S150A Dimmable Power Supply - 150W, 0-10V Control, IP66 Certified

The PISE-S150A is a high-performance, 150W dimmable power supply with a wide output voltage range of 60V to 215V and a maximum current of 0.7A. It features 0-10V dimming capability, ensuring customizable lighting solutions. With its robust metal case, this power supply meets IP66 standards for dust and water resistance, making it suitable for demanding environments. The PISE-S150A also includes active power factor correction and multiple protection features: UVP, OVP, SCP, OTP, and OCP. It has received UL8750 and UL1012 safety certifications.

kyla-price
Télécharger la présentation

PISE-S150A Dimmable Power Supply - 150W, 0-10V Control, IP66 Certified

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

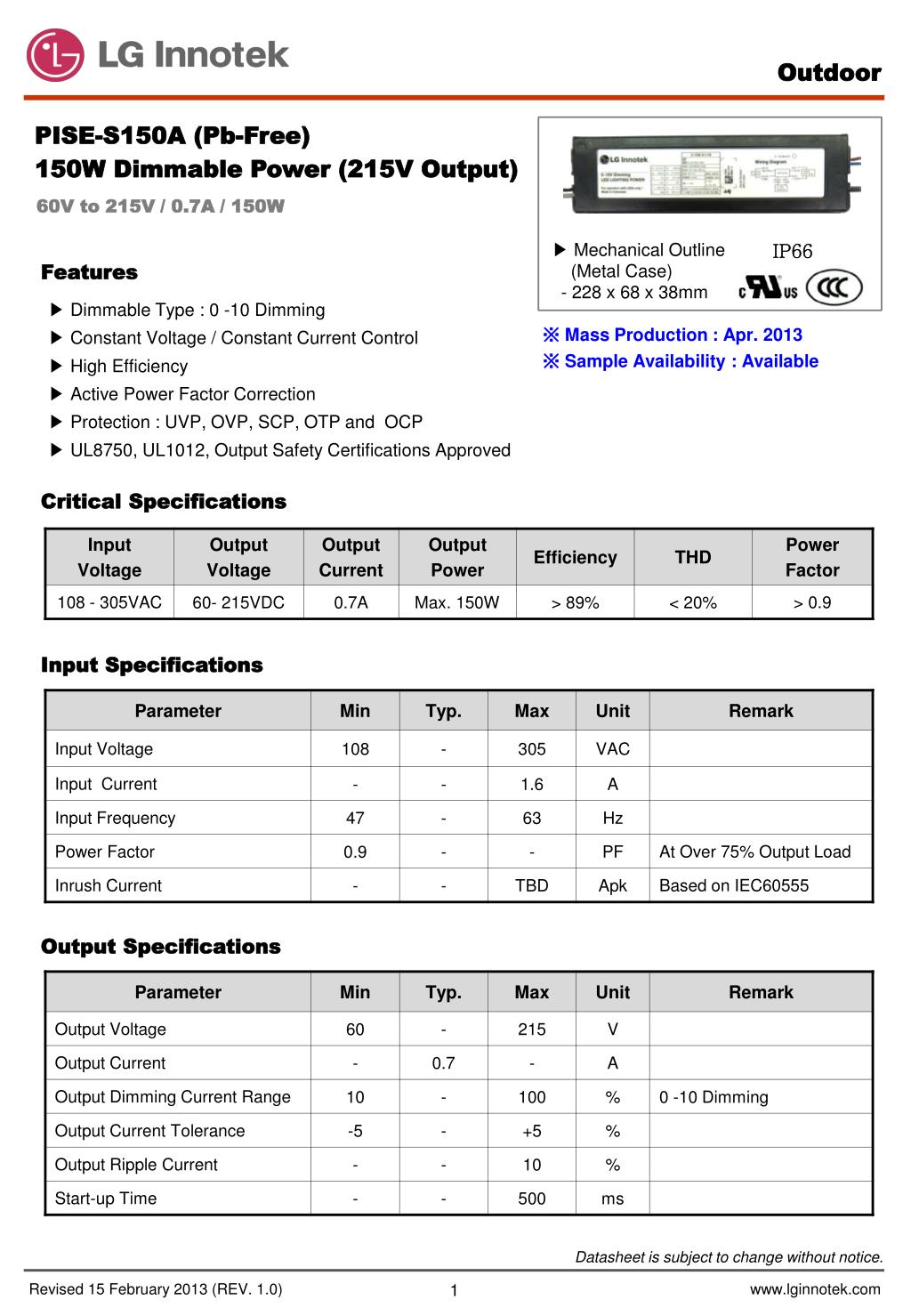

  1. PISE-S150A (Pb-Free) 150W Dimmable Power (215V Output) 60V to 215V / 0.7A / 150W ▶ Mechanical Outline (Metal Case) - 228 x 68 x 38mm IP66 Features ▶ Dimmable Type : 0 -10 Dimming ▶ Constant Voltage / Constant Current Control ▶ High Efficiency ▶ Active Power Factor Correction ▶ Protection : UVP, OVP, SCP, OTP and OCP ▶ UL8750, UL1012, Output Safety Certifications Approved ※ Mass Production : Apr. 2013 ※ Sample Availability : Available Critical Specifications Input Specifications Output Specifications 1

  2. Protection Functions ReliabilitySpecifications EnvironmentalSpecifications Standards 2
