  1. Toll Management System

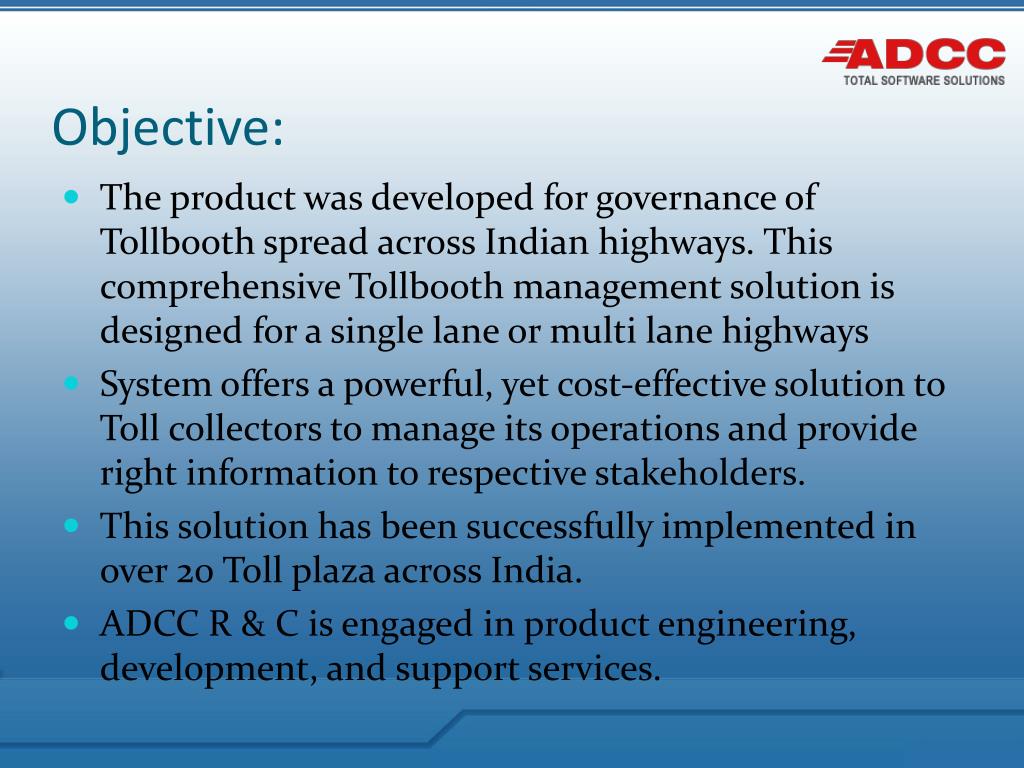

  2. Objective: • The product was developed for governance of Tollbooth spread across Indian highways. This comprehensive Tollbooth management solution is designed for a single lane or multi lane highways • System offers a powerful, yet cost-effective solution to Toll collectors to manage its operations and provide right information to respective stakeholders. • This solution has been successfully implemented in over 20 Toll plaza across India. • ADCC R & C is engaged in product engineering, development, and support services.

  3. Functional Features: • Easy to use Graphical User Interface. • Less human intervention. • With a single click one can export data from a Tollbooth to Toll MIS system • Interactive reports and Graphs • Drill down facility to view graphical data. • Built in robust backup and recovery strategies for disaster management.

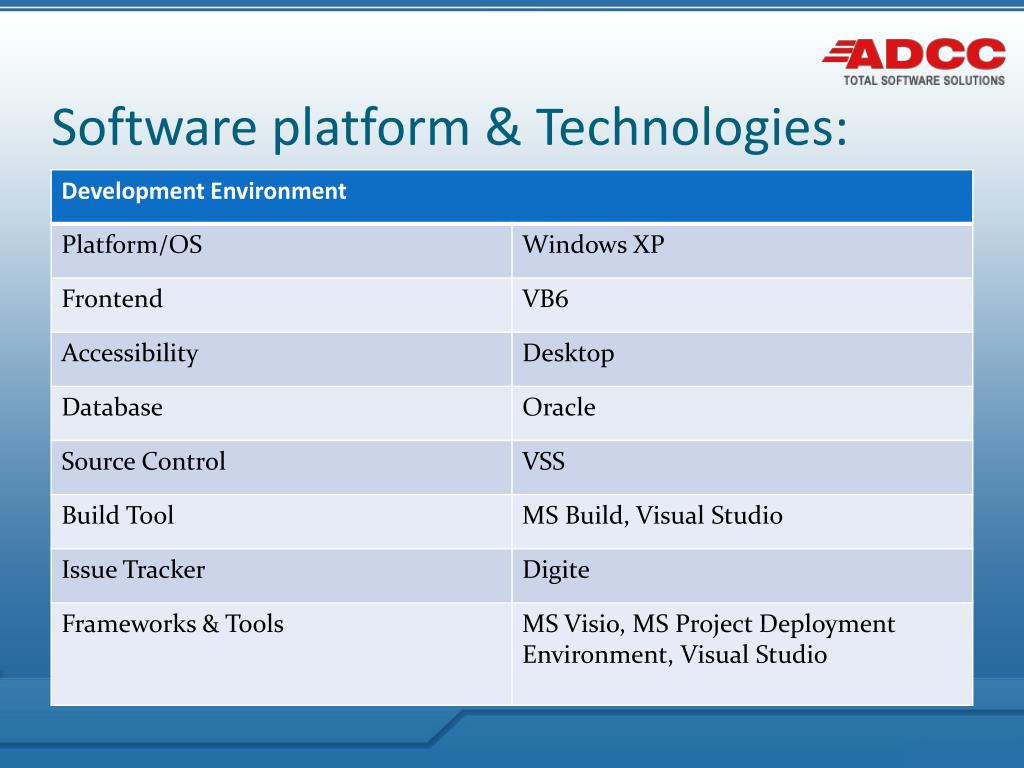

  4. Software platform & Technologies:

  5. Architecture Diagram : GUI Business Logic Data Access Layer Data Modal Layer Database Tables , indexes, triggers And SP

  6. Deployment Diagram
