Trig Ratios - Finding Angles

. Trig Ratios - Finding Angles. SOH CAH TOA. B. h yp. o pp. C. A. a dj. hyp. 10. B. 8. opp. 6. adj. C. SOH CAH TOA. A. Example 1: Determine the measure of Ð A. B. 8 cm. opp. tan A = 0.6154. 13 cm. C. A. adj. Ð A = tan -1 (0.6154). SOH CAH TOA.

kyoko
Télécharger la présentation

Trig Ratios - Finding Angles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Trig Ratios - Finding Angles

  2. SOH CAH TOA B hyp opp C A adj

  3. hyp 10 B 8 opp 6 adj C SOH CAH TOA A

  4. Example 1: Determine the measure of ÐA. B 8 cm opp tan A = 0.6154 13 cm C A adj ÐA = tan-1(0.6154) SOH CAH TOA ÐA = 31.6°

  5. Example 2:Determine the measure of ÐP. SOH CAH TOA R adjacent cos P = 0.70588 12 cm ÐP = cos–1(0.70588) Q 17 cm ÐP = 45.1° P hypotenuse

  6. R 8 cm Q P 4 cm Ex. 3:In DPQR, ÐQ = 90°, PR = 8 cm and PQ = 4 cm. Find R. hyp opp SOH CAH TOA

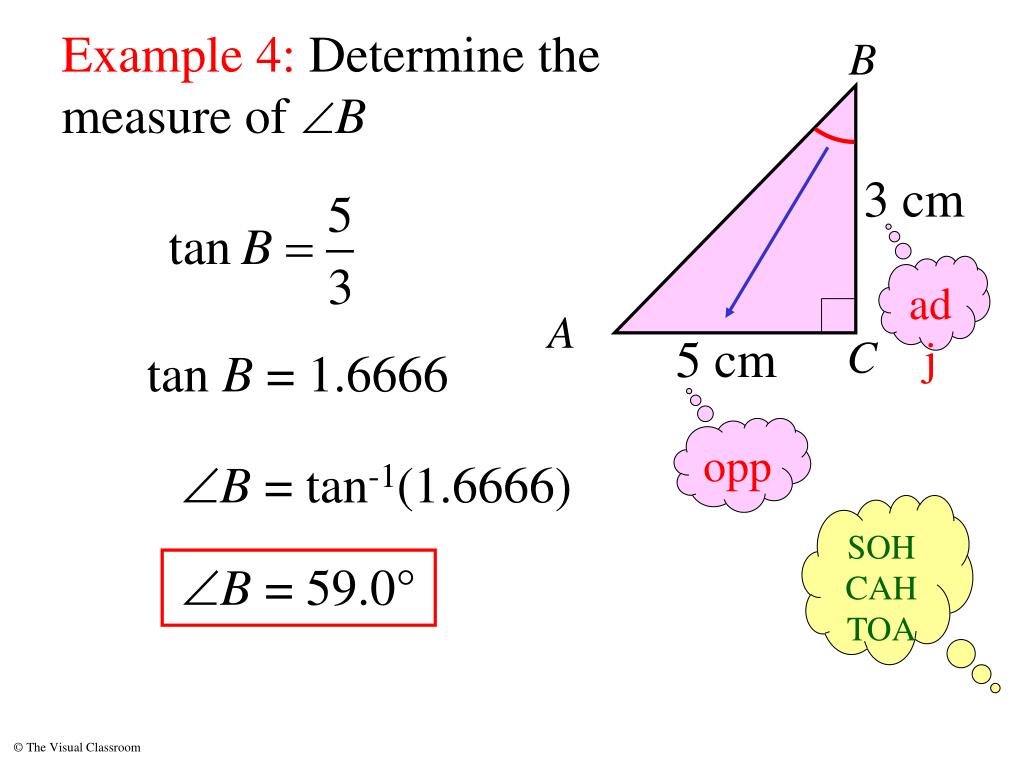

  7. Example 4: Determine the measure of ÐB B 3 cm adj A 5 cm C tan B = 1.6666 opp ÐB = tan-1(1.6666) SOH CAH TOA ÐB = 59.0°
