  1. IPN template project architecture 19th Feb 2013

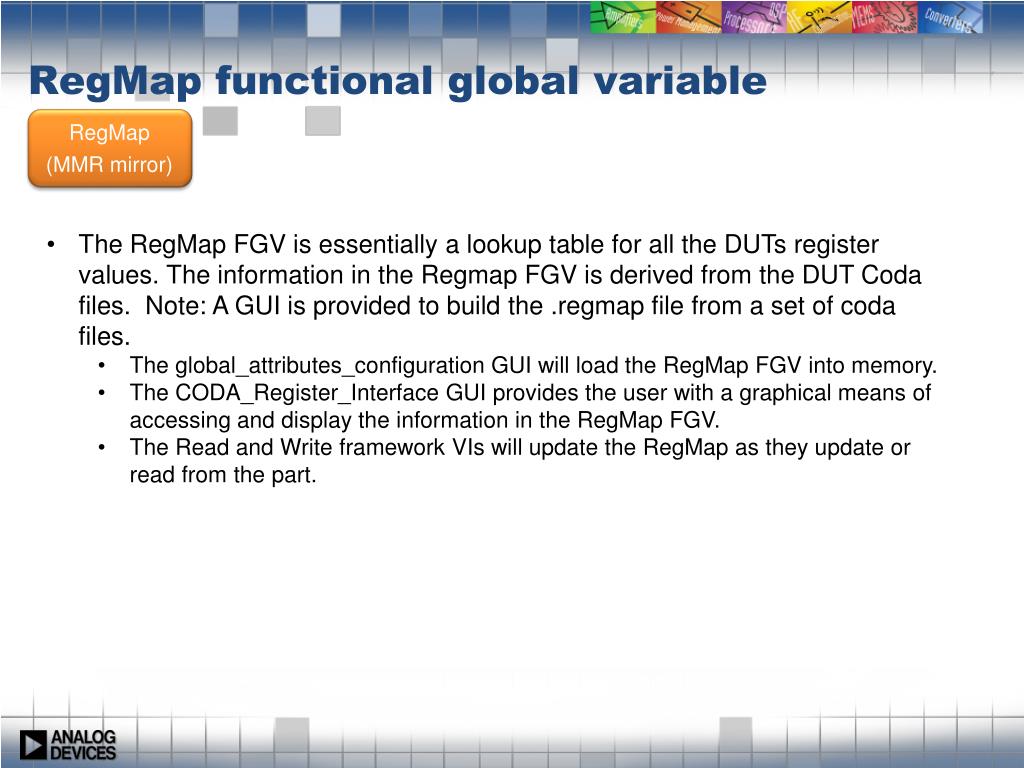

  2. RegMap • (MMR mirror) RegMap functional global variable • The RegMap FGV is essentially a lookup table for all the DUTs register values. The information in the Regmap FGV is derived from the DUT Coda files. Note: A GUI is provided to build the .regmap file from a set of coda files. • The global_attributes_configurationGUI will load the RegMap FGV into memory. • The CODA_Register_Interface GUI provides the user with a graphical means of accessing and display the information in the RegMap FGV. • The Read and Write framework VIs will update the RegMap as they update or read from the part.

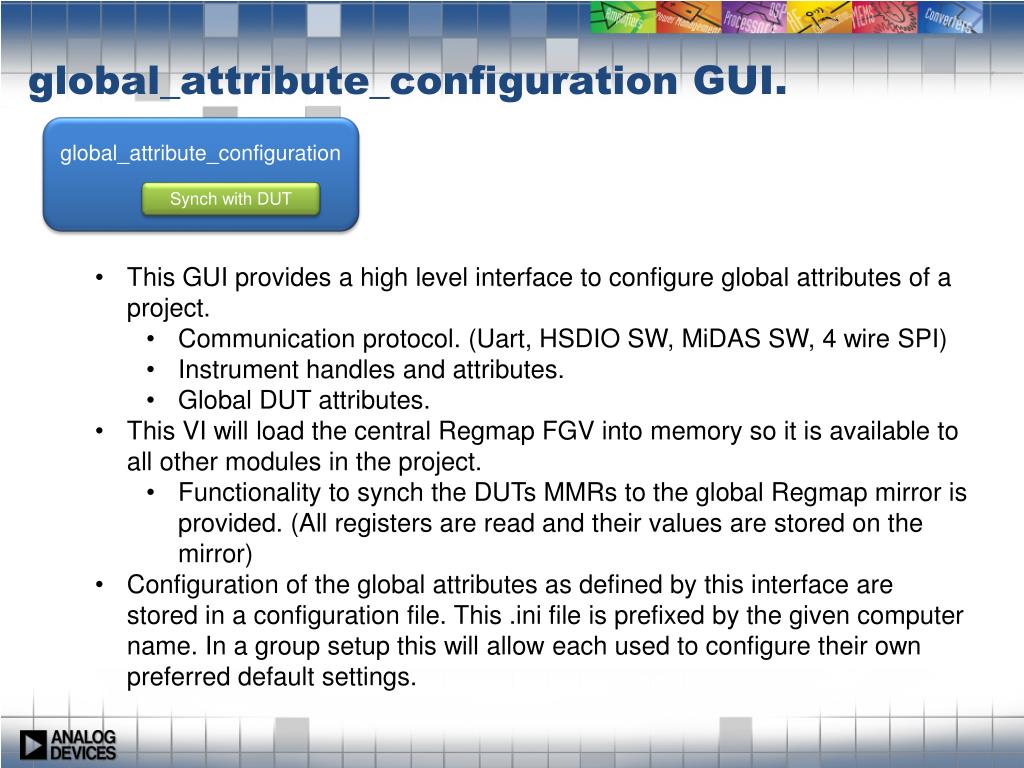

  3. global_attribute_configuration • Synch with DUT global_attribute_configuration GUI. • This GUI provides a high level interface to configure global attributes of a project. • Communication protocol. (Uart, HSDIO SW, MiDAS SW, 4 wire SPI) • Instrument handles and attributes. • Global DUT attributes. • This VI will load the central Regmap FGV into memory so it is available to all other modules in the project. • Functionality to synch the DUTs MMRs to the global Regmap mirror is provided. (All registers are read and their values are stored on the mirror) • Configuration of the global attributes as defined by this interface are stored in a configuration file. This .ini file is prefixed by the given computer name. In a group setup this will allow each used to configure their own preferred default settings.

  4. CODA_Register_Interface • Read • Write Coda_Register_Interface GUI • The CODA_Register_Interface GUI is the main debug interface to communicate with the DUT. At its hearth is the Regmap FGV mirror. • Provides a graphical display of all registers on the DUT. • You can search for a register, or a field in a register, by its name. • You can access documentation describing the functionality of a given register. (documentation is only as extensive as that provided by the designer when developing the CODA .xml) • You can read from or write to any register and the interface will maintain a log of this communication sequence. • A comms sequence can be saved and played back to the DUT.

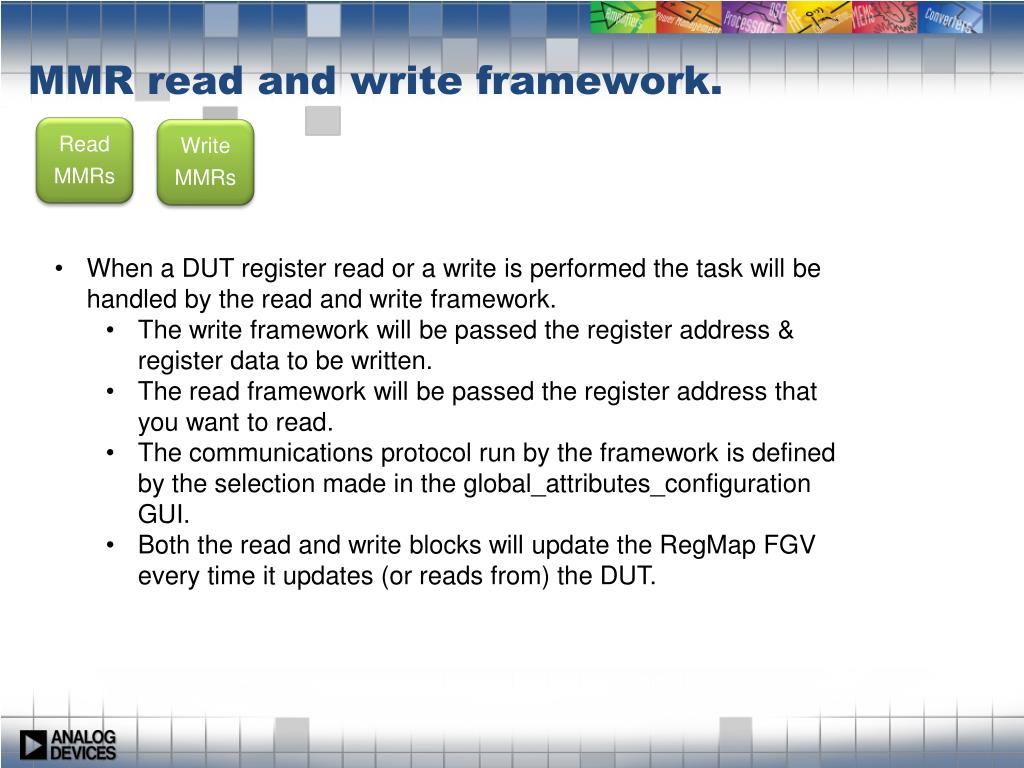

  5. Read • MMRs • Write • MMRs MMR read and write framework. • When a DUT register read or a write is performed the task will be handled by the read and write framework. • The write framework will be passed the register address & register data to be written. • The read framework will be passed the register address that you want to read. • The communications protocol run by the framework is defined by the selection made in the global_attributes_configuration GUI. • Both the read and write blocks will update the RegMap FGV every time it updates (or reads from) the DUT.

  6. DUT test framework • DUT test 2 • DUT test n • DUT test 1 • Supply & • Temperature Test sequencer and DUT test framework. • Test sequencer • Test sequencer allows a number of functional DUT test VIs to be run over a user defined set of temperatures and supply conditions. • The test sequencer publishes its active temperature and supply setting to a FGV. This information is available to the DUT test framework and used when producing result files. • The DUT test framework contains functions to allow a DUT test step to create defined result files with: • Information to help trace the source of the data and to create pivot table friendly results. • Was the VI producing the results called from the sequencer. If so the results contain a pointer to the sequencer .seq and .prj files. • System the test was run on and user name of the engineer logged onto that system. • Reference of the test vi creating the results with SVN revision information. • Environmental conditions the test was run under. • Scalar data in result file is organised for use with pivot table.

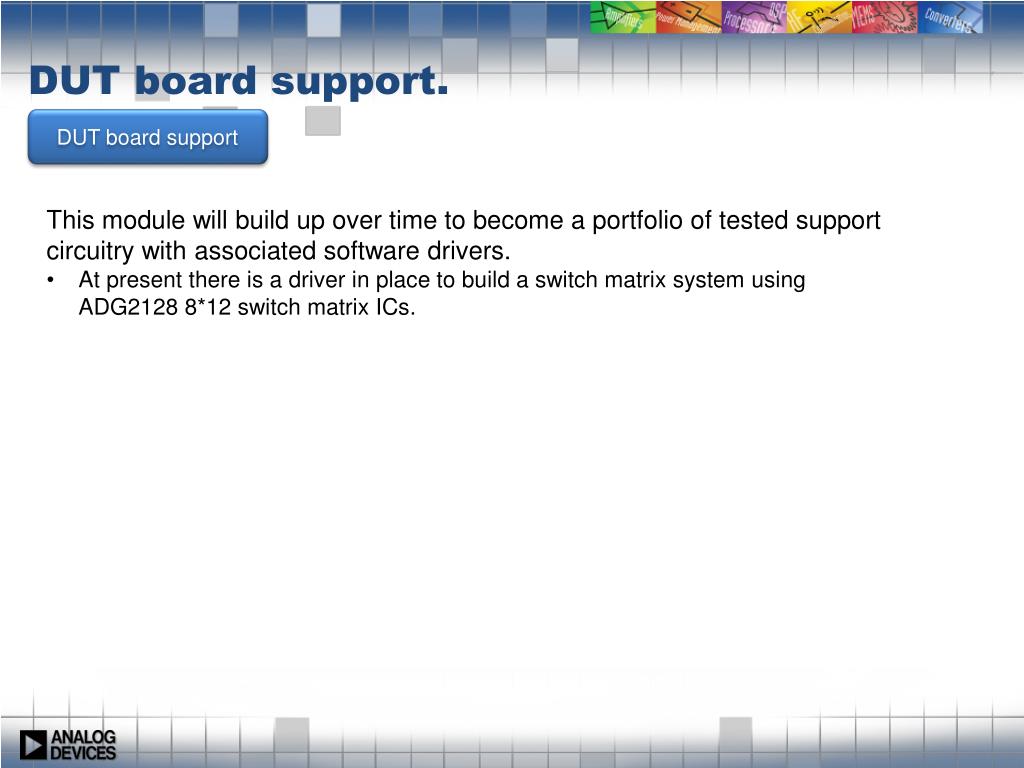

  7. DUT board support DUT board support. • This module will build up over time to become a portfolio of tested support circuitry with associated software drivers. • At present there is a driver in place to build a switch matrix system using ADG2128 8*12 switch matrix ICs.

  8. END
