  1. Transactions and Exception Handling Eric Allsop SQLBits 6th October 2007

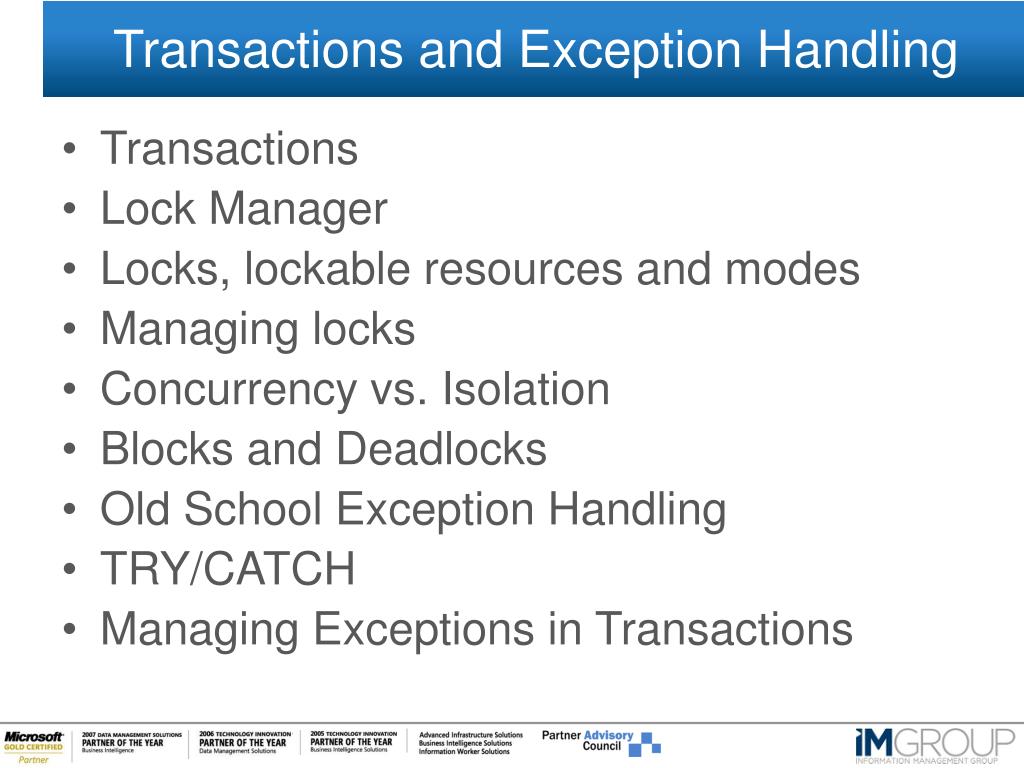

  2. Transactions and Exception Handling • Transactions • Lock Manager • Locks, lockable resources and modes • Managing locks • Concurrency vs. Isolation • Blocks and Deadlocks • Old School Exception Handling • TRY/CATCH • Managing Exceptions in Transactions

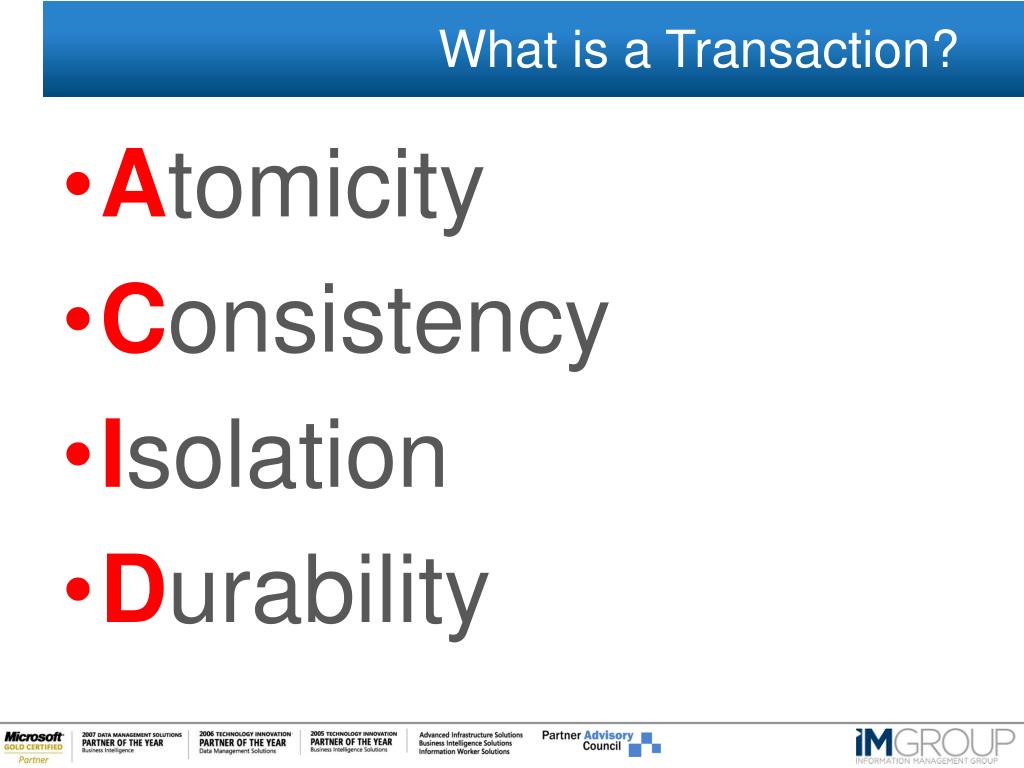

  3. What is a Transaction? • Atomicity • Consistency • Isolation • Durability

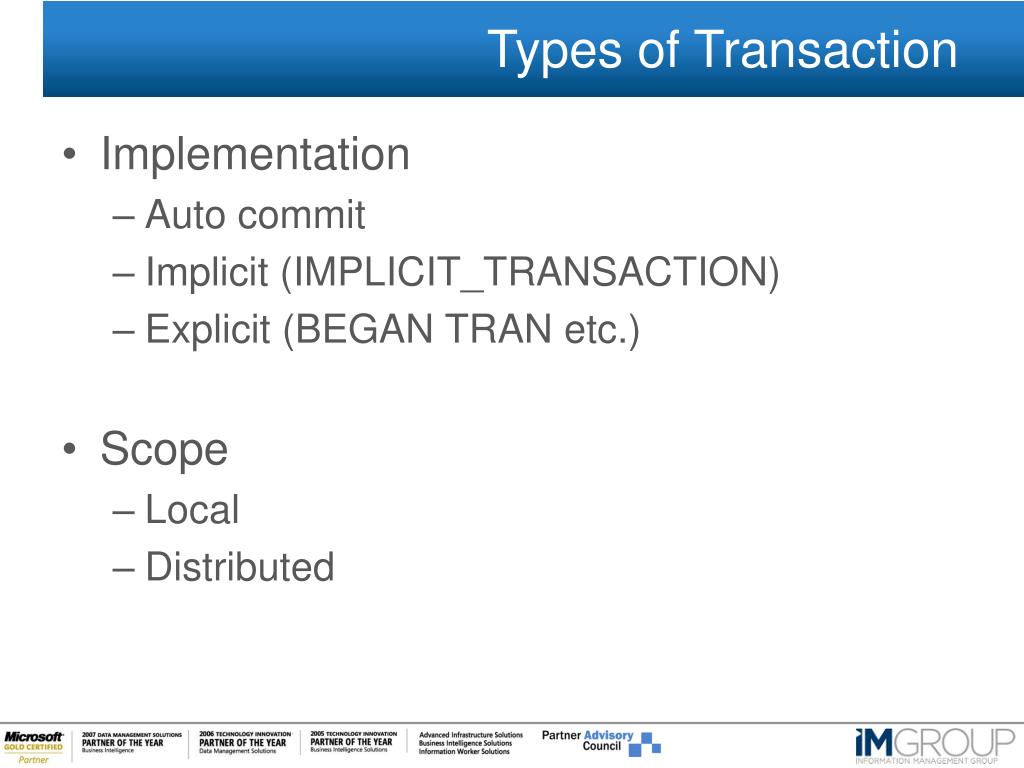

  4. Types of Transaction • Implementation • Auto commit • Implicit (IMPLICIT_TRANSACTION) • Explicit (BEGAN TRAN etc.) • Scope • Local • Distributed

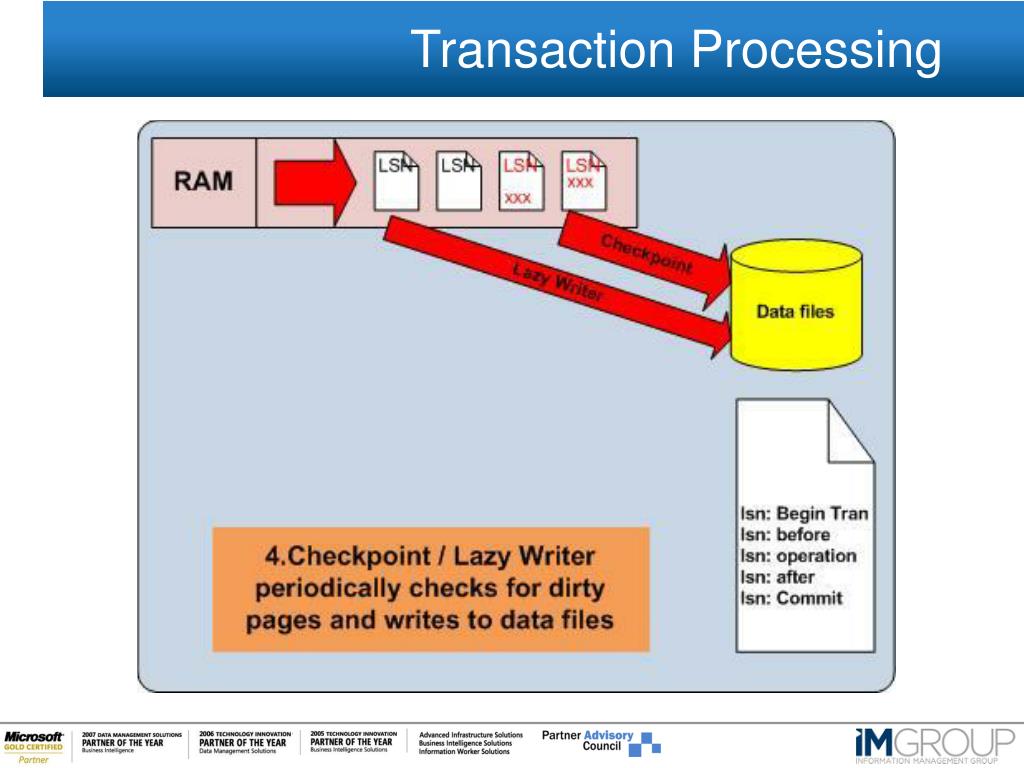

  5. Transaction Processing

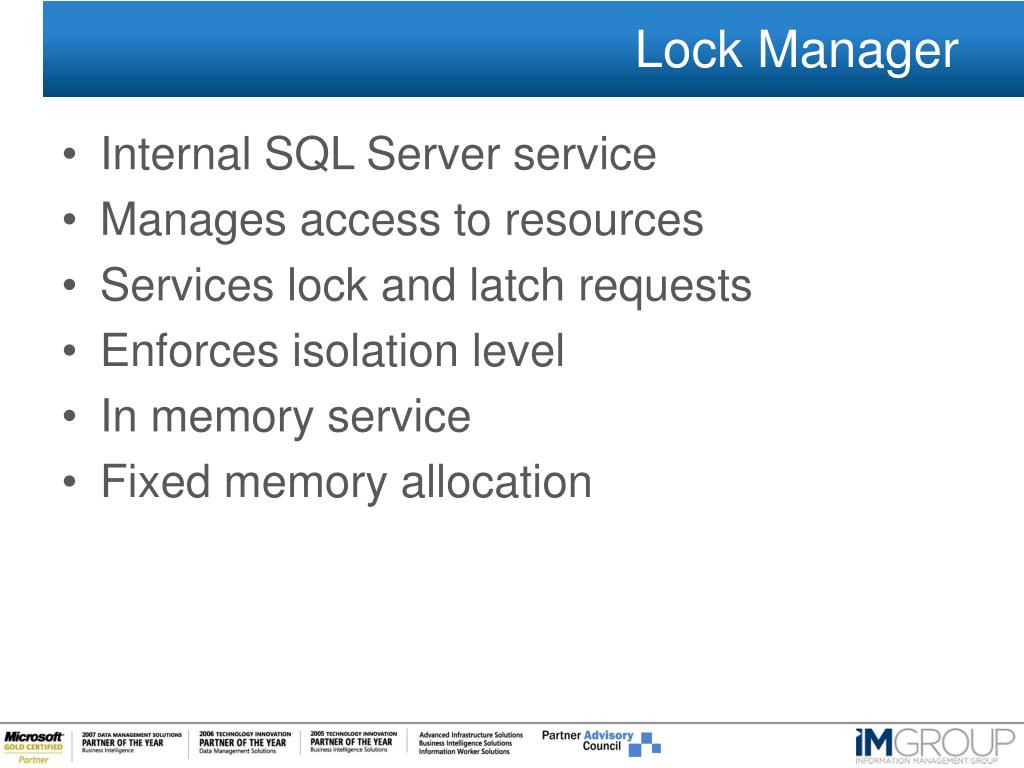

  6. Lock Manager • Internal SQL Server service • Manages access to resources • Services lock and latch requests • Enforces isolation level • In memory service • Fixed memory allocation

  7. Lockable Resources • Common Access • RID / KEY • Page • Table • Database • Space Management • Extent • HOBT • Allocation Unit • File • Other • Application • Metadata • Hierarchy of lockable resources • Locks applied at most suitable level to maximise concurrency • Automatic lock escalation driven by memory limits • Lock hints

  8. Lock Modes • Shared locks (S) • Exclusive locks (X) • Lock compatibility • Update locks (U) • Intent locks (IS, IX, SIX, IU, SIU, UIX)

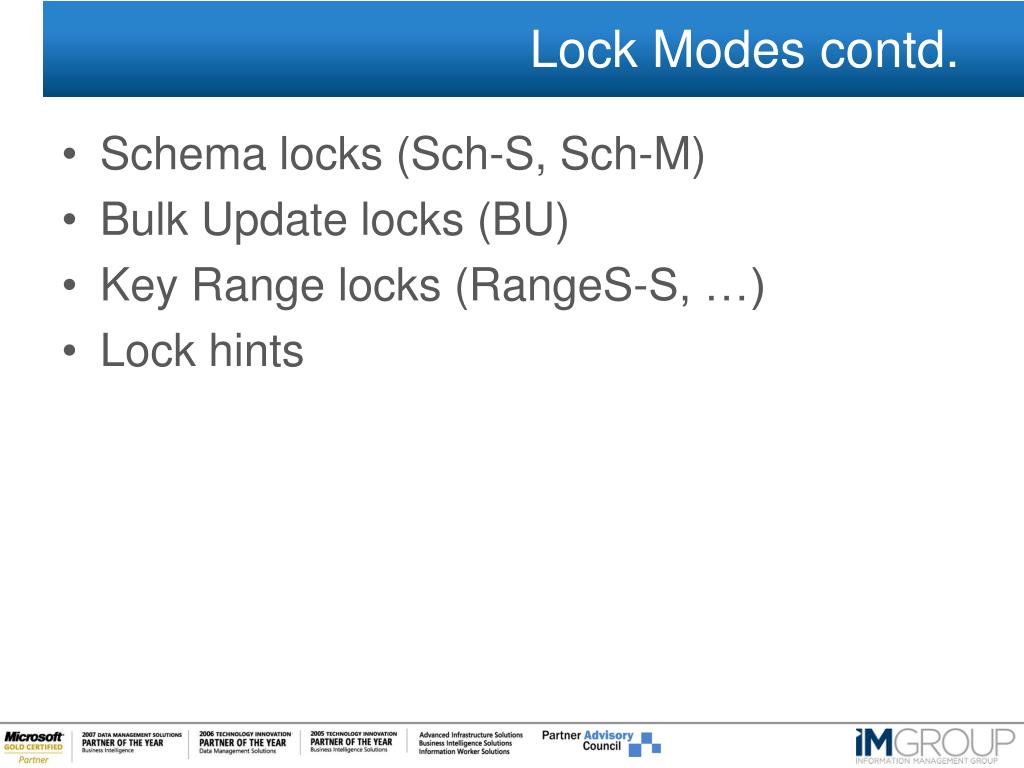

  9. Lock Modes contd. • Schema locks (Sch-S, Sch-M) • Bulk Update locks (BU) • Key Range locks (RangeS-S, …) • Lock hints

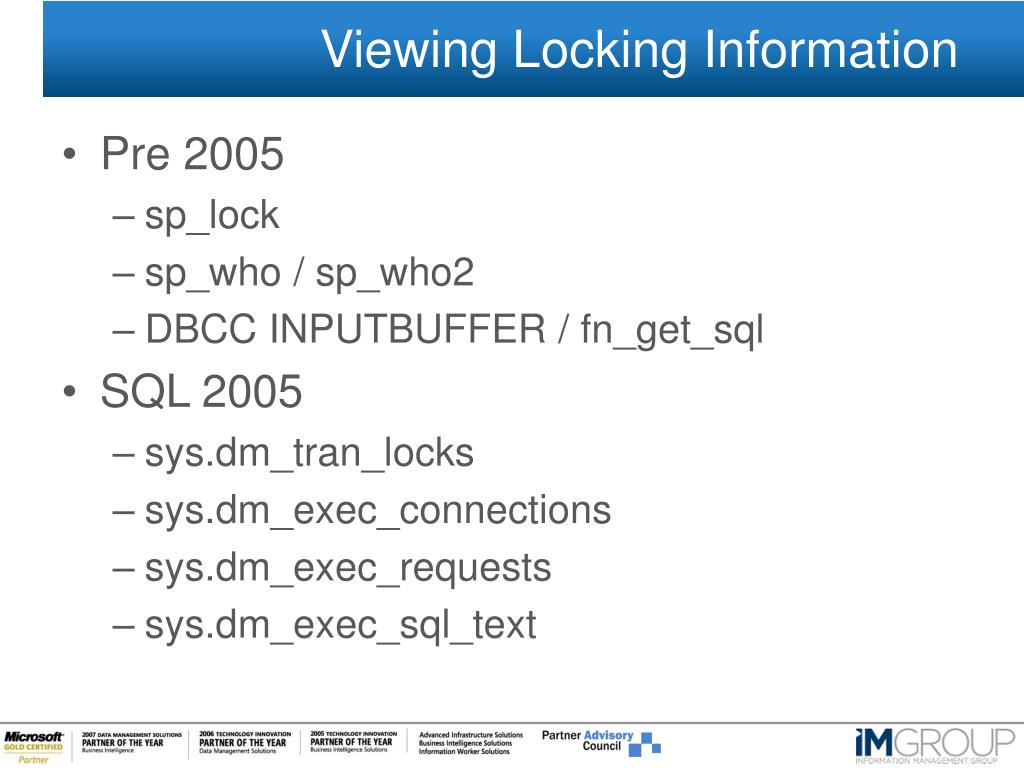

  10. Viewing Locking Information • Pre 2005 • sp_lock • sp_who / sp_who2 • DBCC INPUTBUFFER / fn_get_sql • SQL 2005 • sys.dm_tran_locks • sys.dm_exec_connections • sys.dm_exec_requests • sys.dm_exec_sql_text

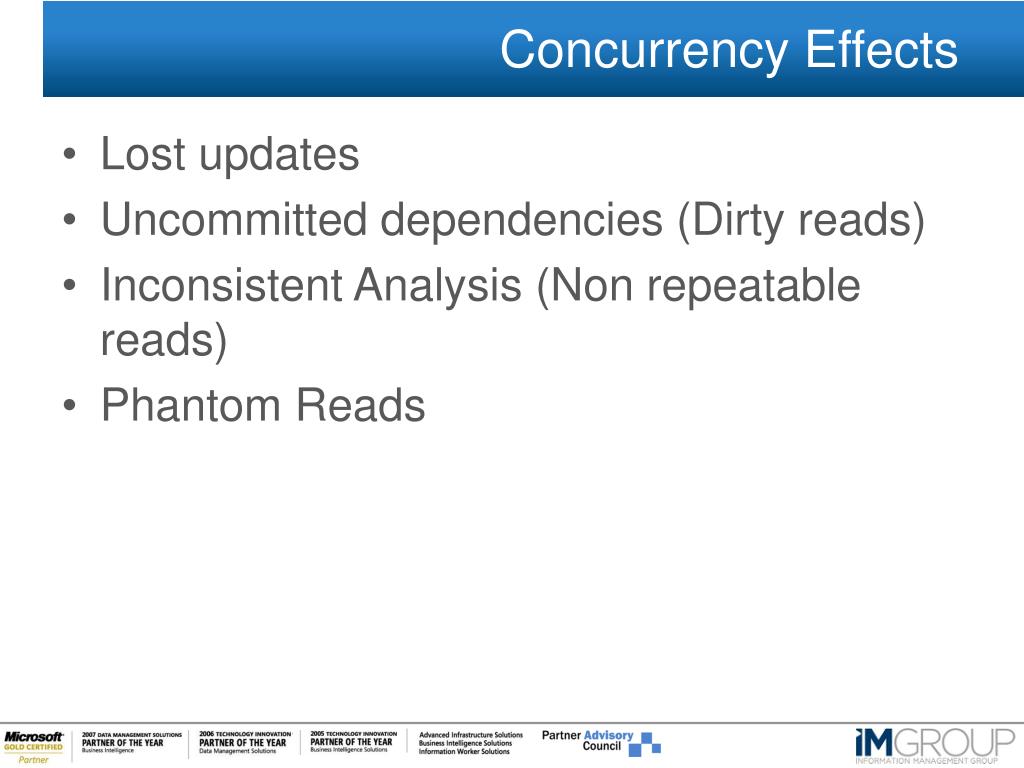

  11. Concurrency Effects • Lost updates • Uncommitted dependencies (Dirty reads) • Inconsistent Analysis (Non repeatable reads) • Phantom Reads

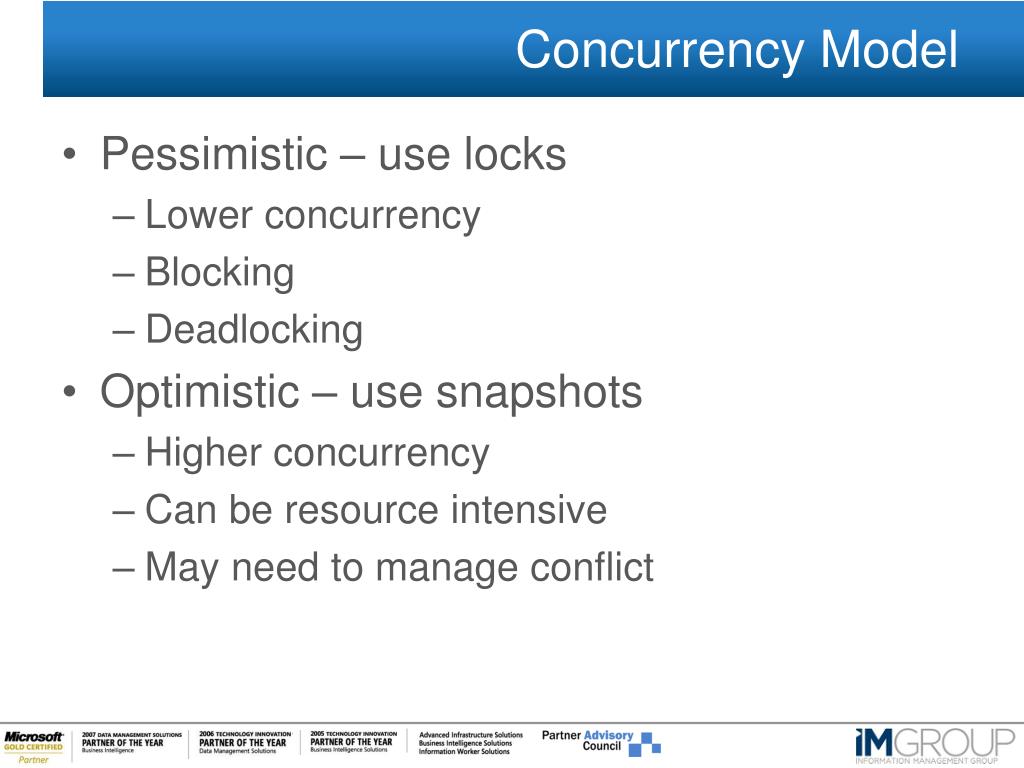

  12. Concurrency Model • Pessimistic – use locks • Lower concurrency • Blocking • Deadlocking • Optimistic – use snapshots • Higher concurrency • Can be resource intensive • May need to manage conflict

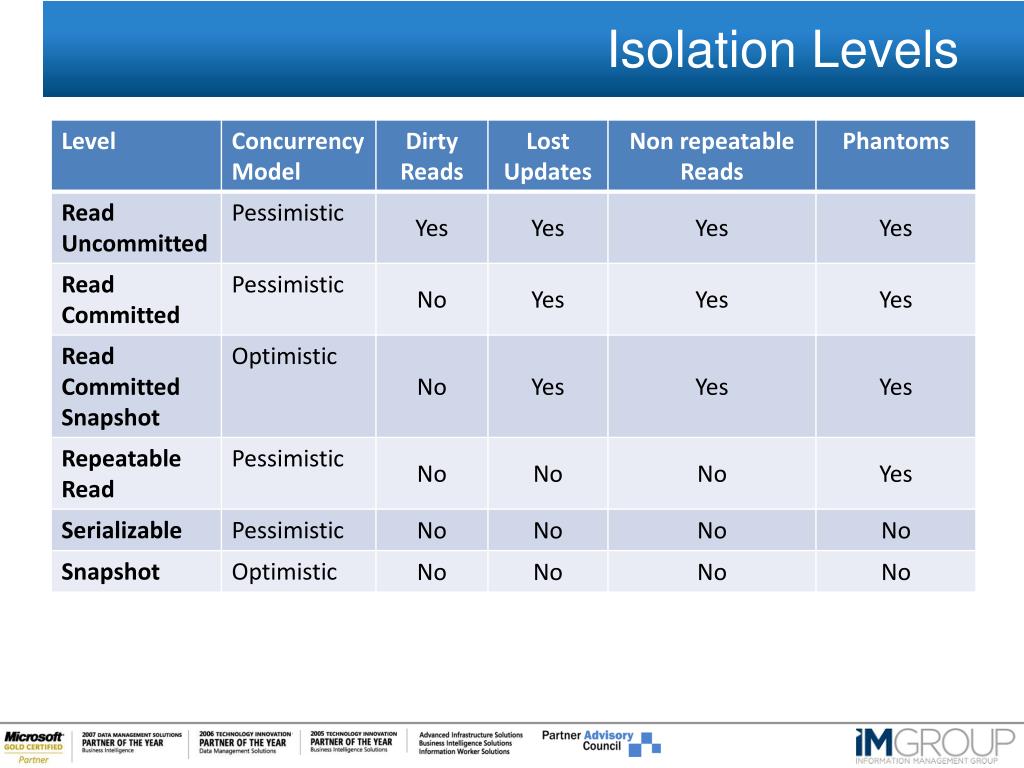

  13. Isolation Levels

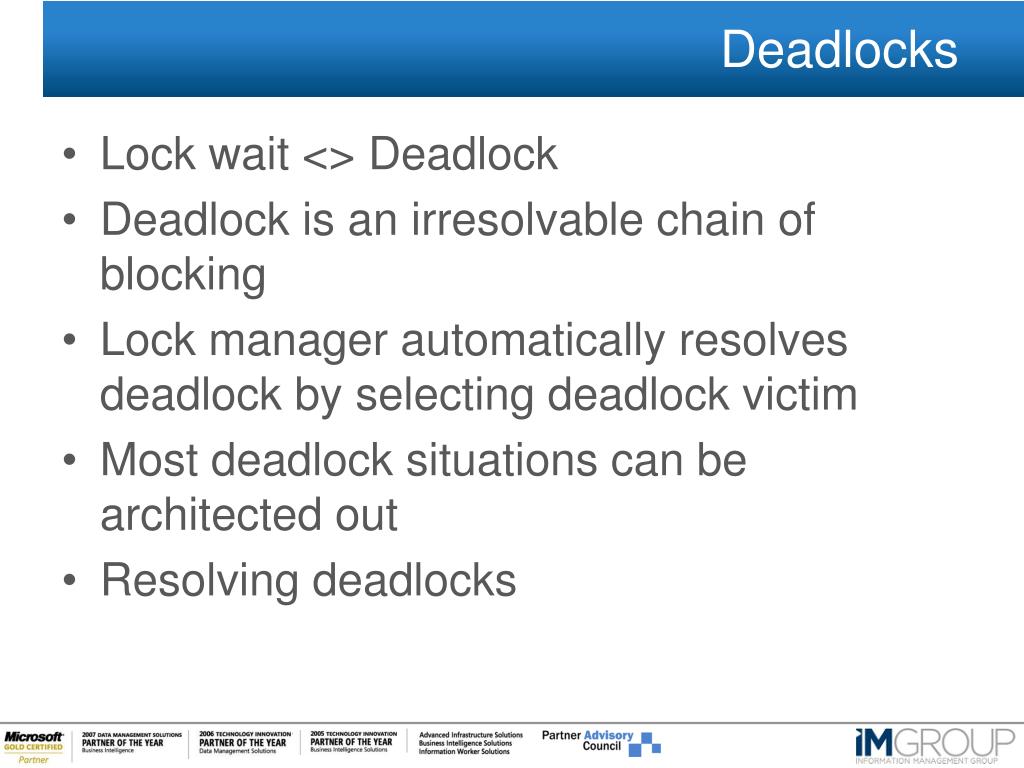

  14. Deadlocks • Lock wait <> Deadlock • Deadlock is an irresolvable chain of blocking • Lock manager automatically resolves deadlock by selecting deadlock victim • Most deadlock situations can be architected out • Resolving deadlocks

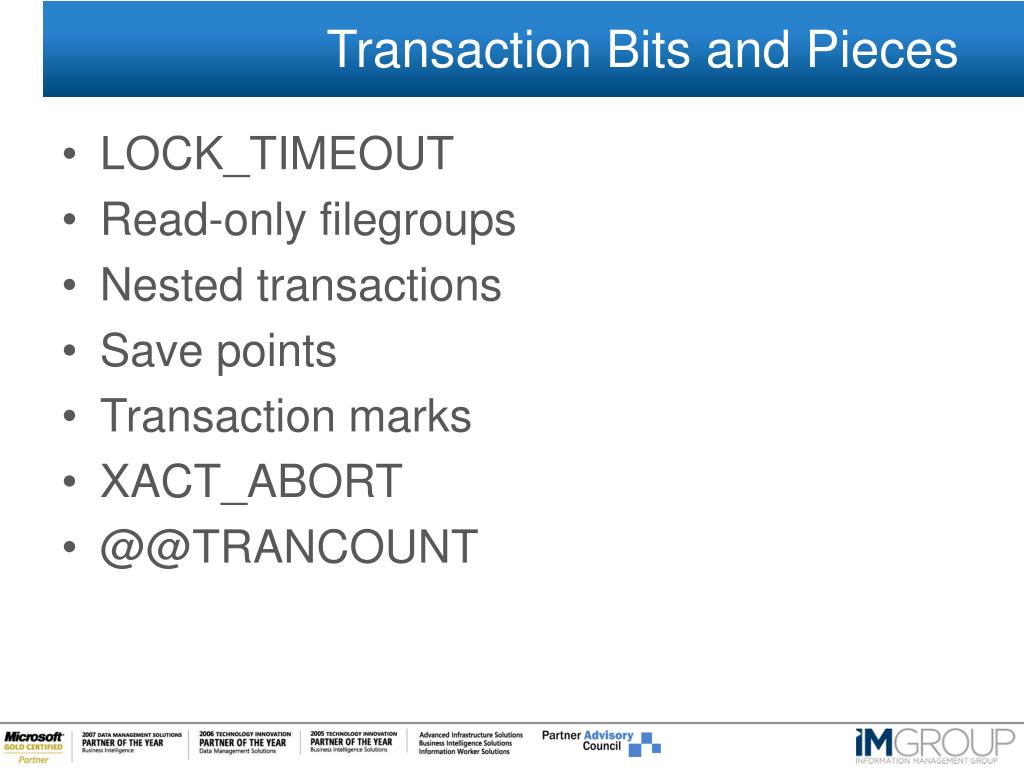

  15. Transaction Bits and Pieces • LOCK_TIMEOUT • Read-only filegroups • Nested transactions • Save points • Transaction marks • XACT_ABORT • @@TRANCOUNT

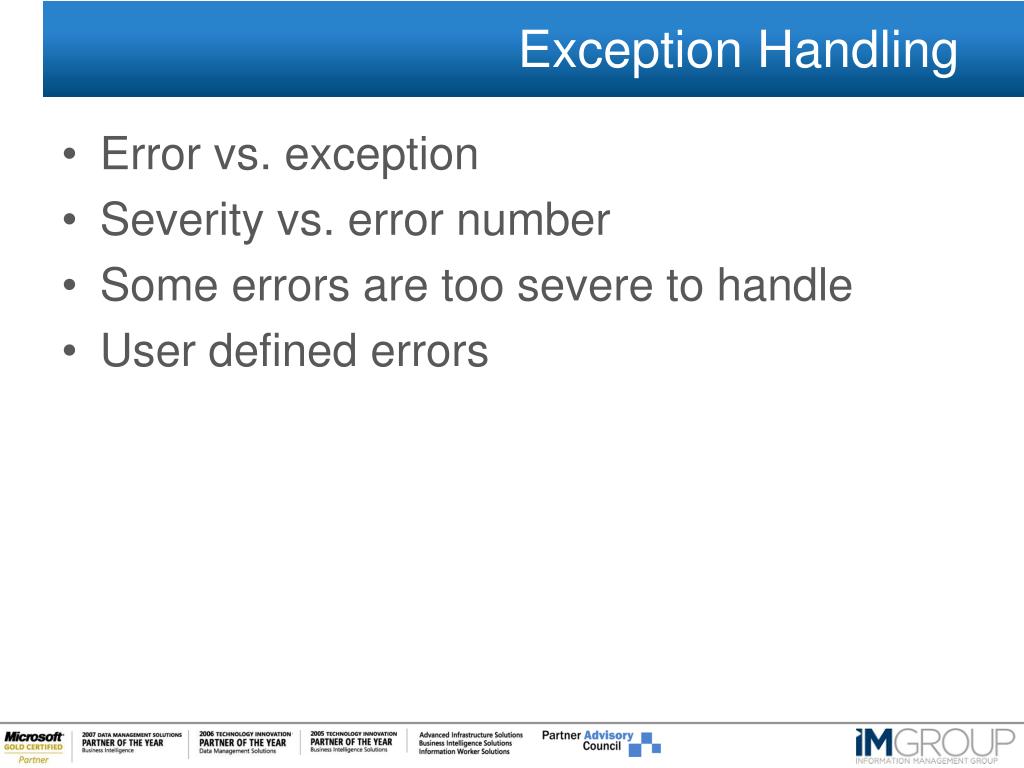

  16. Exception Handling • Error vs. exception • Severity vs. error number • Some errors are too severe to handle • User defined errors

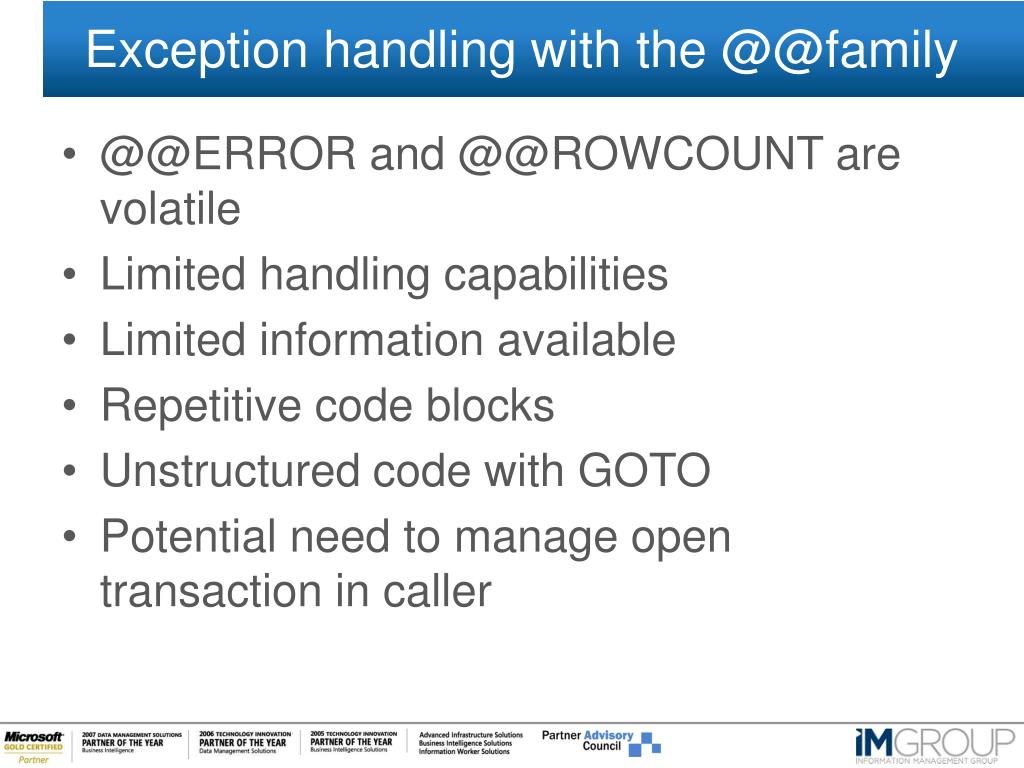

  17. Exception handling with the @@family • @@ERROR and @@ROWCOUNT are volatile • Limited handling capabilities • Limited information available • Repetitive code blocks • Unstructured code with GOTO • Potential need to manage open transaction in caller

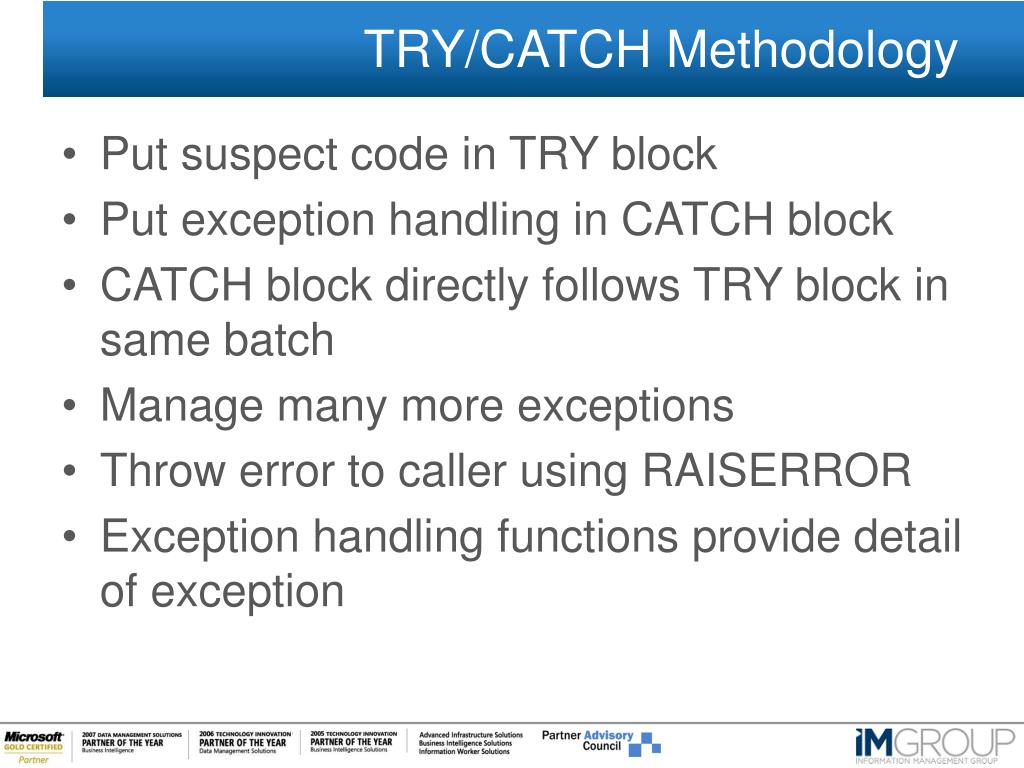

  18. TRY/CATCH Methodology • Put suspect code in TRY block • Put exception handling in CATCH block • CATCH block directly follows TRY block in same batch • Manage many more exceptions • Throw error to caller using RAISERROR • Exception handling functions provide detail of exception

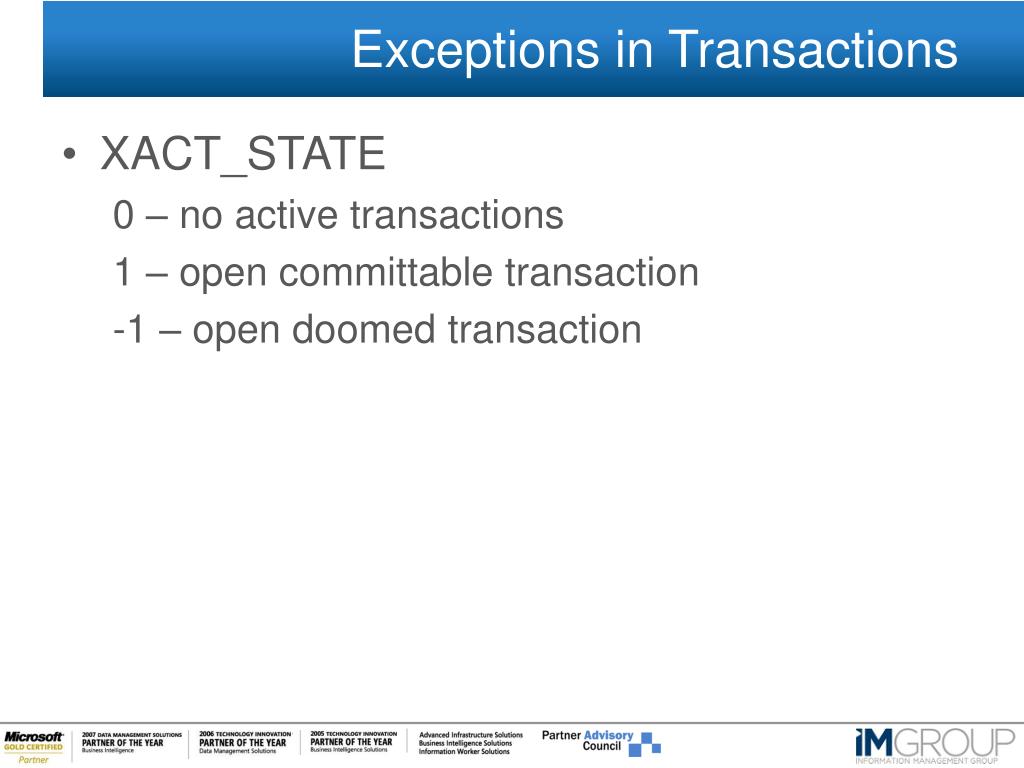

  19. Exceptions in Transactions • XACT_STATE 0 – no active transactions 1 – open committable transaction -1 – open doomed transaction

  20. Transactions and Exception Handling • Transactions • Lock Manager • Locks, lockable resources and modes • Managing locks • Concurrency vs. Isolation • Blocks and Deadlocks • Old School Exception Handling • TRY/CATCH • Managing Exceptions in Transactions

  21. Resources and Contact Details • Resources • Inside MS SQL Server 2005 Series • T-SQL Programming • Itzik Ben-Gan et al. • The Storage Engine • Kalen Delaney • Books Online • Contact • eric.allsop@imgroup.com
