  1. E166 Migration to and Scaling ASE 12.0 Joseph Buhl • V-SPAN • Software • Joseph.buhl@vspan.com

  2. MIGRATING TO & SCALING ASE 12.0 Topics Covered. Migrating From MSQL 6.5 to ASE 12.0 Scaling From 60 Concurrent Users to 160 Converting Oracle to Sybase • Utilizing Enterprise Connect Data Access 12.0 Adding and Configuring Warm Standby With Replication Server

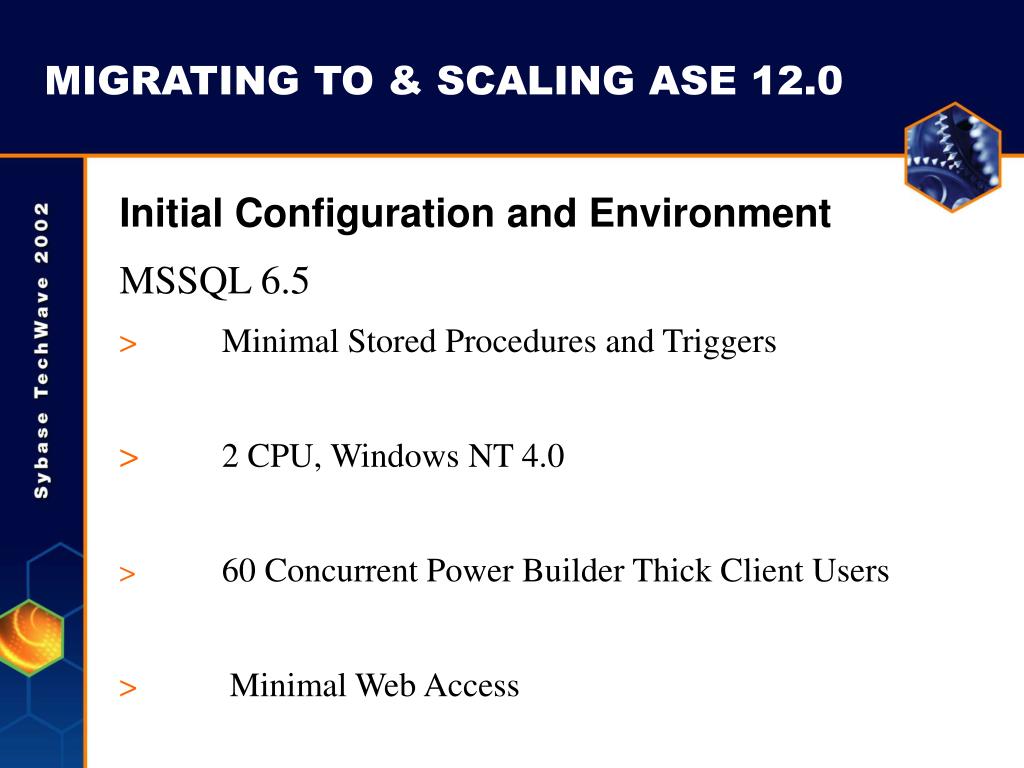

  3. MIGRATING TO & SCALING ASE 12.0 Initial Configuration and Environment MSSQL 6.5 • Minimal Stored Procedures and Triggers • 2 CPU, Windows NT 4.0 • 60 Concurrent Power Builder Thick Client Users • Minimal Web Access

  4. MIGRATING TO & SCALING ASE 12.0 Redundancy • Raid 5 • Nightly Backup and Log Shipping at 10 Minute Interval • Weekly Tape Backup Stored Off Site

  5. MIGRATING TO & SCALING ASE 12.0 Evaluation • Oracle? • MSSQL • Informix • Sybase

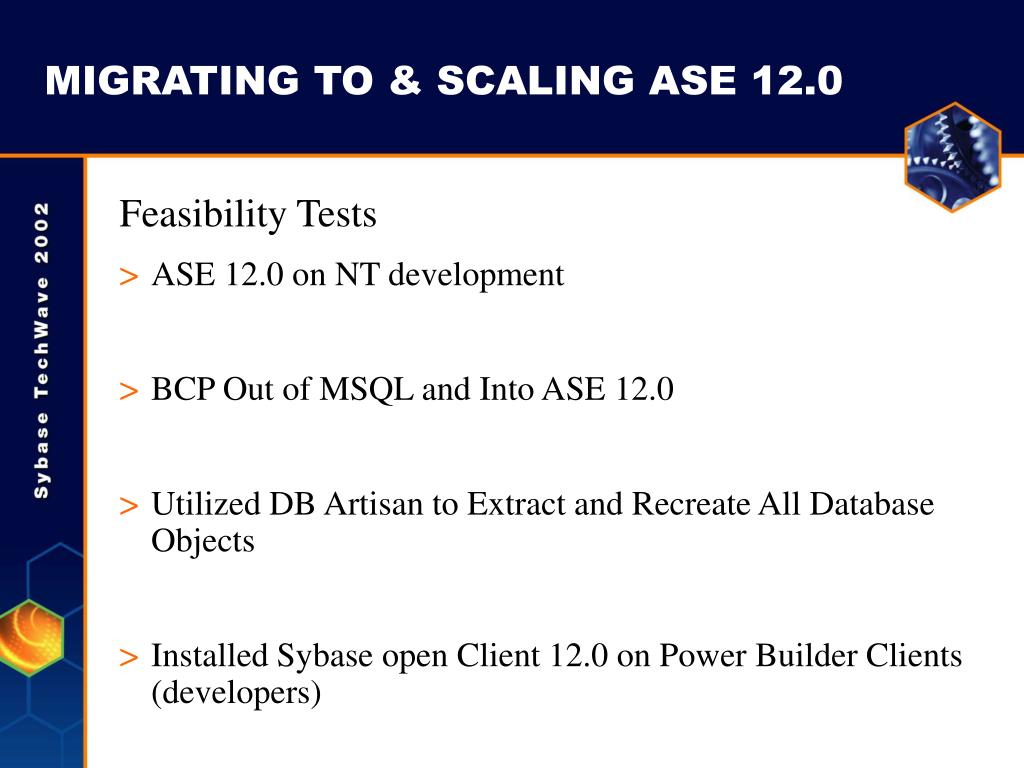

  6. MIGRATING TO & SCALING ASE 12.0 Feasibility Tests • ASE 12.0 on NT development • BCP Out of MSQL and Into ASE 12.0 • Utilized DB Artisan to Extract and Recreate All Database Objects • Installed Sybase open Client 12.0 on Power Builder Clients (developers)

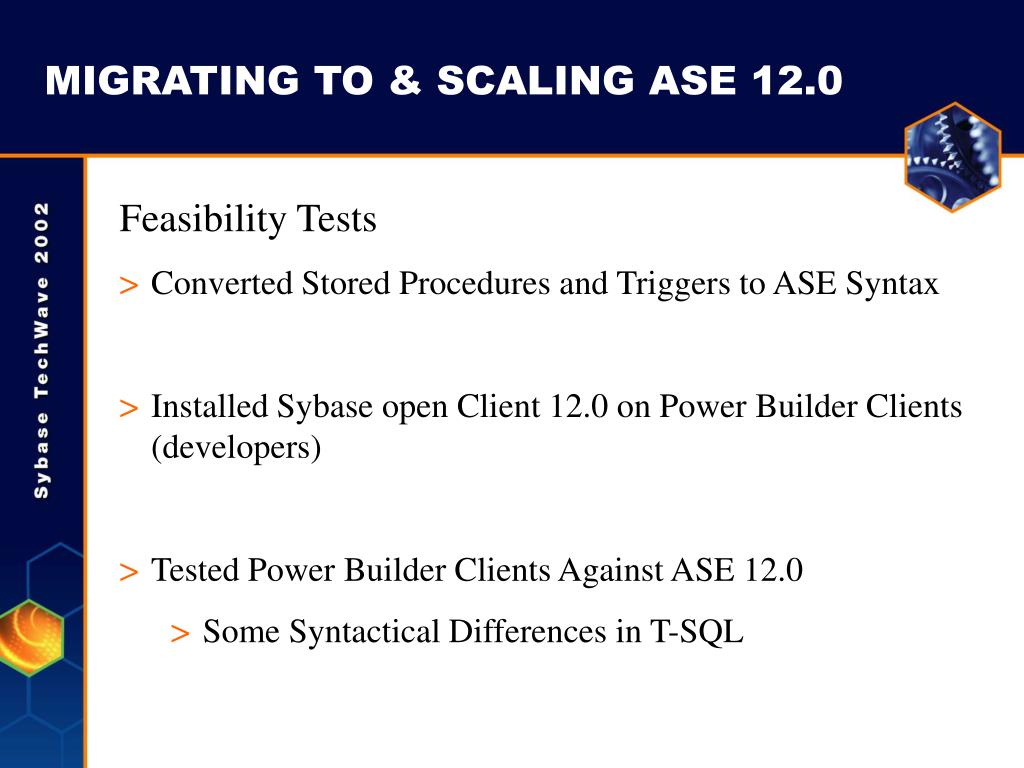

  7. MIGRATING TO & SCALING ASE 12.0 Feasibility Tests • Converted Stored Procedures and Triggers to ASE Syntax • Installed Sybase open Client 12.0 on Power Builder Clients (developers) • Tested Power Builder Clients Against ASE 12.0 • Some Syntactical Differences in T-SQL

  8. MIGRATING TO & SCALING ASE 12.0 Production Setup • 2 Sun 420R, 2 CPU, Solaris 2.7 • ASE 12.0 • Redundancy • A1000 Storage array RAID 0+1 • Nightly backups With Log Shipping Utilizing Perl 5 DBI:DBD

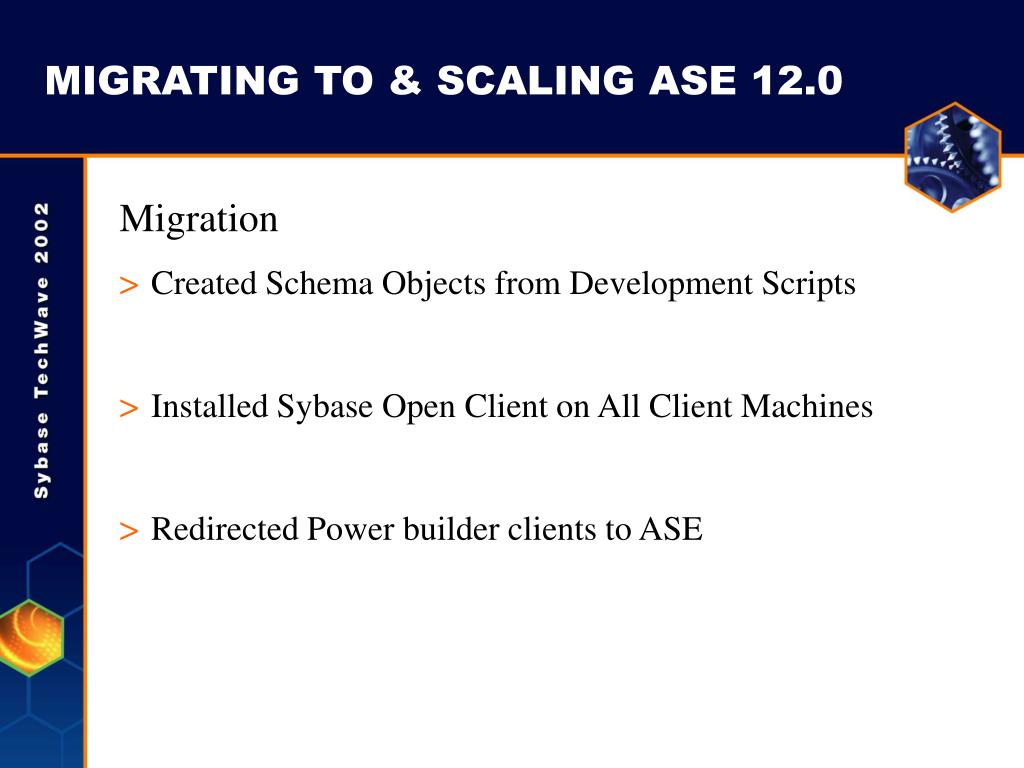

  9. MIGRATING TO & SCALING ASE 12.0 Migration • Created Schema Objects from Development Scripts • Installed Sybase Open Client on All Client Machines • Redirected Power builder clients to ASE

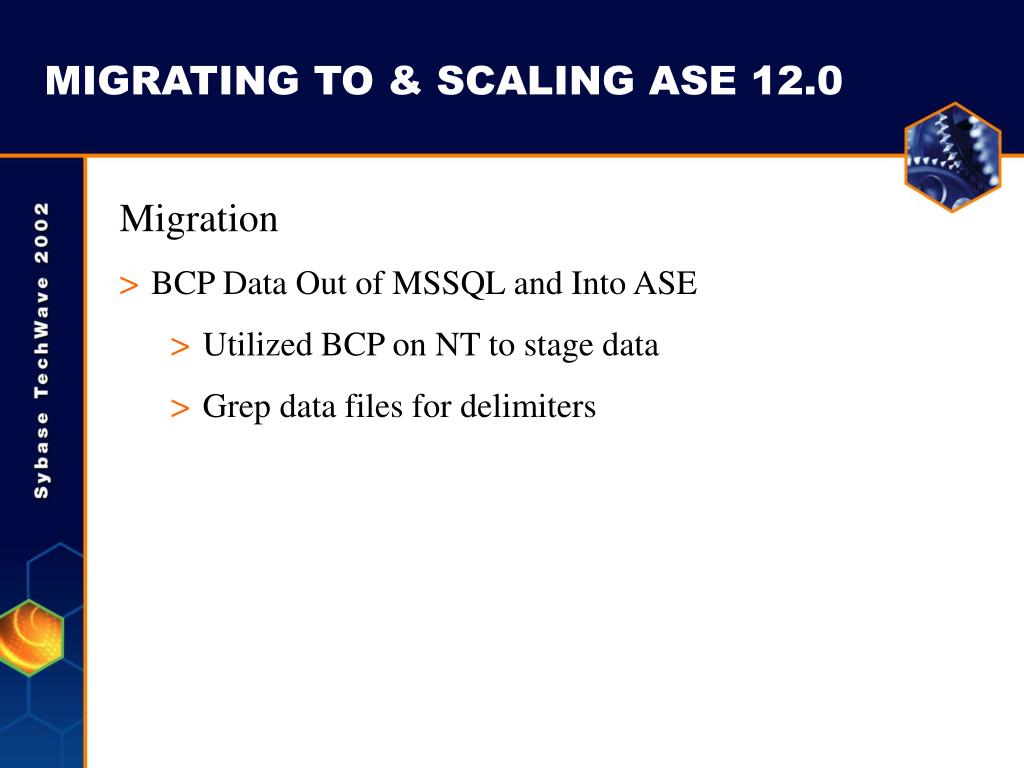

  10. MIGRATING TO & SCALING ASE 12.0 Migration • BCP Data Out of MSSQL and Into ASE • Utilized BCP on NT to stage data • Grep data files for delimiters

  11. MIGRATING TO & SCALING ASE 12.0 Scaling • Peer Digital ,VSPAN Merger = 80 Instant Additional Users • Simple query tuning, Client Optimization • Added 2 additional CPU (9-11 spike) • Changed TCP no delay to true (power builder clients)

  12. MIGRATING TO & SCALING ASE 12.0 Scaling • Scan Desc, Open Objects, Open Indexes Adjusted Accordingly • Changed To Data Pages Locking on High Use Tables • Resized Procedure Cache

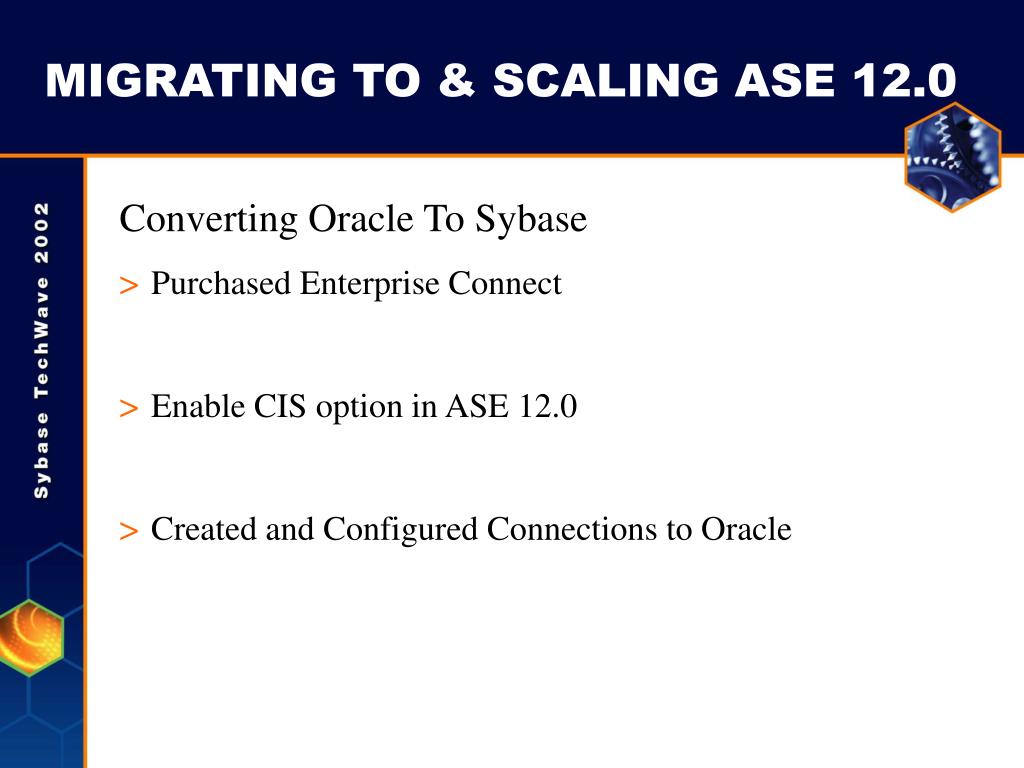

  13. MIGRATING TO & SCALING ASE 12.0 Converting Oracle To Sybase • Purchased Enterprise Connect • Enable CIS option in ASE 12.0 • Created and Configured Connections to Oracle

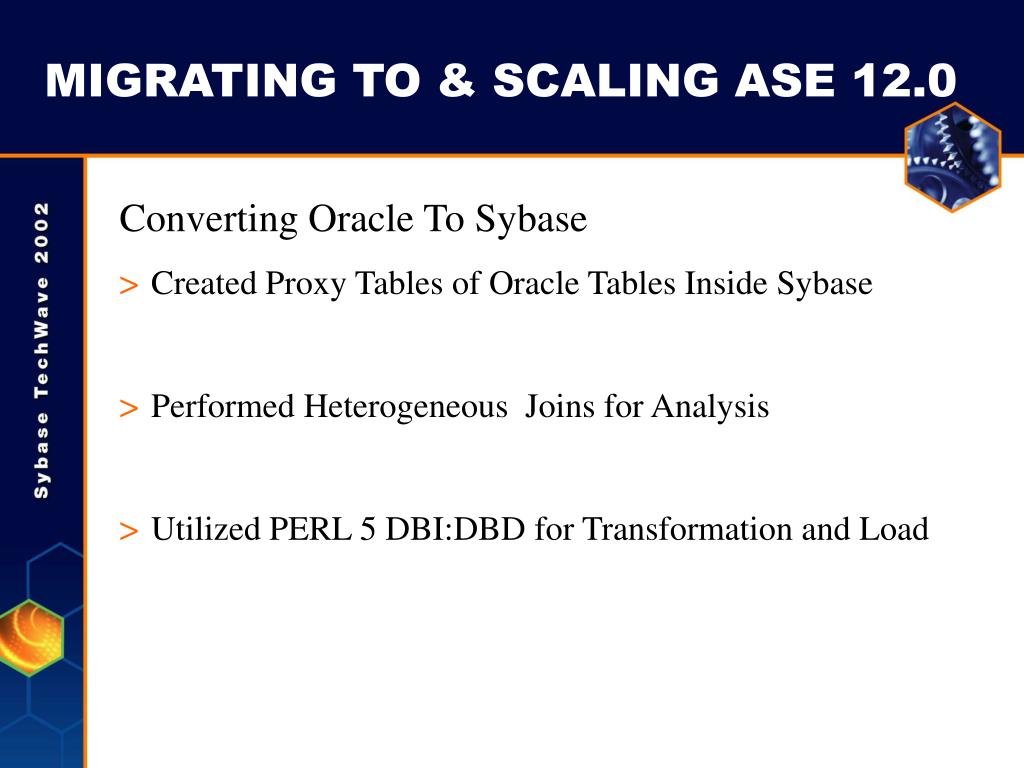

  14. MIGRATING TO & SCALING ASE 12.0 Converting Oracle To Sybase • Created Proxy Tables of Oracle Tables Inside Sybase • Performed Heterogeneous Joins for Analysis • Utilized PERL 5 DBI:DBD for Transformation and Load

  15. MIGRATING TO & SCALING ASE 12.0 Setting Up Warm Standby • Purchased Replication Server 12.1 • Installed replication server on 3rd Machine • Utilized rs_init to Add : • Logical Connection • Primary Connection • Standby Connection

  16. MIGRATING TO & SCALING ASE 12.0 Setting Up Warm Standby • Create Replication Definitions (recommended) • Employ Switch Active for Fail over • Monitor Queue and Transaction logs • Switching Clients • Open Switch

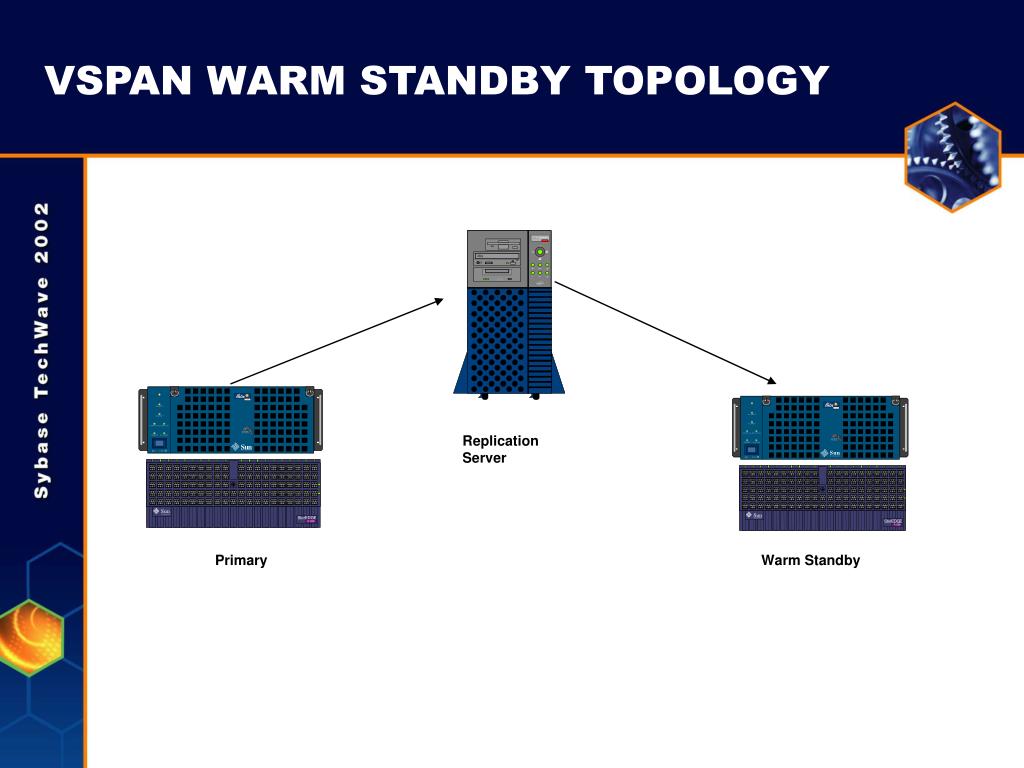

  17. S D E N T E R P R I S E 2 5 0 S D W t 1 1 2 5 S D t W 1 1 2 5 U L T R A S P A R C A L A R M 1 D R I V E N A L A R M 1 C e r t i f i e d E x c e l l e n c e S U P P L Y A S U P P L Y B S T E M C e r t i f i e d E x c e l l e n c e P O W E R S Y S T E M S u n m i c r o s y s t e m s S u n O N S T B Y m i c r o s y s t e m s O N S T B Y S D S D S u n S u n m i c r o s y s t e m s S t o r E D G E m i c r o s y s t e m s S t o r E D G E A 1 0 0 0 A 1 0 0 0 VSPAN WARM STANDBY TOPOLOGY S u n m i c r o s y s t e m s A L A R M 1 A L A R M 1 S U P P L Y A S U P P L Y B Replication Server P O W E R S Y Primary WarmStandby
