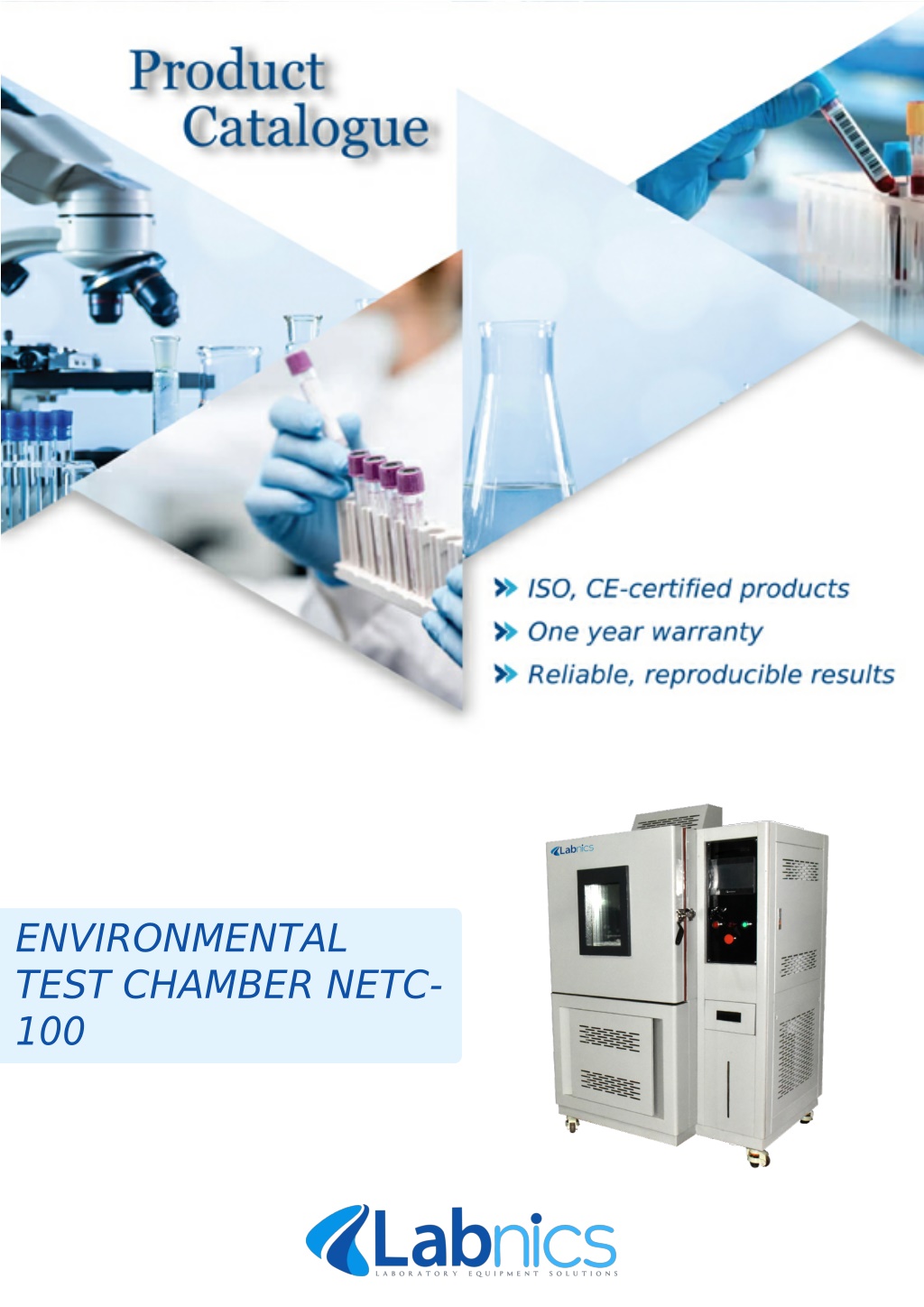

  1. ENVIRONMENTAL TEST CHAMBER NETC- 100

  2. ENVIRONMENTAL TEST CHAMBER NETC-100 Environmental Test Chamber NETC-100 also known as climate chamber or climatic chamber is a controlled, artificial chamber that environmental conditions humidity, air pressure, light, and motion on the test sample. Equipped with temperature controller and refrigeration unit, it helps effectively regulate the test parameters. These chambers are an important tool to help test various parameters that crucially affect the test’s sample performance. simulates such or temperature, mimics as FEATURES ⇋ Space-saving design with quiet operation along with castors for mobility ⇋ PLC controller for test chamber Multiple safety protection functions against leakage, short circuit, compressor and fan overload and over temperature ⇋ ⇋ Wide-screen LCD programmable temperature controller ⇋ Real-time display of data, history graphs and data storage of up to 100days

  3. SPECIFICATIONS Capacity Temperature range Humidity range Temperature fluctuation Temperature accuracy Humidity accuracy Heating speed Cooling speed Display accuracy Load division value No. of shelves Internal material External material Insulation material User interface Working temperature Power consumption Power supply Internal dimension Overall dimension Weight 50 L -40°C ~ 150°C 20%RH ~ 98%RH ± 0.5°C ≤ 2.0°C ± 2/3% RH (>75%RH); ± 5% RH (<75%RH） 3°C/min 0.8°C-1.2°C/min ≤ 2% 0.01°C 02 SS 304, 1.0 mm thick stainless-steel plate Electrostatically sprayed 1.2 mm cold-rolled steel plate 100 mm thick fibre cotton USB connector +5°C~35°C 5 kW AC 380/220 ±10V; 50Hz 399 × 500 × 500 mm 800 × 1000 × 1600 mm 150 kg APPLICATIONS Widely employed in medicine, pharma, food processing, food packaging, consumer goods and services, automotive, engineering, and construction industries.

  4. Labnics product catalog Generated on: 07/02/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
