Understanding Systems and Models in Ecology

Learn about the concepts and characteristics of systems, with a focus on ecosystems and their scales. Explore open, closed, and isolated systems, quantitative models, and system diagrams. Discover the Gaia hypothesis and the reductionist vs. holistic approaches.

lacy-maddox
Télécharger la présentation

Understanding Systems and Models in Ecology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Systems & Models 1.1.1 – 1.1.3 & 1.1.8, 1.1.9 (start) Mrs. Page 2014-2015

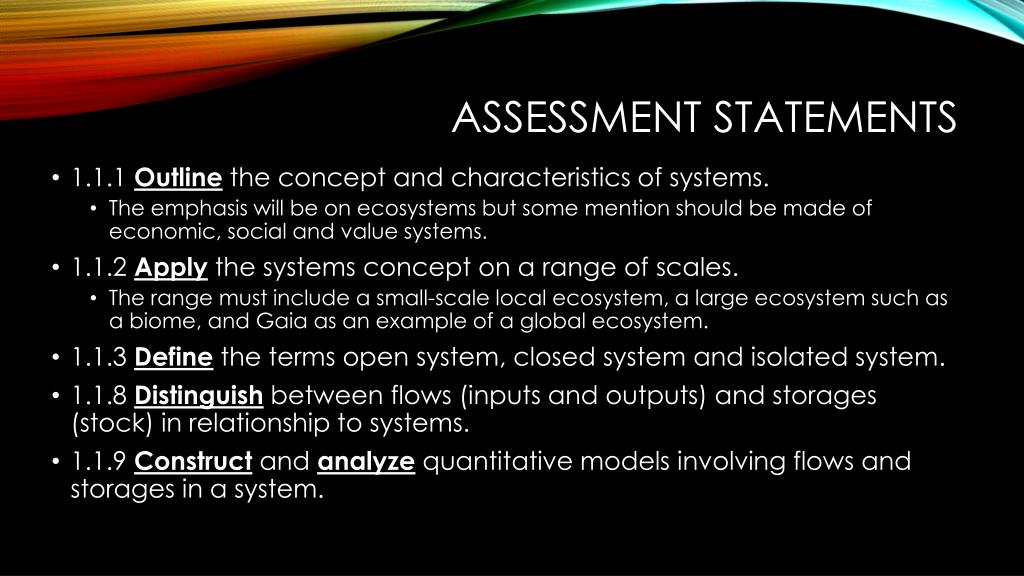

  2. ASSESSMENT STATEMENTS • 1.1.1 Outline the concept and characteristics of systems. • The emphasis will be on ecosystems but some mention should be made of economic, social and value systems. • 1.1.2 Apply the systems concept on a range of scales. • The range must include a small-scale local ecosystem, a large ecosystem such as a biome, and Gaia as an example of a global ecosystem. • 1.1.3 Define the terms open system, closed system and isolated system. • 1.1.8 Distinguish between flows (inputs and outputs) and storages (stock) in relationship to systems. • 1.1.9 Construct and analyze quantitative models involving flows and storages in a system.

  3. SYSTEMS • On your notebook paper, brainstorm examples of a system from your every day life. Be ready to share. • Round Robin • Looking at these examples, how could we define a system?

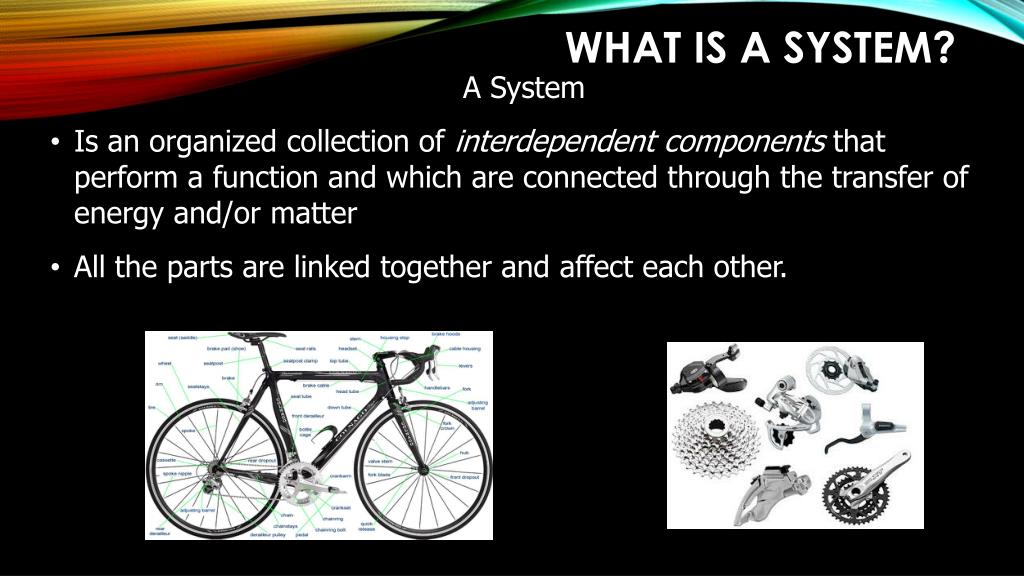

  4. What is a System? • A System • Is an organized collection of interdependentcomponents that perform a function and which are connected through the transfer of energy and/or matter • All the parts are linked together and affect each other.

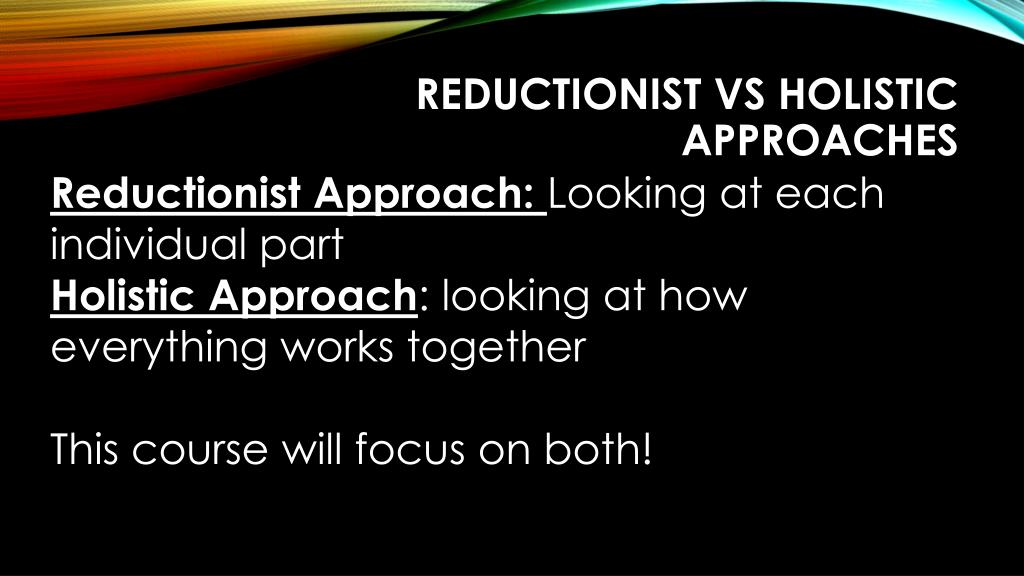

  5. REDUCTIONIST VS HOLISTIC APPROACHES Reductionist Approach: Looking at each individual part Holistic Approach: looking at how everything works together This course will focus on both!

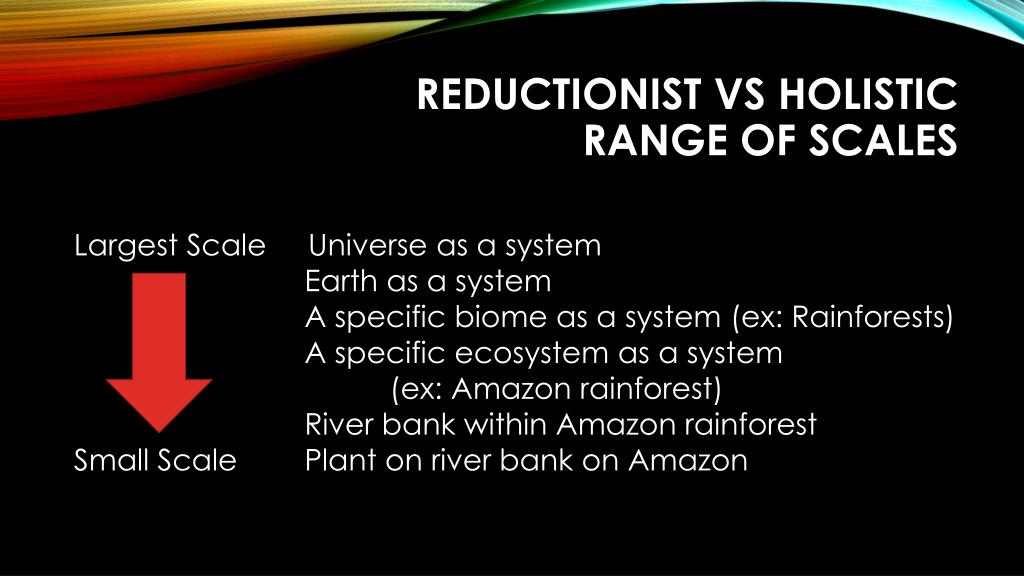

  6. REDUCTIONIST VS HOLISTICRange of Scales Largest Scale Universe as a system Earth as a system A specific biome as a system (ex: Rainforests) A specific ecosystem as a system (ex: Amazon rainforest) River bank within Amazon rainforest Small Scale Plant on river bank on Amazon

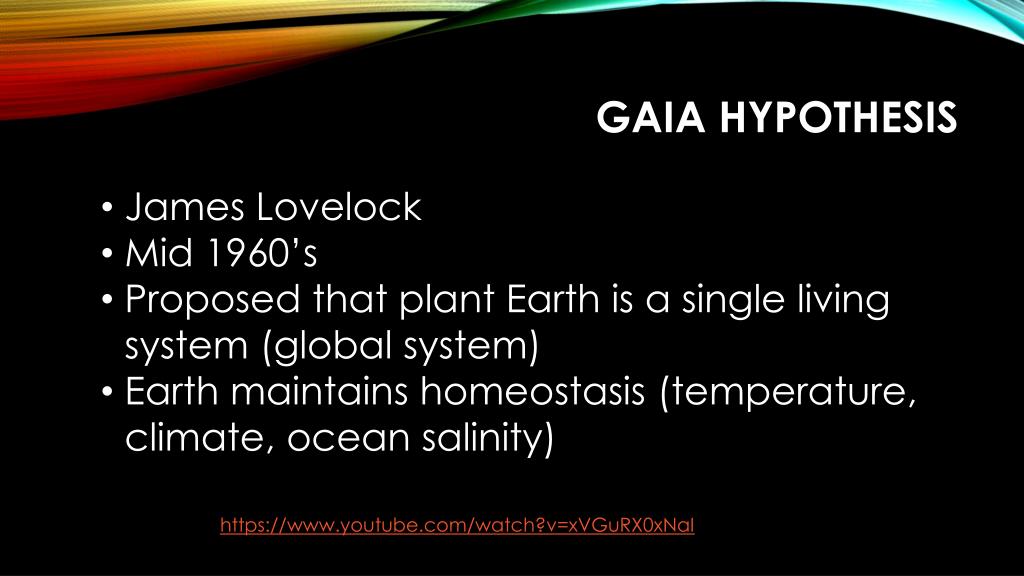

  7. GAIA Hypothesis • James Lovelock • Mid 1960’s • Proposed that plant Earth is a single living system (global system) • Earth maintains homeostasis (temperature, climate, ocean salinity) https://www.youtube.com/watch?v=xVGuRX0xNaI

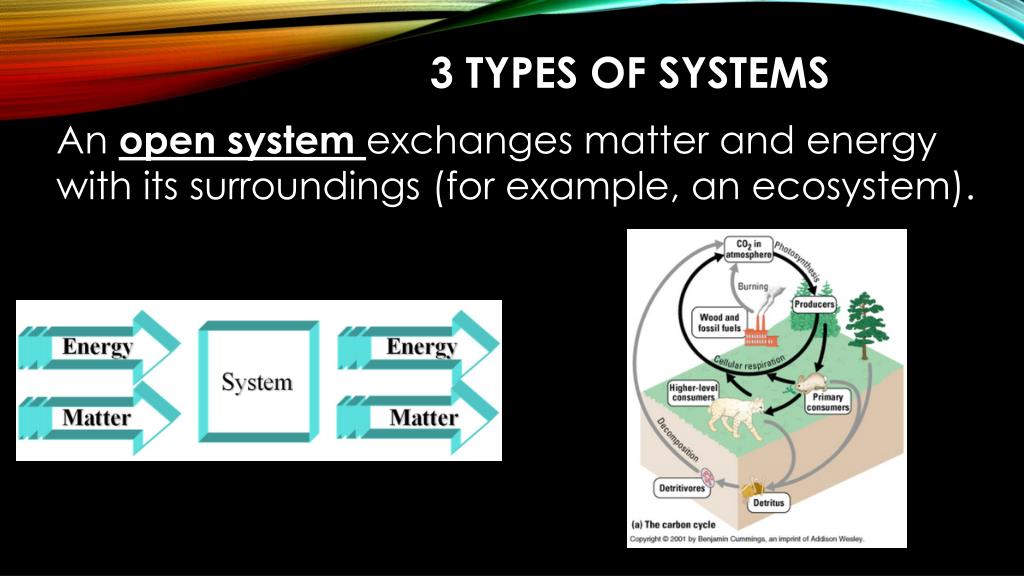

  8. 3 Types of Systems • An open system exchanges matter and energy with its surroundings (for example, an ecosystem).

  9. 3 Types of Systems • A closed system exchanges energy but not matter; • “Biosphere II” experiment was an attempt to model this. closed • Do not occur naturally on Earth, but all the global cycles of matter, for example, the water and nitrogen cycles, approximate to closed systems.

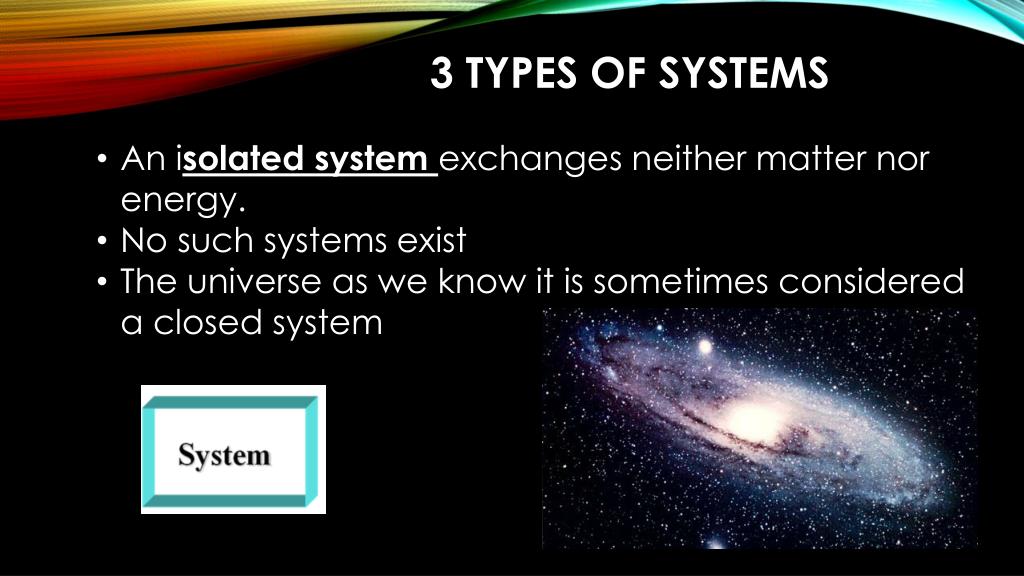

  10. 3 Types of Systems • An isolated system exchanges neither matter nor energy. • No such systems exist • The universe as we know it is sometimes considered a closed system

  11. SYSTEM DIAGRAMS 1.1.8 Distinguish between flows (inputs & outputs) and storages (stocks) in relation to a system. • Used to visually represent a system • Boxes show storage of matter or energy • Arrows show the flow of matter or energy • Inputs = arrows into the storage • Outputs = arrows out of the storage • Processes get labelled on the arrow (ex: photosynthesis, respiration, diffusion, consumption, etc)

  12. SYSTEM DIAGRAMS Water Biomass to Next Trophic Level Carbon Dioxide (CO2) Waste Nutrients (food) Water Oxygen Biomass to Decomposers

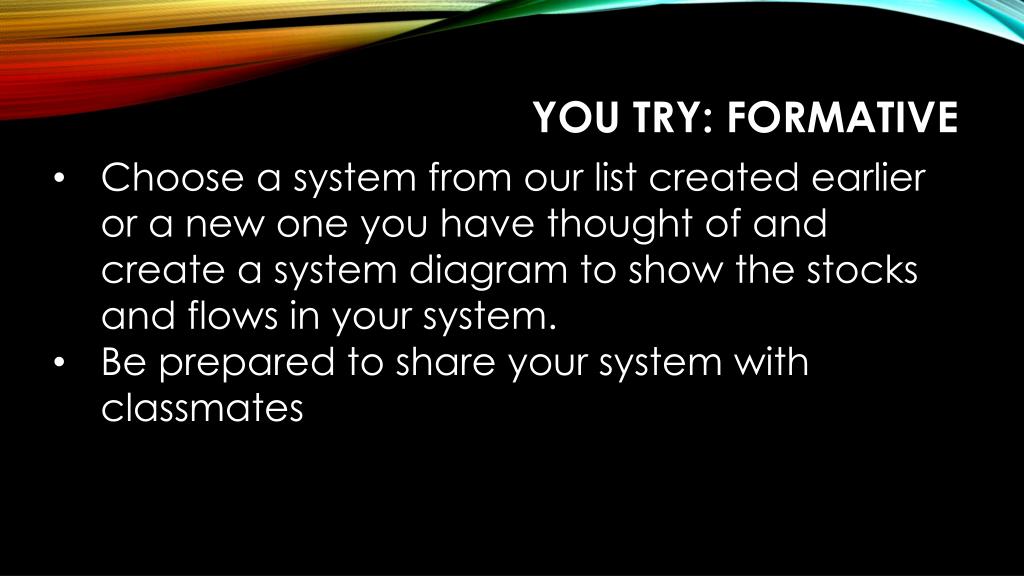

  13. YOU TRY: FORMATIVE • Choose a system from our list created earlier or a new one you have thought of and create a system diagram to show the stocks and flows in your system. • Be prepared to share your system with classmates

  14. HOMEWORK • Make assessment notecards for assessment statements 1.1.1, 1.1.2, 1.1.3, and 1.1.8 • Assessment Statement written on front of card • Answer and/or examples on the back of the card
