  1. Stimulate 2005 System Analysis and Design (SA&D) Object Oriented modeling Part 2: Use case modeling Instructor: Luz M. Quiroga lquiroga@hawaii.edu University of Hawaii Information and Computer Science / Library and information Science POST 314b; 808-956-9988

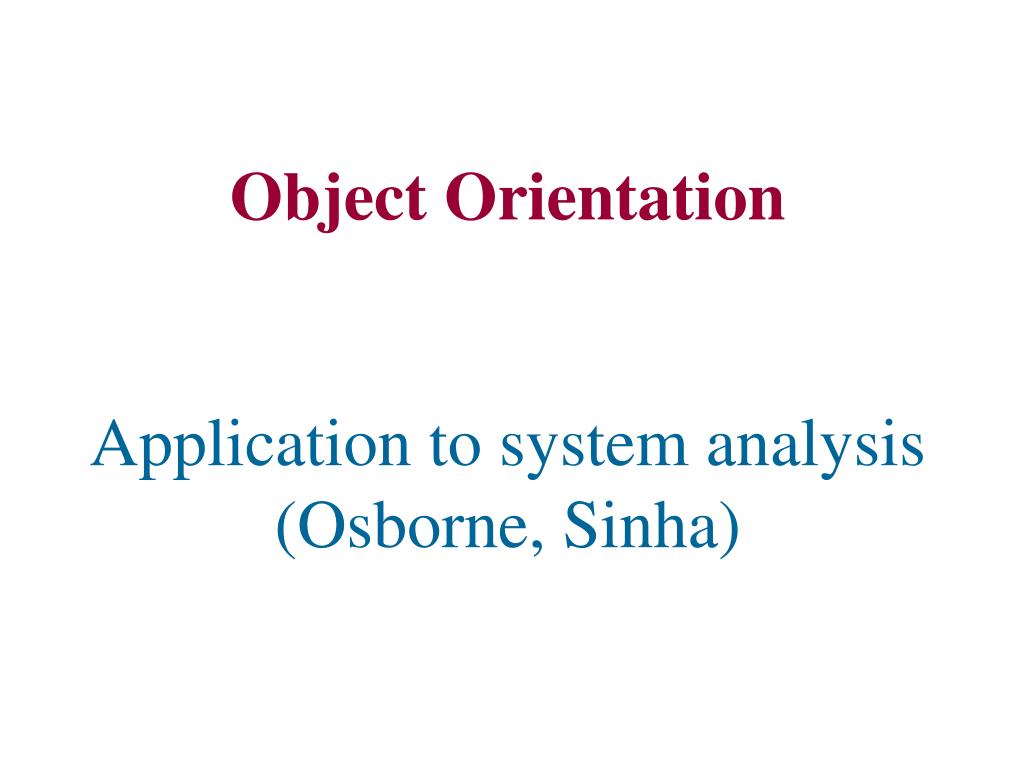

  2. Object OrientationApplication to system analysis (Osborne, Sinha)

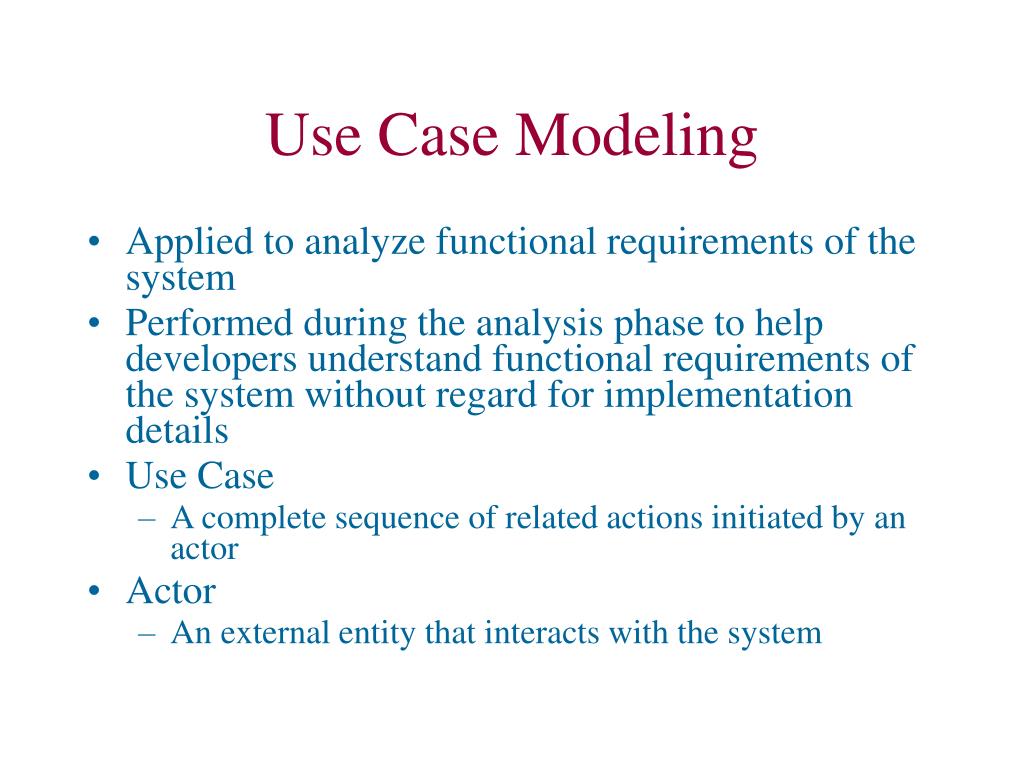

  3. Use Case Modeling • Applied to analyze functional requirements of the system • Performed during the analysis phase to help developers understand functional requirements of the system without regard for implementation details • Use Case • A complete sequence of related actions initiated by an actor • Actor • An external entity that interacts with the system

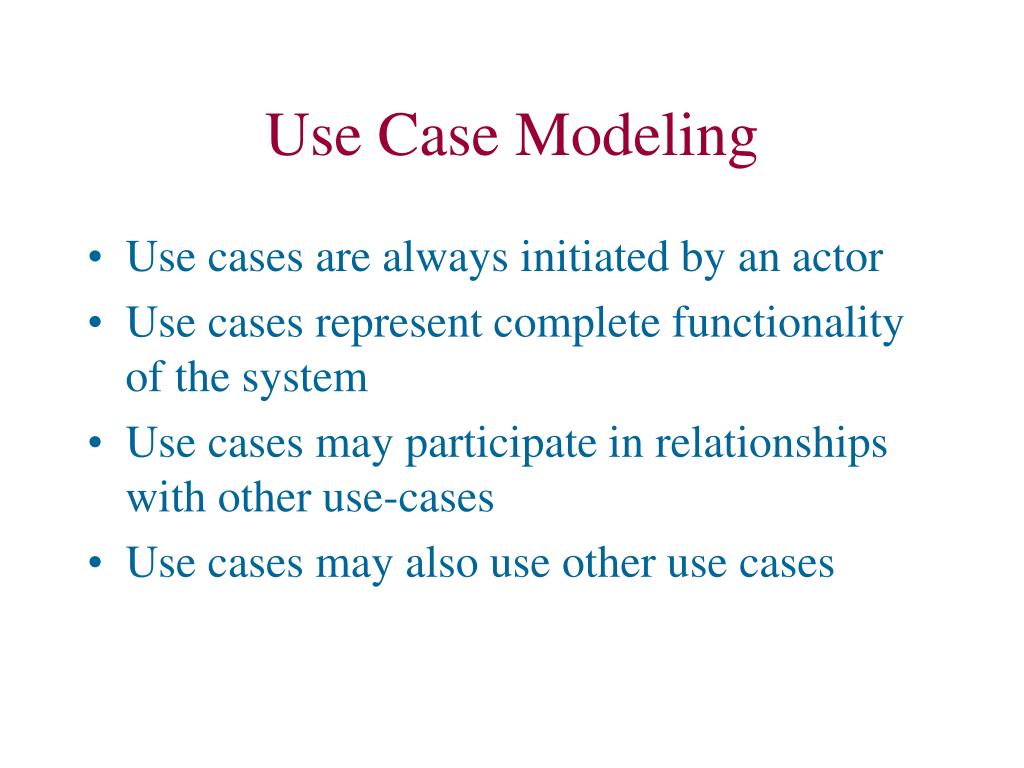

  4. Use Case Modeling • Use cases are always initiated by an actor • Use cases represent complete functionality of the system • Use cases may participate in relationships with other use-cases • Use cases may also use other use cases

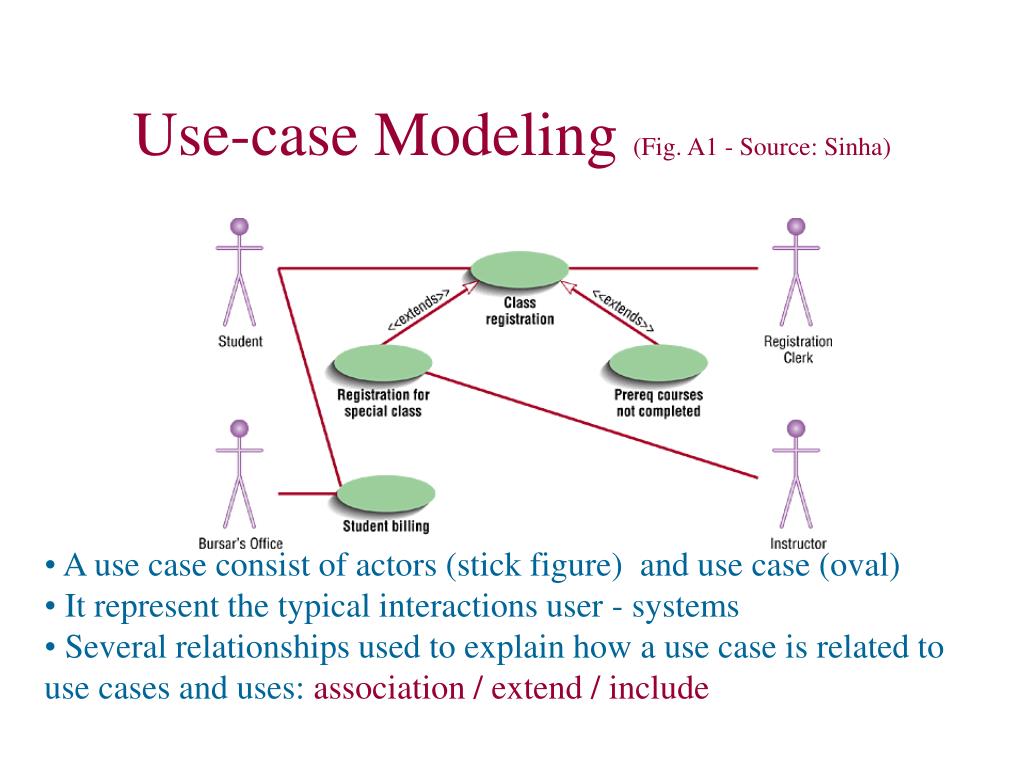

  5. Use-case Modeling (Fig. A1 - Source: Sinha) • A use case consist of actors (stick figure) and use case (oval) • It represent the typical interactions user - systems • Several relationships used to explain how a use case is related to use cases and uses: association /extend / include

  6. Use-case Modeling (Fig. A1- Source: Sinha) • Association: communication between actor and use case • Example: Student using class registration • Depicted as a line ; typically represents two way communication between the use case and the actor, then no arrowheads needed (if only one way then use solid arrowhead)

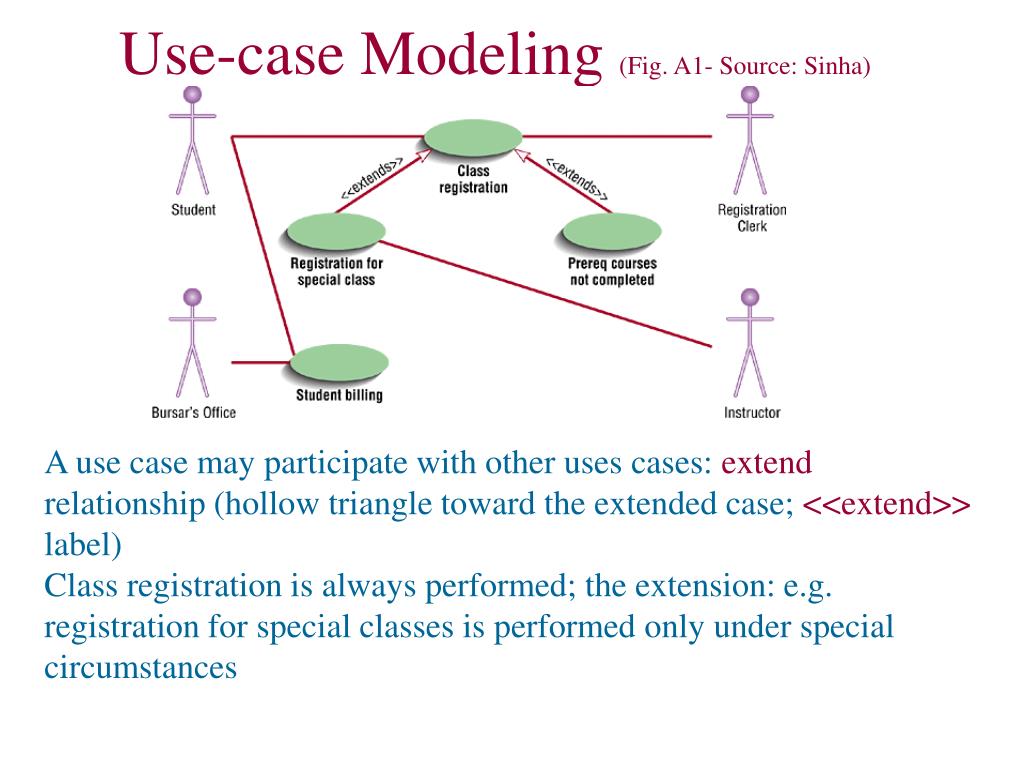

  7. Use-case Modeling (Fig. A1- Source: Sinha) A use case may participate with other uses cases: extend relationship (hollow triangle toward the extended case; <<extend>> label) Class registration is always performed; the extension: e.g. registration for special classes is performed only under special circumstances

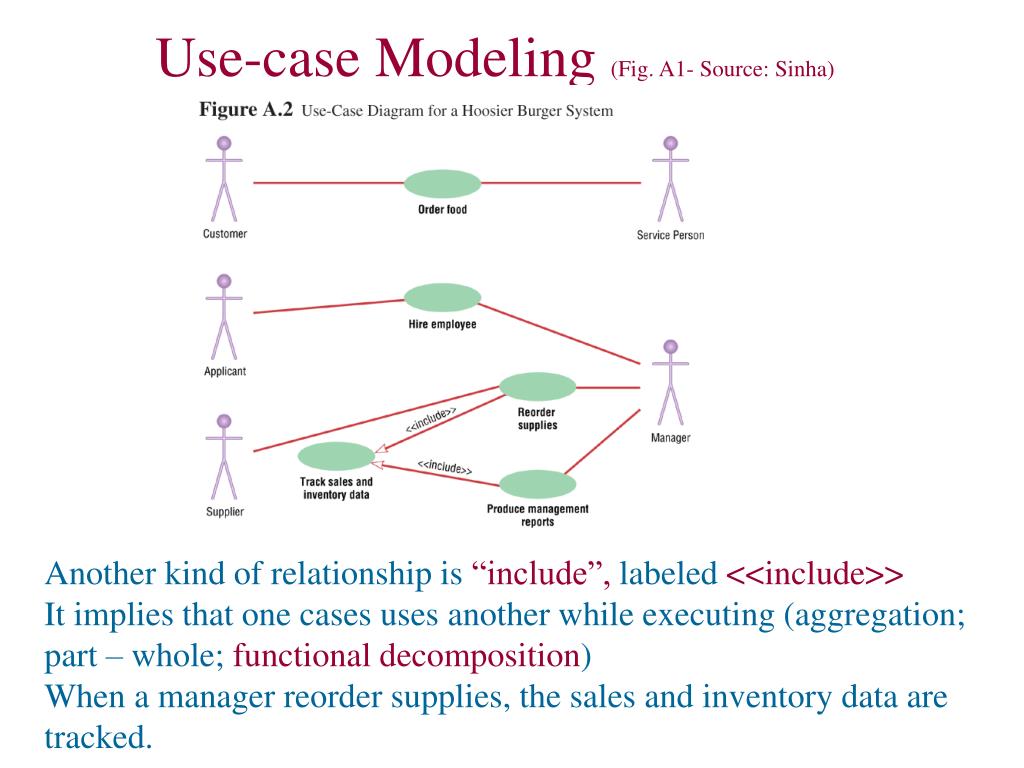

  8. Use-case Modeling (Fig. A1- Source: Sinha) Another kind of relationship is “include”, labeled <<include>> It implies that one cases uses another while executing (aggregation; part – whole; functional decomposition) When a manager reorder supplies, the sales and inventory data are tracked.

  9. Use case exercise: Valacich app. A (author of the chapter: Sinha) Exercise 2. p. 422; reference to figure A1 of previous slides • Suppose that the employees of the university are not billed by tuition. Their spouse do not get a full tuition waiver, but pay for only 25 % of the total tuition. • Extend the use-case diagram of fig. A-1 to capture these situations • Draw the diagram with MS- Visio
