  1. EnsemBlue: Integrating Distributed Storage and Consumer Electronics (edited slides)

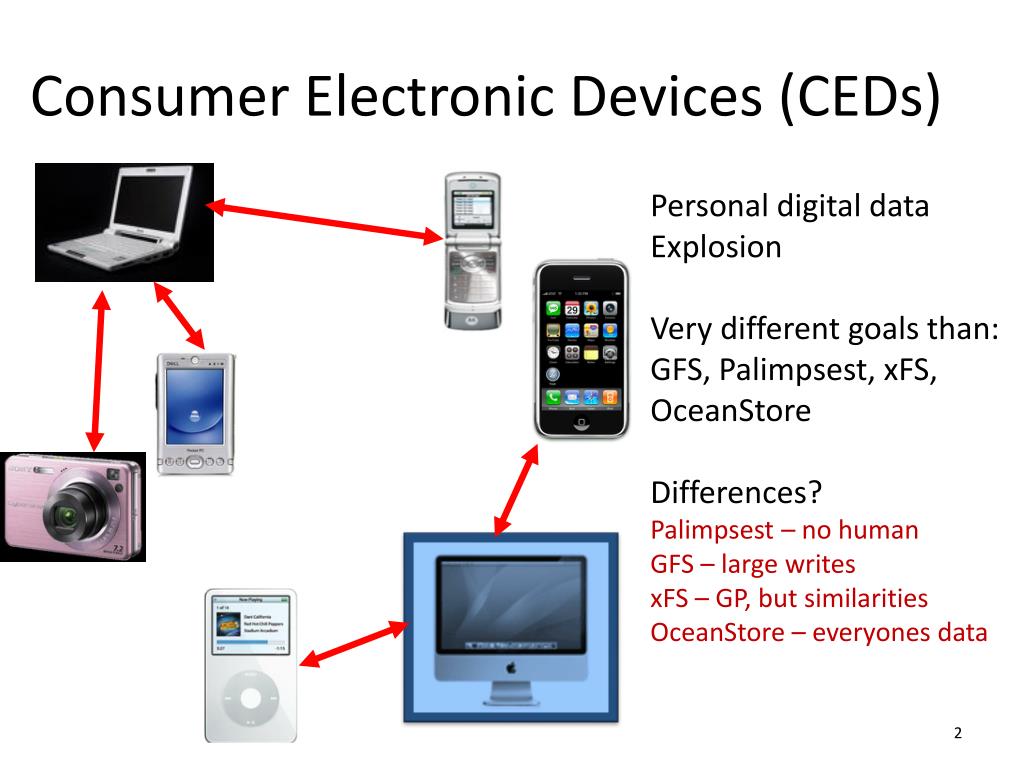

  2. Consumer Electronic Devices (CEDs) • Personal digital data • Explosion • Very different goals than: • GFS, Palimpsest, xFS, OceanStore • Differences? • Palimpsest – no human • GFS – large writes • xFS – GP, but similarities • OceanStore – everyones data

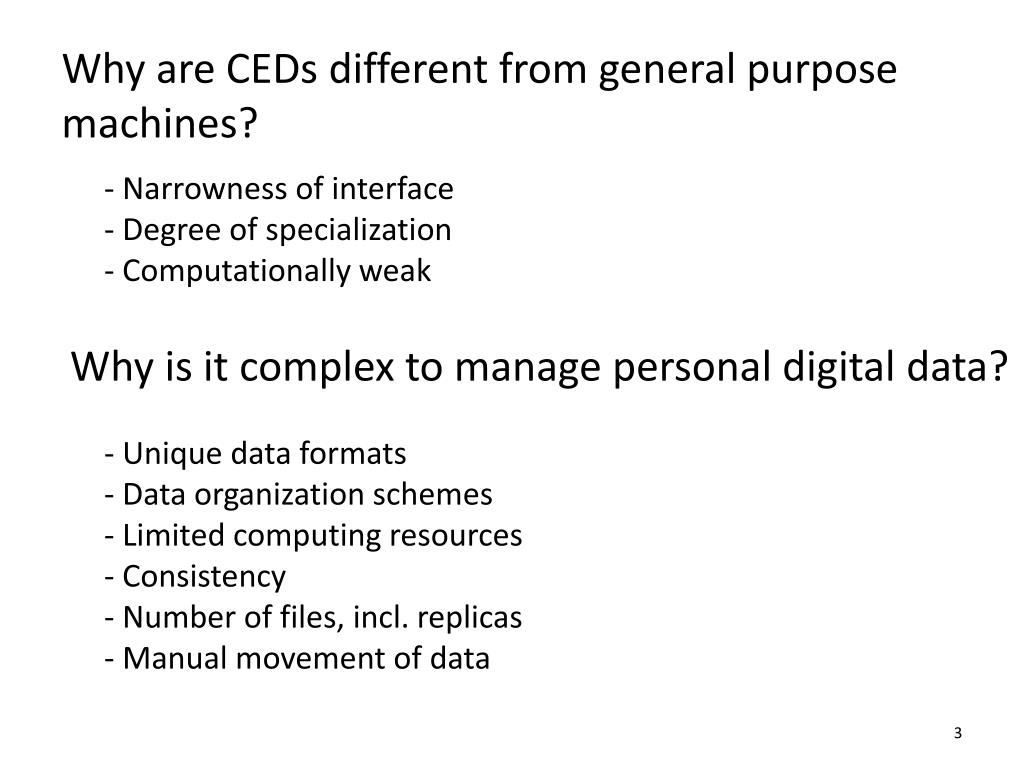

  3. Why are CEDs different from general purpose machines? • Narrowness of interface • Degree of specialization • Computationally weak Why is it complex to manage personal digital data? • Unique data formats • Data organization schemes • Limited computing resources • Consistency • Number of files, incl. replicas • Manual movement of data

  4. Distributed Storage Solutions • DFS can help manage CEDs and multimedia My data • Based on BlueFS: • Single namespace • Supports mobile clients • Designed for small group of users • BlueFS + Ensemble = EnsemBlue • Persistent queries • Explicit support for closed-platform CED’s • Local data exchange • Disconnected operation

  5. Integrating CEDs: Leveraging general-purpose computers Distributed File System DFS protocol DFS protocol DFS protocol General-purpose client Device-specific protocol

  6. The EnsemBlue Daemon: Wolverine EnsemBlue DFS Modification of data in DFS namespace Detect modifications Update modifications Modification of data in CED namespace Wolverine Auth. copies • Runs on the general-purpose client • Acts on behalf of CED for all EnsemBlueactivities • Holds receipts for all objects on device; server callbacks

  7. Integrating CEDs (receipts) • One-to-one mapping : Namespace diversity Mapping Fully-qualified pathname of file in local CED namespace: /iPod/Songs/LetItBe.mp3 Unique EnsemBlue Identifier Object 1.999.18A • “Like” a symbolic link • File-system independent

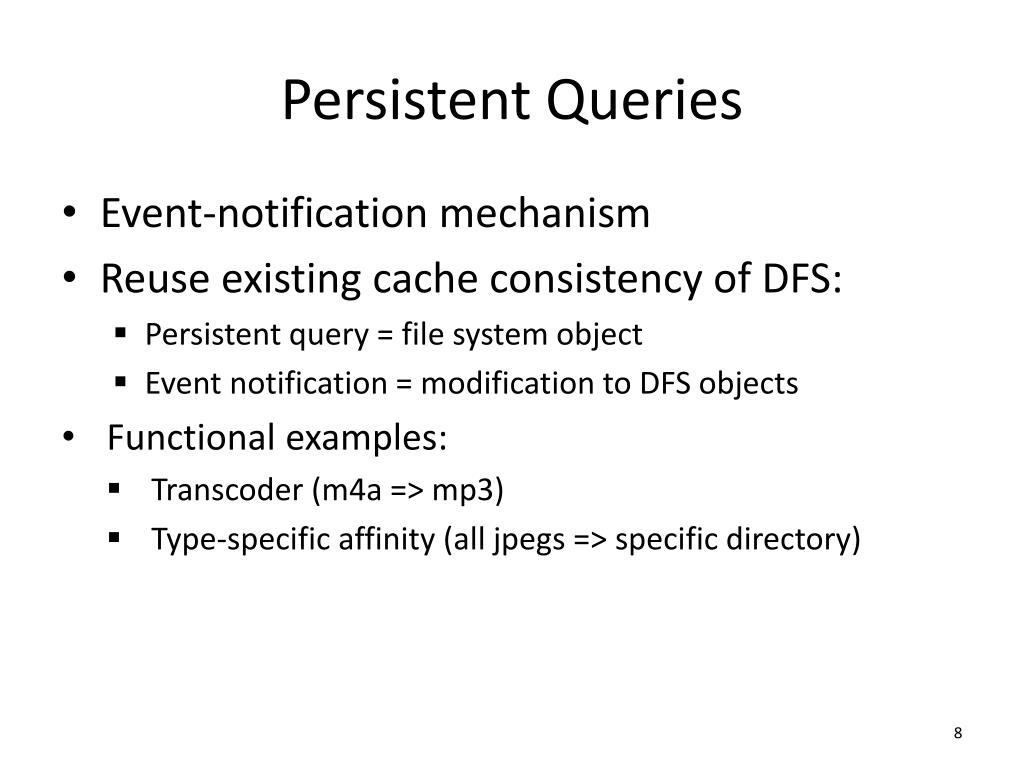

  8. Persistent Queries • Event-notification mechanism • Reuse existing cache consistency of DFS: • Persistent query = file system object • Event notification = modification to DFS objects • Functional examples: • Transcoder (m4a => mp3) • Type-specific affinity (all jpegs => specific directory)

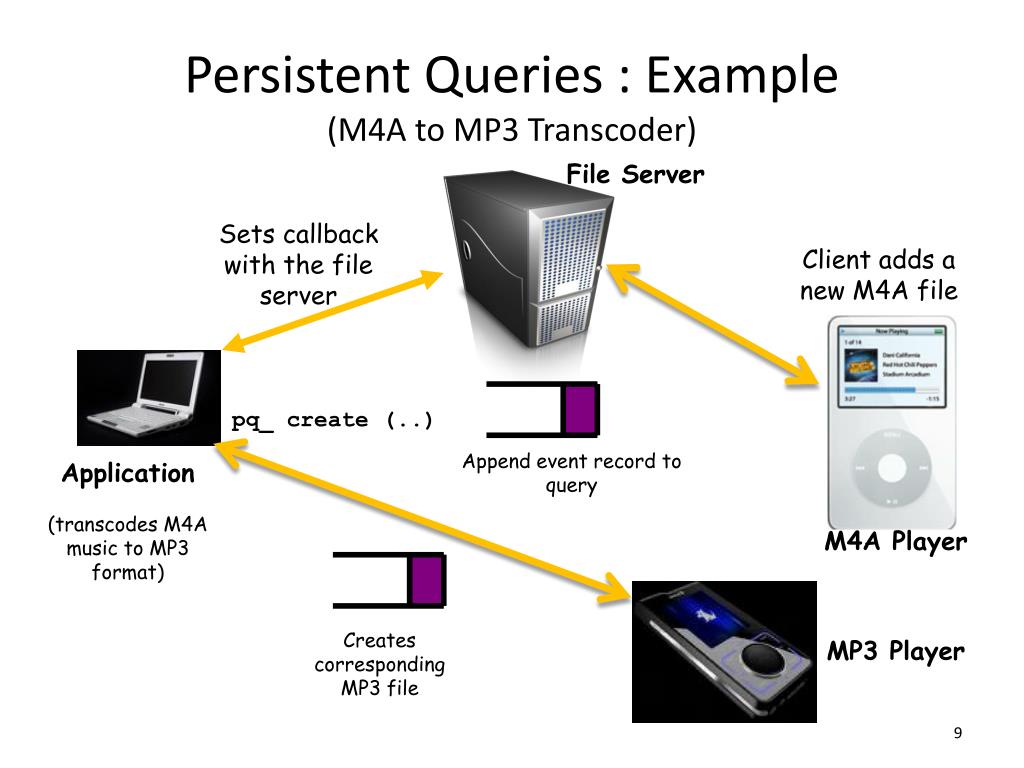

  9. Persistent Queries : Example (M4A to MP3 Transcoder) File Server Sets callback with the file server Client adds a new M4A file pq_ create (..) Append event record to query Application (transcodes M4A music to MP3 format) M4A Player Creates corresponding MP3 file MP3 Player

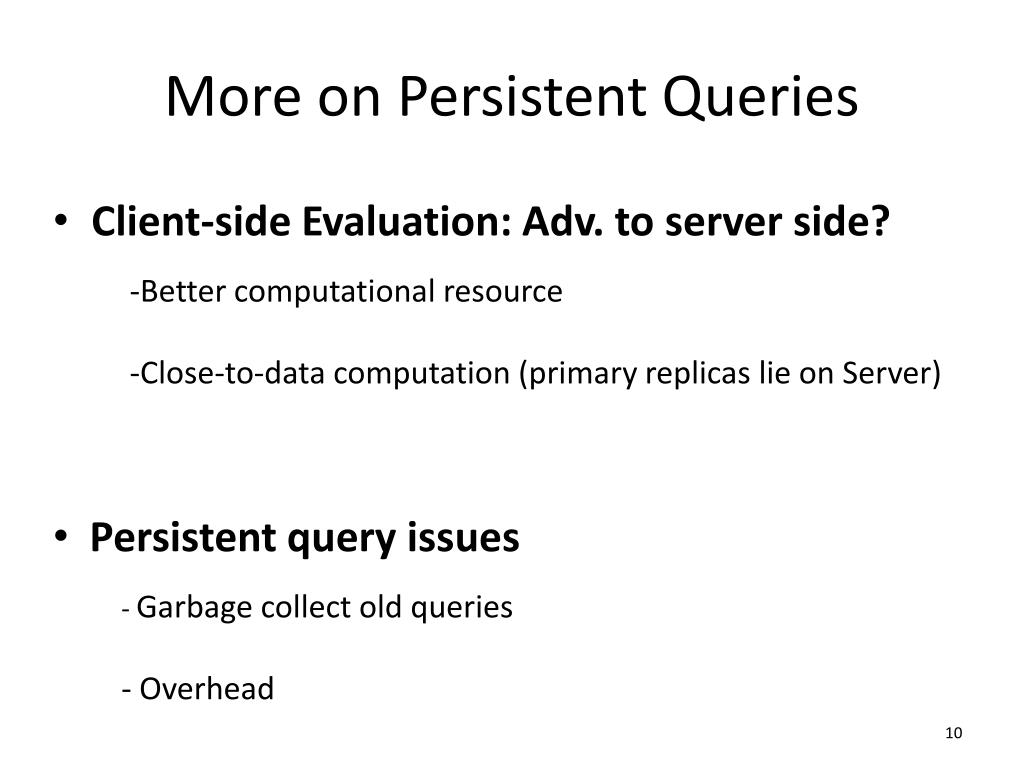

  10. More on Persistent Queries • Client-side Evaluation: Adv. to server side? • Better computational resource • Close-to-data computation (primary replicas lie on Server) • Persistent query issues • Garbage collect old queries • Overhead

  11. Disconnected devices • CEDs are often disconnected • P2P => mobility • central server => safety, consistency • Ensembles • middle-ground between P2P systems and centralized file servers • collection of devices sharing a common “view” of file system

  12. Ensembles • Ensembles store “cache” of file objects • Pseudo file server – ‘Castellan’ • Maintains a replica list of cache contents of all devices in the ensemble • Consistency of data, update propagation

  13. Ensemble : Operation Examine replica list Castellan Update replica list RPC(to fetch data) Hit: services the request Miss: sends an error code Fetches the object Client 1

  14. Conclusion • Focus on storage: CED’s integrated with DFS • User-specific “views” of FS – Ensembles • Namespace diversity • Persistent queries, disconnected operation on mobile devices

  15. Discussion • Why is consistency actually an issue? • write once, read many? • personal data: human-access, eventual consistency probably ok • Castellan is a GP computer and devices are disconnected … why isn’t Castellan connected? • How does CED invoke to Castellan • Battery power? • Other thoughts? RPC(to fetch data)
