CRYPTOGRAPHY

1. CRYPTOGRAPHY Lecture 2 Tuesday, June 27th

2. Caesar shift Plain : abcdefghijklmnopqrstuvwxyz ROT 0 : ABCDEFGHIJKLMNOPQRSTUVWXYZ ROT 1 : BCDEFGHIJKLMNOPQRSTUVWXYZA ROT 2 : CDEFGHIJKLMNOPQRSTUVWXYZAB ROT 3 : DEFGHIJKLMNOPQRSTUVWXYZABC ROT 4 : EFGHIJKLMNOPQRSTUVWXYZABCD ROT 5 : FGHIJKLMNOPQRSTUVWXYZABCDE ROT 6 : GHIJKLMNOPQRSTUVWXYZABCDEF ROT 7 : HIJKLMNOPQRSTUVWXYZABCDEFG ROT 8 : IJKLMNOPQRSTUVWXYZABCDEFGH ROT 9 : JKLMNOPQRSTUVWXYZABCDEFGHI ROT 10 : KLMNOPQRSTUVWXYZABCDEFGHIJ ROT 11 : LMNOPQRSTUVWXYZABCDEFGHIJK ROT 12 : MNOPQRSTUVWXYZABCDEFGHIJKL ROT 13 : NOPQRSTUVWXYZABCDEFGHIJKLM ROT 14 : OPQRSTUVWXYZABCDEFGHIJKLMN ROT 15 : PQRSTUVWXYZABCDEFGHIJKLMNO

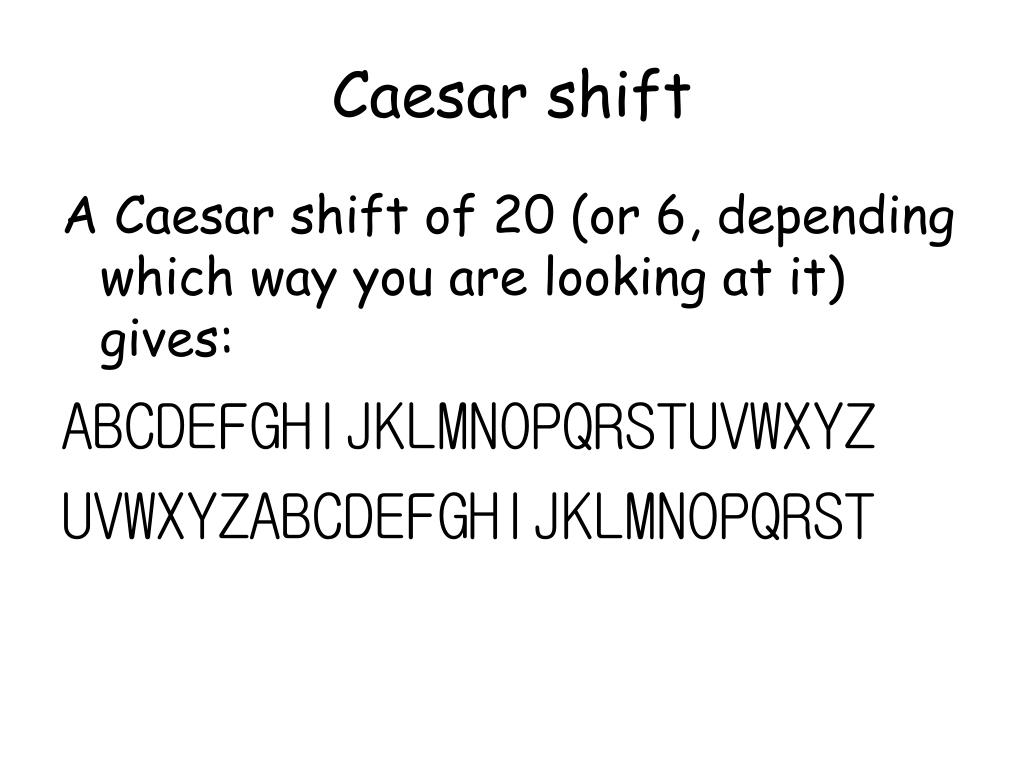

3. Caesar shift A Caesar shift of 20 (or 6, depending which way you are looking at it) gives: ABCDEFGHIJKLMNOPQRSTUVWXYZ UVWXYZABCDEFGHIJKLMNOPQRST

4. Caesar shift example BZDRZQ'R VHED LTRS AD ZANUD RTROHBHNM • First clue: the apostrophe. The only things that can work are a T or an S. But S would be more common. So let’s assume that R in the cipher text means S. This means that every letter is the cipher is shifted over by one. Once the rule is clear, the whole message is easily deciphered.

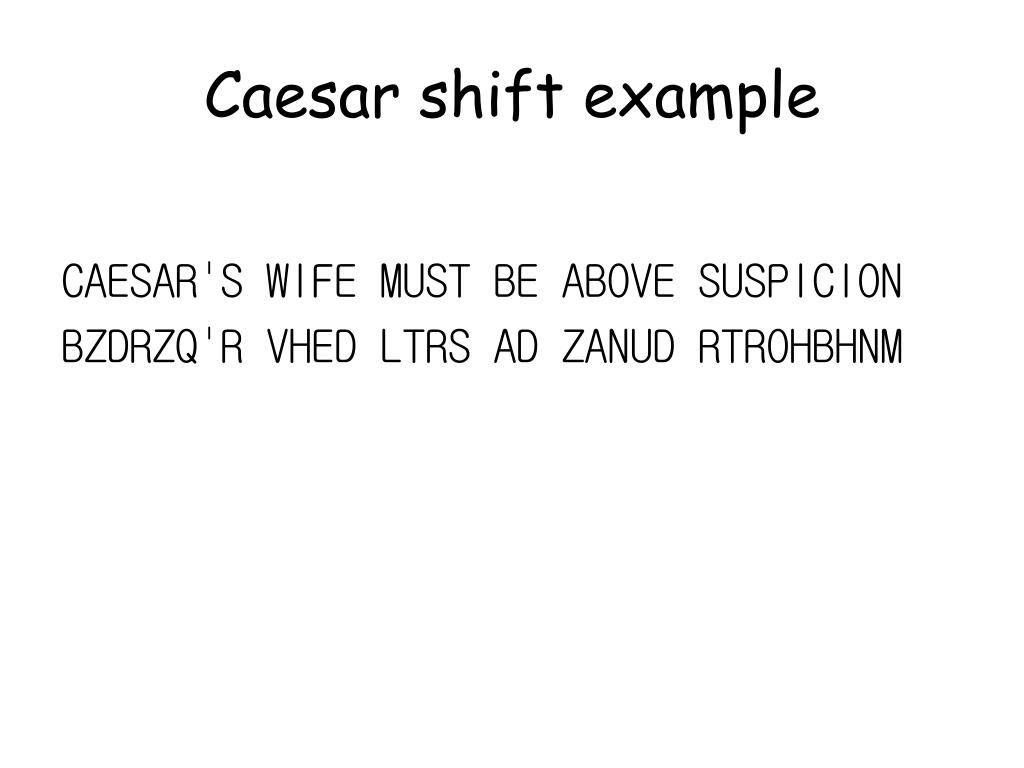

5. Caesar shift example CAESAR'S WIFE MUST BE ABOVE SUSPICION BZDRZQ'R VHED LTRS AD ZANUD RTROHBHNM

6. Caesar shift clues To find what the shift is, we sometimes have clues: • Apostrophes tell us a lot • Words with one letter can only be “A” or “I” • The most common words with two letters are OF TO IN IS IT BE BY HE AS ON AT OR AN SO IF NO

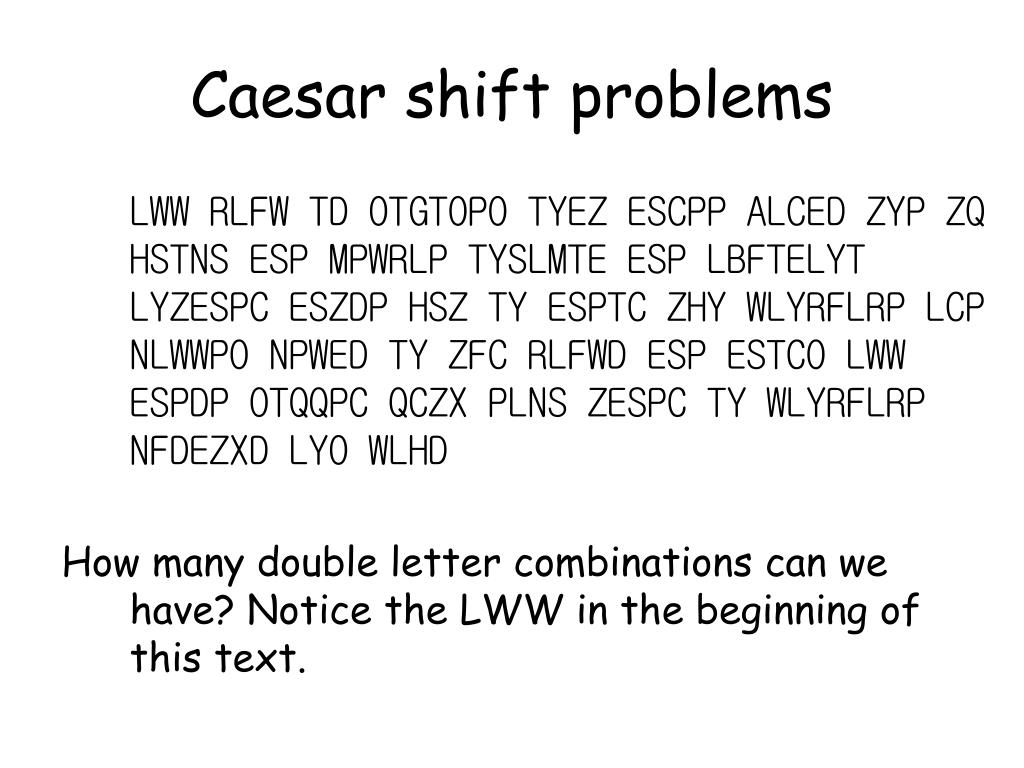

7. Caesar shift problems LWW RLFW TD OTGTOPO TYEZ ESCPP ALCED ZYP ZQ HSTNS ESP MPWRLP TYSLMTE ESP LBFTELYT LYZESPC ESZDP HSZ TY ESPTC ZHY WLYRFLRP LCP NLWWPO NPWED TY ZFC RLFWD ESP ESTCO LWW ESPDP OTQQPC QCZX PLNS ZESPC TY WLYRFLRP NFDEZXD LYO WLHD How many double letter combinations can we have? Notice the LWW in the beginning of this text.

8. www.simonsingh.net http://starbase.trincoll.edu/~crypto/ http://edeca.net/site/programs:rotutil

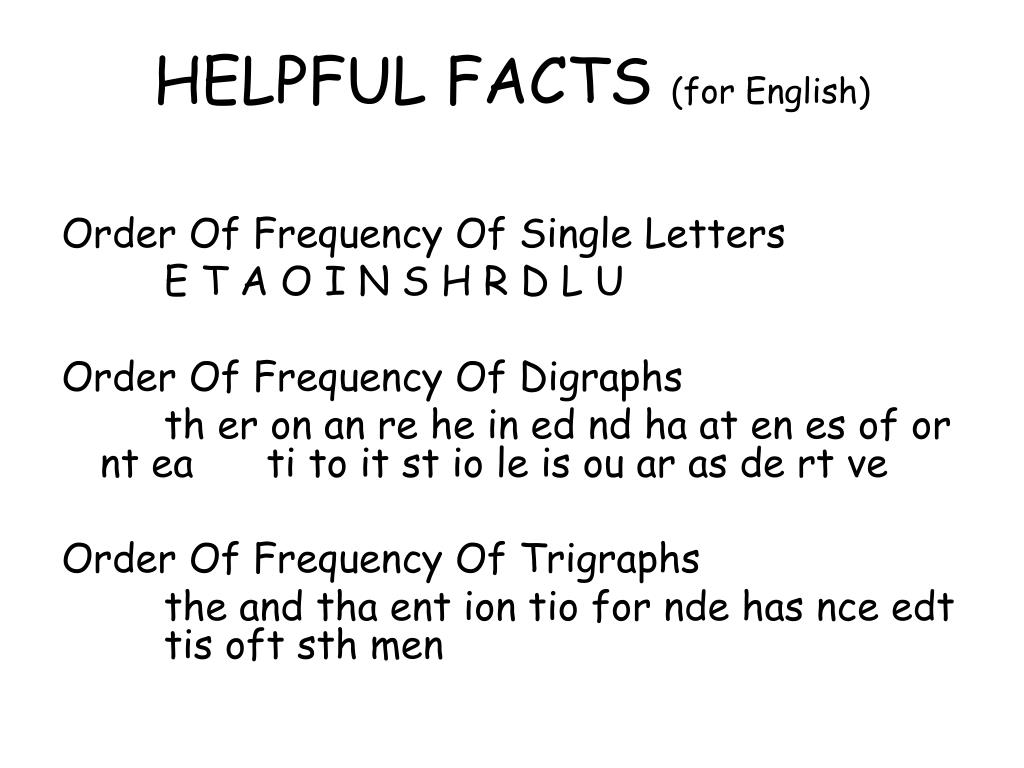

9. HELPFUL FACTS (for English) Order Of Frequency Of Single Letters E T A O I N S H R D L U    Order Of Frequency Of Digraphs th er on an re he in ed nd ha at en es of or nt ea ti to it st io le is ou ar as de rt ve   Order Of Frequency Of Trigraphs the and tha ent ion tio for nde has nce edt tis oft sth men

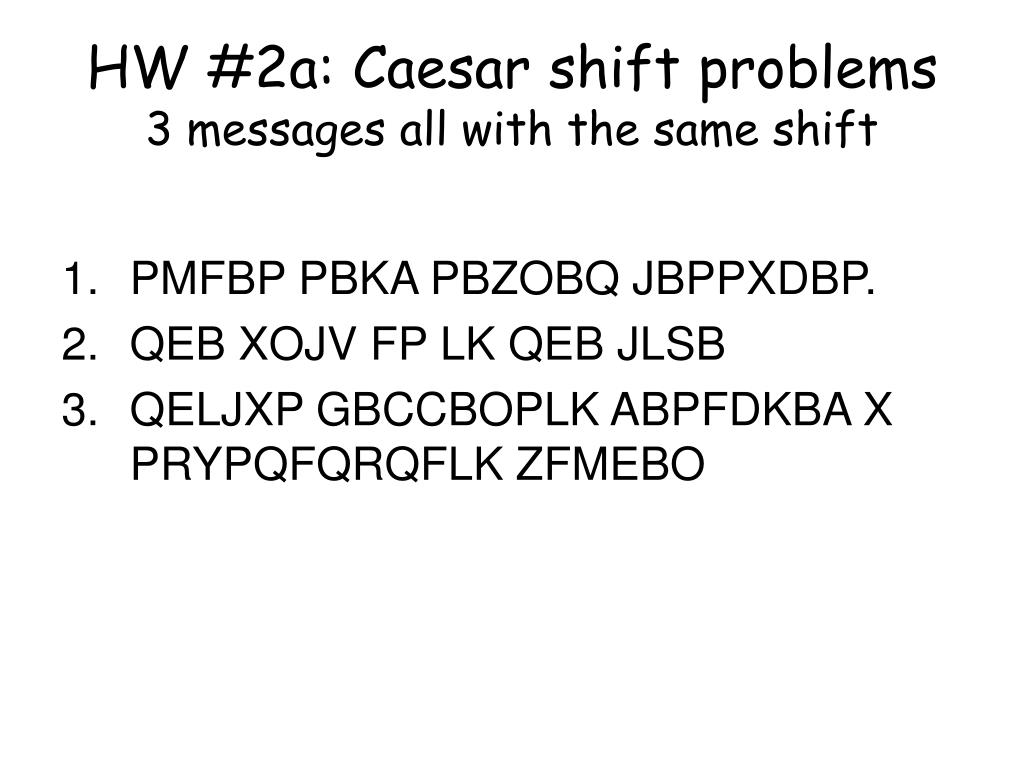

10. HW #2a: Caesar shift problems3 messages all with the same shift • PMFBP PBKA PBZOBQ JBPPXDBP. • QEB XOJV FP LK QEB JLSB • QELJXP GBCCBOPLK ABPFDKBA X PRYPQFQRQFLK ZFMEBO

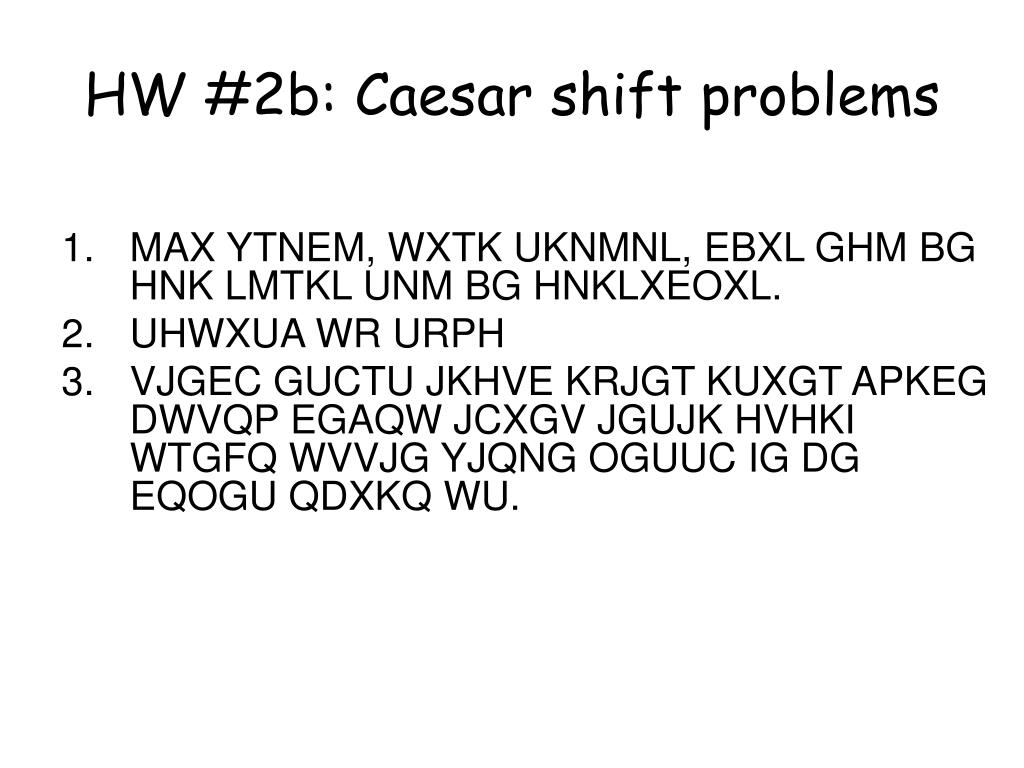

11. HW #2b: Caesar shift problems • MAX YTNEM, WXTK UKNMNL, EBXL GHM BG HNK LMTKL UNM BG HNKLXEOXL. • UHWXUA WR URPH • VJGEC GUCTU JKHVE KRJGT KUXGT APKEG DWVQP EGAQW JCXGV JGUJK HVHKI WTGFQ WVVJG YJQNG OGUUC IG DG EQOGU QDXKQ WU.

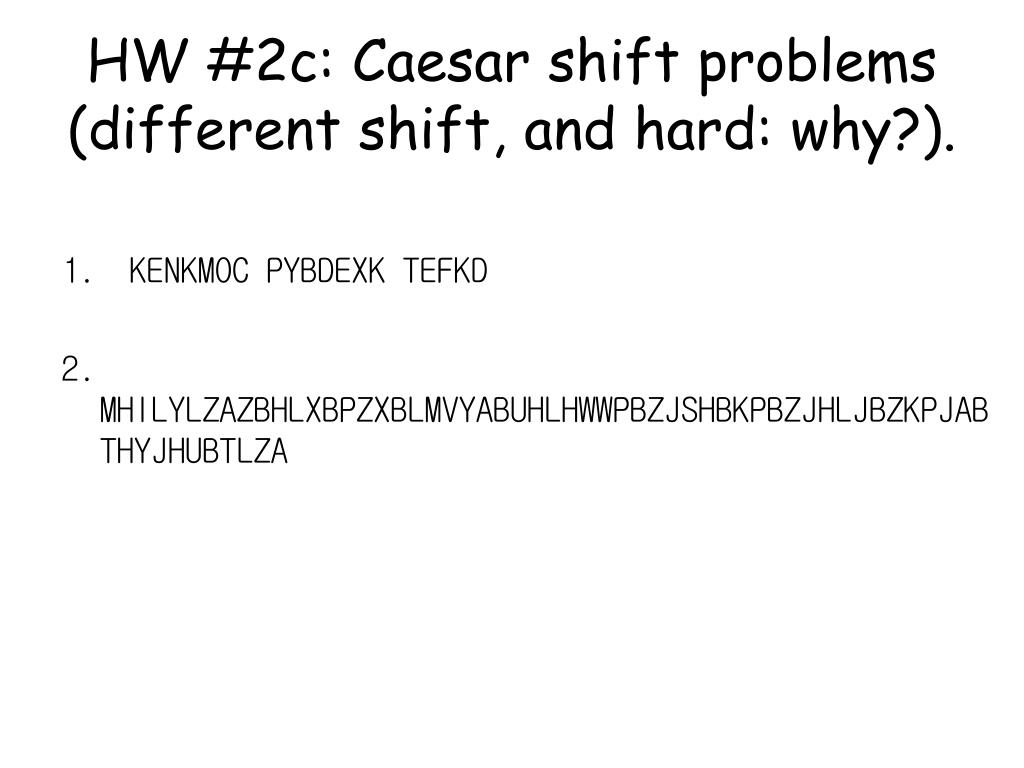

12. HW #2c: Caesar shift problems(different shift, and hard: why?). 1. KENKMOC PYBDEXK TEFKD 2. MHILYLZAZBHLXBPZXBLMVYABUHLHWWPBZJSHBKPBZJHLJBZKPJABTHYJHUBTLZA

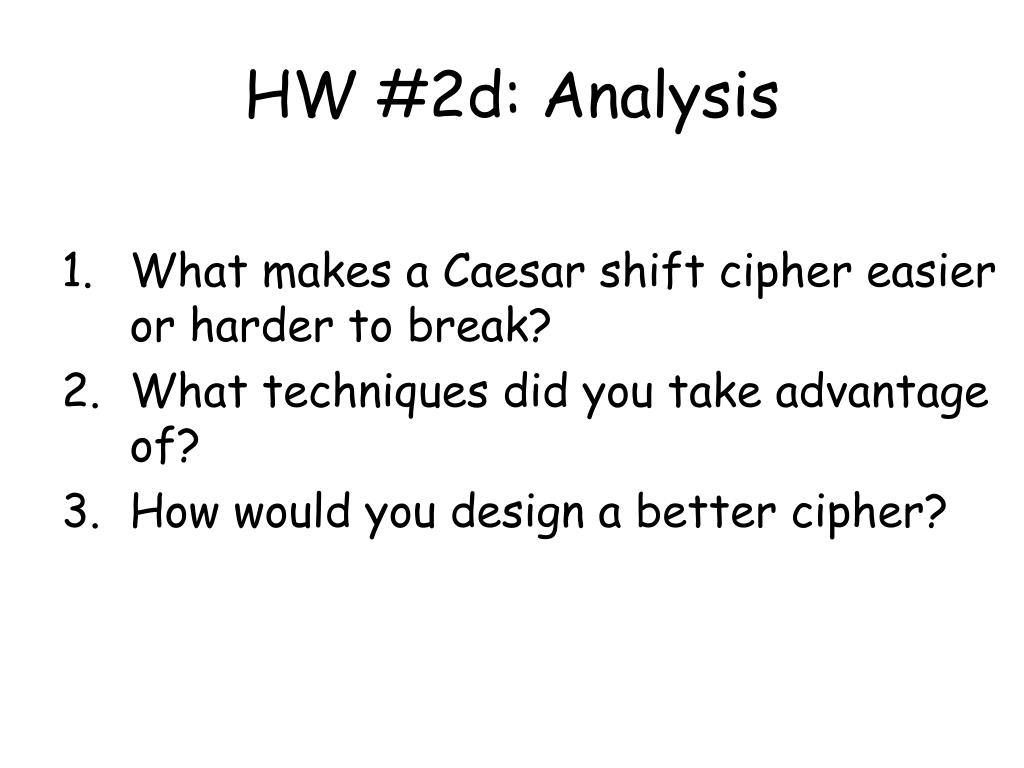

13. HW #2d: Analysis • What makes a Caesar shift cipher easier or harder to break? • What techniques did you take advantage of? • How would you design a better cipher?

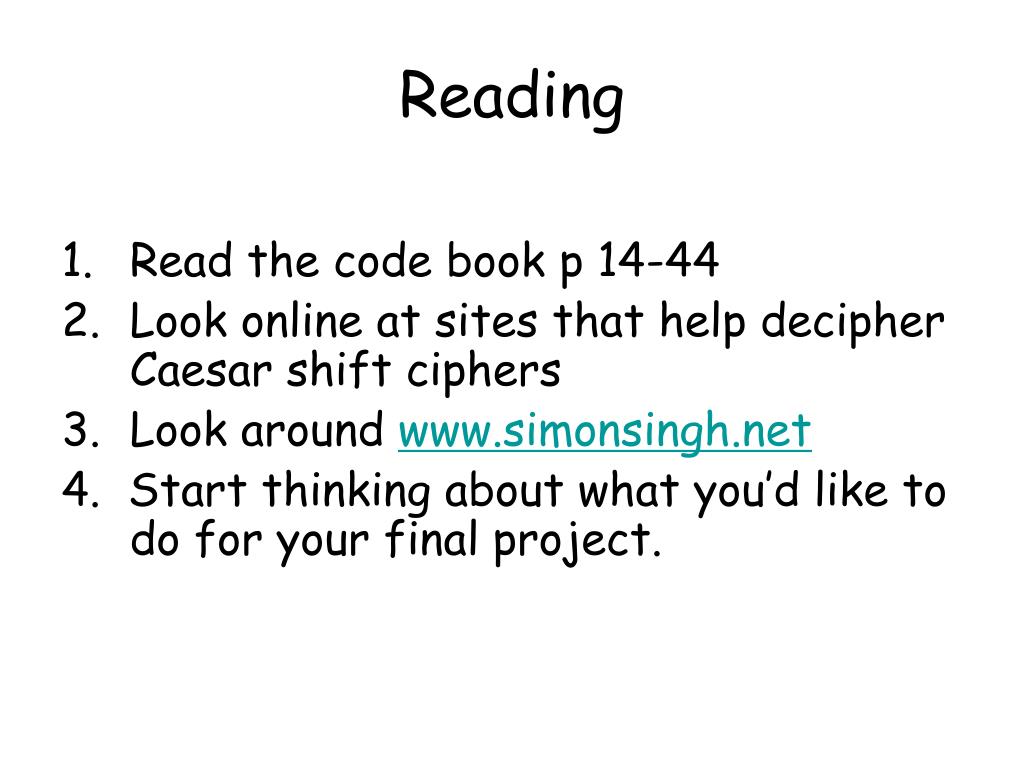

14. Reading • Read the code book p 14-44 • Look online at sites that help decipher Caesar shift ciphers • Look around www.simonsingh.net 4. Start thinking about what you’d like to do for your final project.

16. The difference between substitution and transposition is that in: Subtitution: each letter retains its position but changes its identity, Transposition: each letter retains its identity but changes its position. Example 3

17. Weakness of Caesar shift If you figured out the shift, the whole message quickly unravels. If there are spaces, or punctuation, you can get a “handle” on the message. If the message is long enough, or if you have enough messages with the same shift, you can solve by frequency analysis If all else fails, try all 26 possibilities. This may take a while by hand, but it is not inherently difficult.

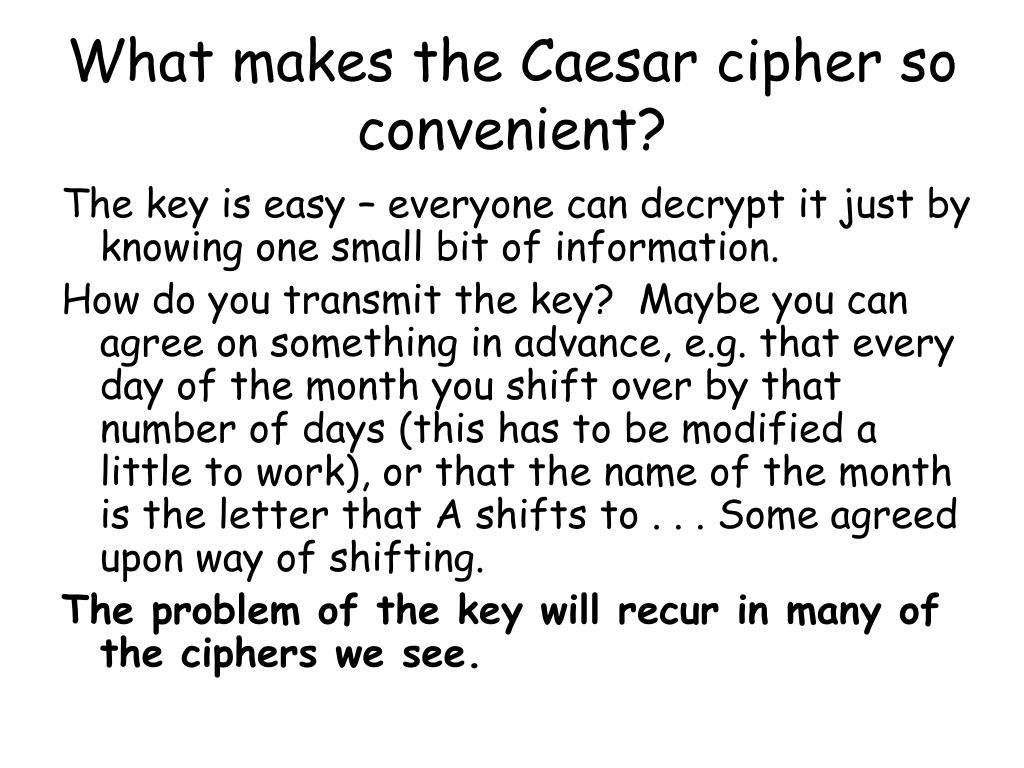

18. What makes the Caesar cipher so convenient? The key is easy – everyone can decrypt it just by knowing one small bit of information. How do you transmit the key? Maybe you can agree on something in advance, e.g. that every day of the month you shift over by that number of days (this has to be modified a little to work), or that the name of the month is the letter that A shifts to . . . Some agreed upon way of shifting. The problem of the key will recur in many of the ciphers we see.

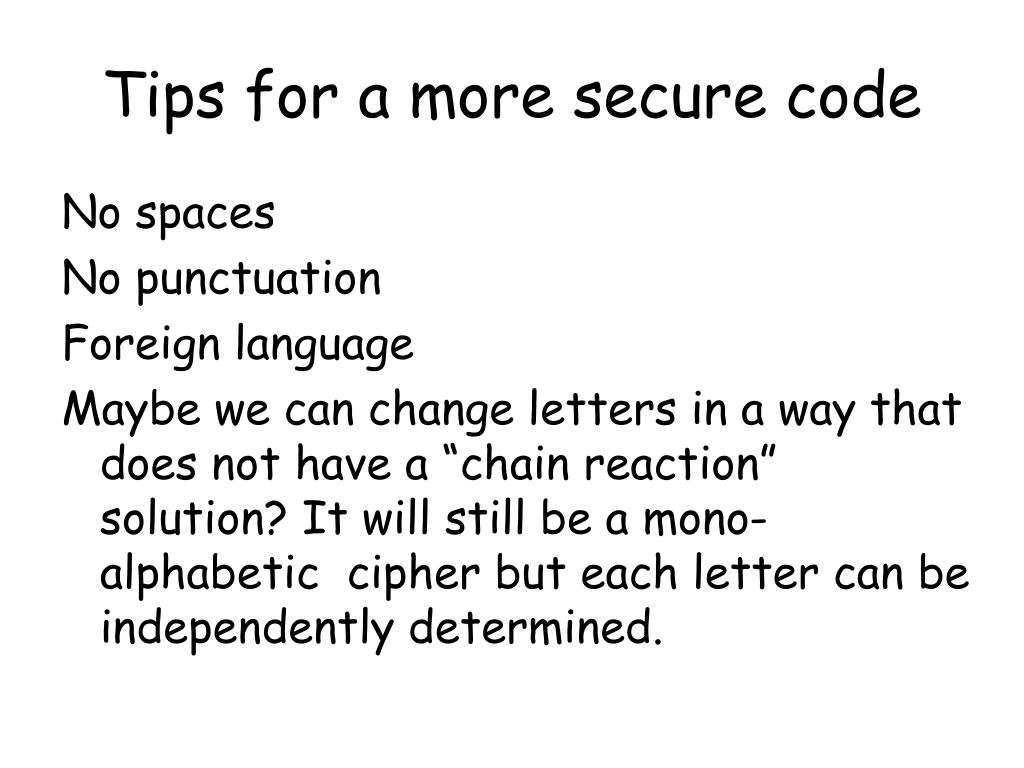

19. Tips for a more secure code No spaces No punctuation Foreign language Maybe we can change letters in a way that does not have a “chain reaction” solution? It will still be a mono-alphabetic cipher but each letter can be independently determined.

20. Mono-alphabetic Substitution Cipher • Allow any permutation of the alphabet • Each letter is replaced by a different letter or symbol • Key = permutation (still need to decide on a key and exchange this information in a secure way). • 26! Possibilities • What does this mean?

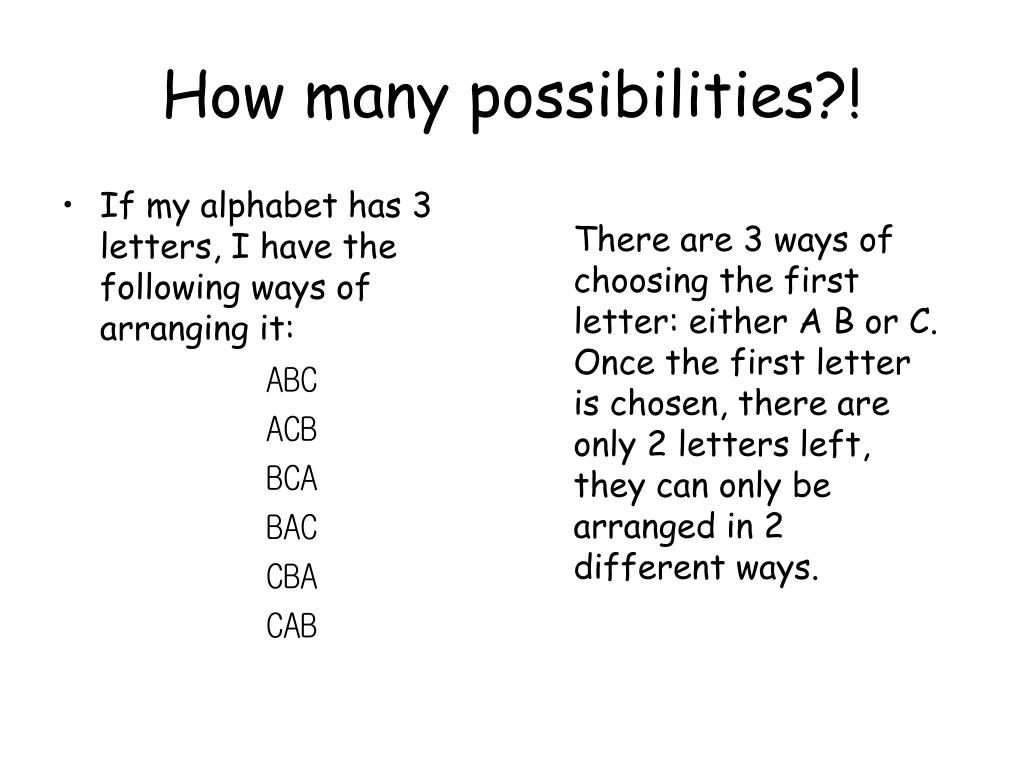

21. How many possibilities?! • If my alphabet has 3 letters, I have the following ways of arranging it: ABC ACB BCA BAC CBA CAB There are 3 ways of choosing the first letter: either A B or C. Once the first letter is chosen, there are only 2 letters left, they can only be arranged in 2 different ways.

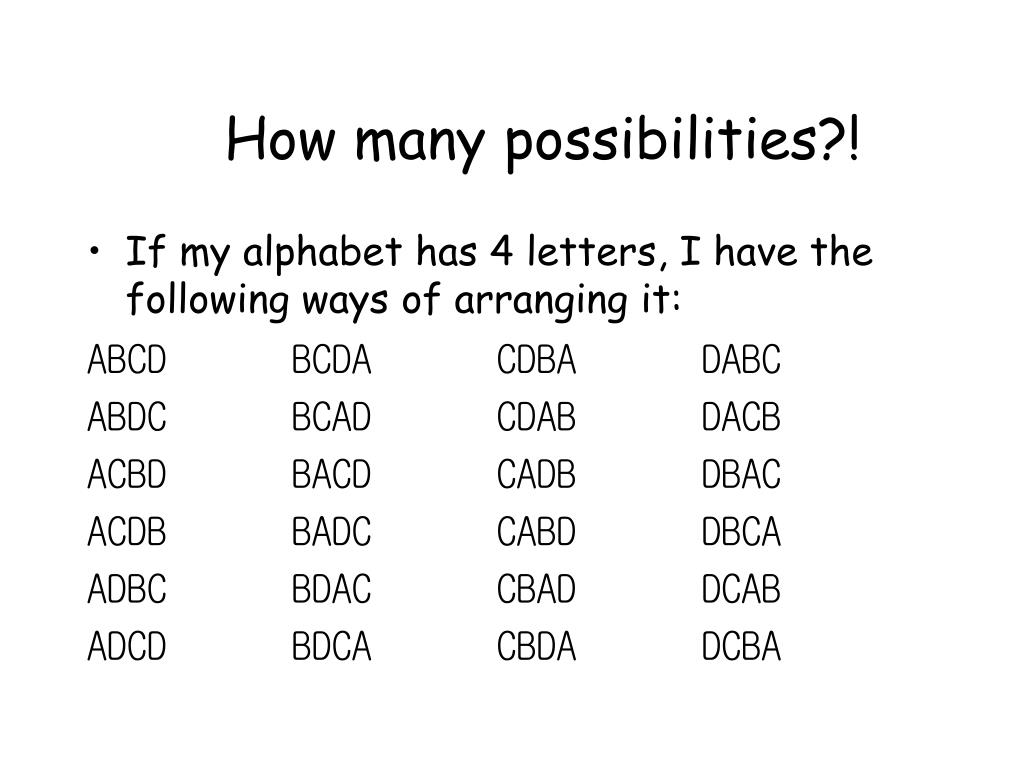

22. How many possibilities?! • If my alphabet has 4 letters, I have the following ways of arranging it: ABCD BCDA CDBA DABC ABDC BCAD CDAB DACB ACBD BACD CADB DBAC ACDB BADC CABD DBCA ADBC BDAC CBAD DCAB ADCD BDCA CBDA DCBA

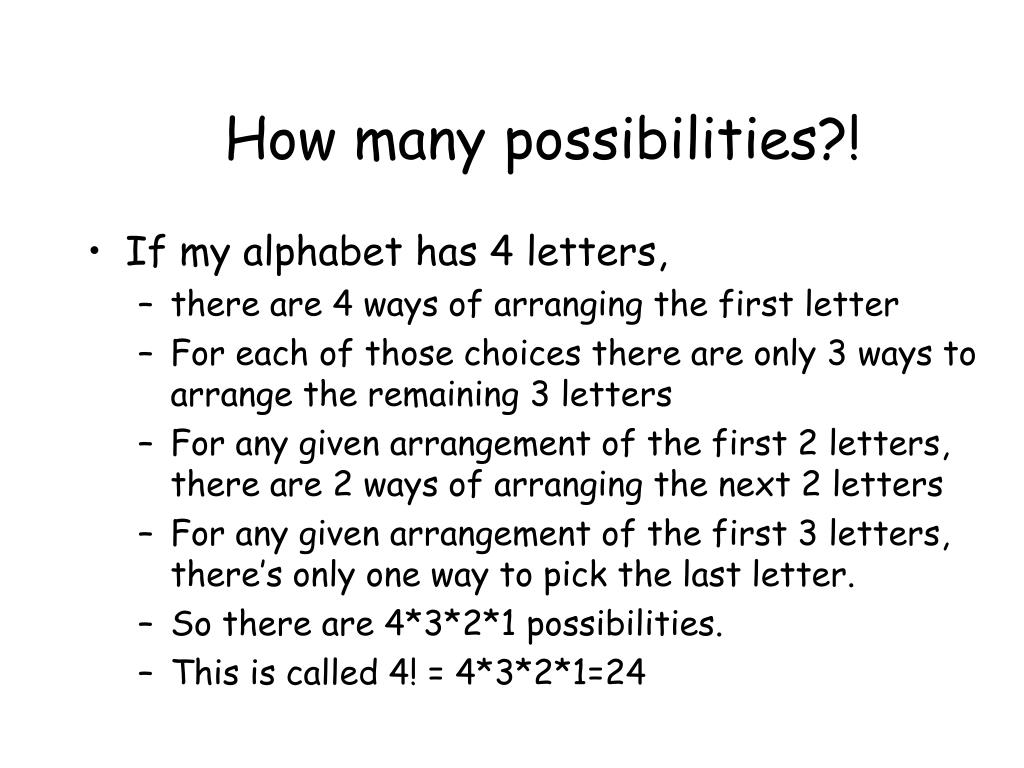

23. How many possibilities?! • If my alphabet has 4 letters, • there are 4 ways of arranging the first letter • For each of those choices there are only 3 ways to arrange the remaining 3 letters • For any given arrangement of the first 2 letters, there are 2 ways of arranging the next 2 letters • For any given arrangement of the first 3 letters, there’s only one way to pick the last letter. • So there are 4*3*2*1 possibilities. • This is called 4! = 4*3*2*1=24

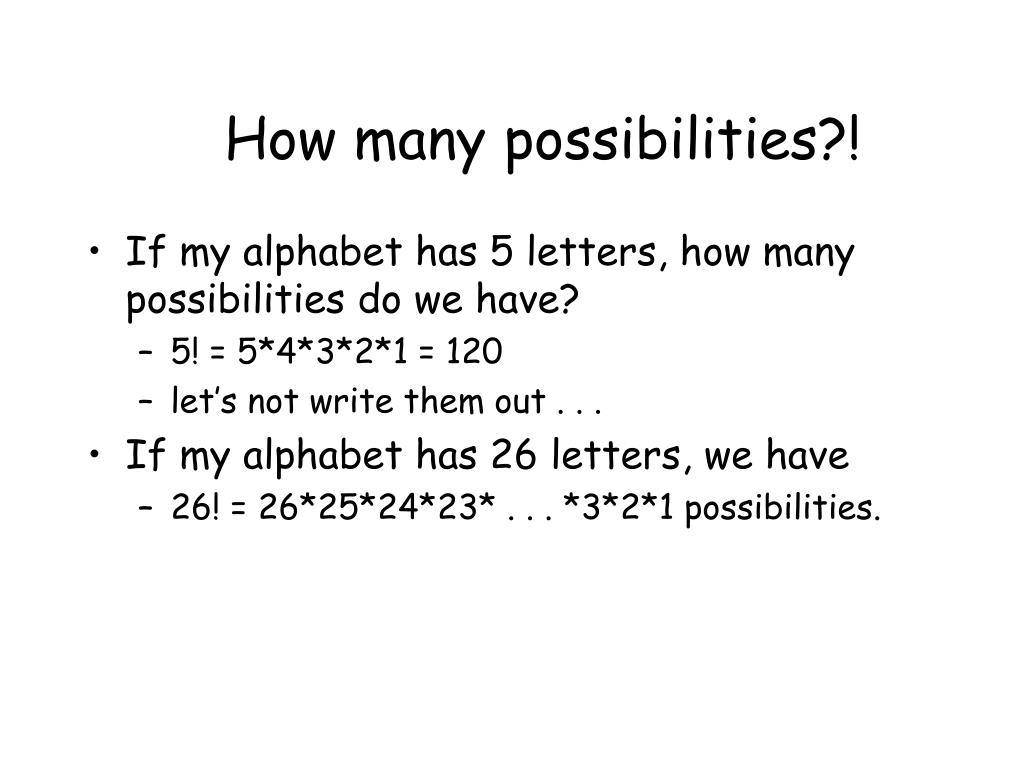

24. How many possibilities?! • If my alphabet has 5 letters, how many possibilities do we have? • 5! = 5*4*3*2*1 = 120 • let’s not write them out . . . • If my alphabet has 26 letters, we have • 26! = 26*25*24*23* . . . *3*2*1 possibilities.

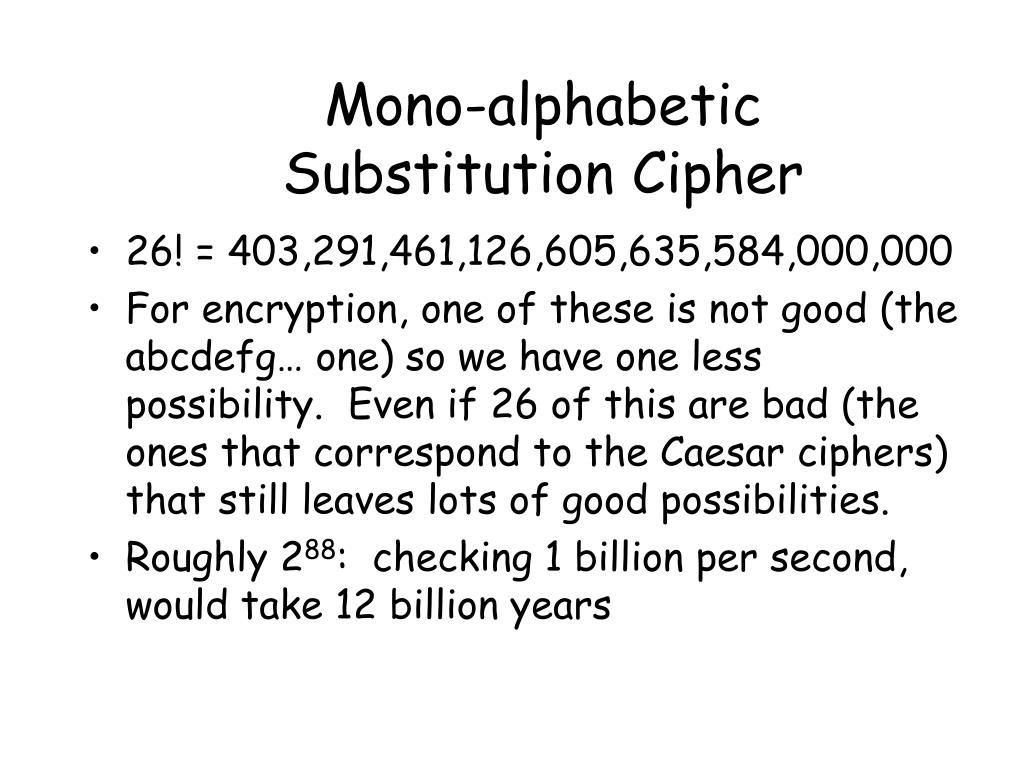

25. Mono-alphabeticSubstitution Cipher • 26! = 403,291,461,126,605,635,584,000,000 • For encryption, one of these is not good (the abcdefg… one) so we have one less possibility. Even if 26 of this are bad (the ones that correspond to the Caesar ciphers) that still leaves lots of good possibilities. • Roughly 288: checking 1 billion per second, would take 12 billion years

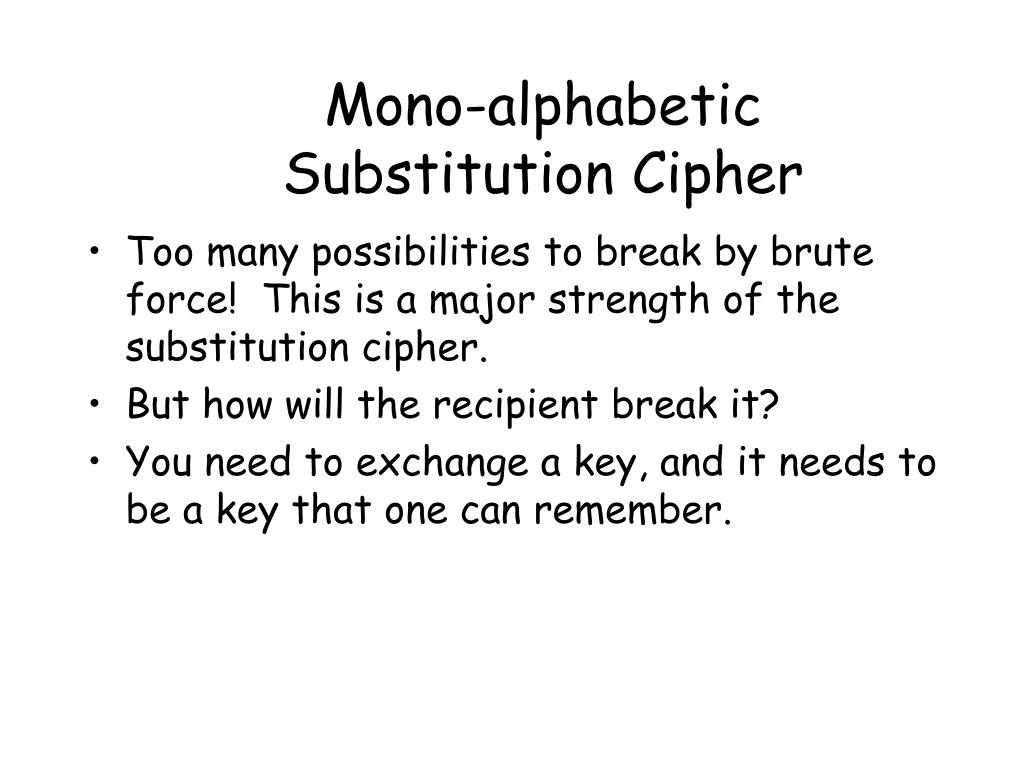

26. Mono-alphabeticSubstitution Cipher • Too many possibilities to break by brute force! This is a major strength of the substitution cipher. • But how will the recipient break it? • You need to exchange a key, and it needs to be a key that one can remember.

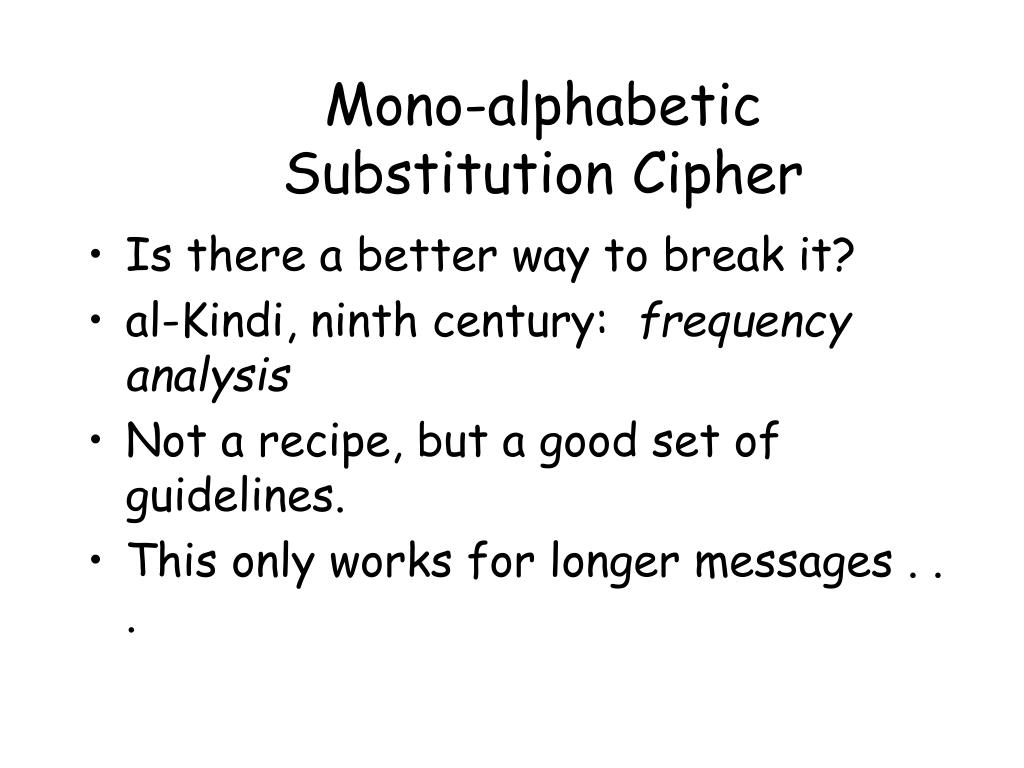

27. Mono-alphabetic Substitution Cipher • Is there a better way to break it? • al-Kindi, ninth century: frequency analysis • Not a recipe, but a good set of guidelines. • This only works for longer messages . . .

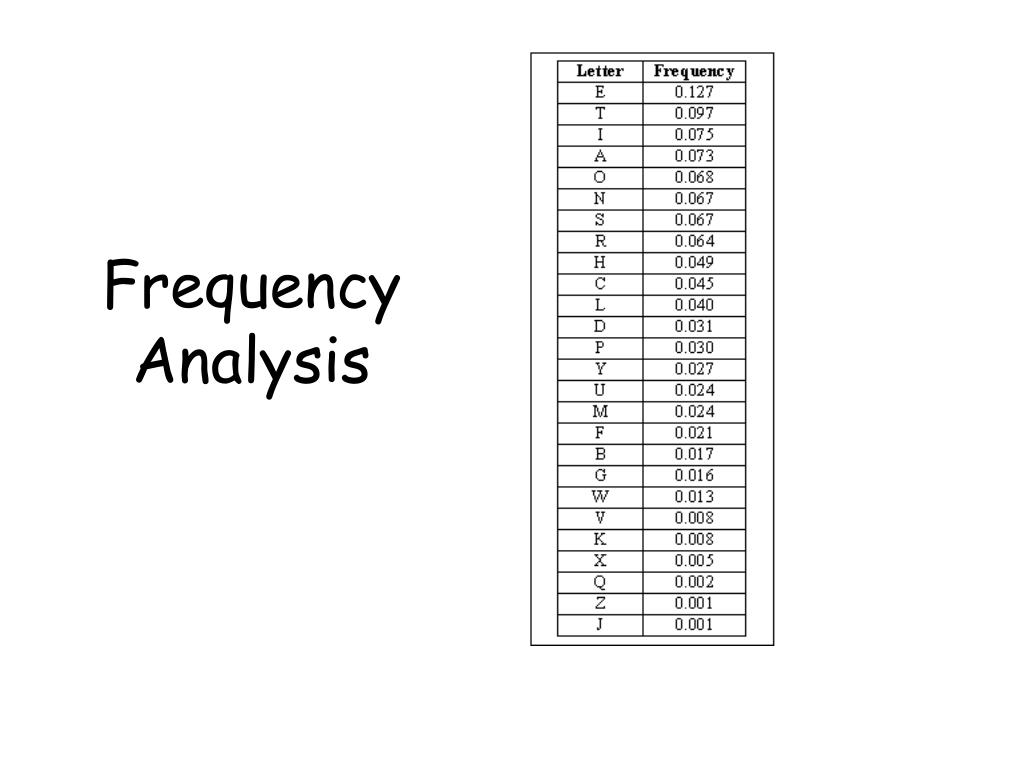

28. Frequency Analysis

29. Example 1 H EKGGLHQNL KZEL AKGB PL ARHA ARL CKSGB CHV XNGG KX UHB VLENSTAF VFVALPV CSTAALZ UF OLKOGL CRK SLHB HOOGTLB ESFOAKQSHORF. - USNEL VERZLTLS, VLESLAV HZB GTLV

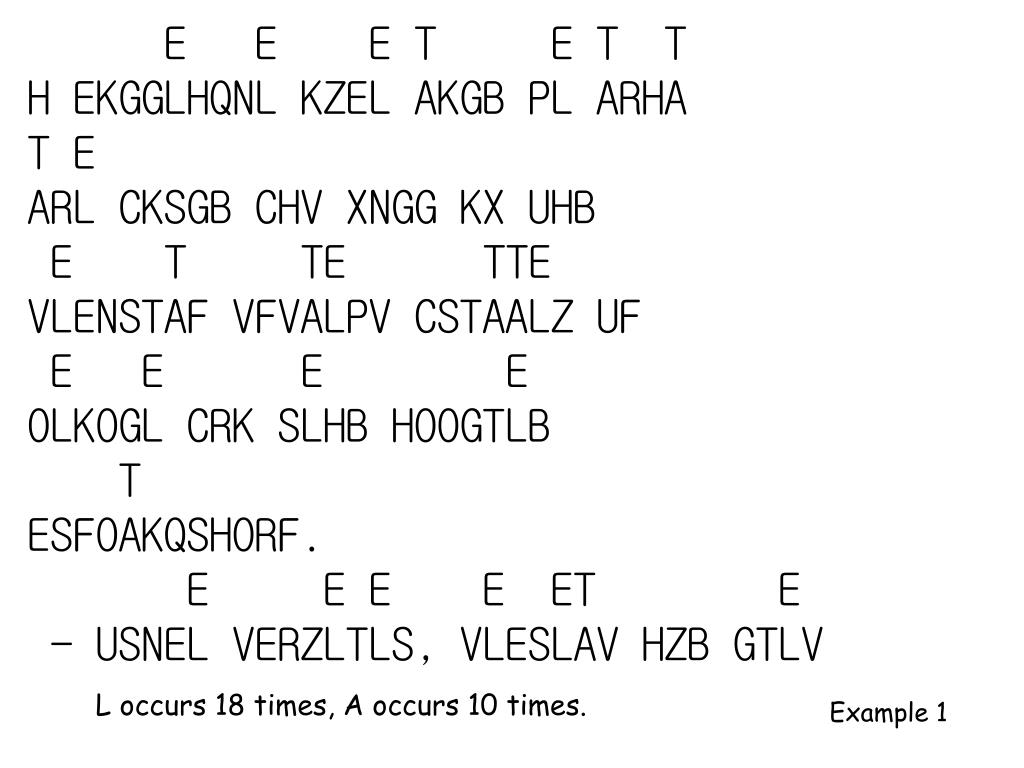

30. E E E T E T T H EKGGLHQNL KZEL AKGB PL ARHA T E ARL CKSGB CHV XNGG KX UHB E T TE TTE VLENSTAF VFVALPV CSTAALZ UF E E E E OLKOGL CRK SLHB HOOGTLB T ESFOAKQSHORF. E E E E ET E - USNEL VERZLTLS, VLESLAV HZB GTLV L occurs 18 times, A occurs 10 times. Example 1

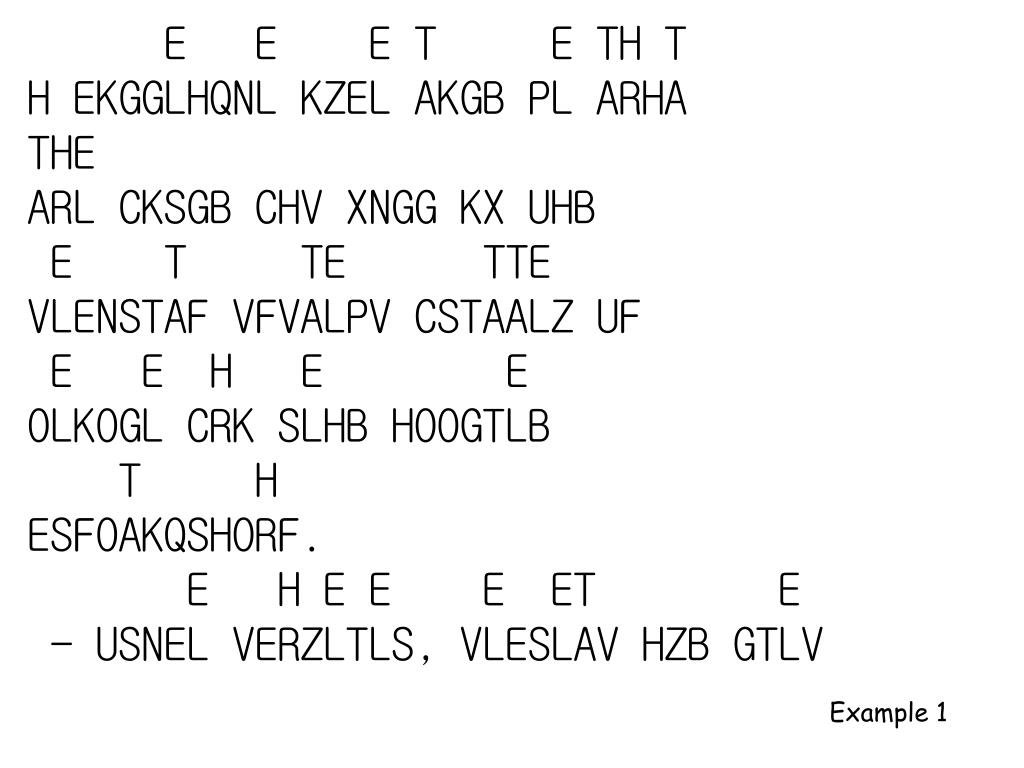

31. E E E T E TH T H EKGGLHQNL KZEL AKGB PL ARHA THE ARL CKSGB CHV XNGG KX UHB E T TE TTE VLENSTAF VFVALPV CSTAALZ UF E E H E E OLKOGL CRK SLHB HOOGTLB T H ESFOAKQSHORF. E H E E E ET E - USNEL VERZLTLS, VLESLAV HZB GTLV Example 1

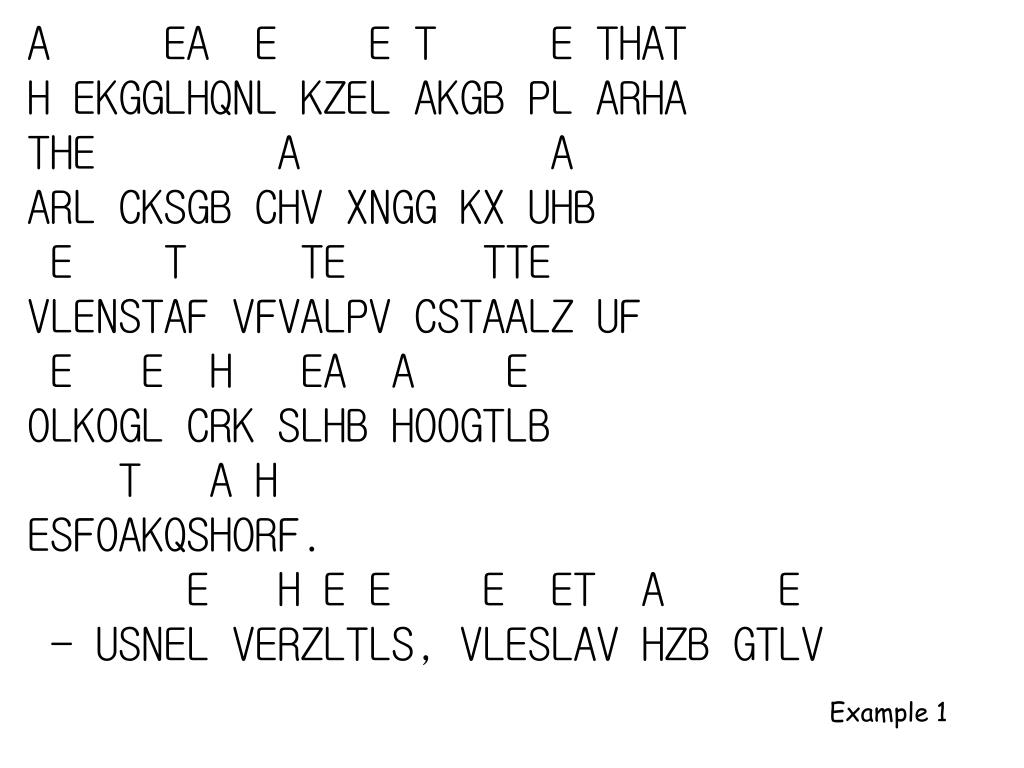

32. A EA E E T E THAT H EKGGLHQNL KZEL AKGB PL ARHA THE A A ARL CKSGB CHV XNGG KX UHB E T TE TTE VLENSTAF VFVALPV CSTAALZ UF E E H EA A E OLKOGL CRK SLHB HOOGTLB T A H ESFOAKQSHORF. E H E E E ET A E - USNEL VERZLTLS, VLESLAV HZB GTLV Example 1

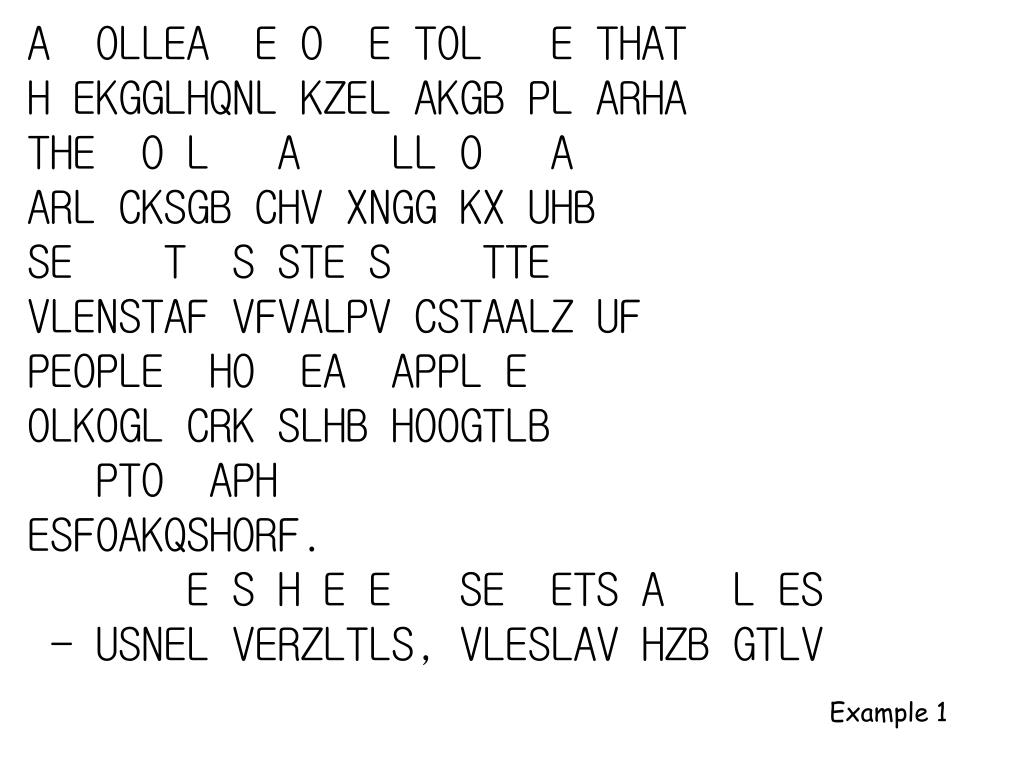

33. A OLLEA E O E TOL E THAT H EKGGLHQNL KZEL AKGB PL ARHA THE O L A LL O A ARL CKSGB CHV XNGG KX UHB SE T S STE S TTE VLENSTAF VFVALPV CSTAALZ UF PEOPLE HO EA APPL E OLKOGL CRK SLHB HOOGTLB PTO APH ESFOAKQSHORF. E S H E E SE ETS A L ES - USNEL VERZLTLS, VLESLAV HZB GTLV Example 1

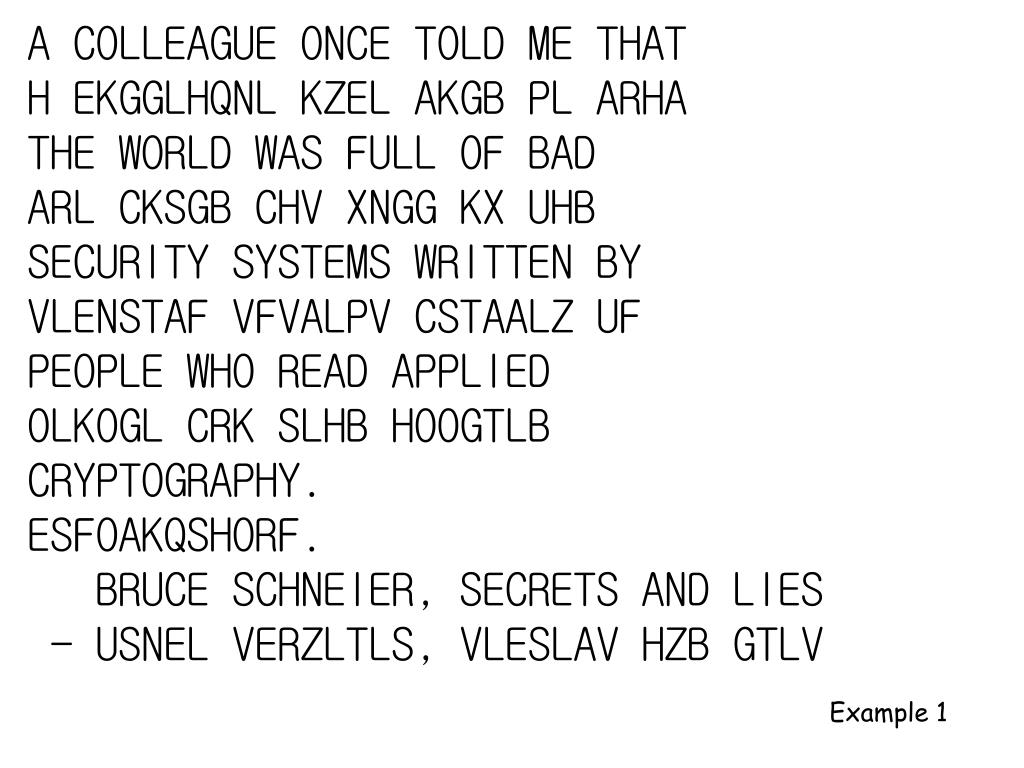

34. A COLLEAGUE ONCE TOLD ME THAT H EKGGLHQNL KZEL AKGB PL ARHA THE WORLD WAS FULL OF BAD ARL CKSGB CHV XNGG KX UHB SECURITY SYSTEMS WRITTEN BY VLENSTAF VFVALPV CSTAALZ UF PEOPLE WHO READ APPLIED OLKOGL CRK SLHB HOOGTLB CRYPTOGRAPHY. ESFOAKQSHORF. BRUCE SCHNEIER, SECRETS AND LIES - USNEL VERZLTLS, VLESLAV HZB GTLV Example 1

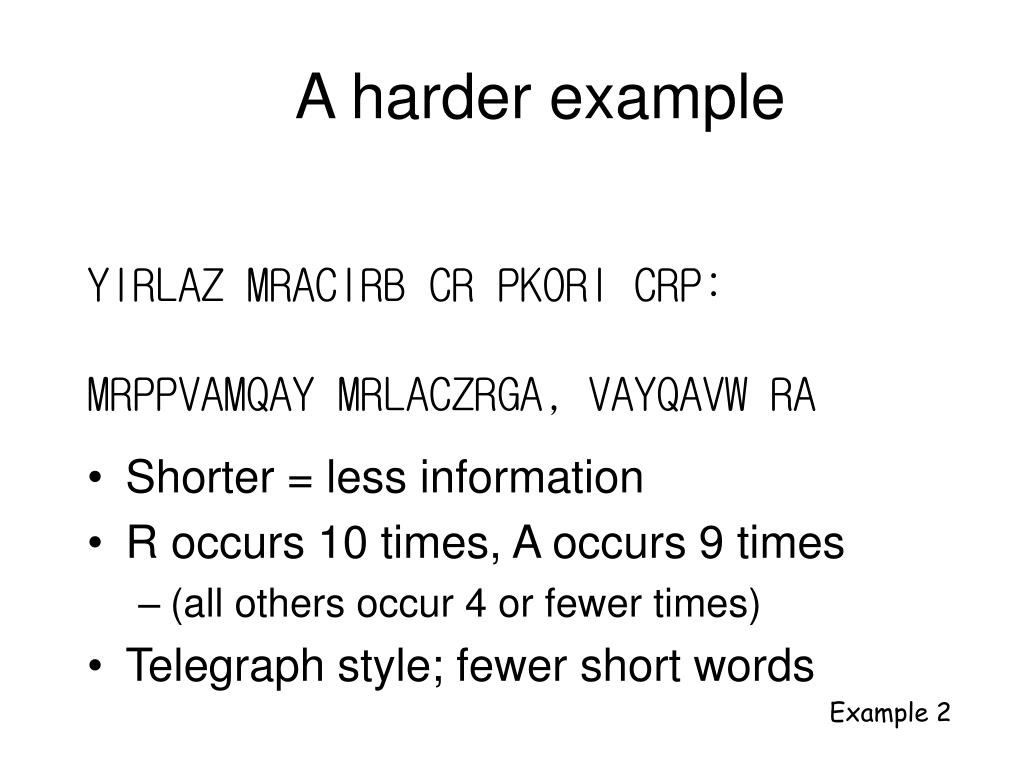

35. A harder example • Shorter = less information • R occurs 10 times, A occurs 9 times • (all others occur 4 or fewer times) • Telegraph style; fewer short words YIRLAZ MRACIRB CR PKORI CRP: MRPPVAMQAY MRLACZRGA, VAYQAVW RA Example 2

36. A harder example E E E E E E YIRLAZ MRACIRB CR PKORI CRP: E E E E MRPPVAMQAY MRLACZRGA, VAYQAVW RA E doesn’t begin any common 2-letter words Example 2

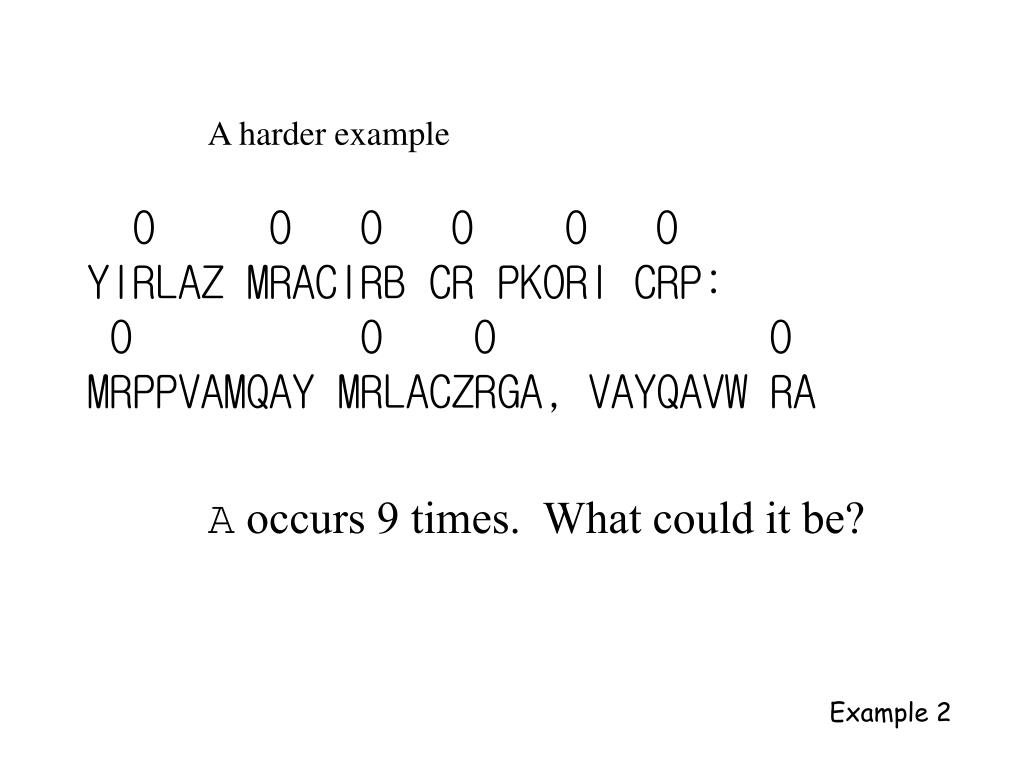

37. A harder example O O O O O O YIRLAZ MRACIRB CR PKORI CRP: O O O O MRPPVAMQAY MRLACZRGA, VAYQAVW RA A occurs 9 times. What could it be? Example 2

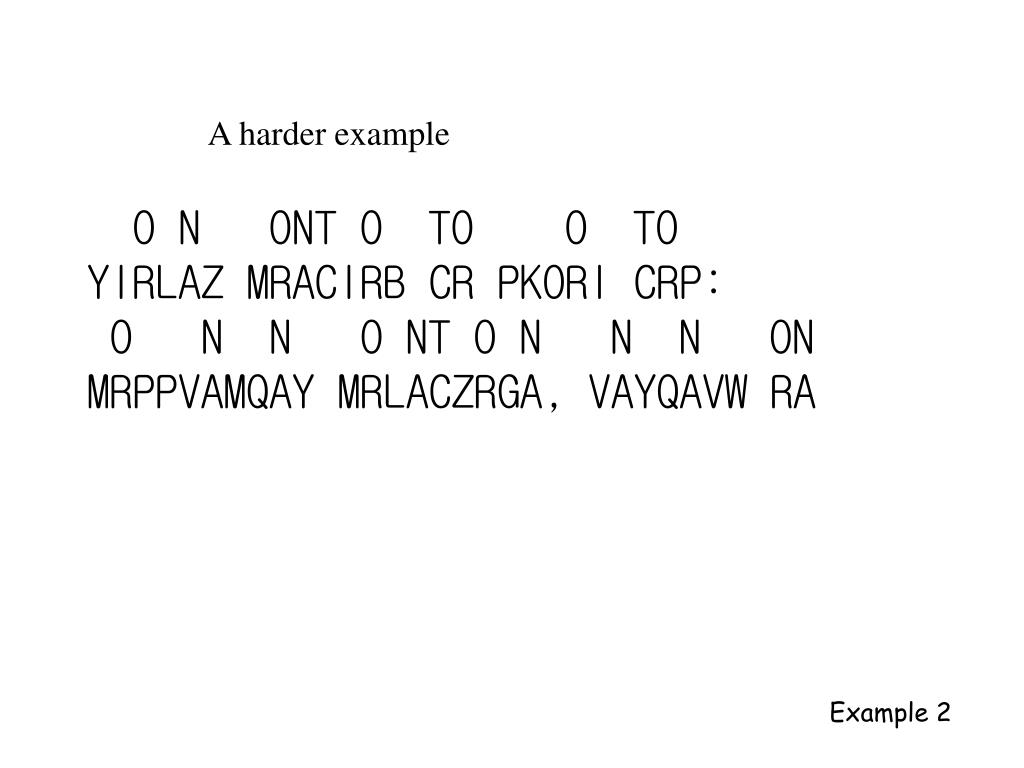

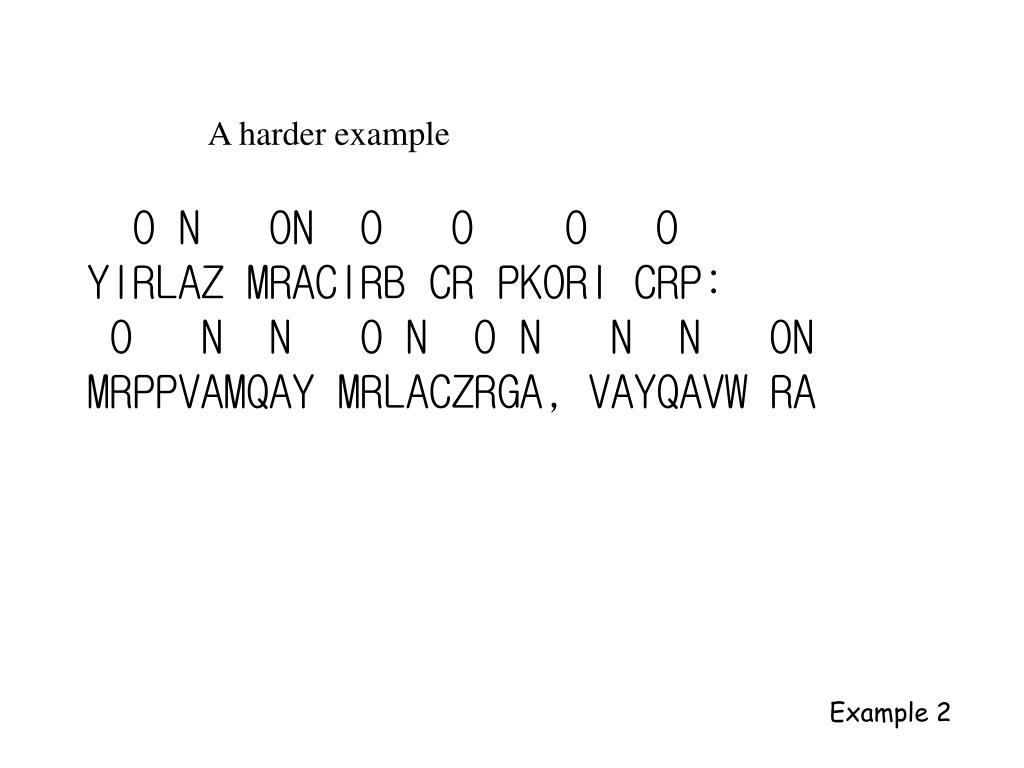

38. A harder example O N ON O O O O YIRLAZ MRACIRB CR PKORI CRP: O N N O N O N N N ON MRPPVAMQAY MRLACZRGA, VAYQAVW RA Example 2

39. A harder example O N ONT O TO O TO YIRLAZ MRACIRB CR PKORI CRP: O N N O NT O N N N ON MRPPVAMQAY MRLACZRGA, VAYQAVW RA Example 2

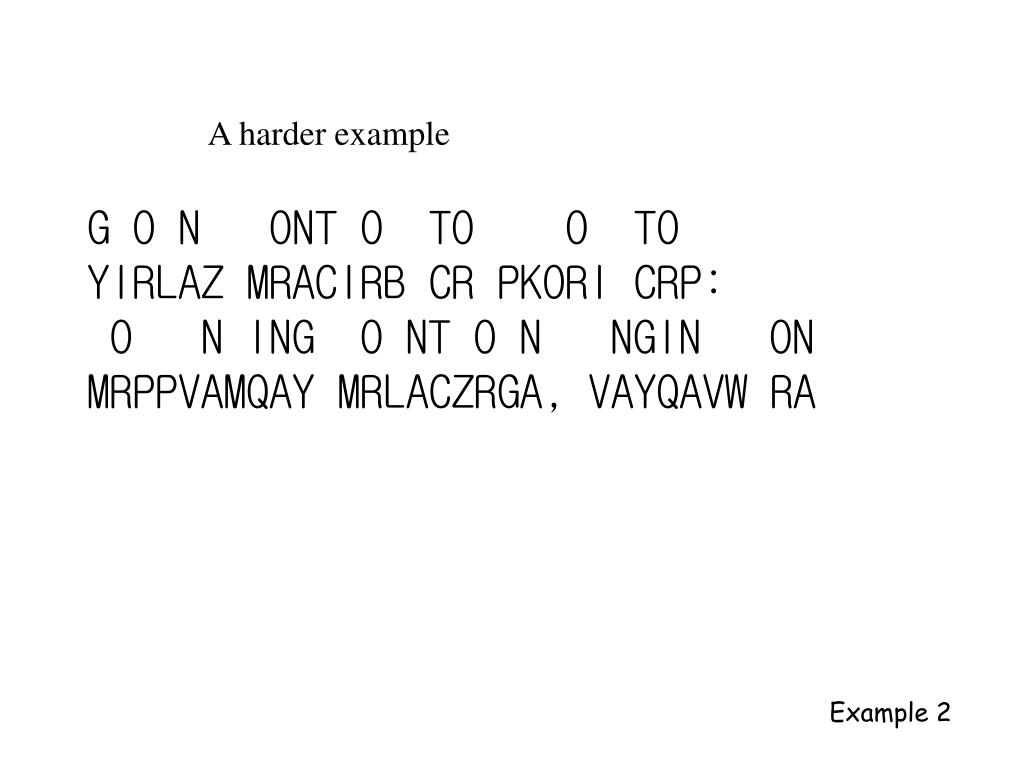

40. A harder example G O N ONT O TO O TO YIRLAZ MRACIRB CR PKORI CRP: O N ING O NT O N NGIN ON MRPPVAMQAY MRLACZRGA, VAYQAVW RA Example 2

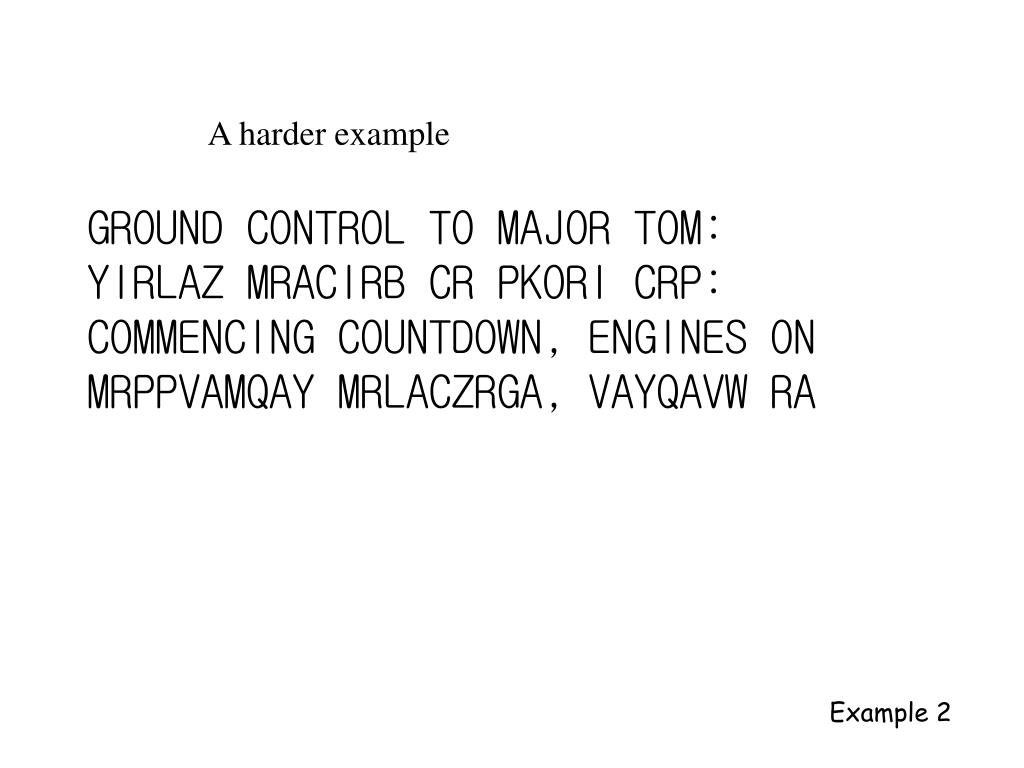

41. A harder example GROUND CONTROL TO MAJOR TOM: YIRLAZ MRACIRB CR PKORI CRP: COMMENCING COUNTDOWN, ENGINES ON MRPPVAMQAY MRLACZRGA, VAYQAVW RA Example 2

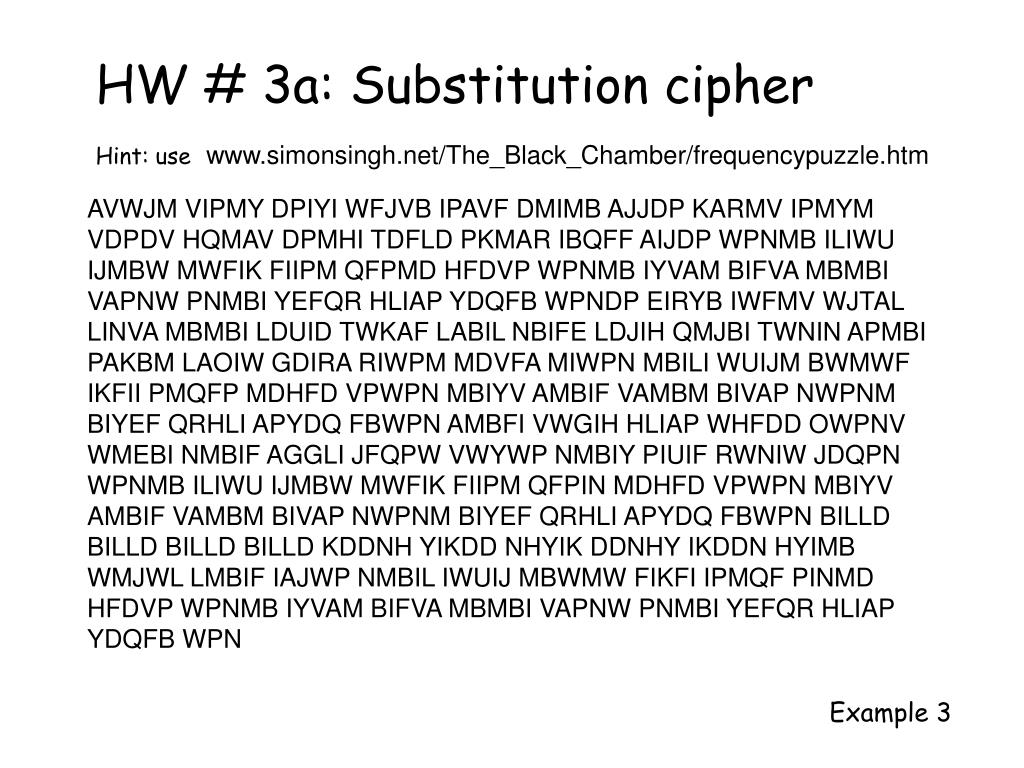

42. Not a good candidate for frequency analysis: FROM ZANIBAR TO ZAMBIA AND ZAIRE OZONE ZONES MAKE ZEBRAS RUN MANY ZIGZAGS The letter Z is the most common here! Example 3
