  1. Chapter 1 (Extra)

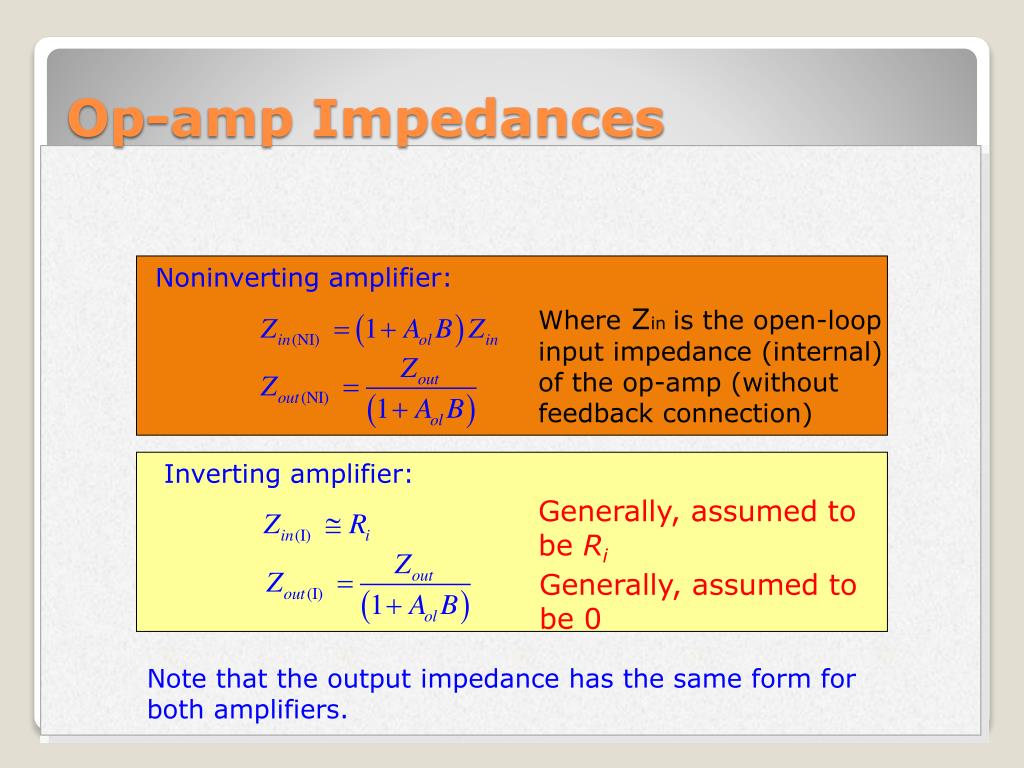

  2. Noninverting amplifier: Where Zinis the open-loop input impedance (internal) of the op-amp (without feedback connection) Inverting amplifier: Generally, assumed to be Ri Op-amp Impedances Generally, assumed to be 0 Note that the output impedance has the same form for both amplifiers.

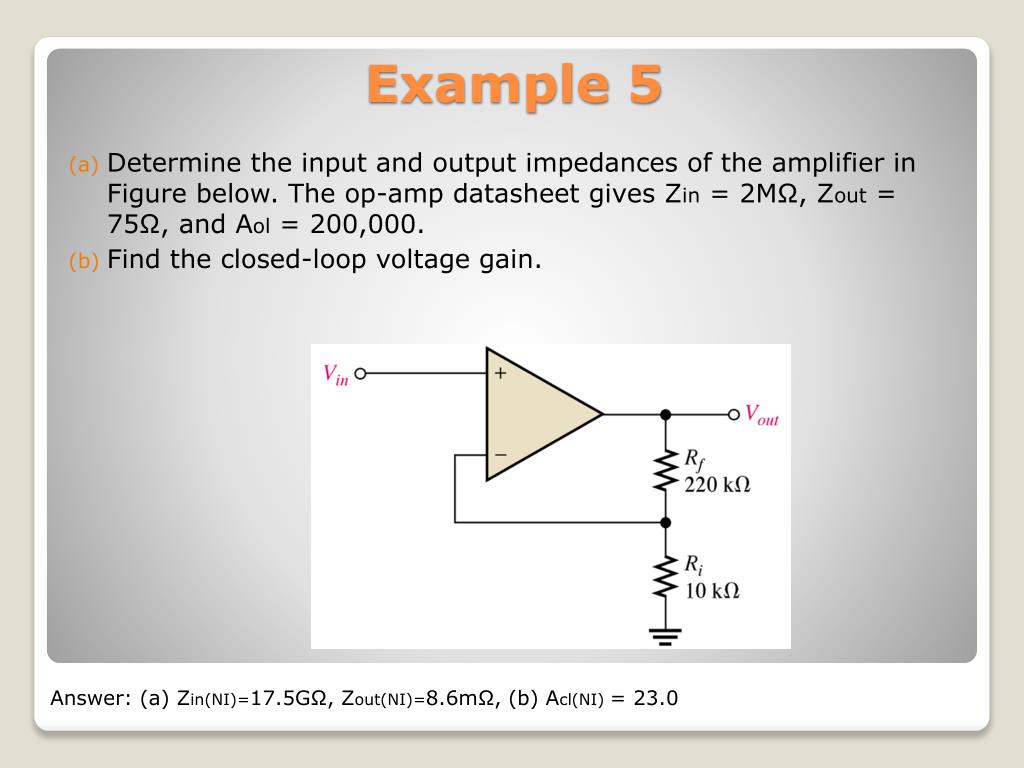

  3. Determine the input and output impedances of the amplifier in Figure below. The op-amp datasheet gives Zin = 2MΩ, Zout = 75Ω, and Aol = 200,000. • Find the closed-loop voltage gain. Example 5 Answer: (a) Zin(NI)=17.5GΩ, Zout(NI)=8.6mΩ, (b) Acl(NI) = 23.0

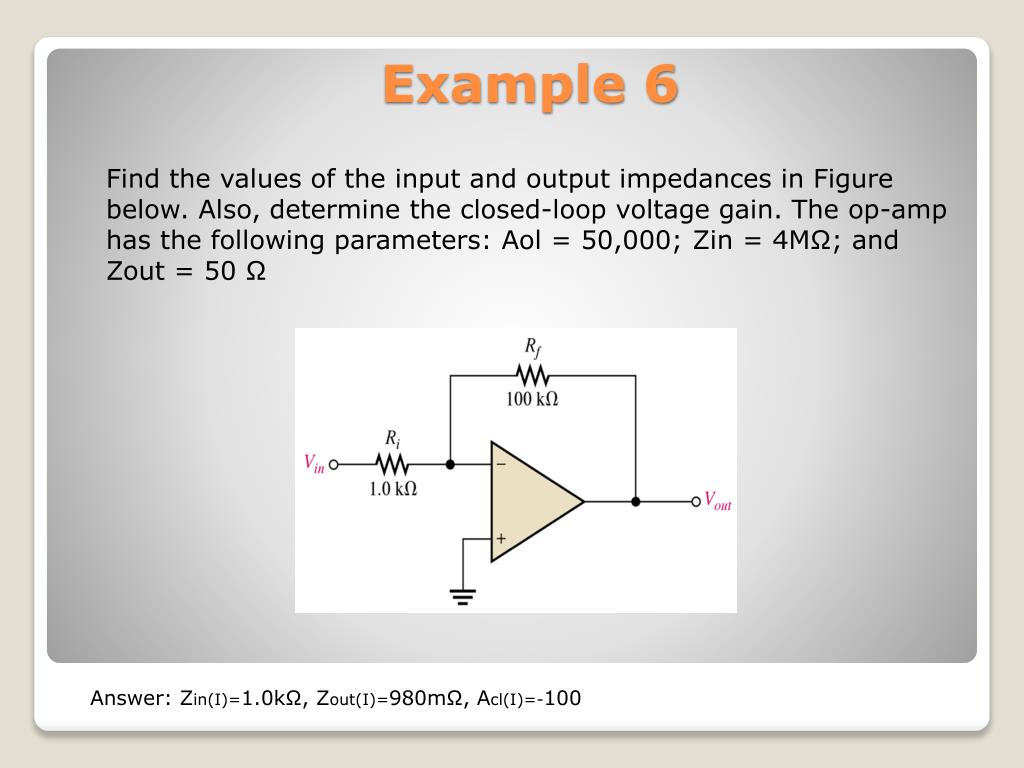

  4. Find the values of the input and output impedances in Figure below. Also, determine the closed-loop voltage gain. The op-amp has the following parameters: Aol = 50,000; Zin = 4MΩ; and Zout = 50Ω Example 6 Answer: Zin(I)=1.0kΩ, Zout(I)=980mΩ, Acl(I)=-100

  5. ~End of Chapter 1~
