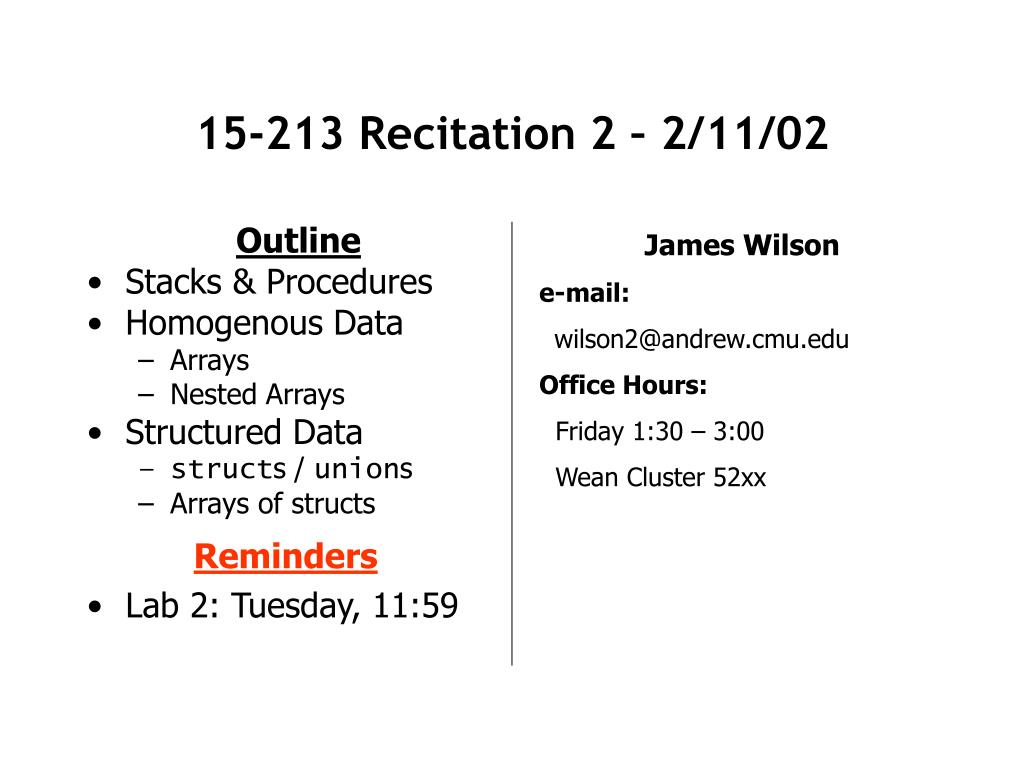

15-213 Recitation 2 – 2/11/02 Outline • Stacks & Procedures • Homogenous Data • Arrays • Nested Arrays • Structured Data • structs / unions • Arrays of structs James Wilson e-mail: wilson2@andrew.cmu.edu Office Hours: Friday 1:30 – 3:00 Wean Cluster 52xx • Reminders • Lab 2: Tuesday, 11:59

Stacks • Grows down • Stores local variables that can’t fit in registers • Stores arguments and return addresses • %esp Stack Pointer • Points to the top value on the stack • %ebp Base Pointer • Points to a function’s stack frame • pushl • Decrements, then places value • popl • ‘Returns’ value, then increments

Frame Pointer (%ebp) Stack Frames Caller Frame • Abstract partitioning of the stack • Each Frame contains the state for a single function instant Arguments Return Addr Old %ebp Saved Registers Local Variables Argument Build Stack Pointer (%esp)

Procedures call: Caller Responsibilities • Arguments (pushl) • In what order? • Return Address (done by call) ret: Callee Responsibilities • Save Registers (especially %ebp) • Set up Stack Frame • Return value in %eax

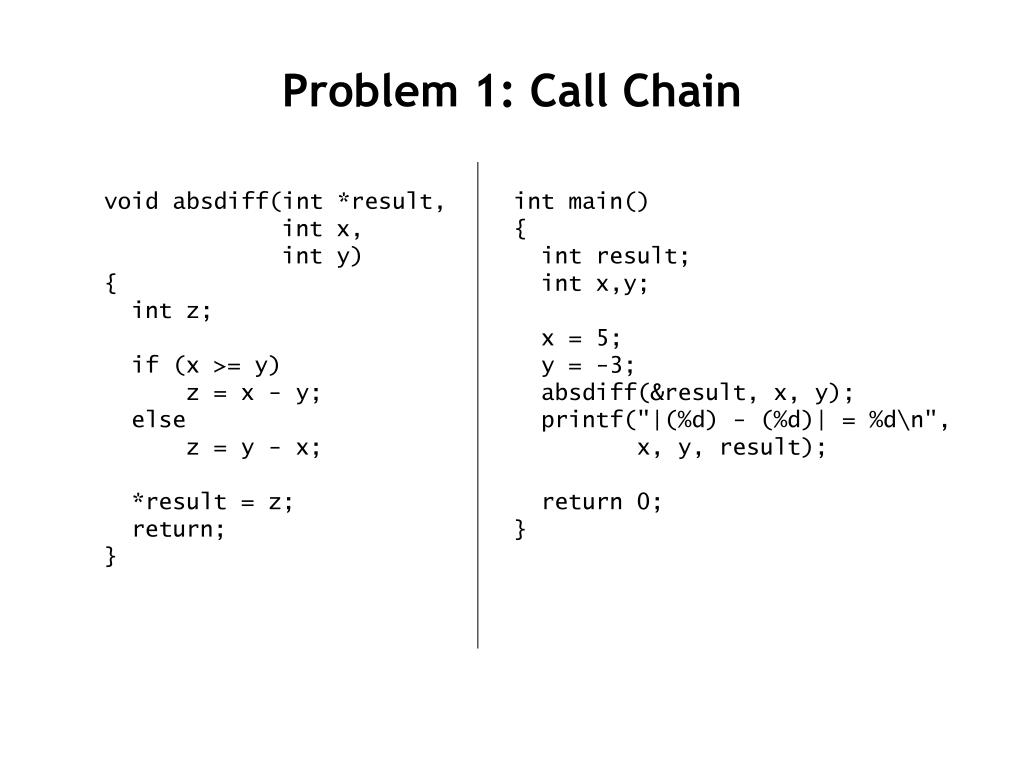

Problem 1: Call Chain void absdiff(int *result, int x, int y) { int z; if (x >= y) z = x - y; else z = y - x; *result = z; return; } int main() { int result; int x,y; x = 5; y = -3; absdiff(&result, x, y); printf("|(%d) - (%d)| = %d\n", x, y, result); return 0; }

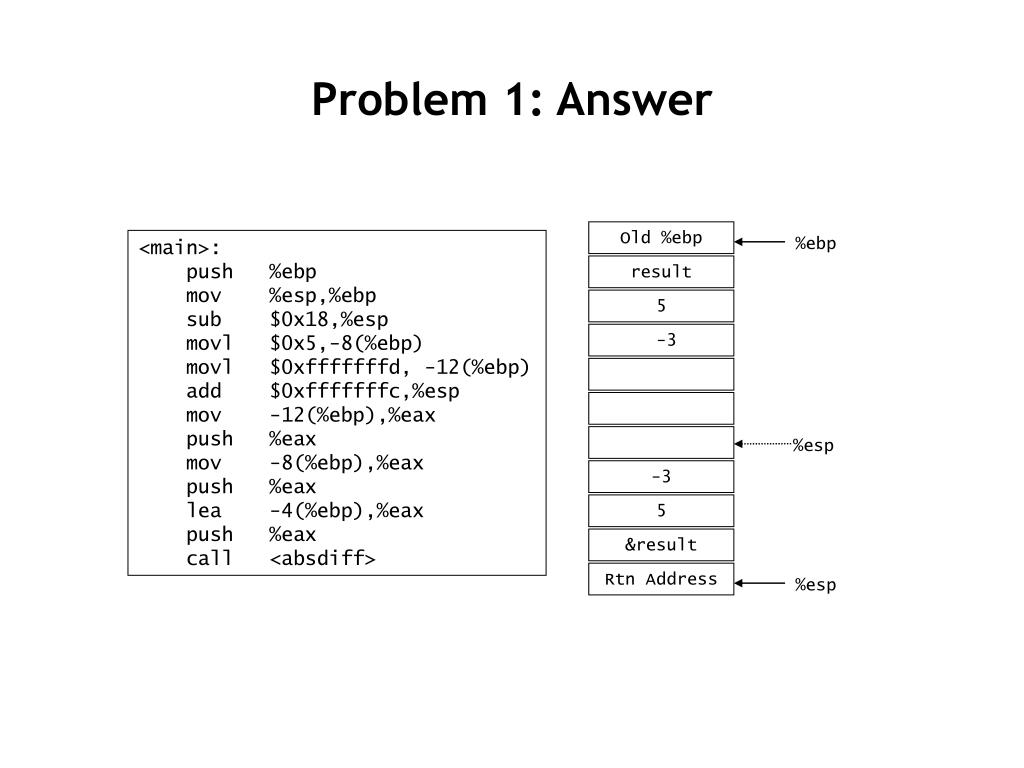

Problem 1: Answer Old %ebp %ebp <main>: push %ebp mov %esp,%ebp sub $0x18,%esp movl $0x5,-8(%ebp) movl $0xfffffffd, -12(%ebp) add $0xfffffffc,%esp mov -12(%ebp),%eax push %eax mov -8(%ebp),%eax push %eax lea -4(%ebp),%eax push %eax call <absdiff> result 5 -3 %esp -3 5 &result Rtn Address %esp

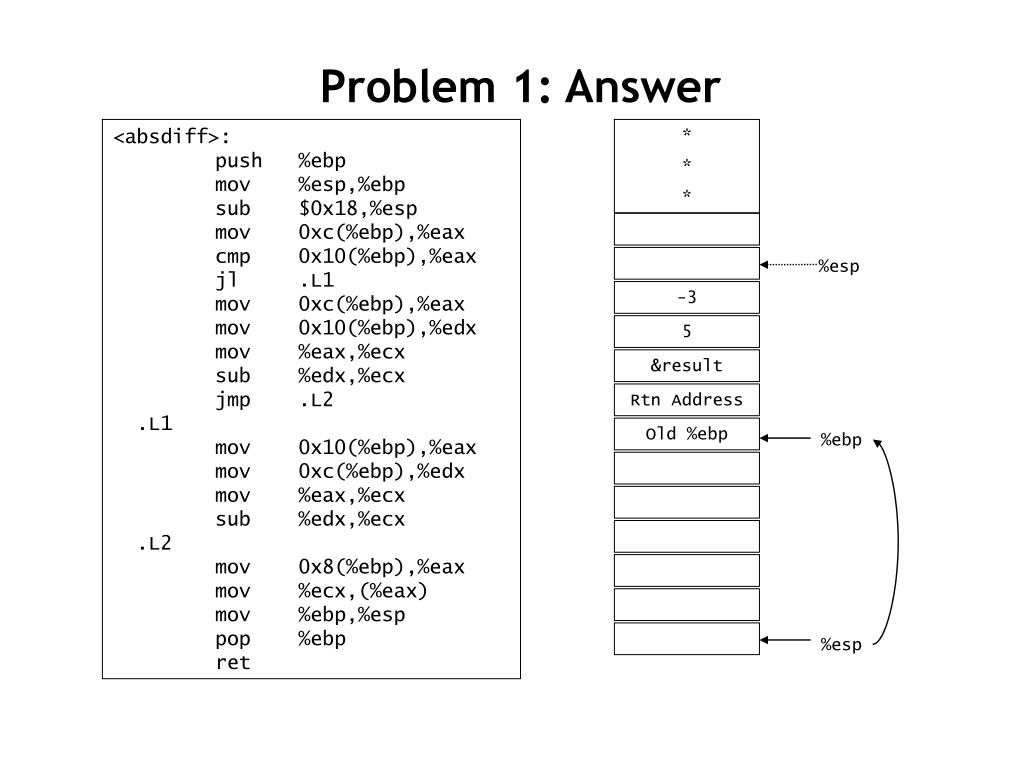

Problem 1: Answer <absdiff>: push %ebp mov %esp,%ebp sub $0x18,%esp mov 0xc(%ebp),%eax cmp 0x10(%ebp),%eax jl .L1 mov 0xc(%ebp),%eax mov 0x10(%ebp),%edx mov %eax,%ecx sub %edx,%ecx jmp .L2 .L1 mov 0x10(%ebp),%eax mov 0xc(%ebp),%edx mov %eax,%ecx sub %edx,%ecx .L2 mov 0x8(%ebp),%eax mov %ecx,(%eax) mov %ebp,%esp pop %ebp ret * * * %esp -3 5 &result Rtn Address Old %ebp %ebp %esp

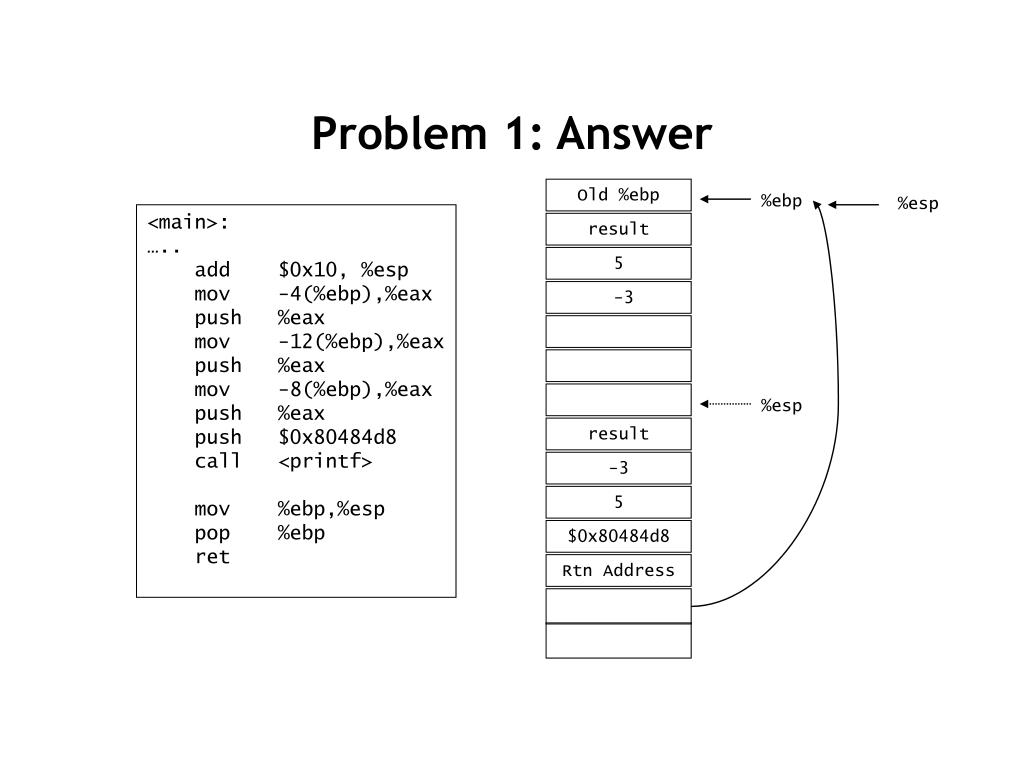

Problem 1: Answer Old %ebp %ebp %esp <main>: ….. add $0x10, %esp mov -4(%ebp),%eax push %eax mov -12(%ebp),%eax push %eax mov -8(%ebp),%eax push %eax push $0x80484d8 call <printf> mov %ebp,%esp pop %ebp ret result 5 -3 %esp result -3 5 $0x80484d8 Rtn Address

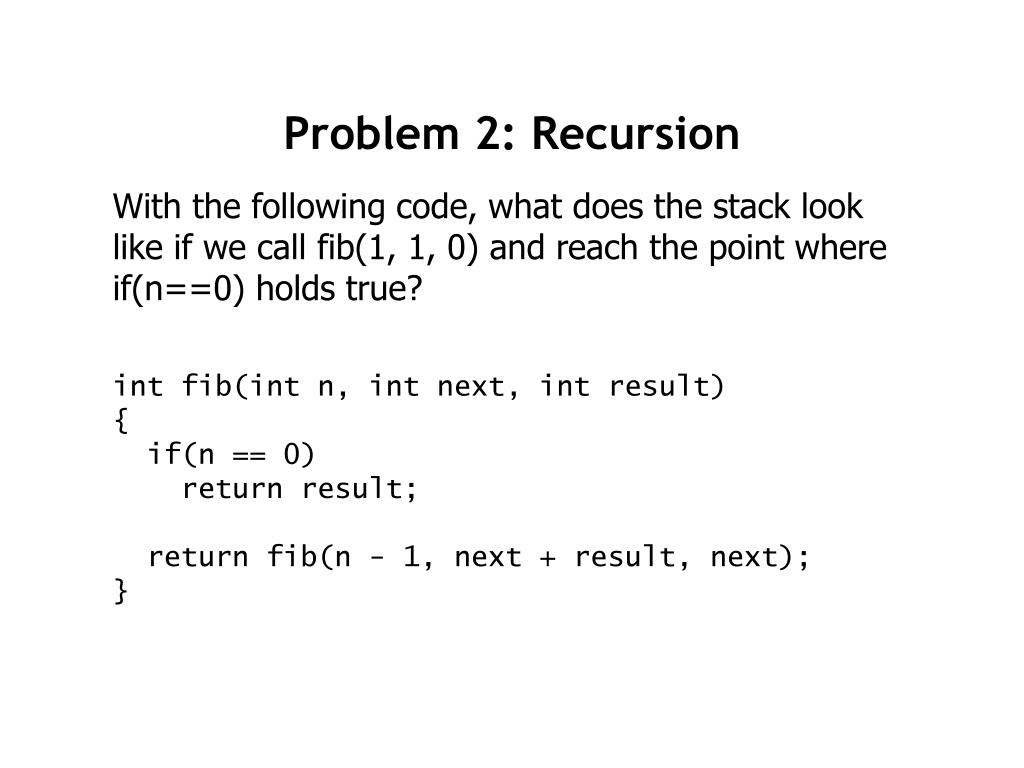

Problem 2: Recursion With the following code, what does the stack look like if we call fib(1, 1, 0) and reach the point where if(n==0) holds true? int fib(int n, int next, int result) { if(n == 0) return result; return fib(n - 1, next + result, next); }

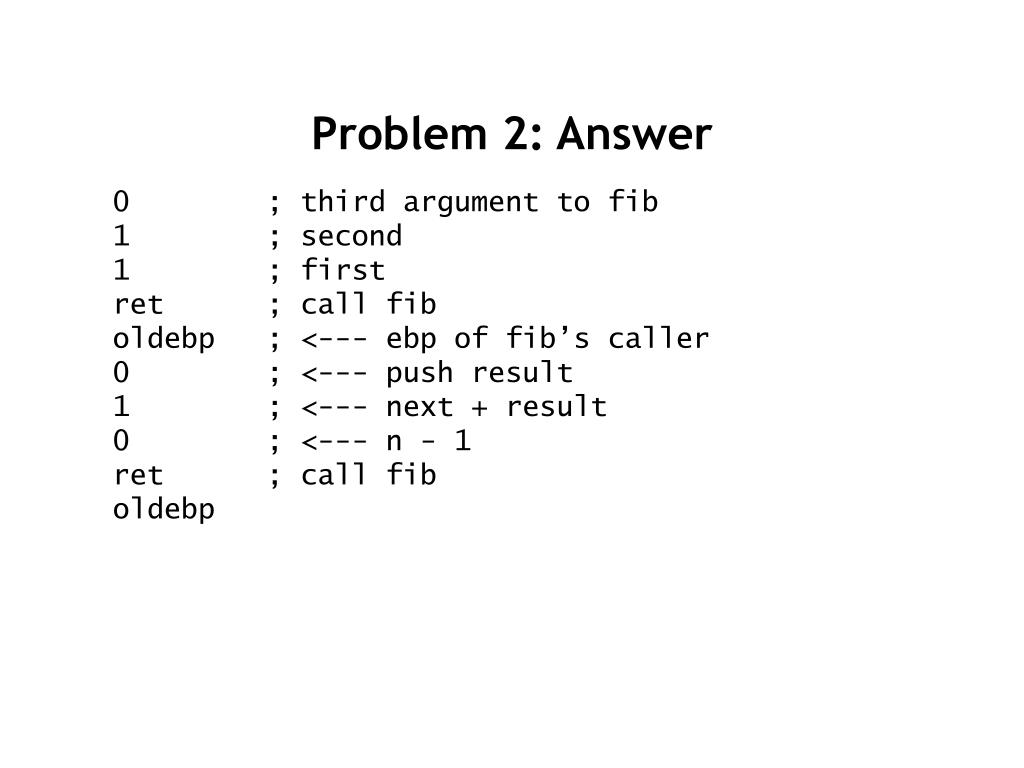

Problem 2: Answer 0 ; third argument to fib 1 ; second 1 ; first ret ; call fib oldebp ; <--- ebp of fib’s caller 0 ; <--- push result 1 ; <--- next + result 0 ; <--- n - 1 ret ; call fib oldebp

Homogenous Data: Arrays • Allocated as contiguous blocks of memory Address Computation Examples • int cmu[5] = {…} • cmu begins at memory address 40 cmu[0] 40 + 4*0 = 40 cmu[3] 40 + 4*3 = 52 cmu[-1] 40 + 4*-1 = 36 cmu[15] 40 + 4*15 = 100

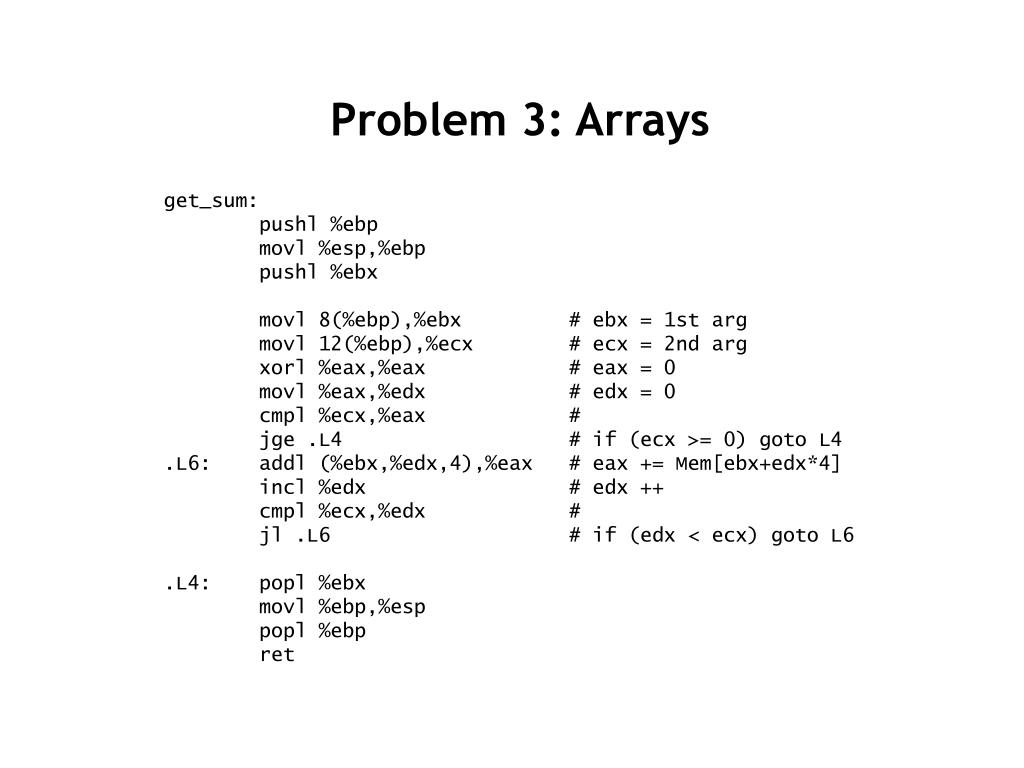

Problem 3: Arrays get_sum: pushl %ebp movl %esp,%ebp pushl %ebx movl 8(%ebp),%ebx # ebx = 1st arg movl 12(%ebp),%ecx # ecx = 2nd arg xorl %eax,%eax # eax = 0 movl %eax,%edx # edx = 0 cmpl %ecx,%eax # jge .L4 # if (ecx >= 0) goto L4 .L6: addl (%ebx,%edx,4),%eax # eax += Mem[ebx+edx*4] incl %edx # edx ++ cmpl %ecx,%edx # jl .L6 # if (edx < ecx) goto L6 .L4: popl %ebx movl %ebp,%esp popl %ebp ret

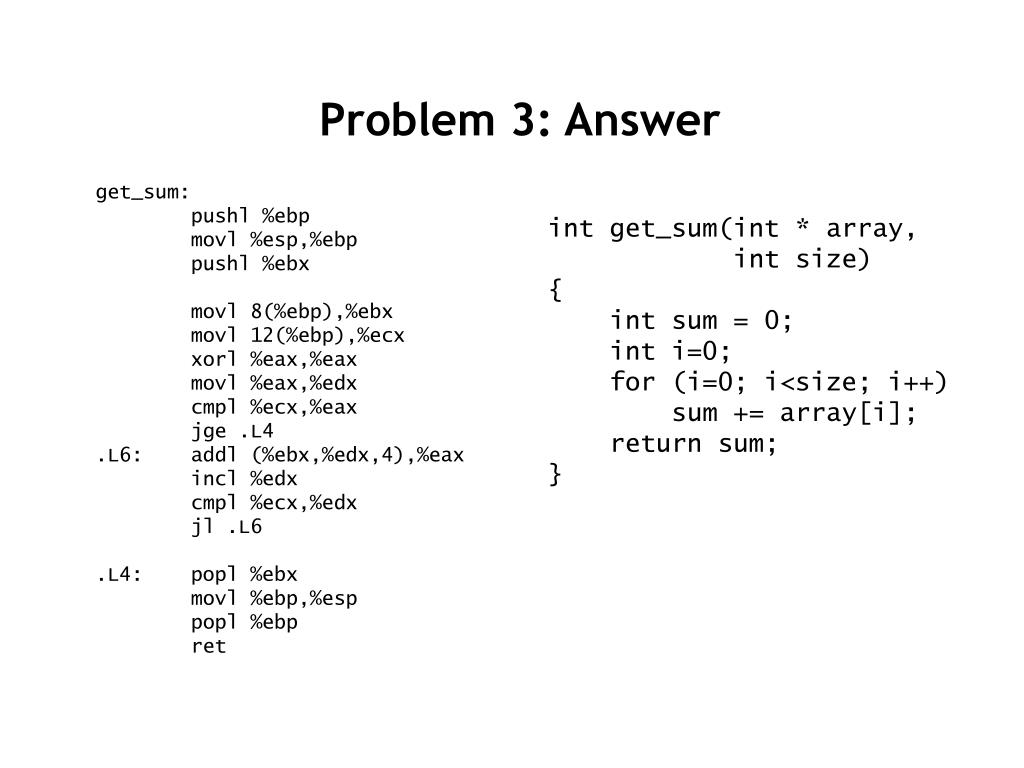

Problem 3: Answer get_sum: pushl %ebp movl %esp,%ebp pushl %ebx movl 8(%ebp),%ebx movl 12(%ebp),%ecx xorl %eax,%eax movl %eax,%edx cmpl %ecx,%eax jge .L4 .L6: addl (%ebx,%edx,4),%eax incl %edx cmpl %ecx,%edx jl .L6 .L4: popl %ebx movl %ebp,%esp popl %ebp ret int get_sum(int * array, int size) { int sum = 0; int i=0; for (i=0; i<size; i++) sum += array[i]; return sum; }

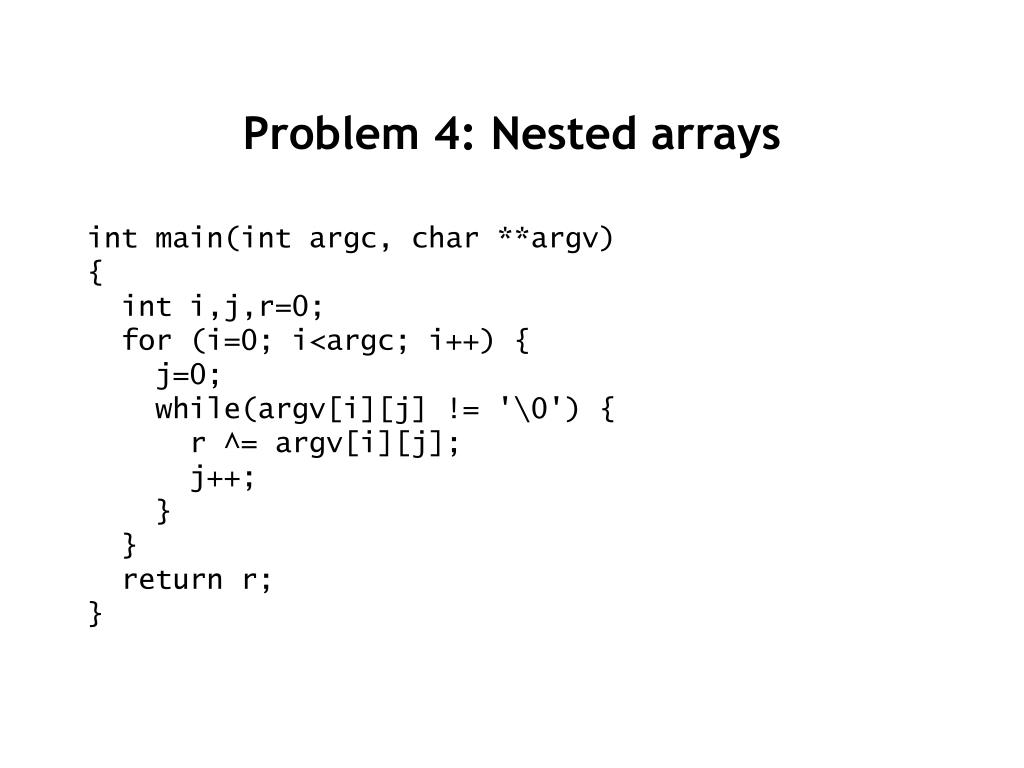

Problem 4: Nested arrays int main(int argc, char **argv) { int i,j,r=0; for (i=0; i<argc; i++) { j=0; while(argv[i][j] != '\0') { r ^= argv[i][j]; j++; } } return r; }

Problem 4: Answer .L9: movsbl (%ecx,%edx),%eax xorl %eax,%esi incl %ecx cmpb $0,(%ecx,%edx) jne .L9 .L5: incl %ebx cmpl 8(%ebp),%ebx jl .L6 .L4: movl %esi,%eax popl %ebx popl %esi popl %edi movl %ebp,%esp popl %ebp ret main: pushl %ebp movl %esp,%ebp pushl %edi pushl %esi pushl %ebx movl 12(%ebp),%edi xorl %esi,%esi xorl %ebx,%ebx cmpl 8(%ebp),%esi jge .L4 .L6: xorl %ecx,%ecx movl (%edi,%ebx,4),%eax cmpb $0,(%eax) je .L5 movl %eax,%edx

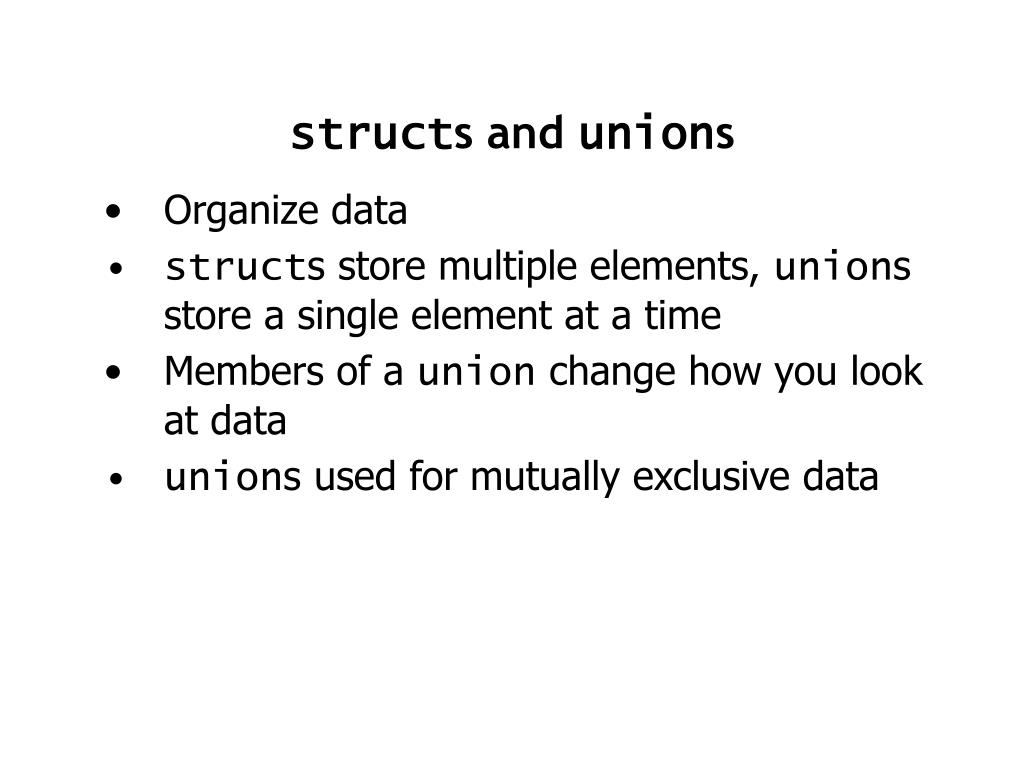

structs and unions • Organize data • structs store multiple elements, unions store a single element at a time • Members of a union change how you look at data • unions used for mutually exclusive data

Alignment • Contiguous areas of memory • Each block is aligned • Size is a multiple of a base value • “Base value” is the largest alignment of data types in structure • Why? • Efficient load/store from memory • Virtual Memory paging • This applies to any variable type

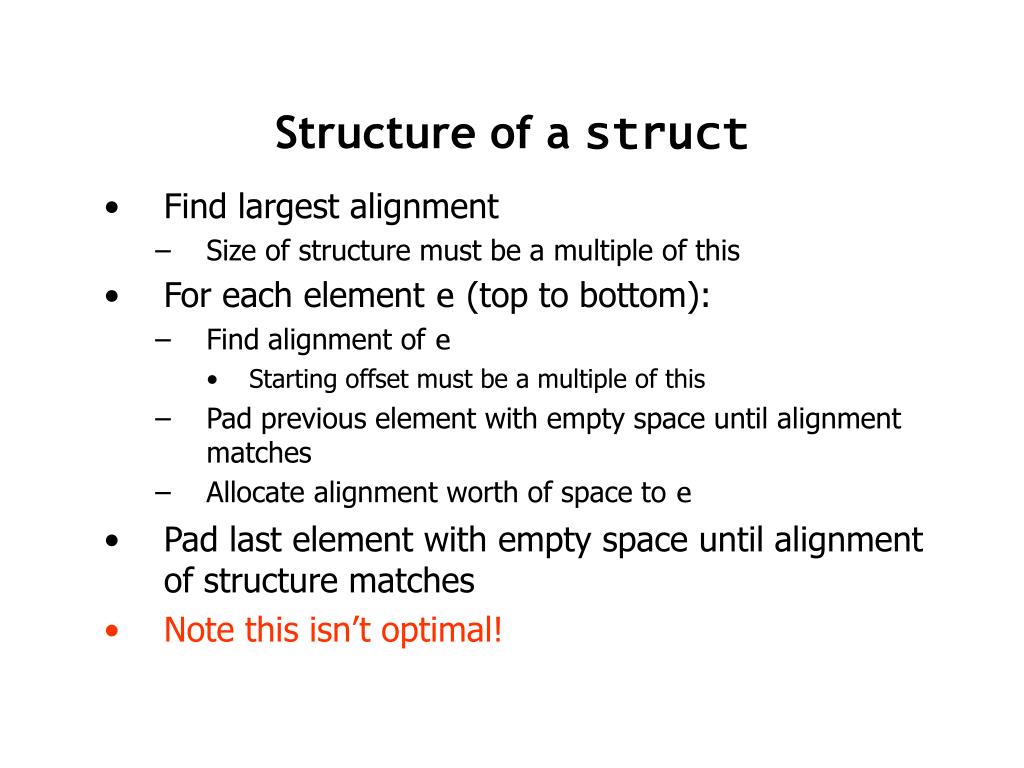

Structure of a struct • Find largest alignment • Size of structure must be a multiple of this • For each element e (top to bottom): • Find alignment of e • Starting offset must be a multiple of this • Pad previous element with empty space until alignment matches • Allocate alignment worth of space to e • Pad last element with empty space until alignment of structure matches • Note this isn’t optimal!

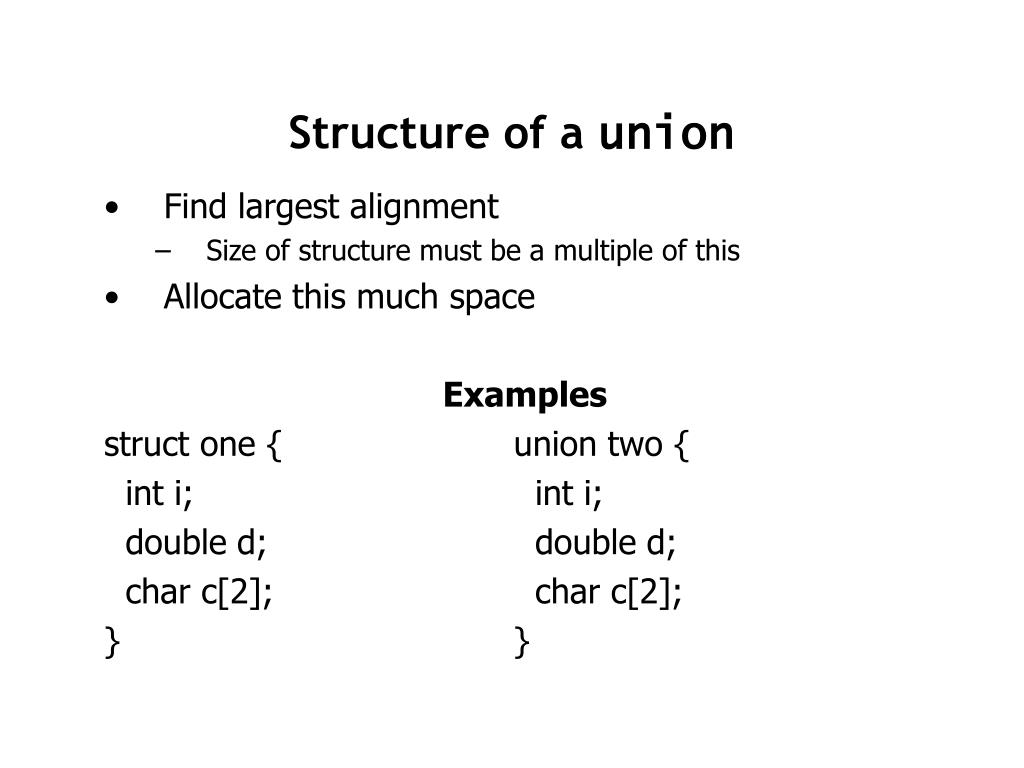

Structure of a union • Find largest alignment • Size of structure must be a multiple of this • Allocate this much space Examples struct one { union two { int i; int i; double d; double d; char c[2]; char c[2]; } }

Problem 5: Structs #define MAX_STRING 20 #struct student #{ # char first [ MAX_STRING ]; # char last [ MAX_STRING ]; # char id [ MAX_STRING ]; # int age; #}; # struct student s1; # struct student *s2; # strncpy(s1.first, fName, # sizeof(fName)); # strncpy(s1.last, lName, # sizeof(lName)); • .LC0: • .string "Jack" • .LC1: • .string "Black" • .LC2: • .string "12345ZXY" • .align 32 • .LC3: • .string "Name : %s %s\nID : %s\nAge : %i\n“ • main: • pushl %ebp • movl %esp, %ebp • subl $88, %esp • subl $4, %esp • pushl $5 • pushl $.LC0 • leal -72(%ebp), %eax • pushl %eax • call strncpy • addl $16, %esp • subl $4, %esp • pushl $6 • pushl $.LC1 • leal -72(%ebp), %eax • addl $20, %eax • pushl %eax • call strncpy

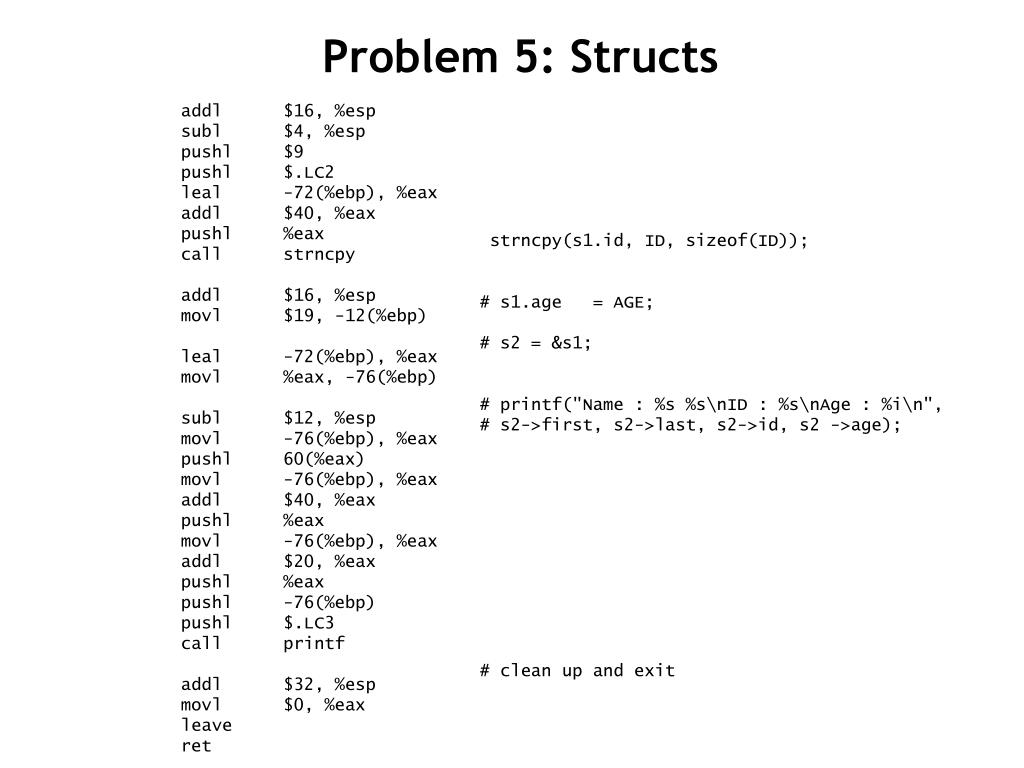

Problem 5: Structs strncpy(s1.id, ID, sizeof(ID)); # s1.age = AGE; # s2 = &s1; # printf("Name : %s %s\nID : %s\nAge : %i\n", # s2->first, s2->last, s2->id, s2 ->age); # clean up and exit addl $16, %esp subl $4, %esp pushl $9 pushl $.LC2 leal -72(%ebp), %eax addl $40, %eax pushl %eax call strncpy addl $16, %esp movl $19, -12(%ebp) leal -72(%ebp), %eax movl %eax, -76(%ebp) subl $12, %esp movl -76(%ebp), %eax pushl 60(%eax) movl -76(%ebp), %eax addl $40, %eax pushl %eax movl -76(%ebp), %eax addl $20, %eax pushl %eax pushl -76(%ebp) pushl $.LC3 call printf addl $32, %esp movl $0, %eax leave ret

Problem 5: Answer int main ( int argc, char** argv ) { struct student s1; struct student *s2; strncpy ( s1.first, fName, sizeof ( fName ) ); strncpy ( s1.last , lName, sizeof ( lName ) ); strncpy ( s1.id , ID , sizeof ( ID ) ); s1.age = AGE; s2 = &s1; printf ( "Name : %s %s\nID : %s\nAge : %i\n", s2 -> first, s2 -> last, s2 -> id, s2 -> age ); return 0; }

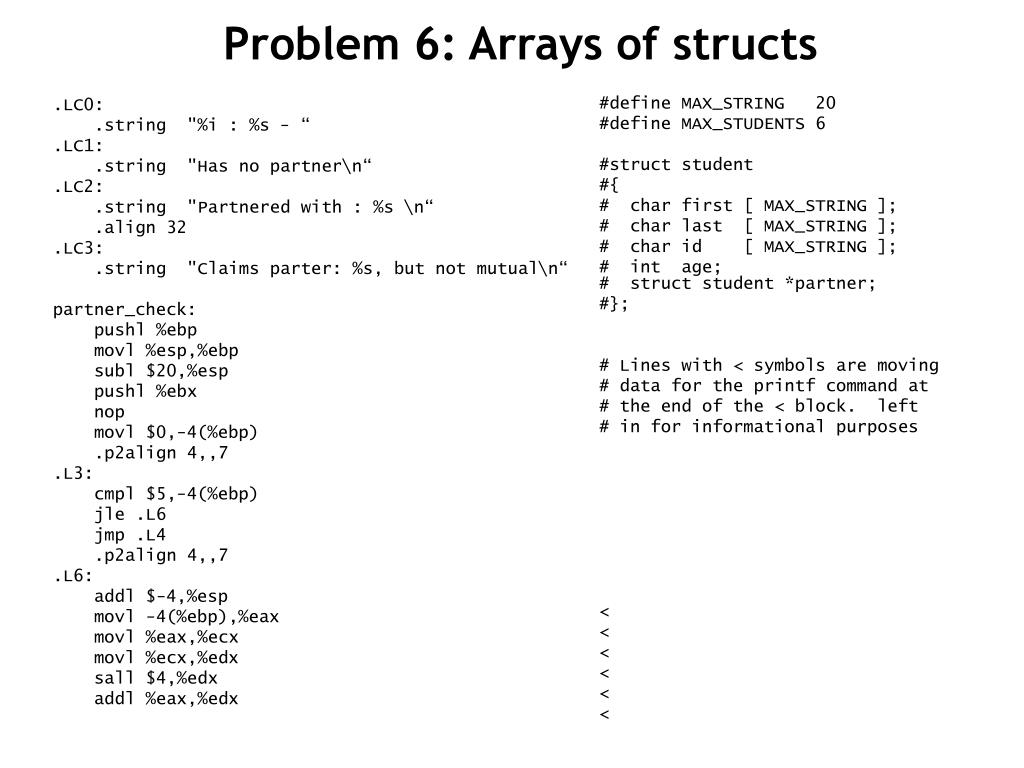

Problem 6: Arrays of structs #define MAX_STRING 20 #define MAX_STUDENTS 6 #struct student #{ # char first [ MAX_STRING ]; # char last [ MAX_STRING ]; # char id [ MAX_STRING ]; # int age;# struct student *partner; #}; # Lines with < symbols are moving # data for the printf command at # the end of the < block. left # in for informational purposes < < < < < < .LC0: .string "%i : %s - “ .LC1: .string "Has no partner\n“ .LC2: .string "Partnered with : %s \n“ .align 32 .LC3: .string "Claims parter: %s, but not mutual\n“ partner_check: pushl %ebp movl %esp,%ebp subl $20,%esp pushl %ebx nop movl $0,-4(%ebp) .p2align 4,,7 .L3: cmpl $5,-4(%ebp) jle .L6 jmp .L4 .p2align 4,,7 .L6: addl $-4,%esp movl -4(%ebp),%eax movl %eax,%ecx movl %ecx,%edx sall $4,%edx addl %eax,%edx

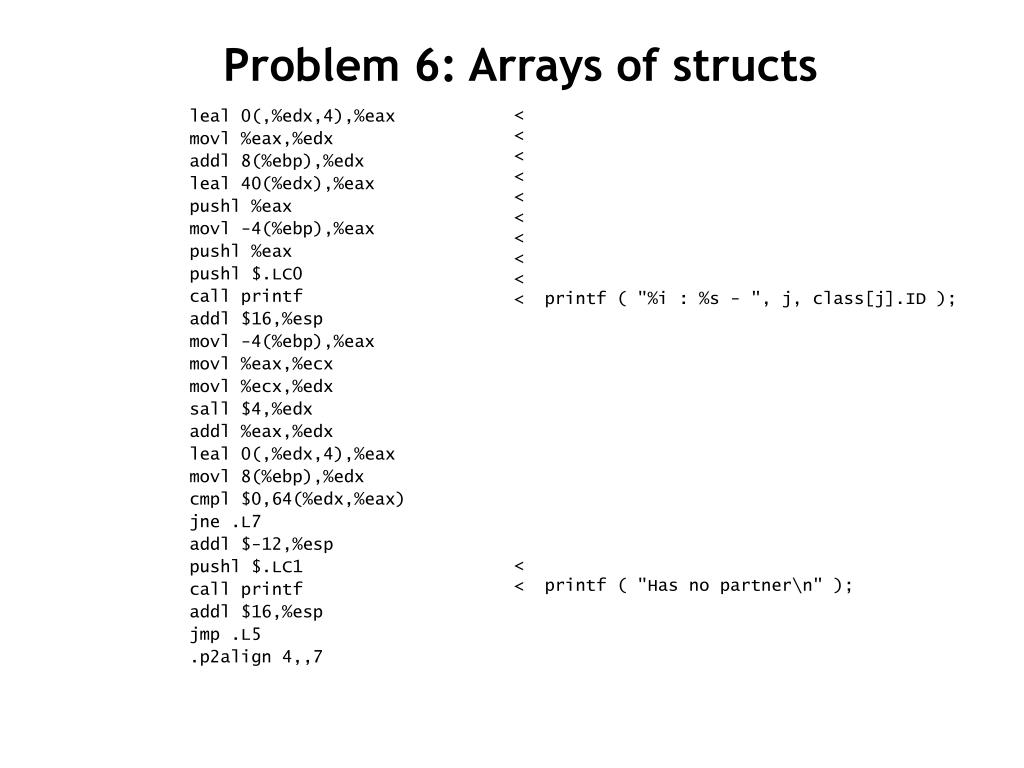

Problem 6: Arrays of structs leal 0(,%edx,4),%eax movl %eax,%edx addl 8(%ebp),%edx leal 40(%edx),%eax pushl %eax movl -4(%ebp),%eax pushl %eax pushl $.LC0 call printf addl $16,%esp movl -4(%ebp),%eax movl %eax,%ecx movl %ecx,%edx sall $4,%edx addl %eax,%edx leal 0(,%edx,4),%eax movl 8(%ebp),%edx cmpl $0,64(%edx,%eax) jne .L7 addl $-12,%esp pushl $.LC1 call printf addl $16,%esp jmp .L5 .p2align 4,,7 < < < < < < < < < < printf ( "%i : %s - ", j, class[j].ID ); < < printf ( "Has no partner\n" );

Problem 6: Arrays of structs .L7: movl -4(%ebp),%eax movl %eax,%ecx movl %ecx,%edx sall $4,%edx addl %eax,%edx leal 0(,%edx,4),%eax movl 8(%ebp),%edx movl 64(%edx,%eax),%eax movl -4(%ebp),%edx movl %edx,%ebx movl %ebx,%ecx sall $4,%ecx addl %edx,%ecx leal 0(,%ecx,4),%edx movl %edx,%ecx addl 8(%ebp),%ecx cmpl %ecx,64(%eax) jne .L9 addl $-8,%esp movl -4(%ebp),%eax movl %eax,%ecx movl %ecx,%edx sall $4,%edx addl %eax,%edx leal 0(,%edx,4),%eax movl 8(%ebp),%edx movl 64(%edx,%eax),%eax addl $40,%eax pushl %eax pushl $.LC2 call printf addl $16,%esp jmp .L5 .p2align 4,,7 < < < < < < < < < < < < < printf ( "Partnered with : %s \n", < class[j].partner->ID );

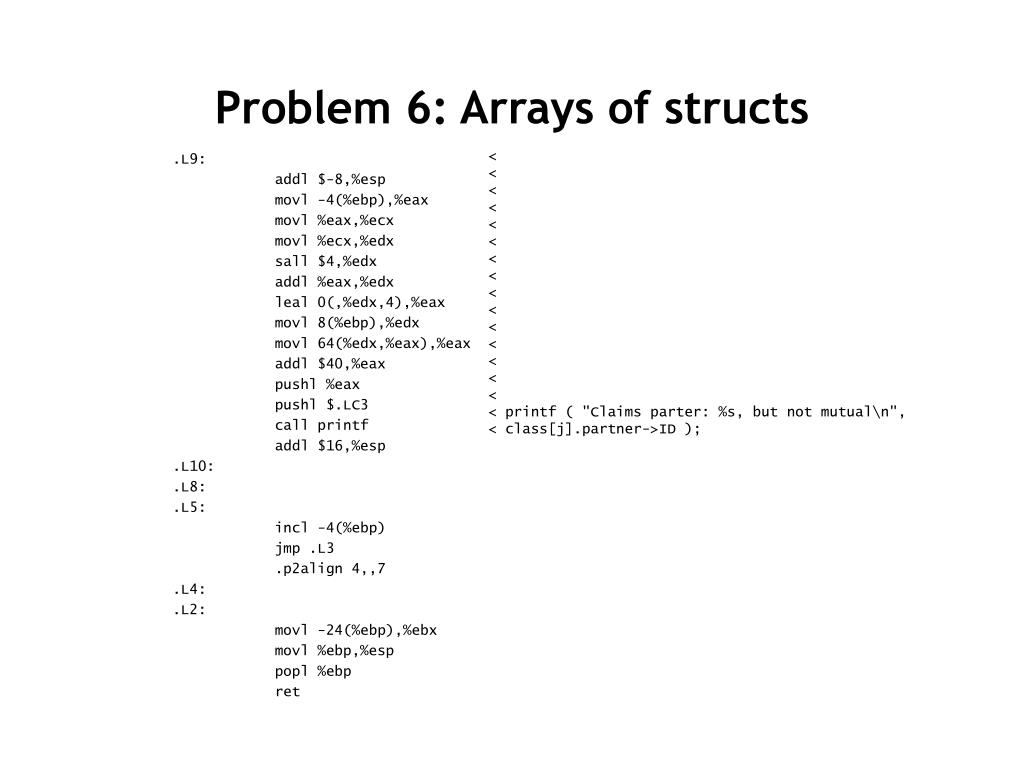

Problem 6: Arrays of structs .L9: addl $-8,%esp movl -4(%ebp),%eax movl %eax,%ecx movl %ecx,%edx sall $4,%edx addl %eax,%edx leal 0(,%edx,4),%eax movl 8(%ebp),%edx movl 64(%edx,%eax),%eax addl $40,%eax pushl %eax pushl $.LC3 call printf addl $16,%esp .L10: .L8: .L5: incl -4(%ebp) jmp .L3 .p2align 4,,7 .L4: .L2: movl -24(%ebp),%ebx movl %ebp,%esp popl %ebp ret < < < < < < < < < < < < < < < < printf ( "Claims parter: %s, but not mutual\n", < class[j].partner->ID );

Problem 6: Answer void partner_check ( struct student * class ) { int j; for (j = 0; j < MAX_STUDENTS; j++ ) { printf ( "%i : %s - ", j, class[j].ID ); if ( (class+j)->partner == NULL ) printf ( "Has no partner\n" ); else if ( (class+j)->partner->partner == (class+j) ) printf ( "Partnered with : %s \n", class[j].partner->ID ); else printf ( "Claims parter: %s, but not mutual\n", class[j].partner->ID ); } }
