Understanding Recurrence Relations and Big O Notation in Recursive Functions

In this class, you'll learn the essentials of recurrence relations, including their derivation and application in calculating the Big O notation for recursive functions. We'll start with a warm-up problem that uses a string array to illustrate these concepts, and then delve into more complex problems involving binary search trees and priority queues. By the end, you'll be able to explain two examples of recurrence relations and demonstrate how to compute their time complexity. Prepare to engage with practical coding examples and enhance your algorithm analysis skills!

lam
Télécharger la présentation

Understanding Recurrence Relations and Big O Notation in Recursive Functions

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

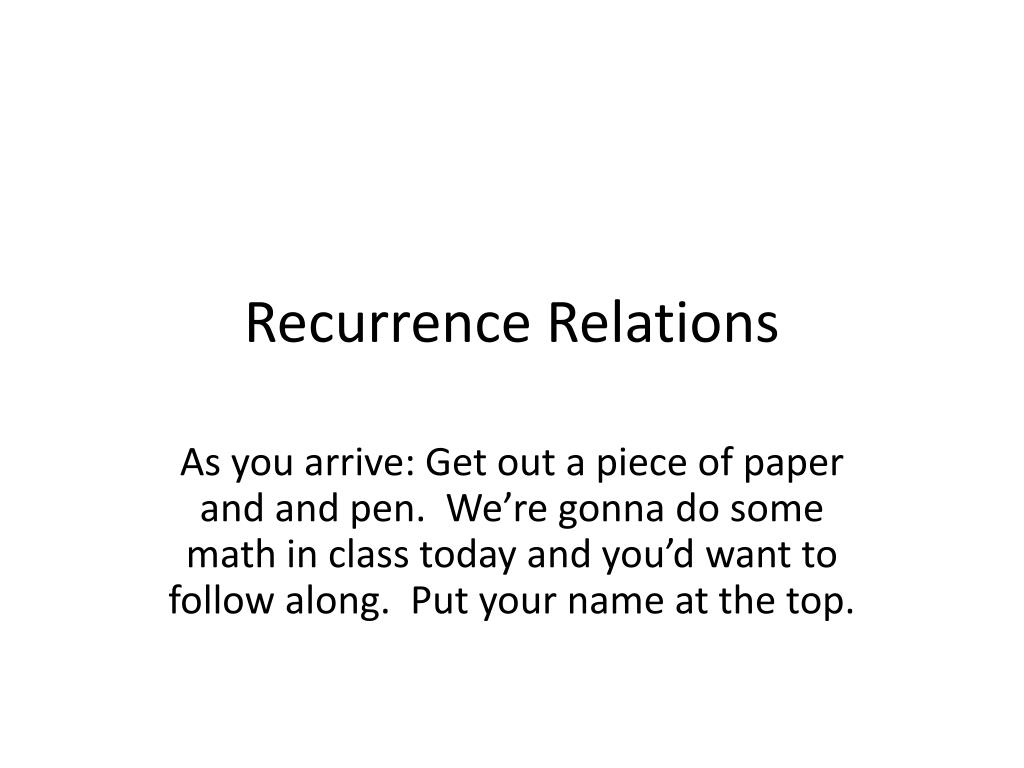

  1. Recurrence Relations As you arrive: Get out a piece of paper and and pen. We’re gonna do some math in class today and you’d want to follow along. Put your name at the top.

  2. After class today… • You will be able to explain the derivation of 2 example recurrence relations • You will be able to use recurrence relations to compute the big-O of recursive functions

  3. Warm Up publicvoidwhatIsMyBigO(String[] strings) { int current = 0; while(strings[current].equals("ninja")) { current++; //this loop will eventually end because //I know there is at least one non-ninja //string in the list } } O(n) O(n log n) O(1) O(n2) O(log n)

  4. Warm Up: Harder //finds an element in a sorted array publicintmikeSearch(int[] sorted, int first, intupto, int key) { while (first < upto) { int mid = (first + upto) / 2; // Compute mid point. if (key < sorted[mid]) { upto = mid; // repeat search in bottom half. } elseif (key > sorted[mid]) { first = mid + 1; // Repeat search in top half. } else { return mid; // Found it. return position } } return -(first + 1); // Failed to find key } O(n) O(n log n) O(1) O(n2) O(log n)

  5. The problem privatebooleancontainsNodeBST(int value, MikesIntTreeNode current) { if(current == null) returnfalse; if(current.value == value) returntrue; if(value < current.value) { returncontainsNode(value, current.left); } else { returncontainsNode(value, current.right); } } What is the Big O assuming the Binary Search Tree is height balanced? What is the Big O not assuming the Binary Search Tree is height balanced?

  6. A. B. C. D. E.

  7. Priority Queue • You add to it like a normal queue • But when you remove, it gets removed in order of size (smallest first) PriorityQueue<String> ex = newPriorityQueue<String>(); ex.add("hello"); ex.add("cs100"); ex.add("class"); while(!ex.isEmpty()) { System.out.println(ex.remove()); } // Prints: // class // cs100 // hello

  8. Priority Queue What does this print out? PriorityQueue<Integer> ex = newPriorityQueue<Integer>(); ex.add(2); ex.add(13); ex.add(9); ex.add(75); ex.add(4); while(!ex.isEmpty()) { System.out.println(ex.remove()); }

  9. Priority Queue Problem • Snarf the code • Imagine we’ve got a class BestPrice, that tracks the best price of an item we’re looking to buy. Everytime we find a new price we call add to add the price we’re looking for. Then when someone calls buyCheapest(n) we buy n items, using the cheapest offer we have then the second cheapest, etc. We return the total cost to buy n items. • Take a look at the sample code in main if this in unclear. • Hint: make 1 instance variable – a priority queue
