  1. Spring 2008 Reflections & Are we ready for Summer? Bosch Buzzers Liang-Yun Wang (Mac) Yun-Yin Huang (Melody) Darpan Saini Vytesh Ramesh Yongjoon Choi

  2. Outline • Project Overview • Gathering the architecture drivers • Creating the architecture • Getting ready for summer • Summary • Q&A Bosch Buzzers - EOSP Spring 2008

  3. The team Bosch Buzzers - EOSP Spring 2008

  4. Clients, mentors & technical advisors • Client • Robert Bosch LLC Research &Technology Center, North America • Representatives: • Dr. Chris Martin • Dr. Charles Shelton • Dr. Marcelo Cataldo • Mentors • Mel Rosso-Llopart • Felix Bachmann • Technical advisor • Dr. Jim Herbsleb • Tony Lattanze Bosch Buzzers - EOSP Spring 2008

  5. Project goal • Short research report in GSD best practice • Produce a prototype for software to assist in collaboration and conformance checking during the design phase • This prototype could later be extended by the client Bosch Buzzers - EOSP Spring 2008

  6. Context diagram Bosch Buzzers - EOSP Spring 2008

  7. Architecture centered process Stage 1: Discover architecture drivers Stage 2: Establish project scope Stage 3: Create notional architecture Stage 4: architecture review 5. Production Go? No-Go? Stage 6: Experiment planning Stage 6: Production planning Stage 7: Experiment executing and refine architecture Stage 7: Production Bosch Buzzers - MOSP Spring2008

  8. Functional requirements stability Collaboration experiment Re-scope • Paper prototypes, • Talking to experts Bosch Buzzers - EOSP Spring 2008

  9. Constraints • Technical • Must plug into Eclipse • Windows 2000 or XP should be used as the operating system for development • Business • Schedule – Initial delivery by August 15th • Resources – 5 member MSE team Bosch Buzzers, MSE, CMU 2007-2008

  10. Mac: Looks good Mac: class1 blah blah Mac: class 2 blah blah Darpan: sure does Darpan: No class 3, I am not even looking at what you are saying man!! Mac Darpan Bosch Buzzers - EOSP Spring 2008

  11. Mac: Looks good Mac: class1 blah blah Mac: class 2 blah blah Darpan: sure does Darpan: No class 3, I am not even looking at what you are saying man!! Mac Darpan Bosch Buzzers - EOSP Spring 2008

  12. Mac: Looks good Mac: class1 blah blah Mac: class 2 blah blah Darpan: sure does Darpan: No class 3, I am not even looking at what you are saying man!! Darpan: Move this to the Whiteboard Mac Darpan Bosch Buzzers - EOSP Spring 2008

  13. Mac: Looks good Mac: class1 blah blah Mac: class 2 blah blah Darpan: sure does Darpan: No class 3, I am not even looking at what you are saying man!! Darpan: Move this to the Whiteboard Mac Darpan Bosch Buzzers - EOSP Spring 2008

  14. The architecture • Used Attribute Driven Design (ADD) to create the architecture • Architecture review • Did experiments to answer questions in the architecture • Eclipse • Graphical Editing Framework (GEF) • Eclipse Modeling Framework (EMF) • Java EE Bosch Buzzers - EOSP Spring 2008

  15. Bosch Buzzers - EOSP Spring 2008

  16. QAW - High Bosch Buzzers - EOSP Fall2007

  17. QAW - High Bosch Buzzers - EOSP Fall2007

  18. Deployment View Bosch Buzzers, MSE, CMU 2007-2008

  19. High-level client C&C View Pattern used: Call-return Implicit invocation Bosch Buzzers, MSE, CMU 2007-2008

  20. Important quality attribute scenarios Flexibility Bosch Buzzers - EOSP Spring 2008

  21. Architecture alternatives • For UML modeling, the underlying tool we are going to use is Papyrus (open source) • Since it is off-the-shelf, we could • Either look into the code of Papyrus and modify it so that it presents a PosterBoard instead of standalone diagrams • Or write adapters, so that a generic PosterBoard understands it Bosch Buzzers - EOSP Spring 2008

  22. Posterboard module view Bosch Buzzers - EOSP Spring 2008

  23. Bosch Buzzers - EOSP Spring 2008

  24. Technical risks Bosch Buzzers - EOSP Spring 2008

  25. Reflection on creating the architecture • The diagrams help the understanding of the system among team members better • But, it takes too long to write the text • Some of us still think a connector and component is the same thing • The time needed to experiment is hard to estimate • Architecture helped us identify technical risks Bosch Buzzers - EOSP Spring 2008

  26. Are we ready for Summer ? Bosch Buzzers - EOSP Spring 2008

  27. Preparation for Summer Bosch Buzzers - EOSP Spring 2008

  28. Estimation technique used Baseline estimation: 100 hours Baseline estimation: 20 hours Bosch Buzzers - EOSP Spring 2008

  29. Earned value MOSP Bosch Buzzers - EOSP Spring 2008

  30. Reflection on Earned Value • To improve our earned value : • Re-planning helped • We planned for higher granularity of tasks • We decided to prioritize our planned tasks over unplanned tasks • Increased time sheet tracking • Our earned value slipped at times during heavy load of core courses and electives. • Common time of studio members in cave helped Bosch Buzzers - EOSP Spring 2008

  31. Risk Status (Top 3) Bosch Buzzers - EOSP Spring 2008

  32. Process for summer • Iterative development • 3 iterations of 4 weeks each • Scrum approach to project management • Six sprints of two weeks each • Daily standup meetings • Product backlog using customer prioritization • Burn down chart for progress tracking • Sprint retrospective at the end of each sprint • Three releases of four weeks each • Why Scrum ? • Team has some experience • Tracking using Scrum worked in Fall Bosch Buzzers - EOSP Spring 2008

  33. Team roles for Summer Bosch Buzzers - EOSP Spring 2008

  34. Load balancing • Going from 12 to 48 • Start working a week in advance • In the first month, there is no flexi time. Be in the cave at 10 AM everyday. (Big Boss’s order ) • Weekly team activities to handle burnout Bosch Buzzers - EOSP Spring 2008

  35. Knowledge transfer sessions • Experiments revealed that team needs more technological training in Eclipse and related technologies • We conducted knowledge transition within the team • Some of them include, Eclipse plug-in, Java EE Bosch Buzzers - EOSP Spring 2008

  36. Design, development and QA Process Critical modules only (assigned by chief-architect, based on complexity) • Code • Informal Code Review Create Smoke/ Stress/Functional Test Cases Formal Code inspection Design Design Review Create/runUnit Test MODULE Bosch Buzzers, MSE, CMU 2007-2008

  37. Proposals • Updated existing proposals • Planning proposal • Operational proposal • Problem definition proposal • Statement of work • Created • Design proposal • Implementation proposal • Quality assurance plan Bosch Buzzers - EOSP Spring 2008

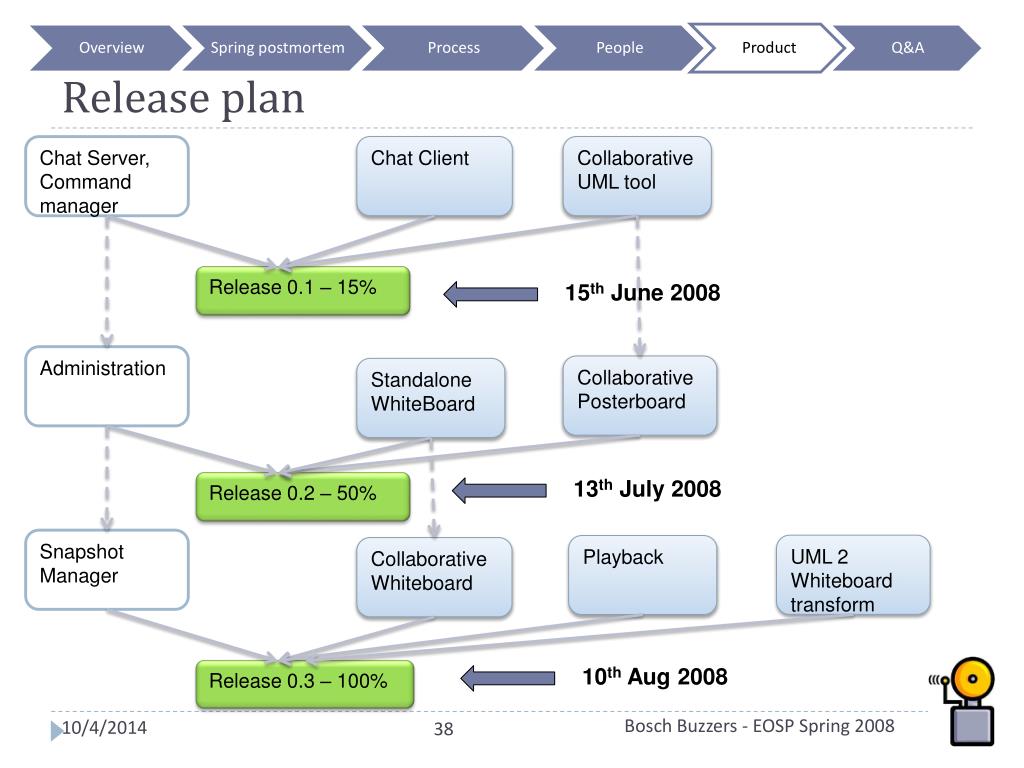

  38. Release plan Chat Server, Command manager Chat Client Collaborative UML tool Release 0.1 – 15% 15th June 2008 Administration Collaborative Posterboard Standalone WhiteBoard 13th July 2008 Release 0.2 – 50% Snapshot Manager UML 2 Whiteboard transform Playback Collaborative Whiteboard 10th Aug 2008 Release 0.3 – 100% Bosch Buzzers - EOSP Spring 2008

  39. Quality assurance plan • Determined quality goals • Twenty or fewer defects per thousand lines of code after unit testing • Broken builds are not left unfixed overnight • Plan for unit testing, integration testing and regression testing in place • Mantis to be used for defect tracking • Atleast 80% code coverage to be achieved for junit testing • Plan for system testing should be ready during detailed design Bosch Buzzers - EOSP Spring 2008

  40. Time allocation • 20% operating and planning • Historical data from previous team • 16% buffered time • Nice to have functions & estimation calibration

  41. Infrastructure setup • Set up Wiki athttp://buzzers.webhop.net/ • Version control – Subversion • Defect tracking – Mantis • Development environment • Ant for nightly builds • Nightly backup (Don’t rely on SCS ) Bosch Buzzers - EOSP Spring 2008

  42. Summary • Accomplishments • Conducted SRE early this semester • Scope negotiation • Detailed requirements • SRS delivered • Proposals • Architecture defined Get set go for summer Bosch Buzzers - EOSP Spring 2008

  43. Thanks ! Bosch Buzzers - EOSP Spring 2008

  44. Backup Slides

  45. Knowledge sharing process Bosch Buzzers - EOSP Spring 2008

  46. Requirement change

  47. Time allocation from previous team Development Detailed design QA Fixing QA Appraisal Hermes EOSP (Summer 2007)

  48. Time allocation from previous team

  49. Earned value (Actual hour spent included) Bosch Buzzers - EOSP Spring 2008
