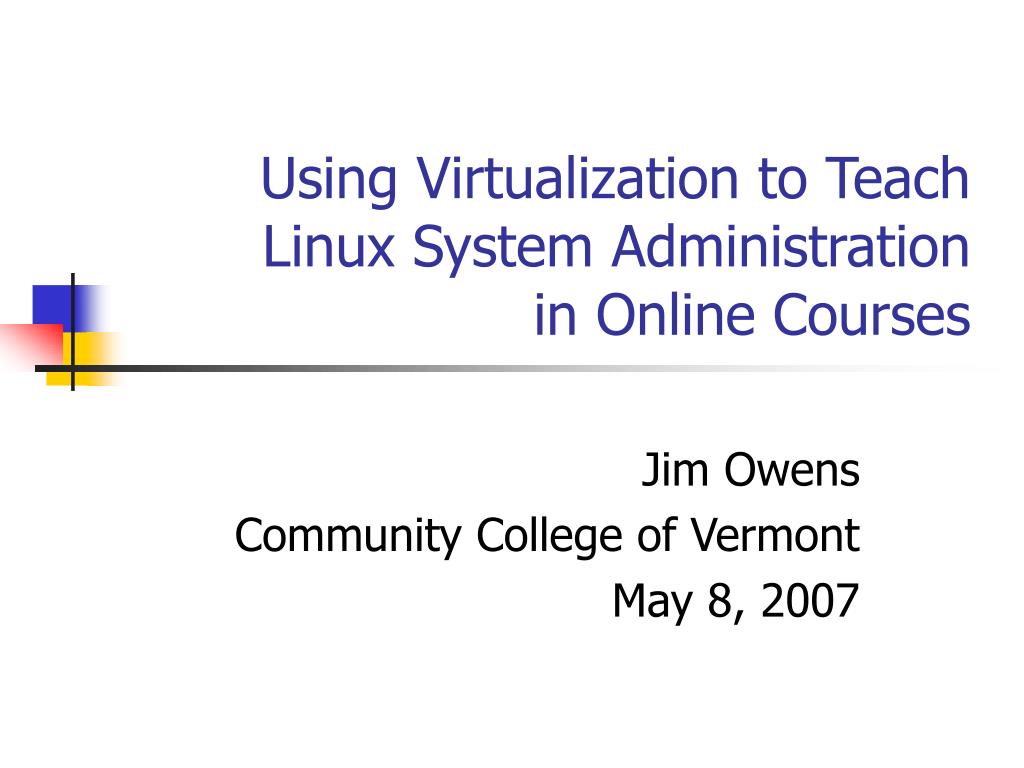

  1. Using Virtualization to Teach Linux System Administration in Online Courses Jim Owens Community College of Vermont May 8, 2007

  2. Overview • Background • Before virtualization • With virtualization • Virtualization system • Learning environment • Curriculum impacts • Future enhancements • Conclusions

  3. Background • Intermediate Linux CIS-2152 • Using Linux in the small office/home office • Required for Web Site Design & Administration degree • Requires Introduction to Linux CIS-2150 • Installation and configuration • File system • Security • Text editing • Process management, etc.

  4. Before virtualization • Offered at one CCV site and on line • Defined by 10 essential objectives (EOs) • 6 = “demonstrate” • 3 = “discuss” • 1 = “explain” • Online course required 1 or 2 on-site meetings to complete hands-on EOs

  5. CCV Sites • Driving to Montpelier • Newport 1:30 • Brattleboro 1:53 • Bennington 2:29 • Rutland 1:17 • St Johnsbury 0:56 • Middlebury 1:23 • Peru, NY 2:24

  6. On-site meetings format • Time available 2:45 • Agenda • Introductions & overview • Equipment setup • Hands-on activities (including Linux install) • Evaluations • Wrap-up • Equipment teardown

  7. Before virtualization Bottom line: Intermediate Linux students in online courses spent more time reading and writing about Linux system administration than they did in performing these activities.

  8. Virtualization system • OpenVZ • Fedora Core 6 with standard 2.6.18 kernel • Default Fedora Core 5 template for student virtual environments (VEs) • Dell rack-mount server • Intel 2.8GHZ dual-core processor • 2GB memory • Two 136GB HDDs mirrored on hardware RAID

  9. Learning environment • Ideally, students have full control of individual servers, with freedom to: • Use root account as necessary • Install or remove software packages • Modify configuration files • Monitor system logs • Create & manage user accounts • Make mistakes without fear of system or network compromise

  10. Learning environment • Firewall/router with network address translation • OpenVZ system with a VE for each student, plus 2 more • One homebase VE managed by instructor • One test/demo VE for instructor use • Router sends SSH traffic to homebase • Homebase runs a local DNS service

  11. Learning environment SSH (port 22) Public Internet Private network

  12. Curriculum impacts • Students have 24/7 access to own VEs • Hands-on activities start Day 1 and continue throughout the course • New hands-on activities added: • Post-installation hardening • Patching/updating OS and applications • System monitoring & management • User administration

  13. Future enhancements • Provide access to graphical clients for testing Web applications and some configuration tasks • Add Windows client systems for better testing of Samba shares

  14. Conclusions • Virtualization technology provides a learning environment that • Supports hands-on learning • Provides a more authentic experience • Permits exploration and mistakes without fear of system compromise • Encourages independent learning • Is affordable

  15. Questions & comments
