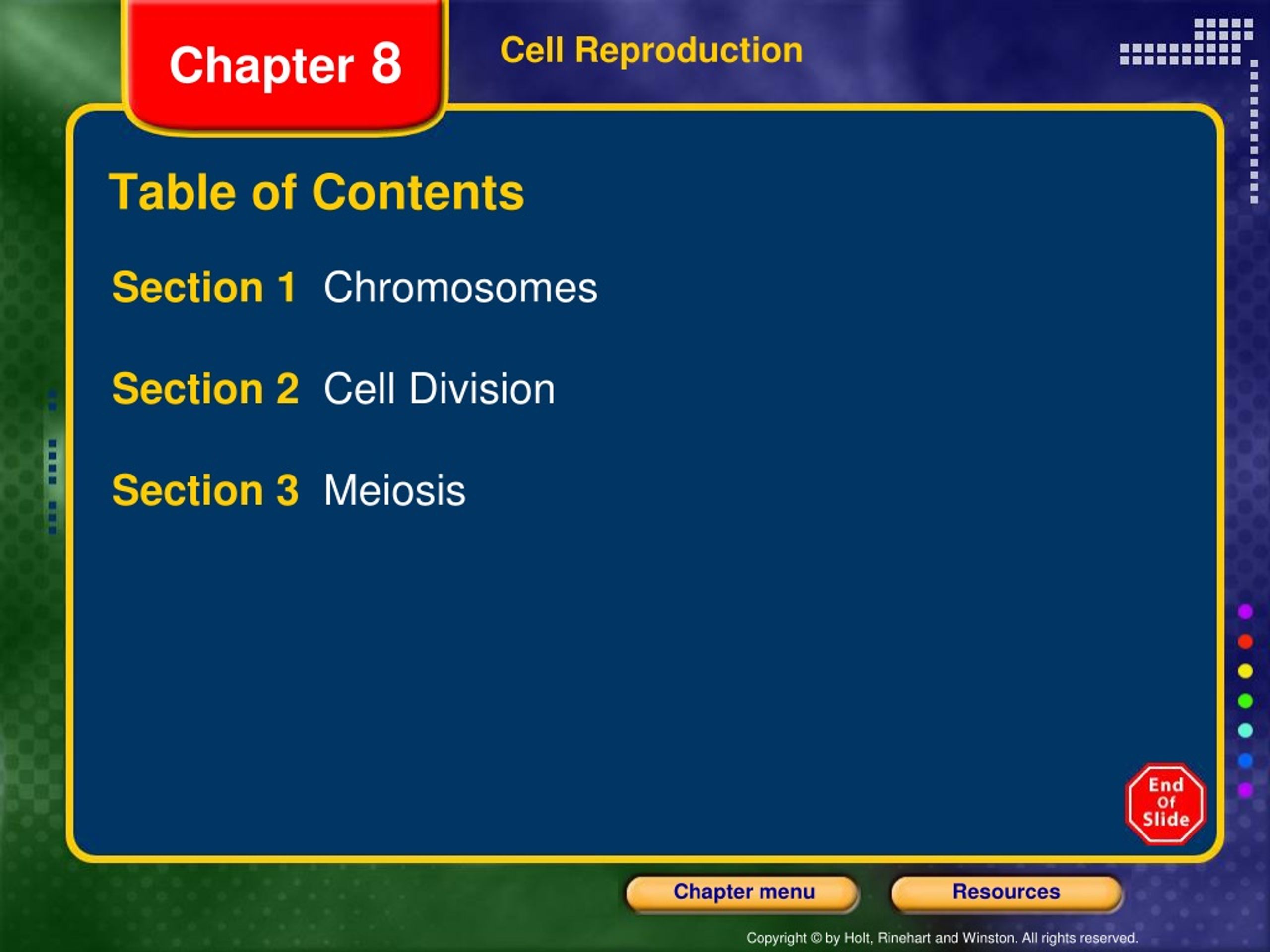

  1. Chapter 8 Cell Reproduction Table of Contents Section 1 Chromosomes Section 2 Cell Division Section 3 Meiosis

  2. Section 1 Chromosomes Chapter 8 Objectives • Describethe structure of a chromosome. • Identifythe differences in structure between prokaryotic chromosomes and eukaryotic chromosomes. • Comparethe numbers of chromosomes in different species. • Explainthe differences between sex chromosomes and autosomes. • Distinguishbetween diploid and haploid cells.

  3. Section 1 Chromosomes Chapter 8 Chromosome Structure • Chromosomes are rod-shaped structures made of DNA and protein. • In eukaryotes, DNA wraps around proteins calledhistonesto help maintain the compact structure of chromosomes.

  4. Section 1 Chromosomes Chapter 8 Chromosome Structure

  5. Section 1 Chromosomes Chapter 8 Parts of a Chromosome Click below to watch the Visual Concept. Visual Concept

  6. Section 1 Chromosomes Chapter 8 Chromosome Structure, continued • Chromosomes in prokaryotes are simpler in structure than chromosomes in eukaryotes.

  7. Section 1 Chromosomes Chapter 8 Comparing Cell Division in Prokaryotes and Eukaryotes

  8. Section 1 Chromosomes Chapter 8 Chromosome Numbers • Each species has a characteristic number of chromosomes in each cell.

  9. Section 1 Chromosomes Chapter 8 Chromosome Numbers of Various Organisms

  10. Section 1 Chromosomes Chapter 8 Chromosome Numbers, continued • Sex Chromosomes and Autosomes • Sex chromosomes are chromosomes that determine the sex of an organism. • All of the other chromosomes in an organism are autosomes.

  11. Section 1 Chromosomes Chapter 8 Sex Chromosomes and Autosomes Click below to watch the Visual Concept. Visual Concept

  12. Section 1 Chromosomes Chapter 8 Chromosome Numbers, continued • Diploid and Haploid Cells • Cells having two sets of chromosomes are diploid (2n). • Haploid cells (1n) have only one set of chromosomes.

  13. Section 1 Chromosomes Chapter 8 Karyotype Click below to watch the Visual Concept. Visual Concept

  14. Section 2 Cell Division Chapter 8 Objectives • Describe the events of cell division in prokaryotes. • Name the two parts of the cell that are equally divided during cell division in eukaryotes. • Summarize the events of interphase. • Describe the stages of mitosis. • Compare cytokinesis in animal cells with cytokinesis in plant cells. • Explain how cell division is controlled.

  15. Section 2 Cell Division Chapter 8 Cell Division in Prokaryotes • Cell divisionis the process by which cells reproduce themselves.

  16. Section 2 Cell Division Chapter 8 Cell Division in Prokaryotes, continued • Binary fissionis the process of cell division in prokaryotes.

  17. Section 2 Cell Division Chapter 8 Cell Division in Eukaryotes • Cell Cycle • The cell cycle is the repeating set of events in the life of a cell. • The cell cycle consists of cell division and interphase. • Cell division in eukaryotes includes nuclear division, called mitosis, and the division of cytoplasm, called cytokinesis.

  18. Section 2 Cell Division Chapter 8 Cell Cycle Introduction

  19. Section 2 Cell Division Chapter 8 Cell Division in Eukaryotes, continued • Interphase • Interphase consists of growth (G1), DNA replication, and preparation for cell division (G2).

  20. Section 2 Cell Division Chapter 8 Stages of Mitosis • Mitosis is divided into stages: prophase, metaphase, anaphase, and telophase. • Mitosis results in two offspring cells that are genetically identical to the original cell.

  21. Section 2 Cell Division Chapter 8 Stages of Mitosis

  22. Section 2 Cell Division Chapter 8 Mitosis

  23. Section 2 Cell Division Chapter 8 Cytokinesis • During cytokinesis in animal cells, a cleavage furrow pinches in and eventually separates the dividing cell into two cells. • In plant cells, a cell plate separates the dividing cell into two cells.

  24. Section 2 Cell Division Chapter 8 Comparing Cell Division in Plants and Animals Click below to watch the Visual Concept. Visual Concept

  25. Section 2 Cell Division Chapter 8 Control of Cell Division • Cell division in eukaryotes is controlled by many proteins. • Control occurs at three main checkpoints.

  26. Section 2 Cell Division Chapter 8 Control of the Cell Cycle Click below to watch the Visual Concept. Visual Concept

  27. Section 2 Cell Division Chapter 8 Control of Cell Division, continued • When Control is Lost: Cancer • Cancer may result if cells do not respond to control mechanisms.

  28. Section 3 Meiosis Chapter 8 Objectives • Compare the end products of meiosis with those of mitosis. • Summarizethe events of meiosis I. • Explain crossing-over and how it contributes to the production of unique individuals. • Summarizethe events of meiosis II. • Comparespermatogenesis and oogenesis. • Define sexual reproduction.

  29. Section 3 Meiosis Chapter 8 Formation of Haploid Cells • Meiosisis a process of nuclear division that reduces the number of chromosomes in new cells to half the number in the original cell. • Meiosis produces haploid gametes.

  30. Section 3 Meiosis Chapter 8 Formation of Haploid Cells, continued • Meiosisis a process of nuclear division that reduces the number of chromosomes in new cells to half the number in the original cell. • Meiosis leads to four haploid cells (gametes) rather than two diploid cells as in mitosis.

  31. Section 3 Meiosis Chapter 8 Meiosis I • Meiosis I includes prophase I, metaphase I, anaphase I, and telophase I. • Crossing-over, which is when portions of homologous chromosomes exchange genetics material, occurs during prophase I and results in genetic recombination.

  32. Section 3 Meiosis Chapter 8 Tetrads and Crossing-over of Genetic Material Click below to watch the Visual Concept. Visual Concept

  33. Section 3 Meiosis Chapter 8 Meiosis II • Meiosis II includes prophase II, metaphase II, anaphase II, and telophase II. • Four new haploid cells result.

  34. Section 3 Meiosis Chapter 8 Stages of Meiosis

  35. Section 3 Meiosis Chapter 8 Stages of Meiosis, continued

  36. Section 3 Meiosis Chapter 8 Comparing Meiosis and Mitosis Click below to watch the Visual Concept. Visual Concept

  37. Section 3 Meiosis Chapter 8 Development of Gametes • Spermatogenesisis the process by which sperm cells are produced. • Oogenesisis the process that produces mature egg cells.

  38. Section 3 Meiosis Chapter 8 Meiosis in Male and Female Animals

  39. Section 3 Meiosis Chapter 8 Sexual Reproduction • Sexual reproductionis the formation of offspring through meiosis and the union of a sperm and an egg. • Offspring produced by sexual reproduction are genetically different from the parents.

  40. Section 3 Meiosis Chapter 8 Sexual Reproduction Click below to watch the Visual Concept. Visual Concept
