Light. Standard 10. Refraction of light. incident ray. angle of incidence. Air. i °. Glass. r °. angle of refraction. refracted ray. Object at infinity. Image at focus Image is real, diminished and inverted. F 1. C 2. F 2. C 1. Object beyond C. F 1. C 2. F 2. C 1.

lamis
Télécharger la présentation

Light

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

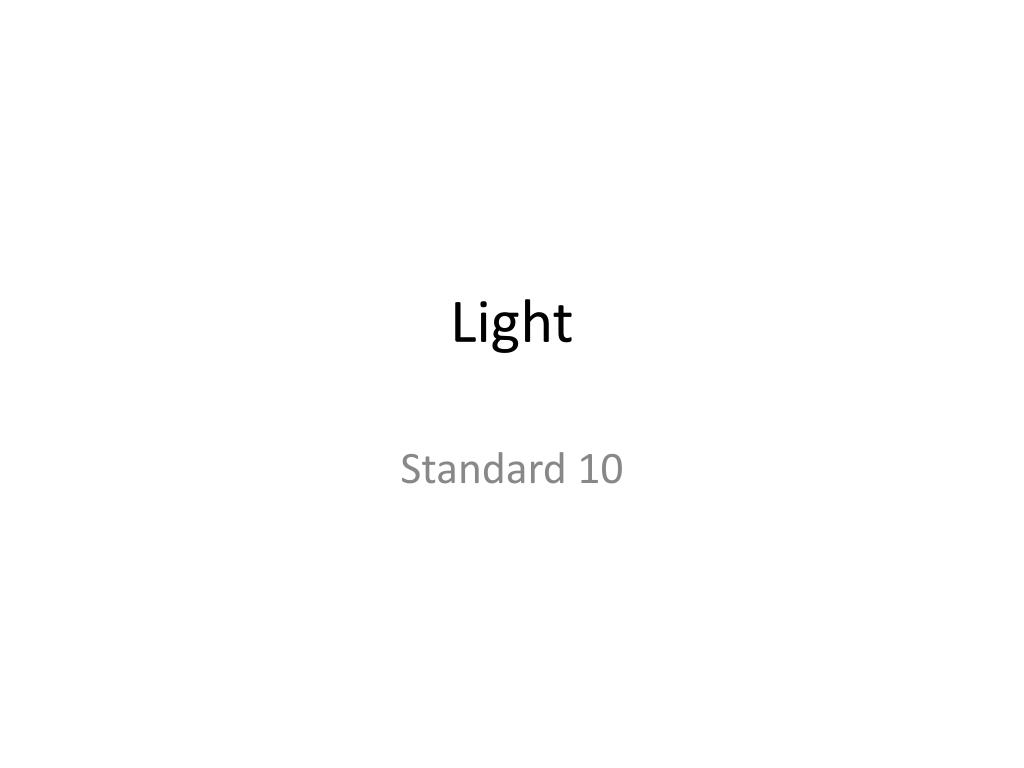

  1. Light Standard 10

  2. Refraction of light incident ray angle of incidence Air i° Glass r° angle of refraction refracted ray

  3. Object at infinity Image at focus Image is real, diminished and inverted F1 C2 F2 C1

  4. Object beyond C F1 C2 F2 C1 Image between center of curvature and focus Image is real, diminished and inverted

  5. Object at C F1 C2 F2 C1 Image at radius of curvature Image is real, of the same size and inverted

  6. Object at between C and F F1 C2 F2 C1 Image beyond radius of curvature Image is real, magnified and inverted

  7. Object at F Image at infinity Image is real, highly magnified and inverted F1 C2 F2 C1

  8. Object between F and lens F1 C2 F2 C1 Image on the same side as the object Image is virtual, magnified and erect

  9. Object at infinity Image at focus on the same side as the object Image is virtual, diminished and erect F1 C2 F2 C1

  10. Object at a finite distance Image at focus on the same side as the object Image is virtual, diminished and erect F1 C2 F2 C1
