  1. Analysis of Security Protocols for Wireless Networks Changhua He Stanford University May 31st, 2005

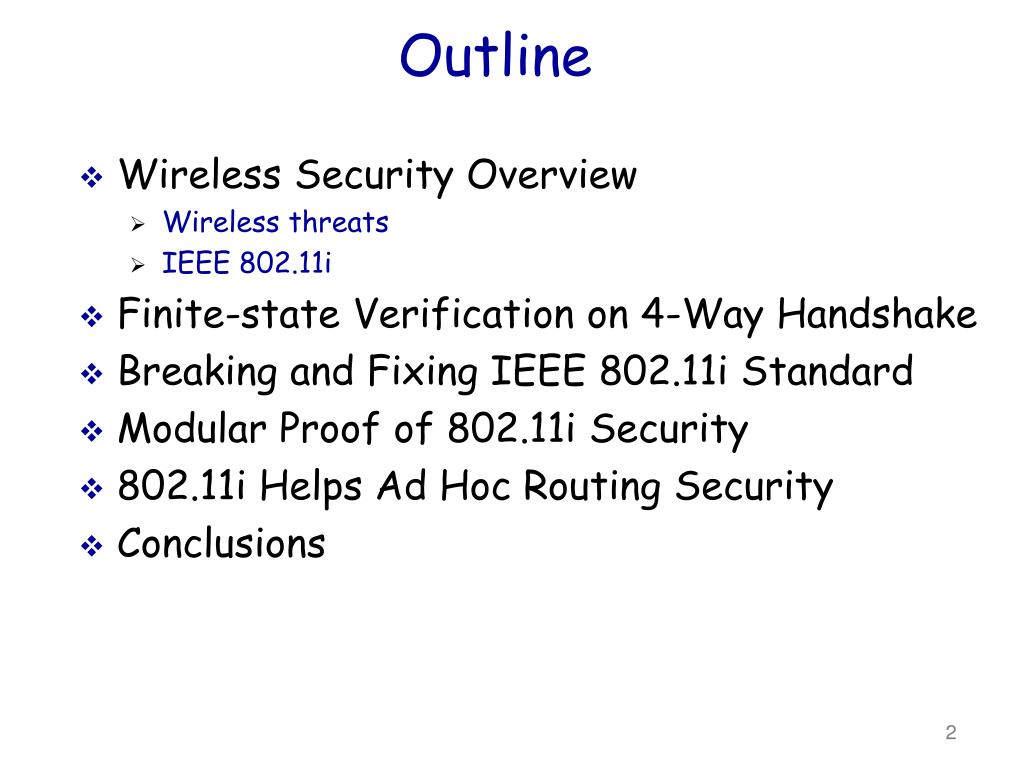

  2. Outline • Wireless Security Overview • Wireless threats • IEEE 802.11i • Finite-state Verification on 4-Way Handshake • Breaking and Fixing IEEE 802.11i Standard • Modular Proof of 802.11i Security • 802.11i Helps Ad Hoc Routing Security • Conclusions

  3. Wireless Everything Public Internet Printing Outdoor Home/Office Cellular Network Hands-free Headset Synchronization Dial-Up Networking 802.16 BS Mobile Data Services WiMAX 802.11 WLAN Bluetooth PAN Human Interface Devices Hands-free Speakerphone

  4. Wireless Threats • Passive Eavesdropping/Traffic Analysis • Easy, most wireless NICs have promiscuous mode, cheap man-made antenna can enlarge the signal range greatly • Message Injection/Active Eavesdropping • Easy, some techniques to gen. any packet with common NIC, exploit MAC cooperation to interfere in a timely way • Message Deletion and Interception • Possible, interfere packet reception with directional antennas • Masquerading and Malicious AP • Easy, MAC address forgeable and software available (HostAP) • Session Hijacking • Man-in-the-Middle • Denial-of-Service (DoS)

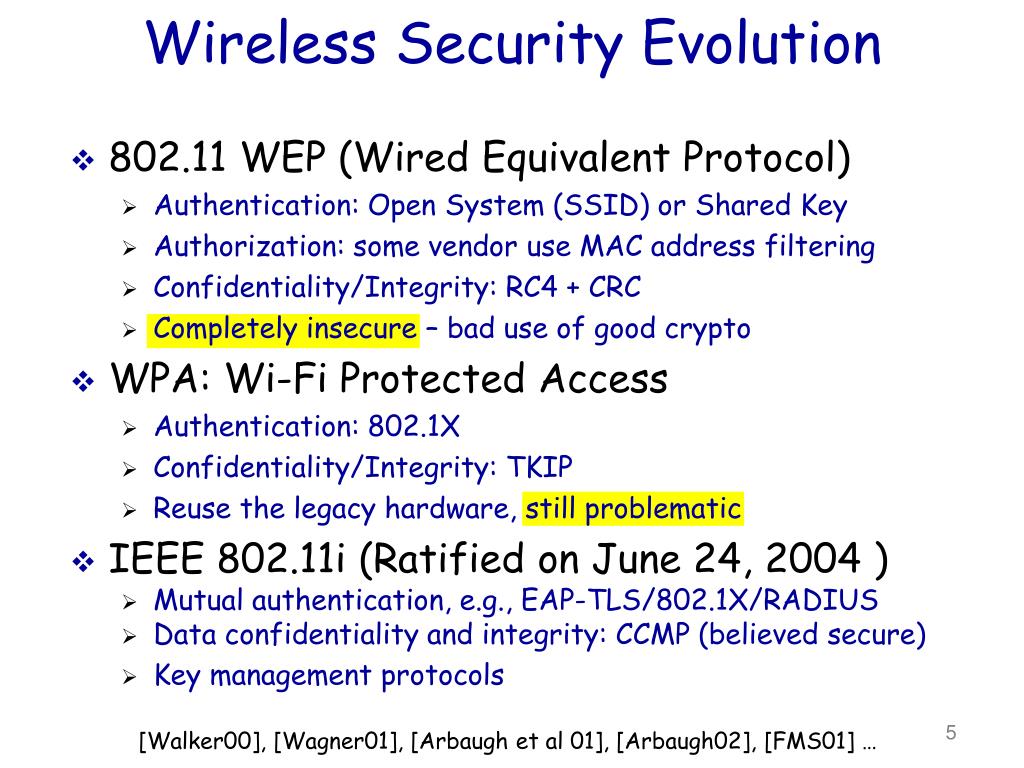

  5. Wireless Security Evolution • 802.11 WEP (Wired Equivalent Protocol) • Authentication: Open System (SSID) or Shared Key • Authorization: some vendor use MAC address filtering • Confidentiality/Integrity: RC4 + CRC • Completely insecure – bad use of good crypto • WPA: Wi-Fi Protected Access • Authentication: 802.1X • Confidentiality/Integrity: TKIP • Reuse the legacy hardware, still problematic • IEEE 802.11i (Ratified on June 24, 2004 ) • Mutual authentication, e.g., EAP-TLS/802.1X/RADIUS • Data confidentiality and integrity: CCMP (believed secure) • Key management protocols [Walker00], [Wagner01], [Arbaugh et al 01], [Arbaugh02], [FMS01] …

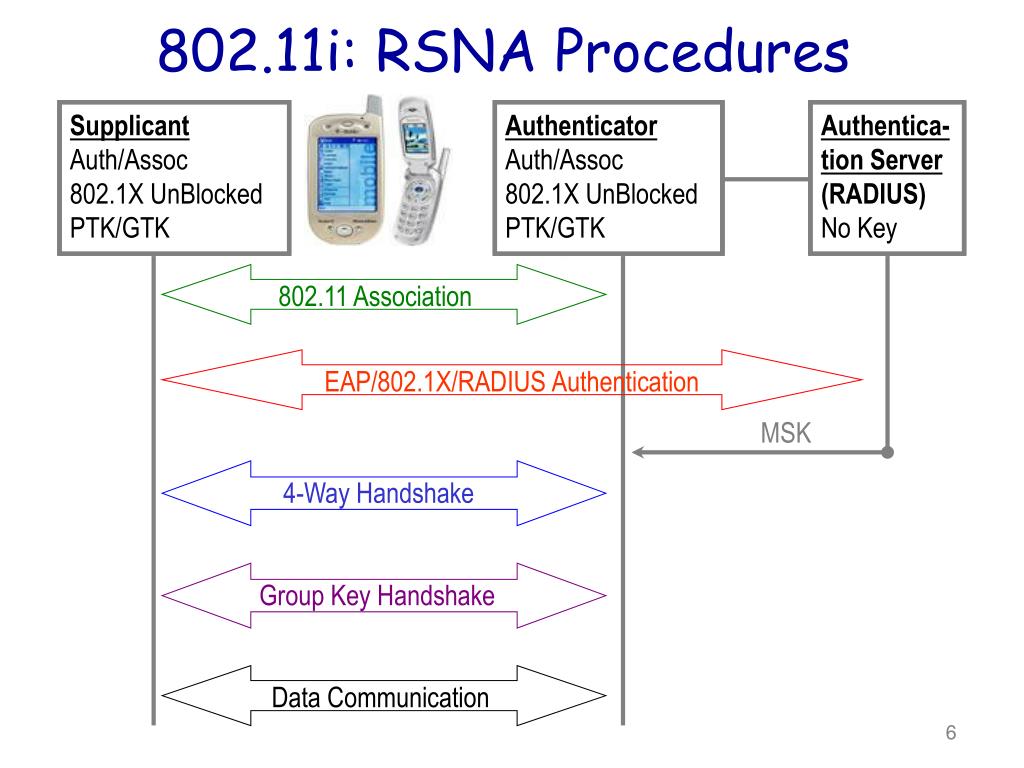

  6. 802.11i: RSNA Procedures Supplicant Auth/Assoc 802.1X Blocked MSK Supplicant Auth/Assoc 802.1X Blocked PMK Supplicant Auth/Assoc 802.1X UnBlocked New GTK Supplicant Auth/Assoc 802.1X UnBlocked PTK/GTK Supplicant Auth/Assoc 802.1X UnBlocked PTK/GTK Supplicant Auth/Assoc 802.1X Blocked No Key Supplicant UnAuth/UnAssoc 802.1X Blocked No Key AuthenticatorAuth/Assoc 802.1X Blocked PMK AuthenticatorAuth/Assoc 802.1X UnBlocked PTK/GTK AuthenticatorUnAuth/UnAssoc 802.1X Blocked No Key AuthenticatorAuth/Assoc 802.1X Blocked No Key AuthenticatorAuth/Assoc 802.1X Blocked No Key AuthenticatorAuth/Assoc 802.1X UnBlocked PTK/GTK AuthenticatorAuth/Assoc 802.1X UnBlocked New GTK Authentica-tion Server(RADIUS) No Key Authentica-tion Server(RADIUS) No Key Authentica-tion Server(RADIUS) No Key Authentica-tion Server(RADIUS) No Key Authentica-tion Server(RADIUS) MSK Authentica-tion Server(RADIUS) No Key Authentica-tion Server(RADIUS) No Key 802.11 Association EAP/802.1X/RADIUS Authentication MSK 4-Way Handshake Group Key Handshake Data Communication

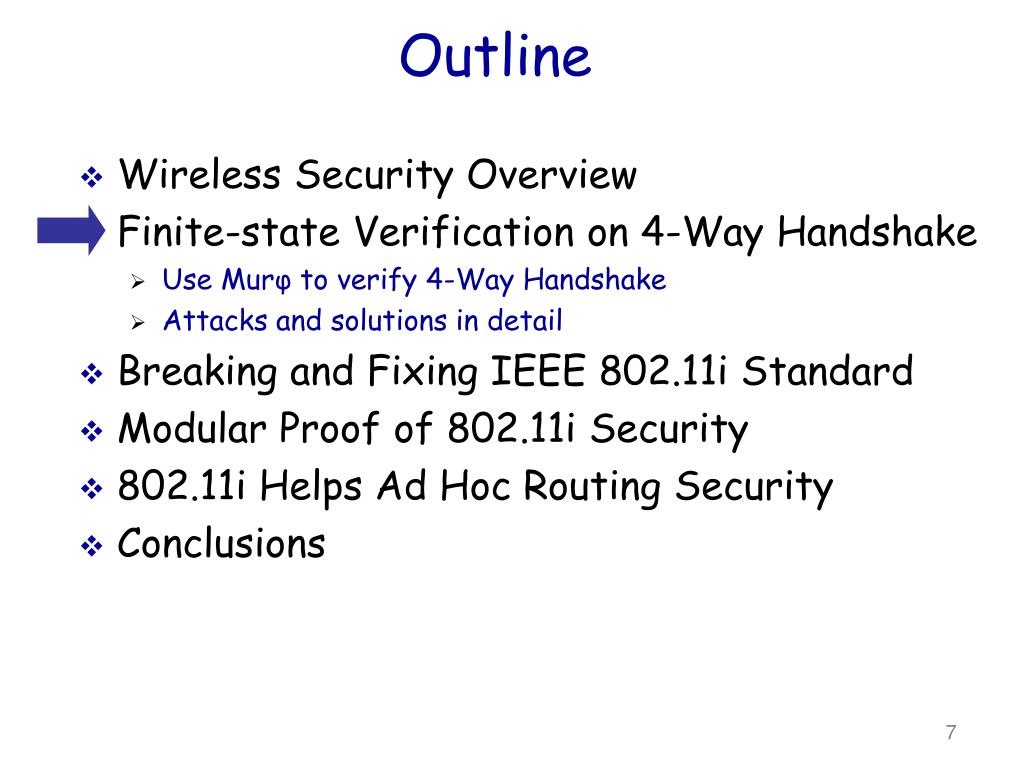

  7. Outline • Wireless Security Overview • Finite-state Verification on 4-Way Handshake • Use Murφ to verify 4-Way Handshake • Attacks and solutions in detail • Breaking and Fixing IEEE 802.11i Standard • Modular Proof of 802.11i Security • 802.11i Helps Ad Hoc Routing Security • Conclusions

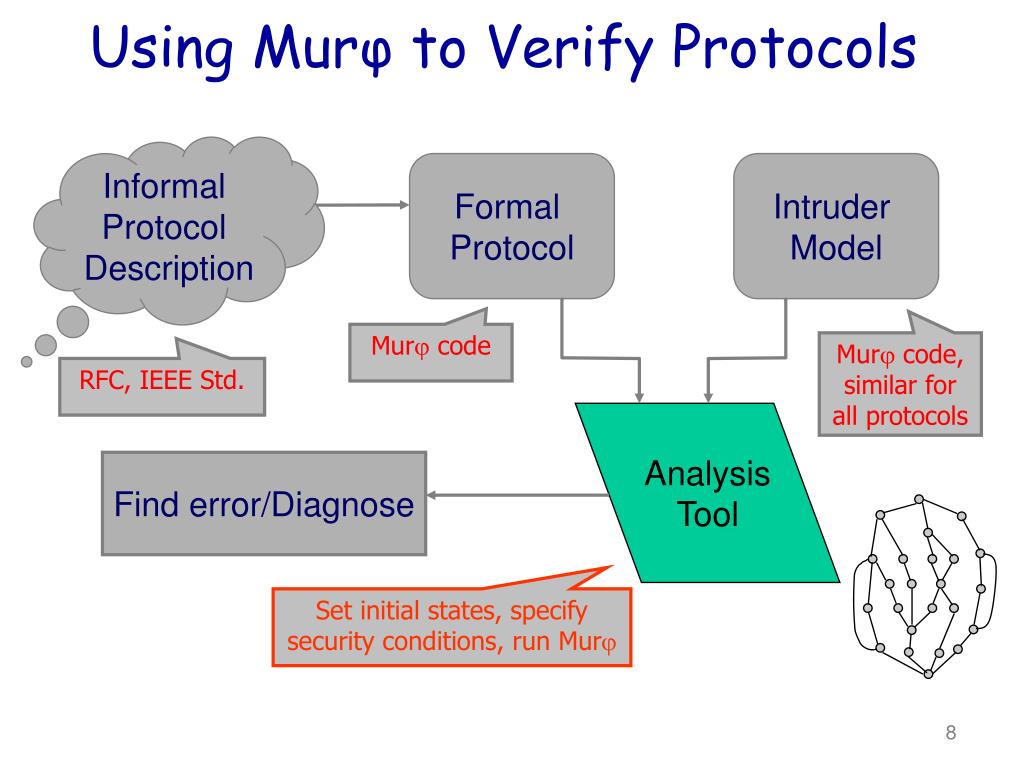

  8. Using Murφ to Verify Protocols Informal Protocol Description Formal Protocol Intruder Model Murj code Murj code, similar for all protocols RFC, IEEE Std. Analysis Tool Find error/Diagnose Set initial states, specify security conditions, run Murj

  9. The 4-Way Handshake Supplicant Auth/Assoc 802.1X UnBlocked PTK/GTK AuthenticatorAuth/Assoc 802.1X UnBlocked PTK/GTK Authentica-tion Server(RADIUS) No Key 802.11 Association EAP/802.1X/RADIUS Authentication {AA, ANonce, sn, msg1, PMKID} {SPA, SNonce, SPA RSN IE, sn, msg2, MIC} {AA, ANonce, AA RSN IE, GTK, sn+1, msg3, MIC} {SPA, sn+1, msg4, MIC} Group Key Handshake Data Communication MSK

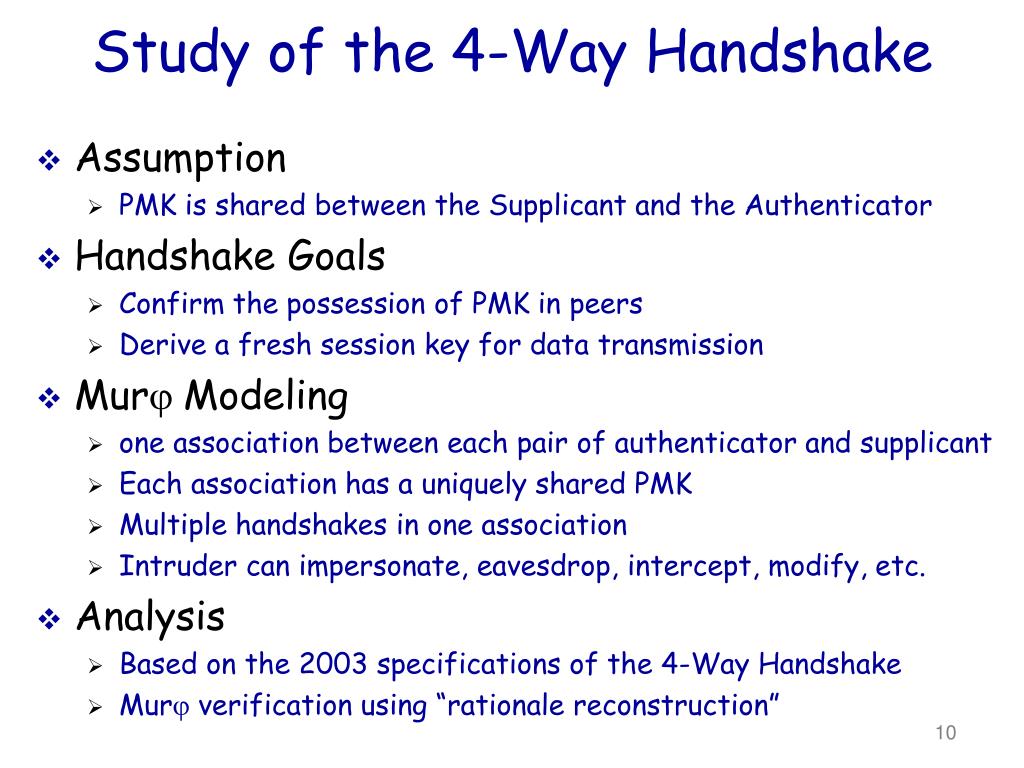

  10. Study of the 4-Way Handshake • Assumption • PMK is shared between the Supplicant and the Authenticator • Handshake Goals • Confirm the possession of PMK in peers • Derive a fresh session key for data transmission • Murj Modeling • one association between each pair of authenticator and supplicant • Each association has a uniquely shared PMK • Multiple handshakes in one association • Intruder can impersonate, eavesdrop, intercept, modify, etc. • Analysis • Based on the 2003 specifications of the 4-Way Handshake • Murj verification using “rationale reconstruction”

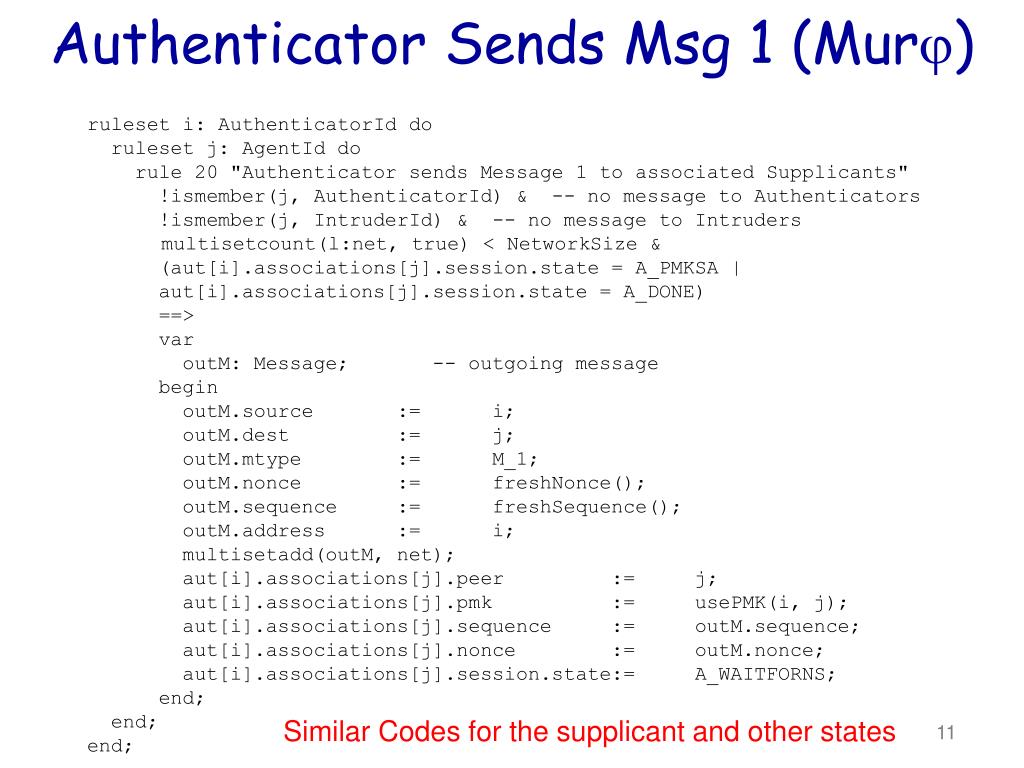

  11. Authenticator Sends Msg 1 (Murj) ruleset i: AuthenticatorId do ruleset j: AgentId do rule 20 "Authenticator sends Message 1 to associated Supplicants" !ismember(j, AuthenticatorId) & -- no message to Authenticators !ismember(j, IntruderId) & -- no message to Intruders multisetcount(l:net, true) < NetworkSize & (aut[i].associations[j].session.state = A_PMKSA | aut[i].associations[j].session.state = A_DONE) ==> var outM: Message; -- outgoing message begin outM.source := i; outM.dest := j; outM.mtype := M_1; outM.nonce := freshNonce(); outM.sequence := freshSequence(); outM.address := i; multisetadd(outM, net); aut[i].associations[j].peer := j; aut[i].associations[j].pmk := usePMK(i, j); aut[i].associations[j].sequence := outM.sequence; aut[i].associations[j].nonce := outM.nonce; aut[i].associations[j].session.state:= A_WAITFORNS; end; end; end; Similar Codes for the supplicant and other states

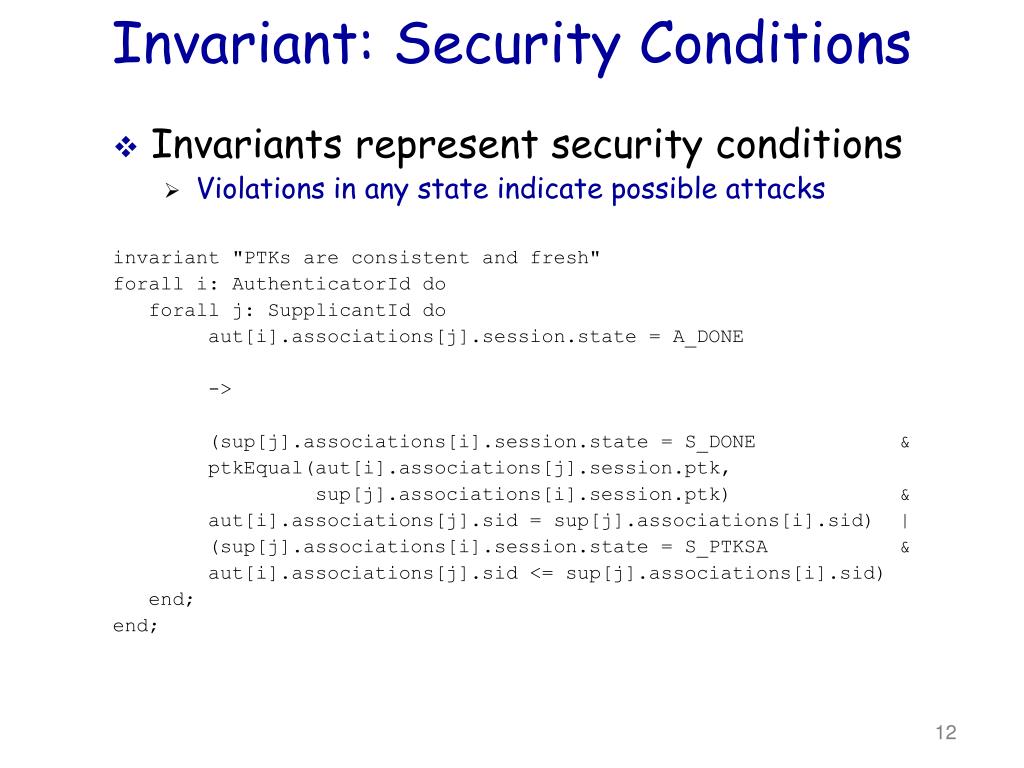

  12. Invariant: Security Conditions • Invariants represent security conditions • Violations in any state indicate possible attacks invariant "PTKs are consistent and fresh" forall i: AuthenticatorId do forall j: SupplicantId do aut[i].associations[j].session.state = A_DONE -> (sup[j].associations[i].session.state = S_DONE & ptkEqual(aut[i].associations[j].session.ptk, sup[j].associations[i].session.ptk) & aut[i].associations[j].sid = sup[j].associations[i].sid) | (sup[j].associations[i].session.state = S_PTKSA & aut[i].associations[j].sid <= sup[j].associations[i].sid) end; end;

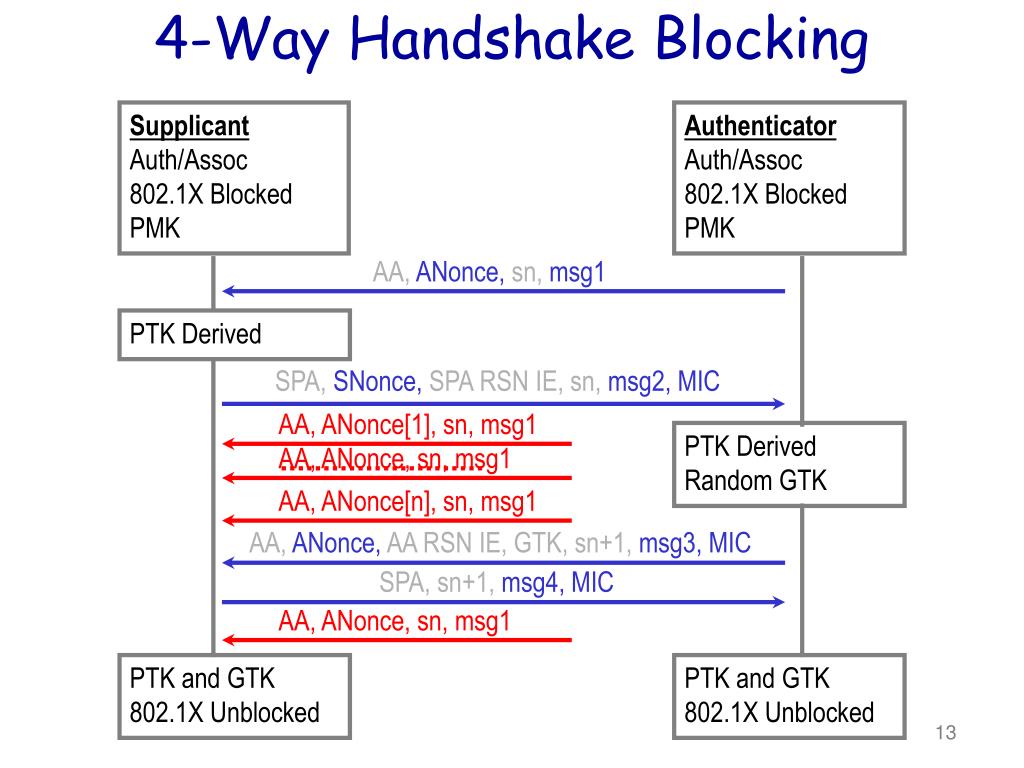

  13. 4-Way Handshake Blocking AA, ANonce, sn, msg1 SPA, SNonce, SPA RSN IE, sn, msg2, MIC AA, ANonce, sn, msg1 AA, ANonce, sn, msg1 AA, ANonce[1], sn, msg1 AA, ANonce[n], sn, msg1 AA, ANonce, AA RSN IE, GTK, sn+1, msg3, MIC SPA, sn+1, msg4, MIC Supplicant Auth/Assoc 802.1X Blocked PMK AuthenticatorAuth/Assoc 802.1X Blocked PMK PTK Derived PTK Derived Random GTK PTK and GTK 802.1X Unblocked PTK and GTK 802.1X Unblocked

  14. 4-Way Blocking Exposed • What is wrong here ? • Message 1 is vulnerable • Noticed, TPTK/PTK to eliminate the problem • Suppose only one handshake on-going • Not true in wireless scenario ! • Interleaving handshakes are possible • Authenticator can enforce only one handshake • Reject unexpected messages • Supplicant cannot • Must accept Msg 1 in any state due to packet loss and retransmission • Attacker forges Msg 1 to cause parallel incomplete handshakes • Supplicant MUST keep state for every Msg 1 • DoS, similar to TCP SYN flooding attack

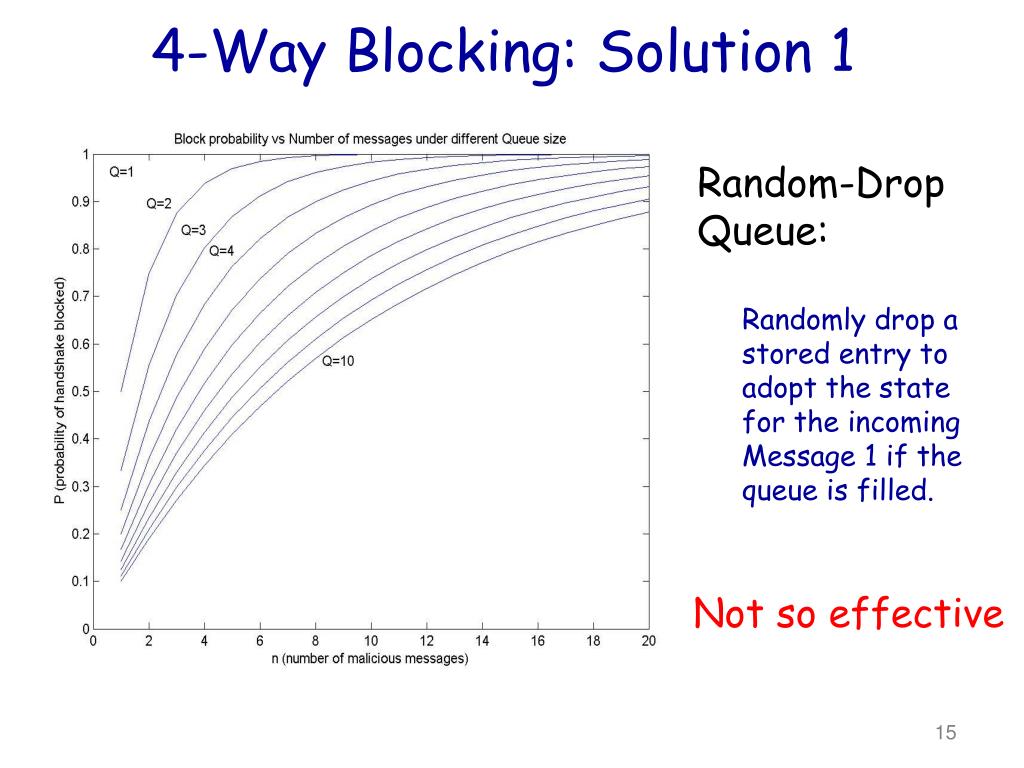

  15. 4-Way Blocking: Solution 1 Random-Drop Queue: Randomly drop a stored entry to adopt the state for the incoming Message 1 if the queue is filled. Not so effective

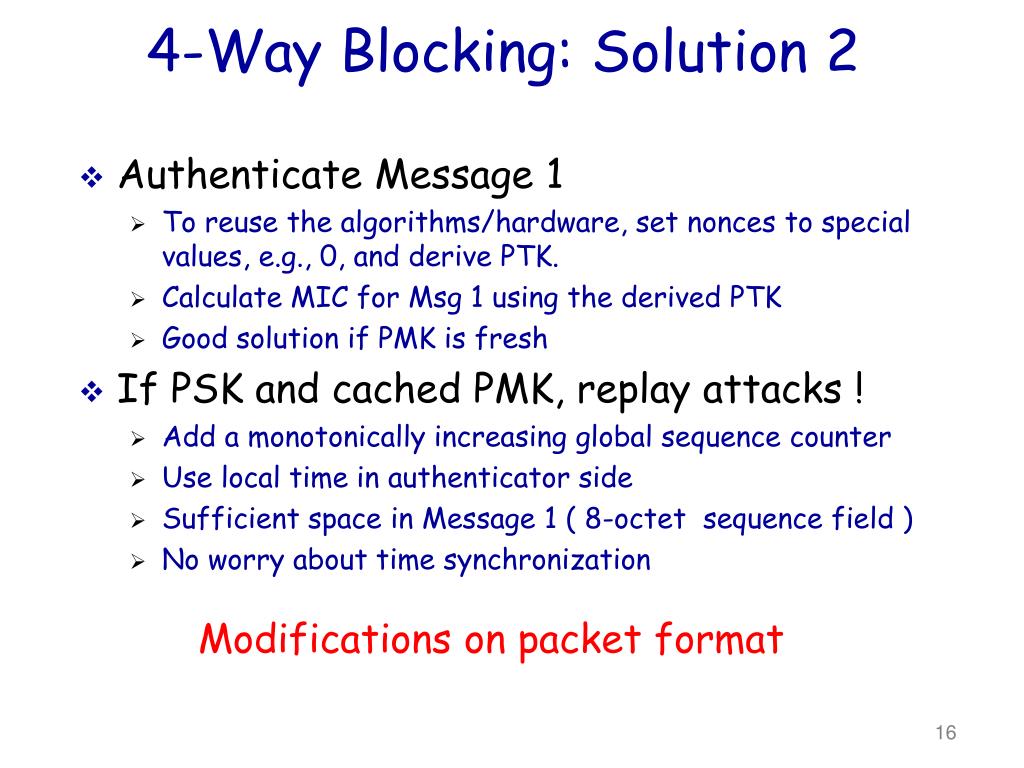

  16. 4-Way Blocking: Solution 2 • Authenticate Message 1 • To reuse the algorithms/hardware, set nonces to special values, e.g., 0, and derive PTK. • Calculate MIC for Msg 1 using the derived PTK • Good solution if PMK is fresh • If PSK and cached PMK, replay attacks ! • Add a monotonically increasing global sequence counter • Use local time in authenticator side • Sufficient space in Message 1 ( 8-octet sequence field ) • No worry about time synchronization Modifications on packet format

  17. 4-Way Blocking: Solution 3 • Re-Use Nonce • Supplicant re-use SNonce until one 4-way handshake completes successfully • Derive correct PTK from Message 3 • Authenticator may (or may not) re-use ANonce • Solve the problem, but • Attacker might gather more information about PMK by playing with Message 1, ok if PMK is strong PTK=PRF{PMK, AA||SPA||ANonce||SNonce} • More computations in the supplicant Performance Degradation

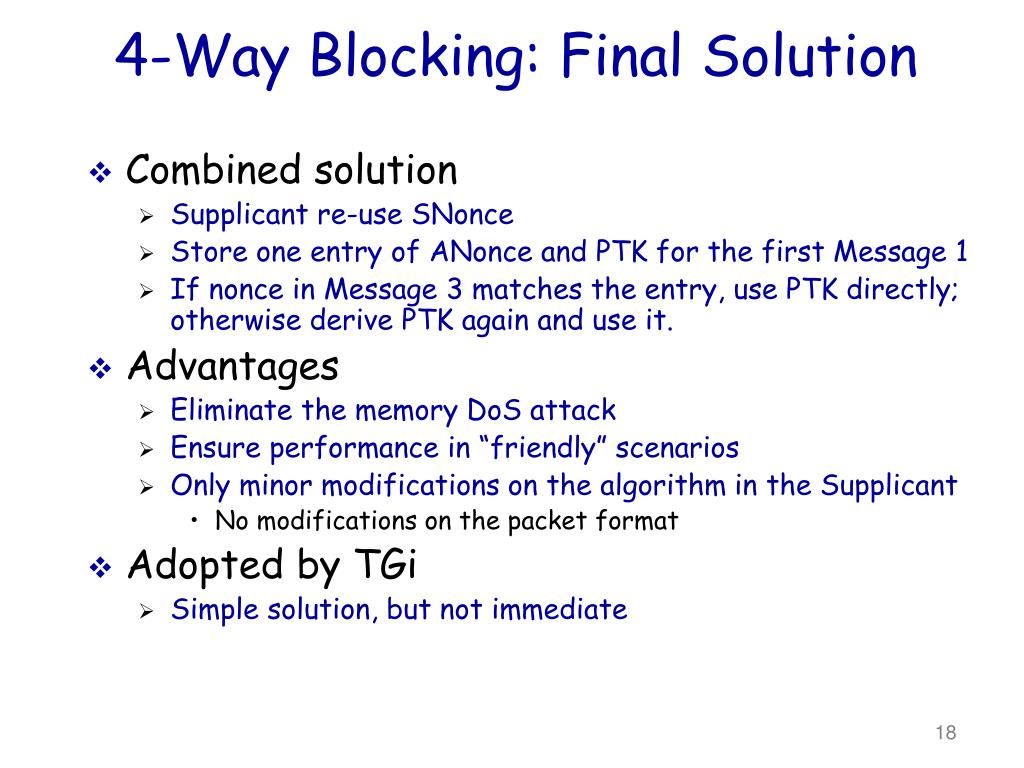

  18. 4-Way Blocking: Final Solution • Combined solution • Supplicant re-use SNonce • Store one entry of ANonce and PTK for the first Message 1 • If nonce in Message 3 matches the entry, use PTK directly; otherwise derive PTK again and use it. • Advantages • Eliminate the memory DoS attack • Ensure performance in “friendly” scenarios • Only minor modifications on the algorithm in the Supplicant • No modifications on the packet format • Adopted by TGi • Simple solution, but not immediate

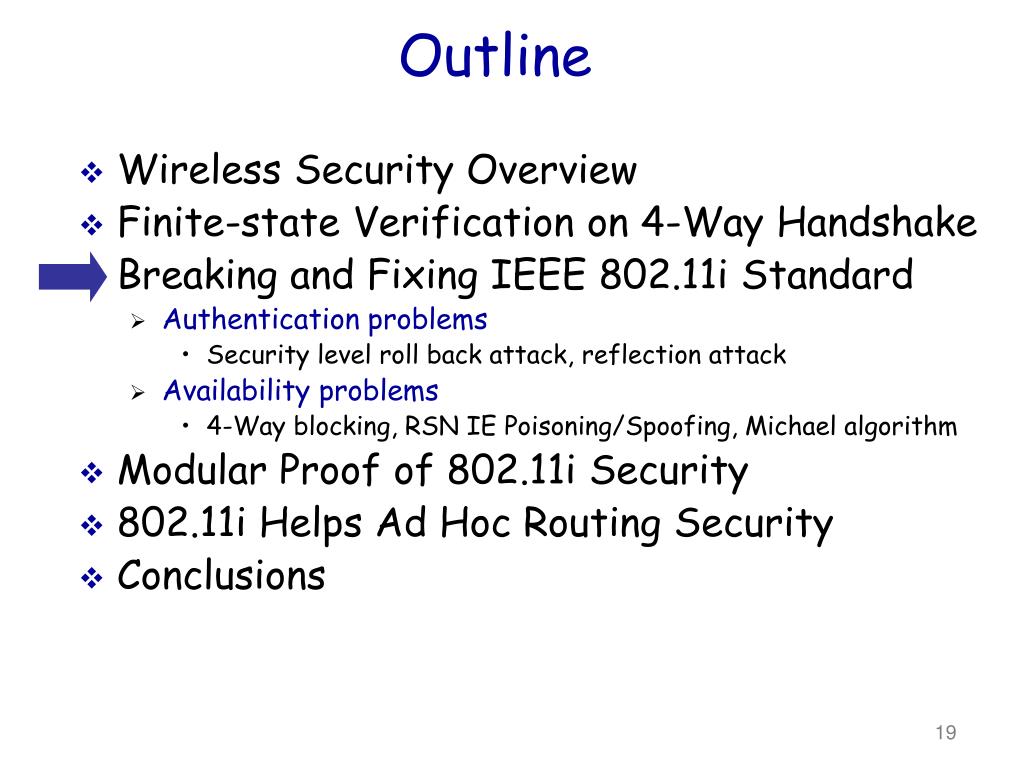

  19. Outline • Wireless Security Overview • Finite-state Verification on 4-Way Handshake • Breaking and Fixing IEEE 802.11i Standard • Authentication problems • Security level roll back attack, reflection attack • Availability problems • 4-Way blocking, RSN IE Poisoning/Spoofing, Michael algorithm • Modular Proof of 802.11i Security • 802.11i Helps Ad Hoc Routing Security • Conclusions

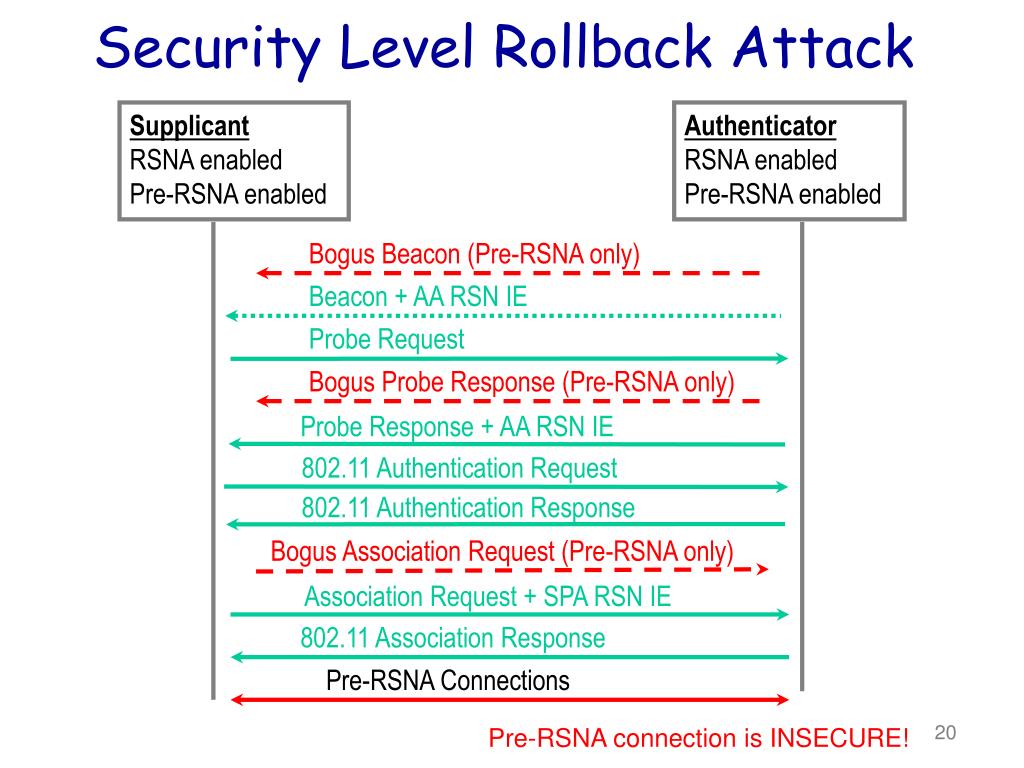

  20. Security Level Rollback Attack Bogus Beacon (Pre-RSNA only) Bogus Probe Response (Pre-RSNA only) Bogus Association Request (Pre-RSNA only) Pre-RSNA Connections Supplicant RSNA enabled Pre-RSNA enabled AuthenticatorRSNA enabled Pre-RSNA enabled Beacon + AA RSN IE Probe Request Probe Response + AA RSN IE 802.11 Authentication Request 802.11 Authentication Response Association Request + SPA RSN IE 802.11 Association Response Pre-RSNA connection is INSECURE!

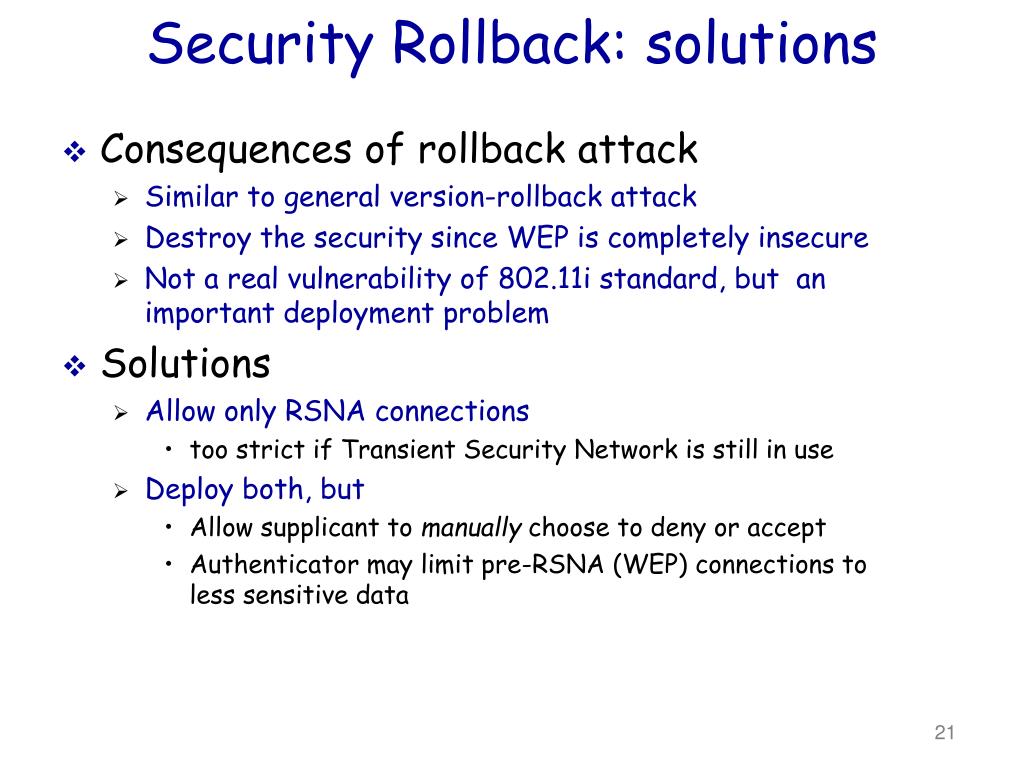

  21. Security Rollback: solutions • Consequences of rollback attack • Similar to general version-rollback attack • Destroy the security since WEP is completely insecure • Not a real vulnerability of 802.11i standard, but an important deployment problem • Solutions • Allow only RSNA connections • too strict if Transient Security Network is still in use • Deploy both, but • Allow supplicant to manually choose to deny or accept • Authenticator may limit pre-RSNA (WEP) connections to less sensitive data

  22. Reflection Attack {A1, Nonce1, sn, msg1} {A2, Nonce1, sn, msg1} {A1, Nonce2, RSN IE, sn, msg2, MIC} {A2, Nonce2, RSN IE, sn, msg2, MIC} {A1, Nonce1, RSN IE, GTK, sn+1, msg3, MIC} {A2, Nonce1, RSN IE, GTK, sn+1, msg3, MIC} {A1, sn+1, msg4, MIC} {SPA, sn+1, msg4, MIC} Bogus Authentication Peers Authenticated Adversary Impersonates Communicating Peers Legitimate Devices Authenticator and Supplicant

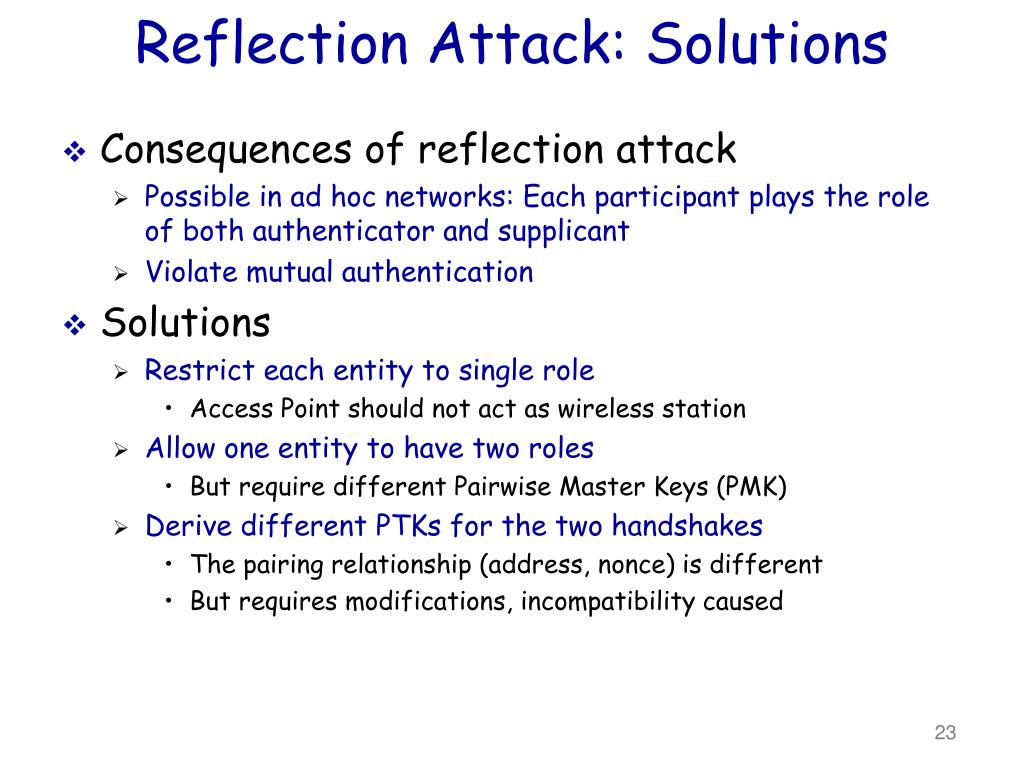

  23. Reflection Attack: Solutions • Consequences of reflection attack • Possible in ad hoc networks: Each participant plays the role of both authenticator and supplicant • Violate mutual authentication • Solutions • Restrict each entity to single role • Access Point should not act as wireless station • Allow one entity to have two roles • But require different Pairwise Master Keys (PMK) • Derive different PTKs for the two handshakes • The pairing relationship (address, nonce) is different • But requires modifications, incompatibility caused

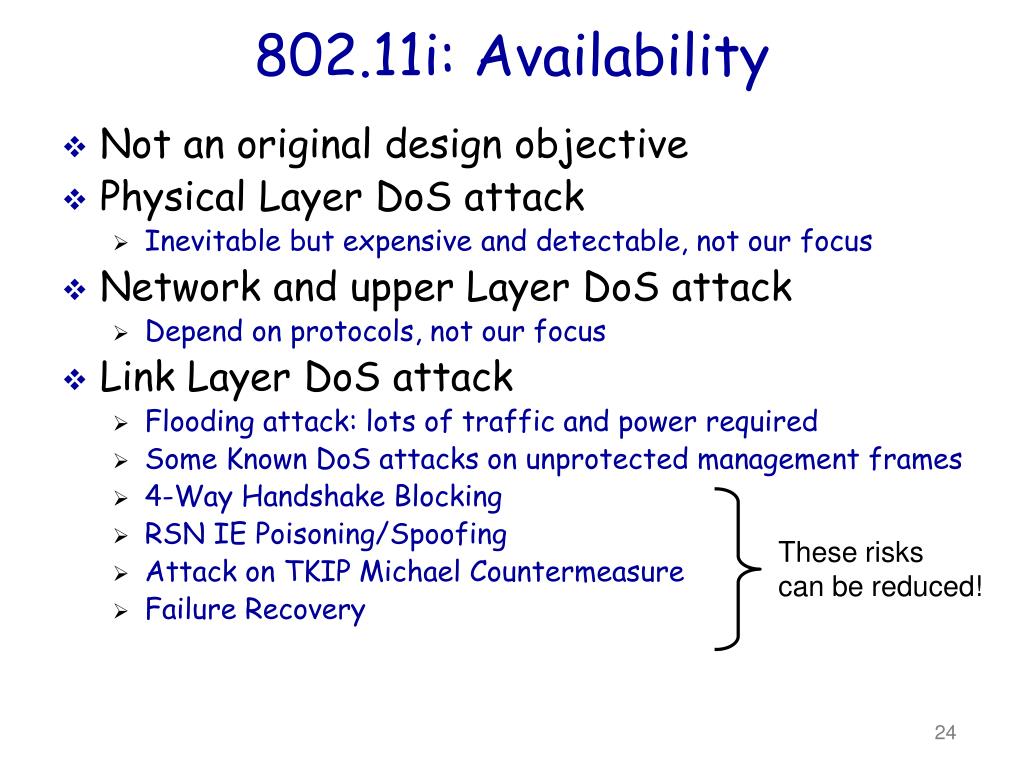

  24. 802.11i: Availability • Not an original design objective • Physical Layer DoS attack • Inevitable but expensive and detectable, not our focus • Network and upper Layer DoS attack • Depend on protocols, not our focus • Link Layer DoS attack • Flooding attack: lots of traffic and power required • Some Known DoS attacks on unprotected management frames • 4-Way Handshake Blocking • RSN IE Poisoning/Spoofing • Attack on TKIP Michael Countermeasure • Failure Recovery These risks can be reduced!

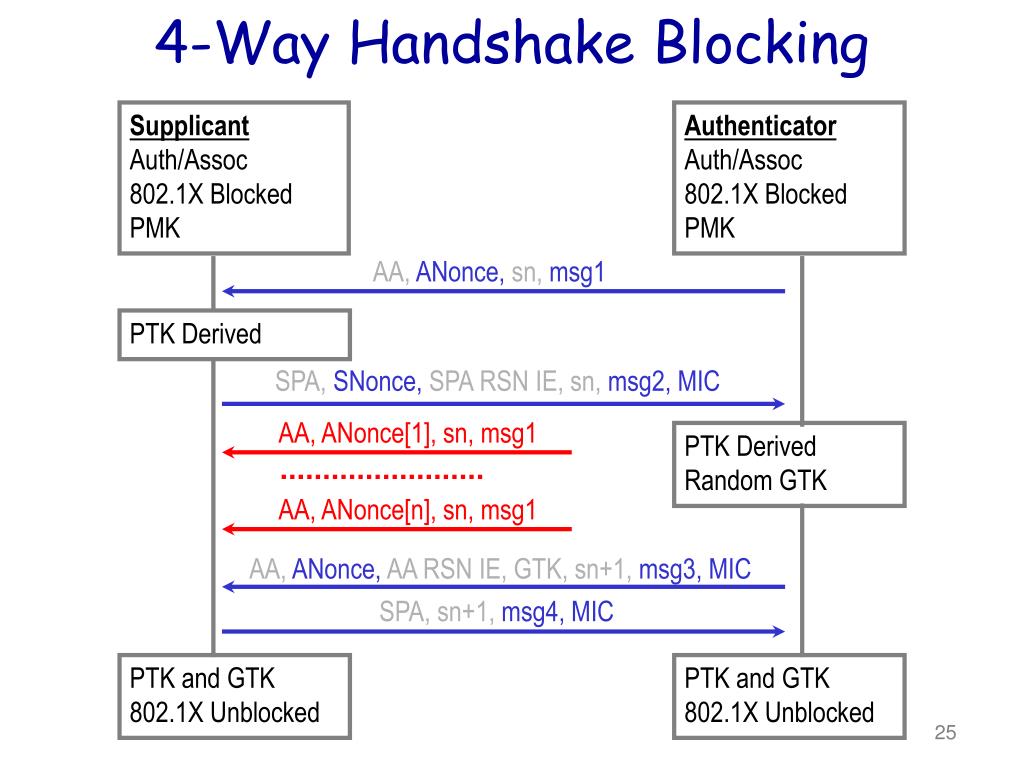

  25. 4-Way Handshake Blocking AA, ANonce, sn, msg1 SPA, SNonce, SPA RSN IE, sn, msg2, MIC AA, ANonce[1], sn, msg1 AA, ANonce[n], sn, msg1 Supplicant Auth/Assoc 802.1X Blocked PMK AuthenticatorAuth/Assoc 802.1X Blocked PMK PTK Derived PTK Derived Random GTK AA, ANonce, AA RSN IE, GTK, sn+1, msg3, MIC SPA, sn+1, msg4, MIC PTK and GTK 802.1X Unblocked PTK and GTK 802.1X Unblocked

  26. 4-Way Blocking: Solutions • Random-Drop Queue: not so effective • Authenticate Message 1 • Make use of the share PMK, but need to modify packet format • Re-use supplicant nonce • Supplicant re-use SNonce, eliminate memory DoS • Performance degradation, more computations in the supplicant • Combined solution (Adopted by TGi) • Supplicant re-use SNonce • Store one entry of received ANonce and derived PTK • If ANonce in Message 3 matches the entry, use PTK directly; otherwise derive PTK from Message 3 and use it • Eliminate the attack, ensure performance in “friendly” scenarios, only minor modifications on the algorithm

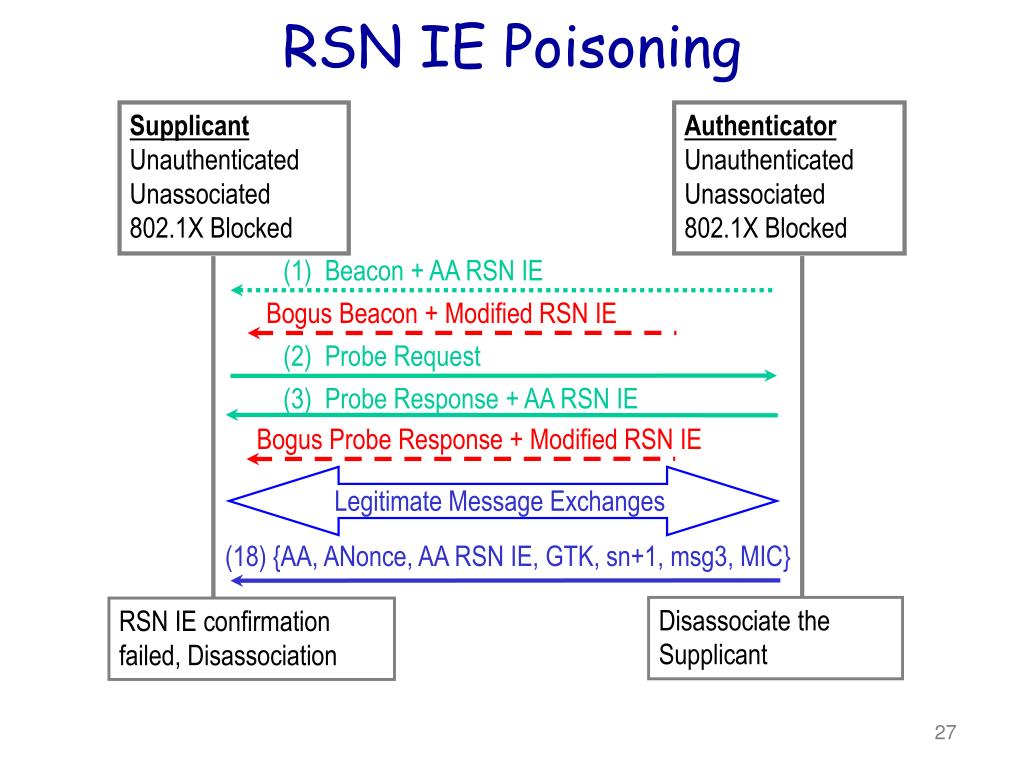

  27. RSN IE Poisoning Bogus Beacon + Modified RSN IE Bogus Probe Response + Modified RSN IE Disassociate the Supplicant RSN IE confirmation failed, Disassociation Supplicant Unauthenticated Unassociated 802.1X Blocked AuthenticatorUnauthenticated Unassociated 802.1X Blocked (1) Beacon + AA RSN IE (2) Probe Request (3) Probe Response + AA RSN IE Legitimate Message Exchanges (18) {AA, ANonce, AA RSN IE, GTK, sn+1, msg3, MIC}

  28. RSN IE Poisoning: Solutions • Consequences of RSN IE Poisoning • Less work for the attacker, easy to launch the attack • Lots of work for legitimate parties, wasting resources • Solutions • Authenticate management frames • Difficult to authenticate Beacon and Probe Response frame • Confirm RSN IE as soon as possible (EAP-TLS) • Necessary modifications on the standard • Relax the condition of RSN IE confirmation • Ignore insignificant bits, only confirm authentication suite • If authentication suite modified, probably fails at the beginning of associations and retry new APs

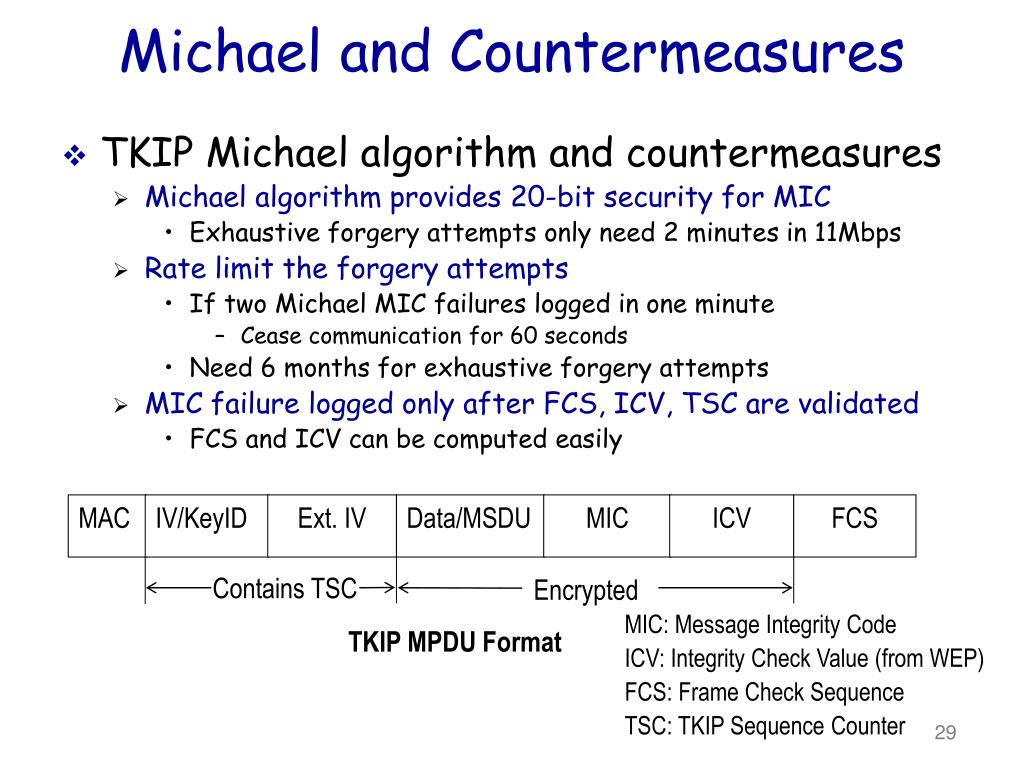

  29. Michael and Countermeasures MAC IV/KeyID Ext. IV Data/MSDU MIC ICV FCS Contains TSC Encrypted TKIP MPDUFormat • TKIP Michael algorithm and countermeasures • Michael algorithm provides 20-bit security for MIC • Exhaustive forgery attempts only need 2 minutes in 11Mbps • Rate limit the forgery attempts • If two Michael MIC failures logged in one minute • Cease communication for 60 seconds • Need 6 months for exhaustive forgery attempts • MIC failure logged only after FCS, ICV, TSC are validated • FCS and ICV can be computed easily MIC: Message Integrity Code ICV: Integrity Check Value (from WEP) FCS: Frame Check Sequence TSC: TKIP Sequence Counter

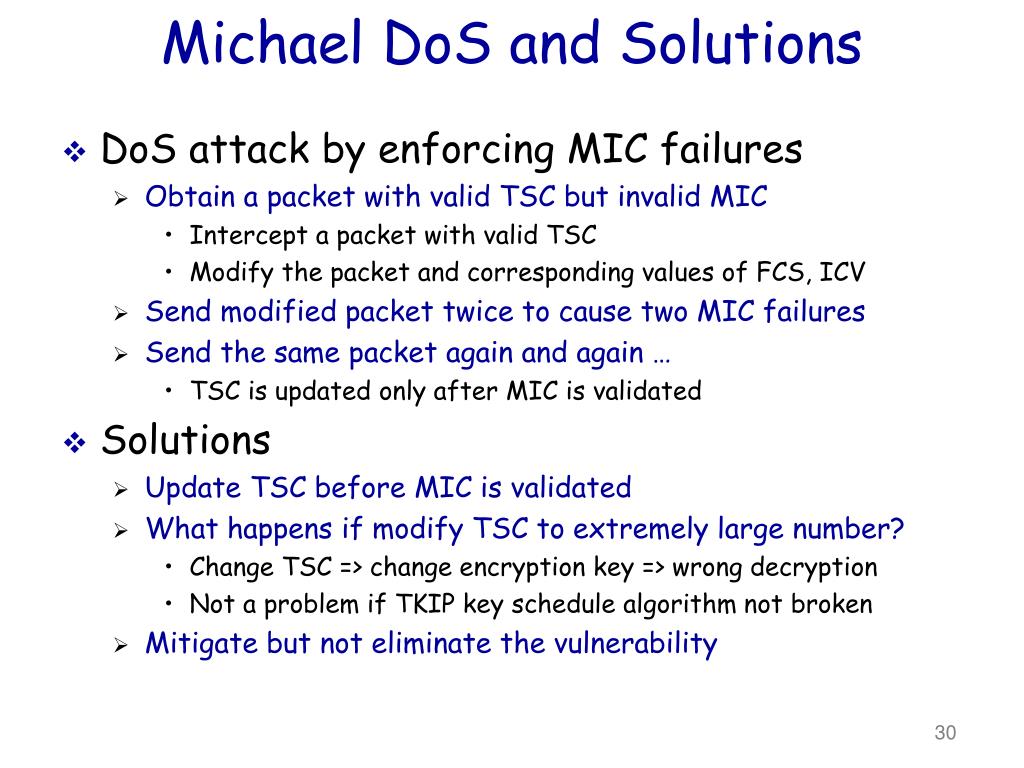

  30. Michael DoS and Solutions • DoS attack by enforcing MIC failures • Obtain a packet with valid TSC but invalid MIC • Intercept a packet with valid TSC • Modify the packet and corresponding values of FCS, ICV • Send modified packet twice to cause two MIC failures • Send the same packet again and again … • TSC is updated only after MIC is validated • Solutions • Update TSC before MIC is validated • What happens if modify TSC to extremely large number? • Change TSC => change encryption key => wrong decryption • Not a problem if TKIP key schedule algorithm not broken • Mitigate but not eliminate the vulnerability

  31. Unprotected Management Frame • DoS attacks on plain 802.11 networks • Forge the management frame • Deauthentication/Disassociation • Exploit virtual carrier sense mechanism • Forge unprotected control frame RTS/CTS • 802.11i still has these problems, solutions could be • Authenticate management frames • Validate virtual carrier sense in control frames • DoS attacks on EAP messages • Forge EAPOL-Start/Success/Logoff/Failure packets • 802.11i can eliminate these by simply ignoring such messages ! • Send more than 255 association requests • Exhaust EAP identifier space (8 bits) • Solution: separate EAP identifier counter for each association [Arbaugh et al 01] [Lynn02] [Moore02] [Bellardo et al 03] [Chen04] …

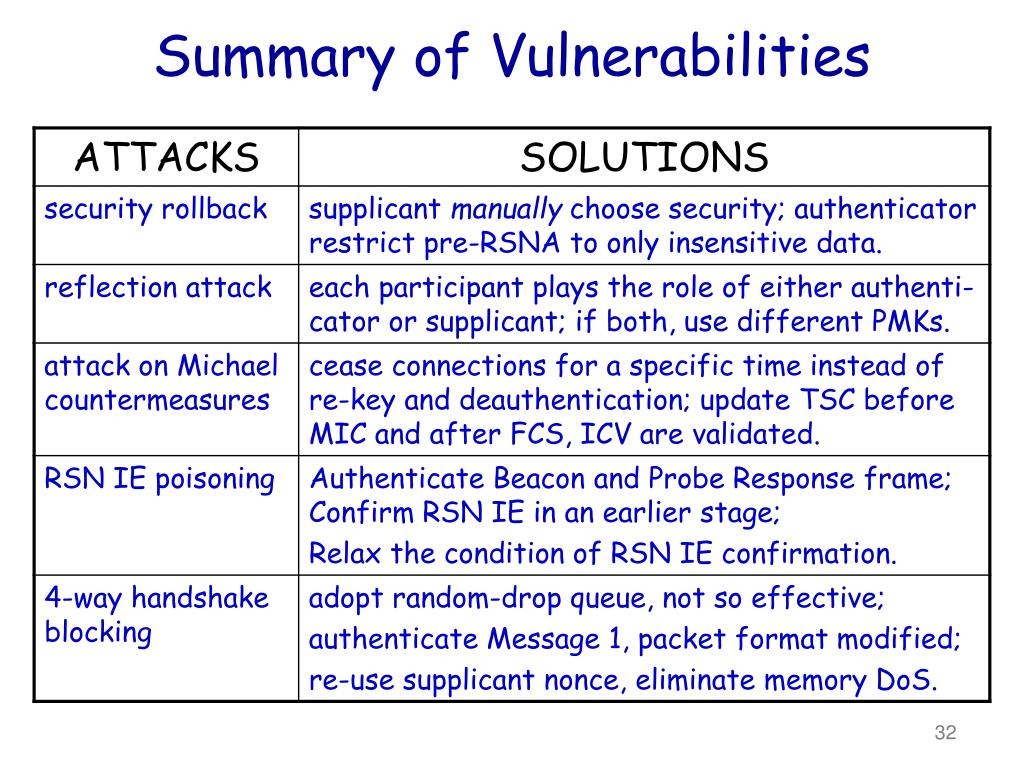

  32. Summary of Vulnerabilities

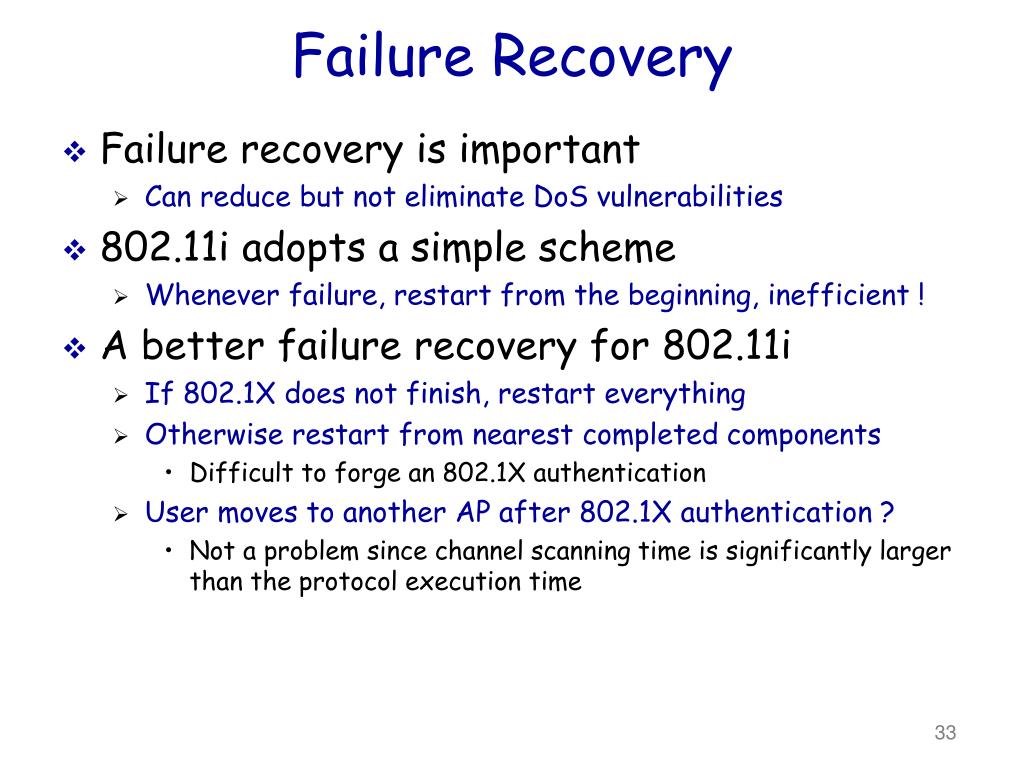

  33. Failure Recovery • Failure recovery is important • Can reduce but not eliminate DoS vulnerabilities • 802.11i adopts a simple scheme • Whenever failure, restart from the beginning, inefficient ! • A better failure recovery for 802.11i • If 802.1X does not finish, restart everything • Otherwise restart from nearest completed components • Difficult to forge an 802.1X authentication • User moves to another AP after 802.1X authentication ? • Not a problem since channel scanning time is significantly larger than the protocol execution time

  34. Improved 802.11i Architecture Stage 1: Network and Security Capability Discovery Stage 2: 802.1X Authentication (mutual authentication, shared secret, cipher suite) 802.1X Failure Stage 3: Secure Association (management frames protected) Association Failure Stage 4: 4-Way Handshake (PMK confirmation, PTK derivation, and GTK distribution) 4-Way Handshake Timout Stage 5: Group Key Handshake Group Key Handshake Timout Stage 6: Secure Data Communications Michael MIC Failure or Other Security Failures

  35. Outline • Wireless Security Overview • Finite-state Verification on 4-Way Handshake • Breaking and Fixing IEEE 802.11i Standard • Modular Proof of 802.11i Security • Correctness Proof of each components • Staged composition of 802.11i • 802.11i Helps Ad Hoc Routing Security • Conclusions

  36. General Ideas • Proof of security is necessary and useful • “Head-scratching” approach is inconvincible • Finite-state verification is incomplete • Proof for unbounded number of participants and sessions • Intuition • Reason about local information • I know my own actions and private data • Incorporate knowledge of protocol • Honest people faithfully follow the protocol • No explicit reasoning about intruder • Divide-and-conquer paradigm in security • Divide a large protocol into several components • Reason the security properties of each component • Analyze the compositions of all components

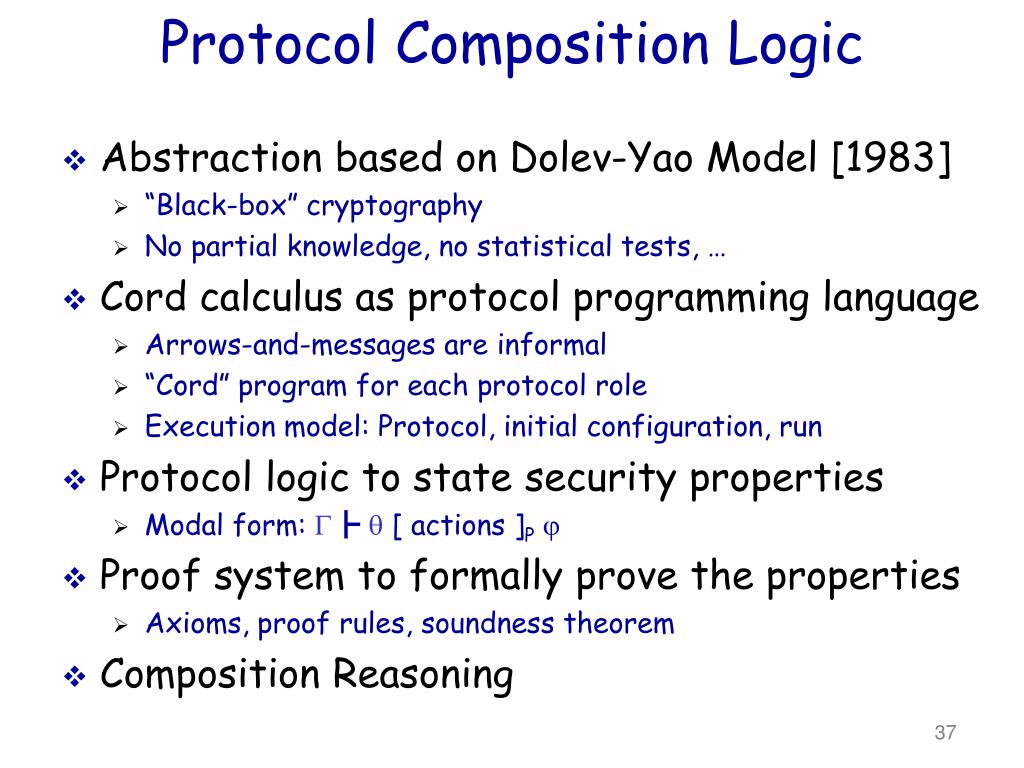

  37. Protocol Composition Logic • Abstraction based on Dolev-Yao Model [1983] • “Black-box” cryptography • No partial knowledge, no statistical tests, … • Cord calculus as protocol programming language • Arrows-and-messages are informal • “Cord” program for each protocol role • Execution model: Protocol, initial configuration, run • Protocol logic to state security properties • Modal form: ┣ [ actions ]P • Proof system to formally prove the properties • Axioms, proof rules, soundness theorem • Composition Reasoning

  38. 4-Way Authenticator Formalism Key Secrecy 4way,sec Honest(X)  Honest(Y)  Has(X, PTKXY)  Has(Y, PTKXY)  (Has(Z, PTKXY)  (Z = X  Z = Y)) Session Authentication4way,auth Y. Honest(X)  Honest(Y)  ActionsInOrder( Send(X, {X, Y, Message 1}), Receive(Y, {X, Y, Message 1}), Send(Y, {Y, X, Message 2}), Receive(X, {Y, X, Message 2}), Send(X, {X, Y, Message 3}), Receive(Y, {X, Y, Message 3}), Send(Y, {Y, X, Message 4}), Receive(X, {Y, X, Message 4})) 4WAY:AUTH = (X, Y, PMKXY)[ new x; send X, Y, x, m1; receive Y, X, z; match z/y,m2,mic1; match Hash(PMKXY,x,y)/ PTKXY; match mic1/Hash(PTKXY,y,m2); send X,Y,x,m3,Hash(PTKXY,x,m3); receive Y, X, w; match w/m4, mic2; match mic2/Hash(PTKXY, m4)]X Pre-condition θ4way Has(X, PMKXY)  Has(Y, PMKXY)  (Has(Z, PMKXY)  (Z = X  Z = Y))

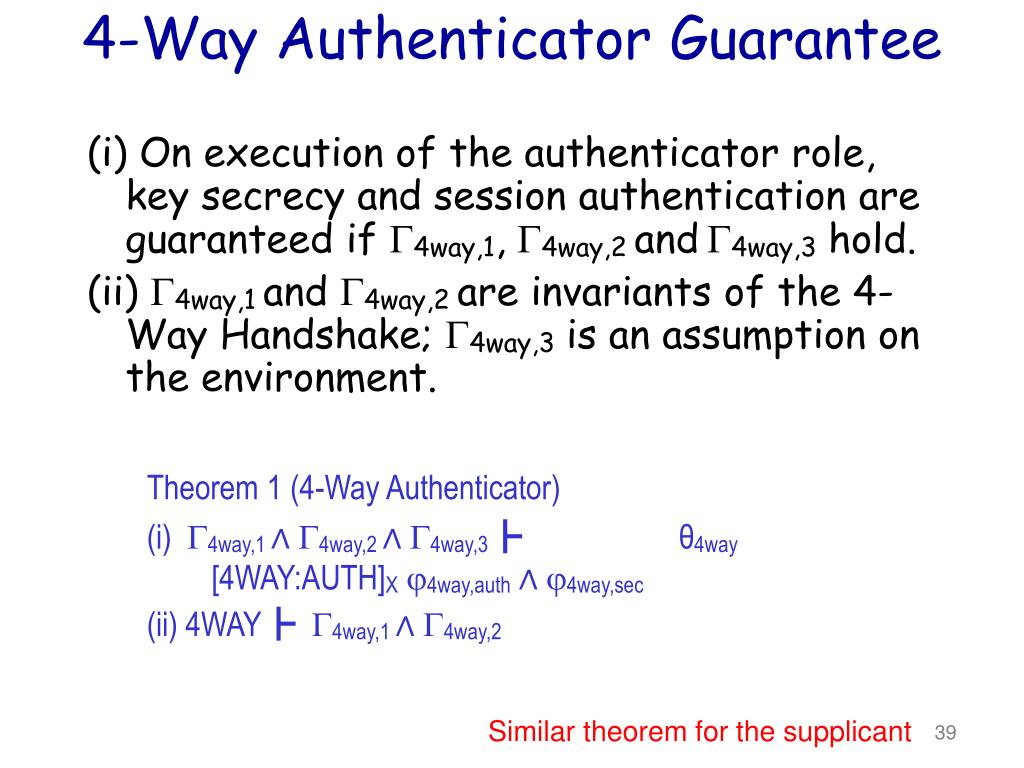

  39. 4-Way Authenticator Guarantee Theorem 1 (4-Way Authenticator) (i) 4way,1 ∧ 4way,2 ∧ 4way,3┣ θ4way [4WAY:AUTH]X4way,auth∧ 4way,sec (ii) 4WAY┣ 4way,1 ∧ 4way,2 (i) On execution of the authenticator role, key secrecy and session authentication are guaranteed if 4way,1, 4way,2 and4way,3 hold. (ii) 4way,1 and 4way,2 are invariants of the 4-Way Handshake; 4way,3 is an assumption on the environment. Similar theorem for the supplicant

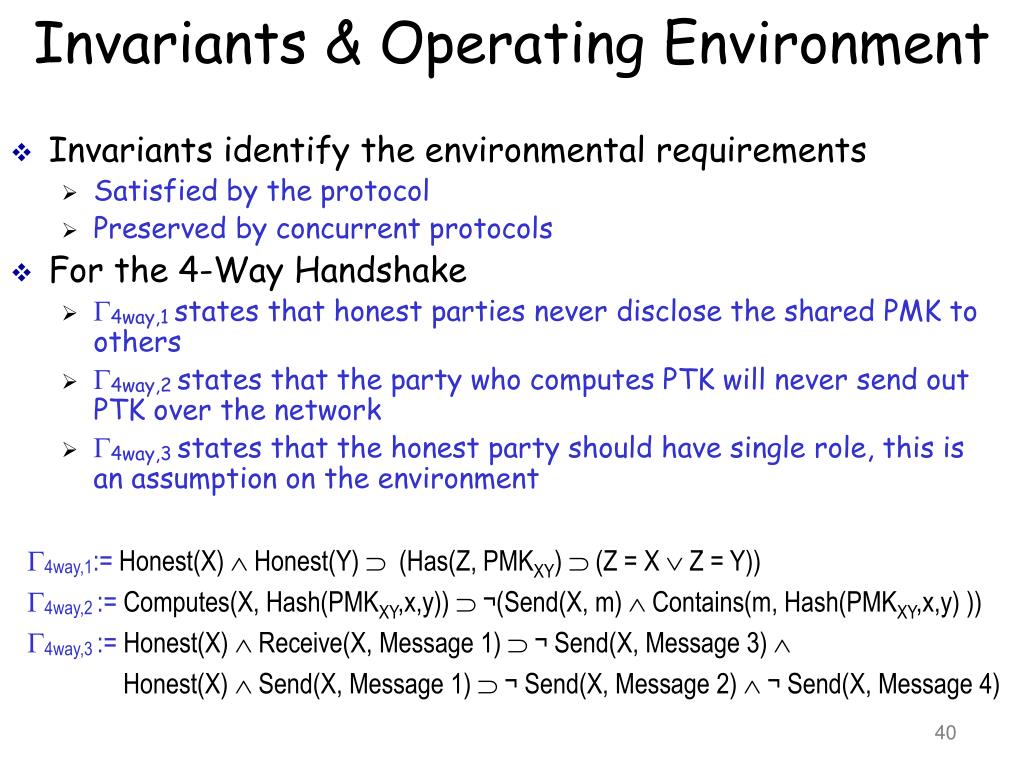

  40. Invariants & Operating Environment • Invariants identify the environmental requirements • Satisfied by the protocol • Preserved by concurrent protocols • For the 4-Way Handshake • 4way,1 states that honest parties never disclose the shared PMK to others • 4way,2 states that the party who computes PTK will never send out PTK over the network • 4way,3 states that the honest party should have single role, this is an assumption on the environment 4way,1:= Honest(X)  Honest(Y)  (Has(Z, PMKXY)  (Z = X  Z = Y)) 4way,2 := Computes(X, Hash(PMKXY,x,y)) ¬(Send(X, m)  Contains(m, Hash(PMKXY,x,y) )) 4way,3 := Honest(X)  Receive(X, Message 1) ¬ Send(X, Message 3)  Honest(X)  Send(X, Message 1) ¬ Send(X, Message 2)  ¬ Send(X, Message 4)

  41. Results for Other Components • Improved 4-Way Handshake • Re-use SNonce in the supplicant to eliminate DoS • While{…} loop to express the protocol • Same guarantees for key secrecy and session authentication • TLS • key secrecy and session authentication, similar to 4-Way • Both side proofs • Identify the operational environment • Group Key Handshake • Key ordering for the supplicant • Key secrecy for the authenticator • Identify the operational environment

  42. 802.11i: Staged Composition • Control Flow • Intended run is sequential • Different Failure Recovery mechanisms can be implemented for efficiency • Periodically update Group Key, PTK, PMK (omit here) • Hybrid modes • Pre-Shared Key (PSK) used directly instead of EAP authentication methods • Cached PMK might be used for mobile users • Alternatives for EAP-TLS, e.g., PEAP, LEAP EAP-TLS PMK 4-Way PTK Group Key GTK Data Transmission

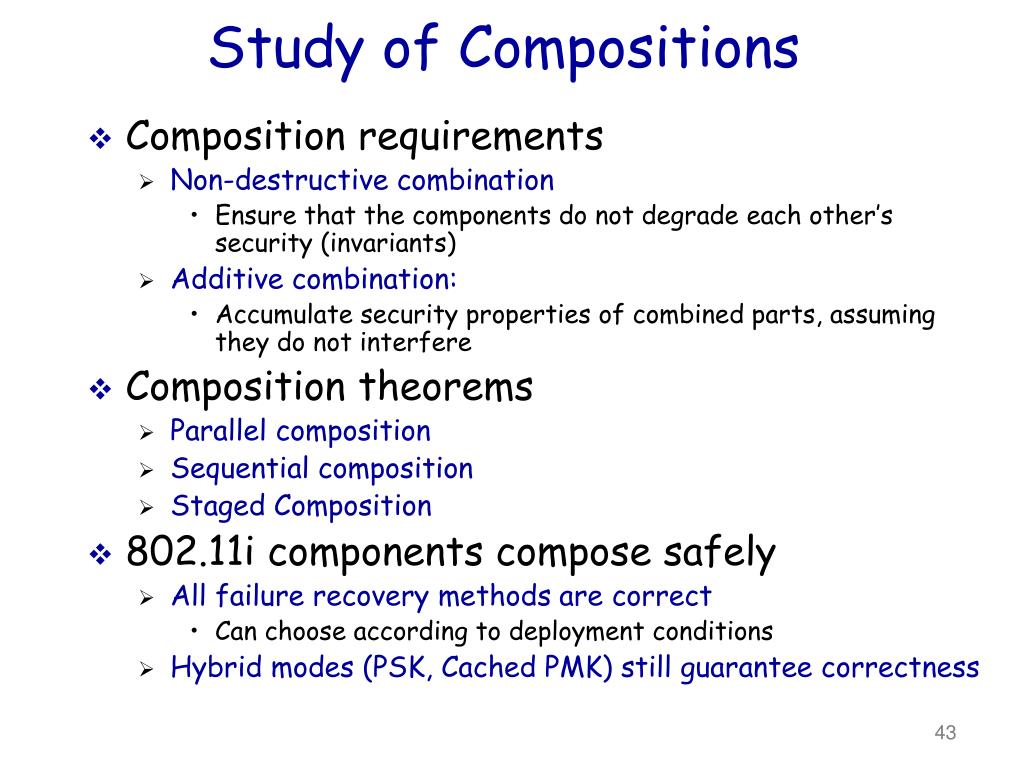

  43. Study of Compositions • Composition requirements • Non-destructive combination • Ensure that the components do not degrade each other’s security (invariants) • Additive combination: • Accumulate security properties of combined parts, assuming they do not interfere • Composition theorems • Parallel composition • Sequential composition • Staged Composition • 802.11i components compose safely • All failure recovery methods are correct • Can choose according to deployment conditions • Hybrid modes (PSK, Cached PMK) still guarantee correctness

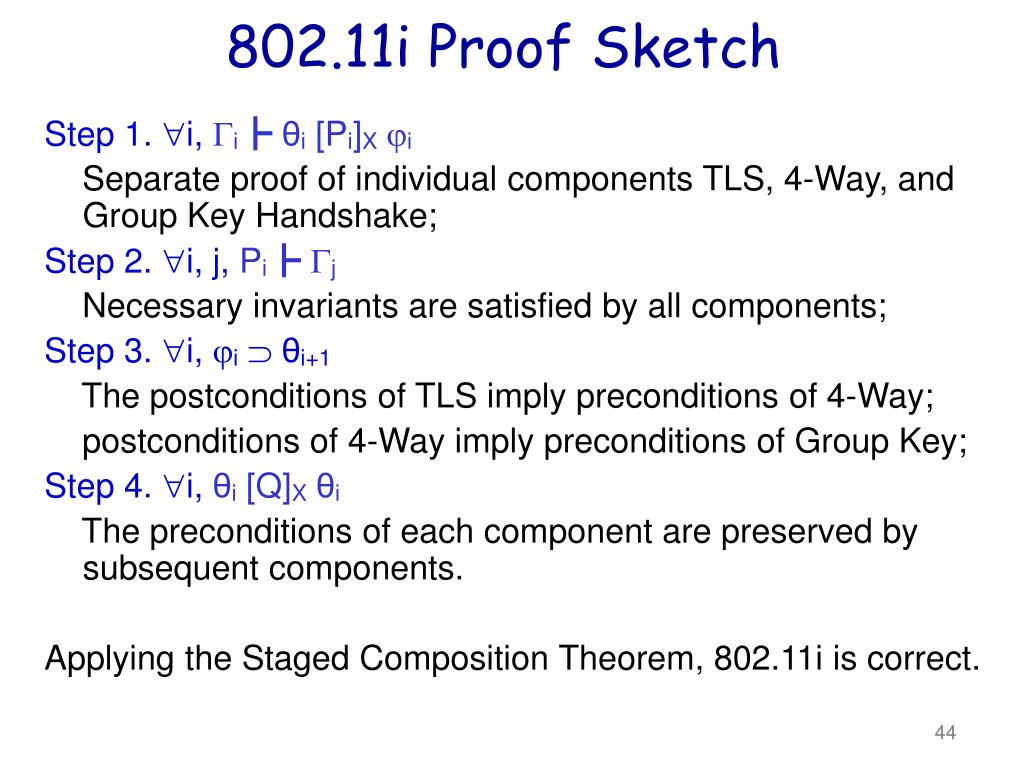

  44. 802.11i Proof Sketch Step 1.i,i┣ θi [Pi]Xi Separate proof of individual components TLS, 4-Way, and Group Key Handshake; Step 2.i, j,Pi┣ j Necessary invariants are satisfied by all components; Step 3.i,i θi+1 The postconditions of TLS imply preconditions of 4-Way; postconditions of 4-Way imply preconditions of Group Key; Step 4.i,θi [Q]Xθi The preconditions of each component are preserved by subsequent components. Applying the Staged Composition Theorem, 802.11i is correct.

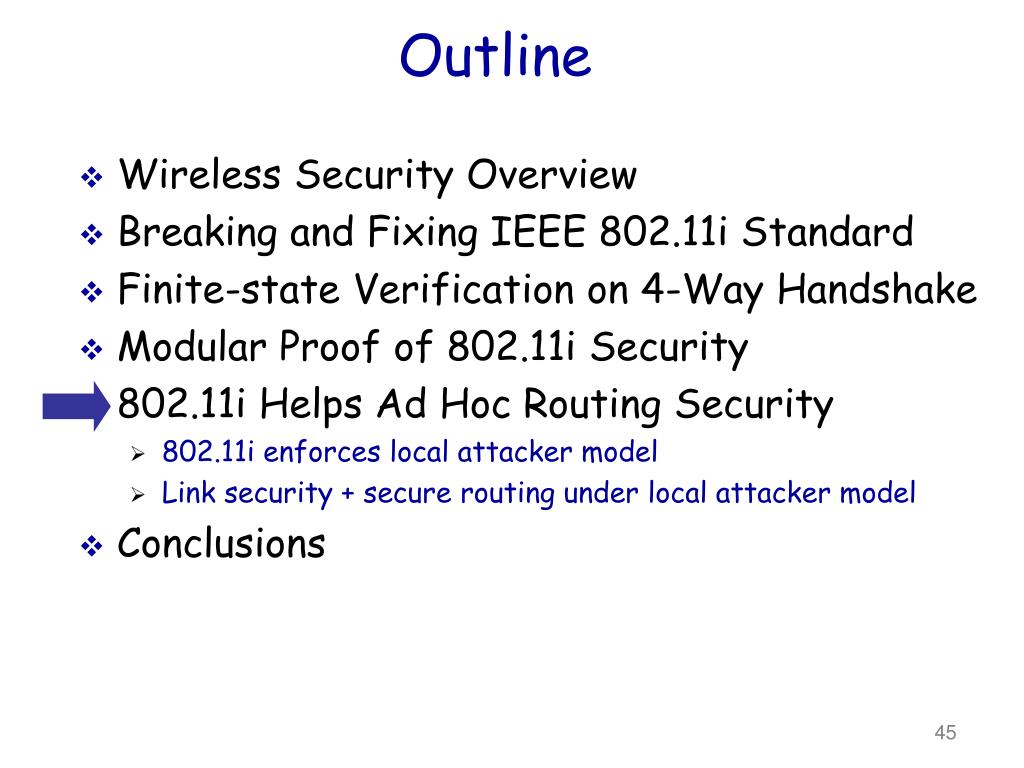

  45. Outline • Wireless Security Overview • Breaking and Fixing IEEE 802.11i Standard • Finite-state Verification on 4-Way Handshake • Modular Proof of 802.11i Security • 802.11i Helps Ad Hoc Routing Security • 802.11i enforces local attacker model • Link security + secure routing under local attacker model • Conclusions

  46. Ad Hoc Routing Security • Secure routing is important • Previous work: common routing + cryptographic improvements • Most proposals based on on-demand (reactive) routing • No false route accepted • Common problems • Many secure routing is very complicated • Some attacks are still possible • Assume key management among everybody prior to routing • Motivations • To make it secure, keep it simple ! • 802.11i is supposed to be widely deployed, can we take advantage of that?

  47. Observations A F D S T E B C • 802.11i provides hop-by-hop security • Neighborhood authentication + Identity Binding • IPsec or other protocols to provide end-to-end security • If all good nodes, common routing protocol works • Compromised nodes can cause problems • Link layer security => Local Attacker model • Eliminate outside attacker, only inside attacker • Reduce global attacker to local attacker

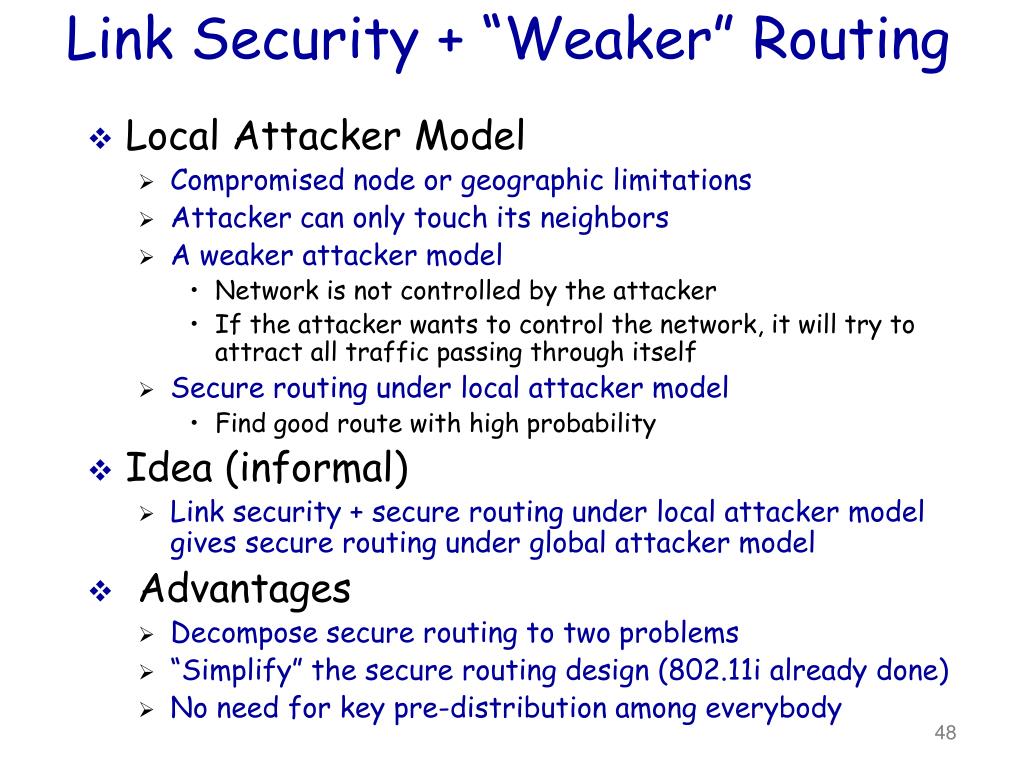

  48. Link Security + “Weaker” Routing • Local Attacker Model • Compromised node or geographic limitations • Attacker can only touch its neighbors • A weaker attacker model • Network is not controlled by the attacker • If the attacker wants to control the network, it will try to attract all traffic passing through itself • Secure routing under local attacker model • Find good route with high probability • Idea (informal) • Link security + secure routing under local attacker model gives secure routing under global attacker model • Advantages • Decompose secure routing to two problems • “Simplify” the secure routing design (802.11i already done) • No need for key pre-distribution among everybody

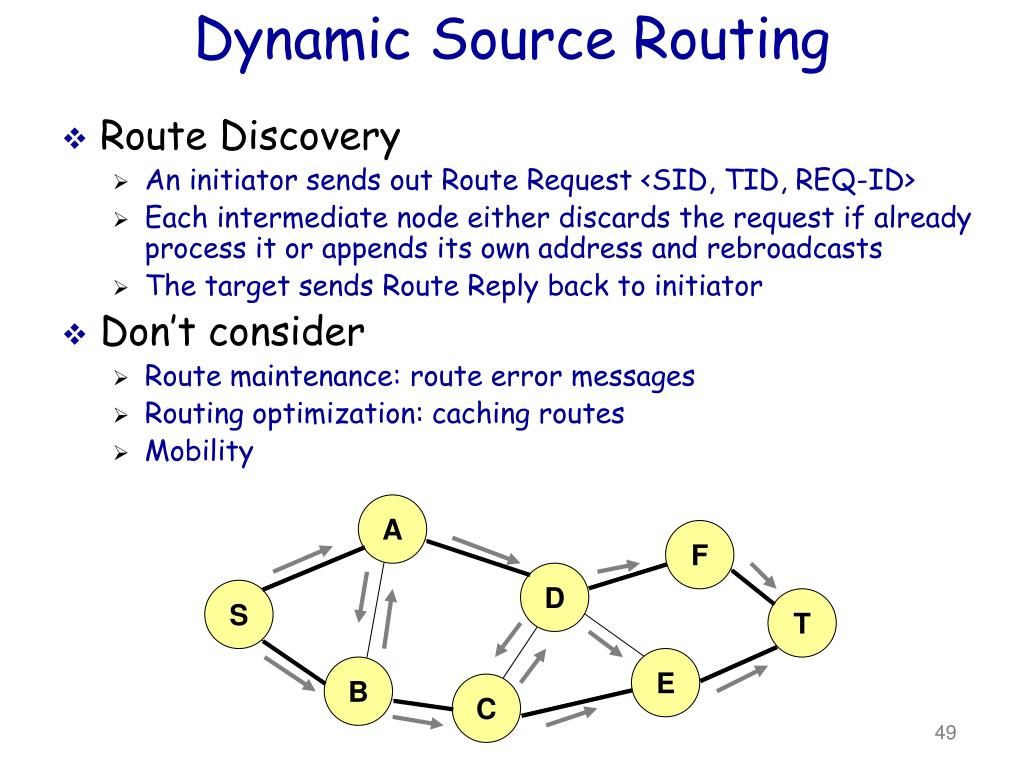

  49. Dynamic Source Routing A F D S T E B C • Route Discovery • An initiator sends out Route Request <SID, TID, REQ-ID> • Each intermediate node either discards the request if already process it or appends its own address and rebroadcasts • The target sends Route Reply back to initiator • Don’t consider • Route maintenance: route error messages • Routing optimization: caching routes • Mobility

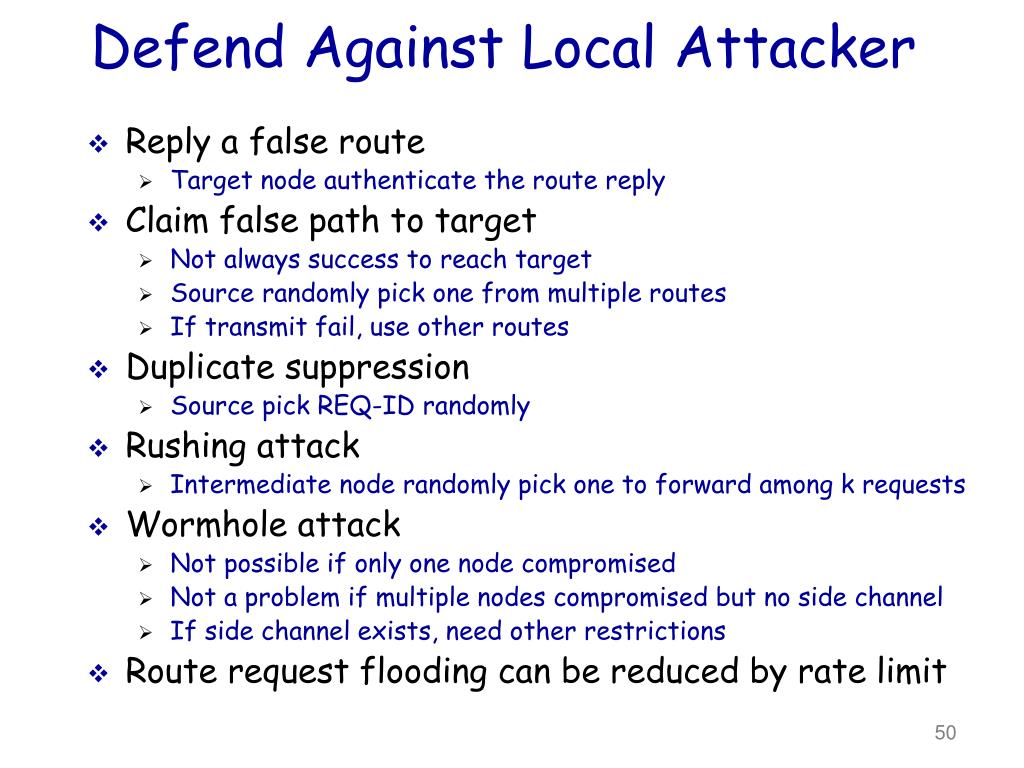

  50. Defend Against Local Attacker • Reply a false route • Target node authenticate the route reply • Claim false path to target • Not always success to reach target • Source randomly pick one from multiple routes • If transmit fail, use other routes • Duplicate suppression • Source pick REQ-ID randomly • Rushing attack • Intermediate node randomly pick one to forward among k requests • Wormhole attack • Not possible if only one node compromised • Not a problem if multiple nodes compromised but no side channel • If side channel exists, need other restrictions • Route request flooding can be reduced by rate limit
