  1. 4 0 1 . 0 2 Airspace

  2. Domestic Airspace • Canadian Domestic Airspace includes all airspace over the Canadian land mass and the Canadian Arctic and certain areas over the high seas.

  3. Domestic Airspace is divided into two areas. They are: • Northern Domestic Airspace • Close proximity to the magnetic pole. Compass is hard to read here. • Southern Domestic Airspace • Most areas within Canada fall into this division. Most aircraft fly at set altitudes.

  4. Altimeter Regions • Altimeter Setting Region • Prior to take-off or landing, a pilot will set the aircraft's altimeter to the nearest aerodrome. • Standard Pressure Region • Includes areas mostly in the north and airspace above 18,000 feet. Altimeters are set to the standard setting of 29.92”Hg.

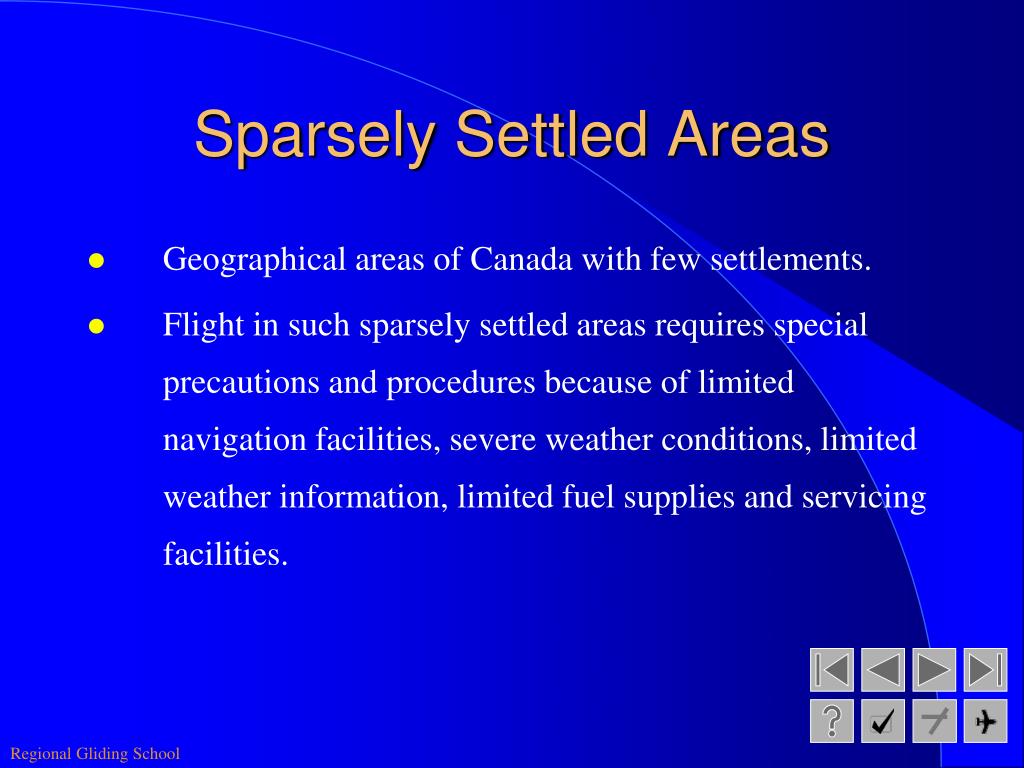

  5. Sparsely Settled Areas • Geographical areas of Canada with few settlements. • Flight in such sparsely settled areas requires special precautions and procedures because of limited navigation facilities, severe weather conditions, limited weather information, limited fuel supplies and servicing facilities.

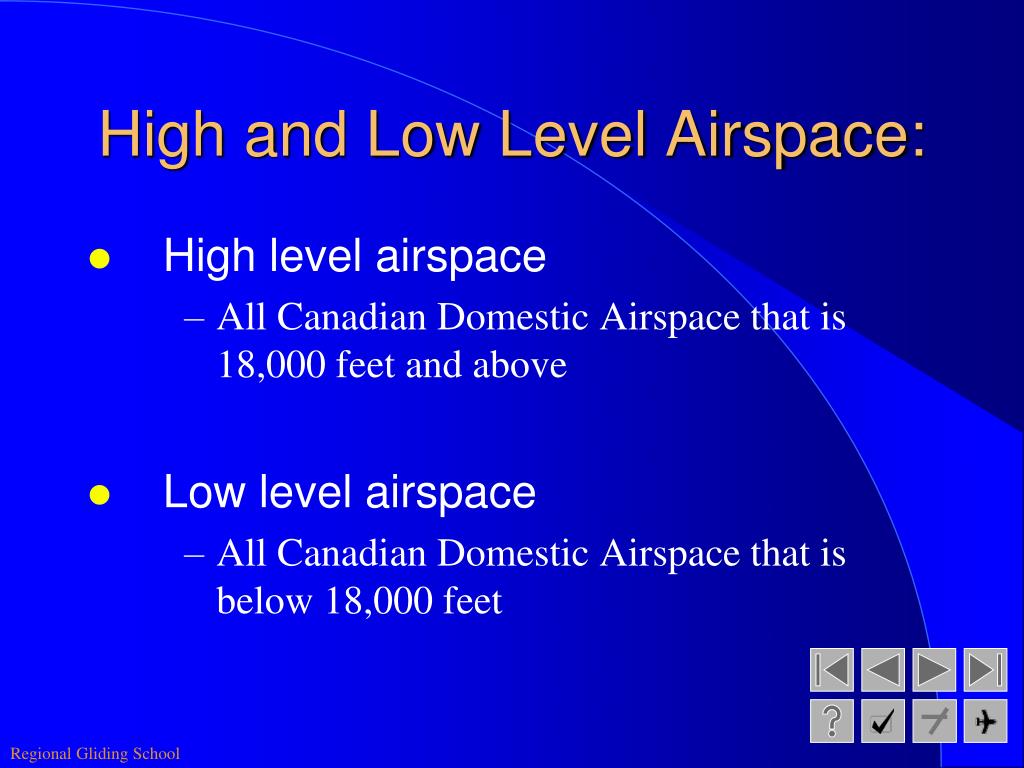

  6. High and Low Level Airspace: • High level airspace • All Canadian Domestic Airspace that is 18,000 feet and above • Low level airspace • All Canadian Domestic Airspace that is below 18,000 feet

  7. Confirmation Stage NOTE: You must use the buttons in the Confirmation Stage

  8. Aeronautical Rules And Facilities Airspace Let's try a few review questions on Aeronautical Rules and Facilities: Question #1 - What is the airspace above 18,000 feet where the altimeter is set to 29.92”Hg called? A Domestic airspace B Northern domestic airspace C Altimeter setting region D Standard pressure region

  9. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  10. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  11. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  12. Flying Scholarship Program That answer iscorrect. Let's move on...

  13. Aeronautical Rules And Facilities Airspace Let's try a few review questions on Aeronautical Rules and Facilities: Question #2 - What name is given to the geographical areas of Canada with few settlements? A Settlements B Sparsely settled areas C Domestic land D Northern domestic land

  14. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  15. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  16. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  17. Flying Scholarship Program That answer iscorrect. Let's move on...

  18. Airspace Classification This chart is a simplistic summarization of airspace and what is permitted within each classification. The X symbol means that the column heading is permitted. For more information about airspace, see the recommended readings section on the airfield. Click left mouse button to remove box

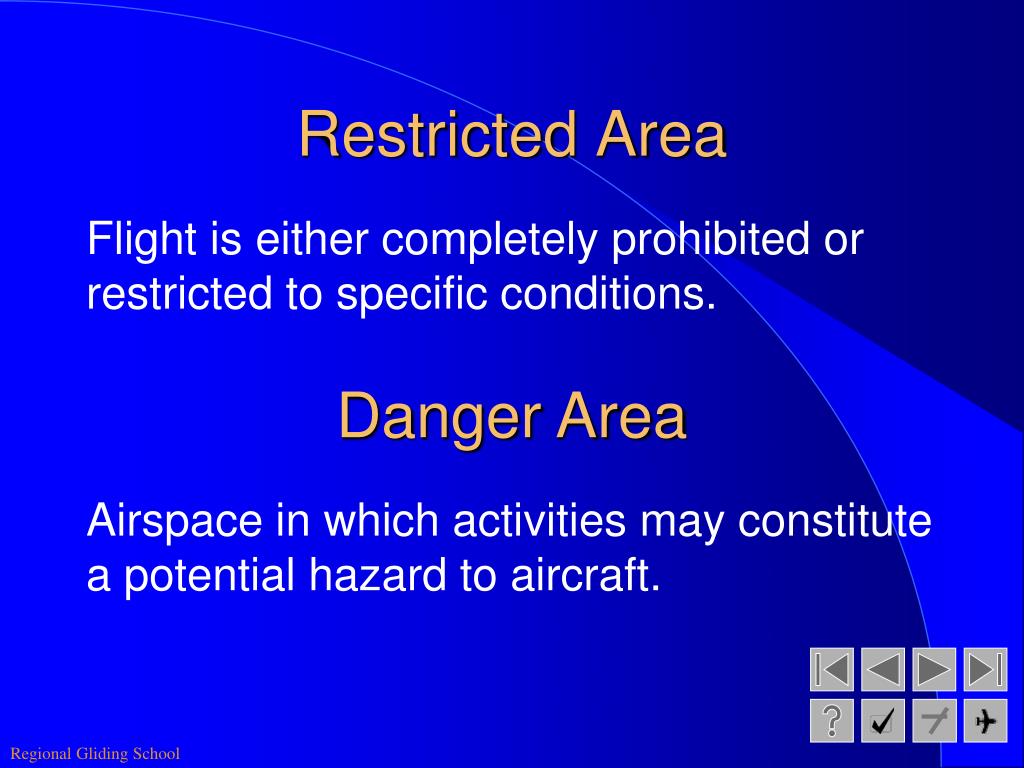

  19. Restricted Area Flight is either completely prohibited or restricted to specific conditions. Airspace in which activities may constitute a potential hazard to aircraft. Danger Area

  20. Alert Area Area in which a high volume of flying training or unusual type of aerial activity is carried out. Flight within these areas is not prohibited but pilots should exercise extreme caution.

  21. Military Flying Area High level airspace reserved for military flying and testing exercises. Civilian aircraft are not allowed in this area.

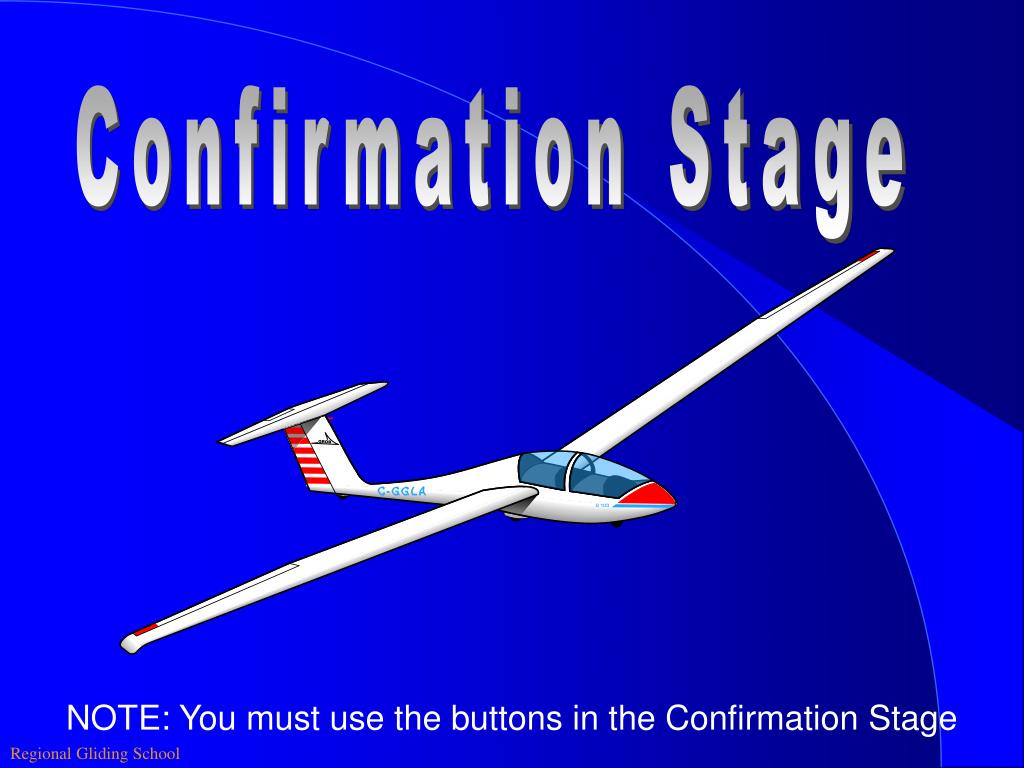

  22. Confirmation Stage NOTE: You must use the buttons in the Confirmation Stage

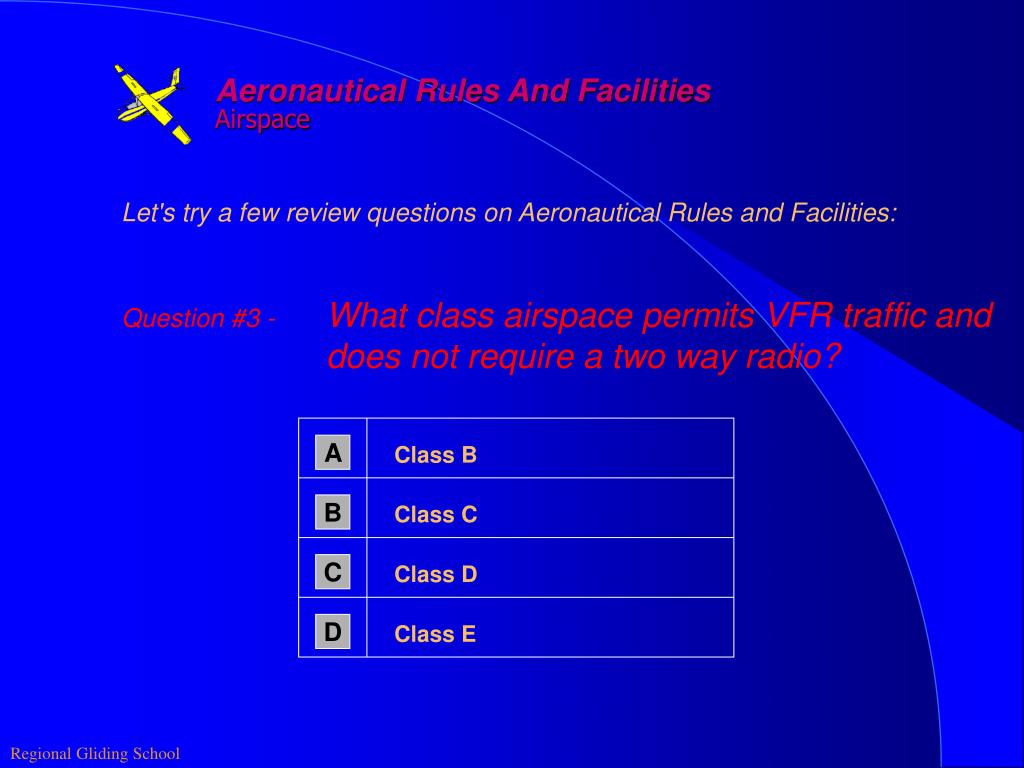

  23. Aeronautical Rules And Facilities Airspace Let's try a few review questions on Aeronautical Rules and Facilities: Question #3 - What class airspace permits VFR traffic and does not require a two way radio? A Class B B Class C C Class D D Class E

  24. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  25. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  26. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  27. Flying Scholarship Program That answer iscorrect. Let's move on...

  28. Aeronautical Rules And Facilities Airspace Let's try a few review questions on Aeronautical Rules and Facilities: Question #4 - What area has a high volume of training or unusual type of aerial activity is carried out? A Restricted area B Danger Area C Alert Area D Military flying area

  29. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  30. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  31. Flying Scholarship Program I’m afraid that answer is incorrect Let's try again...

  32. Flying Scholarship Program That answer iscorrect. Let's move on...

  33. Aeronautical Rules And Facilities Airspace Congratulations!! You have now completed the Airspace lesson of the Aeronautical Rules and Facilities Module. Of course, this lesson is always available to you for future reference if required. You are now ready to move along to the next Aeronautical Rules and Facilities lesson you have not completed or to any other module you wish. You can advance to the Self Test Module if you feel ready to challenge the final exam. Good Luck!
