Light pollution : A problem for humanity

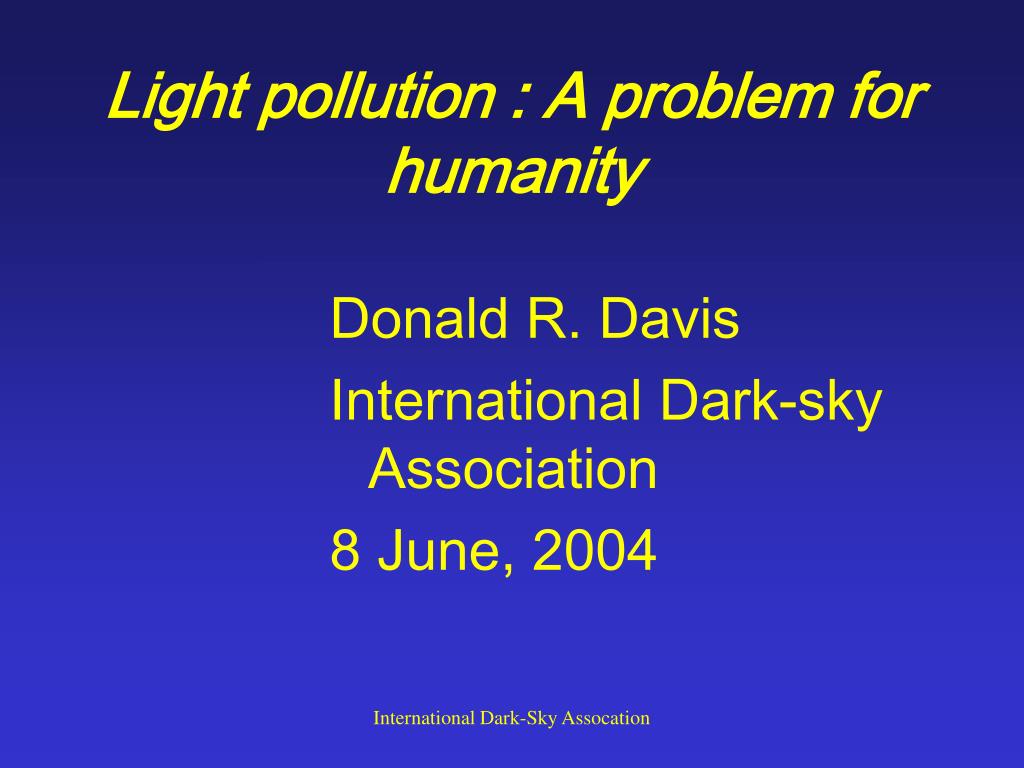

1. Donald R. Davis International Dark-sky Association 8 June, 2004 Light pollution : A problem for humanity International Dark-Sky Assocation

2. The Inspirational “Mortal as I am, I know that I am born for a day. But when I follow at my pleasure the serried multitude of the stars in their circular course, my feet no longer touch the earth.” --  Ptolemy, c.150 AD "Can we see the whole of life or only know a hemisphere of it before death? I've no idea of the answer myself. But the sight of stars always sets me dreaming…"-- Vincent Van Gogh "At night make me one with the darkness; in the morning make me one with the light." -- Wendell Berry Startling fact: For 80% of the US population, two-thirds of the EU population and one-fourth for the world population, night never comes. International Dark-Sky Assocation

3. Startling fact: Two thirds of the US population cannot see the Milky Way with the unaided eye from their back yards. Why not? International Dark-Sky Assocation

4. International Dark-Sky Assocation

5. Wildlife. Environment. Landscape. Human Activities. Light pollution has negative effects on: International Dark-Sky Assocation

6. The Earth is really bright! International Dark-Sky Assocation

7. International Dark-Sky Assocation

8. International Dark-Sky Assocation

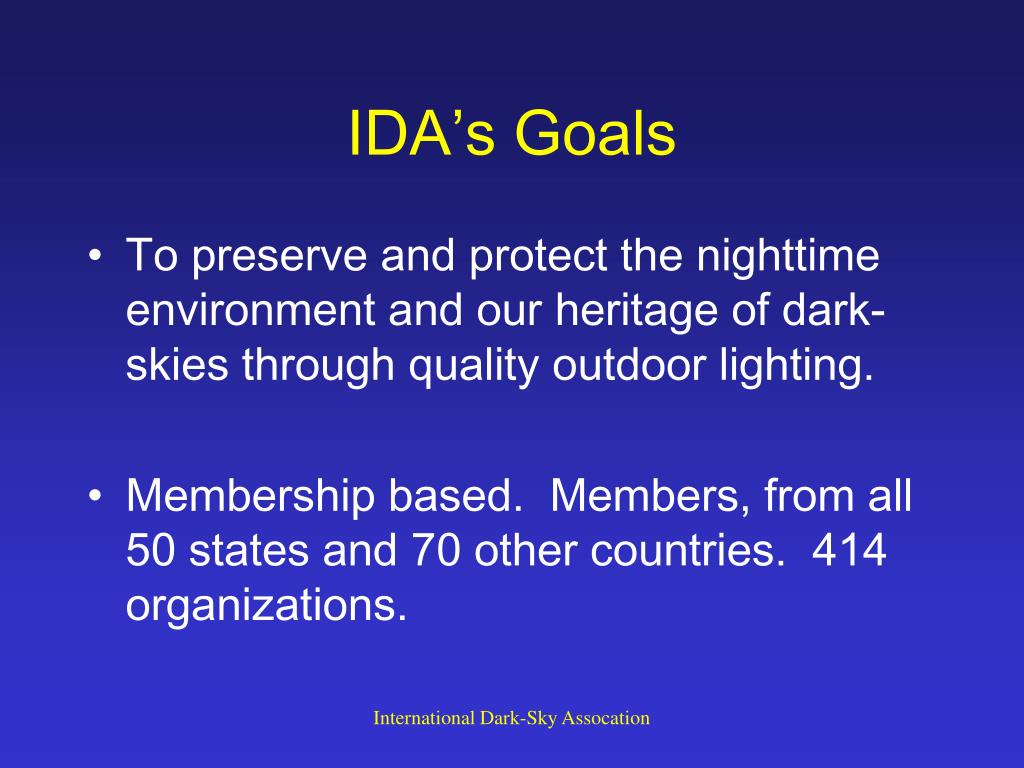

9. IDA’s Goals • To preserve and protect the nighttime environment and our heritage of dark-skies through quality outdoor lighting. • Membership based. Members, from all 50 states and 70 other countries. 414 organizations. International Dark-Sky Assocation

10. IDA Statistics • Total Members — nearly 11,000 • Organizational Members — 569 • Lifetime Members — 203 • Newsletters Issued — 57 • Information Sheets Published — 193 International Dark-Sky Assocation

11. International Dark-Sky Assocation

12. International Dark-Sky Assocation

13. Bottom Line: • Environmentally responsible, • Economically sensible. • Good lighting has great value! • We all win! International Dark-Sky Assocation

14. "Now I think we are small enough. Let's call it a night.“ -- Theodore Roosevelt, a comment after marveling at the enormity of the number of visible stars International Dark-Sky Assocation

15. Sky Brightness Measurement • Examples of Existing Programs • The National Park Service Night Sky Project. • Sky Brightness mined from an automated search program. International Dark-Sky Assocation

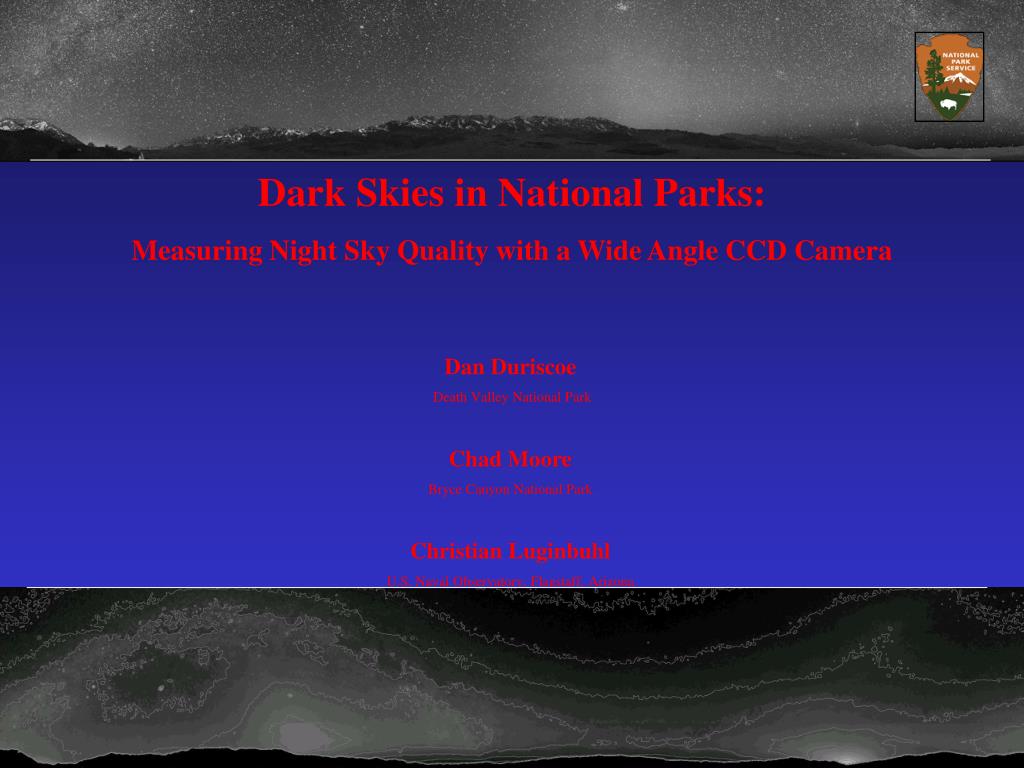

16. Dark Skies in National Parks: Measuring Night Sky Quality with a Wide Angle CCD Camera Dan Duriscoe Death Valley National Park Chad Moore Bryce Canyon National Park Christian Luginbuhl U.S. Naval Observatory, Flagstaff, Arizona International Dark-Sky Assocation

17. International Dark-Sky Assocation

18. International Dark-Sky Assocation

19. DATA MINING OF AUTOMATIC TELESCOPE ARCHIVES FOR NIGHT SKY BRIGHTNESS MONITORING Erin M. Craine University of Arizona and Global Network of Astronomical Telescopes Presented at the Meeting of the International Dark Sky Association Tucson, AZ March 2004 International Dark-Sky Assocation

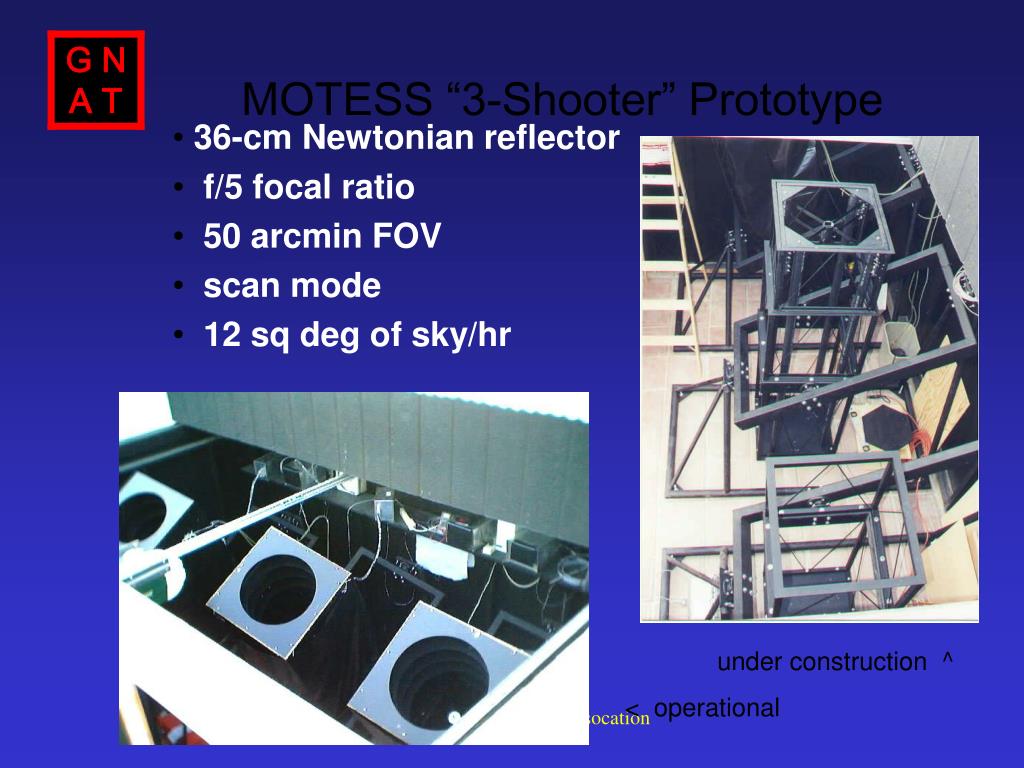

20. MOTESS “3-Shooter” Prototype 36-cm Newtonian reflector f/5 focal ratio 50 arcmin FOV scan mode 12 sq deg of sky/hr under construction ^ < operational International Dark-Sky Assocation

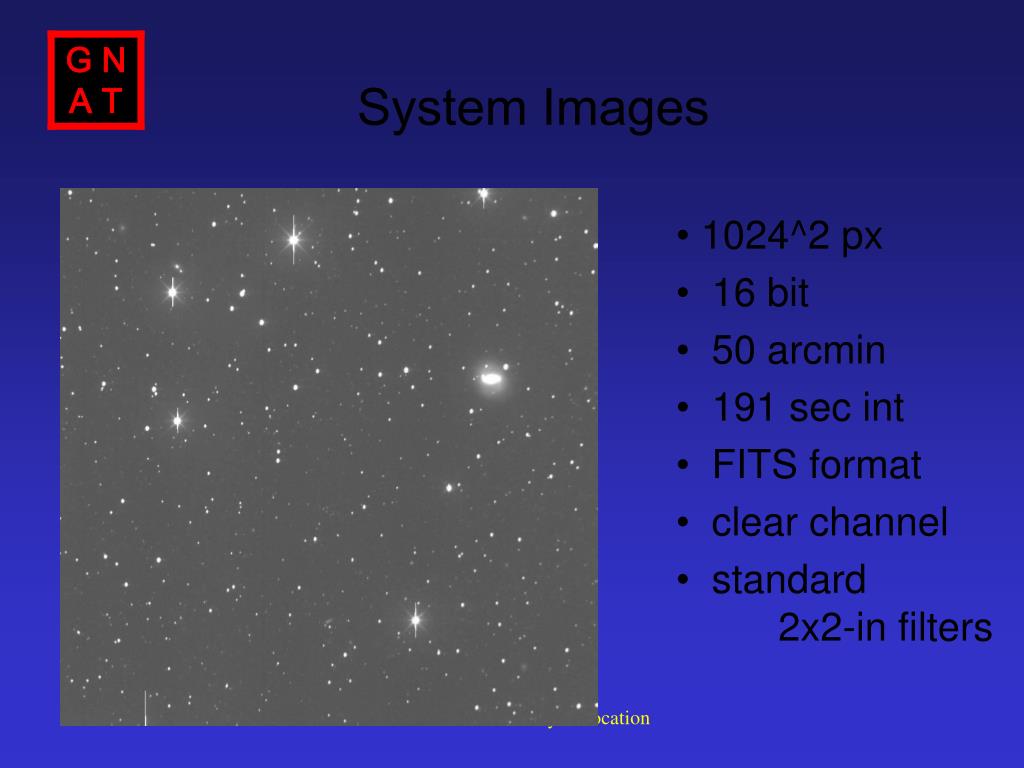

21. System Images 1024^2 px 16 bit 50 arcmin 191 sec int FITS format clear channel standard 2x2-in filters International Dark-Sky Assocation

22. Examples of night sky brightness measures Graphs B and D represent dark nights just over a year apart. The later image is about 10% brighter than the earlier image, which is consistent with normal night to night variations, suggesting that the observatory site brightness has not increased significantly during the intervening year. International Dark-Sky Assocation

23. Sky Brightness Modeling • Significant economic benefits from the astronomy, optics, and tourism industries. • A tool is needed to predict the impact of growth on dark skies. • Environmental preservation is of increasing importance in many places. • Quality data is key to designing good policies.

24. IDA Sky Brightness Modeling Project • Modify the Garstang code to add detailed models of cities and visualization capability. • Validate the model: Compare predictions to actual sky brightness measurements • In association with local jurisdictions, model the impact of future growth on sky brightness under a variety of scenarios.

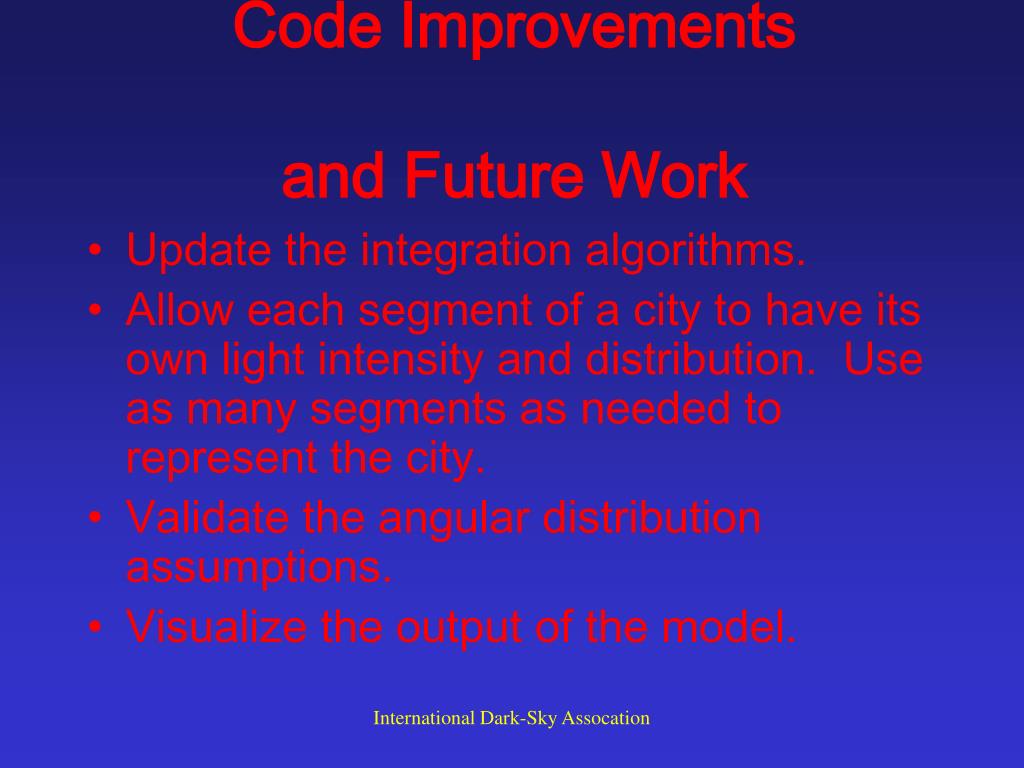

25. Code Improvementsand Future Work • Update the integration algorithms. • Allow each segment of a city to have its own light intensity and distribution. Use as many segments as needed to represent the city. • Validate the angular distribution assumptions. • Visualize the output of the model. International Dark-Sky Assocation

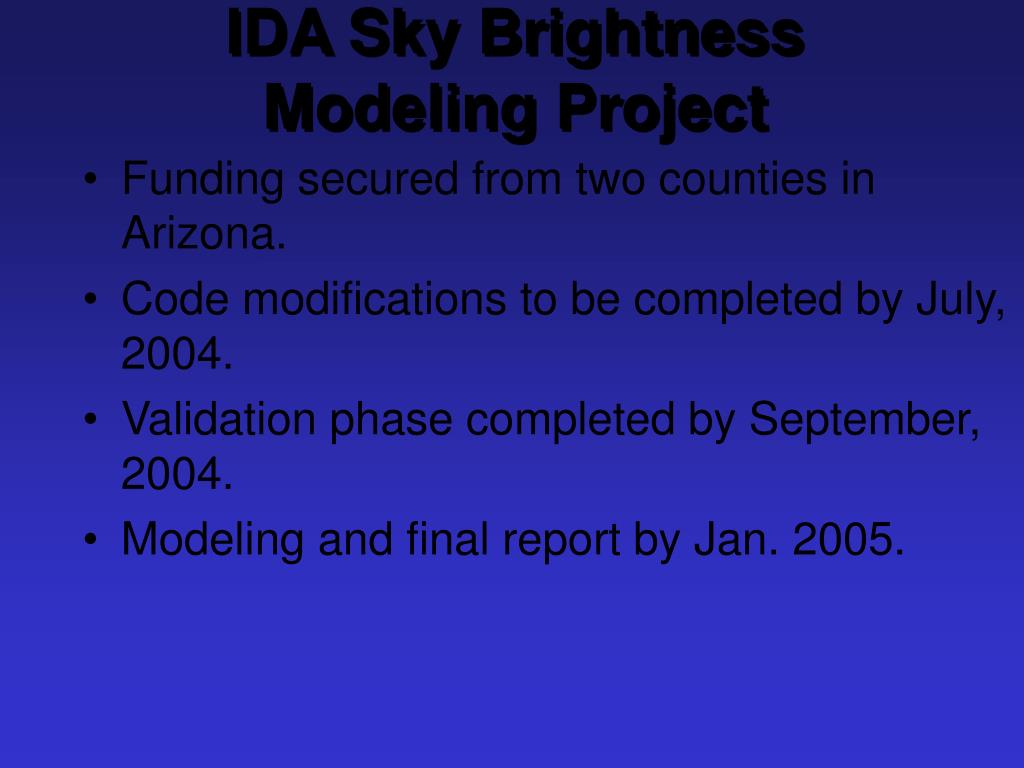

26. IDA Sky Brightness Modeling Project • Funding secured from two counties in Arizona. • Code modifications to be completed by July, 2004. • Validation phase completed by September, 2004. • Modeling and final report by Jan. 2005.

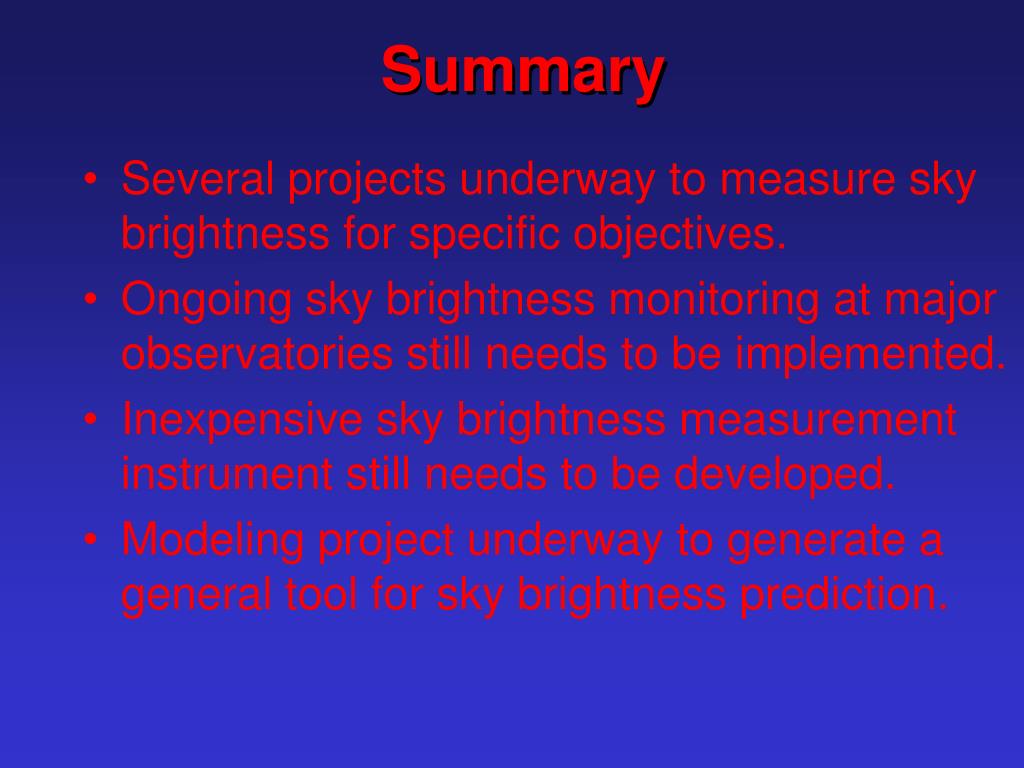

27. Summary • Several projects underway to measure sky brightness for specific objectives. • Ongoing sky brightness monitoring at major observatories still needs to be implemented. • Inexpensive sky brightness measurement instrument still needs to be developed. • Modeling project underway to generate a general tool for sky brightness prediction.

28. Conclusions • There is a problem. • It is still getting worse most places. • Why do we tolerate it? • Solutions exist. • Good lighting is the key. It has value! • Help build awareness. Get involved! • With good lighting, we all win. International Dark-Sky Assocation

29. Flagstaff Lighting and Land Use Project Kevin Pick, Don Davis, Wes Lockwood, Chris Luginbuhl Funded by Coconino County and IDA

30. IDA award: International Dark Sky City International Dark-Sky Assocation

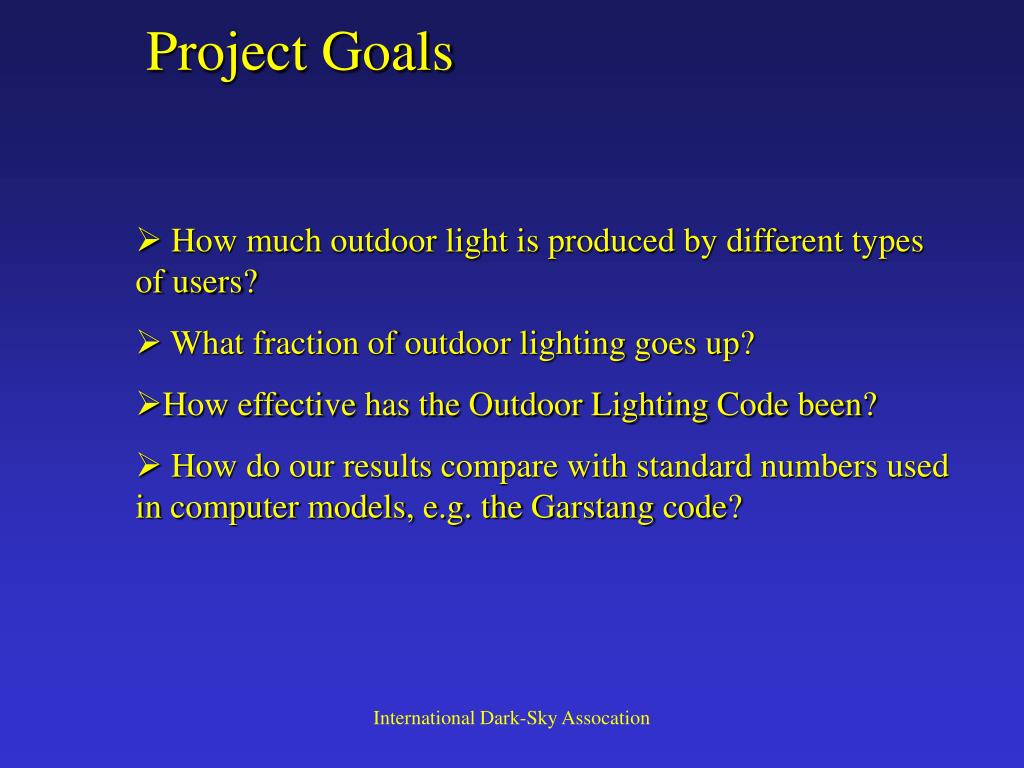

31. Project Goals • How much outdoor light is produced by different types of users? • What fraction of outdoor lighting goes up? • How effective has the Outdoor Lighting Code been? • How do our results compare with standard numbers used in computer models, e.g. the Garstang code? International Dark-Sky Assocation

32. Data Collection: How? Roadway and sports lighting information from the City of Flagstaff and Arizona Dept of Transportation. Inventory of large shopping centers On-site surveys of a sample of commercial sites Lighting inventory flyers distributed to single family homes International Dark-Sky Assocation

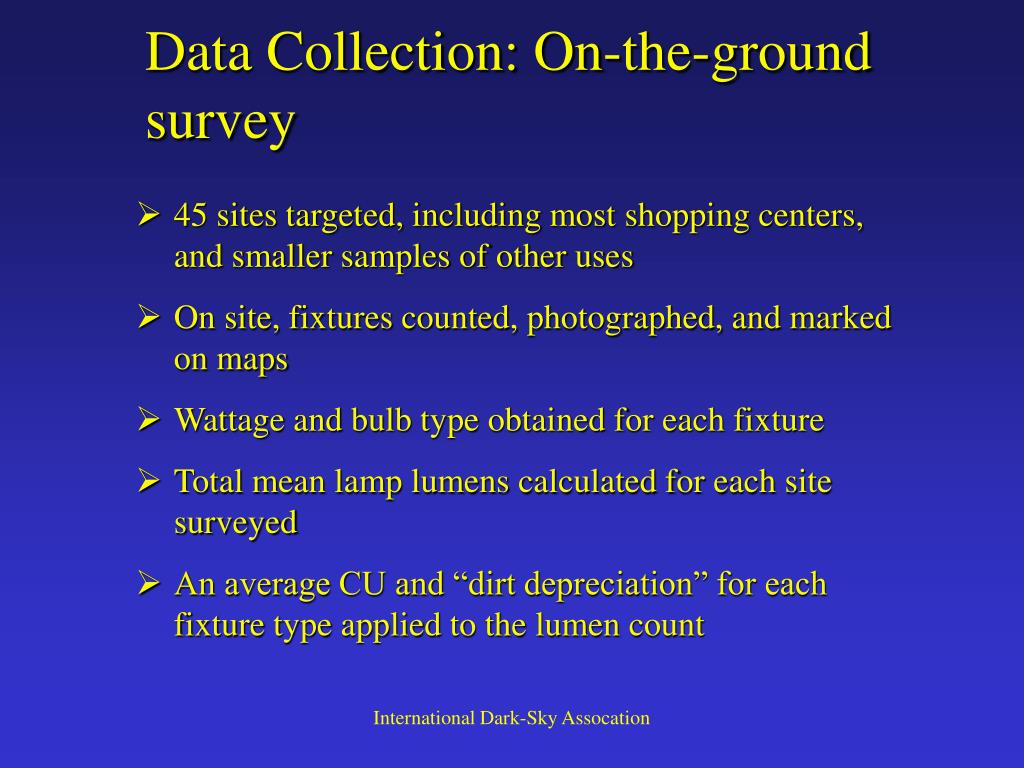

33. Data Collection: On-the-ground survey • 45 sites targeted, including most shopping centers, and smaller samples of other uses • On site, fixtures counted, photographed, and marked on maps • Wattage and bulb type obtained for each fixture • Total mean lamp lumens calculated for each site surveyed • An average CU and “dirt depreciation” for each fixture type applied to the lumen count International Dark-Sky Assocation

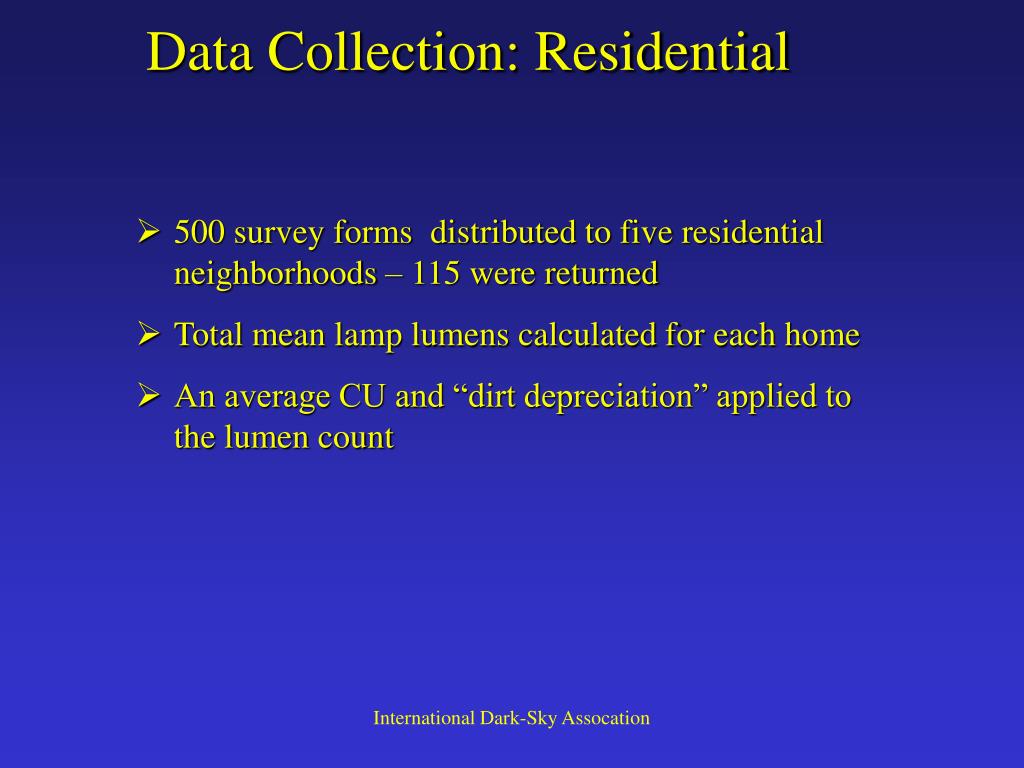

34. Data Collection: Residential • 500 survey forms distributed to five residential neighborhoods – 115 were returned • Total mean lamp lumens calculated for each home • An average CU and “dirt depreciation” applied to the lumen count International Dark-Sky Assocation

35. Data Collection: Residential survey form International Dark-Sky Assocation

36. Results: How is lighting used? 117 million lumens 1.4 megawatts Other white light 8 million lumens Other white light 200 kW International Dark-Sky Assocation

37. Results: Where is Lighting Used?Lighting and sky glow proportions International Dark-Sky Assocation

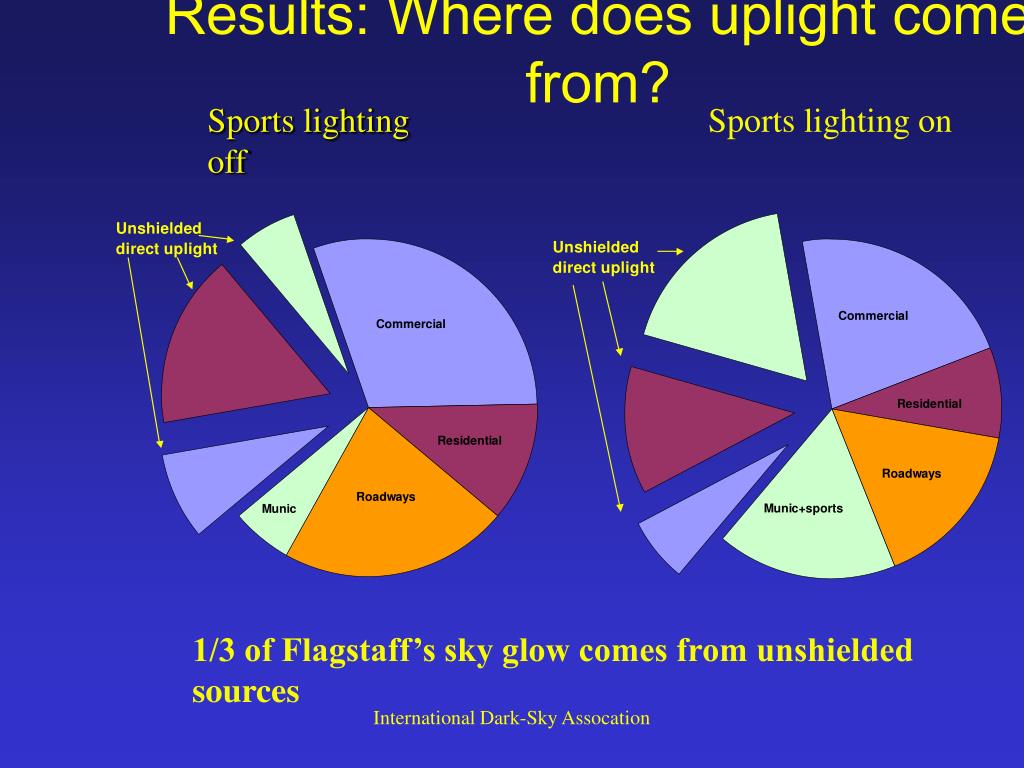

38. Results: Where does uplight come from? Sports lighting off Sports lighting on 1/3 of Flagstaff’s sky glow comes from unshielded sources International Dark-Sky Assocation

39. THE CODE AND DARK-SKY AWARENESS IS WORKING! Measurements by Lockwood show no increase in sky brightness in Flagstaff in the past 25 years despite a doubling of the population. International Dark-Sky Assocation

40. Sky brightness changes since 1975 International Dark-Sky Assocation

41. International Dark-Sky Assocation
