Method of Computation

Method of Computation. Block Estimate. Steps. TDI Index. Total Polyol Output. TDI Output in Kg =. 9.667 X Water Parts. +. 0.155 X Polyol OH. X. X. 100. 100. Side / Bottom Paper =. GSM. X. Width. X. Conveyor Speed. X. Run Time. RS =. 0.8. X. Conveyor Speed. X.

lane-mendez
Télécharger la présentation

Method of Computation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Method of Computation Block Estimate Steps TDI Index Total Polyol Output TDI Output in Kg = 9.667 X Water Parts + 0.155 X Polyol OH X X 100 100 Side / Bottom Paper = GSM X Width X Conveyor Speed X Run Time RS = 0.8 X Conveyor Speed X Run Time 4. Costing & Estimate 4.1.3/1

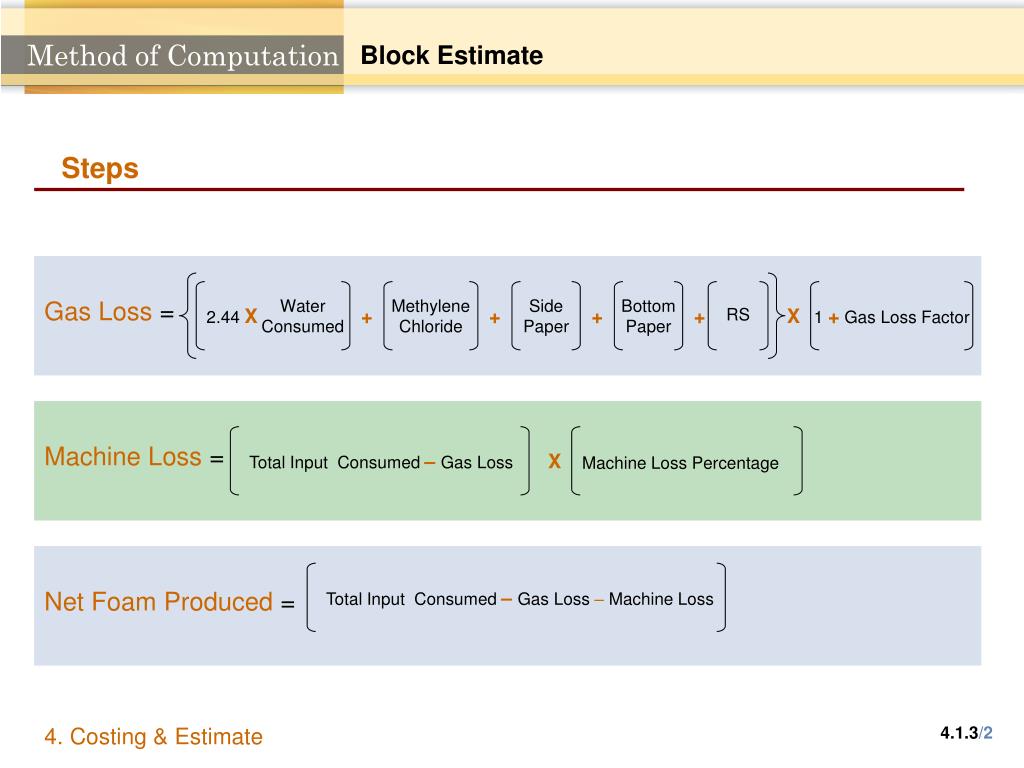

  2. Method of Computation Block Estimate Steps Gas Loss = Water Consumed Methylene Chloride Side Paper Bottom Paper 2.44 X + + + + RS X 1 + Gas Loss Factor Machine Loss = Total Input Consumed – Gas Loss X Machine Loss Percentage Net Foam Produced = Total Input Consumed – Gas Loss – Machine Loss 4. Costing & Estimate 4.1.3/2

  3. Method of Computation Block Estimate Steps Net Foam Produced Per Kg Foam Cost = Total Value of Chemical Consumed Per Kg Foam Cost = Per Kg Foam Cost + Overhead Cost pertaining to Foaming & Curing 4. Costing & Estimate 4.1.3/3
