  1. Unreal Bot Navigation CIS 488/588 Bruce R. Maxim UM-Dearborn

  2. Basics • Must be done in Unreal Tournament 2004 not the runtime version • In general paths are built among PathNodes PlayerStarts, pickups, and actors that let bots deal with obsticles (jump points, doors, lifts) • You need rebuild AI paths using the button on the top tool bar • You can toggle viewing of AI paths using the RMB on one of the viewport title bars and choosing View>ShowPaths

  3. Path Nodes - 1Tutorial 12.1 • Open the map in Tutorial12_01_Start.ut2 • If you add any bots added to this level they will do nothing • You can use the RMB to open the context menu and add Path Nodes any where in the level • You want to add enough Path Nodes so that every navigation point is reachable in the map

  4. Path Nodes - 2Tutorial 12.1 • Rebuild the AI paths using the top menu button and use RMB to check path layout • Adjust the position of any node needed to make most of the path Green • Rebuild the level and test it • Open the console in Unreal by typing ~ • Type ghost and the type addbots 1 • Move outside the map and observe the bot’s movements

  5. Path Color Codes • White wide path (big NPC’s or vehicles) • Green relatively wide (big NPC’s) • Blue narrow (small NPC’s) • Purple lift, teleporter, jump pad • Liliac ladder • Yellow forced path (create additional link) • Red proscribed path (break node link)

  6. Jumping Onto Ledge - 1Tutorial 12.2 • Use Tutorial12_02_Start.ut2 • Open Actor class browser, expand NavigationPoint>JumpDest and select JumpSpot • Use RMB to place the JumpSpot near the middle edge of the upper level • You need to force a path from the nearest PathNode to the JumpSpot

  7. Jumping Onto Ledge – 2Tutorial 12.2 • In the PathNode Properties window, expand the NavigationPoint category and enter JumpSpot1 and the value of ForcedPath[0] • It’s also a good idea to open the Properties window for the JumpSpot actor, expand the JumpSpot category, and set the value of bForceAllowDoubleJumping to True • Rebuild paths, save, and test (using ghost and addbots)

  8. Translocating Through HoleTutorial 12.3 • I have not gotten this example to work yet

  9. Simple Door - No Door ActorTutorial 12.4 • Use Tutorial12_04_Start.ut2 • Open the Properties window for the BlastDoor • Expand the Collision category and set bPathColliding to False • Rebuild the paths and now you see a path passing through the door (the bots will too) • Save and test the map

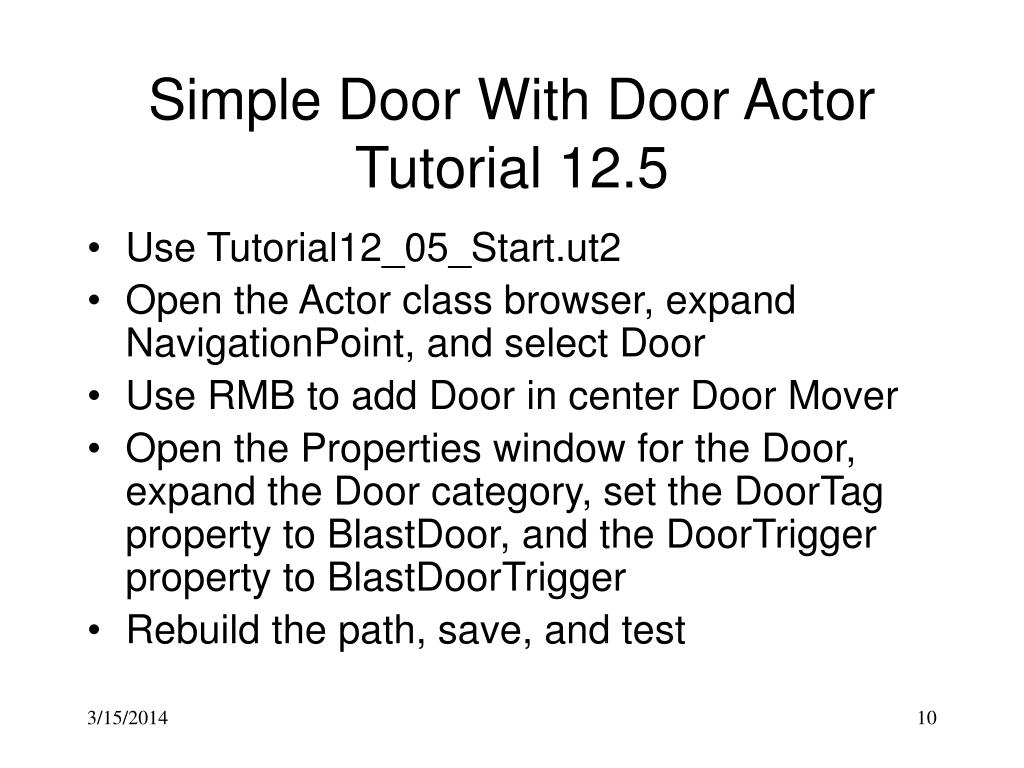

  10. Simple Door With Door ActorTutorial 12.5 • Use Tutorial12_05_Start.ut2 • Open the Actor class browser, expand NavigationPoint, and select Door • Use RMB to add Door in center Door Mover • Open the Properties window for the Door, expand the Door category, set the DoorTag property to BlastDoor, and the DoorTrigger property to BlastDoorTrigger • Rebuild the path, save, and test

  11. Complex Bot-Door Interaction - 1Tutorial 12.6 • Use Tutorial12_06_Start.ut2 • We want to set up a bot trigger away from from the door and wait for door to open before entering it • Open the Actor class browser, expand NavigationPoint, and select Door • Use RMB to add a Door in center of the Door Mover

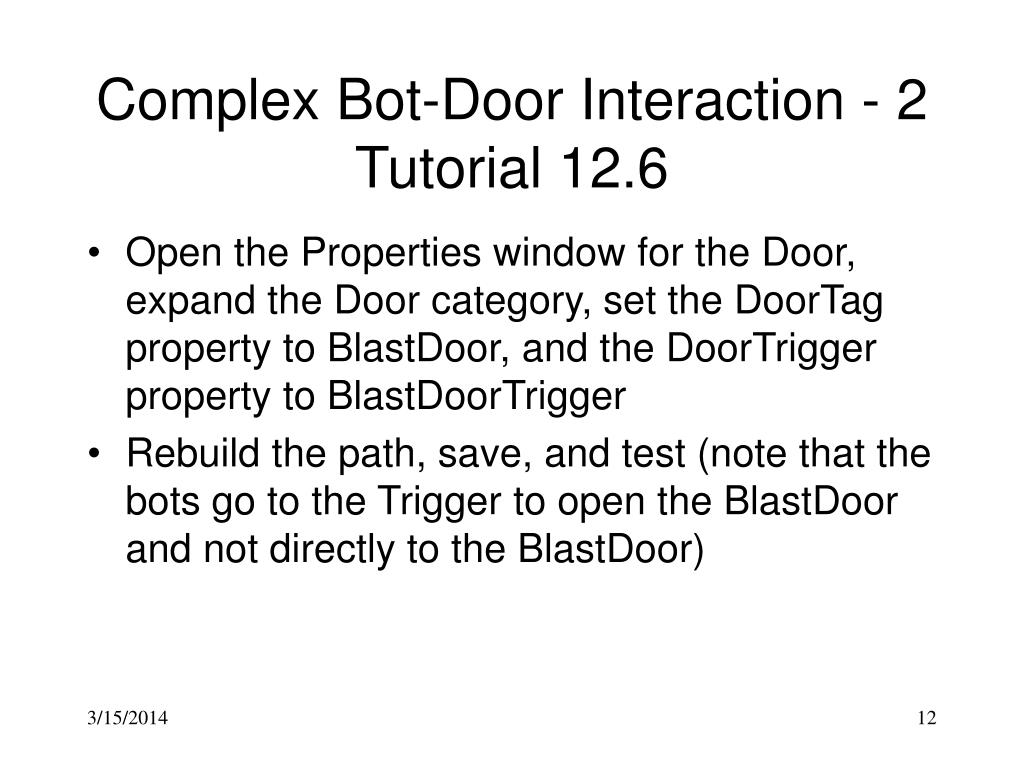

  12. Complex Bot-Door Interaction - 2Tutorial 12.6 • Open the Properties window for the Door, expand the Door category, set the DoorTag property to BlastDoor, and the DoorTrigger property to BlastDoorTrigger • Rebuild the path, save, and test (note that the bots go to the Trigger to open the BlastDoor and not directly to the BlastDoor)

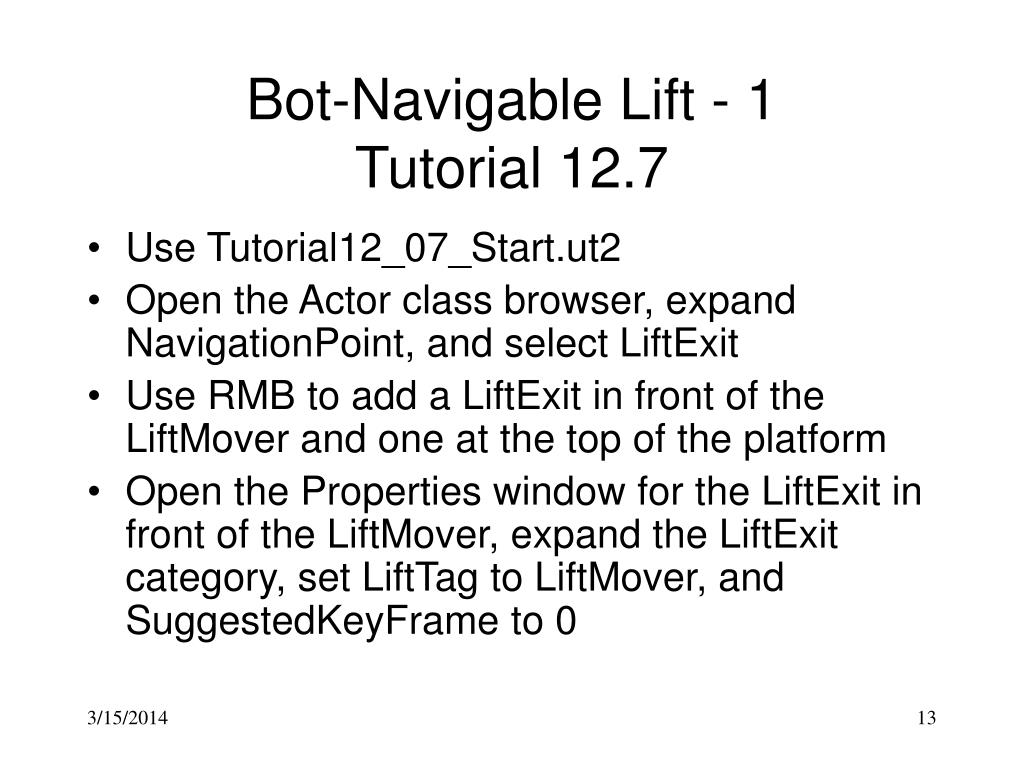

  13. Bot-Navigable Lift - 1Tutorial 12.7 • Use Tutorial12_07_Start.ut2 • Open the Actor class browser, expand NavigationPoint, and select LiftExit • Use RMB to add a LiftExit in front of the LiftMover and one at the top of the platform • Open the Properties window for the LiftExit in front of the LiftMover, expand the LiftExit category, set LiftTag to LiftMover, and SuggestedKeyFrame to 0

  14. Bot-Navigable Lift – 2Tutorial 12.7 • Open the Actor class browser, expand NavigationPoint, and select LiftCenter • Use RMB to add the LiftCenter near the lift and move it to the center of the LiftMover • Open the Properties menu for the LiftCenter, expand the LiftCenter categtory, change the LiftTag property to LiftMover (the Tag property of the LiftMover)

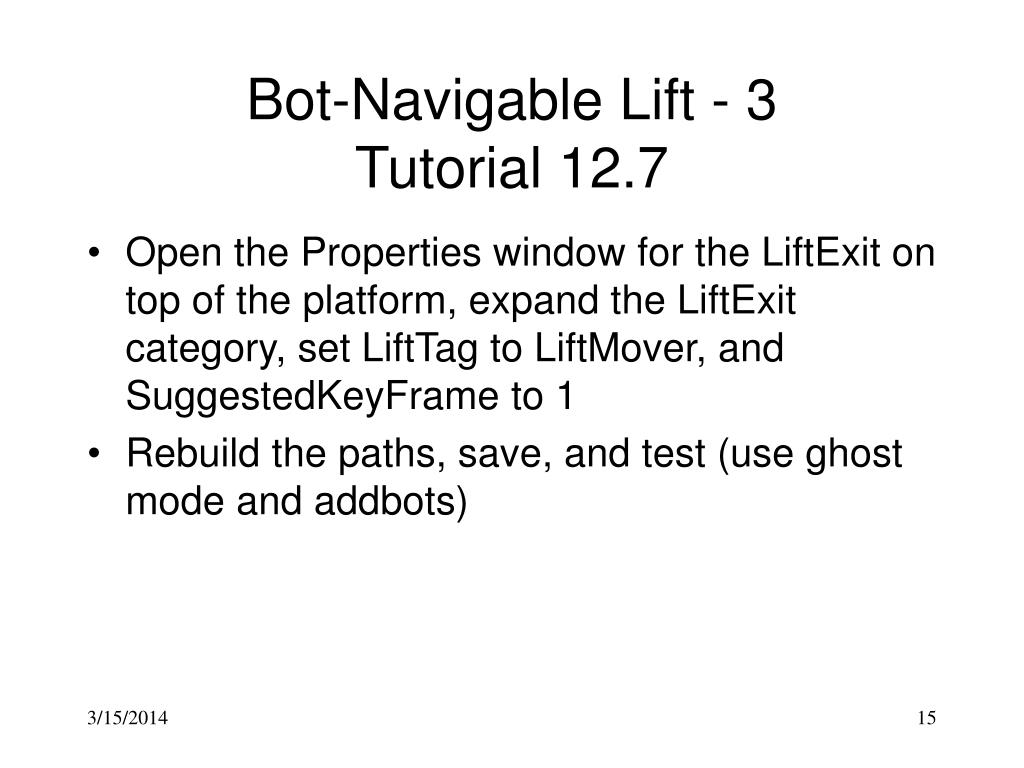

  15. Bot-Navigable Lift - 3Tutorial 12.7 • Open the Properties window for the LiftExit on top of the platform, expand the LiftExit category, set LiftTag to LiftMover, and SuggestedKeyFrame to 1 • Rebuild the paths, save, and test (use ghost mode and addbots)

  16. Assault Paths • In Capture the Flag or Bombing Run you may wish to have the bots choose paths to objectives more carefully • You can assign priorities to multiple assault paths or designate one path for the attack routes and one for the return route

  17. Using Assault Paths - 1Tutorial 12.8 • Start with the map file Tutorial12_08_Start.ut2 • Open the Actor class browser, expand NavigationPoint, and select AssaultPath • Place one AssaultPath in the upper hallway near the Shield Charger • Use the RMB to open the AssaultPath properties window, open the AssaultPath category, set PathTag[0] to AttackPath, set the ObjectiveTag to xBlueFlagBase, and set bNoReturn to True

  18. Using Assault Paths - 2Tutorial 12.8 • Place the second AssaultPath along the lower walkway • In the properties window for this AssaultPath, open the AssaultPath category, set PathTag[0] to AttackPath, set ObjectiveTag to xBlueFlagbase, and bReturnOnly to True • Rebuild the paths, save and test the map (using Ghost mode will make it easier to observe the action)

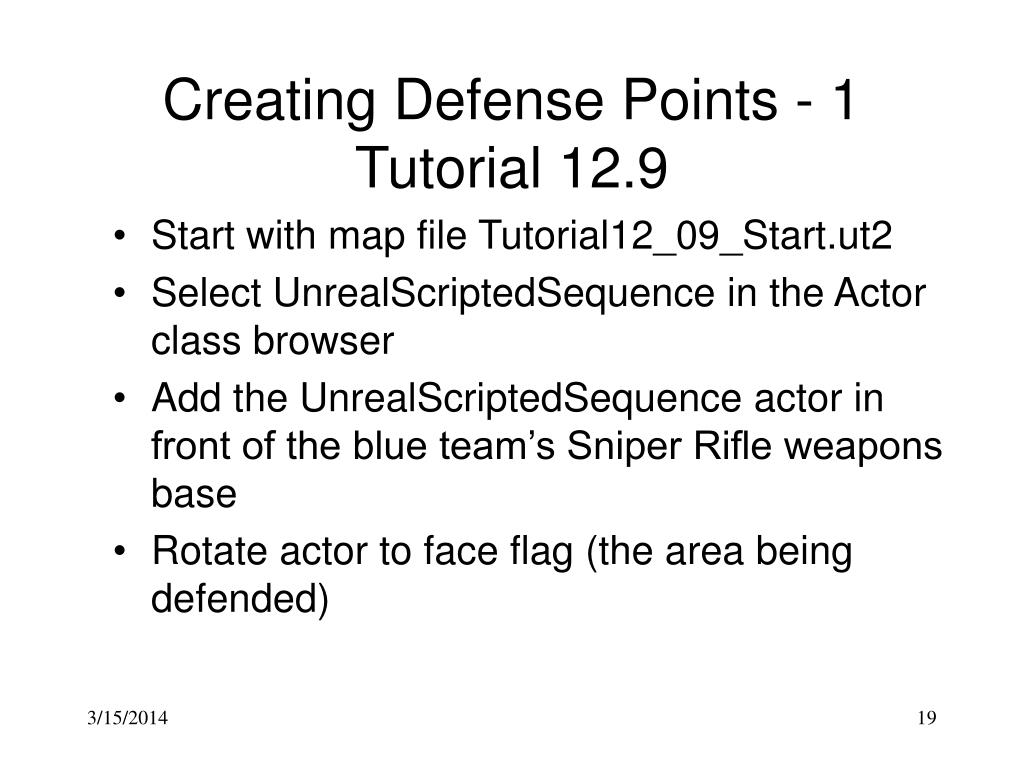

  19. Creating Defense Points - 1Tutorial 12.9 • Start with map file Tutorial12_09_Start.ut2 • Select UnrealScriptedSequence in the Actor class browser • Add the UnrealScriptedSequence actor in front of the blue team’s Sniper Rifle weapons base • Rotate actor to face flag (the area being defended)

  20. Creating Defense Points - 2Tutorial 12.9 • Use RMB to open the properties window, open the Events category set and set Tag property to DefendBlueFlag • Expand UnrealScriptedSequence category and set • bSniping property to True • WeaponPreference to SniperRifle • Save and run the map

  21. Vehicle Navigation • RoadPathNodes • Placed like PathNodes, make sure paths are white • You should adjust the value of MaxRoadDist to remove connections between parallel roads • HoverPathNodes • Use instead of RoadPathNodes to allow traversal of unusual terrain elements • FlyingPathNodes • Defined by CollisionHeight and CollsionRadius properties
