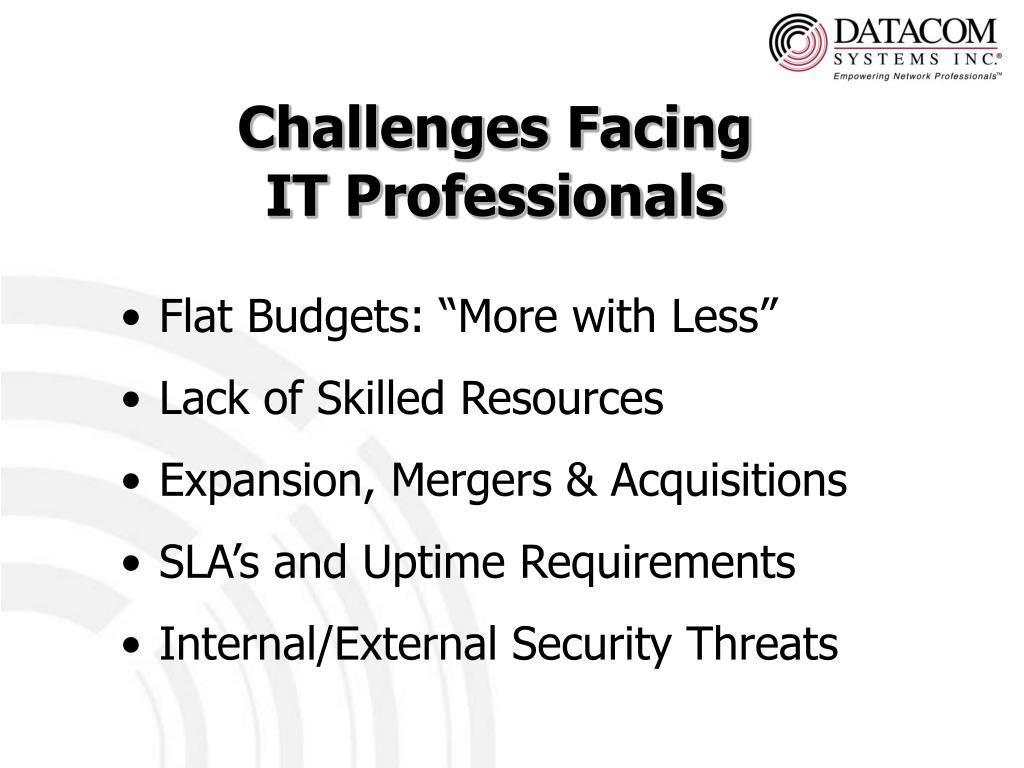

  1. Challenges Facing IT Professionals • Flat Budgets: “More with Less” • Lack of Skilled Resources • Expansion, Mergers & Acquisitions • SLA’s and Uptime Requirements • Internal/External Security Threats

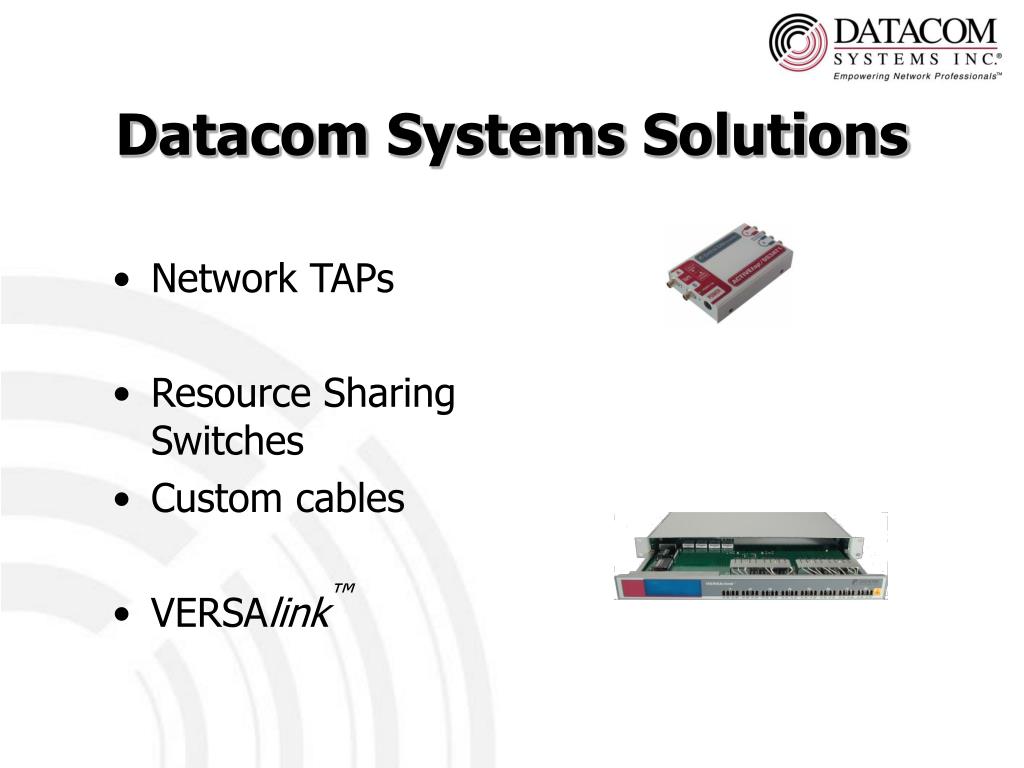

  2. Datacom Systems Solutions • Network TAPs • Resource Sharing Switches • Custom cables • VERSAlink™

  3. Distributed System(limited visibility) Agent/analyzer/probe Data center Agent/analyzer/probe Agent/analyzer/probe Major installations Closet NOC

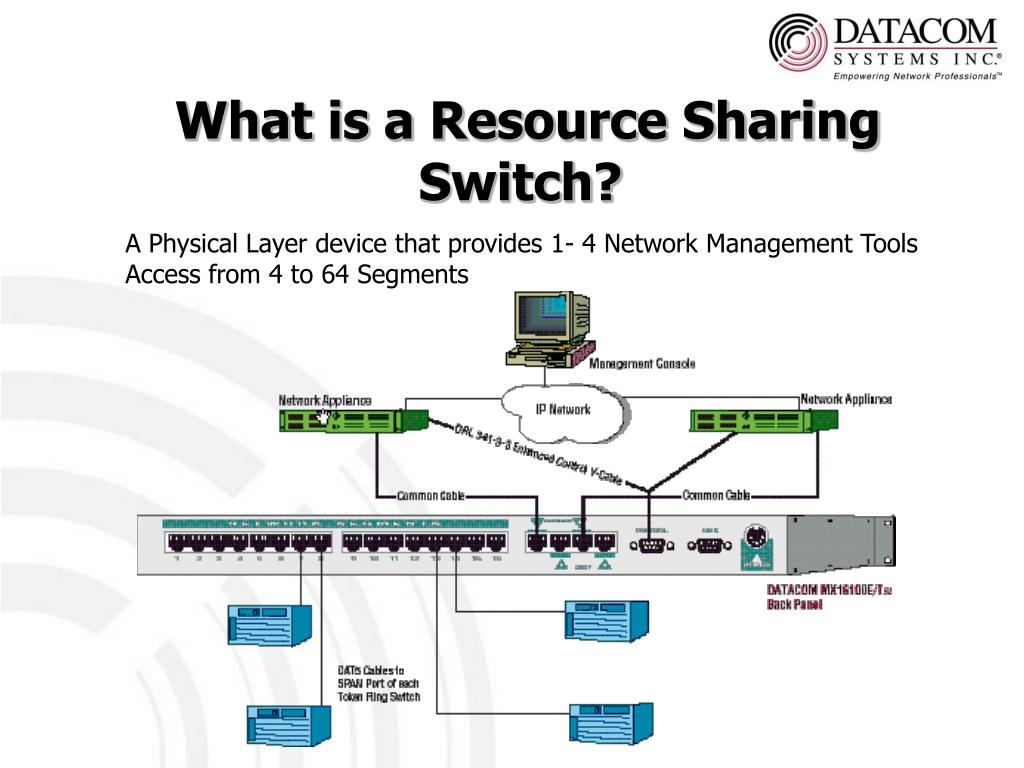

  4. What is a Resource Sharing Switch? A Physical Layer device that provides 1- 4 Network Management Tools Access from 4 to 64 Segments

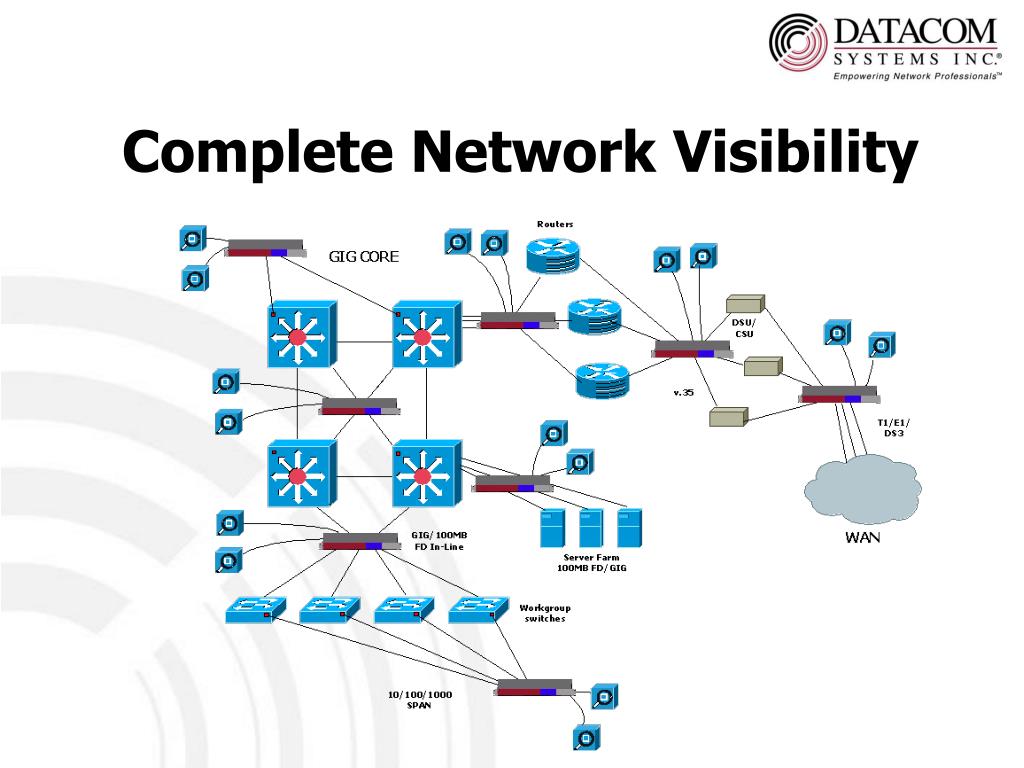

  5. Complete Network Visibility

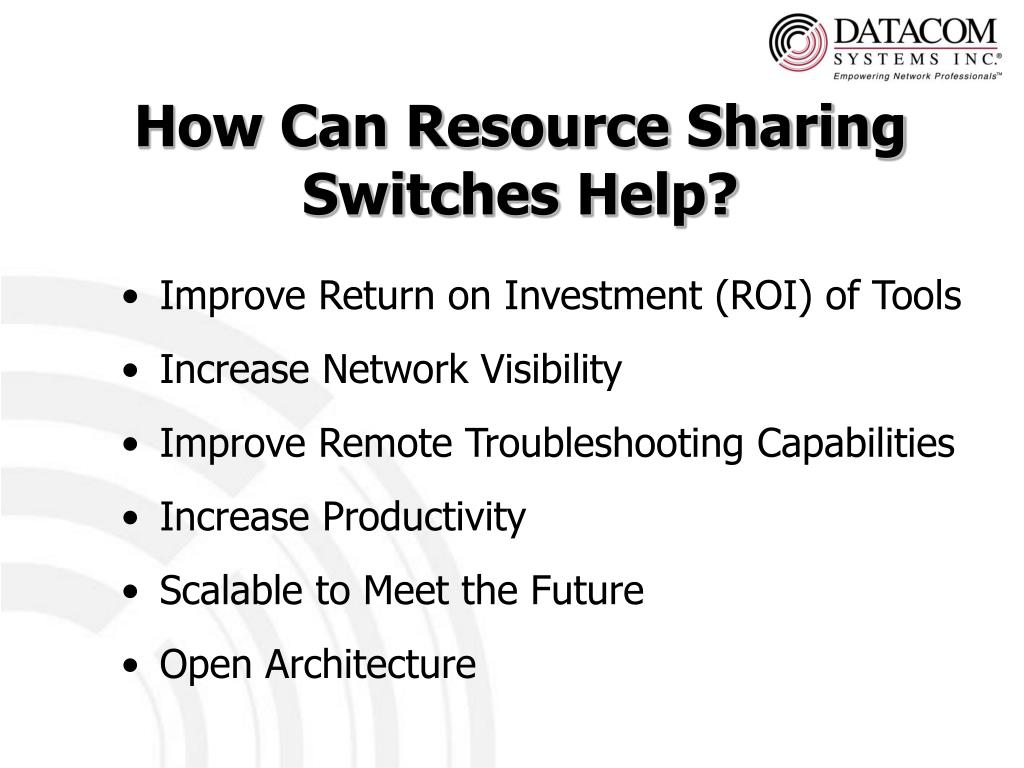

  6. How Can Resource Sharing Switches Help? • Improve Return on Investment (ROI) of Tools • Increase Network Visibility • Improve Remote Troubleshooting Capabilities • Increase Productivity • Scalable to Meet the Future • Open Architecture

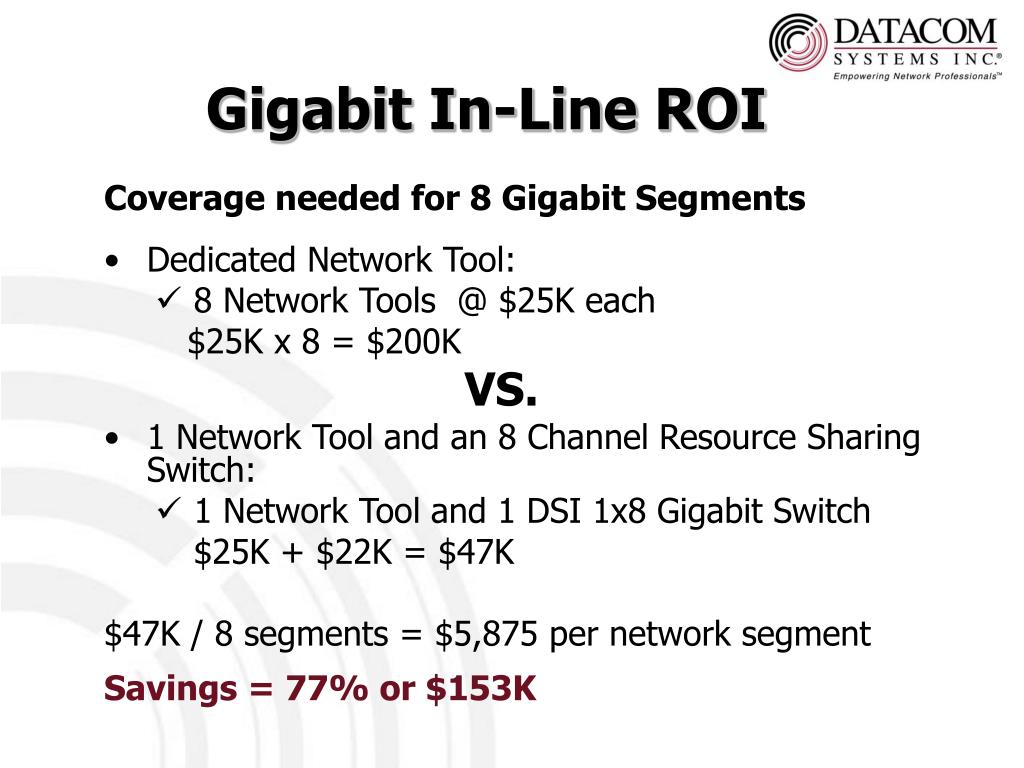

  7. Gigabit In-Line ROI Coverage needed for 8 Gigabit Segments • Dedicated Network Tool: • 8 Network Tools @ $25K each $25K x 8 = $200K VS. • 1 Network Tool and an 8 Channel Resource Sharing Switch: • 1 Network Tool and 1 DSI 1x8 Gigabit Switch $25K + $22K = $47K $47K / 8 segments = $5,875 per network segment Savings = 77% or $153K

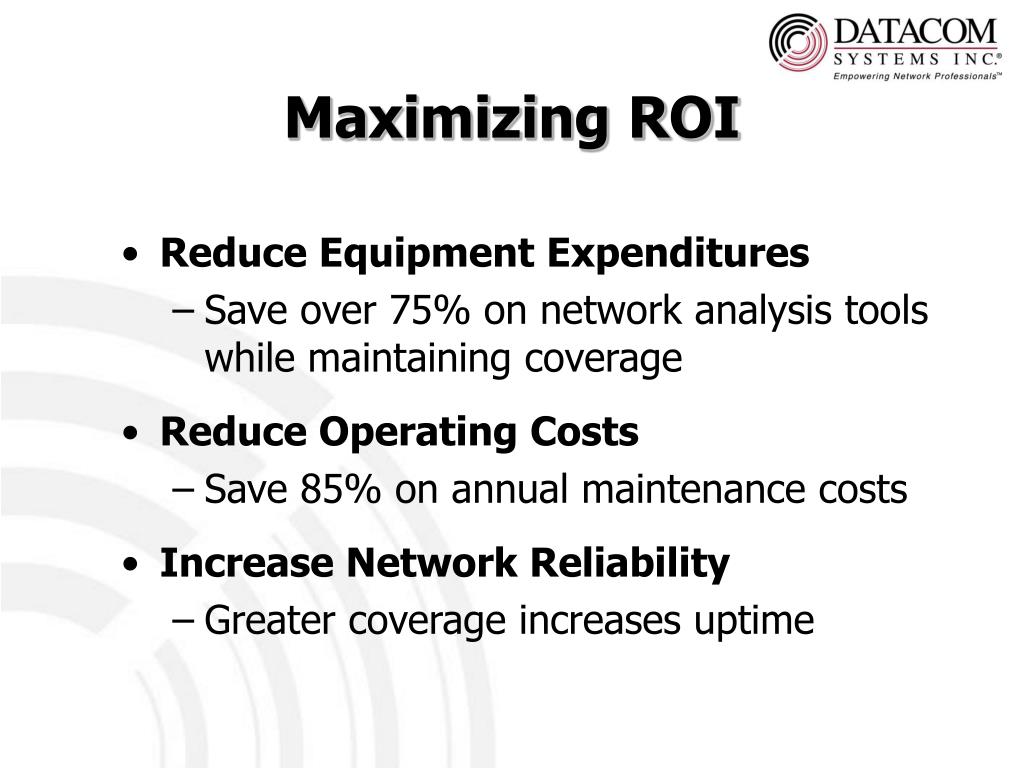

  8. Maximizing ROI • Reduce Equipment Expenditures • Save over 75% on network analysis tools while maintaining coverage • Reduce Operating Costs • Save 85% on annual maintenance costs • Increase Network Reliability • Greater coverage increases uptime

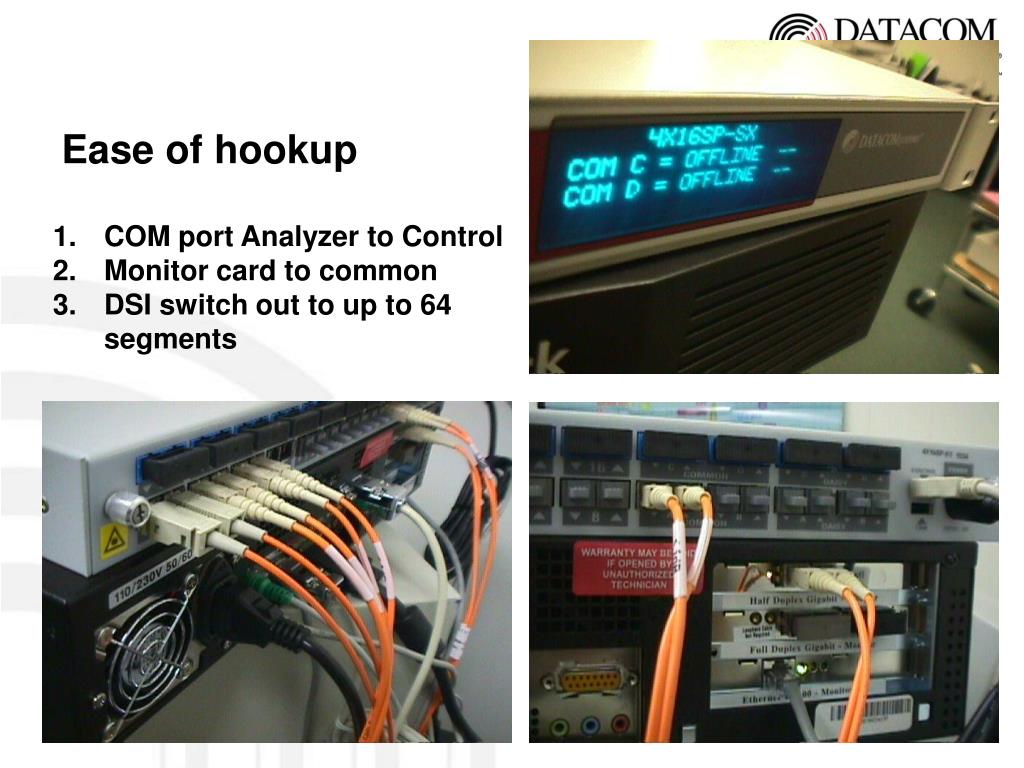

  9. Ease of hookup • COM port Analyzer to Control • Monitor card to common • DSI switch out to up to 64 segments

  10. DATACOM SystemFeatures PERMAlink “Once in Never out” 100% passive & Totally fault tolerant In- line tap SIGNALdetect Signal strength & direction easily verified for install (no light meters) SHAREview 2 Network Devices for roving or switching 16 24X7 full time access points 2 devices per link (IDS & or Probes)

  11. Flexible Upgradeable & Fail Safe!!

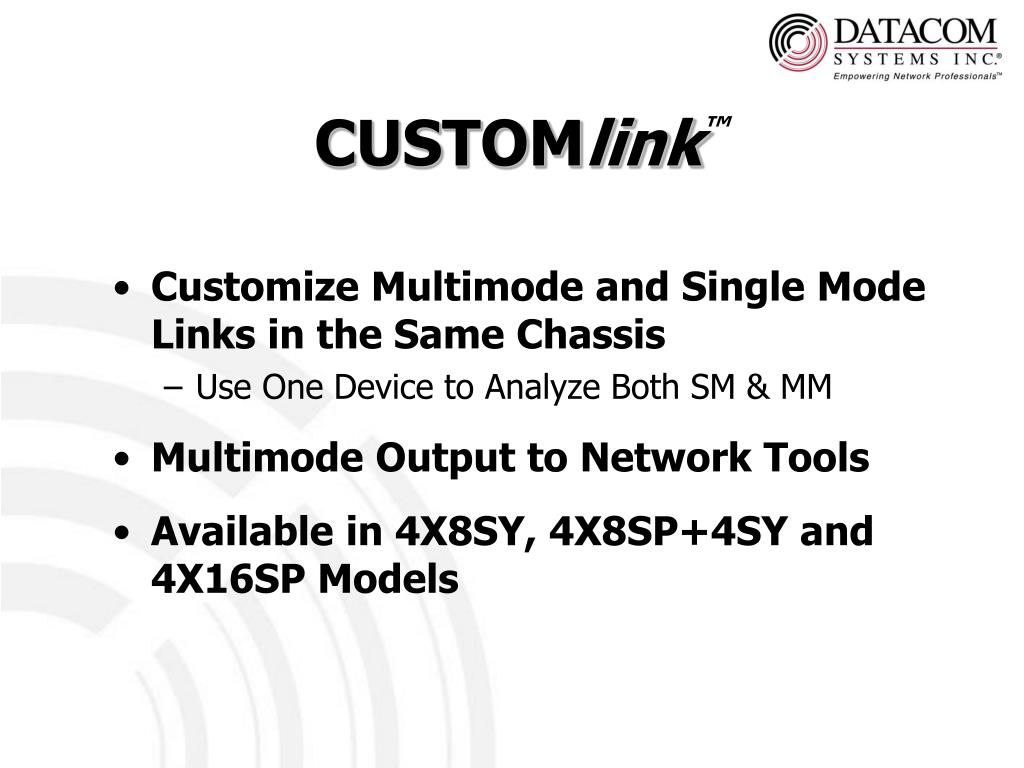

  12. CUSTOMlink™ • Customize Multimode and Single Mode Links in the Same Chassis • Use One Device to Analyze Both SM & MM • Multimode Output to Network Tools • Available in 4X8SY, 4X8SP+4SY and 4X16SP Models

  13. SHAREview™ • View Up to 4 Network Tools on the Same Link Simultaneously (in line only) • Connect Analyzers, IDS, and Probes to the same link • Eliminate Contention for Tap Ports

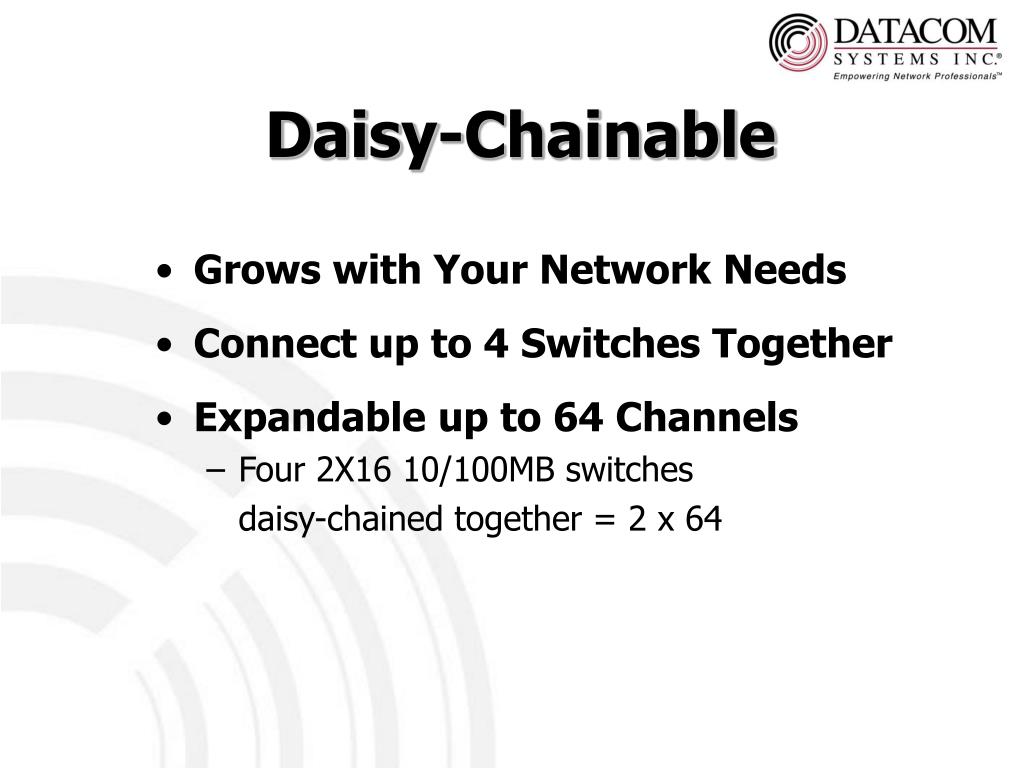

  14. Daisy-Chainable • Grows with Your Network Needs • Connect up to 4 Switches Together • Expandable up to 64 Channels • Four 2X16 10/100MB switches daisy-chained together = 2 x 64

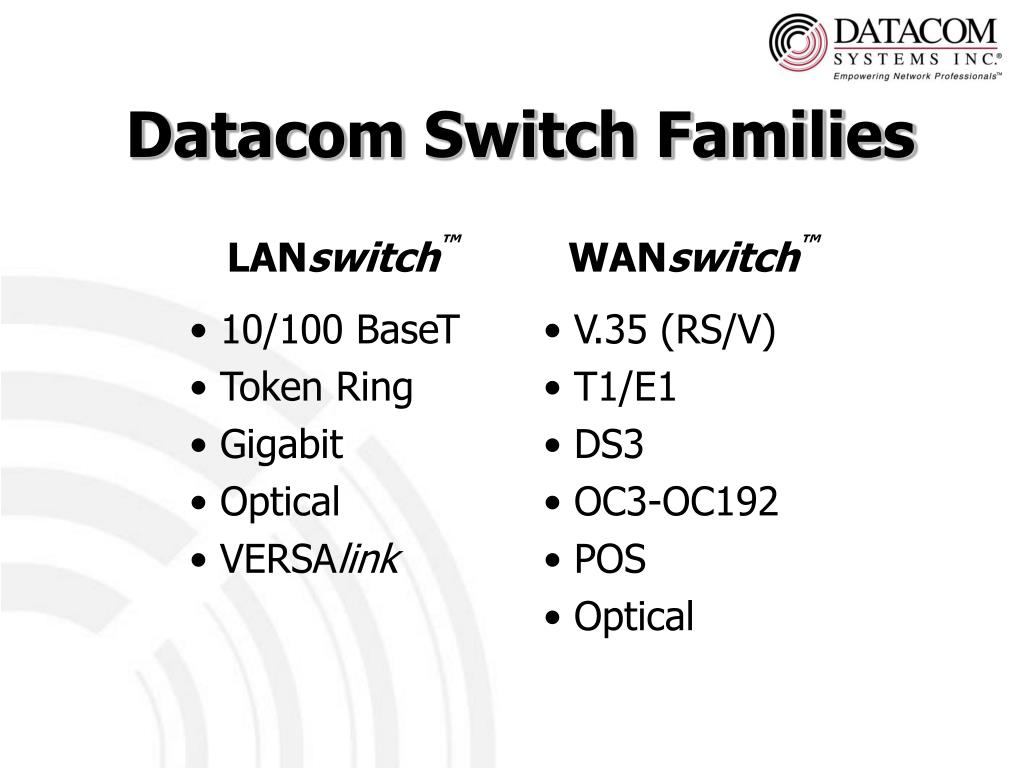

  15. Datacom Switch Families

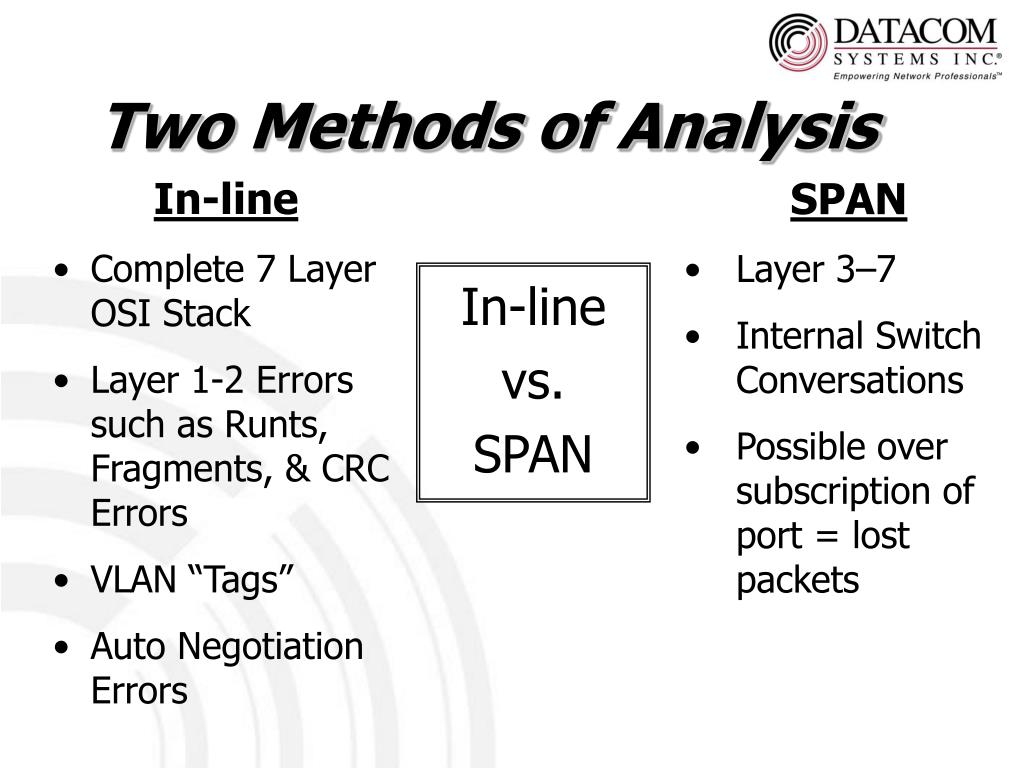

  16. Two Methods of Analysis In-line • Complete 7 Layer OSI Stack • Layer 1-2 Errors such as Runts, Fragments, & CRC Errors • VLAN “Tags” • Auto Negotiation Errors SPAN • Layer 3–7 • Internal Switch Conversations • Possible over subscription of port = lost packets In-line vs. SPAN

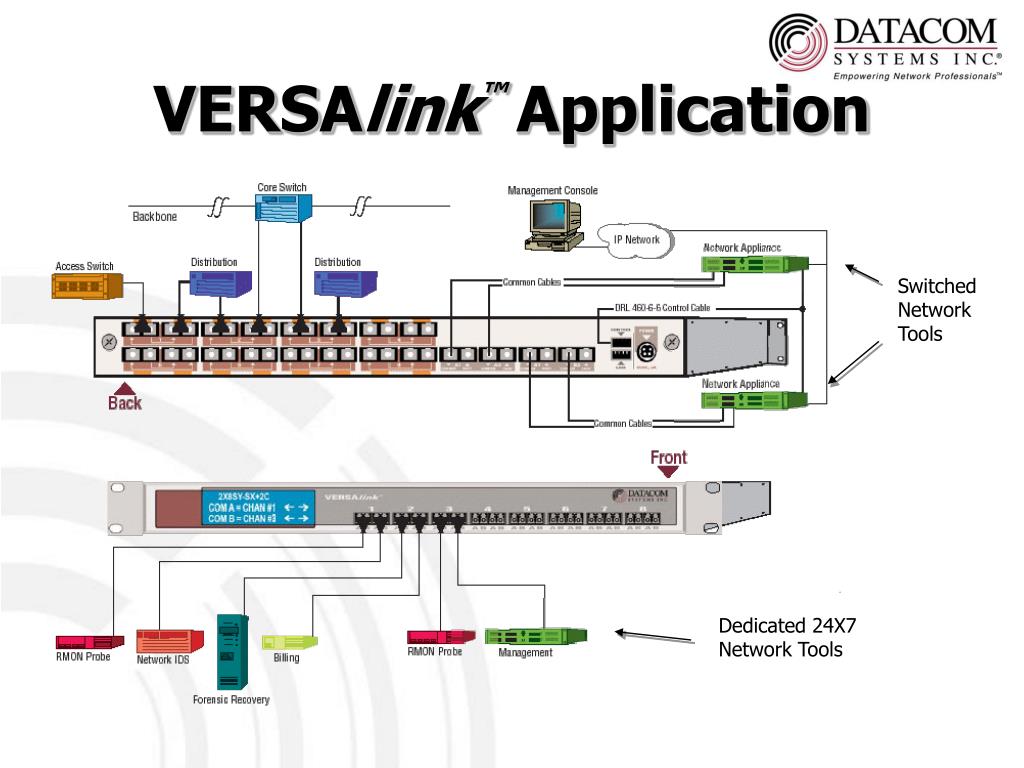

  17. VERSAlink™Application Switched Network Tools Dedicated 24X7 Network Tools

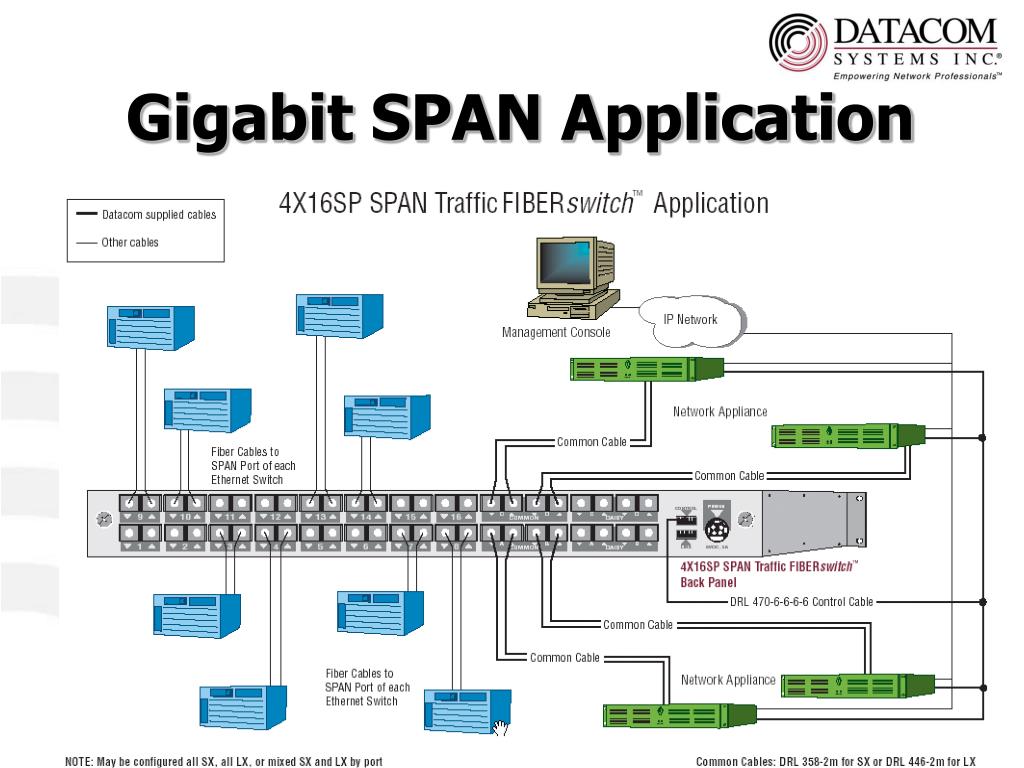

  18. Gigabit SPAN Application

  19. Gigabit In-Line Application

  20. 10/100MB SPAN Application

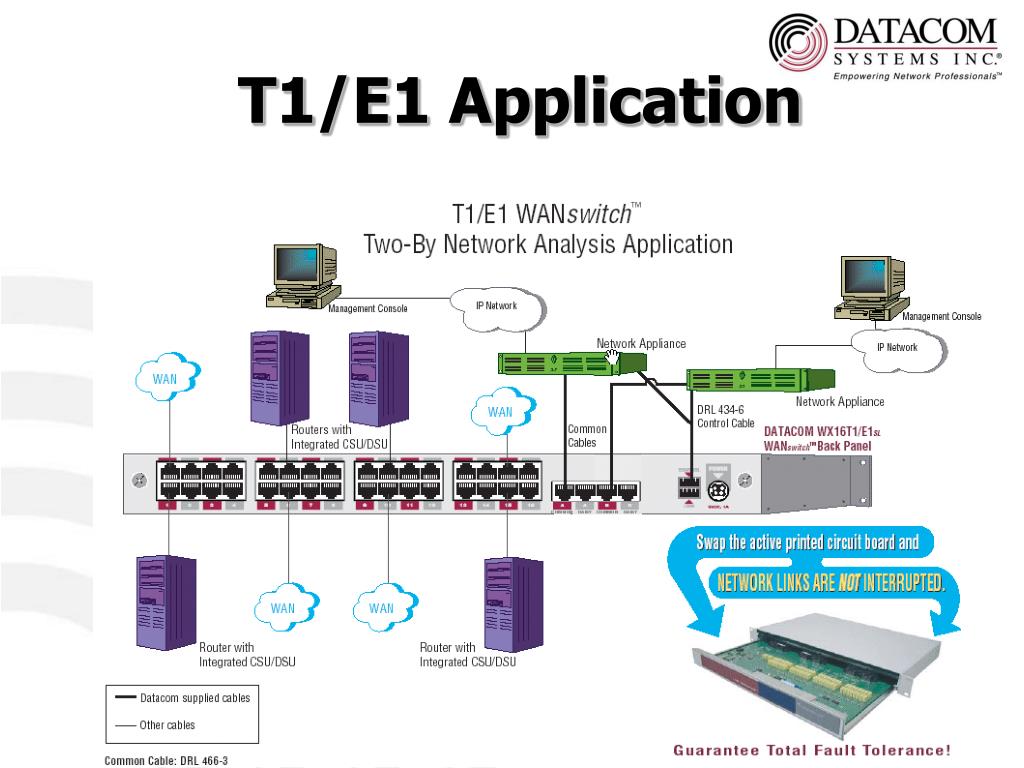

  21. T1/E1 Application

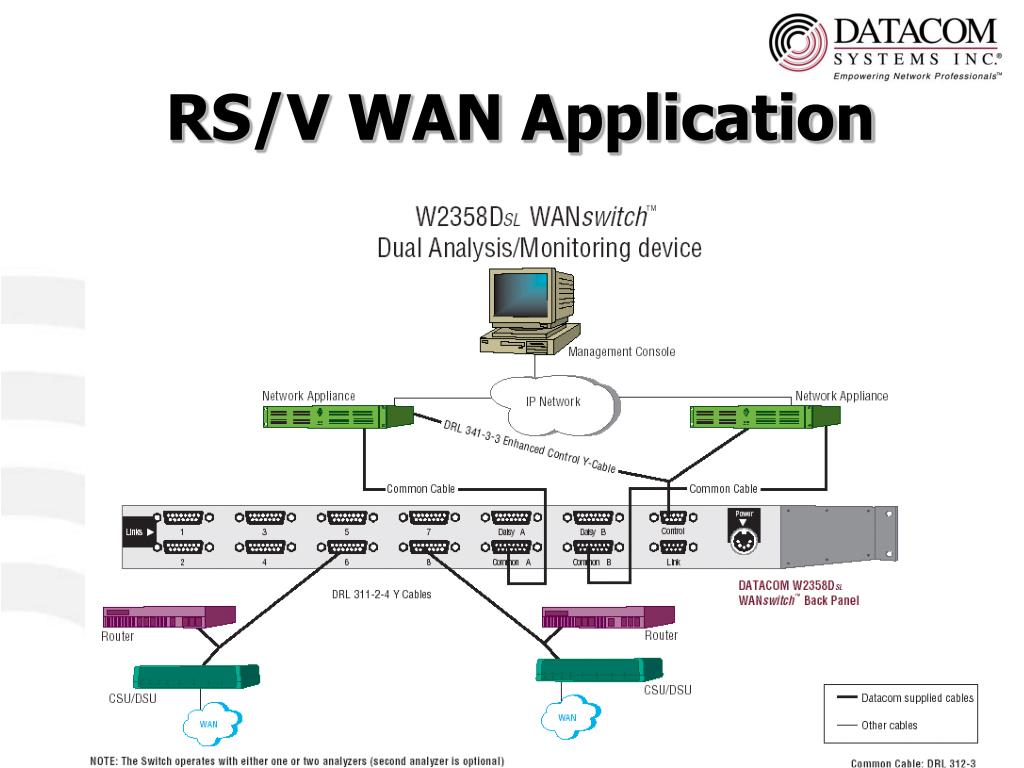

  22. RS/V WAN Application

  23. 100MB Full-Duplex In-Line Application

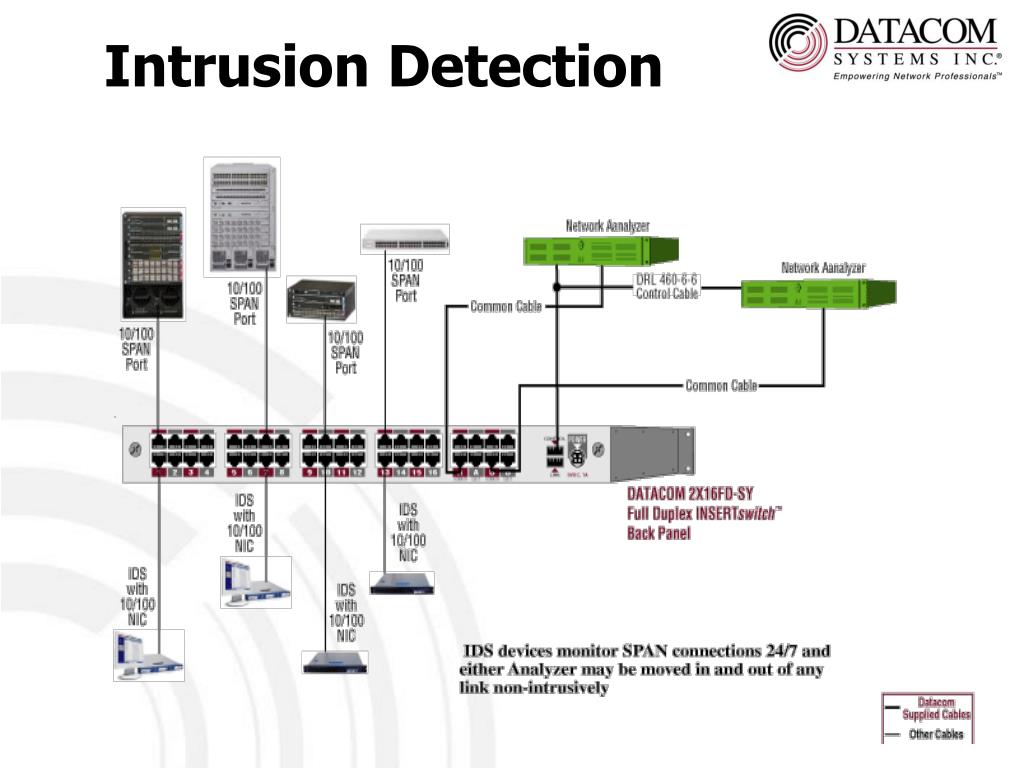

  24. Intrusion Detection

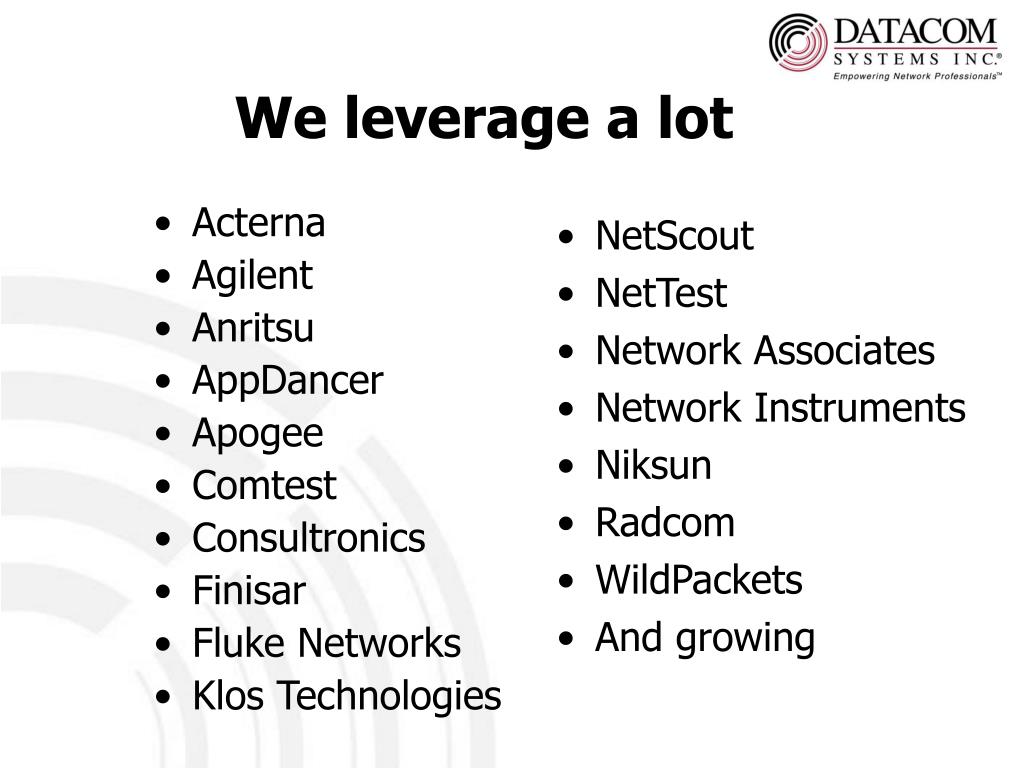

  25. Acterna Agilent Anritsu AppDancer Apogee Comtest Consultronics Finisar Fluke Networks Klos Technologies NetScout NetTest Network Associates Network Instruments Niksun Radcom WildPackets And growing We leverage a lot

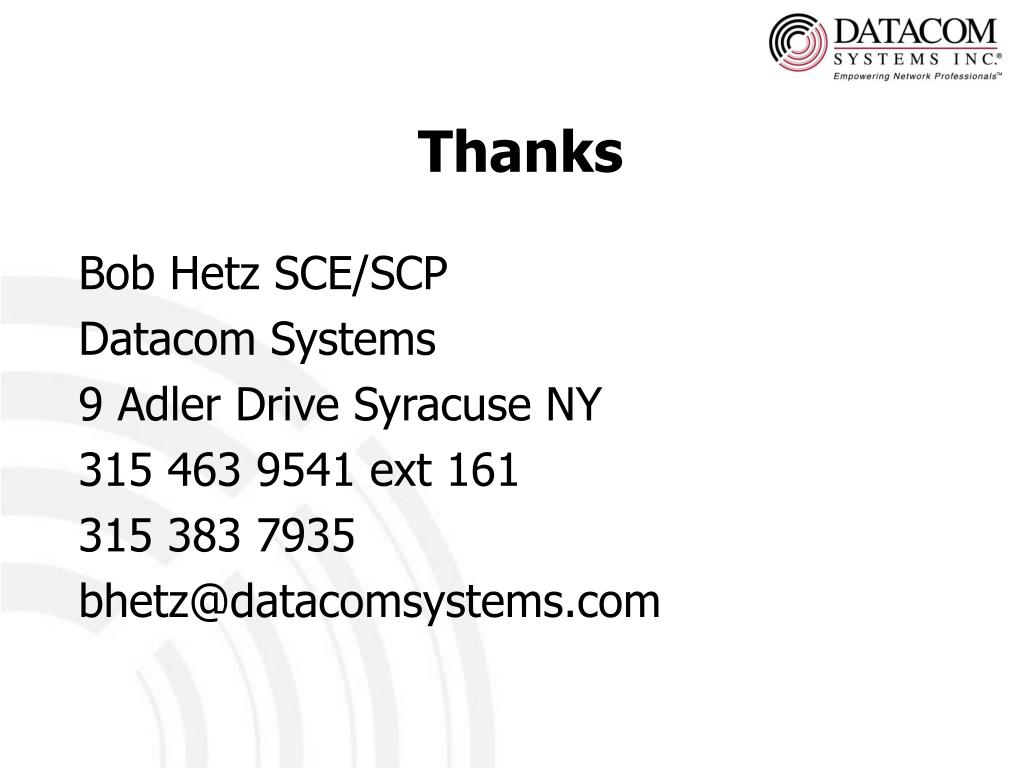

  26. Thanks Bob Hetz SCE/SCP Datacom Systems 9 Adler Drive Syracuse NY 315 463 9541 ext 161 315 383 7935 bhetz@datacomsystems.com
