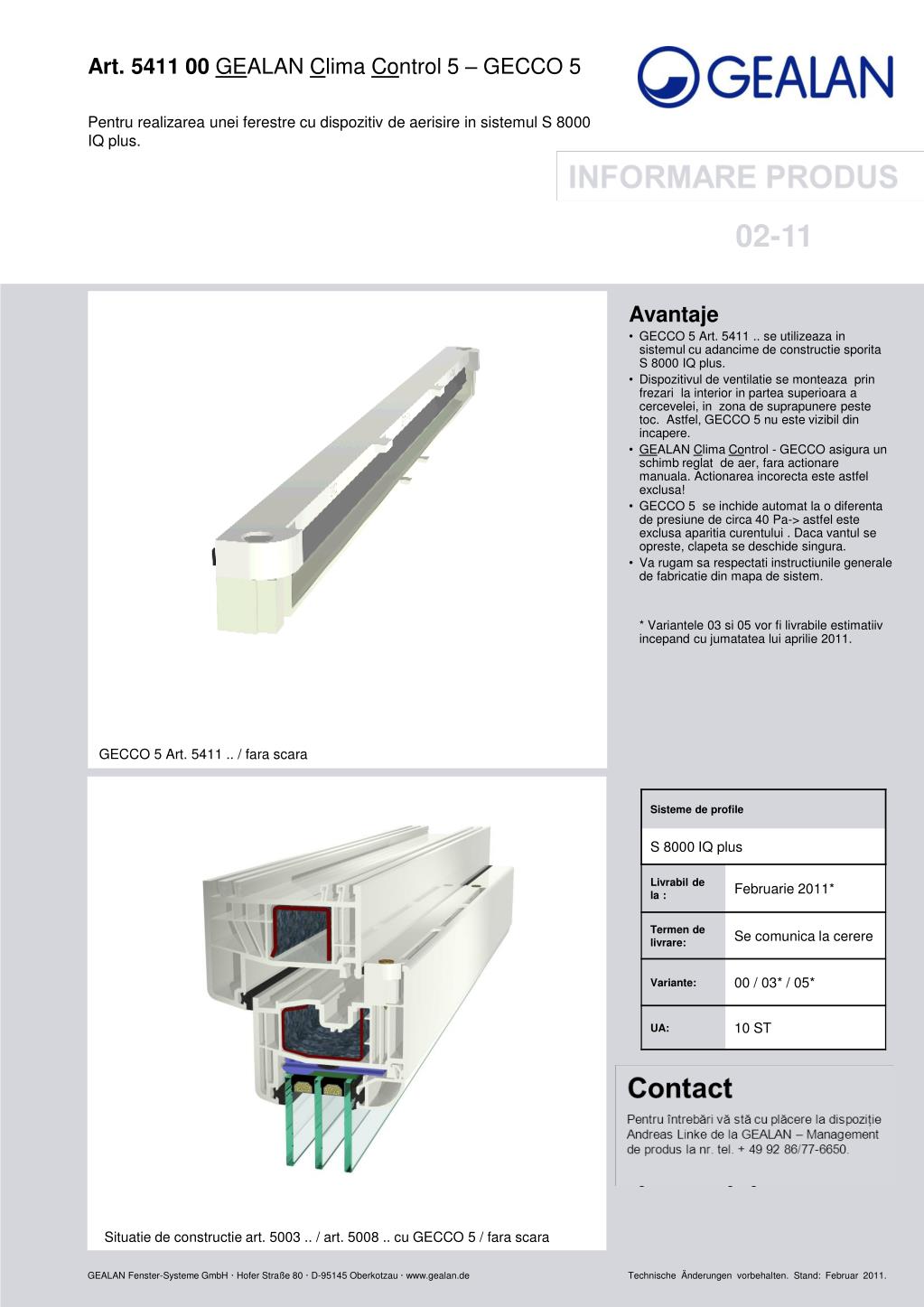

  1. Art. 5411 00 GEALAN Clima Control 5 – GECCO 5 Pentru realizarea unei ferestre cu dispozitiv de aerisire in sistemul S 8000 IQ plus. Avantaje • GECCO 5 Art. 5411 .. se utilizeaza in sistemul cu adancime de constructie sporita S 8000 IQ plus. • Dispozitivul de ventilatie se monteaza prin frezari la interior in partea superioara a cercevelei, in zona de suprapunere peste toc. Astfel, GECCO 5 nu este vizibil din incapere. • GEALAN Clima Control - GECCO asigura un schimb reglat de aer, fara actionare manuala. Actionarea incorecta este astfel exclusa! • GECCO 5 se inchide automat la o diferenta de presiune de circa 40 Pa-> astfel este exclusa aparitia curentului . Daca vantul se opreste, clapeta se deschide singura. • Va rugam sa respectati instructiunile generale de fabricatie din mapa de sistem. * Variantele 03 si 05 vor fi livrabile estimatiiv incepand cu jumatatea lui aprilie 2011. GECCO 5 Art. 5411 .. / fara scara Kontakt Bei Fragen steht Ihnen Andreas Linke vom GEALAN-Produktmanagement unter Tel. +49 92 86 / 77-6650 gern zur Verfügung. Situatie de constructie art. 5003 .. / art. 5008 .. cu GECCO 5 / fara scara
