Discovery Nspired Proofs. T 3 Regional Conference Kilgore, TX Dr. Steve Armstrong LeTourneau Univ. What Do You Think?. What if robot on a curved path approaches wall What would be modeling function for (time, dist) ordered pairs?. Diagram. Nspire screen. 16 in. r = 12 in. Manipulate.

larissa-rowland
Télécharger la présentation

Discovery Nspired Proofs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Discovery Nspired Proofs T3 Regional Conference Kilgore, TX Dr. Steve ArmstrongLeTourneau Univ.

  2. What Do You Think? • What if robot on a curved path approaches wall • What would be modeling function for (time, dist) ordered pairs?

  3. Diagram • Nspire screen 16 in. r = 12 in

  4. Manipulate • Grab tangent point • Drag around circle • Note changing (angle, length)

  5. Acquire Data • Recordorderedpairs

  6. Prepare for Plot • Data captured automatically • Readyfor plotting • Guess curveshape first

  7. Scatter Plot

  8. Results • Note curve • More guessesas to modelingfunction?

  9. Analysis • Beginproof

  10. Analysis • Note right triangles • Central angle  repeats • Use trig ratios

  11. Modeling Function • Given • r = 12 • WN = 16 • Determine lengthof PW in termsof 

  12. Modeling Function • Given • r = 12 • WS = 16 • Determine lengthof PW in termsof 

  13. Results • Functiongraphed

  14. Experimental Results Ultrasonic sensor returns it's max value – "infinite" distance

  15. Matching Data to Analysis

  16. Experimental Results Good data for

  17. Experimental Results • Minimum interior sensorangle 75

  18. Resolving Theoretical vs. Actual

  19. Resolving Theoretical vs. Actual

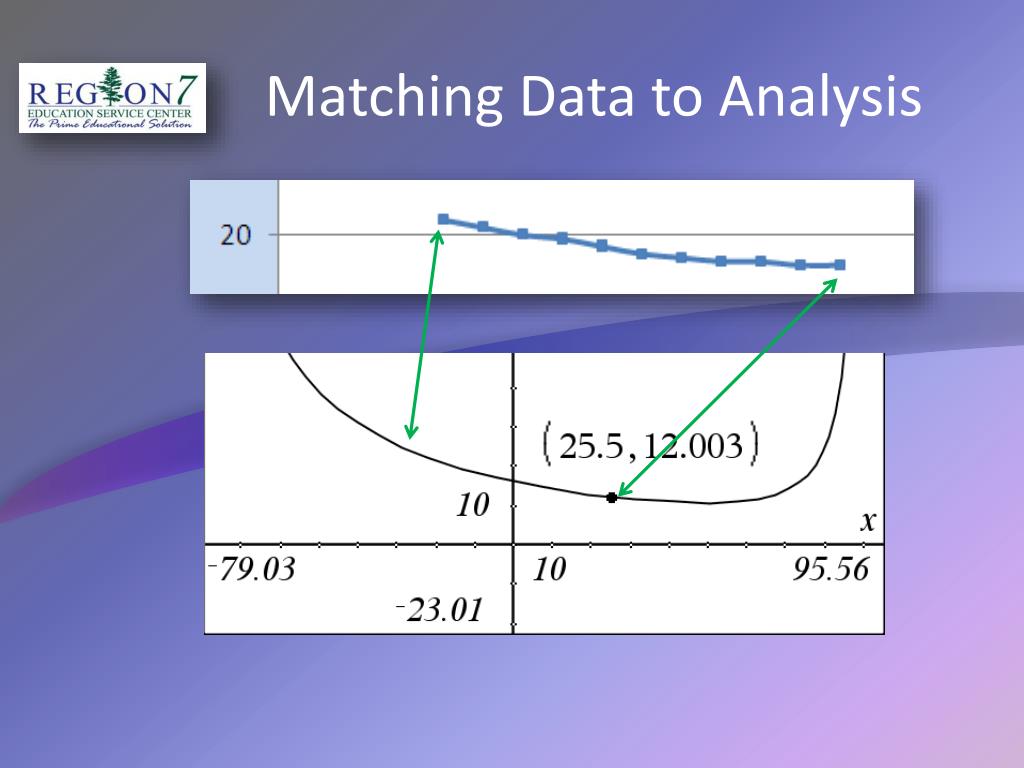

  20. Resolving Theoretical vs. Actual • Nspire graph using degrees • Excel graph (actual data) using time (seconds) • But

  21. Final Results • Nspiredata points • Theoreticalfunction • NXT datapoints

  22. Challenge • Find a non trivial set of data • Given : what is the path of the vertex when you change the value of b? • Have the NXT robot follow a sine curve and measure time and distance • What happens to the area of an ellipse as you alter one of the coefficients? • What else ….. ?

  23. Challenge • Plot results with technology • Use same technology to analyze • Compare theoretical to actual data • And hope it matches 

  24. Any Questions?

  25. Discovery Nspired Proofs T3 Regional Conference Kilgore, TX Dr. Steve ArmstrongLeTourneau Univ.
