  1. Scantronic 9x5x An introduction To the Scantronic 9x5x Range of Control Panels and Accessories Presented By Frank Grothe

  2. Scantronic 9x5x - 2002 • From Early 2002 the current 9750 and 9850 will be replaced with: • The 9751 • The 9752 • The 9851

  3. The 9x5x Products Built-in Multi Format Digi/ Modem 8 Zone on board 3/4 Fully Programmable O/C Outputs Plus 8 Secondary Communications outputs 868Mhz Class VI Radio Detectors and Transmitters 9955-50, 8 zone Radio Expander 9928 Keyswitch Interface 9930 LCD Keypad 9954, 8 zone Hardwired Expander

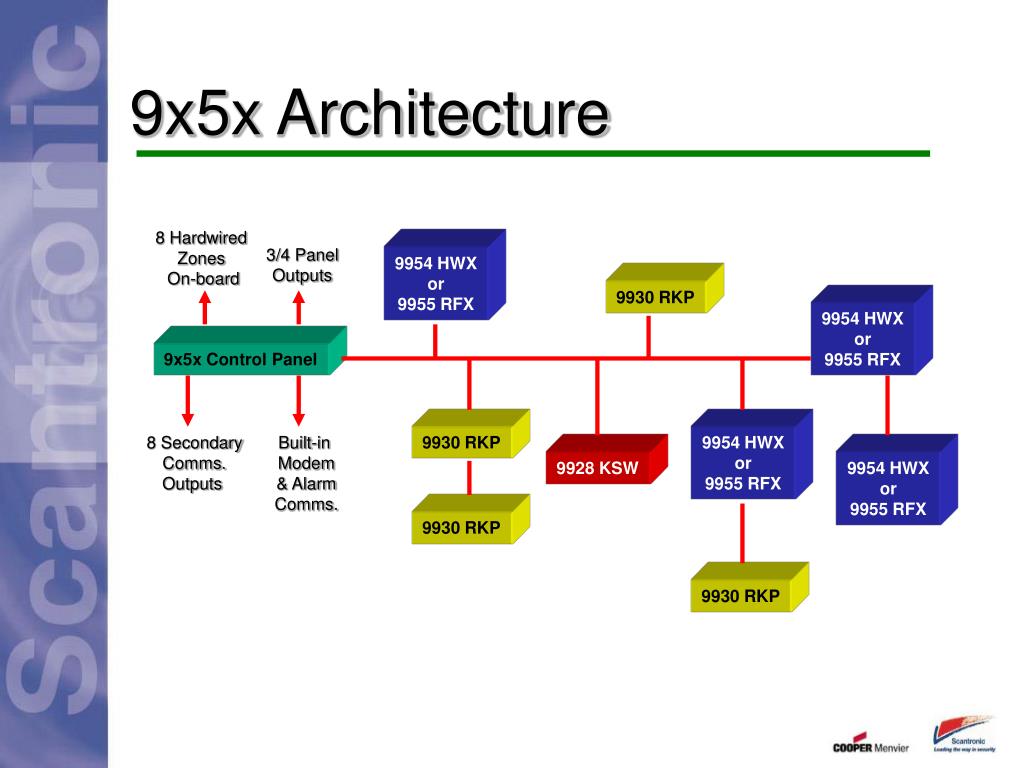

  4. 9x5x Architecture 8 Hardwired Zones On-board 3/4 Panel Outputs 9954 HWX or 9955 RFX 9930 RKP 9954 HWX or 9955 RFX 9x5x Control Panel 8 Secondary Comms. Outputs Built-in Modem & Alarm Comms. 9930 RKP 9954 HWX or 9955 RFX 9928 KSW 9954 HWX or 9955 RFX 9930 RKP 9930 RKP

  5. 9x5x Progression Replaces All 9751UK-00 Replaces 9750UK-20 9800UK-50 9448UK-60 9449UK-50 816UK-00 9752UK-00 Upgrades 9851UK-00 Replaces 9850UK-50 9955EUR-50 Upgrades 9955EUR-00 9755EUR-00 9954EUR-00 Replaces 9855EUR-00

  6. 9751 Hardware Features • 8 zones on board expandable to 24 using remote hardwired or 868MHz Class VI radio expansion. • Hardwired zones are FSL, EOL or CC configured. • Small Metal end station enclosure. • 16 Character LCD remote keypad as standard. • 3 transistorised panel outputs & 8 (plug-by) transistorised secondary communications outputs. • Built-in Multi-format digital communicator and 300 baud V21 half duplex modem. • Remote connect UDL. • Battery saver and Presence

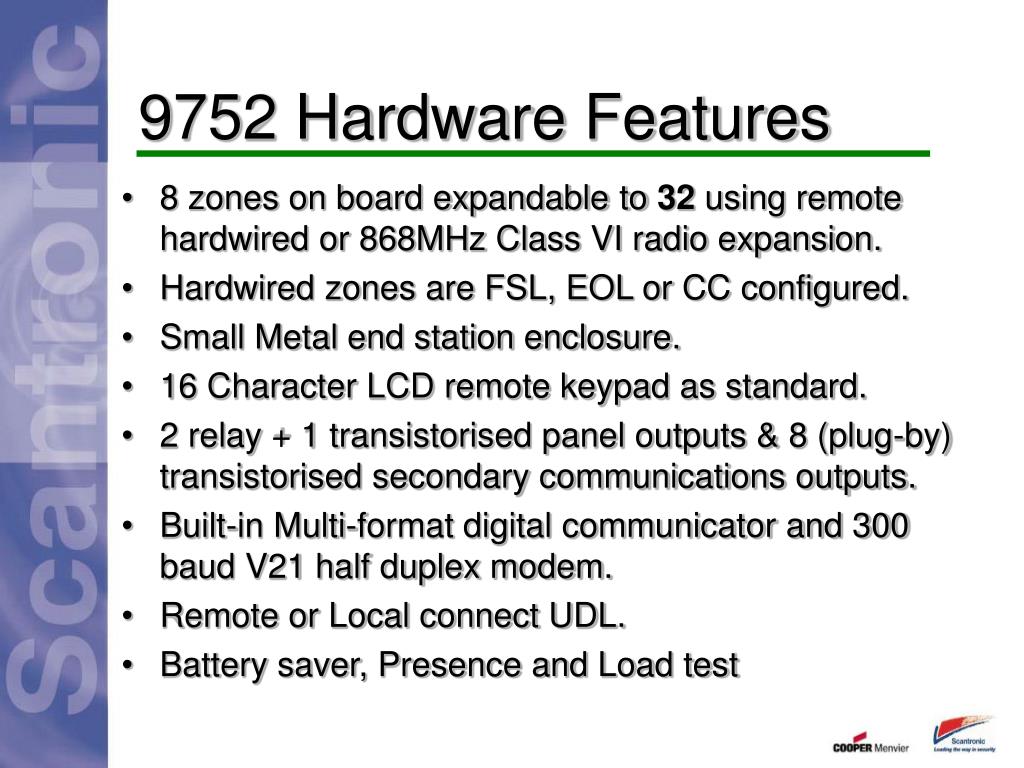

  7. 9752 Hardware Features • 8 zones on board expandable to 32 using remote hardwired or 868MHz Class VI radio expansion. • Hardwired zones are FSL, EOL or CC configured. • Small Metal end station enclosure. • 16 Character LCD remote keypad as standard. • 2 relay + 1 transistorised panel outputs & 8 (plug-by) transistorised secondary communications outputs. • Built-in Multi-format digital communicator and 300 baud V21 half duplex modem. • Remote or Local connect UDL. • Battery saver, Presence and Load test

  8. 9851 Hardware Features • 8 zones on board expandable to 40 using remote hardwired or 868MHz Class VI radio expansion. • Hardwired zones are FSL, EOL or CC configured. • Large Metal end station enclosure. • 16 Character LCD remote keypad as standard. • 2 relay + 2 transistorised panel outputs & 8 (plug-on & plug by) transistorised secondary communications outputs. • Built-in Multi-format digital communicator and 2400/300 baud V21 Full duplex modem. • Remote or Local connect UDL.

  9. 9851 Hardware Features (2) • 1.3 Amp Power Supply. • Capable of supporting a 17Ah battery. • Battery saver, Presence and Load test. • Scantronic local printer output . • Provision in the PCB design for a 9800+ upgrade kit

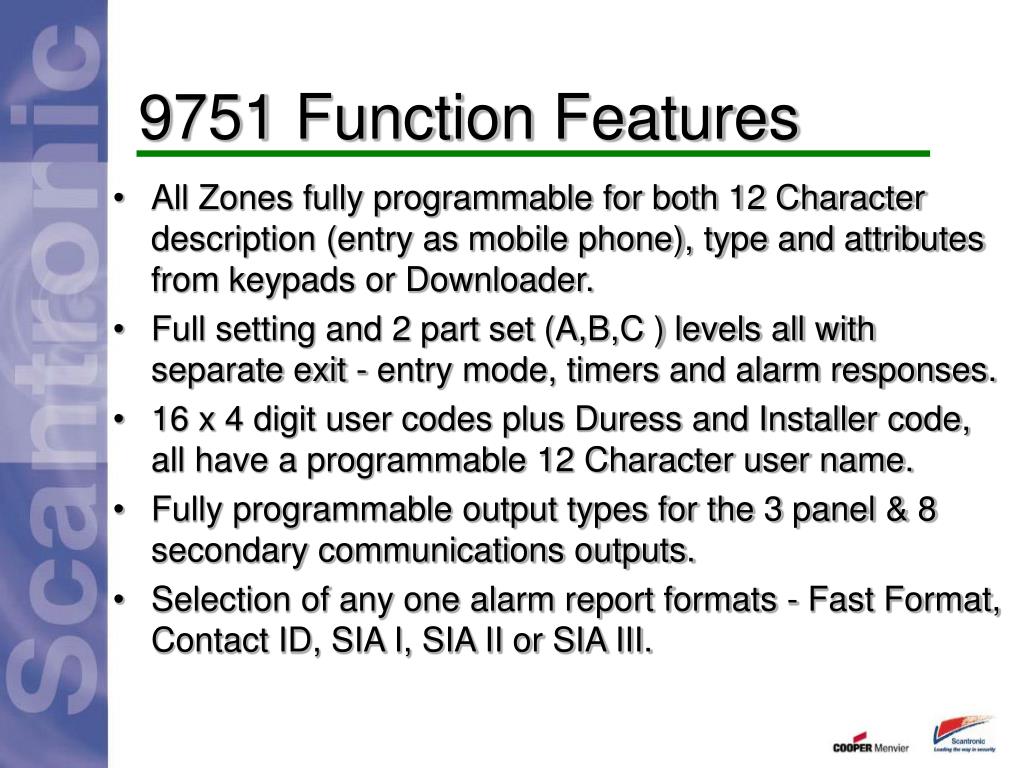

  10. 9751 Function Features • All Zones fully programmable for both 12 Character description (entry as mobile phone), type and attributes from keypads or Downloader. • Full setting and 2 part set (A,B,C ) levels all with separate exit - entry mode, timers and alarm responses. • 16 x 4 digit user codes plus Duress and Installer code, all have a programmable 12 Character user name. • Fully programmable output types for the 3 panel & 8 secondary communications outputs. • Selection of any one alarm report formats - Fast Format, Contact ID, SIA I, SIA II or SIA III.

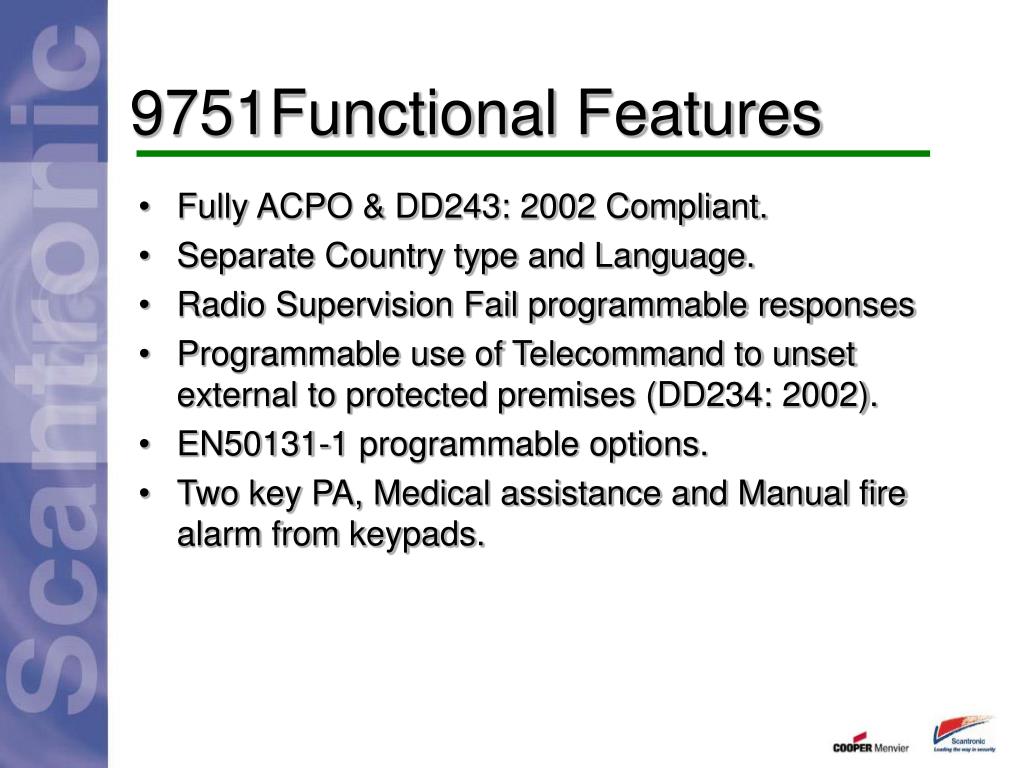

  11. 9751Functional Features • Fully ACPO & DD243: 2002 Compliant. • Separate Country type and Language. • Radio Supervision Fail programmable responses • Programmable use of Telecommand to unset external to protected premises (DD234: 2002). • EN50131-1 programmable options. • Two key PA, Medical assistance and Manual fire alarm from keypads.

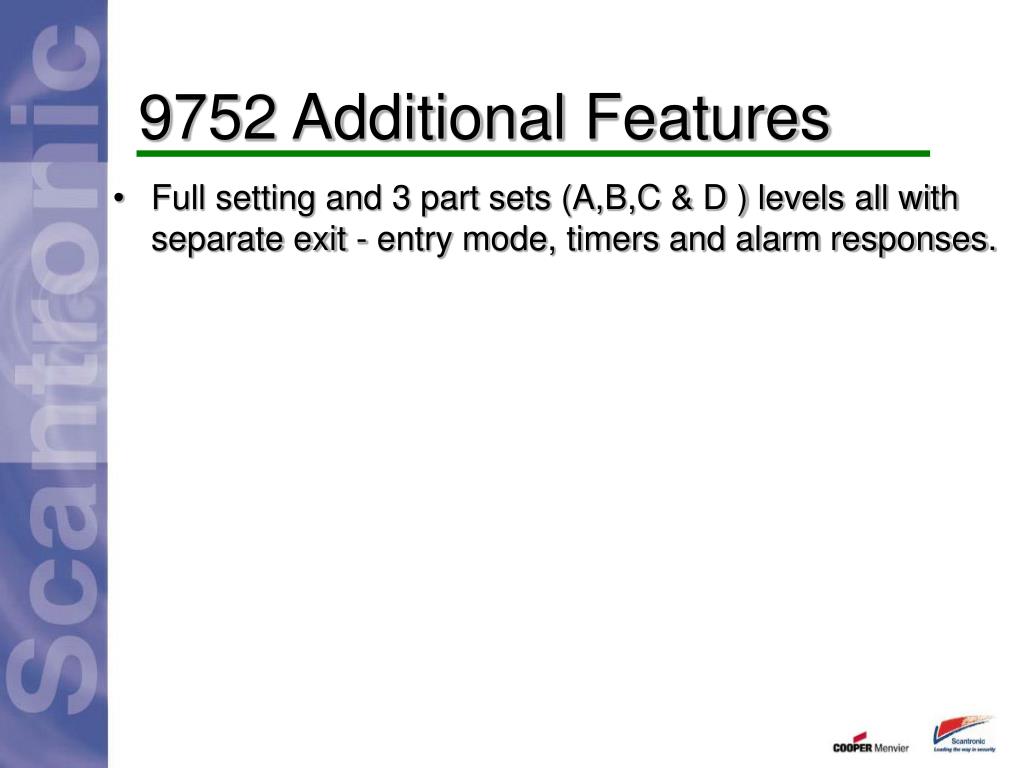

  12. 9752 Additional Features • Full setting and 3 part sets (A,B,C & D ) levels all with separate exit - entry mode, timers and alarm responses.

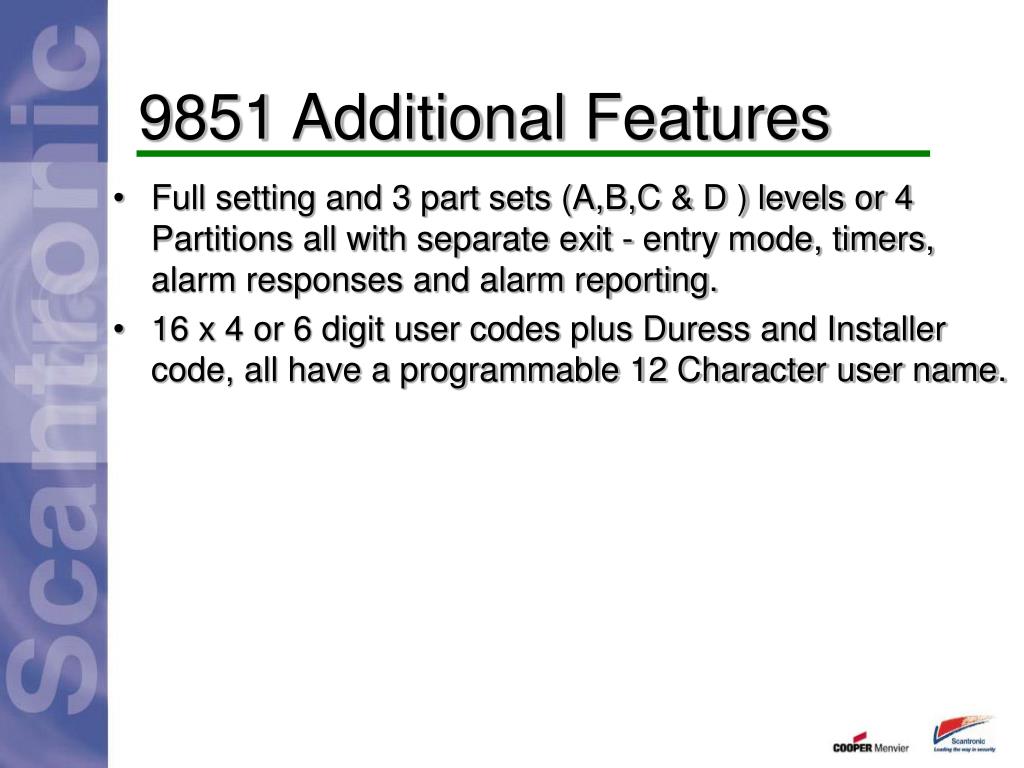

  13. 9851 Additional Features • Full setting and 3 part sets (A,B,C & D ) levels or 4 Partitions all with separate exit - entry mode, timers, alarm responses and alarm reporting. • 16 x 4 or 6 digit user codes plus Duress and Installer code, all have a programmable 12 Character user name.

  14. 9x5x Ancillary Products • Common to all the 9x5x Panels are: • 9954 - 8 zone hardwired expander, wired on to keypad 4 wire bus, fully configurable zones (4 wire CC, EOL, FSL). • 9930 - Single Line (16ch.) LCD keypad. • 9928- key switch Interface PCB for momentary and latched switches. • Range of 868MHz Radio Products

  15. 868MHz Radio Products • Common to all the 9x5x Panels are: • 9955-50 - 8 zone Radio zone Expansion/Receiver, • connects on to the keypad 4 wire bus. • 715r 12 metre passive infra-red with transmitter. • 719r Photoelectric smoke detector / transmitter. • 725r Remote set/unset fob with PA function. • 726r Two button PA transmitter. • 735r Door contact/universal transmitter. • 747r Simple GO-NOGO signal test meter & test Tx.

  16. 868MHz Radio Features • Radio Frequency 868.665 MHz with < 25KHz • bandwidth (Narrow Band). • Meets the requirements of pr EN 50131-5-3 “Grade 2” • for Europe generally and Skafor grade 2. • All transmitters (except 725 & 726) transmit • supervision every 4 minutes. • Receiver uses patented IR address learn, (16 million • differs). • Individual signal strength for transmitters and • telecommands can be viewed locally or via the • Downloader.

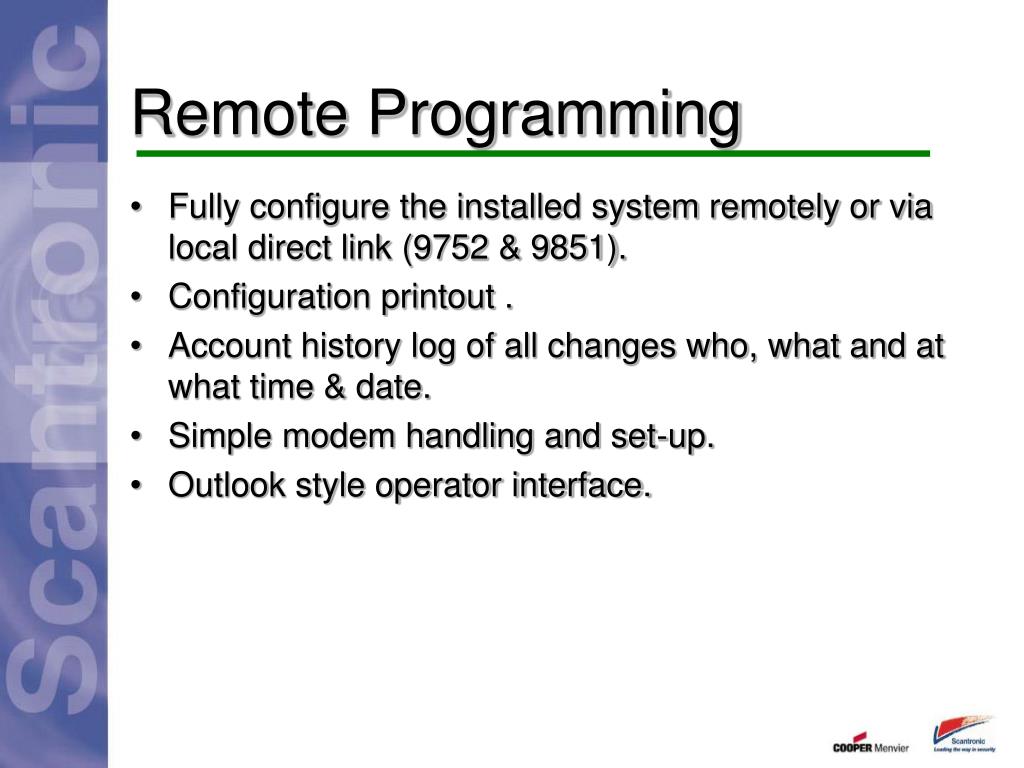

  17. Remote Programming • Fully configure the installed system remotely or via local direct link (9752 & 9851). • Configuration printout . • Account history log of all changes who, what and at what time & date. • Simple modem handling and set-up. • Outlook style operator interface.

  18. 9x5x Remote Operation • All 9x5x Products will have Remote Functions:- • Up/Downloading options of Attended site, Secure call-back, Customer initiated. • Remote servicing and diagnostics facility • Zone Activity monitor, Zone Omitted, Zone in Soak Test, Zone Tampered or Zone Unused. • Zone resistance (panel and hardwired expander). • RF Zone status and signal strength, Supervision failed or Transmitter Low Battery. • Separate Telecommands Signal Strength monitor.

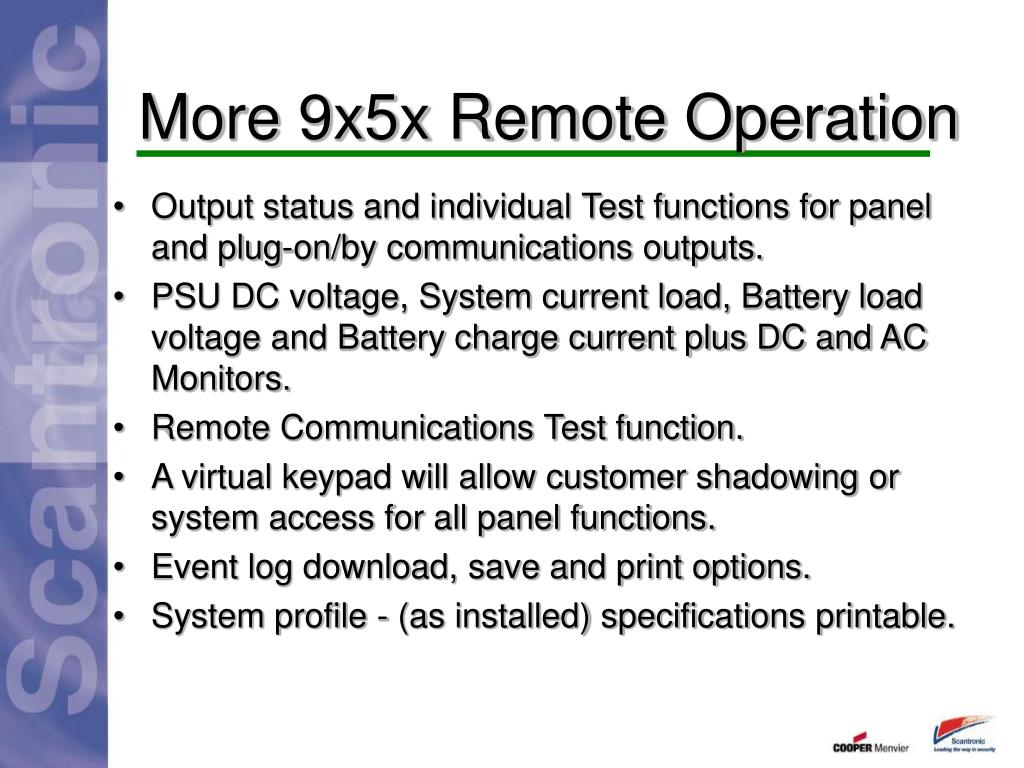

  19. More 9x5x Remote Operation • Output status and individual Test functions for panel and plug-on/by communications outputs. • PSU DC voltage, System current load, Battery load voltage and Battery charge current plus DC and AC Monitors. • Remote Communications Test function. • A virtual keypad will allow customer shadowing or system access for all panel functions. • Event log download, save and print options. • System profile - (as installed) specifications printable.

  20. 9x5x Downloader

  21. 9x5x Downloader

  22. 9x5x Downloader

  23. 9x5x Products Conformity • All Products Comply with EN50131-4 for EMC, CTR21 for PPT, EN60950 for safety. • And the following Industry regulations: • The 9652 - EN50131-1 Grade 1, • The 9751 - EN50131-1 Grade 2, FG, RUS, SKAFOR 1 or 2 • The 9752 - EN50131-1 Grade 2, FG, RUS, SKAFOR 2. • The 9851- EN50131-1 Grade 3, FG, RUS, SKAFOR 3.

  24. 9x5x in the future ! 9x5x wireless system (Narrow Band). 16 zones …… 9x5x wireless system (Wide Band) 16 zones ……
