Bacterial Transformation

Bacterial Transformation. BRIDGES 2014. Central Dogma. DNA➔RNA➔PROTEIN➔TRAIT. Phenotype. Genotype. Transformation. Adds new information to DNA Cell can take up ( take inside) and expresses a new piece of DNA Transformation

Télécharger la présentation

Bacterial Transformation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

  1. Bacterial Transformation BRIDGES 2014

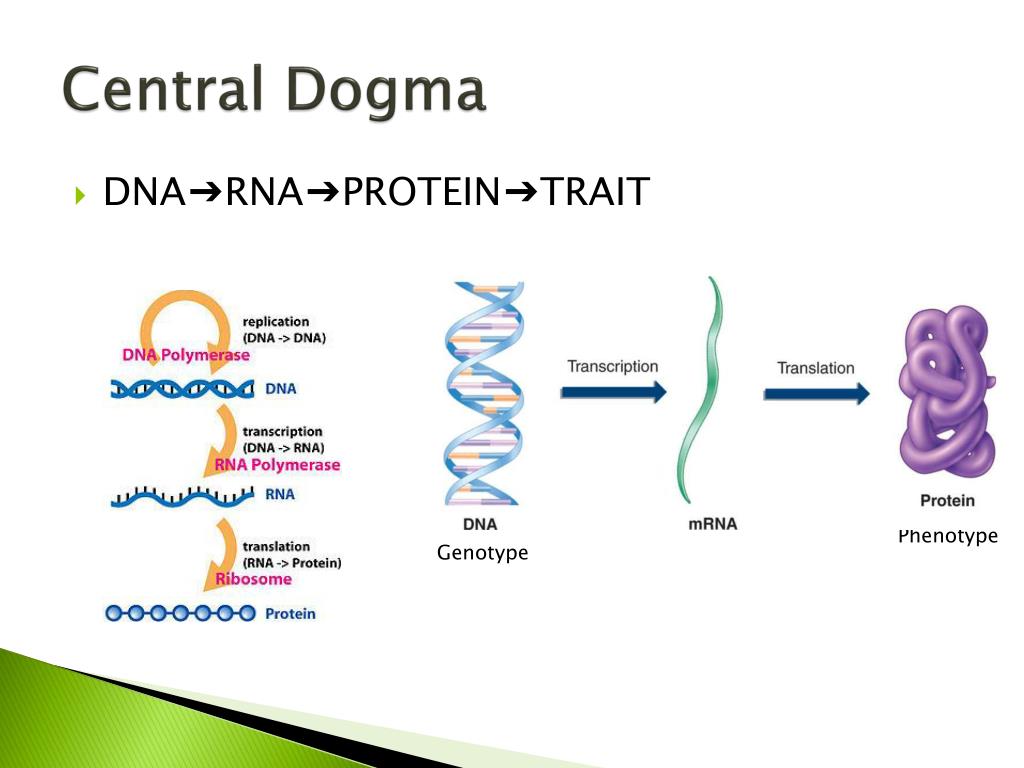

  2. Central Dogma • DNA➔RNA➔PROTEIN➔TRAIT Phenotype Genotype

  3. Transformation • Adds new information to DNA • Cell can take up (take inside) and expresses a new piece of DNA • Transformation • New genetic information often provides organism with new trait-identifiable after transformation • Genes can be cut out of human, animal, or plant DNA and placed inside bacteria via transformation

  4. Transformation

  5. Transformation Uses • Agriculture • Frost, pest, or drought resistance • Bioremediation • Bacteria to digest oil spills • Medicine • Transforming a sick person’s cells with healthy copies of the defective gene • Creating insulin for diabetes

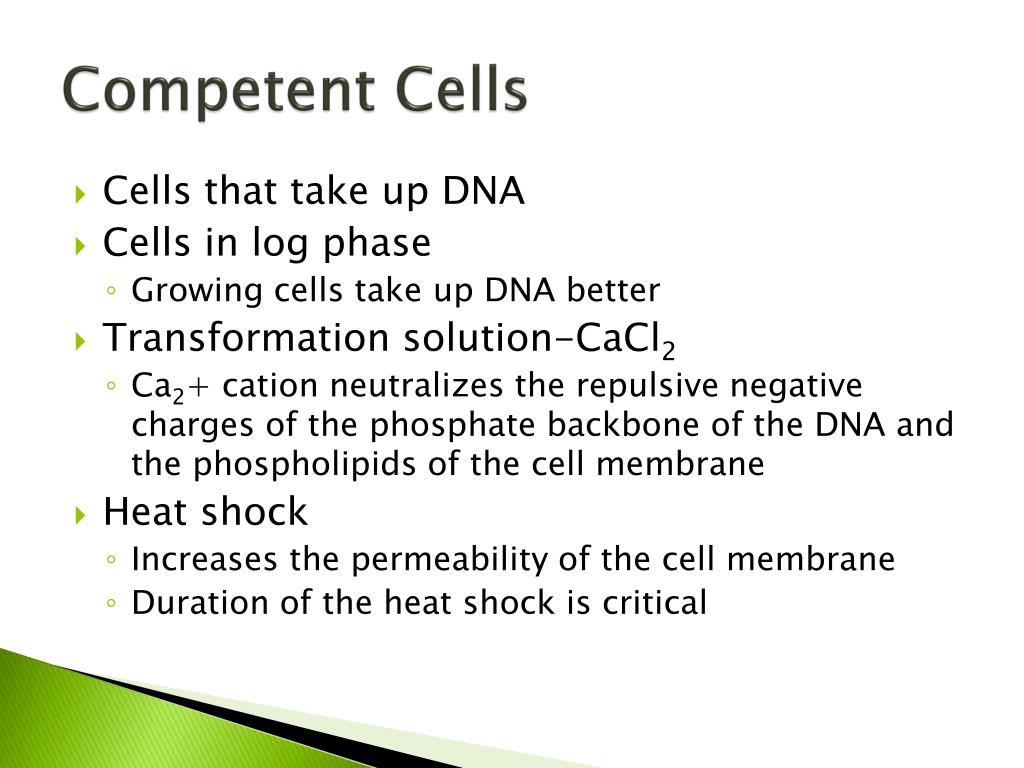

  6. Competent Cells • Cells that take up DNA • Cells in log phase • Growing cells take up DNA better • Transformation solution-CaCl2 • Ca2+ cationneutralizes the repulsive negative charges of the phosphate backbone of the DNA and the phospholipids of the cell membrane • Heat shock • Increases the permeability of the cell membrane • Duration of the heat shock is critical

  7. Plasmids • Vehicles for foreign DNA • Plasmid DNA usually contains genes for one or more traits that may be beneficial to bacterial survival • Bacteria can transfer plasmids back and forth, allowing them to share beneficial genes • Allows for adaptation to new environments • Recent occurrence of bacterial antibiotic resistance due to transmission of plasmids

  8. Plasmids

  9. Overview • Competent cells take up DNA • DNA is brought in on plasmids • Process is called transformation

  10. Green Fluorescent Protein (GFP) • GFP gene from jellyfish- Aequoreavictoria • Causes cells to glow green under ultraviolet light • Mutations to GFP enhance fluorescence • Modified GFP gene in pGLO plasmid • After transformation bacteriaexpress the jellyfish gene and glow bright green

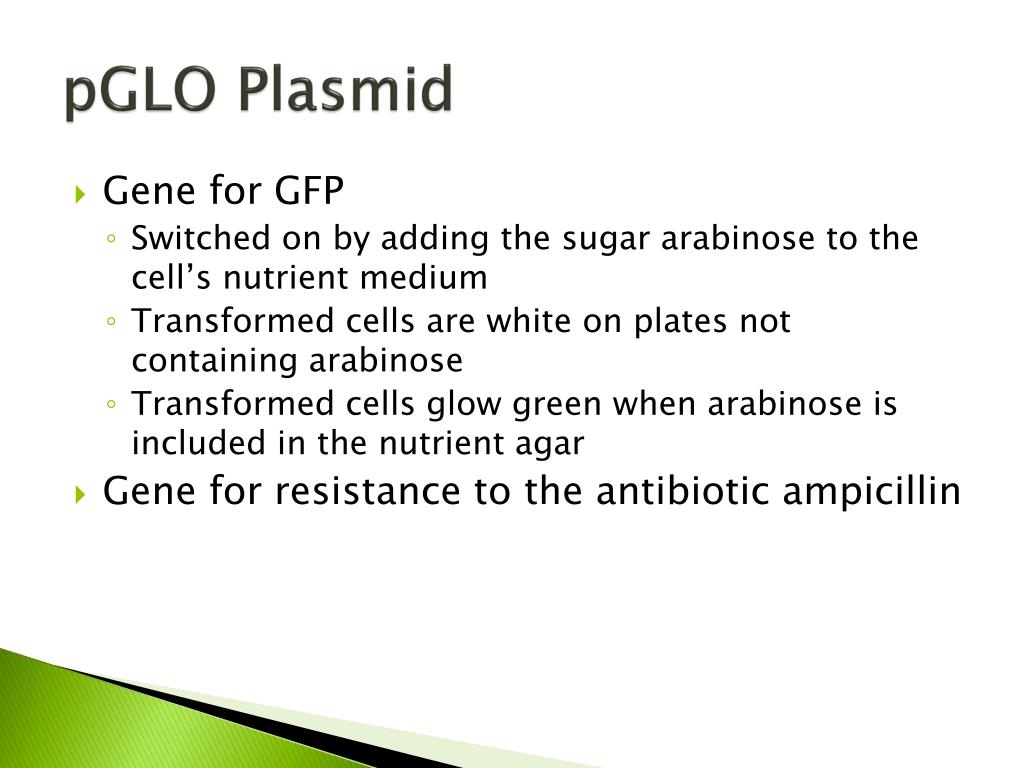

  11. pGLO Plasmid • Gene for GFP • Switched on by adding the sugar arabinose to the cell’s nutrient medium • Transformed cells are white on plates not containing arabinose • Transformed cells glow green when arabinose is included in the nutrient agar • Gene for resistance to the antibiotic ampicillin

  12. pGLO Plasmid • ori- origin • bla- ampicilin resistance • araC- activated by arabinose, allows down stream transcription • GFP- green fluorescent protein

  13. Activity • Add E. coli grown overnight to transformation solution • Should be in log phase • Add pGLO plasmid to +pGLO sample • Heat • Should make cells competent (take up plasmid) • Add to LB plates with ampicillin and arabinose • Grow overnight

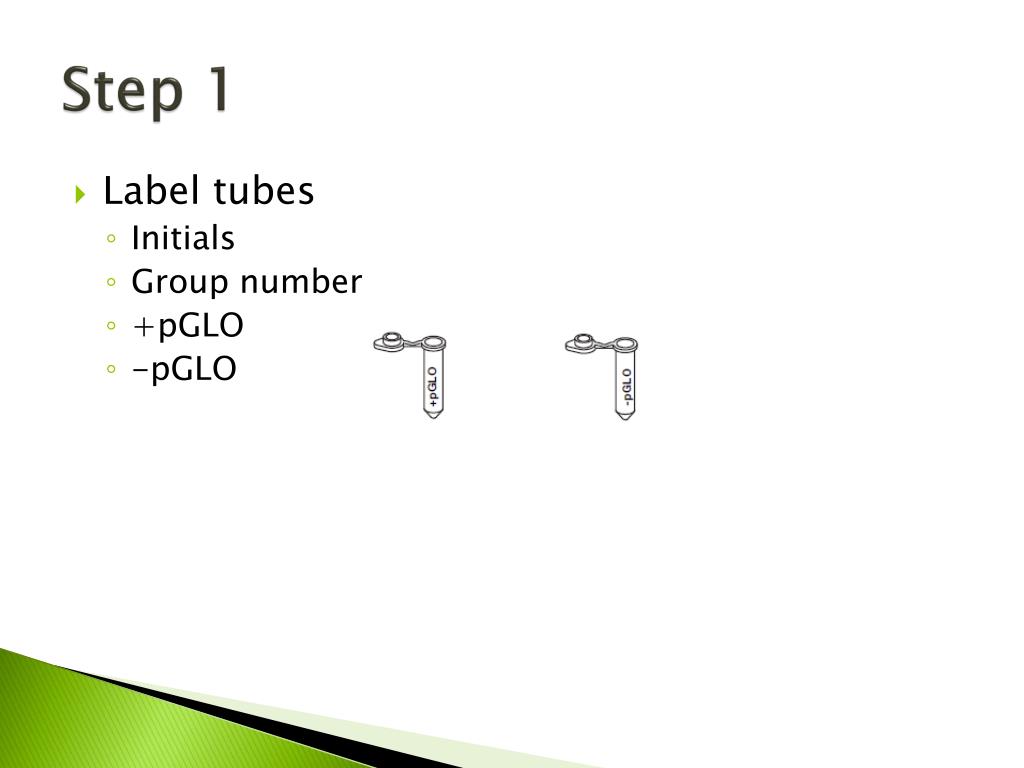

  14. Step 1 • Label tubes • Initials • Group number • +pGLO • -pGLO

  15. Step 2 • Add 250µL transformation solution

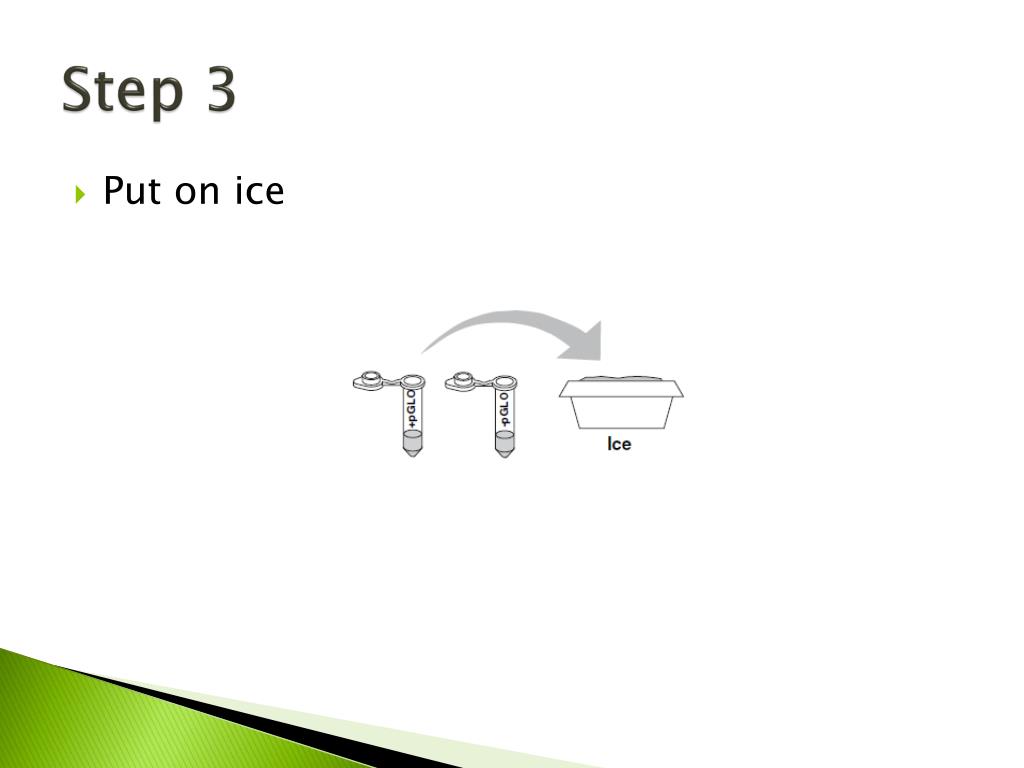

  16. Step 3 • Put on ice

  17. Step 4 • Add E. coli grown overnight to both tubes

  18. Step 5 • Add pGLO plasmid to +pGLO tube • DO NOT ADD TO –pGLO TUBE

  19. Step 5 MODIFIED • Add pGLO plasmid to +pGLO tube • DO NOT ADD TO –pGLO TUBE • Use pipet to transfer 10µL of plasmid

  20. Step 6 • Put back on ice for 10 mins

  21. Step 7 • Label plates

  22. Step 8 • Heat Shock • Time this! • Then ice for 2 mins

  23. Step 9 • Add broth

  24. Step 9 MODIFIED • Add broth • Use broth YOU made • Using sterile technique pour some into beaker and transfer from there

  25. Step 9 MODIFIED • Add broth • Longer room temperature incubation will improve results

  26. Step 10 • Add to plates

  27. Step 11 • Spread plates • Use different spreaders for each plate

  28. Step 12 • Incubate overnight • Label with initials • At 37˚C
