1 / 20

NADH 2 enters the ETC in Step #1 . FADH 2 does not enter the ETC until Step #3 .

NADH 2 enters the ETC in Step #1 . FADH 2 does not enter the ETC until Step #3. Steps #1 thru #3: two H + ions and two electrons are passed from NADH (oxidized back to NAD+) to FMN reducing it to FMNH 2 . This passes 2H + ions and 2e - on to CoQ which is reduced to CoQH 2 .

laurie
Télécharger la présentation

NADH 2 enters the ETC in Step #1 . FADH 2 does not enter the ETC until Step #3 .

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

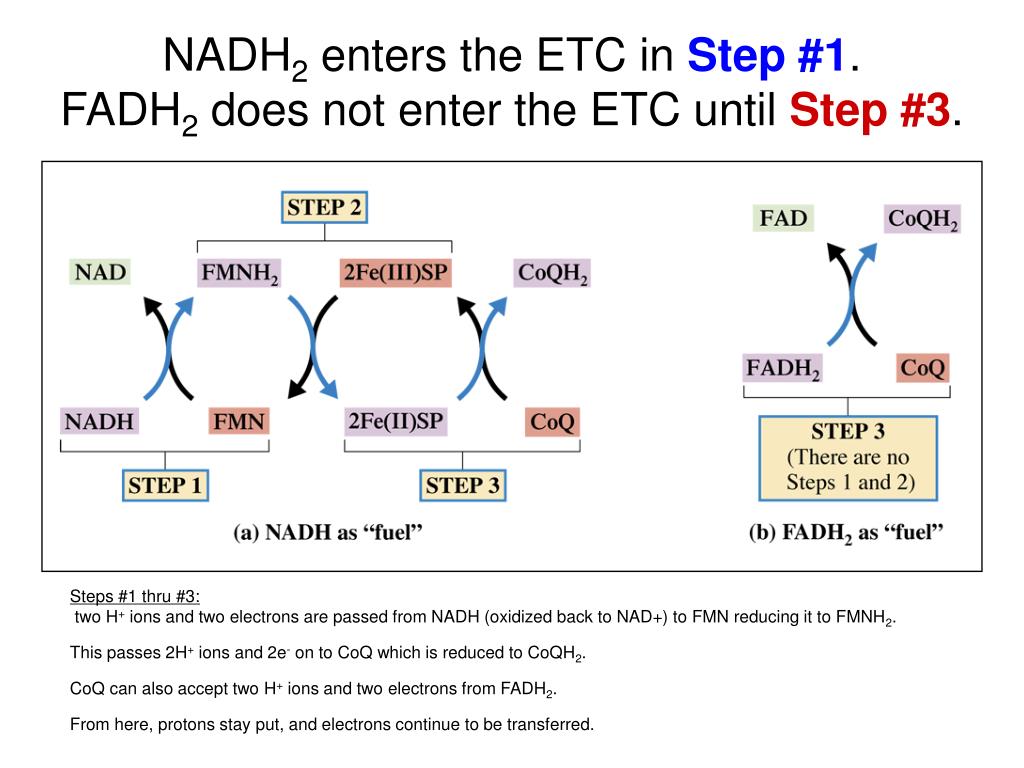

  1. NADH2 enters the ETC in Step #1. FADH2 does not enter the ETC until Step #3. Steps #1 thru #3: two H+ ions and two electrons are passed from NADH (oxidized back to NAD+) to FMN reducing it to FMNH2. This passes 2H+ ions and 2e- on to CoQ which is reduced to CoQH2. CoQ can also accept two H+ ions and two electrons from FADH2. From here, protons stay put, and electrons continue to be transferred.

  2. Steps #4 thru #8 use cytochrome moleculesAll steps except last one involve just electrons; H+ ions (protons) are also involved in the last step. Oxygen’s entire role is to pick up low energy electrons and spare H+ ions

  3. Cytochromes are a group of red or brown heme proteins that undergo reversible oxidation & reduction through their iron atoms & electrons: back & forth between +3 & +2 oxidation states

  4. As the electrons are passed from one cytochrome to another, they lose energy which is indirectly used to make ATP (Wait! We’ll get there) As e- reach the end of the cytochrome chain, they’re picked up & removed by O2, which reacts with left over hydrogen ions (H+), forming water. This is the water that you sweat, excrete, & breath out.

  5. Each Redox step grabs energy to pump H+ ions across inner membrane • Accumulationof protons • within the • inter-membranespace

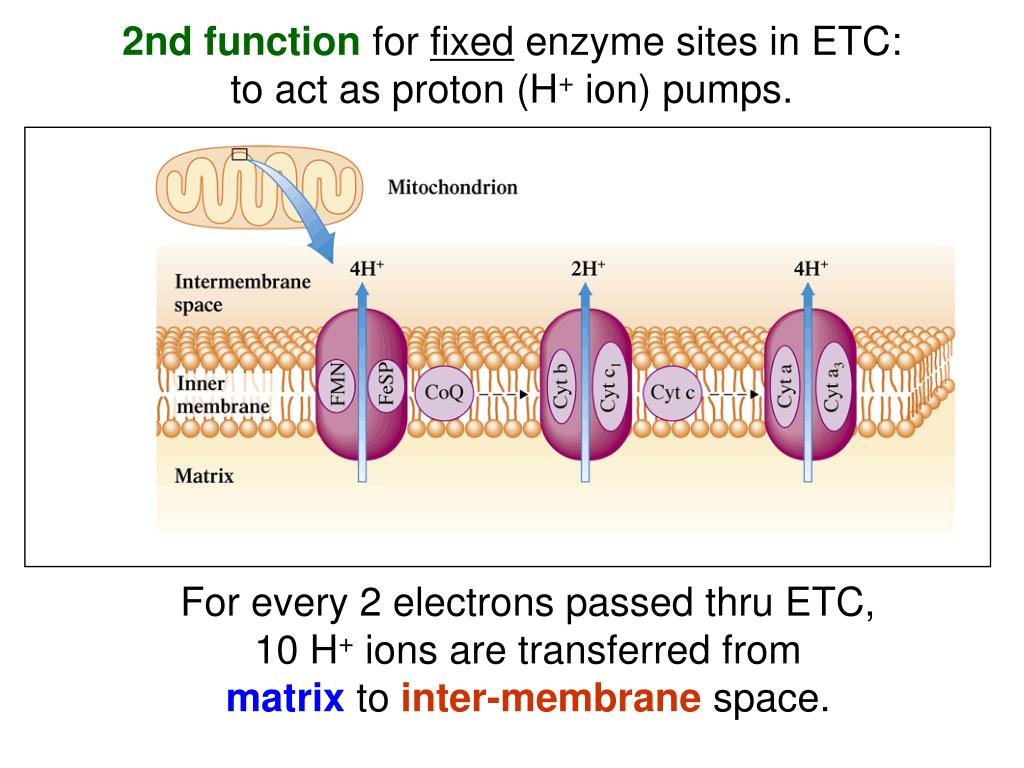

  6. 2nd function for fixed enzyme sites in ETC: to act as proton (H+ ion) pumps. For every 2 electrons passed thru ETC, 10 H+ ions are transferred from matrix to inter-membrane space.

  7. Remember! Diffusion is exergonic Atoms (or ions) are moved in one net direction.

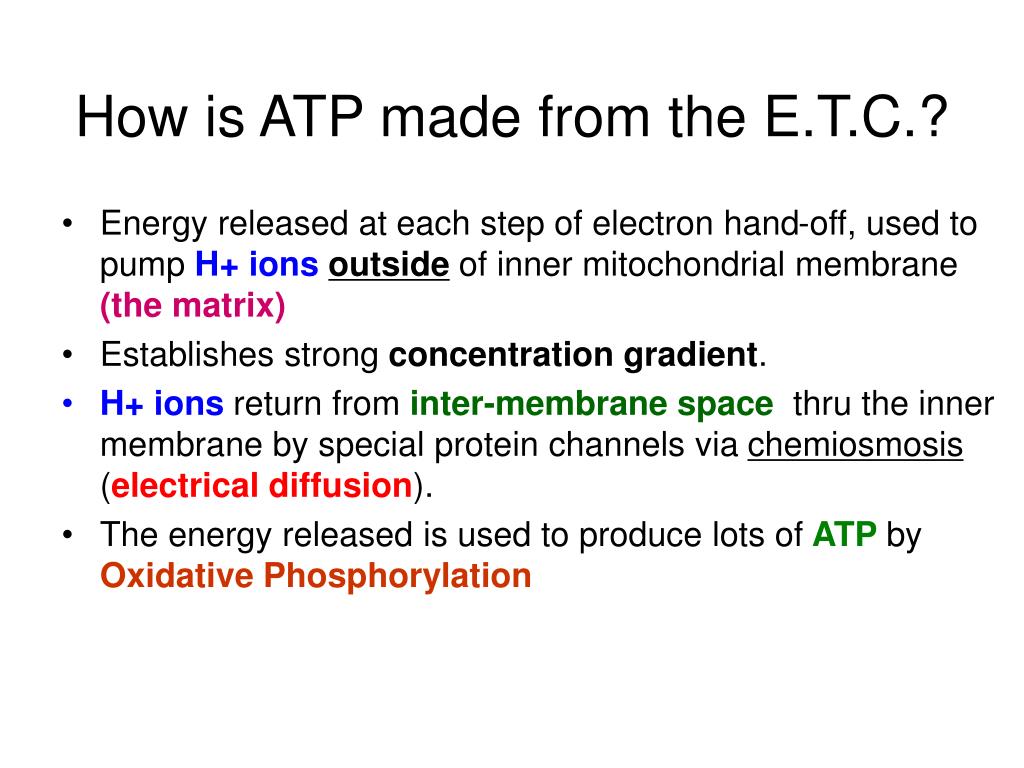

  8. How is ATP made from the E.T.C.? • Energy released at each step of electron hand-off, used to pump H+ ionsoutside of inner mitochondrial membrane (the matrix) • Establishes strong concentration gradient. • H+ ions return from inter-membranespace thru the inner membrane by special protein channels via chemiosmosis (electrical diffusion). • The energy released is used to produce lots of ATPby Oxidative Phosphorylation

  9. Note the last Protein is a H+ ion channel: ATP synthase • Electron transport & • electrochemical gradient difference: • e- energy used to pump H+ ions • out of the matrix ATP is made

  10. Complex V: World’s smallest rotary motor! ATP synthase is the transmembrane protein enzyme that taps H+ ionenergy to perform oxidative phosphorylation on ADP creating ATP Oxidative phophorylation animation

  11. Where’s them mighty-kondreea thingies when I needs ‘em?

  12. Remember why the conversion of ADP into ATP is so very important: ATP drives most endergonic reactionsin biological processes.

  13. Adenosine triphosphate (ATP) • Holds readily available energy for short periods • Donates energy by means of terminal phosphate group • Strained bonds: repulsive strain = less energy needed to break P-to-P bonds • Most common energy link between • Exergonic and Endergonic reactions

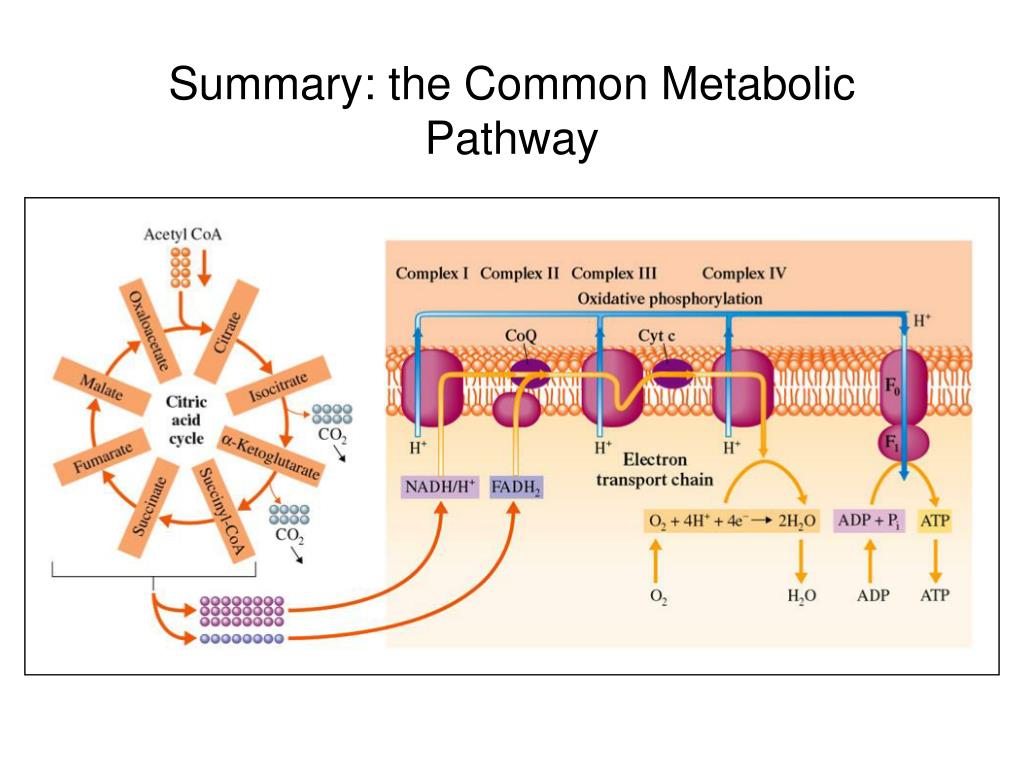

  14. Summary: the Common Metabolic Pathway

  15. TOKYO July 26, 1998 (CNN) -- Japanese police Sunday began investigating whether cyanide was mixed into food served at an annual summer festival in Wakayama, apparently killing four people and sickening dozens of others.

  16. The gas chamber & many pesticides use cyanide salts. Sodium cyanide (NaCN) is used in extraction of gold and silver from ores & in electroplating baths . Certain plants contain cyanide: apricot pits and cassava (a tuber). Cyanide ion (CN-) is small & quickly moves into cells, where it binds to iron in the heme of the last cytochrome a3 (oxidase) Immediate result is shut down of ETC (stops electron transfer to oxygen). Death is almost immediate – no ATP formation.

  17. CN- binds to Fe3+ in oxidase. No transfer of e- to oxygen. Treatment: Nitrites oxidize Fe2+ in hemoglobin to Fe3+ & CN- is drawn into bloodstream & converted to SCN- (with thiosulfate)

  18. Mitochondrial production of heat: Brown Fat • extraordinary # of mitochondria, involved in heat generation • important to neonates, small mammals in cold environments, and hibernating animals mitochondrial uncoupling protein: thermogenin mitochondria uncouple from oxidative phosphorylation ETC system generates heat instead of ATP

  19. Antioxidants 90% of O2 used in electron transport chain 10% of O2 creates reactive oxygen species (ROS) and free radicals like superoxide ions & hydroxyls. Substances like H2O2 and O2- and OH are used to kill invading pathogens Afterwards, 95% are decomposed using enzymes: superoxide dismutase and catalase flavonoids & phytochemicals and other antioxidants mop up the remaining free radicals

  20. Flavones Flavonols Antioxidants
