  1. E+ Source Target PrototypeUpdate and Data to date • Status • Torque transducer / motor control data • Accelerometers

  2. Current Status • Local guarding frame has been built • Awaiting confirmation of sheet thickness • Still stuck at 60 rpm • Initial work by Chris Nelson (RAL) agrees with Lisle Hagler (LLBL) rotordynamic and thermal stress analysis • We have spoken to Jim Rochford (RAL) about magnetic modeling simulations in Opera/Electra: we may be able to do this in-house very soon! • 4 thermal cameras operational • PC seems to be able to cope with picoscope, torque software and CTscope simultaneously • Accelerometer hardware trip completed

  3. Motor Control Torque Transducer (T12)

  4. Encoder and requested rpm (y) time (x) CT motor control feedback data Encoder ( 0 – 655320) : shown divided by 1000 on plot Wheel continues spinning after motor switched off ENCODER POSITION RPM

  5. Torque and rpm (T12) Speed shows oscilliatory behaviour 60 rpm seems to be peak speed, not even average Speed tails off after motor switched off TORQUE Nm RPM

  6. Blue – requested rpm, Red – rpm from torque transducer, Green – encoder, Black – torque (Nm)

  7. Torque drives speed change (matched but slightly ahead in time) Tosc = 1 sec @ 60 rpm = 1 rev per sec ( x-scale = milliseconds ) Speed and Torque overlaid only for shape comparison purposes (not same scales) TORQUE SPEED

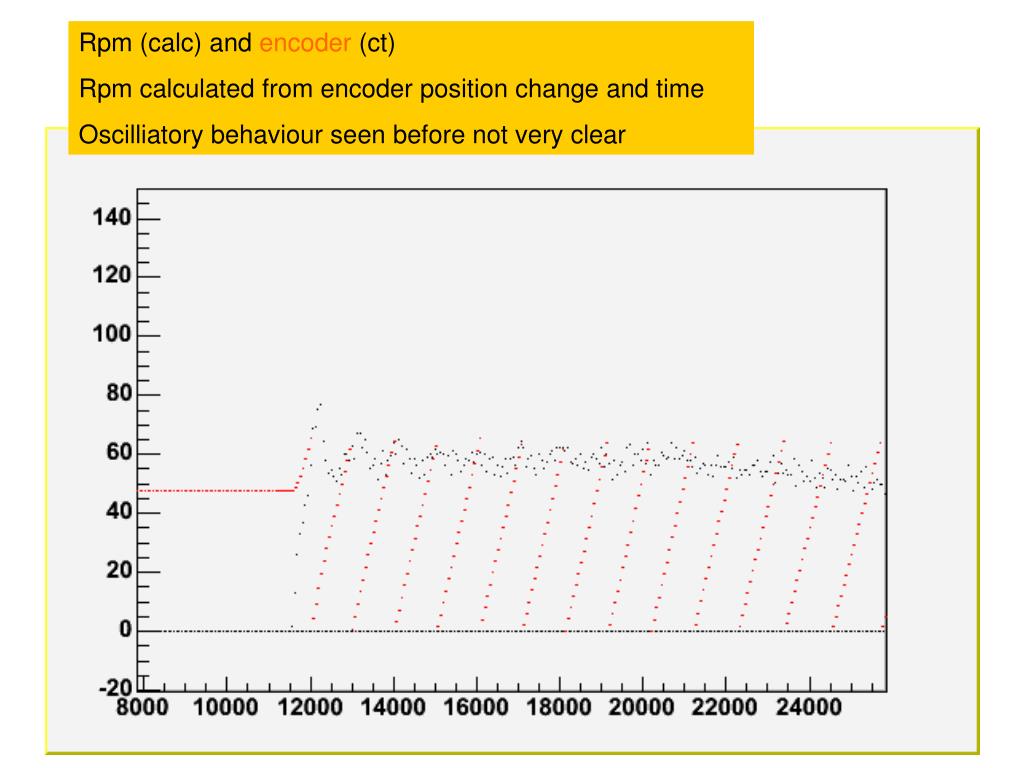

  8. Rpm (calc) and encoder (ct) Rpm calculated from encoder position change and time Oscilliatory behaviour seen before not very clear

  9. Blue – calculated rpm from encoder, Red – rpm from torque transducer Difficult to convincingly show agreement, too few data points from encoder

  10. Speed = 30 rpm • Oscilliatory structure far less clear • Not obviously 2Hz as expected • Speed well short of 30 rpm • Too slow for torque transducer? • Calibration? RPM

  11. Torque @ 30 rpm • Highly oscilliatory • Behaviour after motor switch off not the same as 60 rpm

  12. Torque @ 30 rpm 3 seconds of data = 1 ½ revolutions Spokes(5) are equally spaced but large troughs(6) are too far apart in time to be spoke edges either Unsure of cause :- ball bearings in bearing housing / motor, no. coils / windings / magnets ?

  13. Accelerometers One accelerometer on table (control) and one on bearing housing

  14. Motor off: background noise This is a static plot but frequent fluctuations seen on short time scales, all frequencies Something loud at 450Hz? Air con? 100 Hz? (see next plot) Red: on table in personnel area Blue: on bearing in machine area

  15. Motor on at 0 rpm: rumbles rumble seen @ 420 Hz + 525 Hz ? trough at 200Hz likely a short-term fluctuation

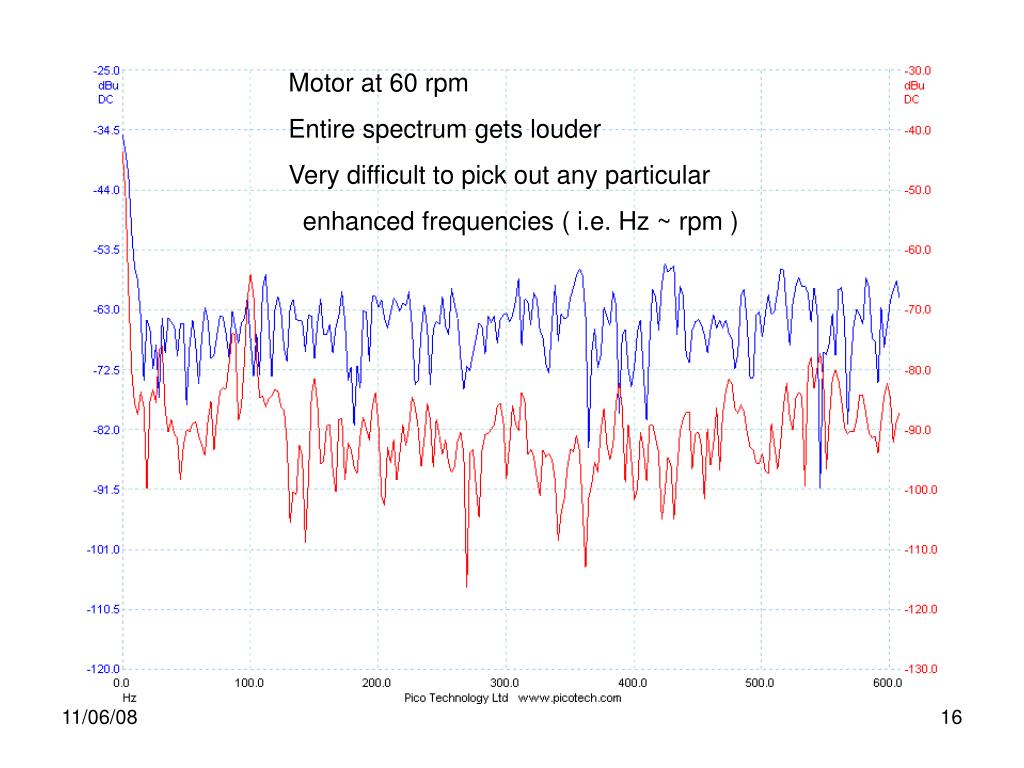

  16. Motor at 60 rpm Entire spectrum gets louder Very difficult to pick out any particular enhanced frequencies ( i.e. Hz ~ rpm )

  17. HBM measurement training day • Torque transducer is just a set of strain gauges on a shaft • The twist alters the resistance which is measured by wheatstone bridges • To achieve the highest levels of accuracy, temperature and initial stresses must be considered Makes solid metal rig seem like a wobbly structure!

  18. Summary • Progress is being slowed up by safety considerations • Most DAQ is in place and data taking is happening • As always there are a few teething problems and unexpected results • Proprietary software is largely black-box plug-and-play… Easy to set-up but difficult to cater for specific requirements of the experiment
