  1. DATA MININGExtracting Knowledge From Data Petr Olmer CERN petr.olmer@cern.ch

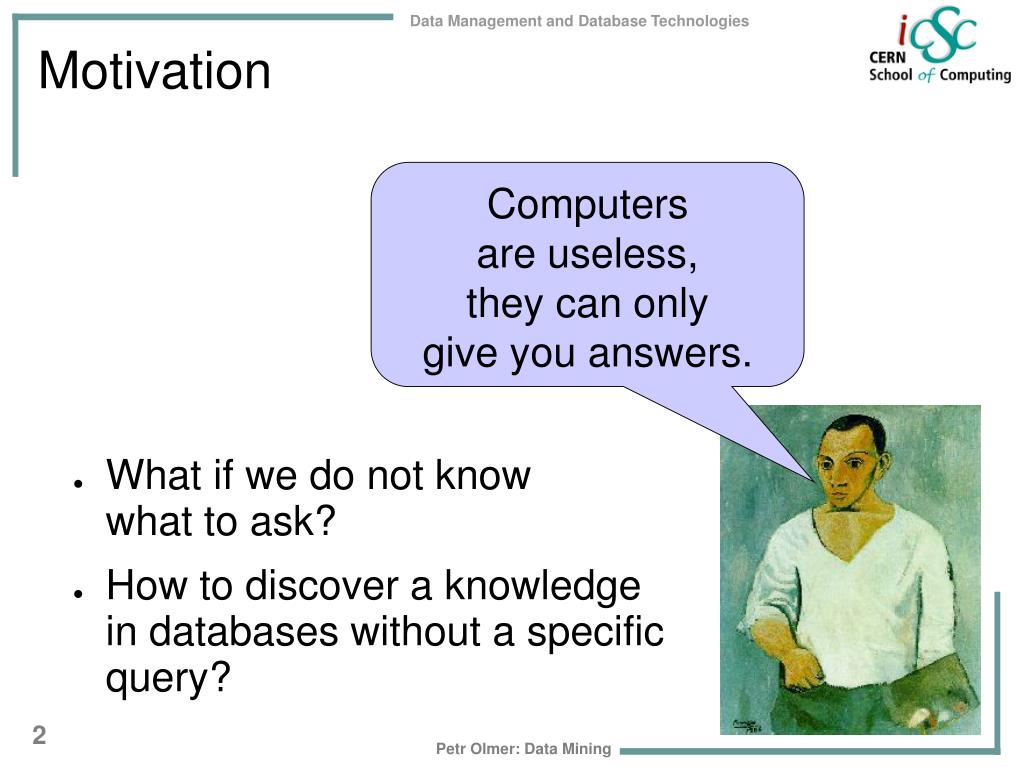

  2. Motivation Computersare useless,they can onlygive you answers. • What if we do not knowwhat to ask? • How to discover a knowledgein databases without a specific query?

  3. Many terms,one meaning • Data mining • Knowledge discovery in databases • Data exploration • A non trivial extraction of novel, implicit, and actionable knowledge from large databases. • without a specific hypothesis in mind! • Techniques for discovering structural patterns in data.

  4. What is inside? • Databases • data warehousing • Statistics • methods • but different data source! • Machine learning • output representations • algorithms

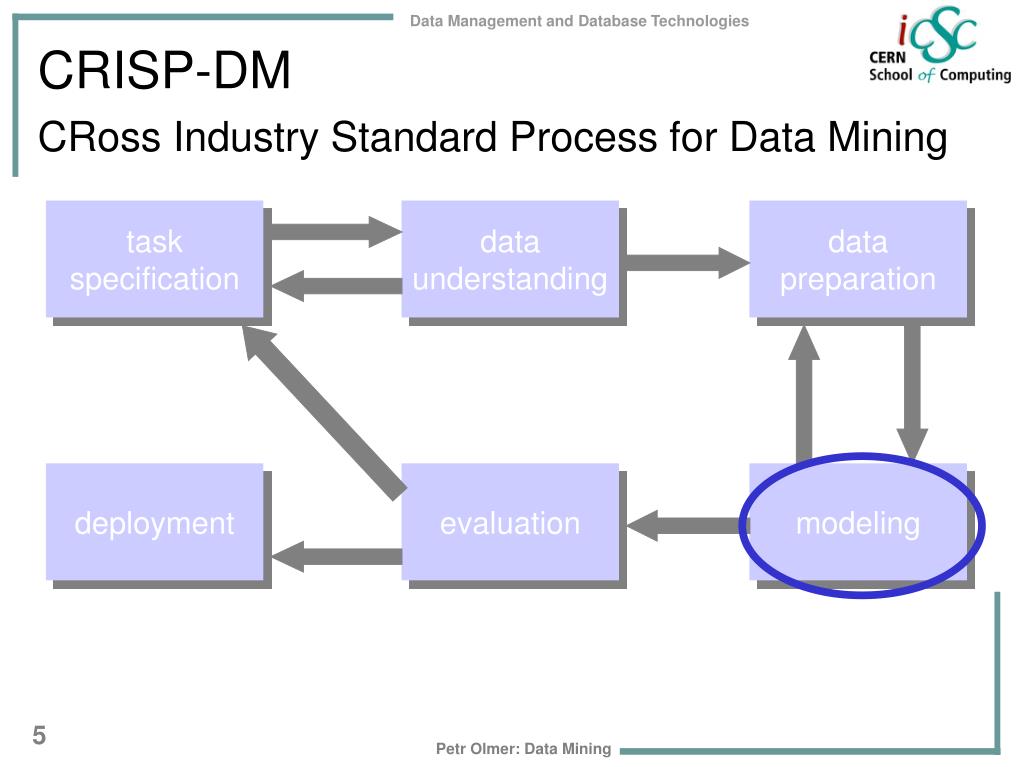

  5. CRISP-DMCRoss Industry Standard Process for Data Mining task specification data understanding data preparation deployment evaluation modeling http://www.crisp-dm.org

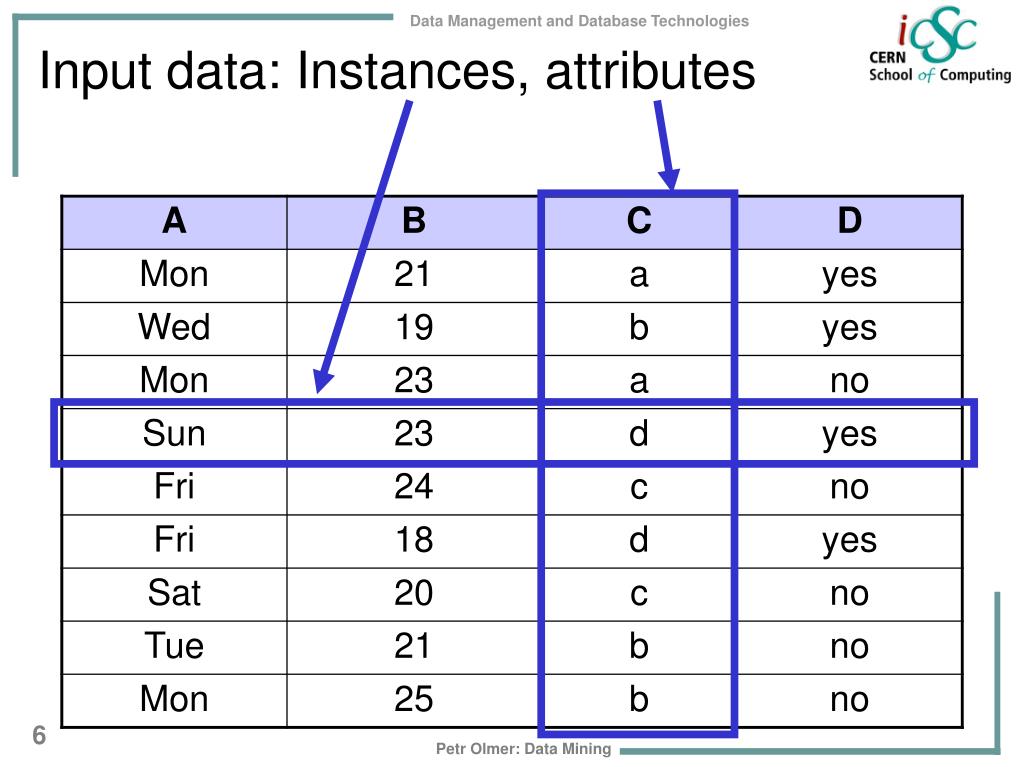

  6. Input data: Instances, attributes

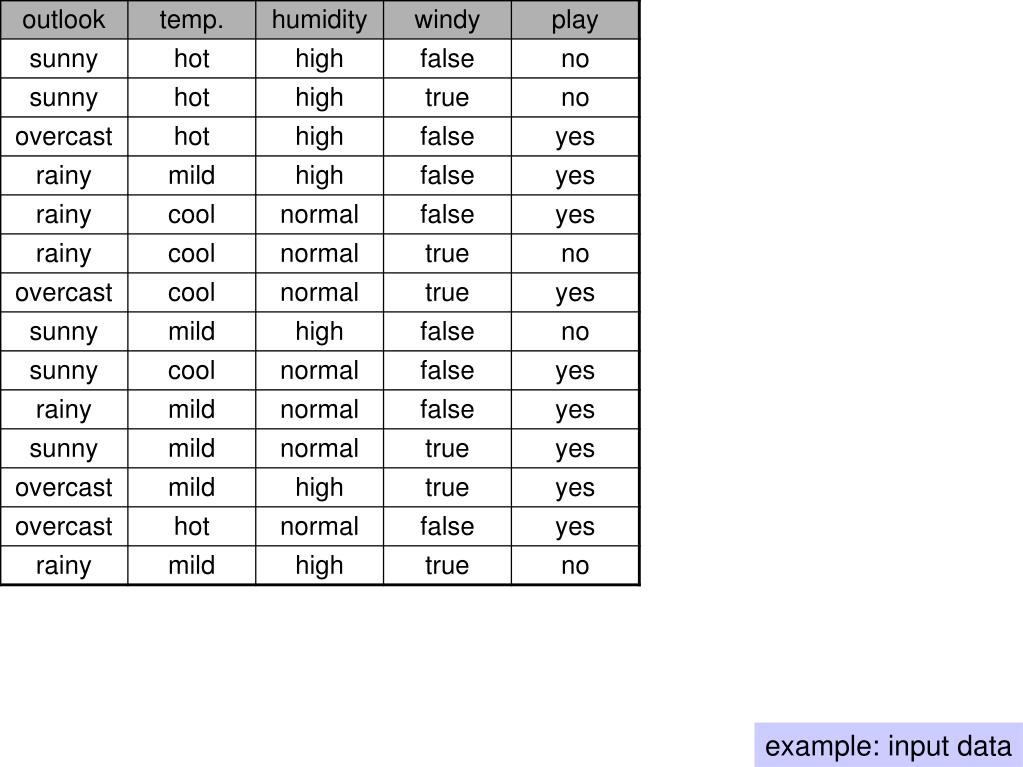

  7. example: input data

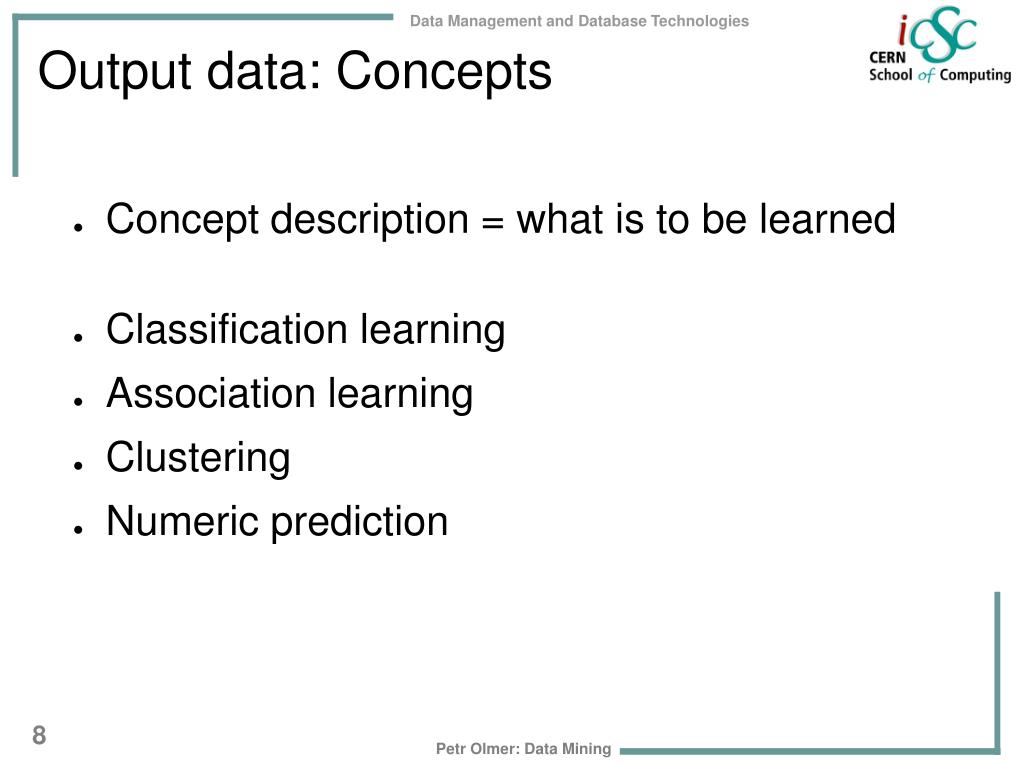

  8. Output data: Concepts • Concept description = what is to be learned • Classification learning • Association learning • Clustering • Numeric prediction

  9. Task classes • Predictive tasks • Predict an unknown value of the output attribute for a new instance. • Descriptive tasks • Describe structures or relations of attributes. • Instances are not related!

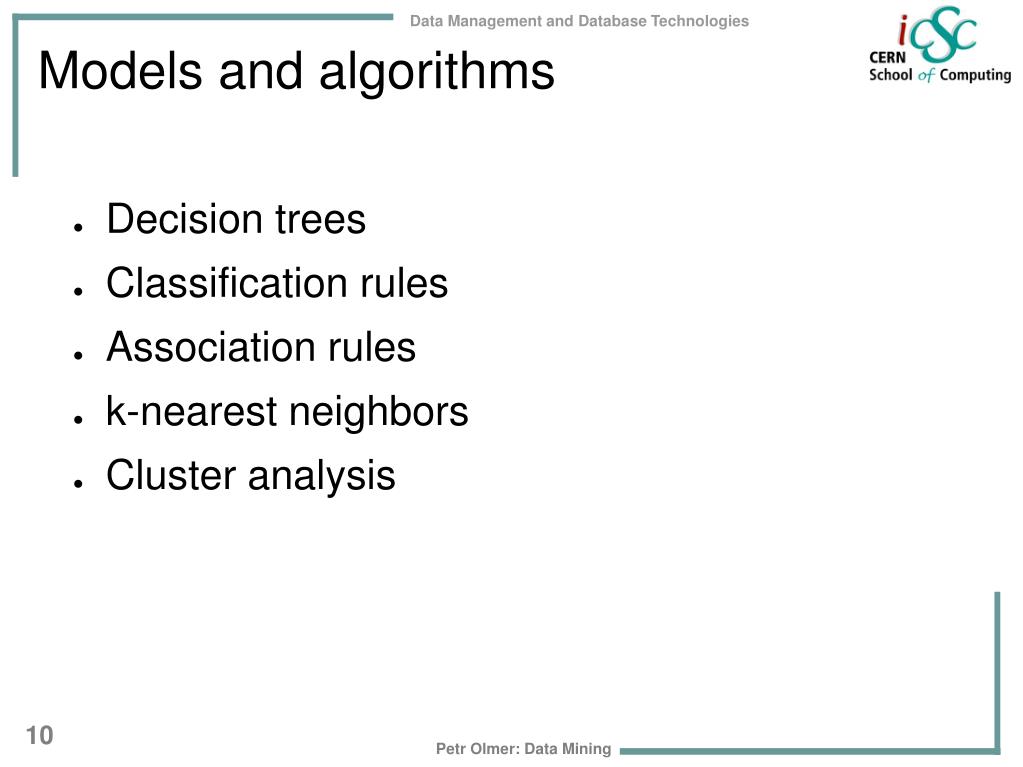

  10. Models and algorithms • Decision trees • Classification rules • Association rules • k-nearest neighbors • Cluster analysis

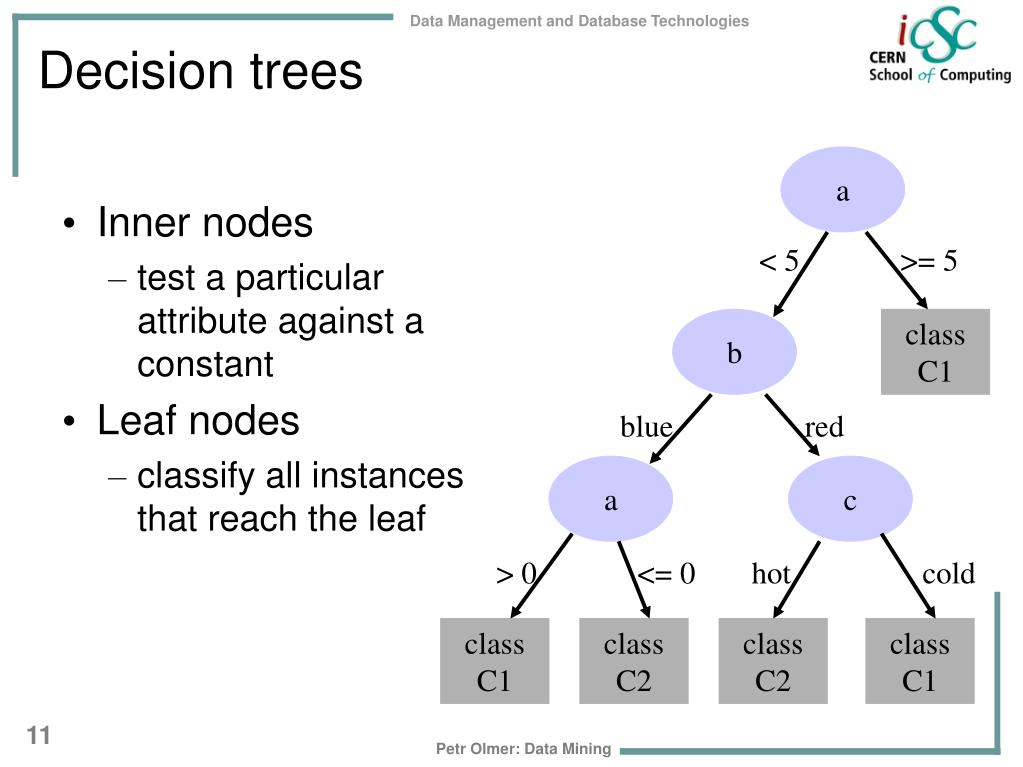

  11. Inner nodes test a particular attribute against a constant Leaf nodes classify all instances that reach the leaf Decision trees a < 5 >= 5 b class C1 blue red a c > 0 <= 0 hot cold class C1 class C2 class C2 class C1

  12. If precondition then conclusion An alternative to decision trees Rules can be read off a decision tree one rule for each leaf unambiguous, not ordered more complex than necessary If (a>=5) then class C1 If (a<5) and (b=“blue”) and (a>0) then class C1 If (a<5) and (b=“red”) and (c=“hot”) then class C2 Classification rules

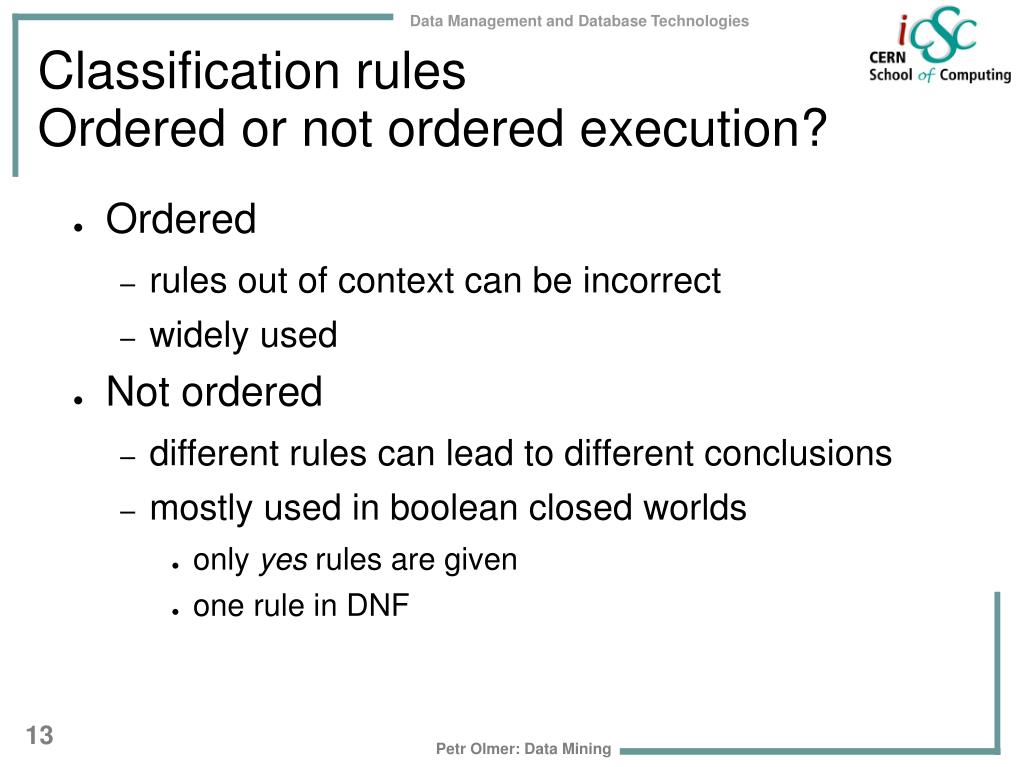

  13. Classification rulesOrdered or not ordered execution? • Ordered • rules out of context can be incorrect • widely used • Not ordered • different rules can lead to different conclusions • mostly used in boolean closed worlds • only yes rules are given • one rule in DNF

  14. Decision trees / Classification rules1R algorithm for each attribute: for each value of that attribute: count how often each class appears find the most frequent class rule = assign the class to this attribute-value calculate the error rate of the rules choose the rules with the smallest error rate

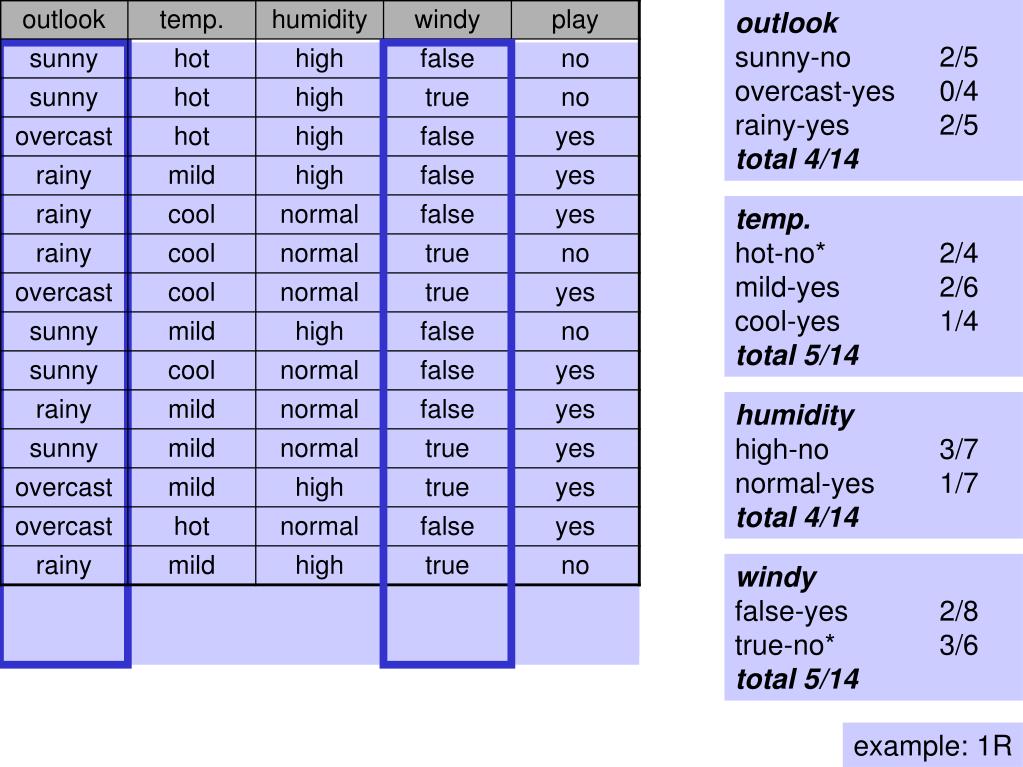

  15. outlook sunny-no 2/5 overcast-yes 0/4 rainy-yes 2/5 total 4/14 temp. hot-no* 2/4 mild-yes 2/6 cool-yes 1/4 total 5/14 humidity high-no 3/7 normal-yes 1/7 total 4/14 windy false-yes 2/8 true-no* 3/6 total 5/14 example: 1R

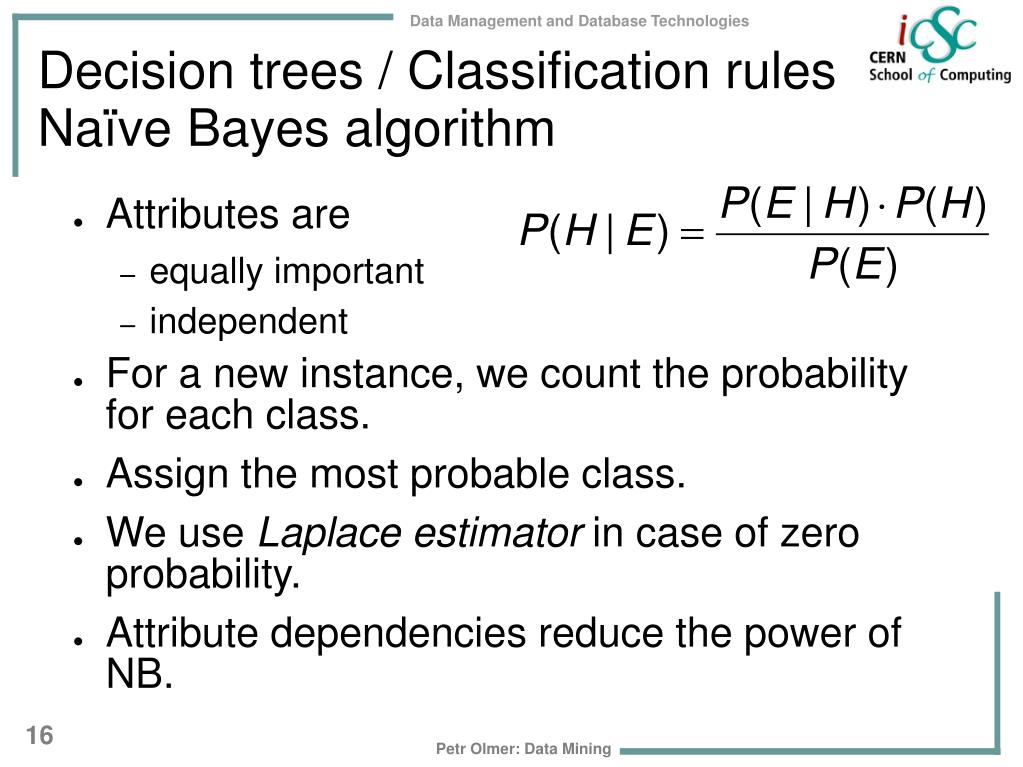

  16. Decision trees / Classification rulesNaïve Bayes algorithm • Attributes are • equally important • independent • For a new instance, we count the probability for each class. • Assign the most probable class. • We use Laplace estimator in case of zero probability. • Attribute dependencies reduce the power of NB.

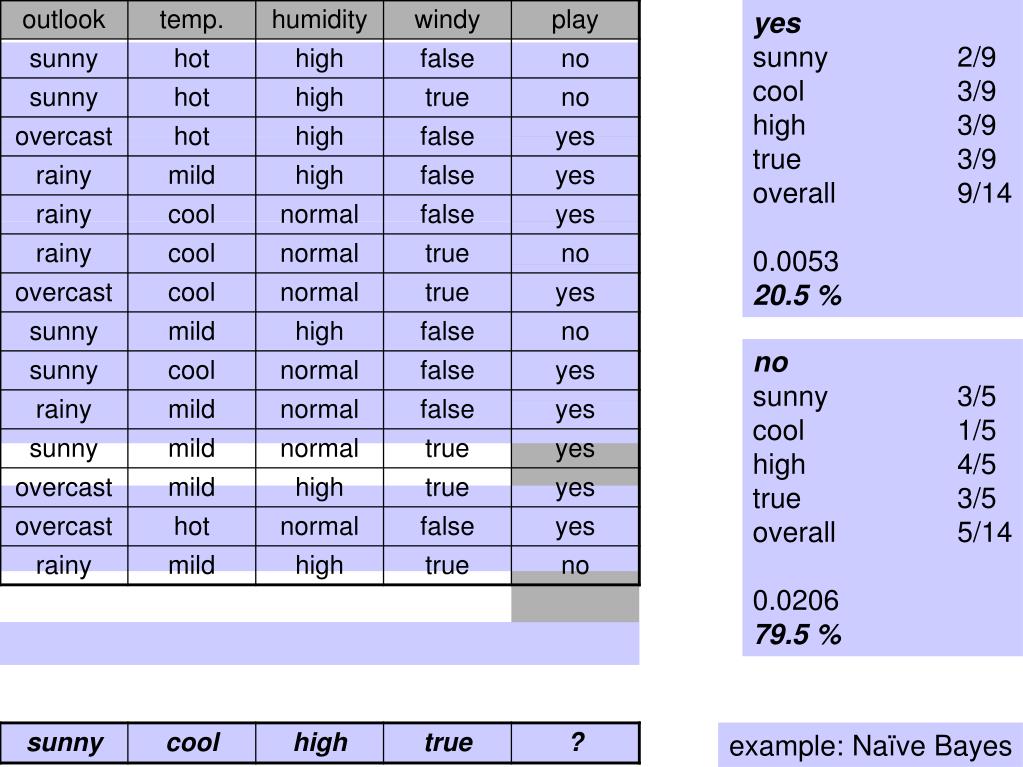

  17. yes sunny 2/9 cool 3/9 high 3/9 true 3/9 overall 9/14 0.0053 20.5 % no sunny 3/5 cool 1/5 high 4/5 true 3/5 overall 5/14 0.0206 79.5 % example: Naïve Bayes

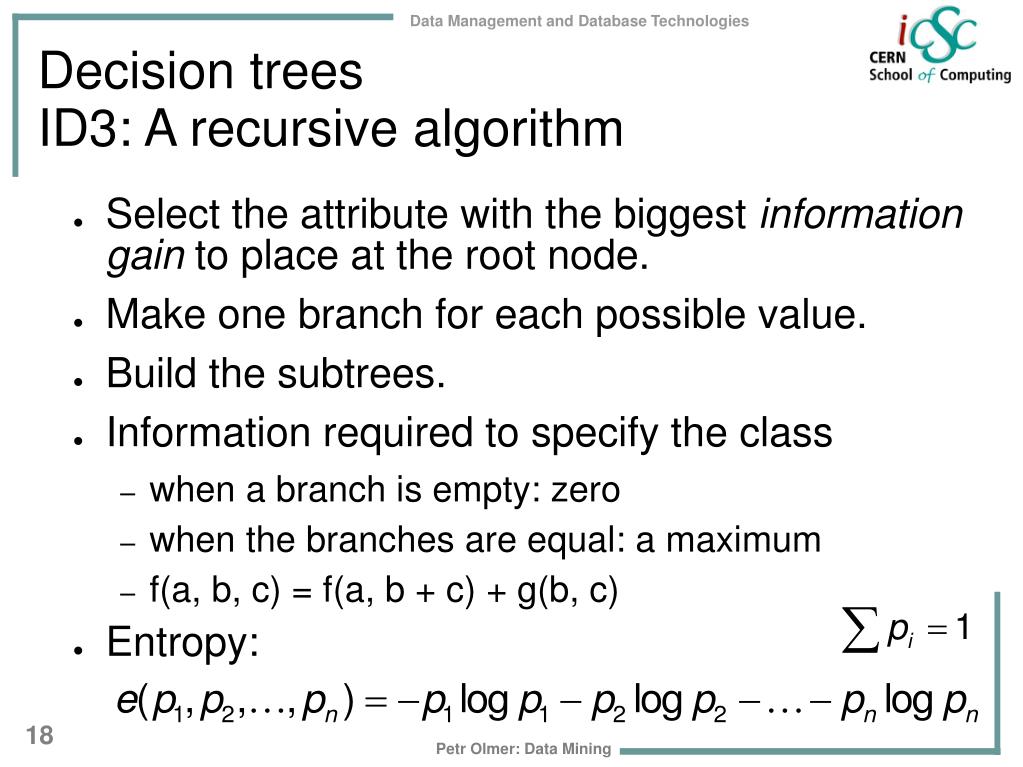

  18. Decision treesID3: A recursive algorithm • Select the attribute with the biggest information gain to place at the root node. • Make one branch for each possible value. • Build the subtrees. • Information required to specify the class • when a branch is empty: zero • when the branches are equal: a maximum • f(a, b, c) = f(a, b + c) + g(b, c) • Entropy:

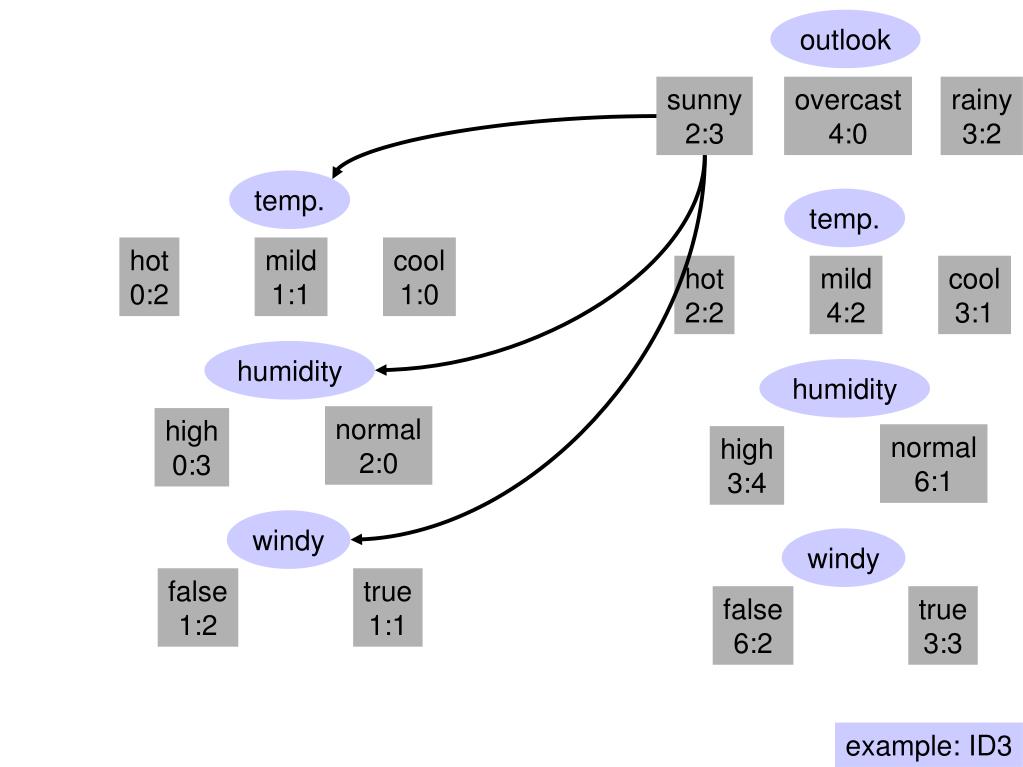

  19. outlook sunny 2:3 overcast 4:0 rainy 3:2 temp. temp. hot 2:2 hot 0:2 mild 4:2 mild 1:1 cool 3:1 cool 1:0 humidity humidity normal 6:1 normal 2:0 high 0:3 high 3:4 windy windy false 1:2 false 6:2 true 1:1 true 3:3 example: ID3

  20. outlook sunny overcast rainy windy humidity yes high normal false true no yes yes no example: ID3

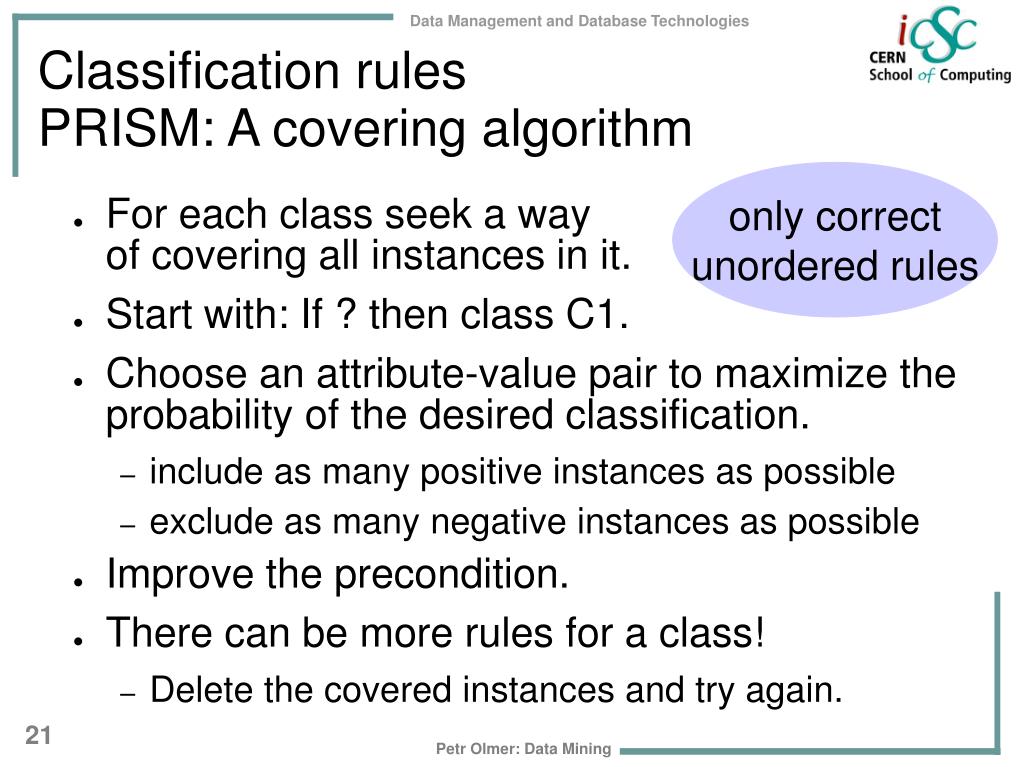

  21. Classification rulesPRISM: A covering algorithm only correctunordered rules • For each class seek a wayof covering all instances in it. • Start with: If ? then class C1. • Choose an attribute-value pair to maximize the probability of the desired classification. • include as many positive instances as possible • exclude as many negative instances as possible • Improve the precondition. • There can be more rules for a class! • Delete the covered instances and try again.

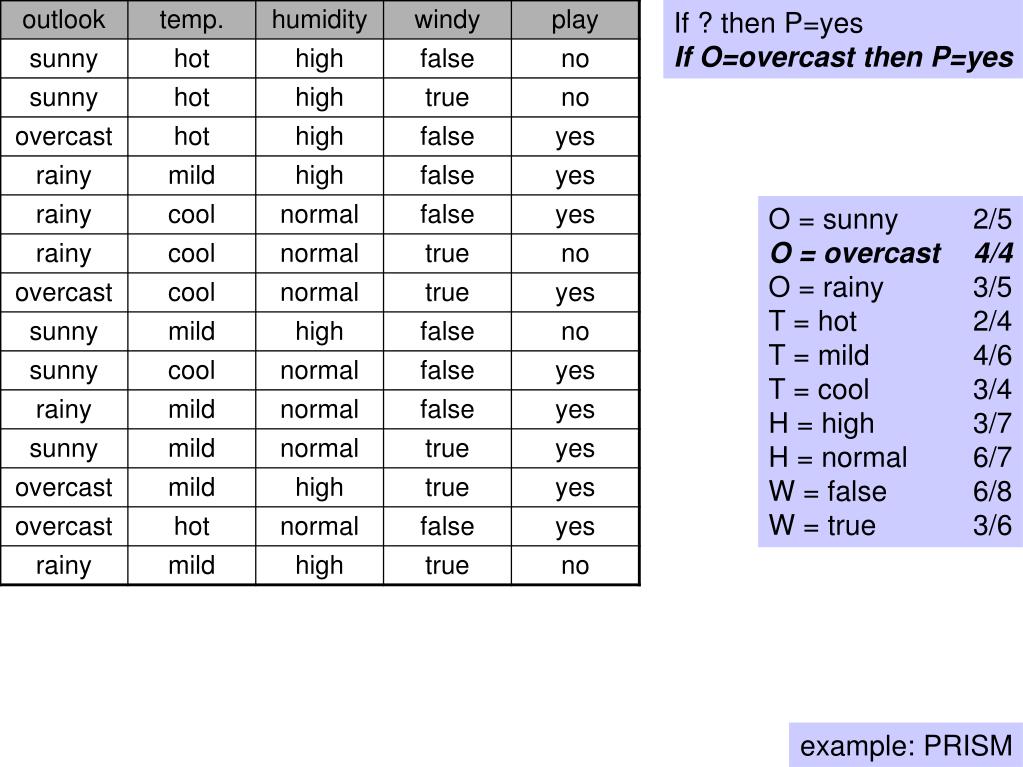

  22. If ? then P=yes If O=overcast then P=yes O = sunny 2/5 O = overcast 4/4 O = rainy 3/5 T = hot 2/4 T = mild 4/6 T = cool 3/4 H = high 3/7 H = normal 6/7 W = false 6/8 W = true 3/6 example: PRISM

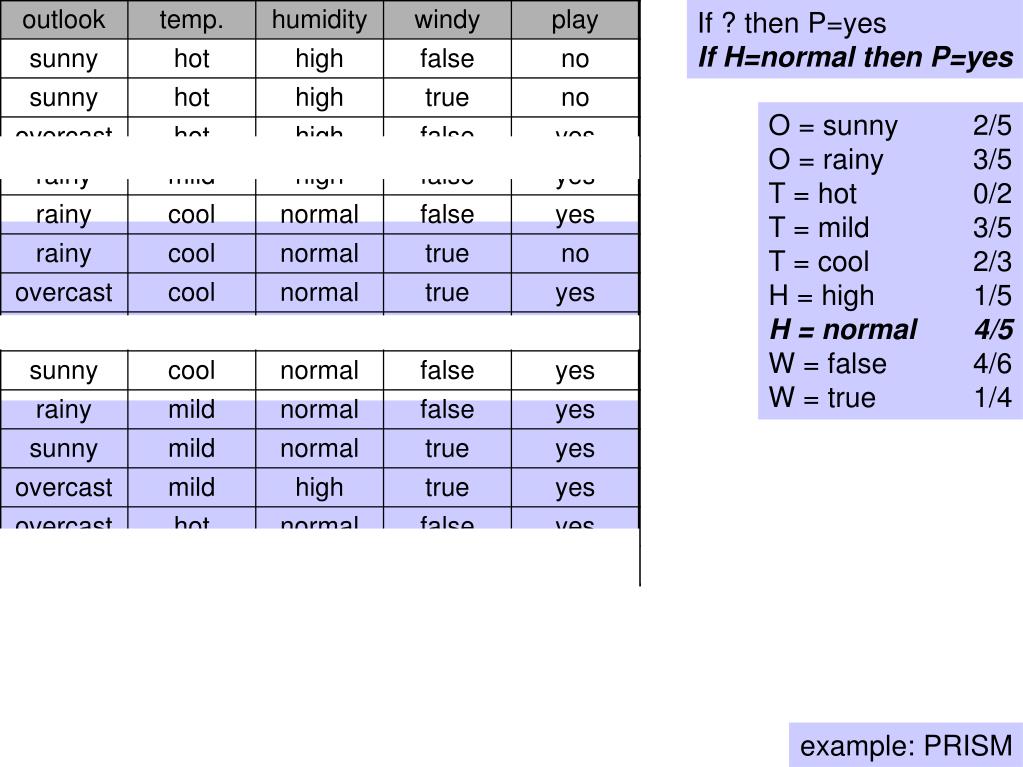

  23. If ? then P=yes If H=normal then P=yes O = sunny 2/5 O = rainy 3/5 T = hot 0/2 T = mild 3/5 T = cool 2/3 H = high 1/5 H = normal 4/5 W = false 4/6 W = true 1/4 example: PRISM

  24. If H=normal and ? then P=yes If H=normal and W=false then P=yes O = sunny 2/2 O = rainy 2/3 T = mild 2/2 T = cool 2/3 W = false 3/3 W = true 1/2 example: PRISM

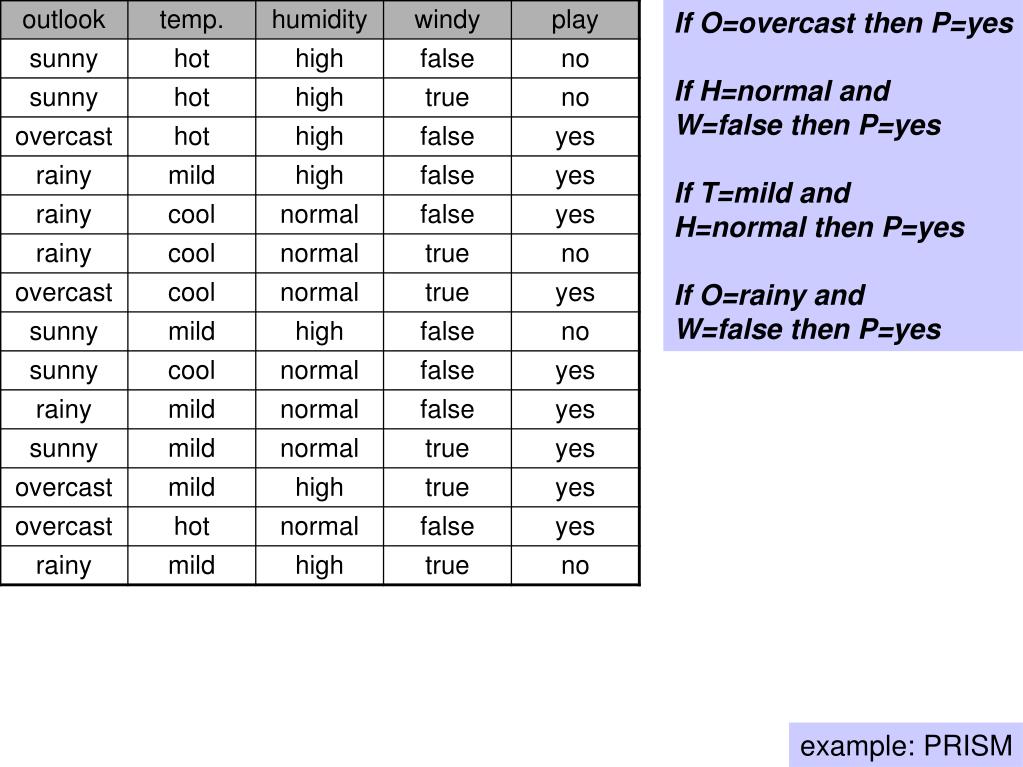

  25. If O=overcast then P=yes If H=normal and W=false then P=yes If T=mild and H=normal then P=yes If O=rainy and W=false then P=yes example: PRISM

  26. Association rules • Structurally the same as C-rules: If - then • Can predict any attribute or their combination • Not intended to be used together • Characteristics: • Support = a • Accuracy = a / (a + b)

  27. Association rulesMultiple consequences • If A and B then C and D • If A and B then C • If A and B then D • If A and B and C then D • If A and B and D then C

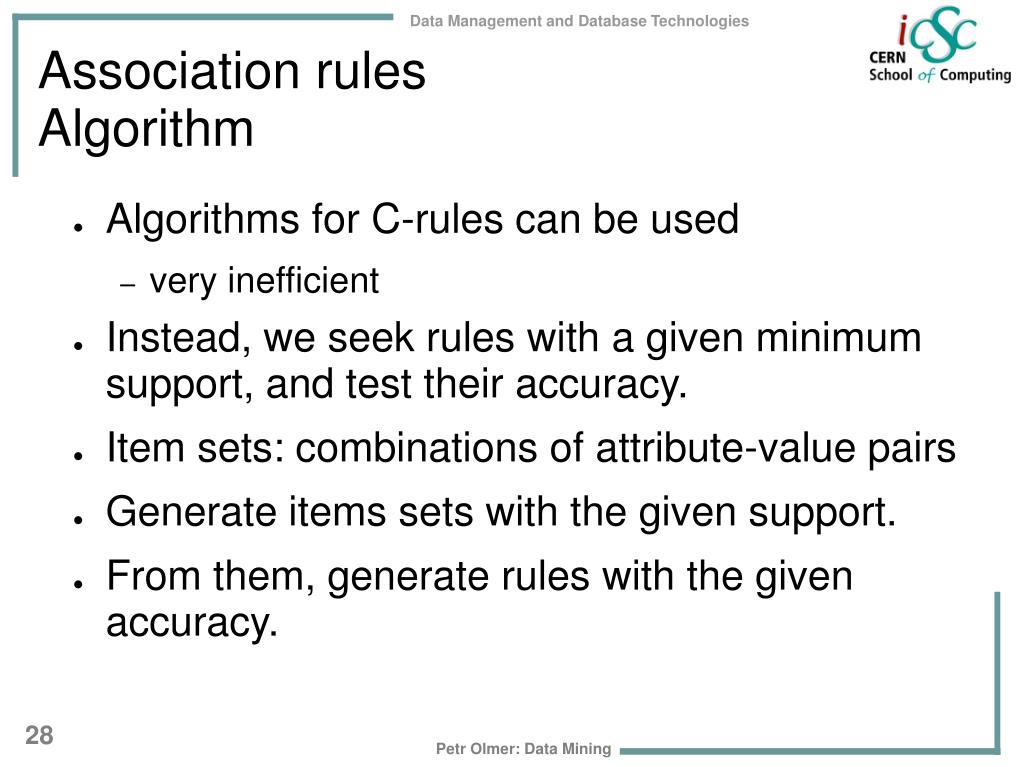

  28. Association rulesAlgorithm • Algorithms for C-rules can be used • very inefficient • Instead, we seek rules with a given minimum support, and test their accuracy. • Item sets: combinations of attribute-value pairs • Generate items sets with the given support. • From them, generate rules with the given accuracy.

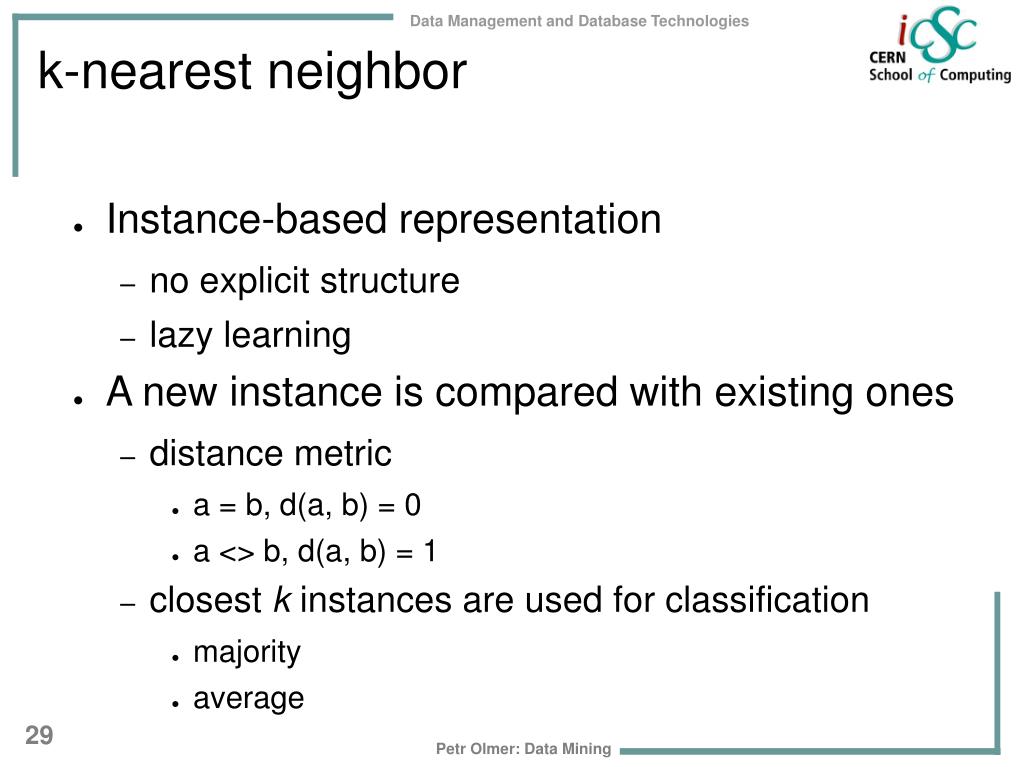

  29. k-nearest neighbor • Instance-based representation • no explicit structure • lazy learning • A new instance is compared with existing ones • distance metric • a = b, d(a, b) = 0 • a <> b, d(a, b) = 1 • closest k instances are used for classification • majority • average

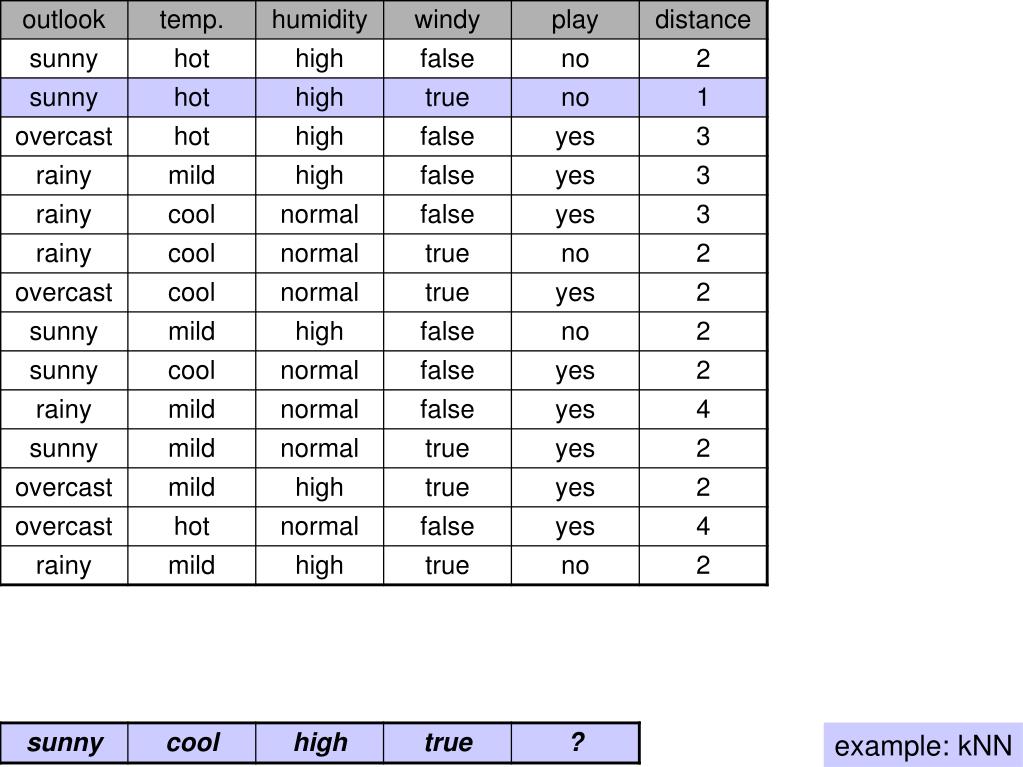

  30. example: kNN

  31. Cluster analysis • Diagram: how the instances fall into clusters. • One instance can belong to more clusters. • Belonging can be probabilistic or fuzzy. • Clusters can be hierarchical.

  32. Data miningConclusion • Different algorithms discover different knowledge in different formats. • Simple ideas often work very well. • There’s no magic!

  33. Text mining • Data mining discovers knowledge in structured data. • Text mining works with unstructured text. • Groups similar documents • Classifies documents into taxonomy • Finds out the probable author of a document • … • Is it a different task?

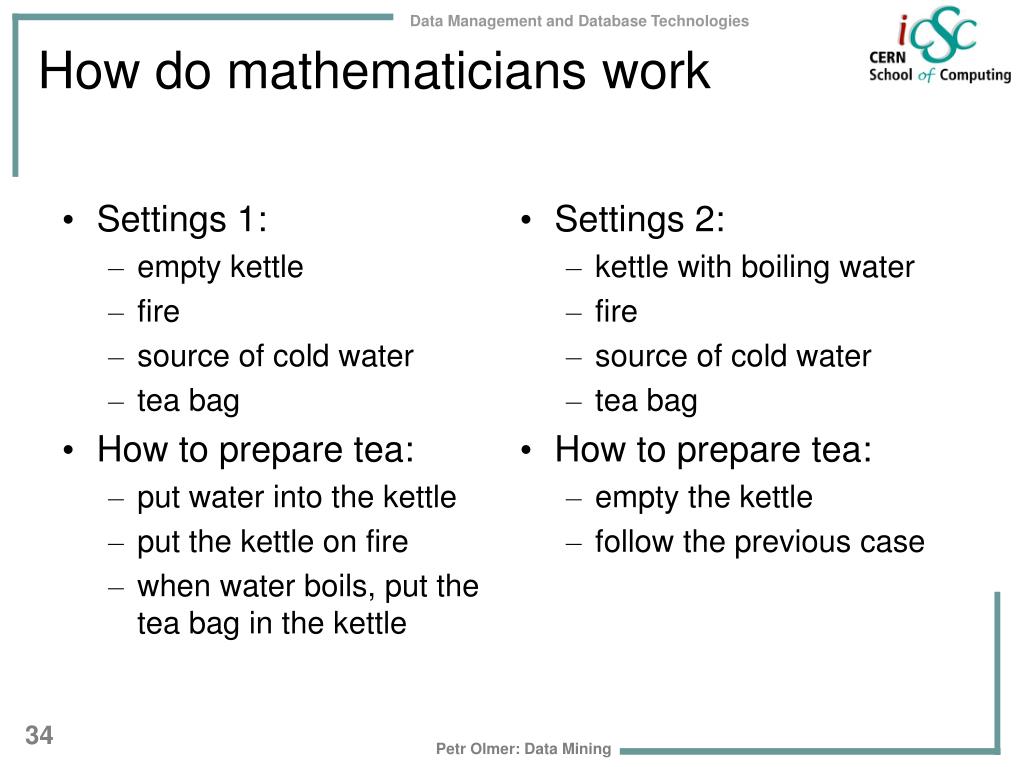

  34. Settings 1: empty kettle fire source of cold water tea bag How to prepare tea: put water into the kettle put the kettle on fire when water boils, put the tea bag in the kettle Settings 2: kettle with boiling water fire source of cold water tea bag How to prepare tea: empty the kettle follow the previous case How do mathematicians work

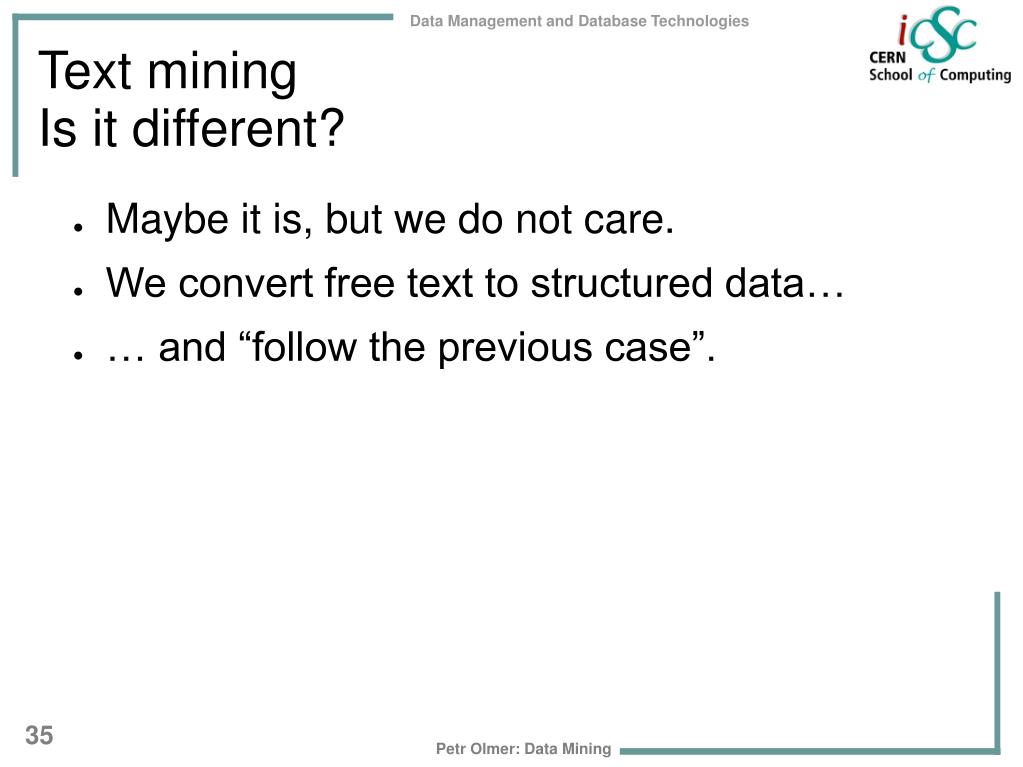

  35. Text miningIs it different? • Maybe it is, but we do not care. • We convert free text to structured data… • … and “follow the previous case”.

  36. Google NewsHow does it work? • http://news.google.com • Search web for the news. • Parse content of given web sites. • Convert news (documents) to structured data. • Documents become vectors. • Cluster analysis. • Similar documents are grouped together. • Importance analysis. • Important documents are on the top

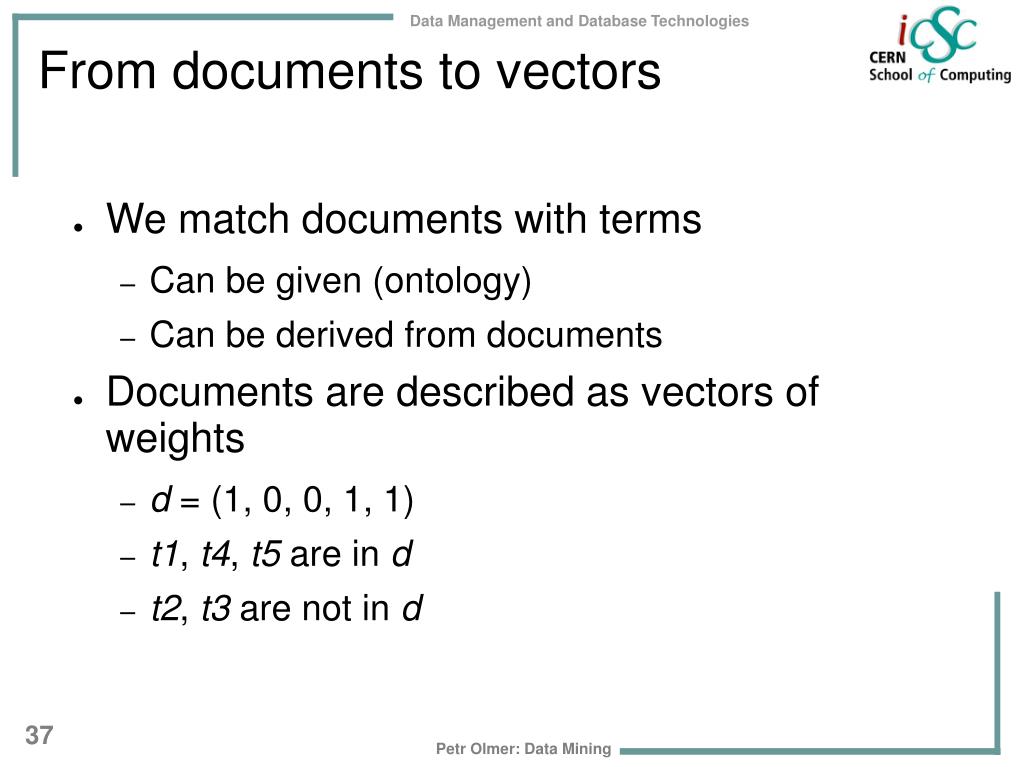

  37. From documents to vectors • We match documents with terms • Can be given (ontology) • Can be derived from documents • Documents are described as vectors of weights • d = (1, 0, 0, 1, 1) • t1, t4, t5 are in d • t2, t3 are not in d

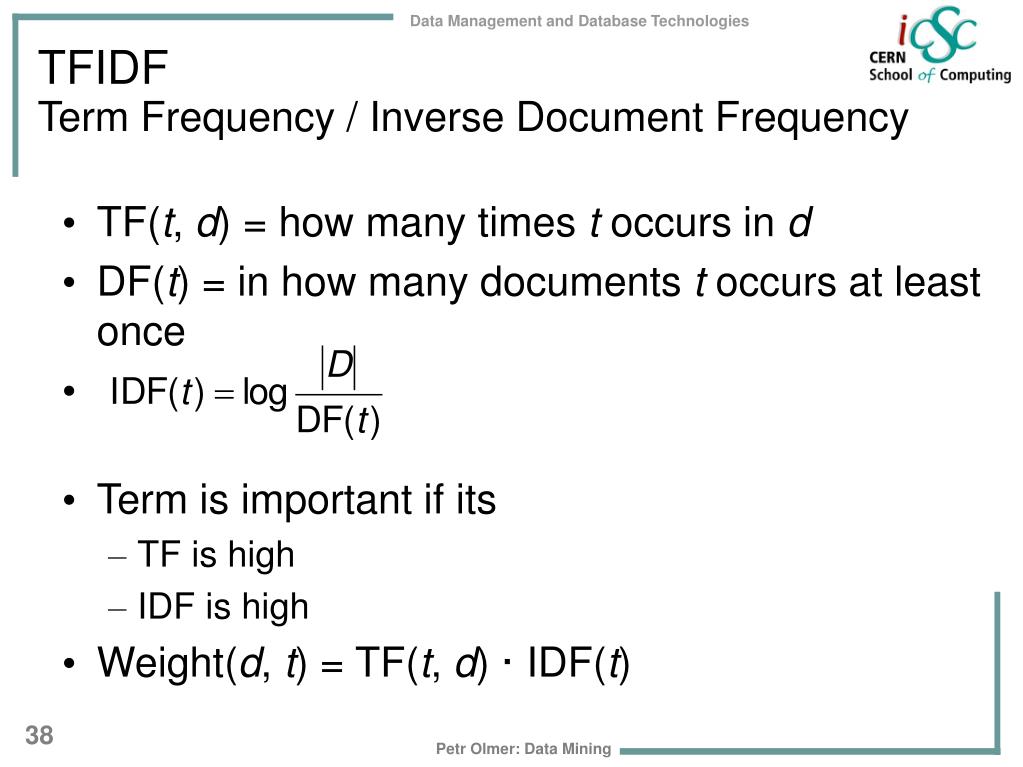

  38. TFIDFTerm Frequency / Inverse Document Frequency • TF(t, d) = how many times t occurs in d • DF(t) = in how many documents t occurs at least once • Term is important if its • TF is high • IDF is high • Weight(d, t) = TF(t, d) · IDF(t)

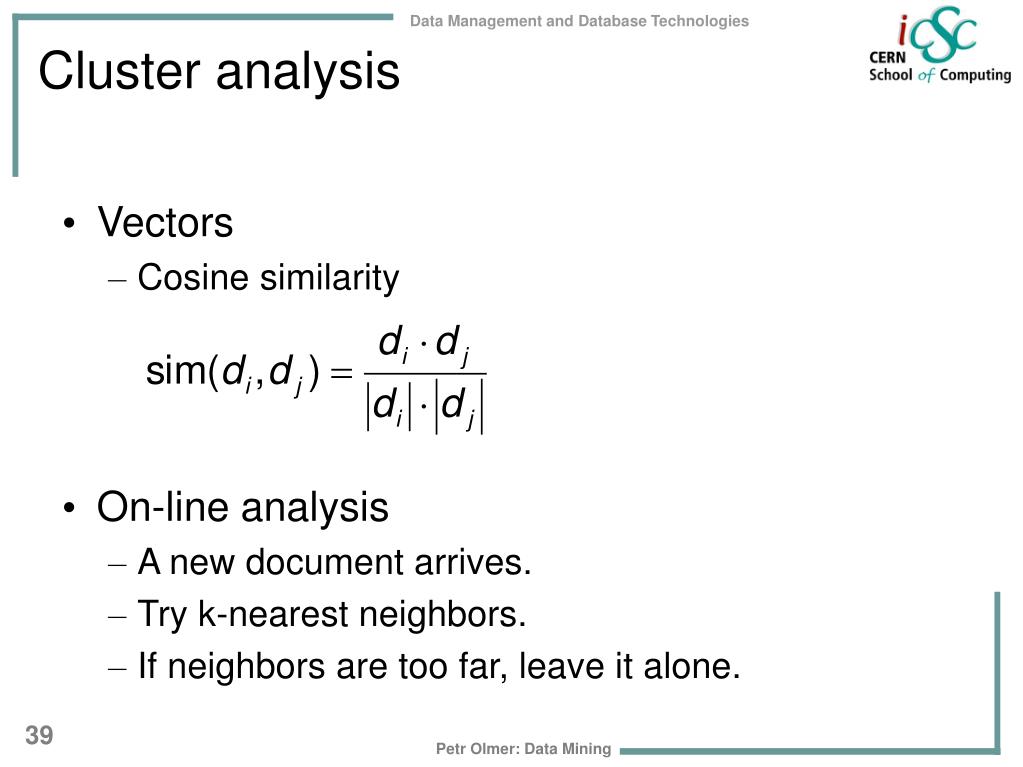

  39. Cluster analysis • Vectors • Cosine similarity • On-line analysis • A new document arrives. • Try k-nearest neighbors. • If neighbors are too far, leave it alone.

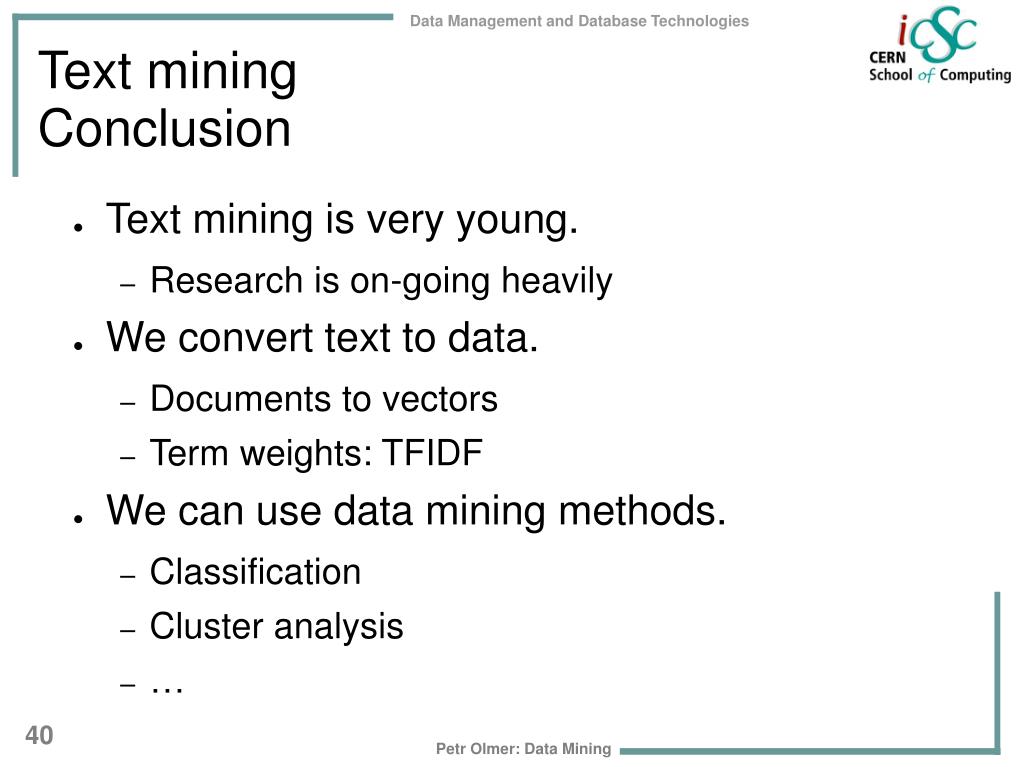

  40. Text miningConclusion • Text mining is very young. • Research is on-going heavily • We convert text to data. • Documents to vectors • Term weights: TFIDF • We can use data mining methods. • Classification • Cluster analysis • …

  41. References • Ian H. Witten, Eibe Frank:Data Mining: Practical Machine Learning Tools and Techniques with Java Implementations • Michael W. Berry:Survey of Text Mining: Clustering, Classification, and Retrieval • http://kdnuggets.com/ • http://www.cern.ch/Petr.Olmer/dm.html

  42. Questions? Computersare useless,they can onlygive you answers. Petr Olmer petr.olmer@cern.ch
