1. Chapter 9Simple Authentication Protocols Simple Security Protocol Authentication Protocols Authentication and TCP Zero Knowledge Proofs The best Authentication Protocol? Chapter 9 Simple Authentication protocols

2. Protocols • Human protocols the rules followed in human interactions • Example: Asking a question in class • Networking protocols  rules followed in networked communication systems • Examples: HTTP, FTP, etc. • Security protocols  the (communication) rules followed in a security application • Examples: SSL, IPSec, Kerberos, etc. Chapter 9 Simple Authentication protocols

3. Protocols • Protocol flaws can be very subtle • Several well-known security protocols have serious flaws • Including IPSec, GSM and WEP • Common to find implementation errors • Such as IE implementation of SSL • Difficult to get protocols right… Chapter 9 Simple Authentication protocols

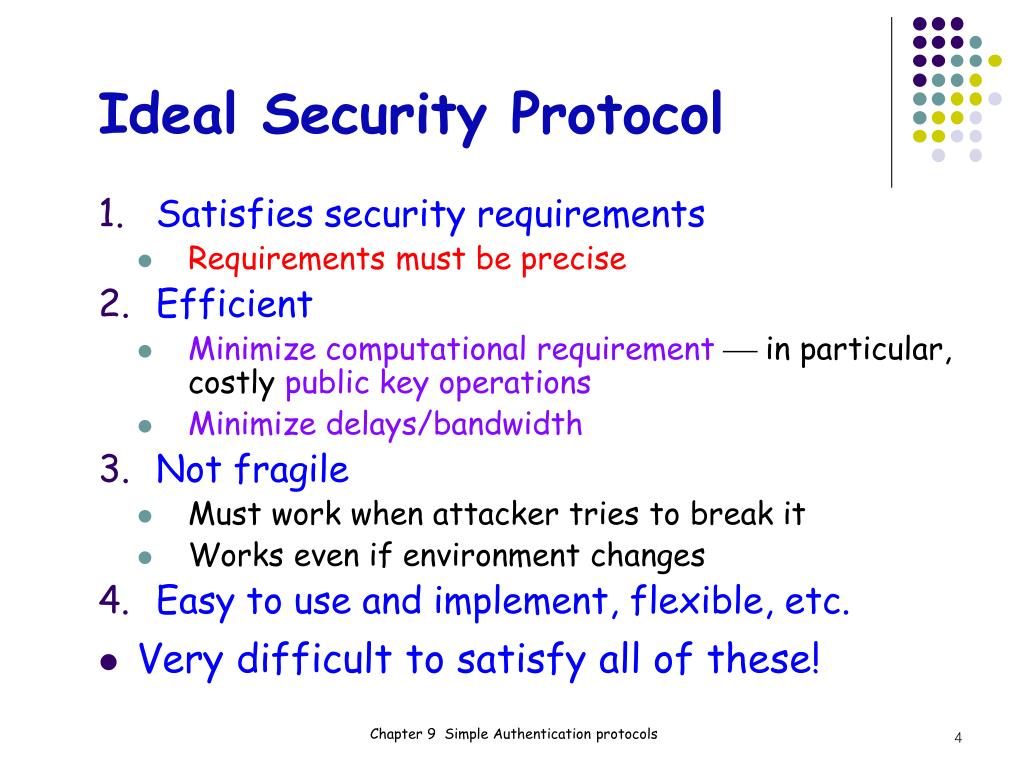

4. Ideal Security Protocol • Satisfies security requirements • Requirements must be precise • Efficient • Minimize computational requirement  in particular, costly public key operations • Minimize delays/bandwidth • Not fragile • Must work when attacker tries to break it • Works even if environment changes • Easy to use and implement, flexible, etc. • Very difficult to satisfy all of these! Chapter 9 Simple Authentication protocols

5. Simple Security Protocols Chapter 9 Simple Authentication protocols

6. Secure Entry to NSA • Insert badge into reader • Enter PIN • Correct PIN? Yes?Enter No? Get shot by security guard Chapter 9 Simple Authentication protocols

7. ATM Machine Protocol • Insert ATM card • Enter PIN • Correct PIN? Yes? Conduct your transaction(s) No? Machine eats card Chapter 9 Simple Authentication protocols

8. Identify Friend or Foe (IFF) • Military needs many specialized protocols • Many cases, it could recognize friends as enemies, or …. Russian MIG Angola 2. E(N,K) Namibia SAAF Impala 1. N Chapter 9 Simple Authentication protocols

9. MIG in the Middle Angola 3. N SAAF Impala 4. E(N,K) 2. N 5. E(N,K) Namibia 6. E(N,K) Russian MiG 1. N Chapter 9 Simple Authentication protocols

10. Authentication Protocols Chapter 9 Simple Authentication protocols

11. Authentication • Alice must prove her identity to Bob • Alice and Bob can be humans or computers • May also require Bob to prove he’s Bob (mutual authentication) • May also need to establish a session key • May have other requirements, such as • Use only public keys • Use only symmetric keys • Use only a hash function • Anonymity, plausible deniability, etc., etc. Chapter 9 Simple Authentication protocols

12. Authentication • Authentication on a stand-alone computer is relatively simple • “Secure path” is the primary issue • Main concern is an attack on authentication software (we discuss software attacks later) • Authentication over a network is much more complex • Attacker can passively observe messages • Attacker can replay messages • Active attacks may be possible (insert, delete, change messages) Chapter 9 Simple Authentication protocols

13. Simple Authentication • Simple and may be OK for standalone system • But insecure for networked system • Subject to a replay attack (next 2 slides) • Bob must know Alice’s password “I’m Alice” Prove it My password is “frank” Bob Alice Chapter 9 Simple Authentication protocols

14. Authentication Attack “I’m Alice” Prove it My password is “frank” Bob Alice Trudy Chapter 9 Simple Authentication protocols

15. Authentication Attack • This is a replay attack • How can we prevent a replay? “I’m Alice” Prove it My password is “frank” Trudy Bob Chapter 9 Simple Authentication protocols

16. Simple Authentication • More efficient… • But same problem as previous version • Replay attack I’m Alice, My password is “frank” Bob Alice Chapter 9 Simple Authentication protocols

17. Better Authentication • Better since it hides Alice’s password • From both Bob and attackers • But still subject to replay “I’m Alice” Prove it h(Alice’s password) Bob Alice Chapter 9 Simple Authentication protocols

18. Challenge-Response • To prevent replay, challenge-response used • Suppose Bob wants to authenticate Alice • Challenge sent from Bob to Alice • Only Alice can provide the correct response • Challenge chosen so that replay is not possible • How to accomplish this? • Password is something only Alice should know… • For freshness, a “number used once” or nonce Chapter 9 Simple Authentication protocols

19. Challenge-Response “I’m Alice” Nonce h(Alice’s password, Nonce) Bob Alice • Nonce is the challenge • The hash is the response • Nonce prevents replay, insures freshness • Password is something Alice knows • Note that Bob must know Alice’s password Chapter 9 Simple Authentication protocols

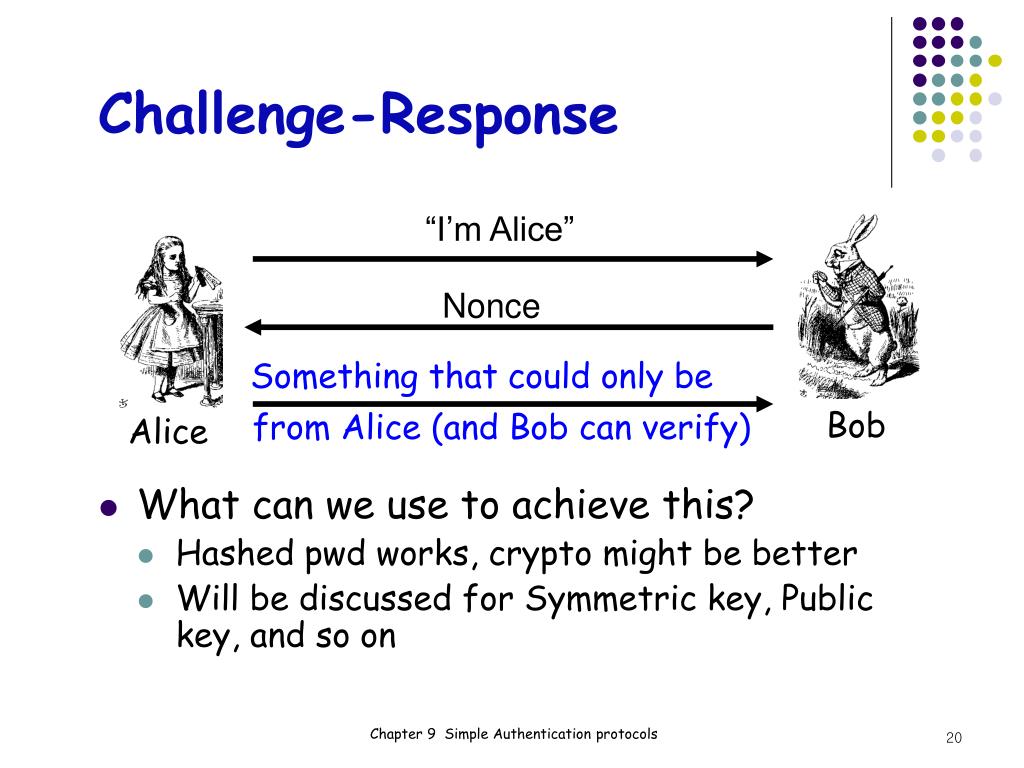

20. Challenge-Response • What can we use to achieve this? • Hashed pwd works, crypto might be better • Will be discussed for Symmetric key, Public key, and so on “I’m Alice” Nonce Something that could only be Bob from Alice (and Bob can verify) Alice Chapter 9 Simple Authentication protocols

21. Symmetric Key Notation • Encrypt plaintext P with key K C = E(P,K) • Decrypt ciphertext C with key K P = D(C,K) • Here, we are concerned with attacks on protocols, not directly on the crypto • We assume that crypto algorithm is secure Chapter 9 Simple Authentication protocols

22. Symmetric Key Authentication • Alice and Bob share symmetric key KAB • Key KAB known only to Alice and Bob • Authenticate by proving knowledge of shared symmetric key • How to accomplish this? • Must not reveal key • Must not allow replay attack Chapter 9 Simple Authentication protocols

23. Authentication with Sym Key “I’m Alice” R E(R,KAB) Bob, KAB Alice, KAB • Secure method for Bob to authenticate Alice • Alice does not authenticate Bob • Can we achieve mutual authentication? Chapter 9 Simple Authentication protocols

24. Mutual Authentication? • What’s wrong with this picture? • “Alice” could be Trudy (or anybody else)! “I’m Alice”, R E(R,KAB) E(R,KAB) Alice Bob Chapter 9 Simple Authentication protocols

25. Mutual Authentication • Since we have a secure one-way authentication protocol… • The obvious thing to do is to use the protocol twice • Once for Bob to authenticate Alice • Once for Alice to authenticate Bob • This has to work… Chapter 9 Simple Authentication protocols

26. Mutual Authentication • This provides mutual authentication • Is it secure? See the next slide… “I’m Alice”, RA RB, E(RA,KAB) E(RB,KAB) Bob Alice Chapter 9 Simple Authentication protocols

27. Mutual Authentication Attack 1. “I’m Alice”, RA 2. RB, E(RA,KAB) 5. E(RB,KAB) Bob Trudy 3. “I’m Alice”, RB 4. RC, E(RB,KAB) Bob Trudy Chapter 9 Simple Authentication protocols

28. Mutual Authentication • Our one-way authentication protocol not secure for mutual authentication • Protocols are subtle! • The “obvious” thing may not be secure • Also, if assumptions or environment changes, protocol may not work • This is a common source of security failure • For example, Internet protocols Chapter 9 Simple Authentication protocols

29. Sym Key Mutual Authentication • Do these “insignificant” changes help? • Yes! “I’m Alice”, RA RB, E(“Bob”,RA,KAB) E(“Alice”,RB,KAB) Bob Alice Chapter 9 Simple Authentication protocols

30. Public Key Notation • Encrypt M with Alice’s public key: {M}Alice • Sign M with Alice’s private key: [M]Alice • Then • [{M}Alice ]Alice = M • {[M]Alice }Alice = M • Anybody can do public key operations • Only Alice can use her private key (sign) Chapter 9 Simple Authentication protocols

31. Public Key Authentication • Is this secure? • Trudy can get Alice to decrypt anything! • Should not use the key for encryption • Must have two key pairs “I’m Alice” {R}Alice R Bob Alice Chapter 9 Simple Authentication protocols

32. Public Key Authentication • Is this secure? • Trudy can get Alice to sign anything! • Should not use the key for sign • Must have two key pairs “I’m Alice” R [R]Alice Bob Alice Chapter 9 Simple Authentication protocols

33. Public Keys • Never use the same key pair for encryption and signing • One key pair for encryption/decryption • A different key pair for signing/verifying signatures Chapter 9 Simple Authentication protocols

34. Session Key • Session key: temporary key, used for a short time period • Usually, a session key is required in addition to authentication • Limit symmetric key for a particular session • Limit damage if one session key compromised • Can we authenticate and establish a shared symmetric key? • Key can be used for confidentiality • Key can be used for integrity Chapter 9 Simple Authentication protocols

35. Session Key • In some cases, we may also require perfect forward secrecy (PFS) • Discussed later… Chapter 9 Simple Authentication protocols

36. Pub Key Authen and Sess Key • Using Encryptions of Alice and Bob • Is this secure? • OK for key, but no mutual authentication • Note that K is acting as Bob’s nonce • Alice can not authenticate Bob “I’m Alice”, R {R,K}Alice {R +1,K}Bob Alice Bob Chapter 9 Simple Authentication protocols

37. Pub Key Authen and Sess Key • Using Signs of Alice and Bob • Is this secure? • Mutual authentication but key is not secret! “I’m Alice”, R [R,K]Bob [R +1,K]Alice Bob Alice Chapter 9 Simple Authentication protocols

38. Pub Key Authen and Sess Key • First Sign and encrypt • Is this secure? • Seems to be OK • Mutual authentication and session key! “I’m Alice”, R {[R,K]Bob}Alice {[R +1,K]Alice}Bob Bob Alice Chapter 9 Simple Authentication protocols

39. Pub Key Authen and Sess Key • First encrypt and Sign • Is this secure? • Seems to be OK • Though anyone can see {R,K}Alice and {R +1,K}Bob “I’m Alice”, R [{R,K}Alice]Bob [{R +1,K}Bob]Alice Bob Alice Chapter 9 Simple Authentication protocols

40. Perfect Forward Secrecy • The concern… • Alice encrypts message with shared key KAB and sends ciphertext to Bob • Trudy records ciphertext and later attacks Alice’s (or Bob’s) computer to find KAB • Then Trudy decrypts recorded messages • Perfect forward secrecy (PFS): • Trudy cannot later decrypt recorded ciphertext • Even if Trudy gets key KAB or other secret(s) • Is PFS possible? Chapter 9 Simple Authentication protocols

41. Perfect Forward Secrecy • For perfect forward secrecy, Alice and Bob cannot use KAB to encrypt • Instead they must use a session key KS and forget it after it’s used • Problem: How can Alice and Bob agree on session key KS and insure PFS? Chapter 9 Simple Authentication protocols

42. Naïve Session Key Protocol • Trudy could also record E(KS,KAB) • If Trudy gets KAB, she gets KS E(KS, KAB) E(messages, KS) Bob, KAB Alice, KAB Chapter 9 Simple Authentication protocols

43. Perfect Forward Secrecy • Can use Diffie-Hellman for PFS • Recall Diffie-Hellman: public g and p ga mod p gb mod p Alice, a Bob, b • But Diffie-Hellman is subject to MiM • How to get PFS and prevent MiM? Chapter 9 Simple Authentication protocols

44. Perfect Forward Secrecy • Session key KS = gab mod p • Alice forgets a, Bob forgets b • Ephemeral(일회성) Diffie-Hellman • Not even Alice and Bob can later recover KS • Other ways to do PFS? E(ga mod p, KAB) E(gb mod p, KAB) Alice, a Bob, b Chapter 9 Simple Authentication protocols

45. Mutual Authen, Sess Key & PFS “I’m Alice”, RA RB, [{RA, gb mod p}Alice]Bob [{RB, ga mod p}Bob]Alice Alice Bob • Session key is K = gab mod p • Alice forgets a and Bob forgets b • If Trudy later gets Bob’s and Alice’s secrets, she cannot recover session key K Chapter 9 Simple Authentication protocols

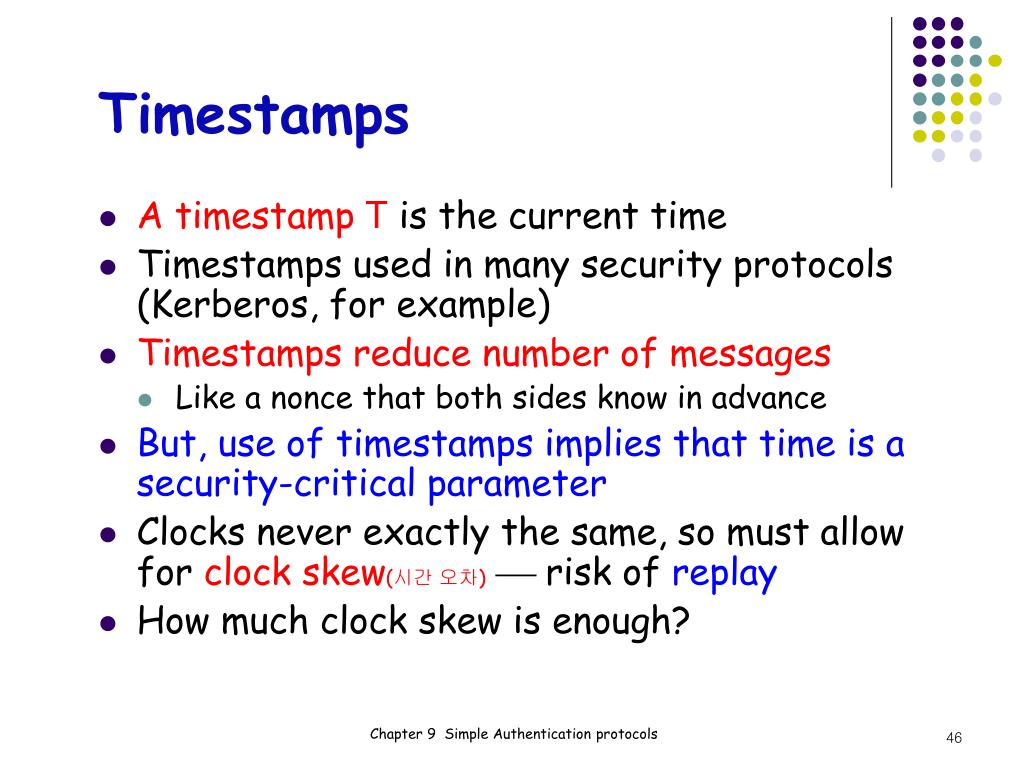

46. Timestamps • A timestamp Tis the current time • Timestamps used in many security protocols (Kerberos, for example) • Timestamps reduce number of messages • Like a nonce that both sides know in advance • But, use of timestamps implies that time is a security-critical parameter • Clocks never exactly the same, so must allow for clock skew(시간 오차)  risk of replay • How much clock skew is enough? Chapter 9 Simple Authentication protocols

47. Pub Key Authen with Timestamp T “I’m Alice”, {[T,K]Alice}Bob {[T +1,K]Bob}Alice Bob Alice • Is this secure? • Seems to be OK Chapter 9 Simple Authentication protocols

48. Pub Key Authen with Timestamp T “I’m Alice”, [{T,K}Bob]Alice [{T +1,K}Alice]Bob Alice Bob • Is this secure? • Trudy can use Alice’s public key to find • {T,K}Bob and then… Chapter 9 Simple Authentication protocols

49. Pub Key Authen with Timestamp T “I’m Trudy”, [{T,K}Bob]Trudy [{T +1,K}Trudy]Bob Bob Trudy • Trudy obtains Alice-Bob session key K • Note:Trudy must act within clock skew Chapter 9 Simple Authentication protocols

50. Pub Key Authen with Timestamp T “I’m Alice”, [{T,K}Bob]Alice [{T +1}Alice]Bob Bob Alice • Is this “encrypt and sign” secure? • Yes, seems to be • Does “sign and encrypt” also work here? Chapter 9 Simple Authentication protocols
