Introduction to Geographic Information Systems

1. Introduction to Geographic Information Systems Miles Logsdon mlog@u.washington.edu

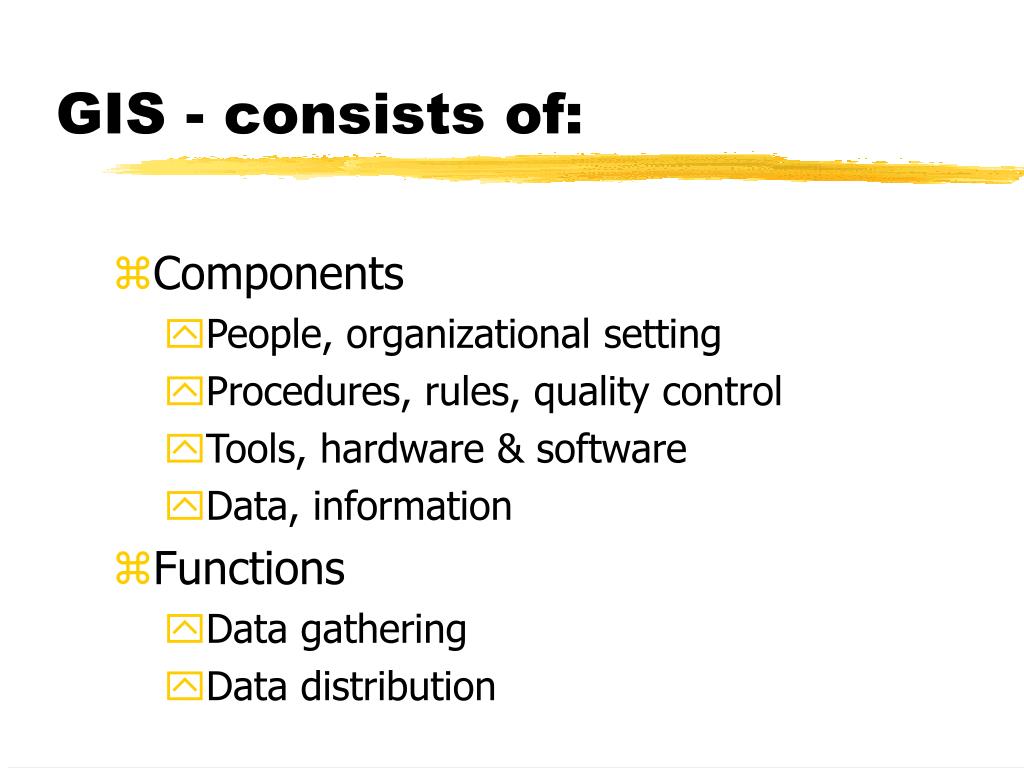

2. GIS - consists of: • Components • People, organizational setting • Procedures, rules, quality control • Tools, hardware & software • Data, information • Functions • Data gathering • Data distribution

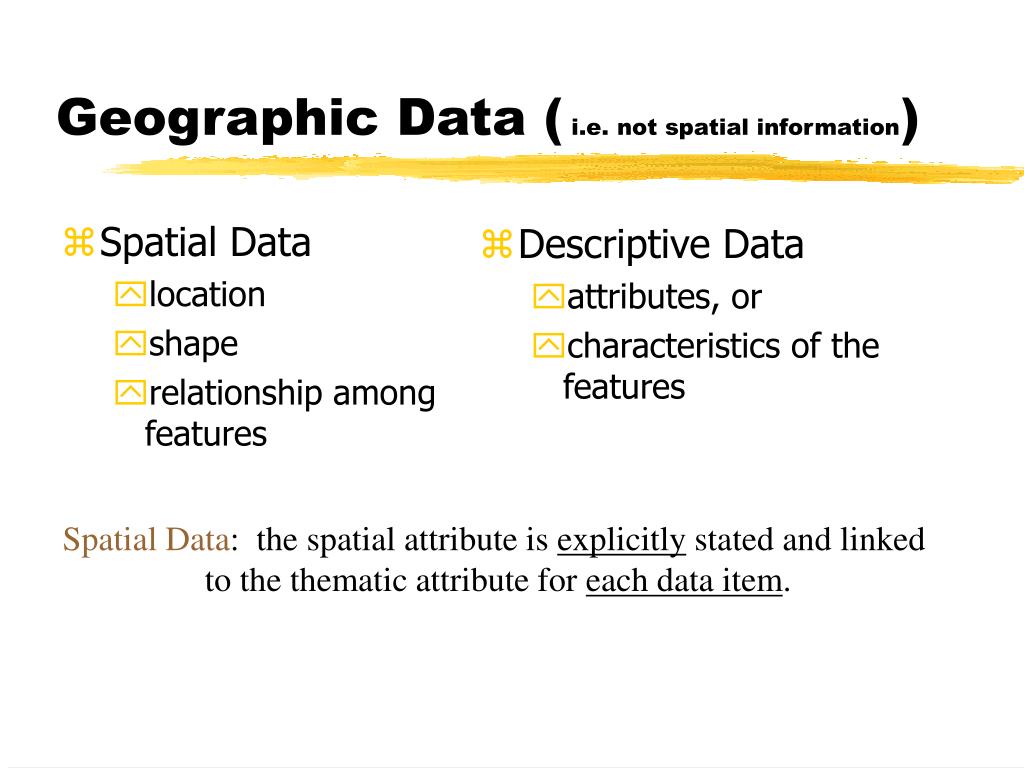

3. Geographic Data ( i.e. not spatial information) • Spatial Data • location • shape • relationship among features • Descriptive Data • attributes, or • characteristics of the features Spatial Data: the spatial attribute is explicitly stated and linked to the thematic attribute for each data item.

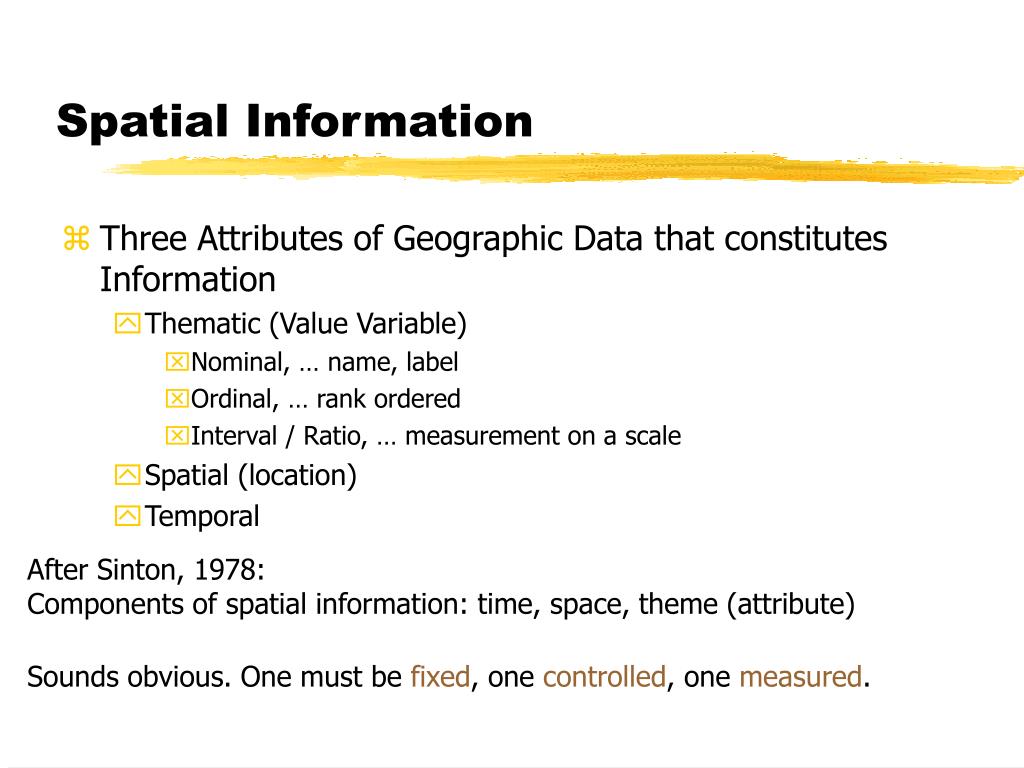

4. Spatial Information • Three Attributes of Geographic Data that constitutes Information • Thematic (Value Variable) • Nominal, … name, label • Ordinal, … rank ordered • Interval / Ratio, … measurement on a scale • Spatial (location) • Temporal After Sinton, 1978: Components of spatial information: time, space, theme (attribute) Sounds obvious. One must be fixed, one controlled, one measured.

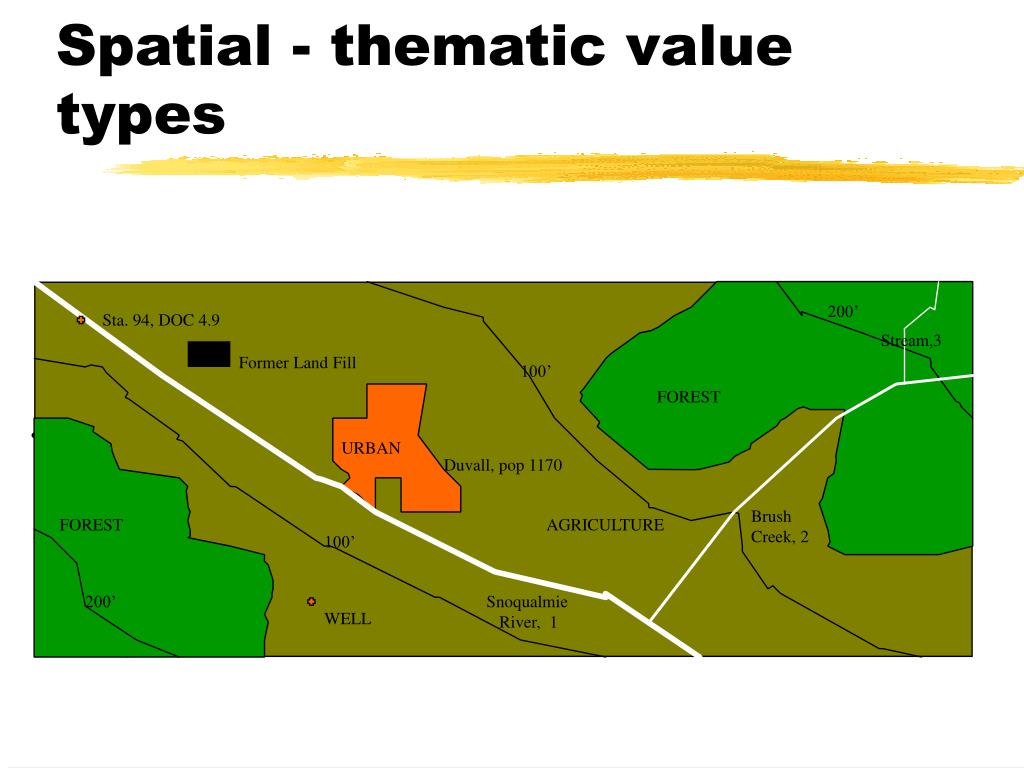

5. Spatial - thematic value types 200’ Sta. 94, DOC 4.9 Stream,3 Former Land Fill 100’ FOREST URBAN Duvall, pop 1170 Brush Creek, 2 FOREST AGRICULTURE 100’ 200’ Snoqualmie River, 1 WELL

6. Geographies Layers, Coverages, Themes Land use Soils Streets Hydrology Parcels

7. Concept of Spatial Objects • POINTS • LINES • AREA

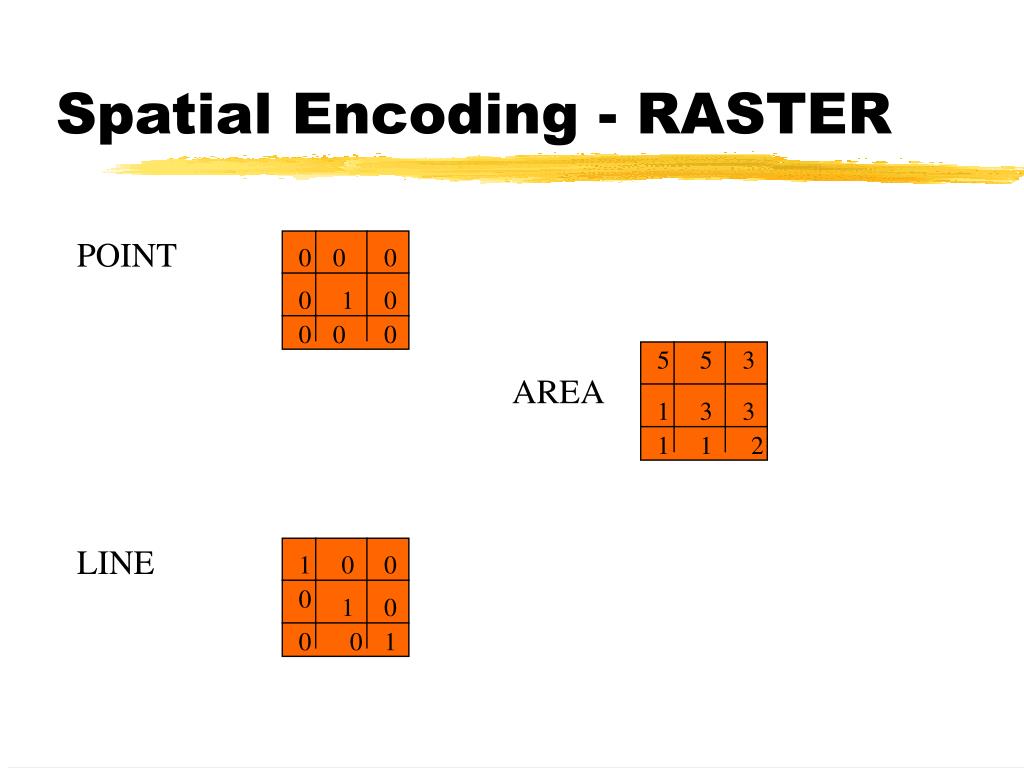

8. 0 Spatial Encoding - RASTER POINT 0 0 0 0 1 0 0 0 0 5 5 3 AREA 1 3 3 1 1 2 LINE 1 0 0 0 1 0 0 1

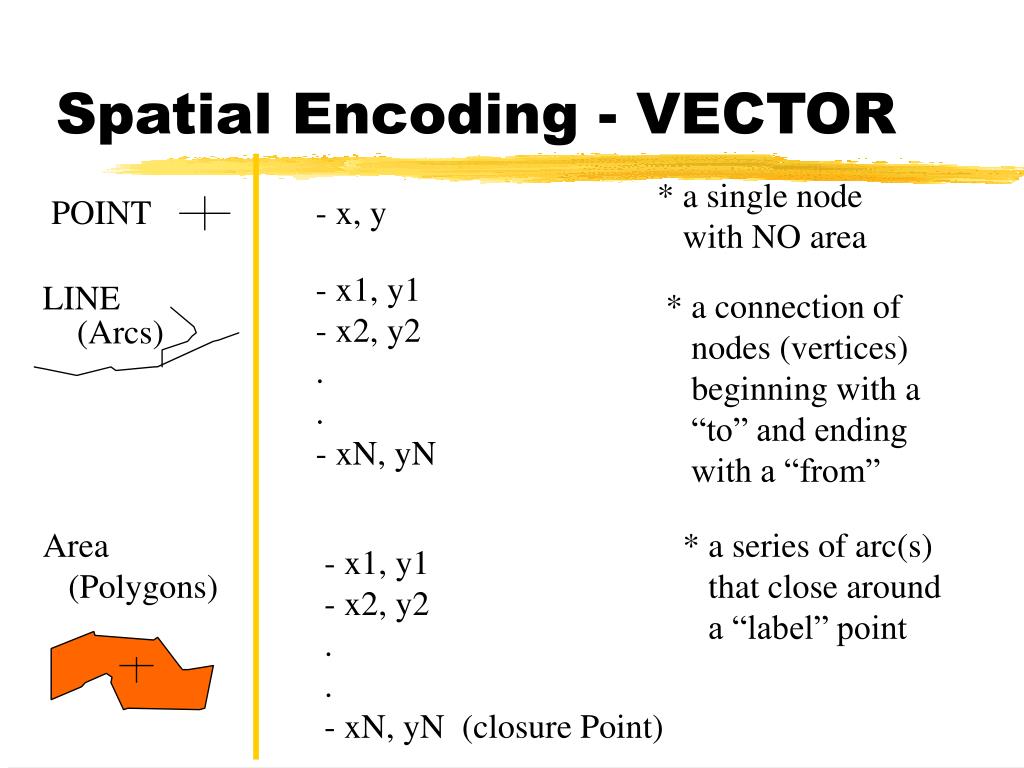

9. Spatial Encoding - VECTOR * a single node with NO area POINT - x, y - x1, y1 - x2, y2 . . - xN, yN LINE * a connection of nodes (vertices) beginning with a “to” and ending with a “from” (Arcs) Area (Polygons) * a series of arc(s) that close around a “label” point - x1, y1 - x2, y2 . . - xN, yN (closure Point)

10. Vector - Topology Descriptive Spatial Object VAR1 VAR2 1 2 3 x1,y1 x2,y2 x3,y3 1 2 3 Fnode Tnode x1y1, x2y2 VAR1 VAR2 1 1 2 1 2 xxyy, xxyy 2 3 xxyy,xxyy 1 2 3 2 2 1 VAR1 VAR2 2 3 1 2 10, 11, 12, 15 10, ……. 1 2 15 10 1 4 12 5 11

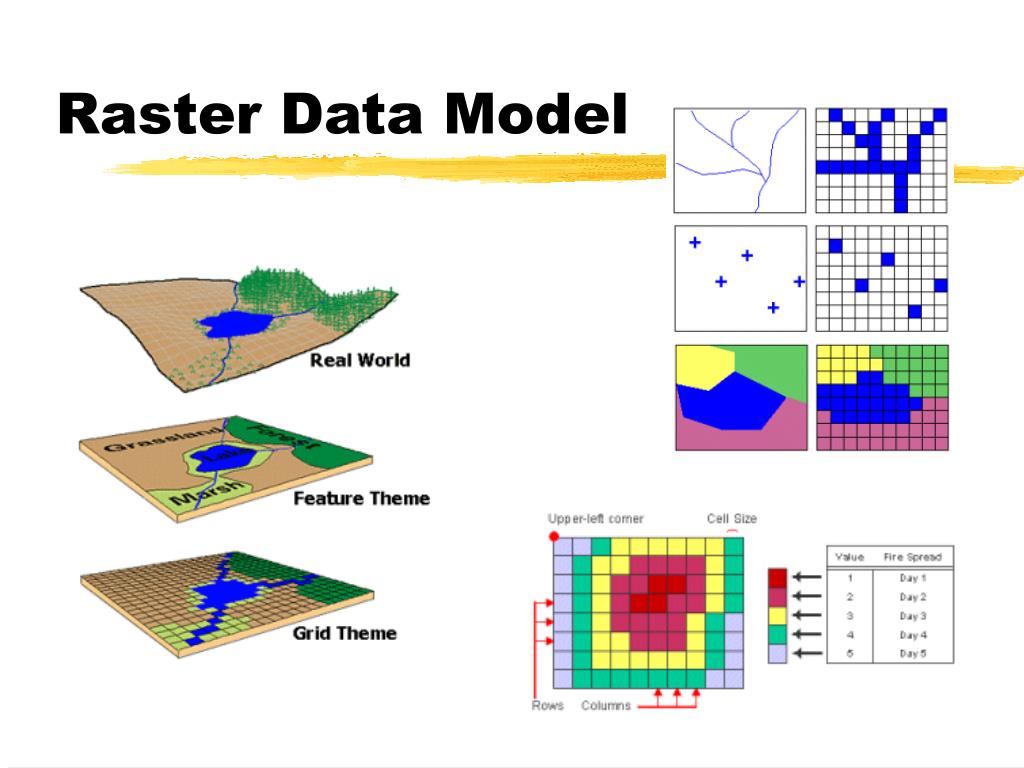

11. Raster Data Model

12. Set Selections [ 1 2 3 4 5 6 7 8 9 10 ] Reduce Select - RESEL GT 5 = [6 7 8 9 10] Add Select - ASEL EQ 5 = [5 6 7 8 9 10] Unselect - UNSEL GE 9 = [5 6 7 8 ] Null Select - NSEL = [1 2 3 4 9 10 ]

13. 2 2 1 3 AND = 2 = 1,2,3 OR XOR = 1 AND, OR, XOR

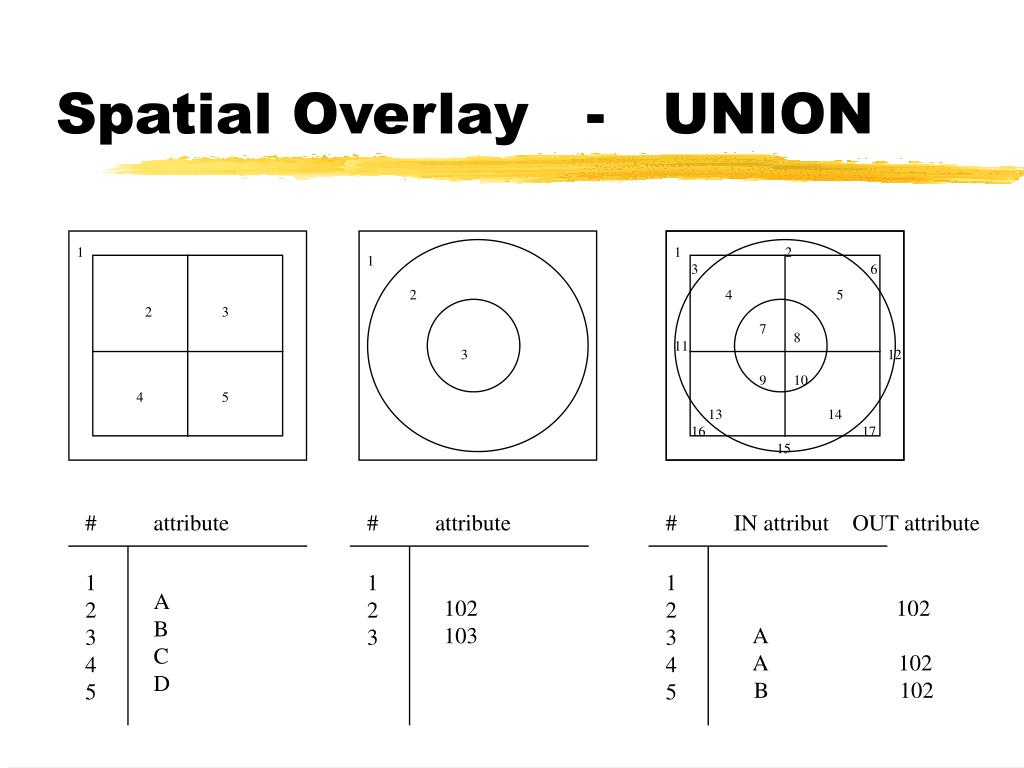

14. # attribute # attribute # IN attribut OUT attribute 1 2 3 4 5 1 2 3 1 2 3 4 5 Spatial Overlay - UNION 1 1 2 1 3 6 2 4 5 2 3 7 8 11 3 12 9 10 4 5 13 14 16 17 15 A B C D 102 103 102 A A 102 B 102

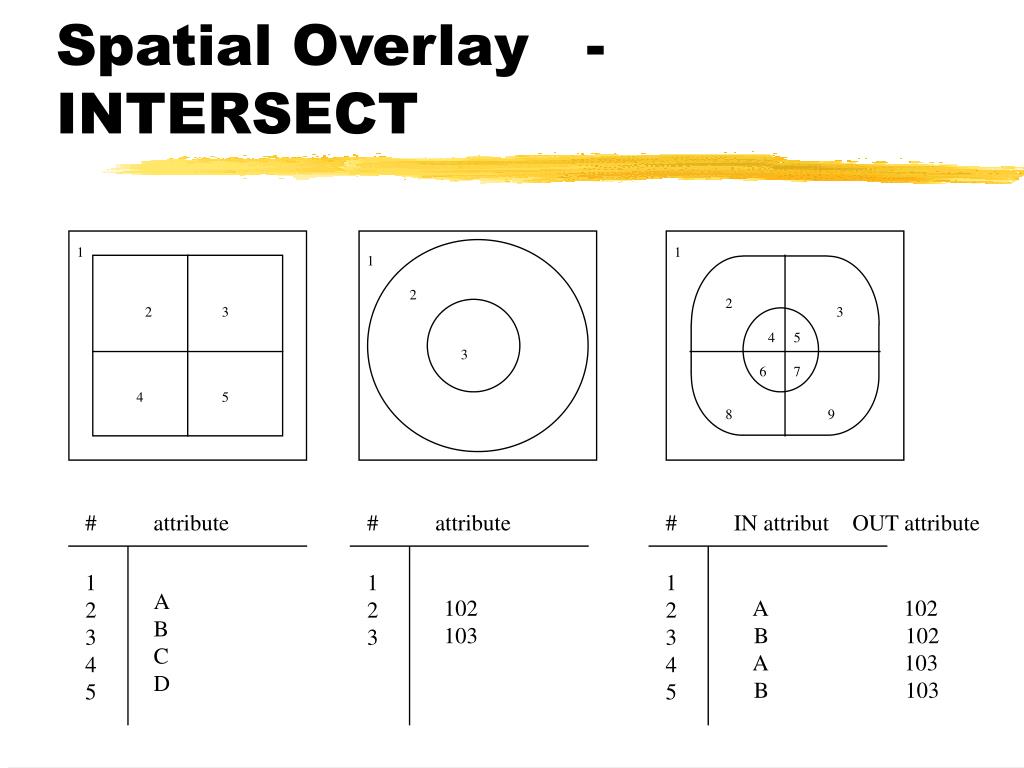

15. # attribute # attribute # IN attribut OUT attribute 1 2 3 4 5 1 2 3 1 2 3 4 5 Spatial Overlay - INTERSECT 1 1 1 2 2 2 3 3 4 5 3 6 7 4 5 8 9 A B C D 102 103 A 102 B 102 A 103 B 103

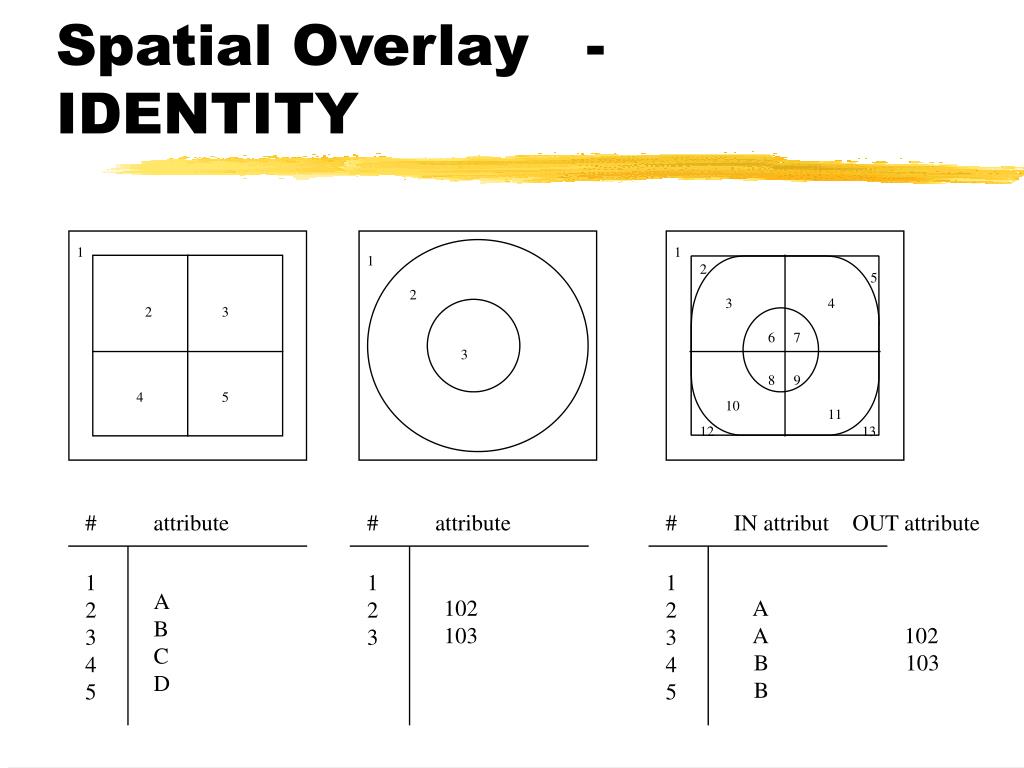

16. # attribute # attribute # IN attribut OUT attribute 1 2 3 4 5 1 2 3 1 2 3 4 5 Spatial Overlay - IDENTITY 1 1 1 2 5 2 3 4 2 3 6 7 3 8 9 4 5 10 11 12 13 A B C D 102 103 A A 102 B 103 B

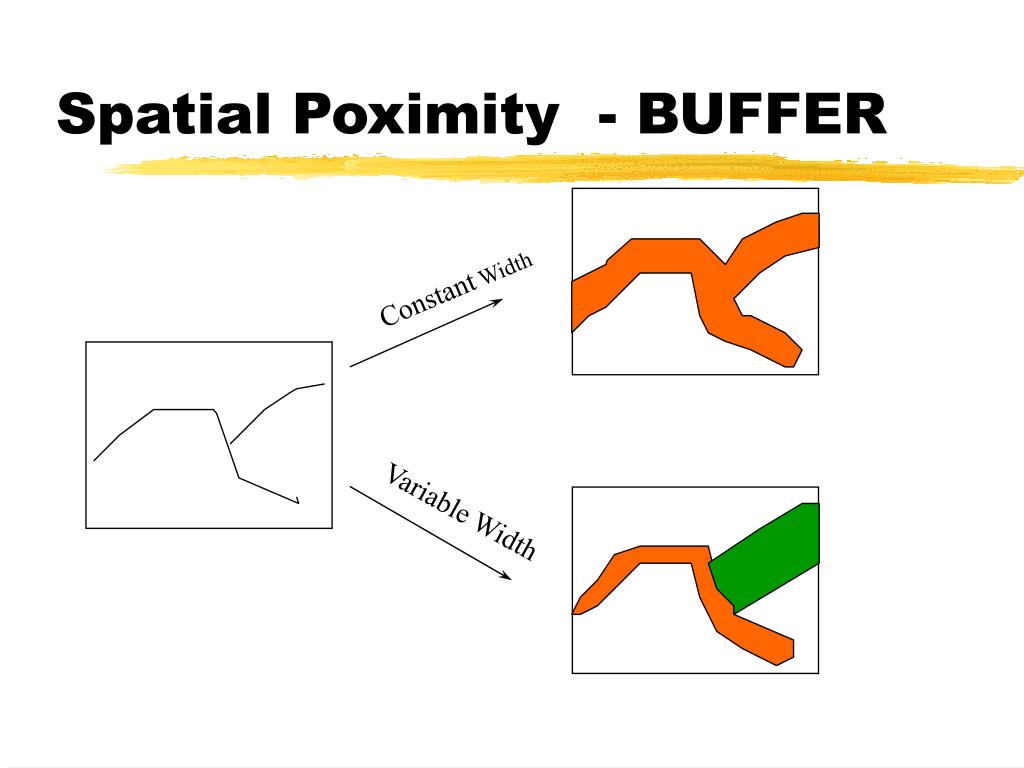

17. Spatial Poximity - BUFFER Constant Width Variable Width

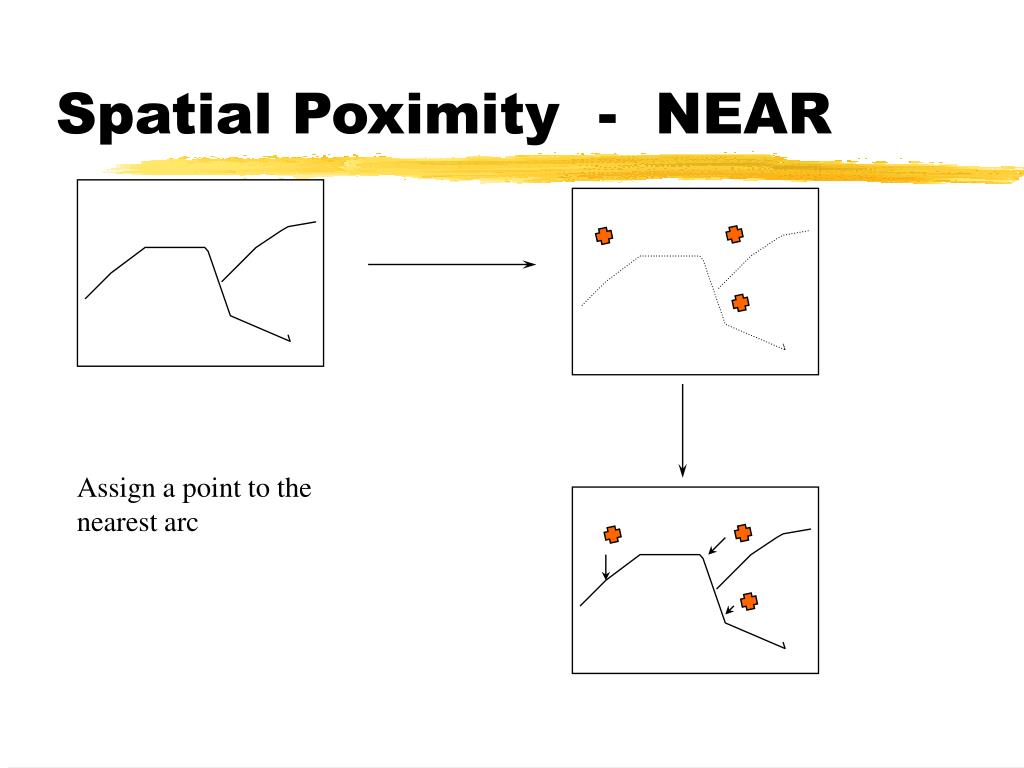

18. Spatial Poximity - NEAR Assign a point to the nearest arc

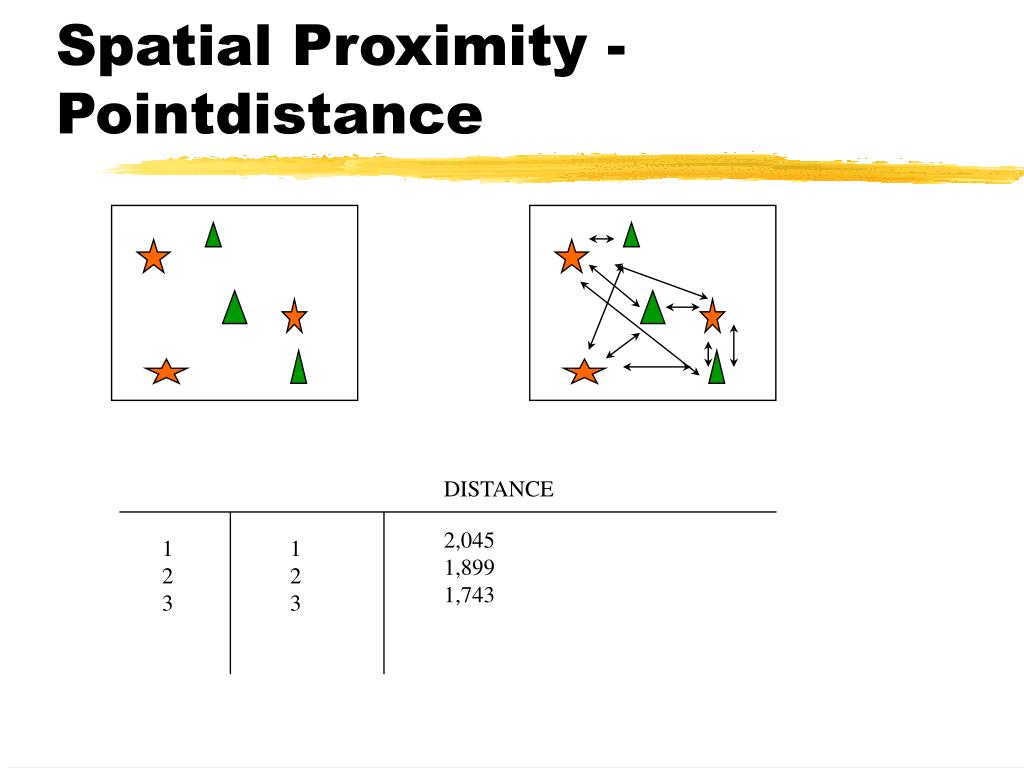

19. Spatial Proximity - Pointdistance DISTANCE 2,045 1,899 1,743 1 2 3 1 2 3

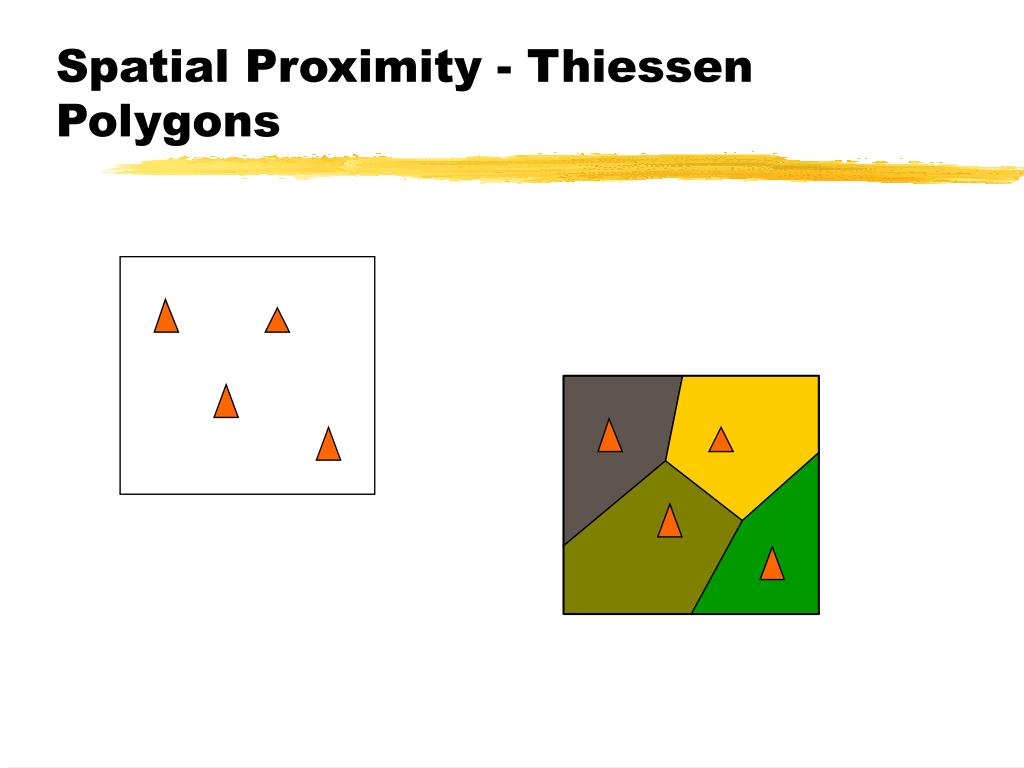

20. Spatial Proximity - Thiessen Polygons

21. Map Algebra • In a raster GIS, cartographic modeling is also named Map Algebra. • Mathematical combinations of raster layers • several types of functions: • Local functions • Focal functions • Zonal functions • Global functions • Functions can be applied to one or multiple layers

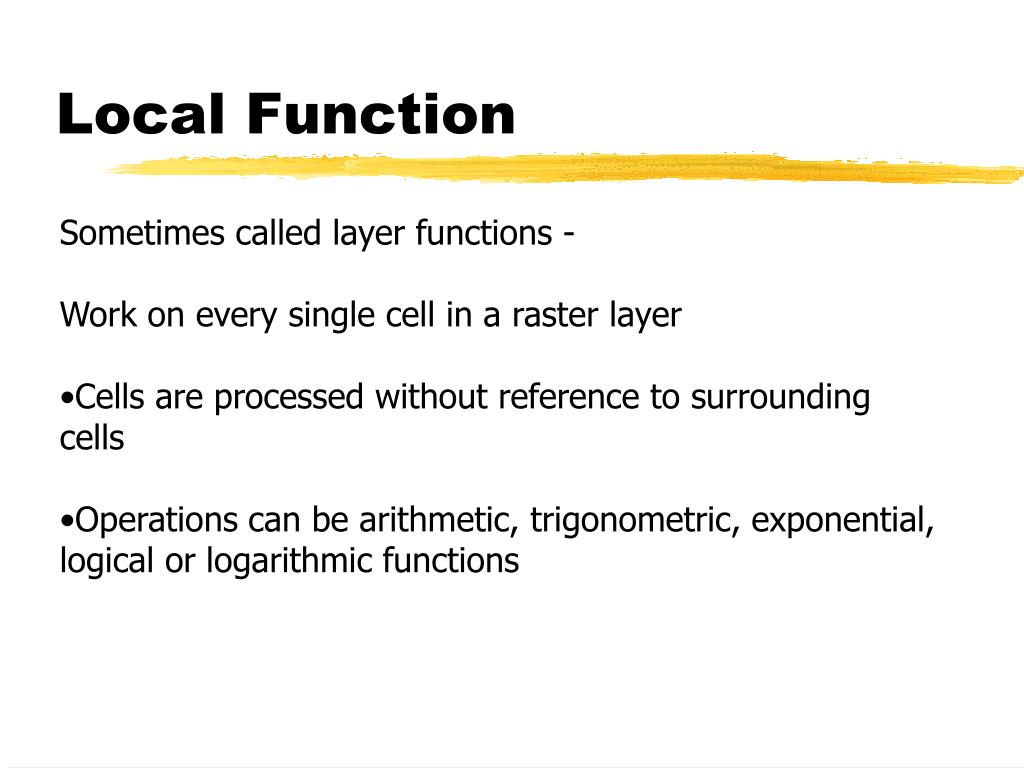

22. Local Function • Sometimes called layer functions - • Work on every single cell in a raster layer • Cells are processed without reference to surrounding cells • Operations can be arithmetic, trigonometric, exponential, logical or logarithmic functions

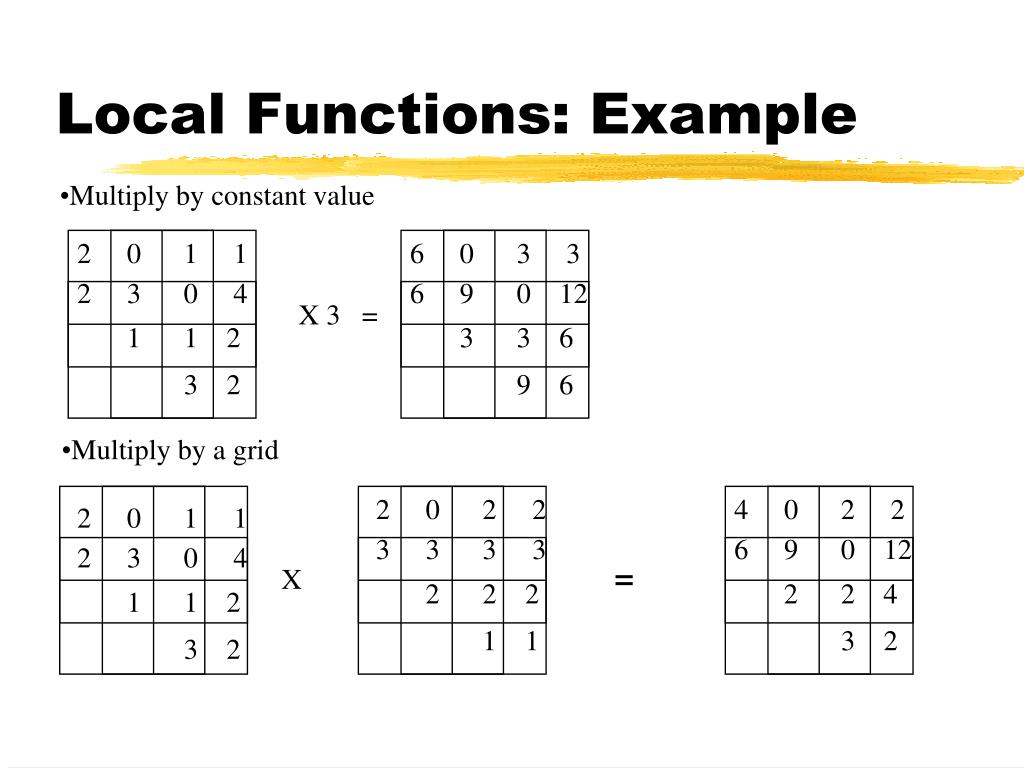

23. Local Functions: Example • Multiply by constant value 2 0 1 1 2 3 0 4 1 1 2 3 2 6 0 3 3 6 9 0 12 3 3 6 9 6 X 3 = • Multiply by a grid 2 0 2 2 3 3 3 3 2 2 2 1 1 4 0 2 2 6 9 0 12 2 2 4 3 2 2 0 1 1 2 3 0 4 1 1 2 3 2 = X

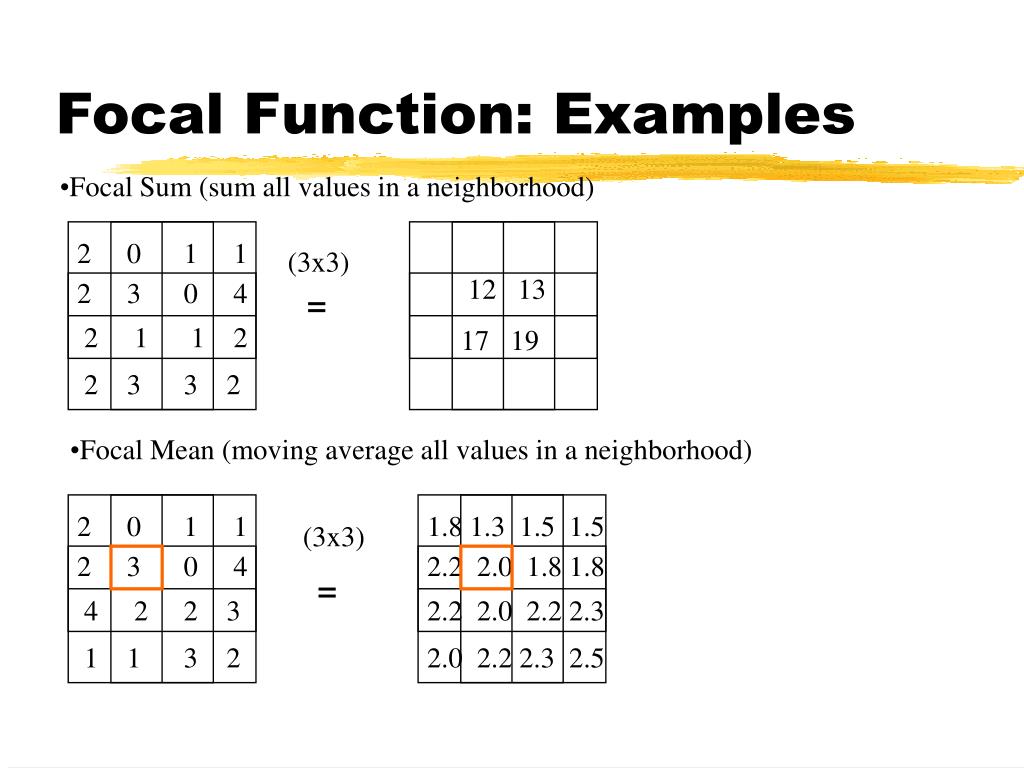

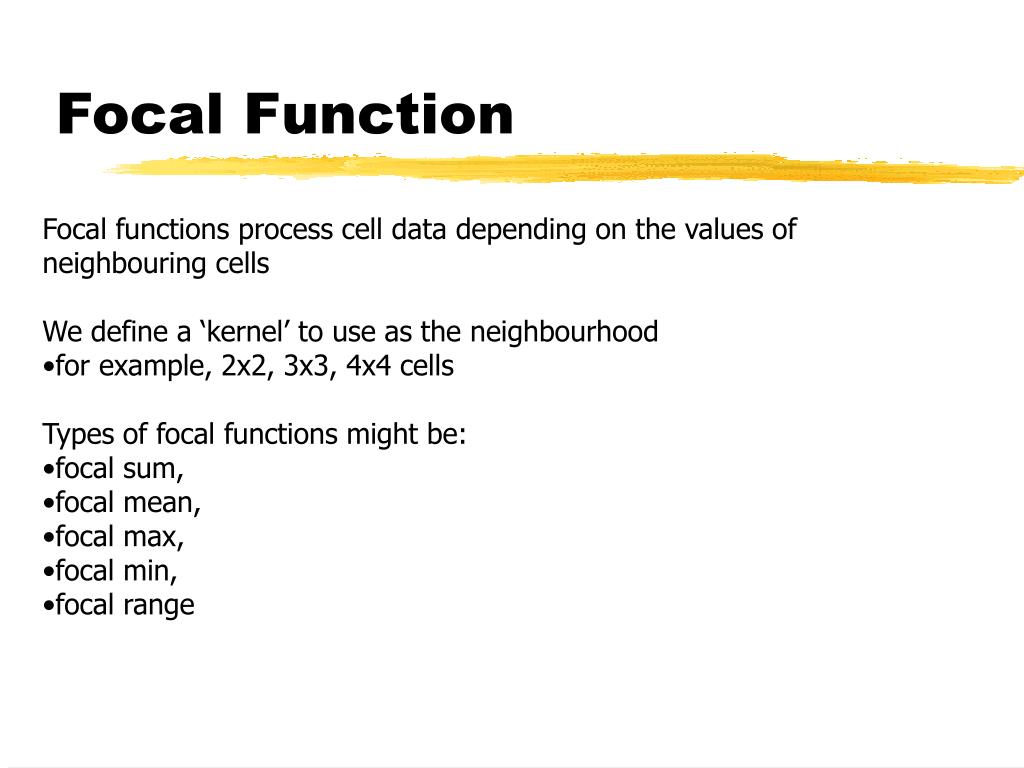

24. Focal Function • Focal functions process cell data depending on the values of neighbouring cells • We define a ‘kernel’ to use as the neighbourhood • for example, 2x2, 3x3, 4x4 cells • Types of focal functions might be: • focal sum, • focal mean, • focal max, • focal min, • focal range

25. Focal Function: Examples • Focal Sum (sum all values in a neighborhood) 2 0 1 1 2 3 0 4 2 1 1 2 2 3 3 2 (3x3) 12 13 = 17 19 • Focal Mean (moving average all values in a neighborhood) 2 0 1 1 2 3 0 4 4 2 2 3 1 1 3 2 1.8 1.3 1.5 1.5 2.2 2.0 1.8 1.8 2.2 2.0 2.2 2.3 2.0 2.2 2.3 2.5 (3x3) =

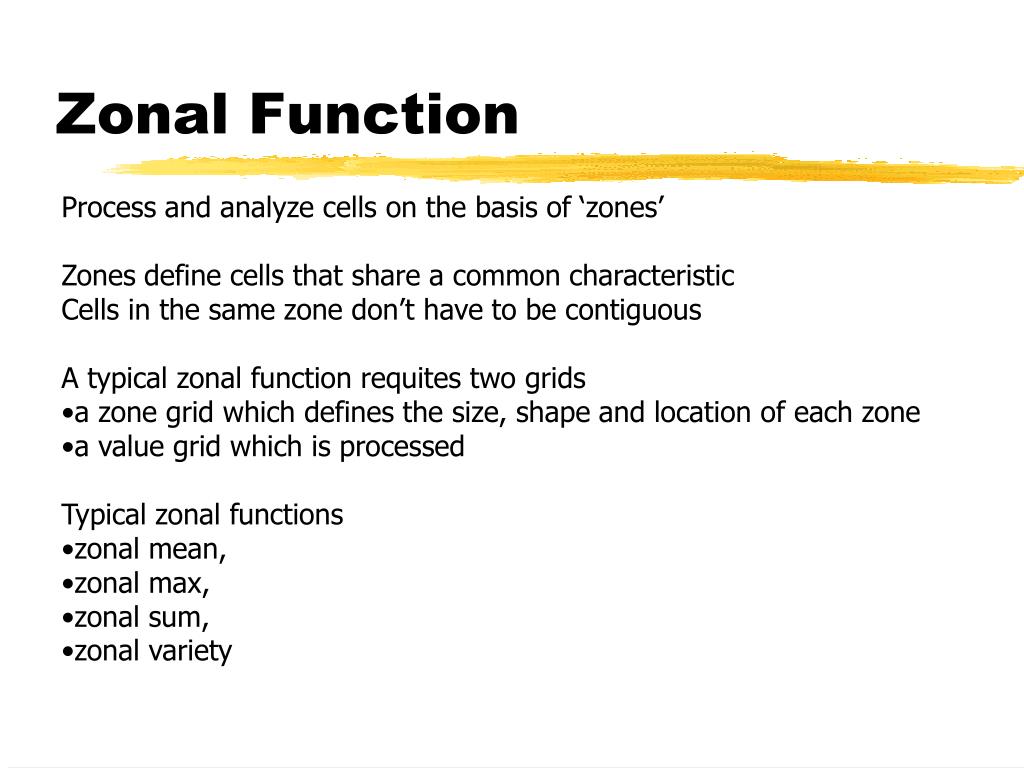

26. Zonal Function • Process and analyze cells on the basis of ‘zones’ • Zones define cells that share a common characteristic • Cells in the same zone don’t have to be contiguous • A typical zonal function requites two grids • a zone grid which defines the size, shape and location of each zone • a value grid which is processed • Typical zonal functions • zonal mean, • zonal max, • zonal sum, • zonal variety

27. Zonal Function An Example • Zonal maximum – Identify the maximum in each zone 2 2 1 1 2 3 3 1 3 2 1 1 2 2 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 5 5 8 8 5 7 7 8 7 8 8 8 8 8 = Useful when we have different regions “classified” and wish to treat all grid cells of each type as a single “zone” (ie. Forests, urban, water, etc.)

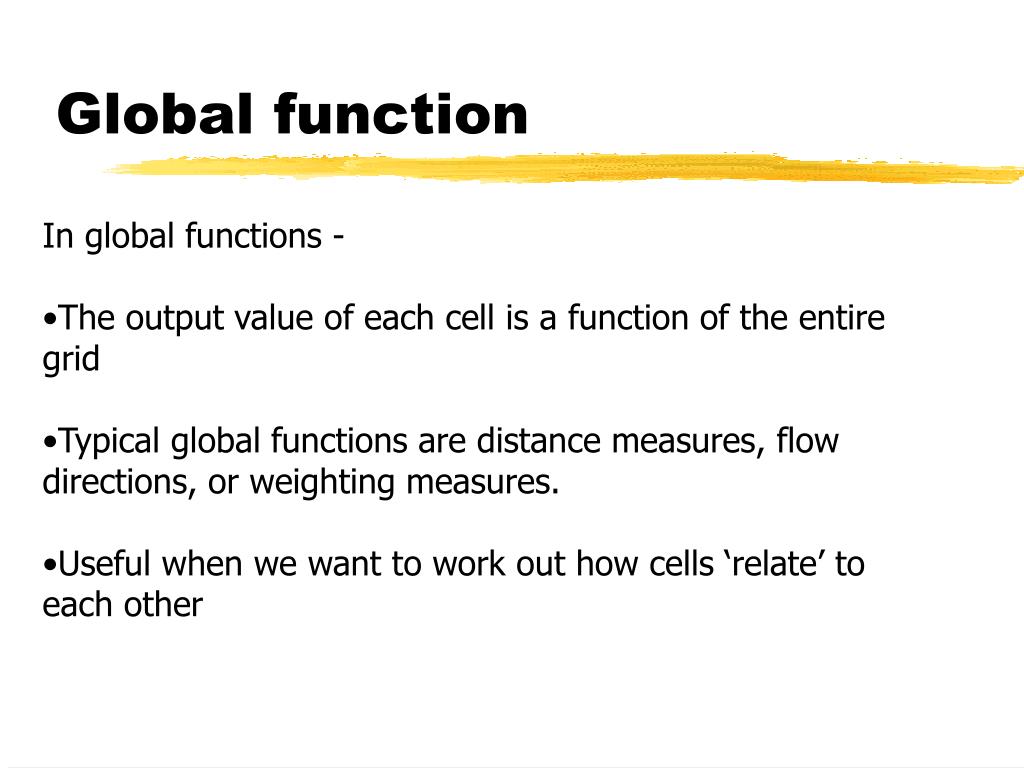

28. Global function • In global functions - • The output value of each cell is a function of the entire grid • Typical global functions are distance measures, flow directions, or weighting measures. • Useful when we want to work out how cells ‘relate’ to each other

29. Golbal Function An Example • Distance Measures – Euclidean distance based upon cell size 1 1 1 2 2 1 0 0 1.4 1 1 0 1 0 1 1 1.4 1 1.4 2 = Or – some function which must consider all cells before determining the value of any cell – (“cost” associated with a path across the surface)

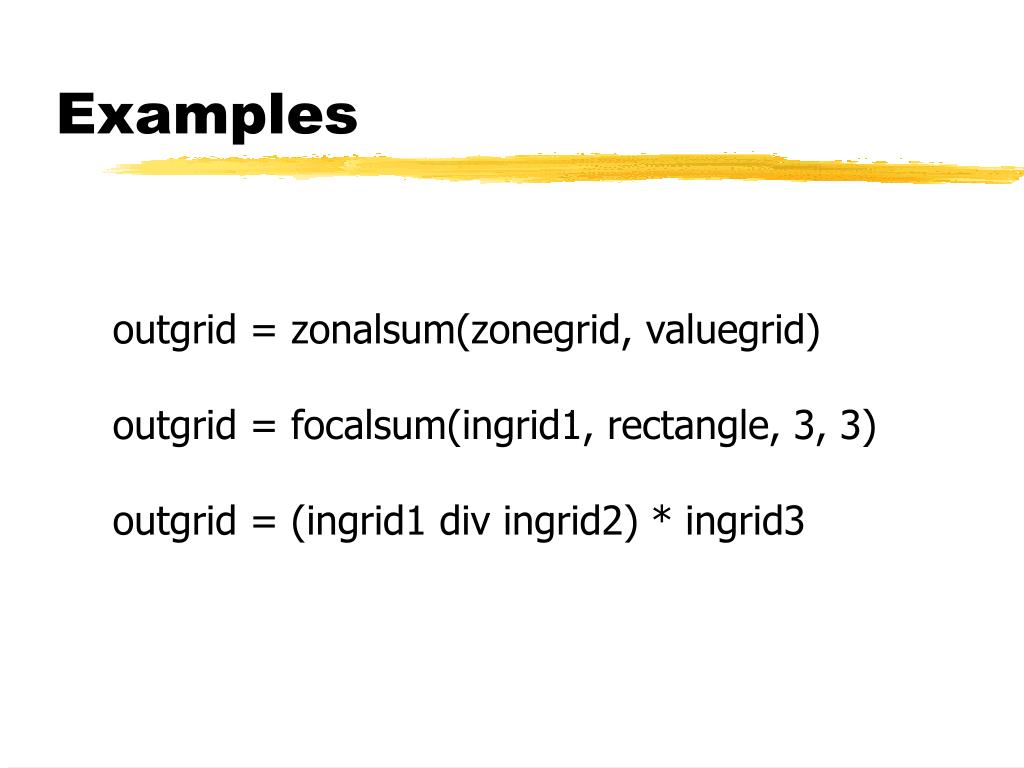

30. Examples outgrid = zonalsum(zonegrid, valuegrid) outgrid = focalsum(ingrid1, rectangle, 3, 3) outgrid = (ingrid1 div ingrid2) * ingrid3
