  1. Introduction to Silverlight

  2. What is Silverlight? • It’s part of a Microsoft Web platform called Rich Internet Applications (RIA) • There is a service side to this too (RIA services) • It supports multiple operating systems and browsers • It supports multiple devices • It’s a small browser plug-in • It easily plays video and audio (Ever wonder how Netflix streams?)

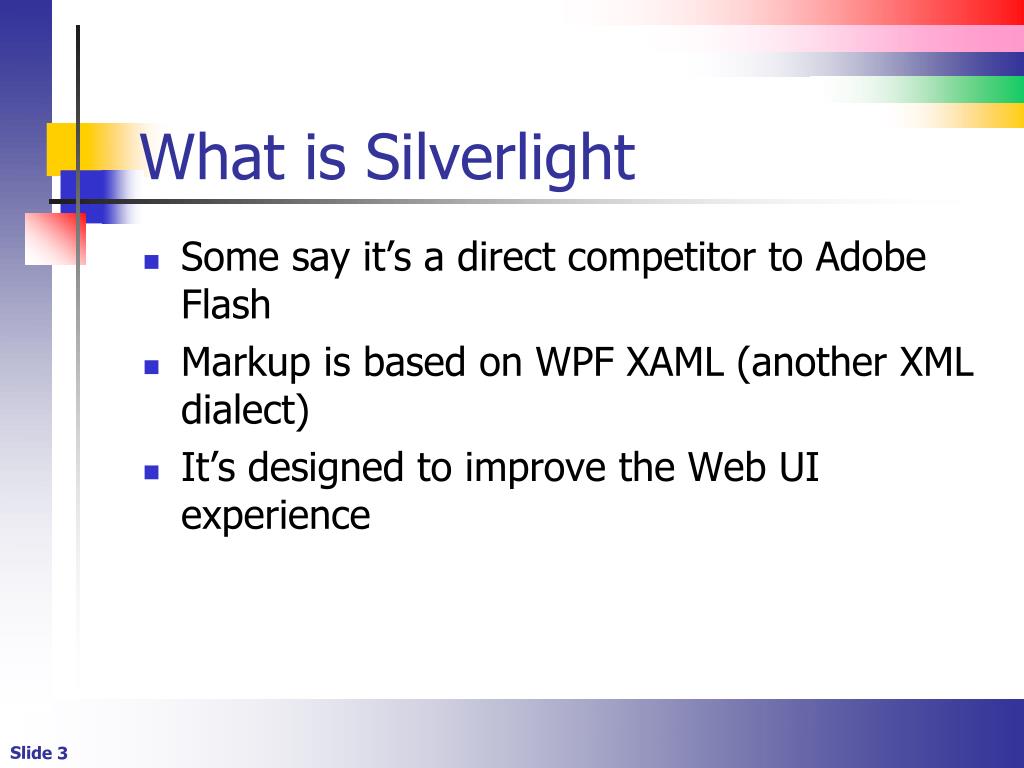

  3. What is Silverlight • Some say it’s a direct competitor to Adobe Flash • Markup is based on WPF XAML (another XML dialect) • It’s designed to improve the Web UI experience

  4. Silverlight History (1.0) • Introduced in 2007 was originally called WPF/E (everywhere) • Did not support .NET managed code

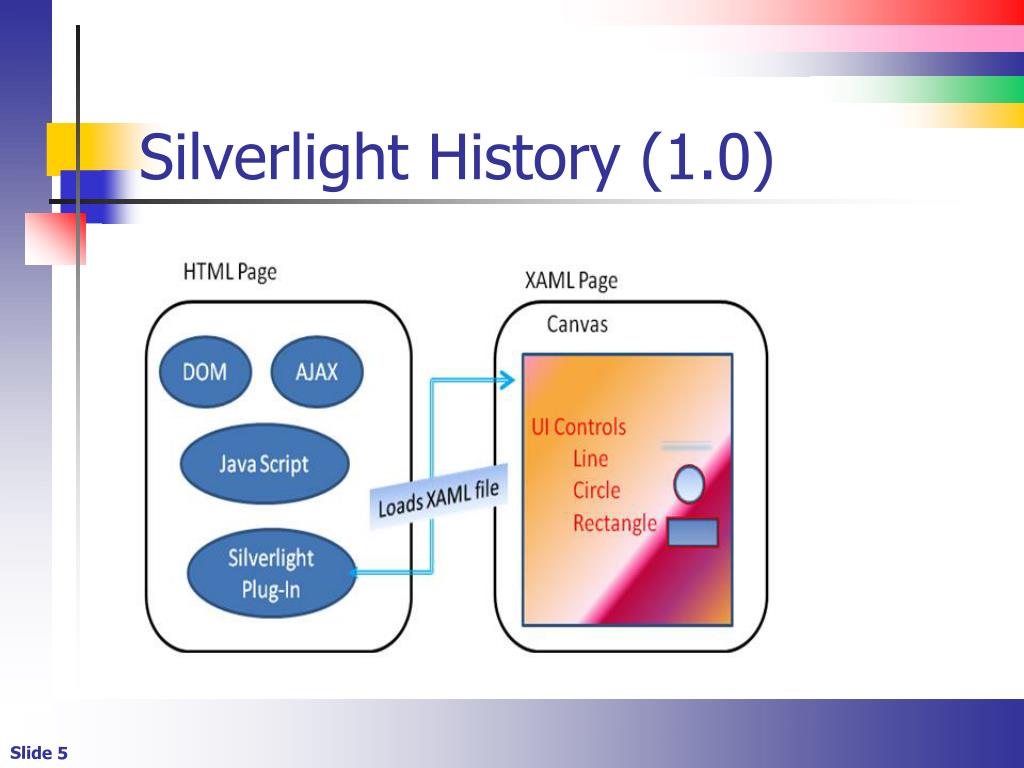

  5. Silverlight History (1.0)

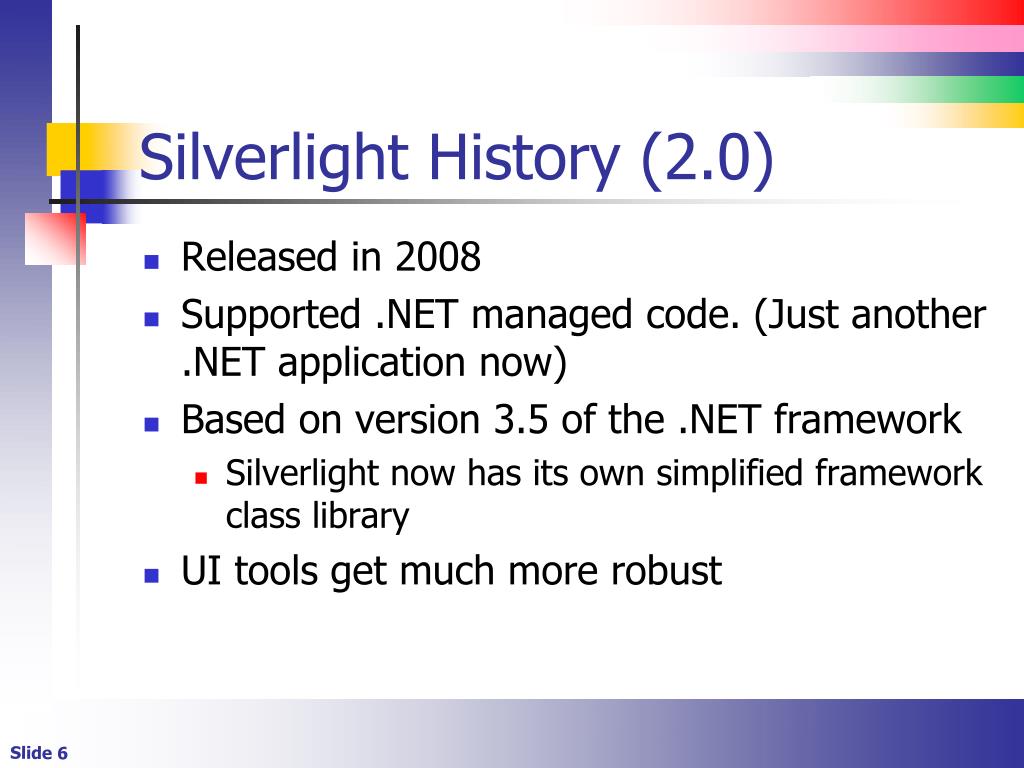

  6. Silverlight History (2.0) • Released in 2008 • Supported .NET managed code. (Just another .NET application now) • Based on version 3.5 of the .NET framework • Silverlight now has its own simplified framework class library • UI tools get much more robust

  7. Silverlight History (2.0)

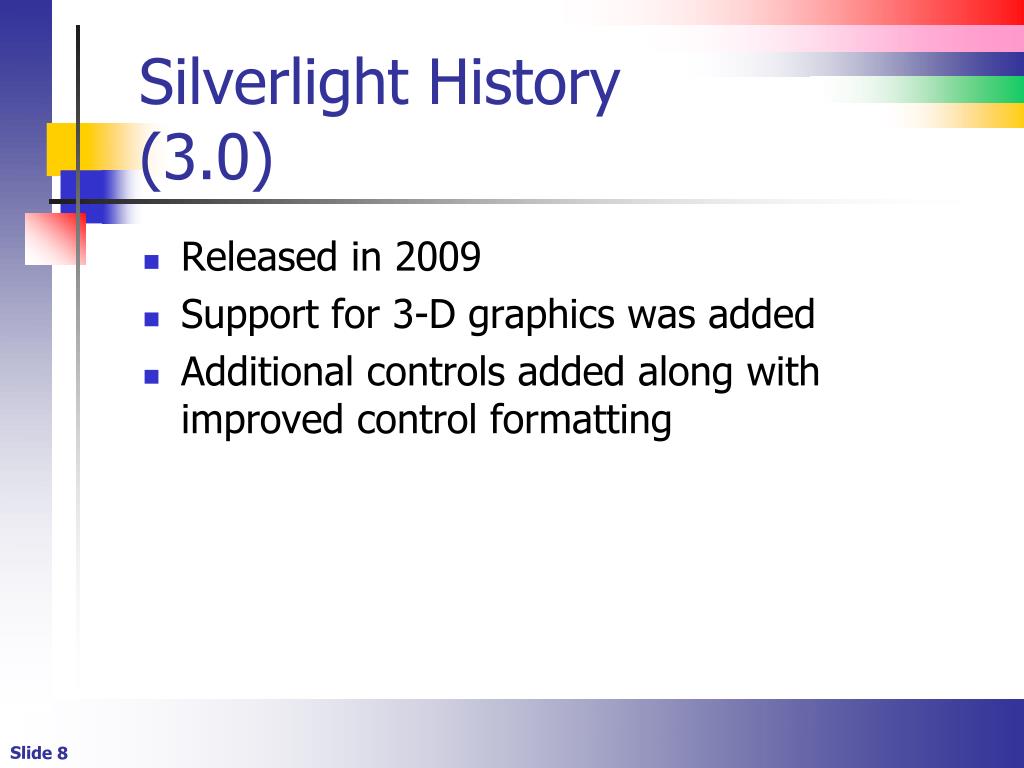

  8. Silverlight History (3.0) • Released in 2009 • Support for 3-D graphics was added • Additional controls added along with improved control formatting

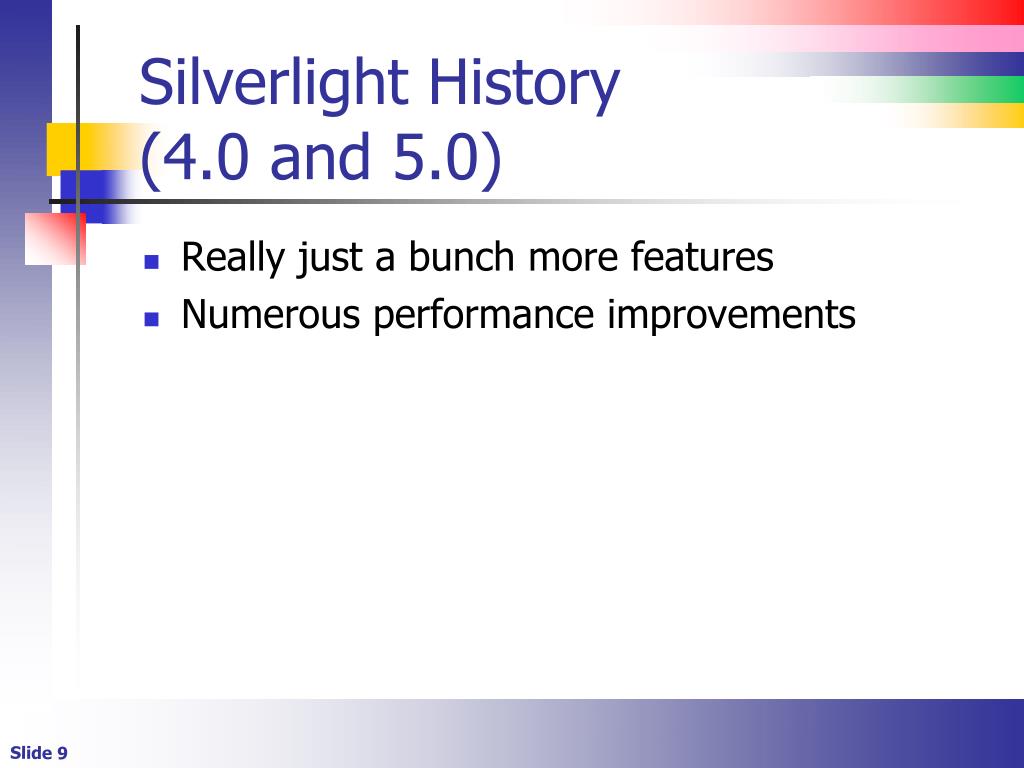

  9. Silverlight History (4.0 and 5.0) • Really just a bunch more features • Numerous performance improvements

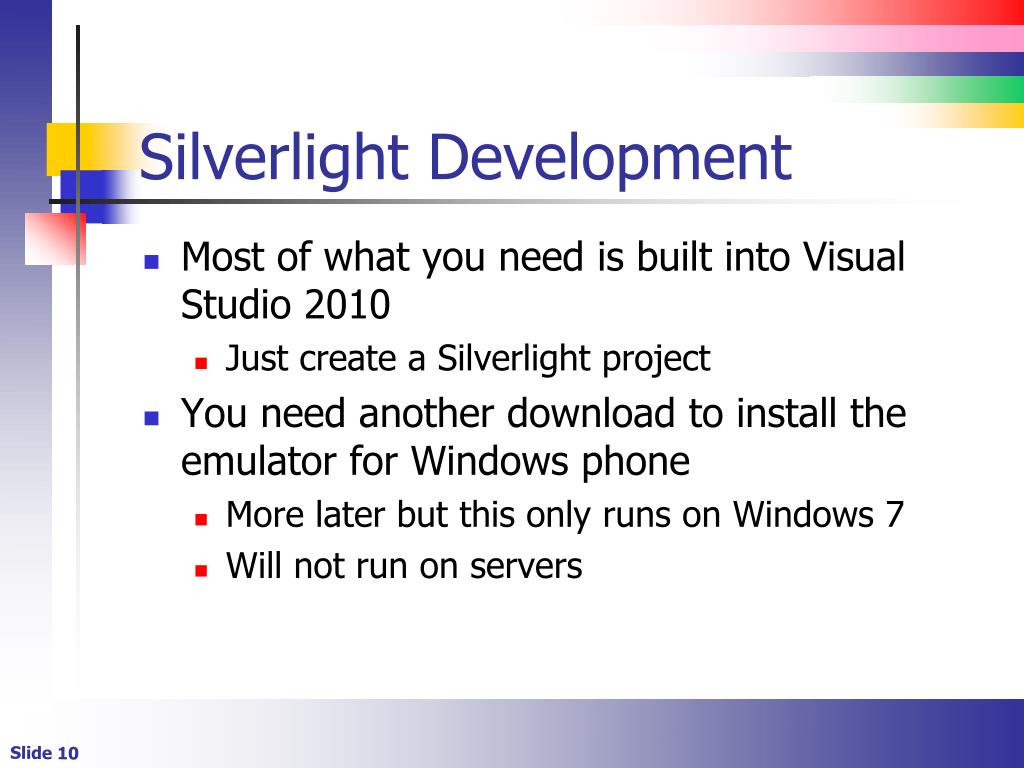

  10. Silverlight Development • Most of what you need is built into Visual Studio 2010 • Just create a Silverlight project • You need another download to install the emulator for Windows phone • More later but this only runs on Windows 7 • Will not run on servers

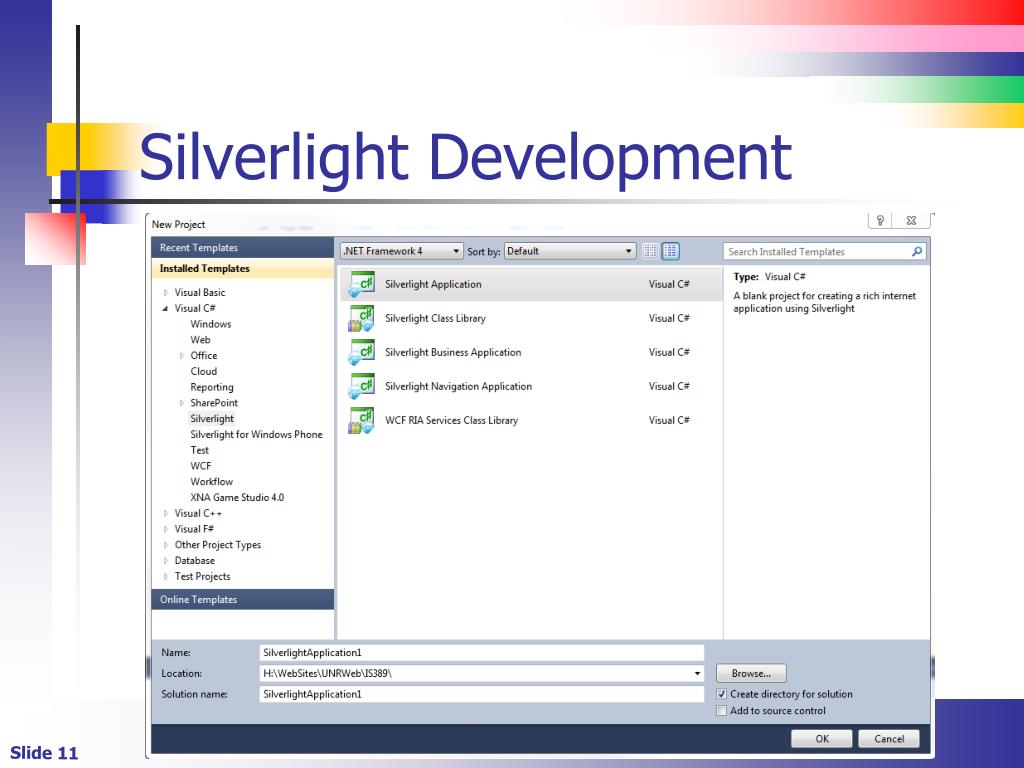

  11. Silverlight Development

  12. Creating a First Silverlight Application • Create a Silverlight application • Host the application in a new Web site • See dialog next screen • This template is only for testing • Note that all current Silverlight versions are supported by Visual Studio

  13. Creating a First Silverlight Application

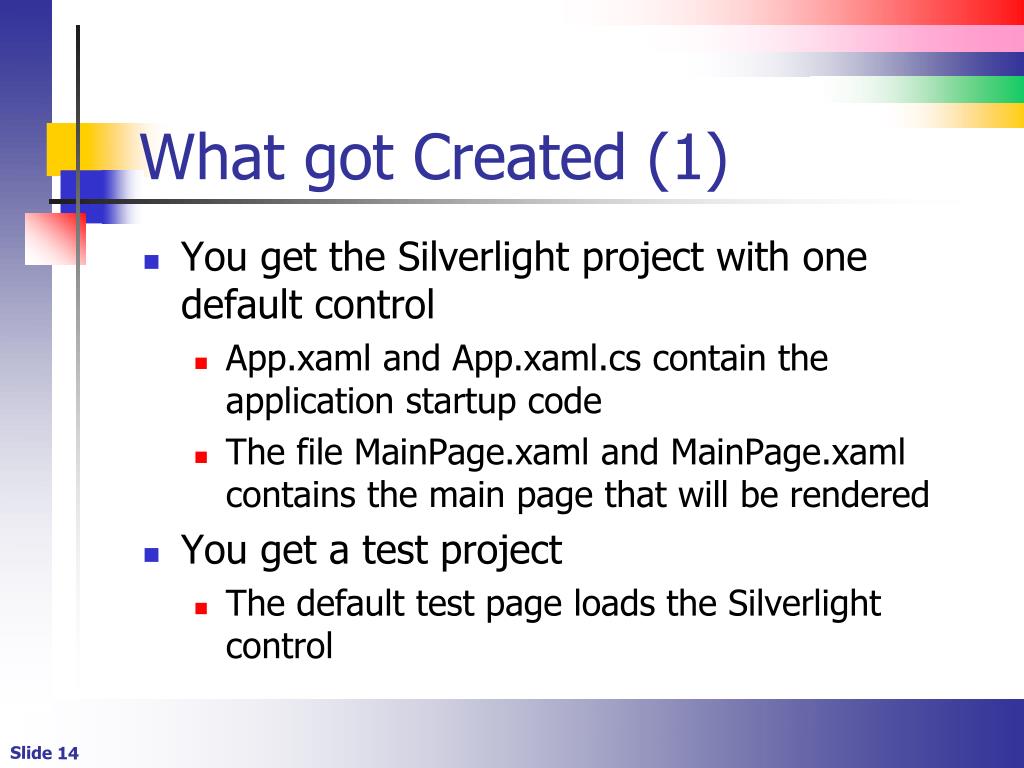

  14. What got Created (1) • You get the Silverlight project with one default control • App.xaml and App.xaml.cs contain the application startup code • The file MainPage.xaml and MainPage.xaml contains the main page that will be rendered • You get a test project • The default test page loads the Silverlight control

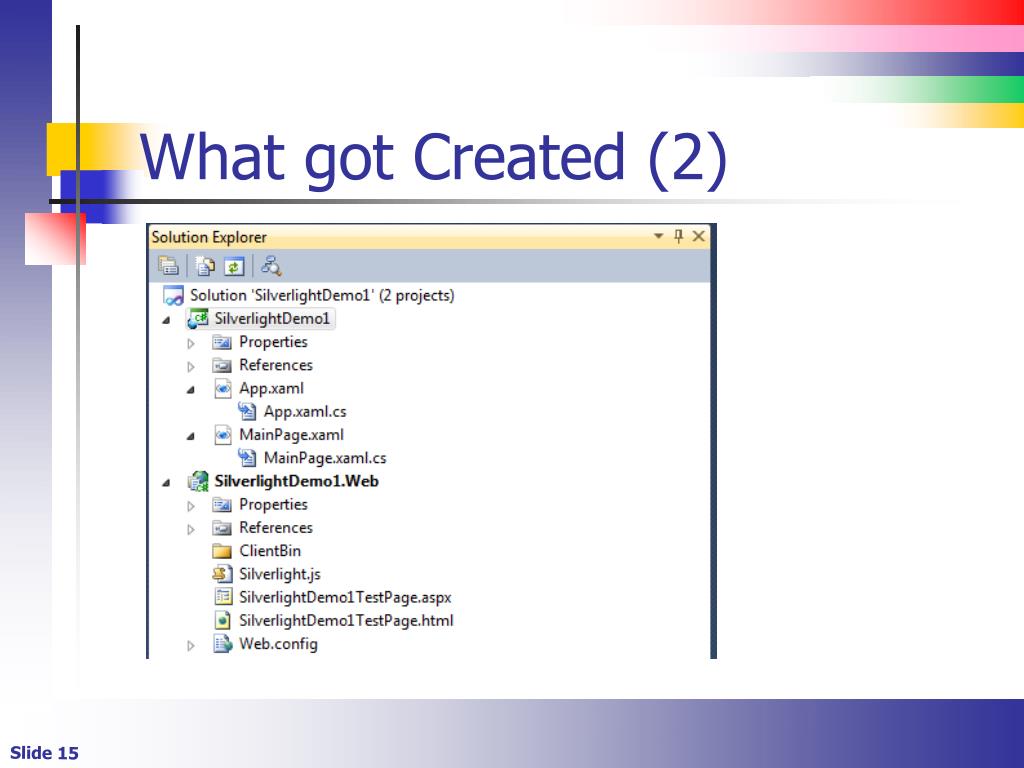

  15. What got Created (2)

  16. Instantiating the Control

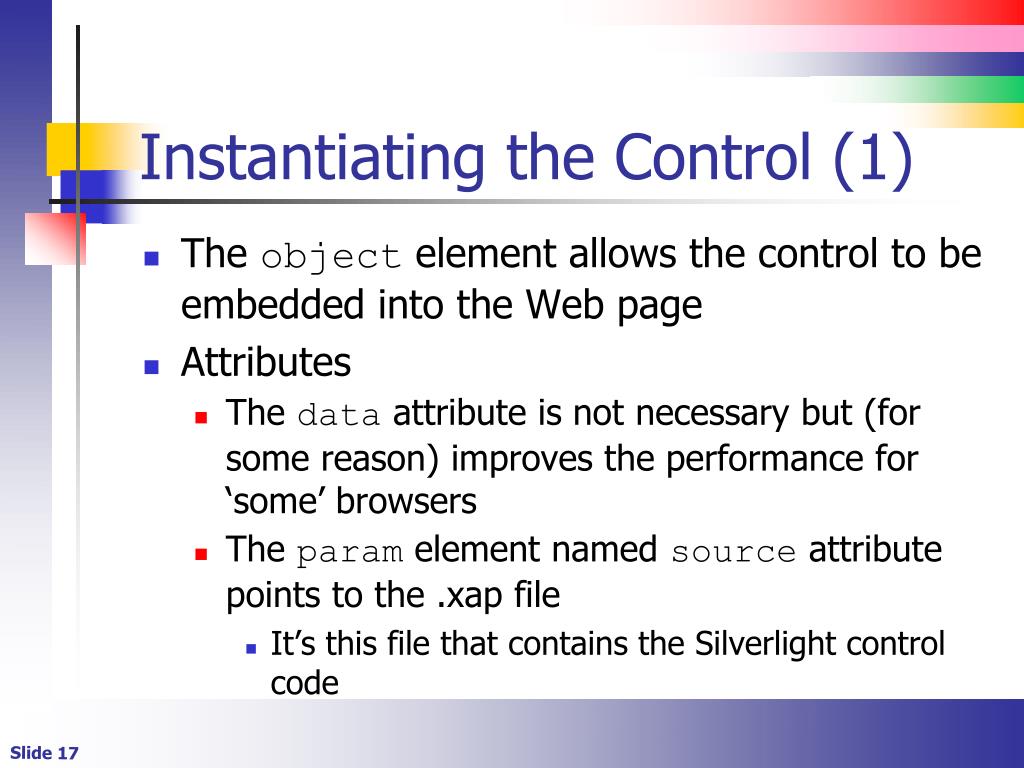

  17. Instantiating the Control (1) • The object element allows the control to be embedded into the Web page • Attributes • The data attribute is not necessary but (for some reason) improves the performance for ‘some’ browsers • The param element named source attribute points to the .xap file • It’s this file that contains the Silverlight control code

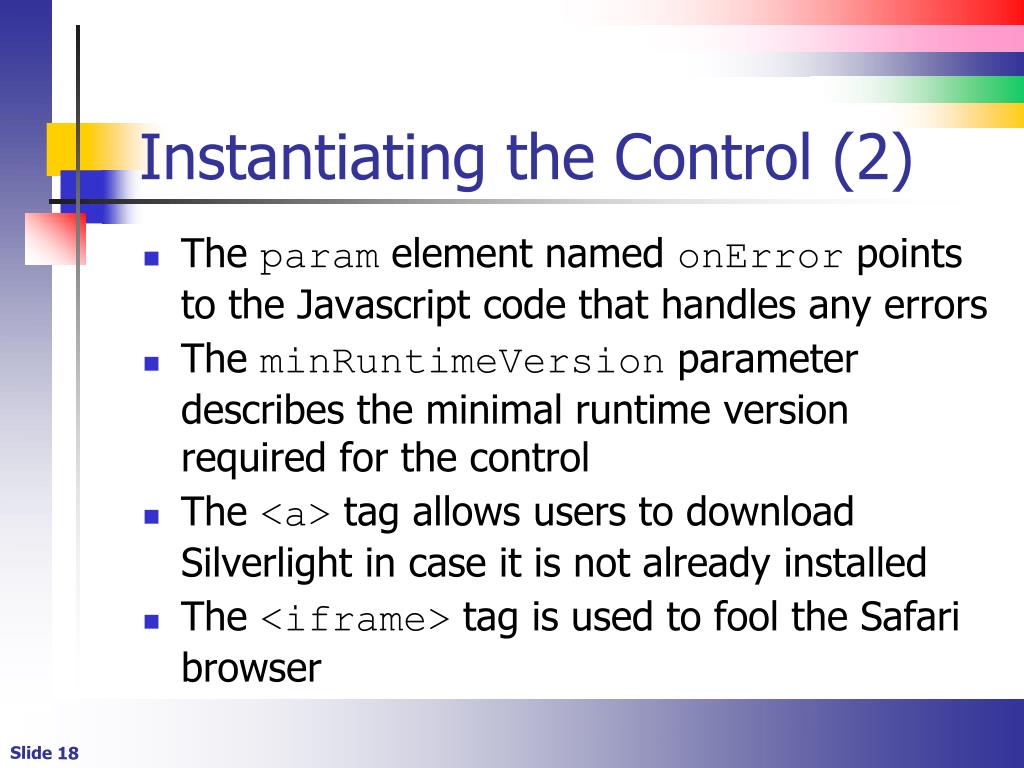

  18. Instantiating the Control (2) • The param element named onError points to the Javascript code that handles any errors • The minRuntimeVersion parameter describes the minimal runtime version required for the control • The <a> tag allows users to download Silverlight in case it is not already installed • The <iframe> tag is used to fool the Safari browser

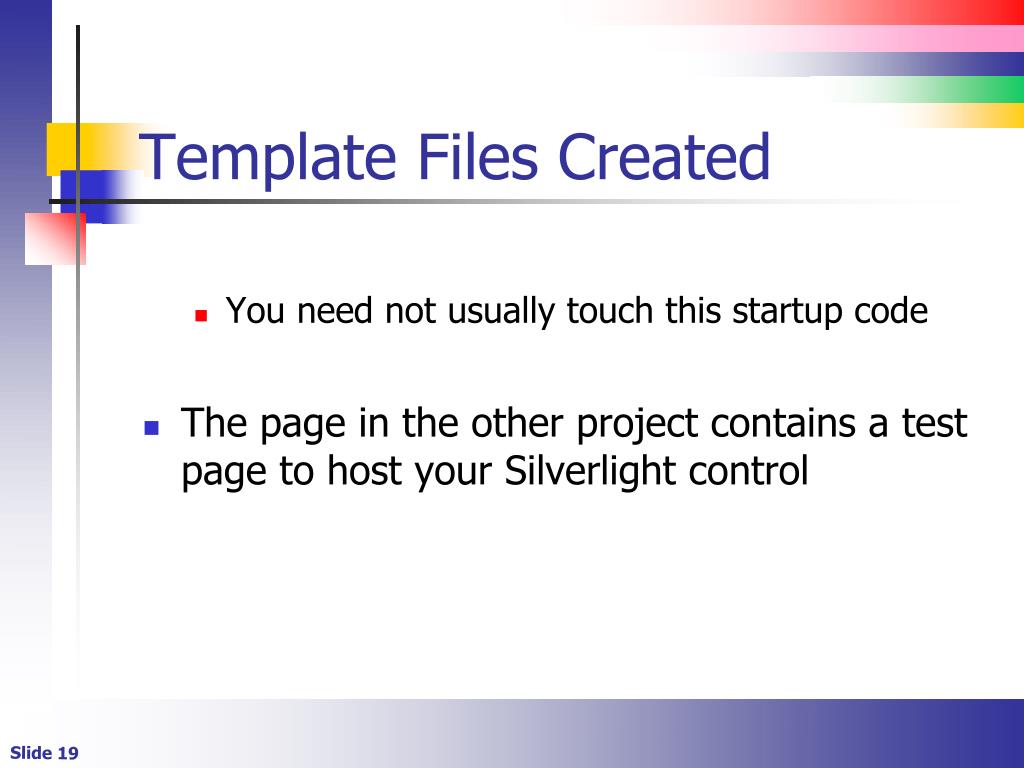

  19. Template Files Created • You need not usually touch this startup code • The page in the other project contains a test page to host your Silverlight control

  20. Introduction to the Silverlight Control • Regarding App.xaml: • We don’t need to touch this much for simple applications • The function App is the Silverlight constructor • Application_UnhandledException is the facility to report the error to the Document Object model

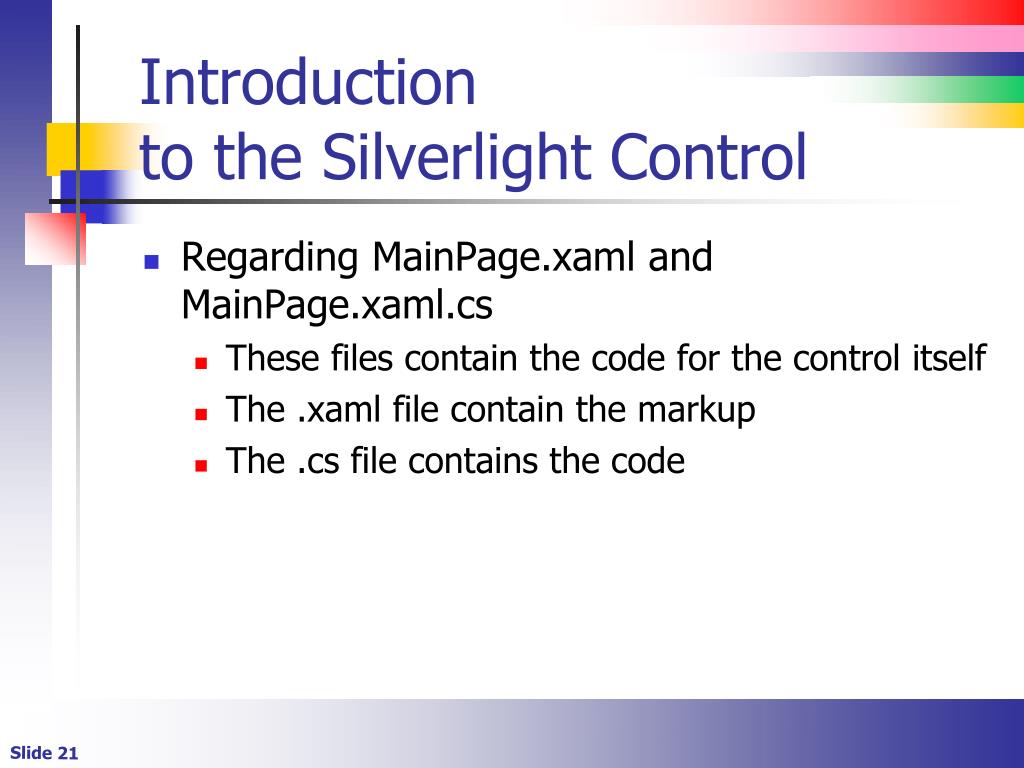

  21. Introduction to the Silverlight Control • Regarding MainPage.xaml and MainPage.xaml.cs • These files contain the code for the control itself • The .xaml file contain the markup • The .cs file contains the code

  22. Creating the UI • The process is the same as we would see with a desktop application • Use the toolbox to create the UI • It’s XAML instead of a nativ language • Use the Code Editor to create the code behind
