  1. Doctoral Dissertation Defense Formalizing Memory Consistency Models for Program Analysis Jason Yue Yang This work was supported in part by NSF Research Grant No. CCR-0081406 and SRC Task 1031.001.

  2. Motivation Memory architectures - more aggressive Data dependence Load/store Load-acquire/store-release Memory fence Write atomicity Semaphore • Multithreaded software – popular, BUT hard to analyze • - Thread libraries: e.g., P-thread, Win32, Solaris • - Language level support of threads: e.g., Java • Central Problem – shared memory consistency models • - Need a clear specification of memory ordering rules • Need an executable version of memory ordering rules • - Need a method to analyze thread executions against the rules

  3. What Is a Memory Model? It defines the legalorderings of memory operations that can be perceived at the user level Example (Itanium assembly code, initially: a = b = 0) 0 is OK Can’t observe 0 st a,1; stb,1; ld.acqr1,b; <1> ld r2,a; <1> ldr1,b; <1> ld r2,a; <0> st a,1 ; st.relb,1; CPU CPU CPU CPU memory memory store/load less restriction store-release/load-acquire more restriction

  4. Classical Memory Models Sequential Consistency(SC) Non-operational View: Operational View: • Common total order • Program order • Read sees the “latest” write They execute as if connected to a single memory through a non-deterministic switch memory Other Weaker Models: Parallel Random Access Memory (PRAM), Coherence, Causal Consistency, Processor Consistency, Release Consistency, Lazy Release Consistency, Location Consistency, and more …

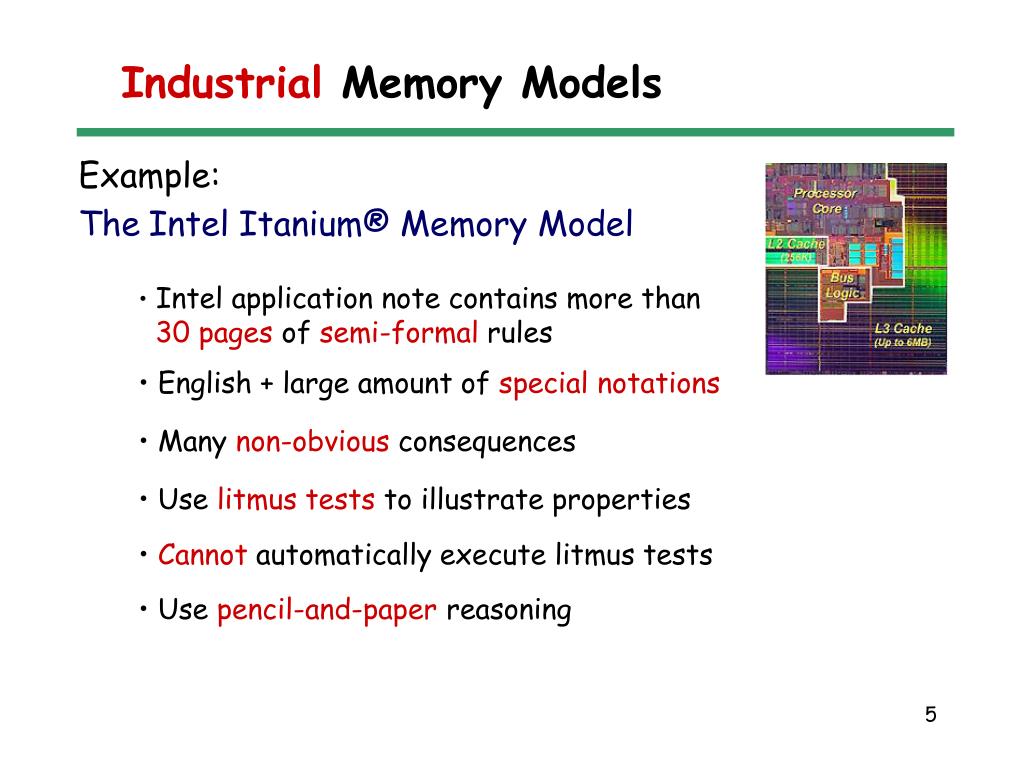

  5. Industrial Memory Models Example: TheIntelItanium® Memory Model • Intel application note contains more than • 30 pages of semi-formal rules • English + large amount of special notations • Many non-obvious consequences • Use litmus tests to illustrate properties • Cannot automatically execute litmus tests • Use pencil-and-paper reasoning

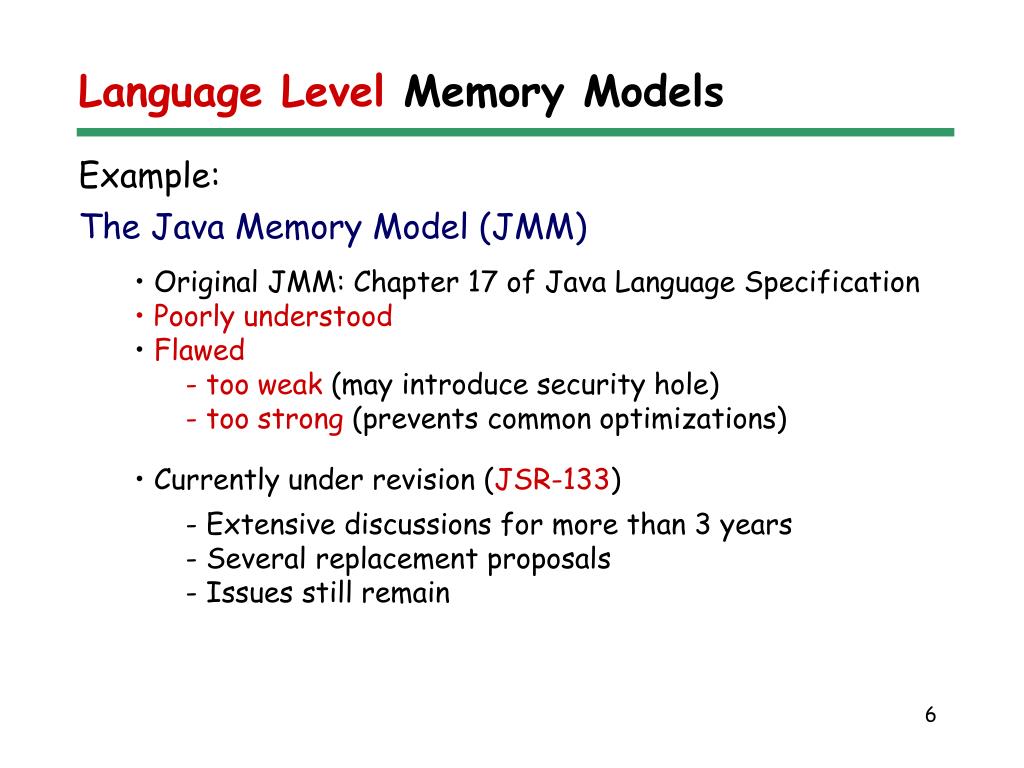

  6. Language Level Memory Models Example: The Java Memory Model (JMM) • Original JMM: Chapter 17 of Java Language Specification • Poorly understood • Flawed • too weak (may introduce security hole) • too strong (prevents common optimizations) • Currently under revision (JSR-133) • Extensive discussions for more than 3 years • Several replacement proposals • Issues still remain

  7. Why Does a Memory Model Matter? Example:Peterson’s Algorithmfor Mutual Exclusion Initially, flag1 = flag2 = false, turn = 0. Thread 1 Thread 2 flag1 = true; turn = 2; while (turn == 2 && flag2) ; <critical section> flag1 = false; flag2 = true; turn = 1; while (turn == 1 && flag1) ; <critical section> flag2 = false; • Can both threads enter the critical section simultaneously? • For sequential consistency: No (the “intended behavior” is guaranteed) • For many weaker models: Yes (the algorithm would be broken)

  8. Do Programmers Really Care? Another example:Double-Checked Lockingfor Singleton creation class foo { private static Helper helper = null; public static Helper get() { if (helper == null) { synchronized (this) { if (helper == null) helper = new Helper(); } } return helper; } } Only use locking as needed “Double-check” the reference

  9. Broken Under the Current JMM class foo { private static Helper helper = null; public static Helper get() { if (helper == null) { synchronized (this) { if (helper == null) helper = new Helper(); } } return helper; } } Only use locking as needed “Double-check” the reference Problem: Broken under the JMM! -on weak architectures - with race conditions - reference can be “visible” before constructor completes Can’t guarantee Helper is fully constructed!

  10. Problems with Previous Approaches Virtually for all industrial weak memory models • They don’t have formal specifications For those that do have a formal spec on paper • They can’t be executed For those that have a machine-readable formal spec • They use a “statemachine” approach that • employ architecture-specific data structures • cannot be decomposed into orthogonal components • have not been verified against higher level rules No support for verifying “programmer expectations” in multithreaded software

  11. Analysis of Multithreaded Software More precise More Scalable Intra-thread Inter-thread Intra-procedural Inter-procedural Memory-model sensitive Memory-model insensitive My thesis work

  12. Contributions Operational style framework - UMM Applications: Operational Specification Method Java Memory Model, Classical memory models Non-Operational style framework - Nemos Applications: Axiomatic Specification Method Intel Itanium Memory Model, Classical memory models Prototype tools based on various solvers: CLP, SAT, QBF Incremental SAT solving; Different encoding Constraint Solving Method Language level memory model issues Applications: Concurrency Analysis Execution validation Race detection Atomicity verification

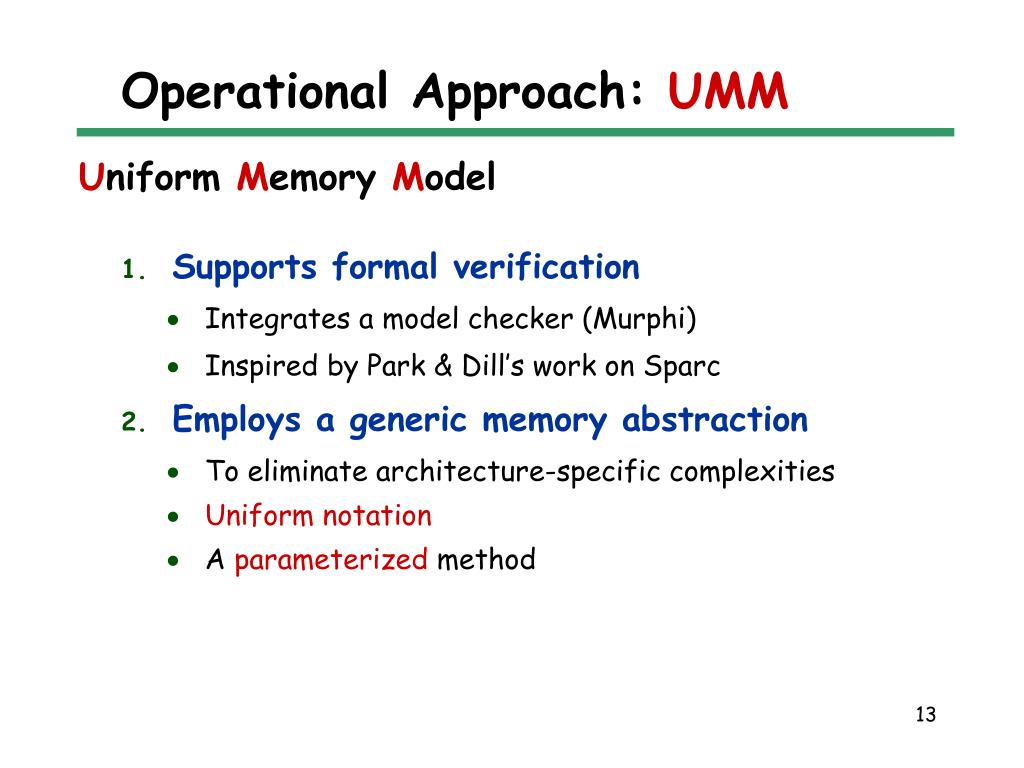

  13. Operational Approach: UMM Uniform Memory Model • Supports formal verification • Integrates a model checker (Murphi) • Inspired by Park & Dill’s work on Sparc • Employs a generic memory abstraction • To eliminate architecture-specific complexities • Uniform notation • A parameterized method

  14. UMM Abstract Machine Threadi Threadj LIBi LIBj - Only two layers LIB– Local Instruction Buffer GIB– Global Instruction Buffer GIB - GIB can grow as needed Key insight: make it easy to configure program order and visibility order

  15. General Strategy in UMM Enabling mechanism • - Program order may be relaxed to enable • certain interleaving • - Controlled via bypassing table Filtering mechanism • - Visibility order constructed from GIB following • proper ordering requirements • - Enforced in read selection rules

  16. UMM Example: Sequential Consistency Transition Table Program order ready(i)  jLIBt(i): pc(j) < pc(i) BYPASS[op(j)][op(i)] = No legalWrite(r, w) op(w) = Write var(w) = var(r)  ( w’GIB : op(w’) = Write var(w’) = var(r)  time(r) > time(w’) time(w’) > time(w)) Visibility order

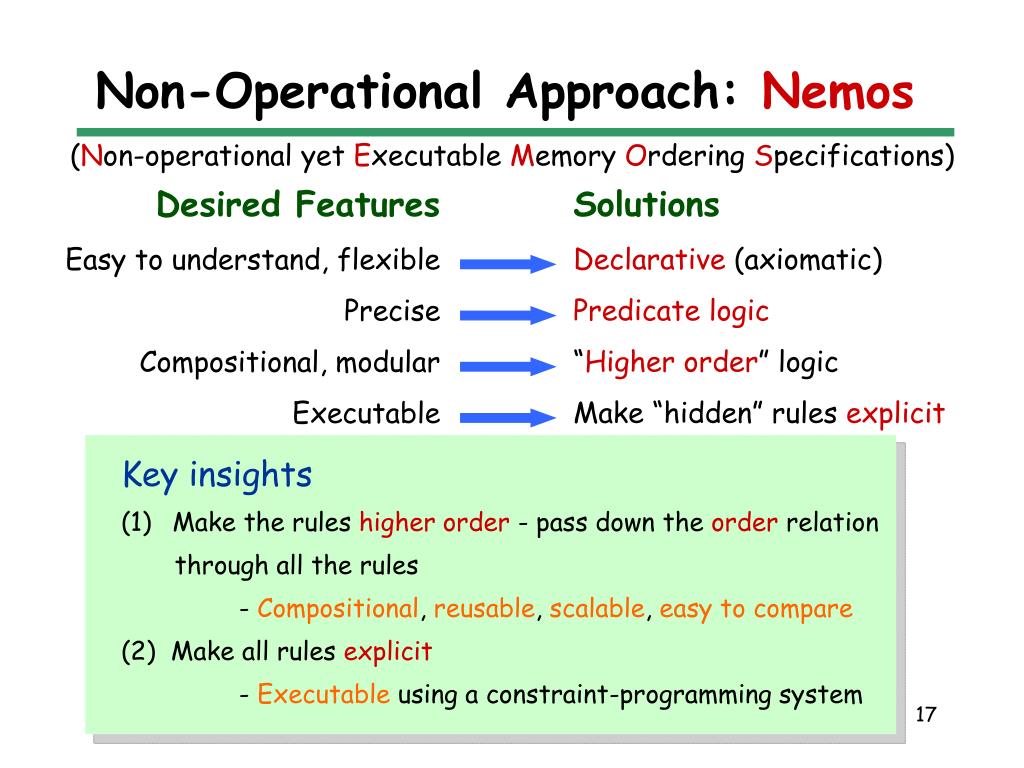

  17. Non-Operational Approach: Nemos (Non-operational yet Executable Memory Ordering Specifications) Solutions Declarative (axiomatic) Predicate logic “Higher order” logic Make “hidden” rules explicit Desired Features Easy to understand, flexible Precise Compositional, modular Executable • Key insights • Make the rules higher order - pass down the order relation • through all the rules • - Compositional, reusable, scalable, easy to compare • (2) Make all rules explicit • - Executable using a constraint-programming system

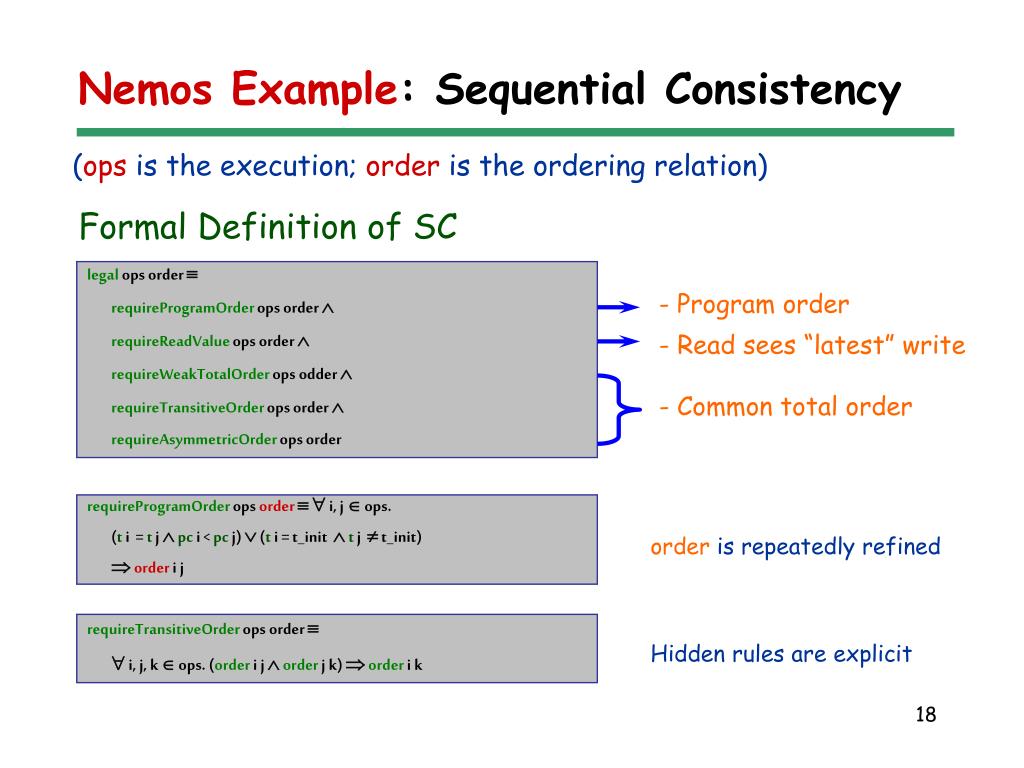

  18. Nemos Example: Sequential Consistency (ops is the execution; order is the ordering relation) Formal Definition of SC legal ops order  requireProgramOrder ops order  requireReadValue ops order  requireWeakTotalOrder ops odder  requireTransitiveOrder ops order  requireAsymmetricOrder ops order - Program order - Read sees “latest” write - Common total order requireProgramOrder ops order  i, j  ops. (t i = t j pc i < pc j)  (t i = t_init  t j  t_init) order i j order is repeatedly refined requireTransitiveOrder ops order   i, j, k  ops. (order i j  order j k) order i k Hidden rules are explicit

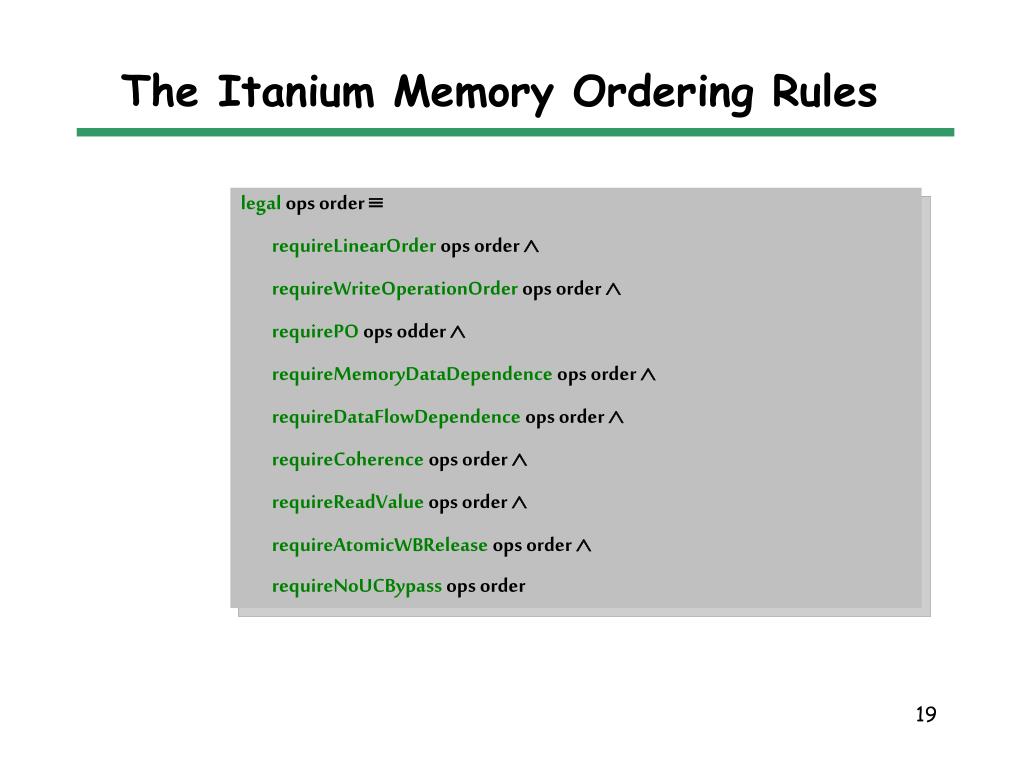

  19. The Itanium Memory Ordering Rules legal ops order  requireLinearOrder ops order  requireWriteOperationOrder ops order  requirePO ops odder  requireMemoryDataDependence ops order  requireDataFlowDependence ops order  requireCoherence ops order  requireReadValue ops order  requireAtomicWBRelease ops order  requireNoUCBypass ops order

  20. Specification Hierarchy for Itanium • requireCoherence • Local/Local case • Remote/Remote case • requireReadValue • ValidWr • ValidLocalWr • ValidRemoteWr • ValidDefaultWr • ValidRd • requireAutomicWBRelease • requireSequentialUC • RAR Rule • RAW Rule • WAR Rule • WAW Rule • requireNoUCBypasss • requireLinearOrder • Irreflexive • Transitive • Total • Asymmetric • requireWriteOperationOrder • Local/Remote case • Remote/Remote case • requireProgramOrder • Acquire Rule • Release Rule • Fence Rule • requireMemoryDataDependence • MD:RAW • MD:WAR • MD:WAW • requireDataFlowDependence • DF:RAW • DF:WAR • DF:WAW

  21. How to Make an Axiomatic Specification Executable? Test Program SAT Solver CLP SAT QBF Memory Model Specification Constraints UNSAT Execution Validation: validateExecution ops   order. legal ops order - Effective for revealing critical properties • - Effective for verifying common programming patterns

  22. Using Constraint Logic Programming (CLP) • Implementation in FD-Prolog is straightforward • Universal quantification handled via enumeration • Existential quantification handled via backtracking • Built-in constraint solver from FD-Prolog: - logical variables - Finite-domain (FD) variables

  23. Precedence matrix M j i x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x x Values ofentry Mij: 1: i is ordered before j 0: i is not ordered before j x: value not bound yet How to Encode the Ordering Relation? nnEncoding: The Method: • Given a test program with N operations, use a 2D precedence matrix with N2 constraint variables • Interpret the symbolic execution, impose constraints to the 2D matrix • When interpretation finishes, x values reveal latitude in weak order • When an x changes to a 1, an attempt to set it to 0 later triggers backtracking

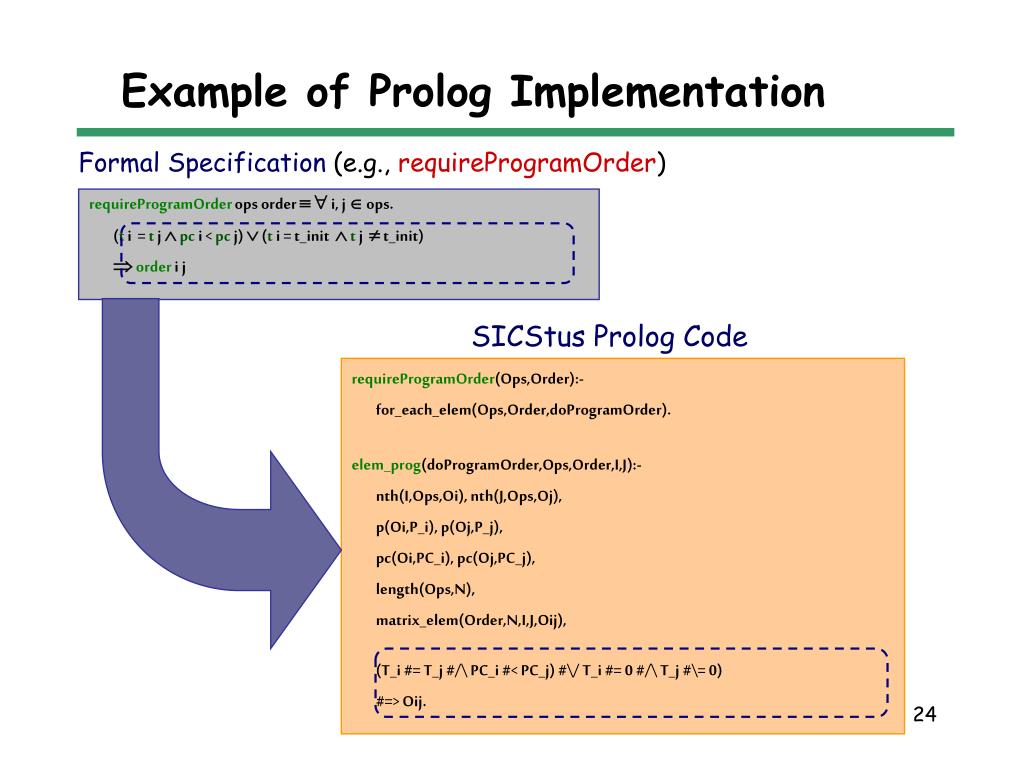

  24. Example of Prolog Implementation Formal Specification (e.g., requireProgramOrder) requireProgramOrder ops order   i, j  ops. (t i = t j pc i < pc j)  (t i = t_init  t j  t_init) order i j SICStus Prolog Code requireProgramOrder(Ops,Order):- for_each_elem(Ops,Order,doProgramOrder). elem_prog(doProgramOrder,Ops,Order,I,J):- nth(I,Ops,Oi), nth(J,Ops,Oj), p(Oi,P_i), p(Oj,P_j), pc(Oi,PC_i), pc(Oj,PC_j), length(Ops,N), matrix_elem(Order,N,I,J,Oij), (T_i #= T_j #/\ PC_i #< PC_j) #\/ T_i #= 0 #/\ T_j #\= 0) #=> Oij.

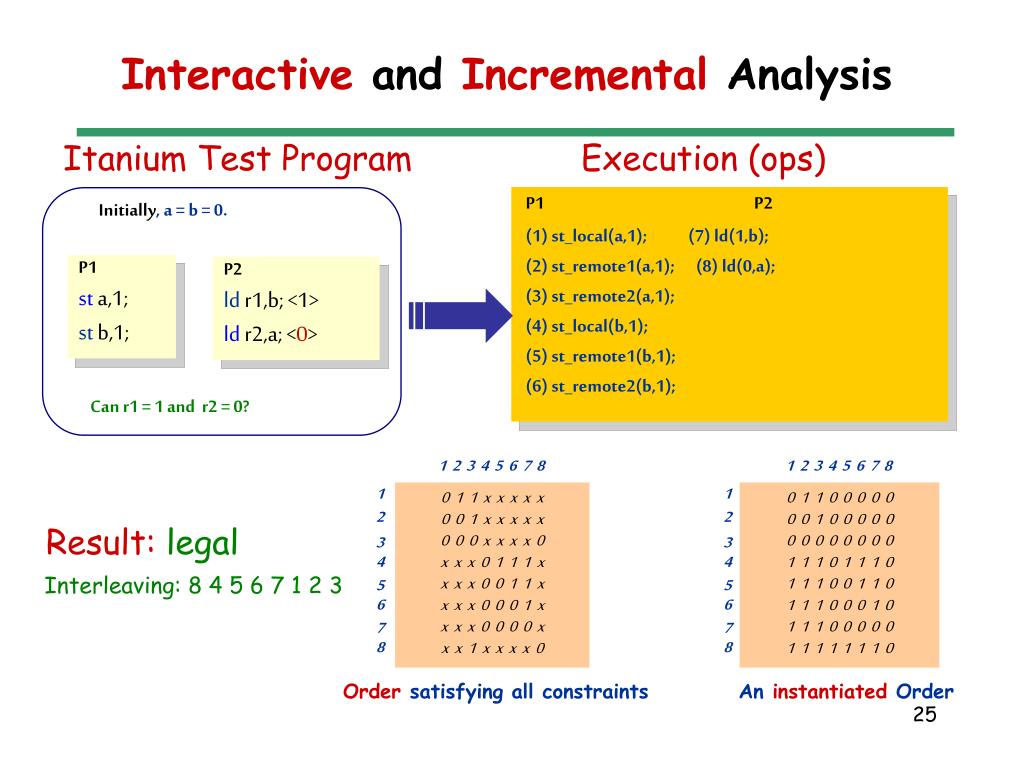

  25. Interactive and IncrementalAnalysis Itanium Test Program Execution (ops) P1 P2 (1) st_local(a,1); (7) ld(1,b); (2) st_remote1(a,1); (8) ld(0,a); (3) st_remote2(a,1); (4) st_local(b,1); (5) st_remote1(b,1); (6) st_remote2(b,1); Initially, a = b = 0. P1 st a,1; stb,1; P2 ldr1,b; <1> ld r2,a; <0> Can r1 = 1 and r2 = 0? 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 1 0 1 1 x x x x x 0 0 1 x x x x x 0 0 0 x x x x 0 x x x 0 1 1 1 x x x x 0 0 1 1 x x x x 0 0 0 1 x x x x 0 0 0 0 x x x 1 x x x x 0 0 1 1 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 0 1 1 1 0 1 1 1 0 0 1 1 0 1 1 1 0 0 0 1 0 1 1 1 0 0 0 0 0 1 1 1 1 1 1 1 0 2 2 Result: legal 3 3 4 4 Interleaving: 8 4 5 6 7 1 2 3 5 5 6 6 7 7 8 8 Order satisfying all constraints An instantiated Order

  26. The SAT/QBF Approach Initially, we “retro-fit” our Prolog version with SAT-generating code - Showed speed improvement in constraint solving, BUT … - Still slow in CNF generation - Very difficult to debug So we re-engineered our tool: (Done by Prof. Ganesh Gopalakrishnan) - “Stamping out” a finite execution as a QBF formula - “Stamping out” a finite execution as a CNF formula - Experimenting different encoding method: nn vs. nlogn - Check pointing SAT generation

  27. Gist of Results • SAT seems to be better than QBF • The nn encoding method is better than nlogn • - despite using more bits • - many unit clauses, good for SAT solving • 2. Check pointing method does pay-off up to 64 tuples • We can easily handle 128 operations • Latest result: completed Intel-provided test run • (experiment done by Hemanthkumar Sivaraj) • - test contains 500 Itanium memory operations • - had to suppress the total-order constraint, UNSAT • - takes 10 sec to generate SAT instance; 0.1 sec to solve • - still lots of room for improvement

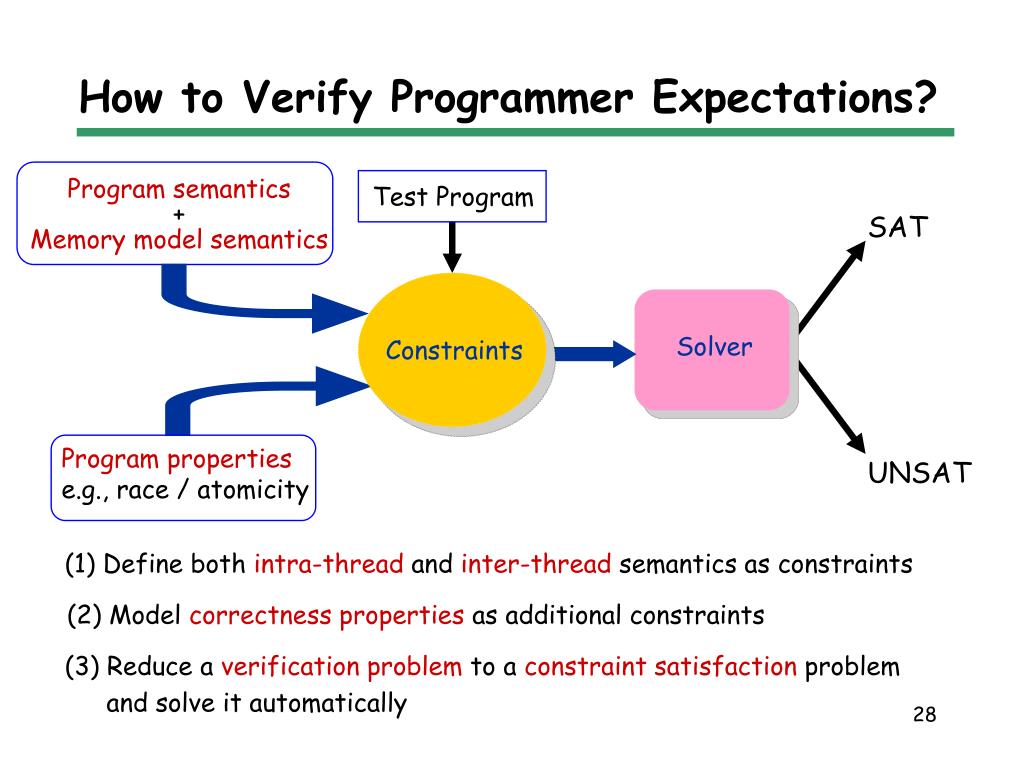

  28. Programsemantics + Memory modelsemantics Test Program SAT Solver Constraints Program properties e.g., race / atomicity UNSAT (1) Define both intra-thread and inter-thread semantics as constraints (2) Model correctness properties as additional constraints (3) Reduce a verification problem to a constraint satisfaction problem and solve it automatically How to Verify Programmer Expectations?

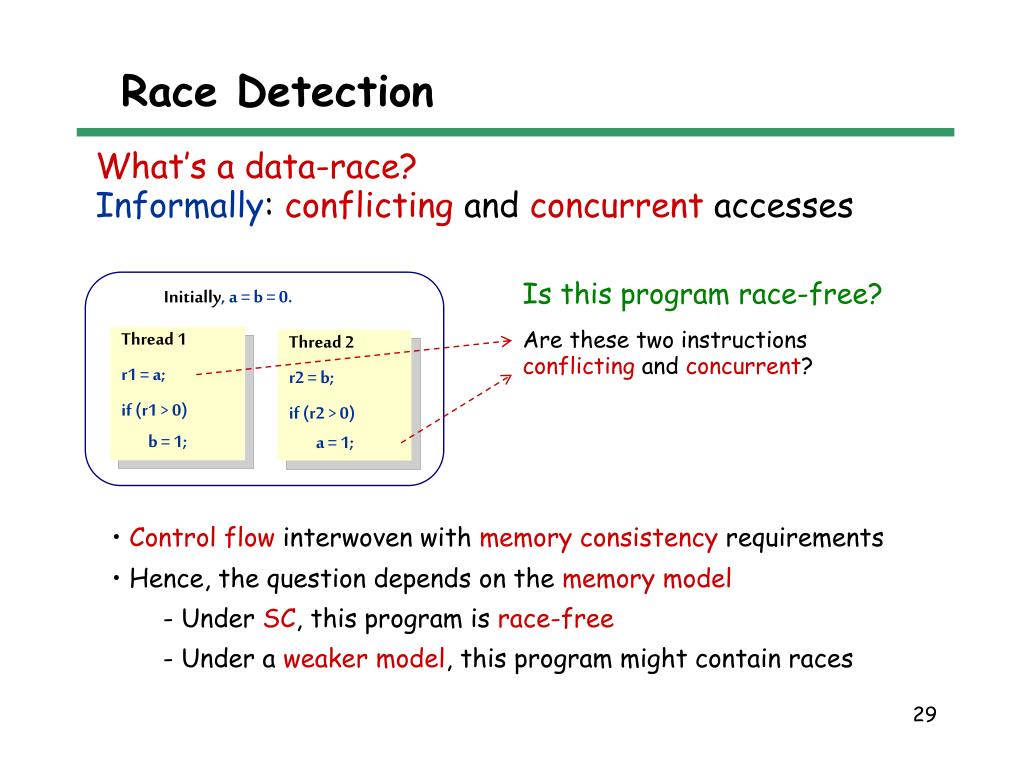

  29. Race Detection • What’s a data-race? • Informally: conflicting and concurrent accesses Is this program race-free? Initially, a = b = 0. Are these two instructions conflicting and concurrent? Thread 1 r1 = a; if (r1 > 0) b = 1; Thread 2 r2 = b; if (r2 > 0) a = 1; • Control flow interwoven with memory consistency requirements • Hence, the question depends on the memory model • - Under SC, this program is race-free • - Under a weaker model, this program might contain races

  30. Constraints for Control Flow • Treat control operations similar to memory operations • Imagine “assigns” and “uses” of “control variables” • Add an auxiliary control variableck for each branch statement k, and convert the if-statement to an auxiliary assign of ck • E.g. if(r1>0) becomes c1=r1>0 • Every op k has a path predicatectrExpr • K is a use of those control variables in ctrExpr • k is feasible if ctrExpr evaluates to ture • Feasibility of ops are checked when setting the rules

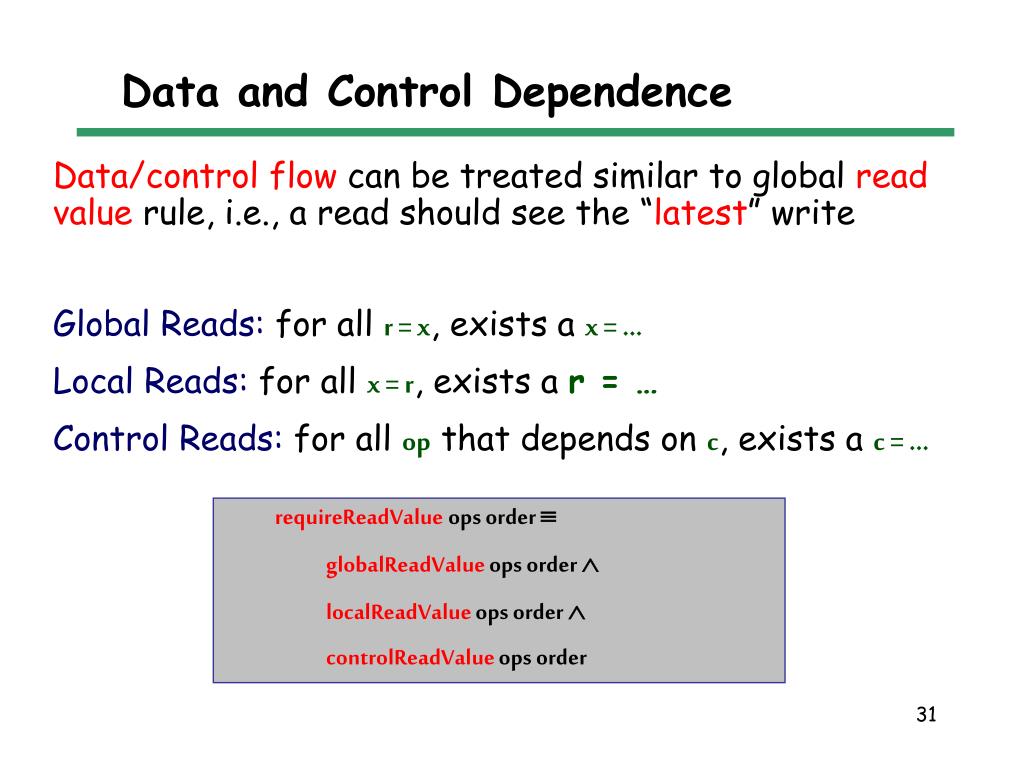

  31. Data and Control Dependence Data/control flow can be treated similar to global read value rule, i.e.,a read should see the “latest” write Global Reads:for allr = x, exists ax = … Local Reads:for allx = r, exists ar = … Control Reads:for allopthat depends on c, exists ac = … requireReadValue ops order  globalReadValue ops order  localReadValue ops order  controlReadValue ops order

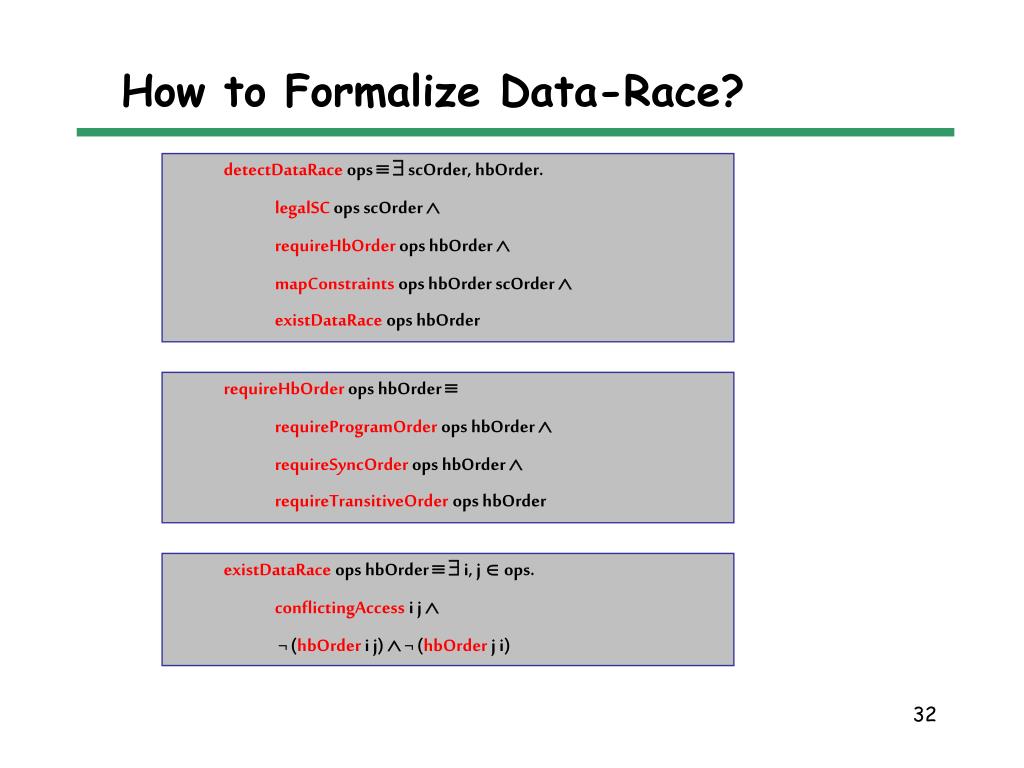

  32. How to Formalize Data-Race? detectDataRace ops  scOrder, hbOrder. legalSC ops scOrder  requireHbOrder ops hbOrder  mapConstraints ops hbOrder scOrder  existDataRace ops hbOrder requireHbOrder ops hbOrder  requireProgramOrder ops hbOrder  requireSyncOrder ops hbOrder  requireTransitiveOrder ops hbOrder existDataRace ops hbOrder  i, j  ops. conflictingAccess i j  ¬(hbOrder i j)¬(hbOrder j i)

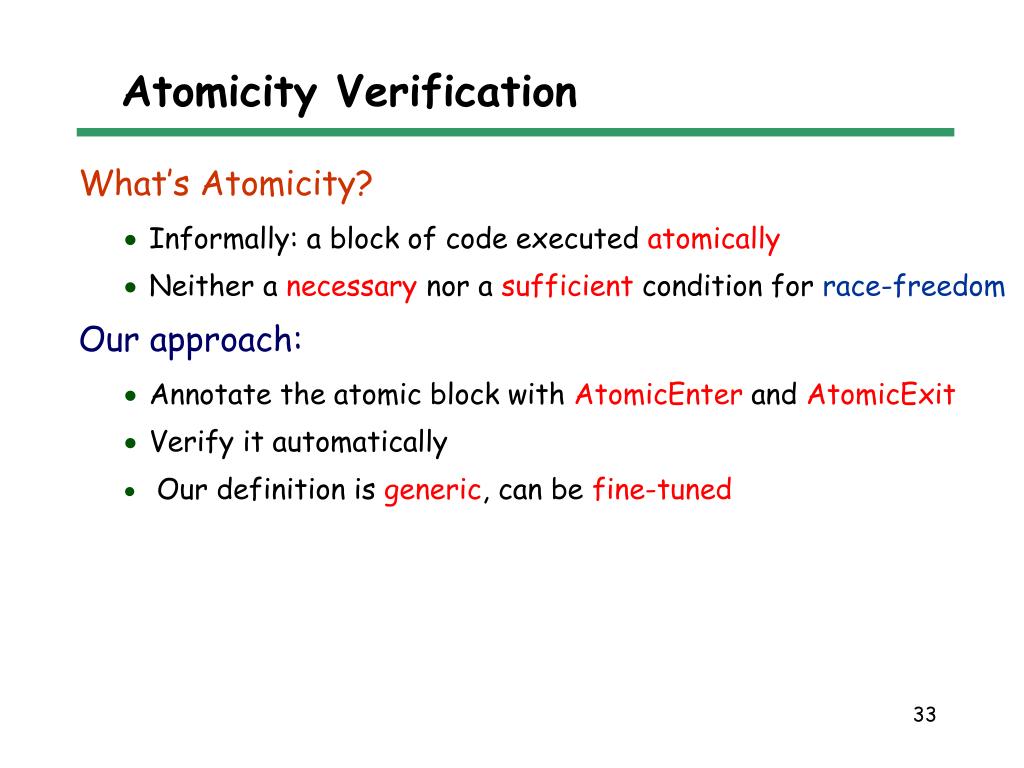

  33. Atomicity Verification • What’s Atomicity? • Informally: a block of code executed atomically • Neither a necessary nor a sufficient condition for race-freedom • Our approach: • Annotate the atomic block with AtomicEnter and AtomicExit • Verify it automatically • Our definition is generic, can be fine-tuned

  34. Constraints for Atomicity verifyAtomicity ops   order. legalSC ops order  existsAtomicityViolation ops order existsAtomicityViolation ops order   i, j, k  ops. matchedAtomicPair i j  (t k t i)  ¬ (order k i)¬ (order j k)

  35. Conclusion • My thesis addressed the following issues - How to make memory ordering rules clear and executable? • How to analyze thread executions against these rules? Our methods have been shown to be practical - A wide range of academic memory models as well as real-world models (Itanium, JMM) - Validation of test cases far exceeded others’ both in speed and scale - Being applied for post-silicon verification in industry • Many “customers” can benefit from our methods - Software developers, compiler writers, system designers

  36. Publications • Analyzing the CRF Java Memory Model (APSEC’01) • Specifying Java Thread Semantics Using a Uniform Memory Model (JGI’02) • UMM: An Operational Memory Model Specification Framework with Integrated Model Checking Capability (CCPE) Operational Specification Method • Analyzing the Intel Itanium Memory Ordering Rules Using Logic Programming and SAT(CHARME’03) • Nemos: A Framework for Axiomatic and Executable Specifications of Memory Consistency Models (IPDPS’04) • A Constraint-Based Approach for Specifying Memory Consistency Models (sent to TPLP) Axiomatic Specification Method Constraint Solving Method • QB or not QB: An Efficient Execution Verification Tool for Memory Orderings (sent to CAV) Concurrency Analysis • Rigorous Concurrency Analysis of Multithreaded Programs (sent to ISSTA)

  37. Continuing Research Opportunities • Scale-up our approach even further • - Give up certain precision • - Compositional methods • - Create assertion language to help abstraction • Improve solving algorithms • - Exploit the structural information • “Memory-model-sensitive” compilers • - Code synthesis, optimization • Other application domains • - Security, embedded systems

  38. Thank You ! The dissertation is available at http://www.cs.utah.edu/~yyang/papers/thesis.pdf The prototype tools are available at http://www.cs.utah.edu/~yyang/research.html
