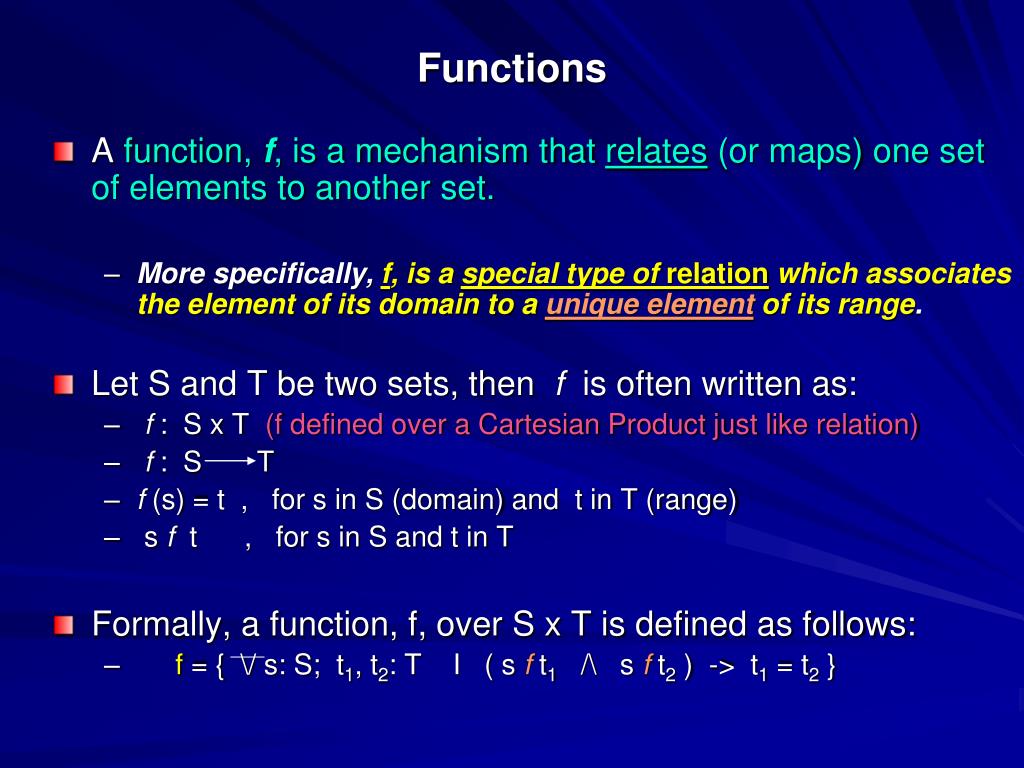

  1. Functions • A function, f, is a mechanism that relates (or maps) one set of elements to another set. • More specifically, f, is a special type of relation which associates the element of its domain to a unique element of its range. • Let S and T be two sets, then f is often written as: • f : S x T (f defined over a Cartesian Product just like relation) • f : S T • f (s) = t , for s in S (domain) and t in T (range) • s f t , for s in S and t in T • Formally, a function, f, over S x T is defined as follows: • f = { \/ s: S; t1, t2: T I ( s ft1 /\ s f t2 ) -> t1 = t2 }

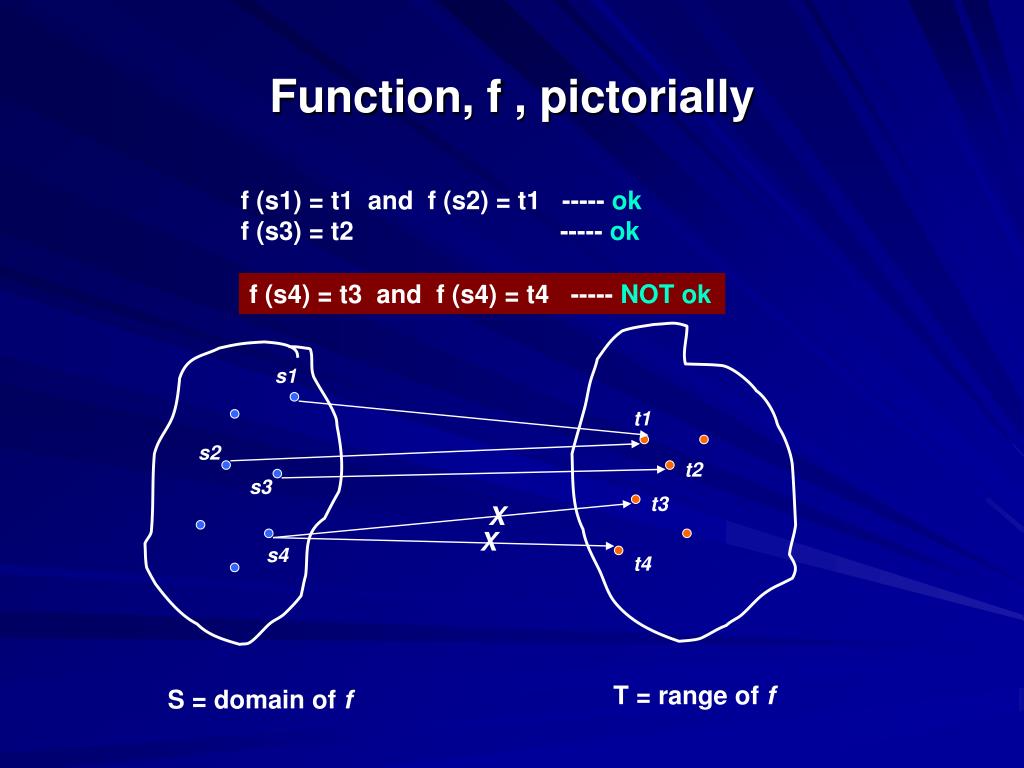

  2. Function, f , pictorially f (s1) = t1 and f (s2) = t1 ----- ok f (s3) = t2 ----- ok f (s4) = t3 and f (s4) = t4 ----- NOT ok s1 t1 s2 t2 s3 t3 X X s4 t4 T = range of f S = domain of f

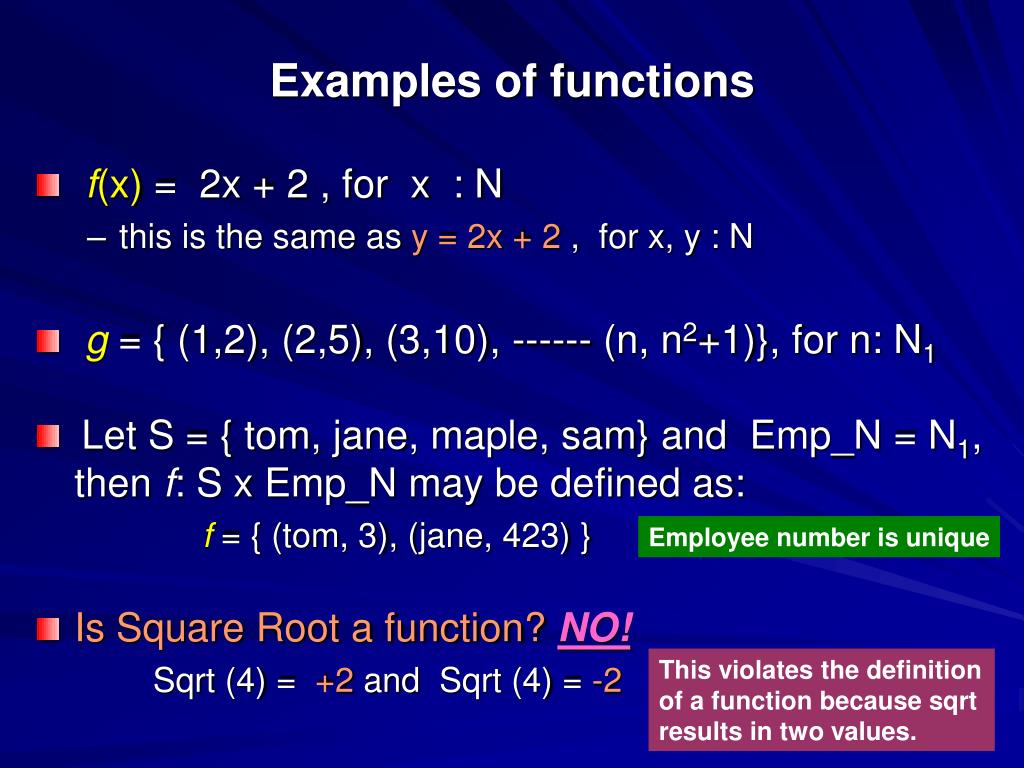

  3. Examples of functions • f(x) = 2x + 2 , for x : N • this is the same as y = 2x + 2 , for x, y : N • g = { (1,2), (2,5), (3,10), ------ (n, n2+1)}, for n: N1 • Let S = { tom, jane, maple, sam} and Emp_N = N1, then f: S x Emp_N may be defined as: f= { (tom, 3), (jane, 423) } • Is Square Root a function?NO! Sqrt (4) = +2 and Sqrt (4) = -2 Employee number is unique This violates the definition of a function because sqrt results in two values.

  4. Partial & Total Functions • A function, f : S x T, is a partial function if dom f is a proper subset of S. • dom f S (e.g. f(x) = 10/x does not include x = 0) • A function, f: S x T, is a total function if the dom f is the same as S. • dom f = S

  5. Injection • A function, f: S x T, is called an injection if • f(s1) = t1 and f(s2) = t1 , then s1 = s2 • Injective functions are also called 1-to-1 functions Note the inverse of f. If f is an injection, then f-1 is also a function t1 s1 s2 t2 s3 t3 s4 X s5 X t4 f(s4) = t4 and f(s5) = t4 would not be allowed if f were an injection

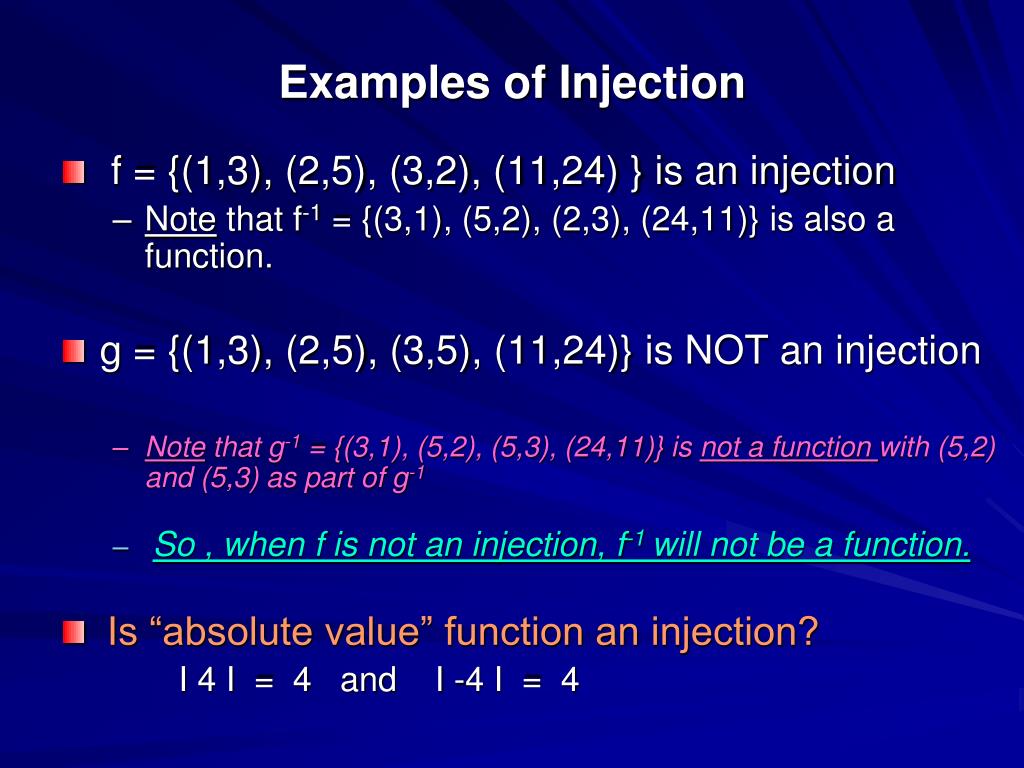

  6. Examples of Injection • f = {(1,3), (2,5), (3,2), (11,24) } is an injection • Note that f-1 = {(3,1), (5,2), (2,3), (24,11)} is also a function. • g = {(1,3), (2,5), (3,5), (11,24)} is NOT an injection • Note that g-1 = {(3,1), (5,2), (5,3), (24,11)} is not a function with (5,2) and (5,3) as part of g-1 • So , when f is not an injection, f-1 will not be a function. • Is “absolute value” function an injection? I 4 I = 4 and I -4 I = 4

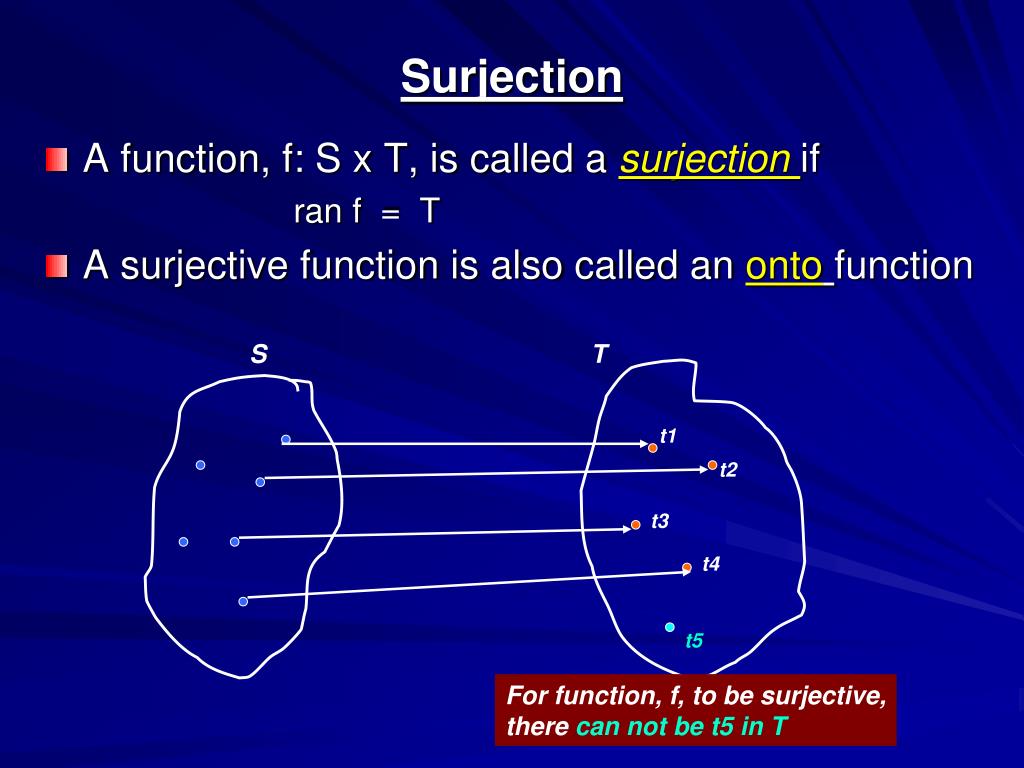

  7. Surjection • A function, f: S x T, is called a surjection if ran f = T • A surjective function is also called an ontofunction S T t1 t2 t3 t4 t5 For function, f, to be surjective, there can notbe t5 in T

  8. Examples of Surjection • Let A = { a1,a2,a3,a4,a5,a6,a7,a8,a9} and WK_day = { M,T,W,Th,F,S,Sn}, then g : A x WK_day defined below is a surjection g = {(a1, T),(a2, M),(a3,Th),(a4, F),(a5, Sn),(a6,Sn), (a7, W), (a8,S)} • but g-1 is not a surjection because a9 would not be included. (and what else can you say about g-1?) • Is g-1 a total or partial function ? Is it even a function? • Example: In a computing file system, the function, f, that maps file_owners to active_filesshould be a surjection because every active_file is owned by some file_owner. (But What do we have to look out for to make sure that f is even a function? May be it should be f-1? May be we should just leave “f” as a relation?)

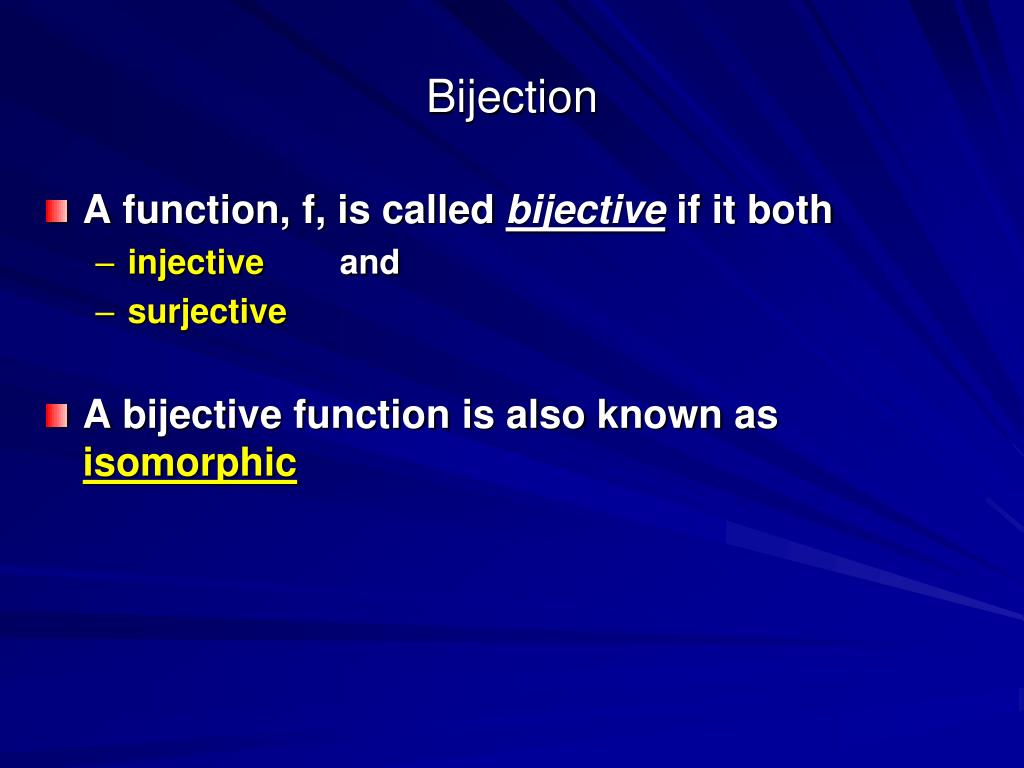

  9. Bijection • A function, f, is called bijective if it both • injective and • surjective • A bijective function is also known as isomorphic

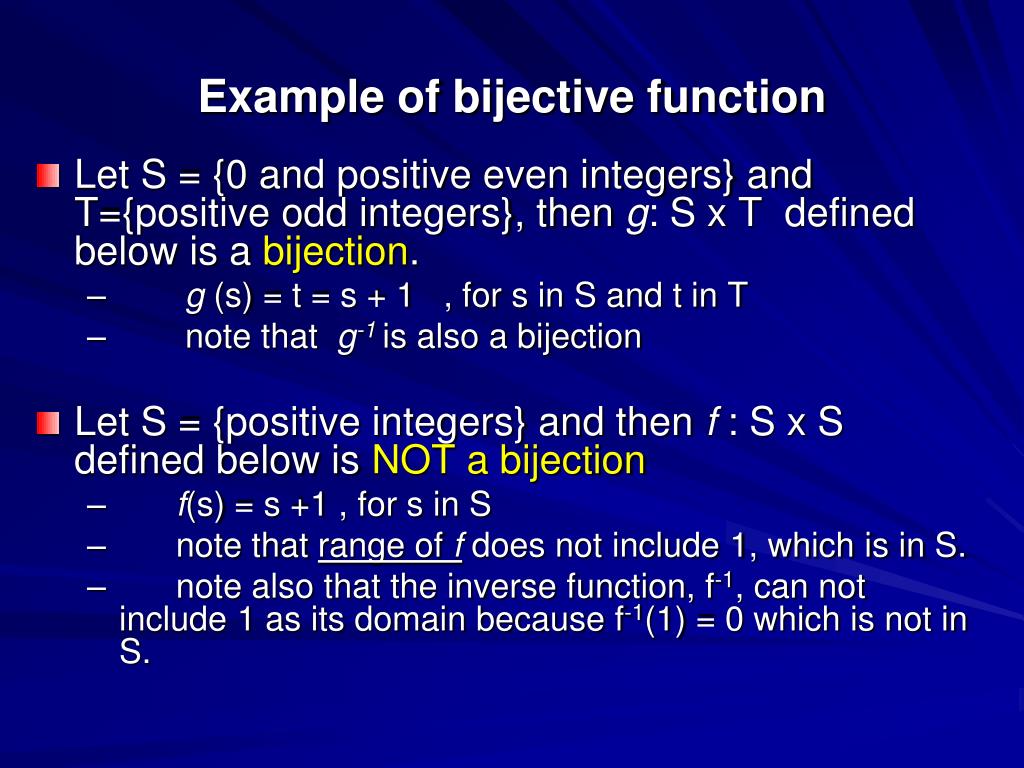

  10. Example of bijective function • Let S = {0 and positive even integers} and T={positive odd integers}, then g: S x T defined below is a bijection. • g (s) = t = s + 1 , for s in S and t in T • note that g-1is also a bijection • Let S = {positive integers} and then f : S x S defined below is NOT a bijection • f(s) = s +1 , for s in S • note that range of f does not include 1, which is in S. • note also that the inverse function, f-1, can not include 1 as its domain because f-1(1) = 0 which is not in S.

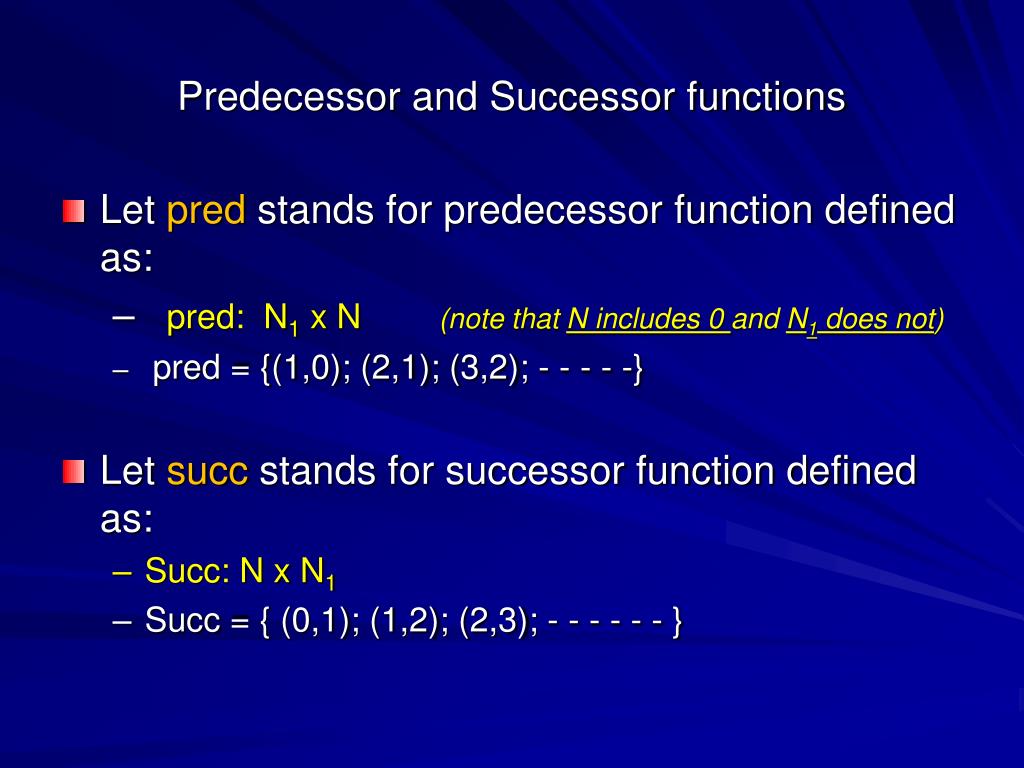

  11. Predecessor and Successor functions • Let pred stands for predecessor function defined as: • pred:N1 x N(note that N includes 0 and N1 does not) • pred = {(1,0); (2,1); (3,2); - - - - -} • Let succ stands for successor function defined as: • Succ: N x N1 • Succ = { (0,1); (1,2); (2,3); - - - - - - }

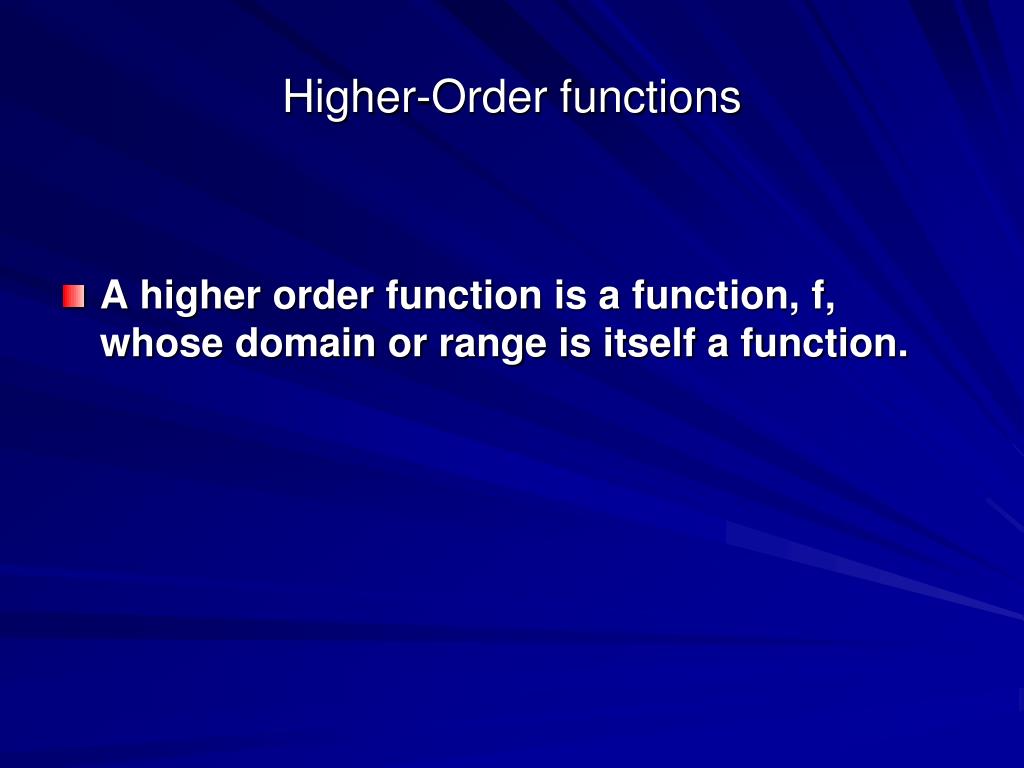

  12. Higher-Order functions • A higher order function is a function, f, whose domain or range is itself a function.

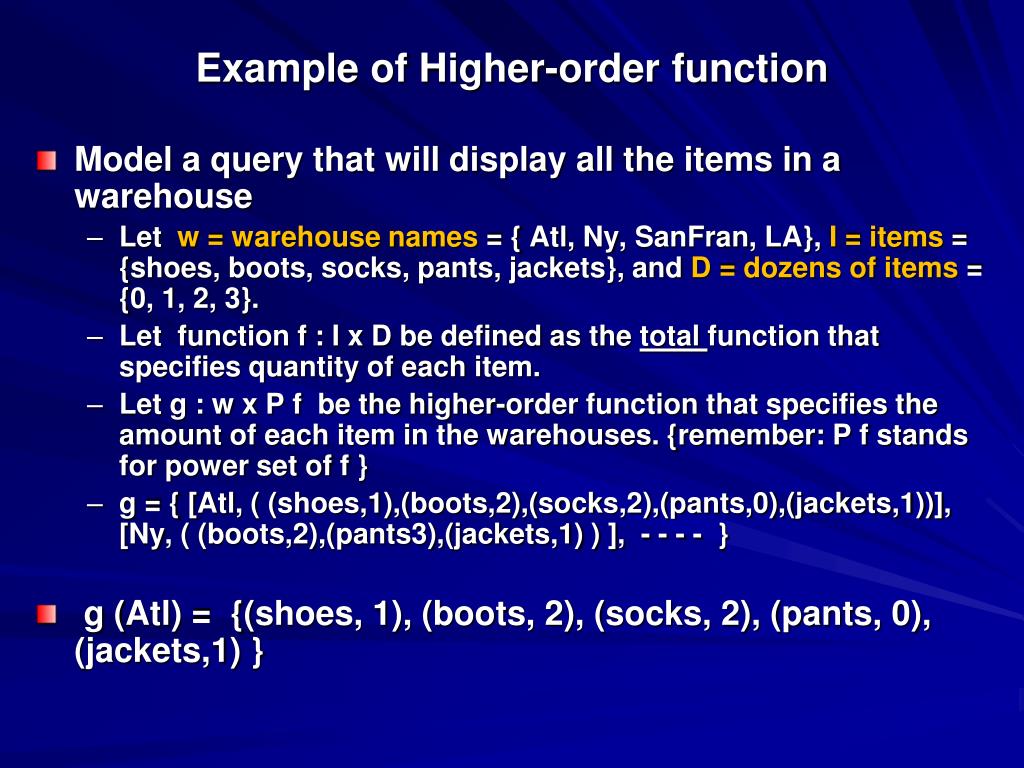

  13. Example of Higher-order function • Model a query that will display all the items in a warehouse • Let w = warehouse names = { Atl, Ny, SanFran, LA}, I = items = {shoes, boots, socks, pants, jackets}, and D = dozens of items = {0, 1, 2, 3}. • Let function f : I x D be defined as the total function that specifies quantity of each item. • Let g : w x P f be the higher-order function that specifies the amount of each item in the warehouses. {remember: P f stands for power set of f } • g = { [Atl, ( (shoes,1),(boots,2),(socks,2),(pants,0),(jackets,1))], [Ny, ( (boots,2),(pants3),(jackets,1) ) ], - - - - } • g (Atl) = {(shoes, 1), (boots, 2), (socks, 2), (pants, 0), (jackets,1) }

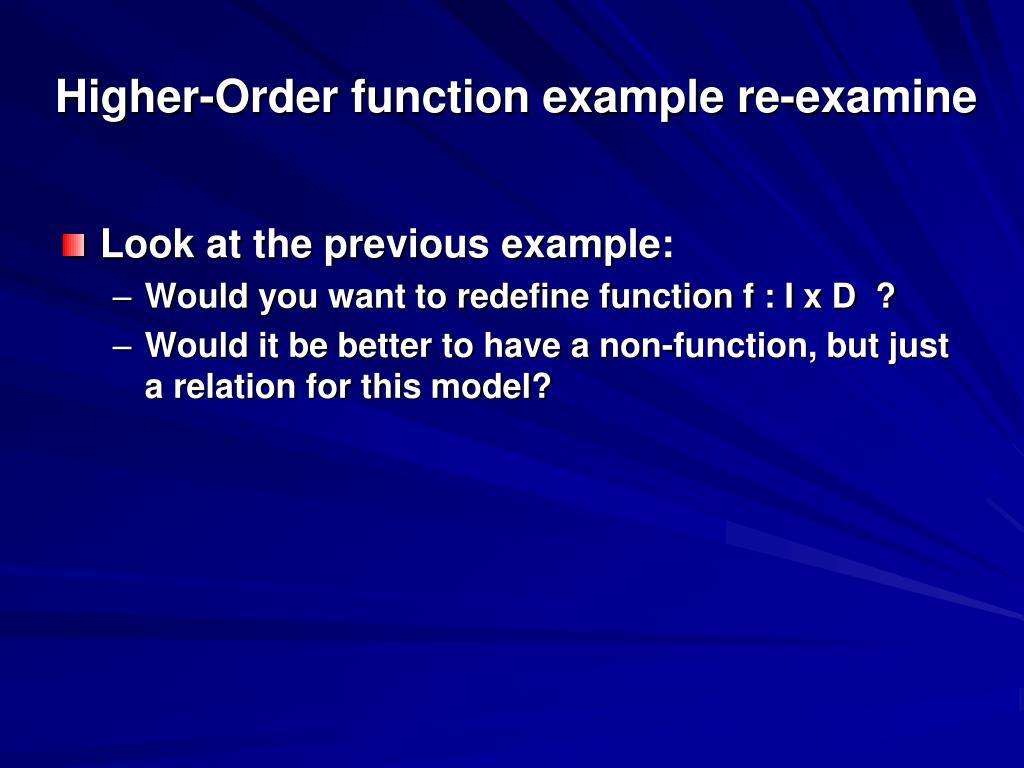

  14. Higher-Order function example re-examine • Look at the previous example: • Would you want to redefine function f : I x D ? • Would it be better to have a non-function, but just a relation for this model?
