WebRTC Gateways Introduction

WebRTC Gateways Introduction. Turn the browser into a phone ( with audio, video and sms ..) Why do we need a gateway? - In the browser, signalling is via web-socket - Media : webRTC uses SRTP Make and receive calls to/from traditional PSTN, or H323/ SIP network end points

leena
Télécharger la présentation

WebRTC Gateways Introduction

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

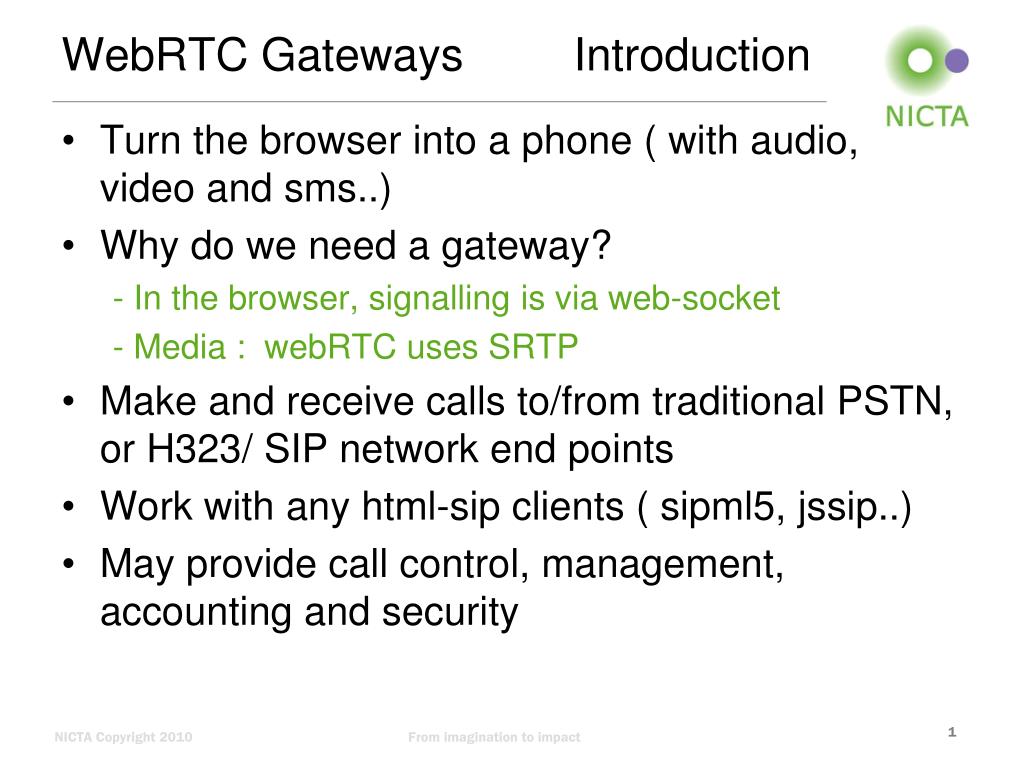

  1. WebRTC Gateways Introduction • Turn the browser into a phone ( with audio, video and sms..) • Why do we need a gateway? - In the browser, signalling is via web-socket - Media : webRTC uses SRTP • Make and receive calls to/from traditional PSTN, or H323/ SIP network end points • Work with any html-sip clients ( sipml5, jssip..) • May provide call control, management, accounting and security

  2. WebRTC Gateways Architecture Source : http://code.google.com/p/webrtc2sip/ Source : http://code.google.com/p/sipml5/wiki/Asterisk/

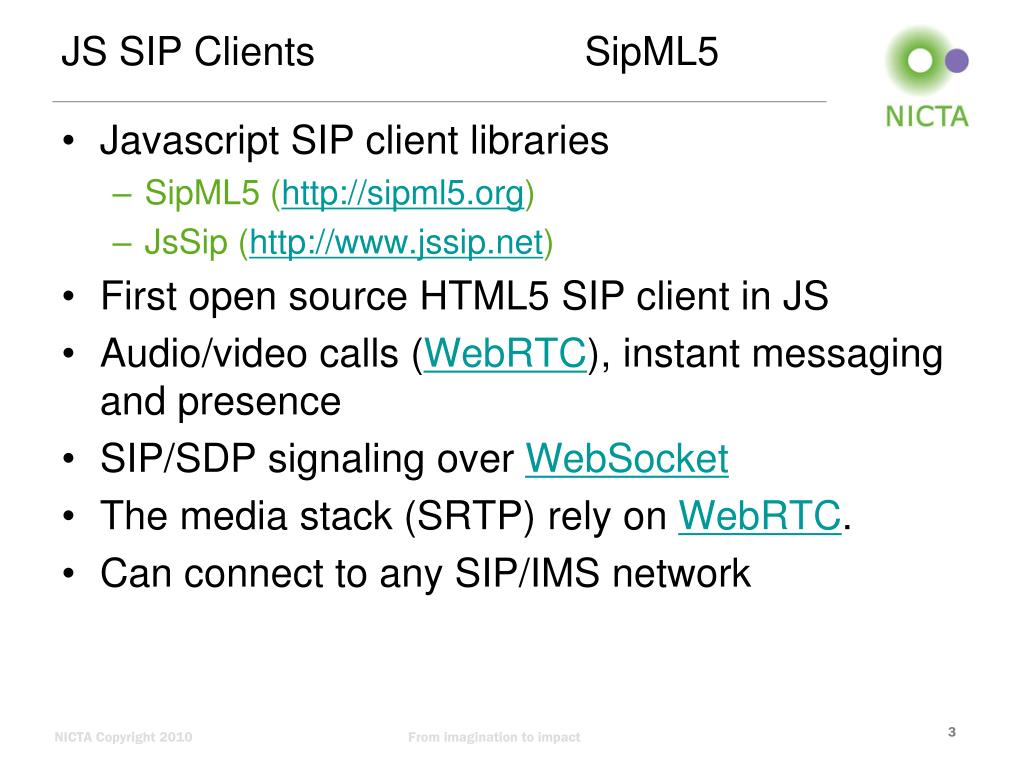

  3. JS SIP Clients SipML5 • Javascript SIP client libraries • SipML5 (http://sipml5.org) • JsSip (http://www.jssip.net) • First open source HTML5 SIP client in JS • Audio/video calls (WebRTC), instant messaging and presence • SIP/SDP signaling over WebSocket • The media stack (SRTP) rely on WebRTC. • Can connect to any SIP/IMS network

  4. SipML5 http://sipml5.org Features • Source code under BSD license. • Works on Chrome, Firefox, IE, Safari, Opera and Bowser • Audio / Video call • Screen/Desktop sharing from Chrome to any SIP client • Instant messaging, Presence • Call Hold / Resume • Explicit Call transfer • Multi-line and multi-account • Dual-tone multi-frequency signaling (DTMF) using SIP INFO • Click-to-Call • SIP TelePresence (Video Group chat) • 3GPP IMS standards

  5. SipML5 http://sipml5.org SipML5 API sipML5 API : How easy ?

  6. Asteriskhttp://www.asterisk.org/ • An open source framework for communication applications • Can be an IP-PBX, VoIP Gateway, Conference server and other custom solutions • A* project started in 1999, today maintained by Digium and the Asterisk community. • Free, OpenSource • Flexible, Reliable • Scalable, Modular • Supports many signaling(& transport) SIP,H323,ISDN etc.. • Transcoding of most of the audio codecs in telephony

  7. Asterisk WebRTC Interface • https://wiki.asterisk.org/wiki/display/AST/Asterisk+WebRTC+Support • From 11.* version, webRTC support added to Asterisk • res_http_websocket module created (for SIP) • ICE, STUN, and TURN support added to res_rtp_asterisk • SRTP support was already added before webRTC : libsrtp and headers must be available • Configuration for webRTC For ws call, sip.conf : - transport=ws,udp,tcp - avpf=yes - nat=yes,force_rport - encryption=yes

  8. Asterisk WebRTC Interface • http.conf : - enabled=yes - bindport=8088 For WSS call, (https://wiki.asterisk.org/wiki/display/AST/Secure+Calling+Tutorial) • http.conf • tlsenable=yes • tlsbindport=8089 • tlsbindaddr=0.0.0.0 • tlscertfile=/etc/asterisk/keys/asterisk.pem • tlsprivatekey=/etc/asterisk/keys/asterisk.key • tlscipher=ALL • tlsclientmethod=tlsv1 • sip.conf • transport=tls,udp,ws,wss • avpf=yes • encryption=yes • tlsenable=yes

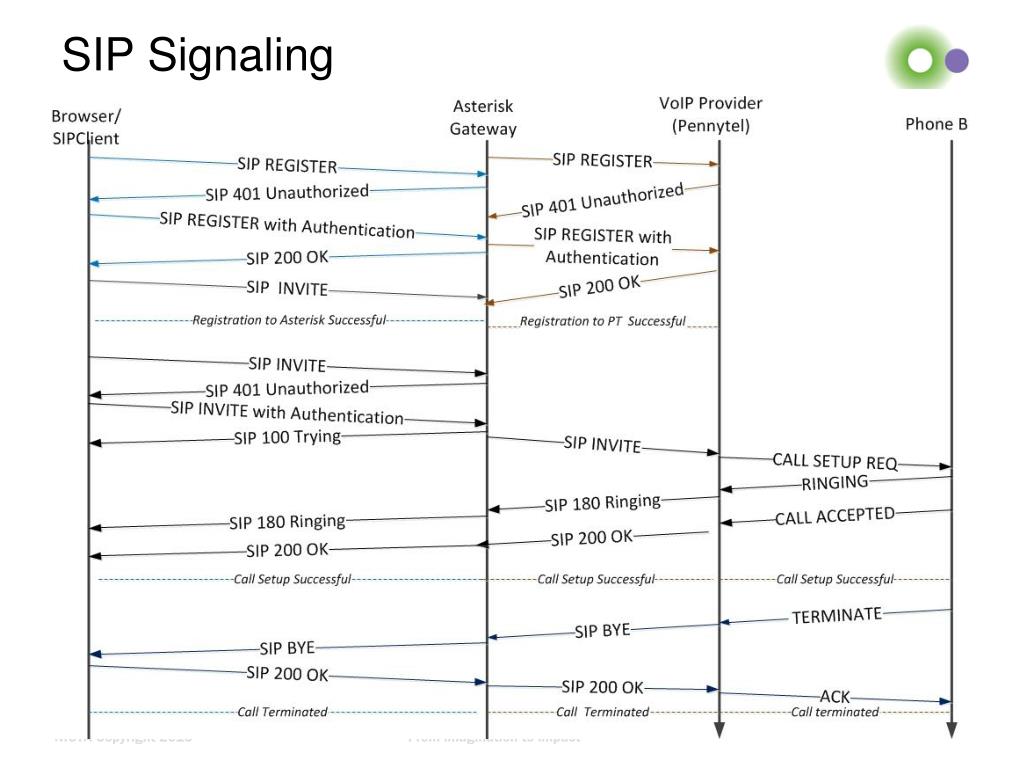

  9. SIP Signaling
