Optimized process from design to product • The header isn’t that clear • Couldincludeanything • Currentexecuting the projectnWoW • One small part of Sandvik automation • Todays agenda, FBM
KBE & Feature based machining • Entered the systems at the 80’s • Later in NX holemaking where showed and we had a lot of expectations • Holes wasn’t enough, we need a unified environment • Semi automated Feature based machining
Feature Based Machining • What is a machine feature?
Design interface to production • Drawings, PMI, Cloud, GD&T, Company standards • Features, non parametric design, non associative design, freeformmodeling • Rules, rules, rules & even more rules • Design for manufacturing • Production is the customer • Design freedom

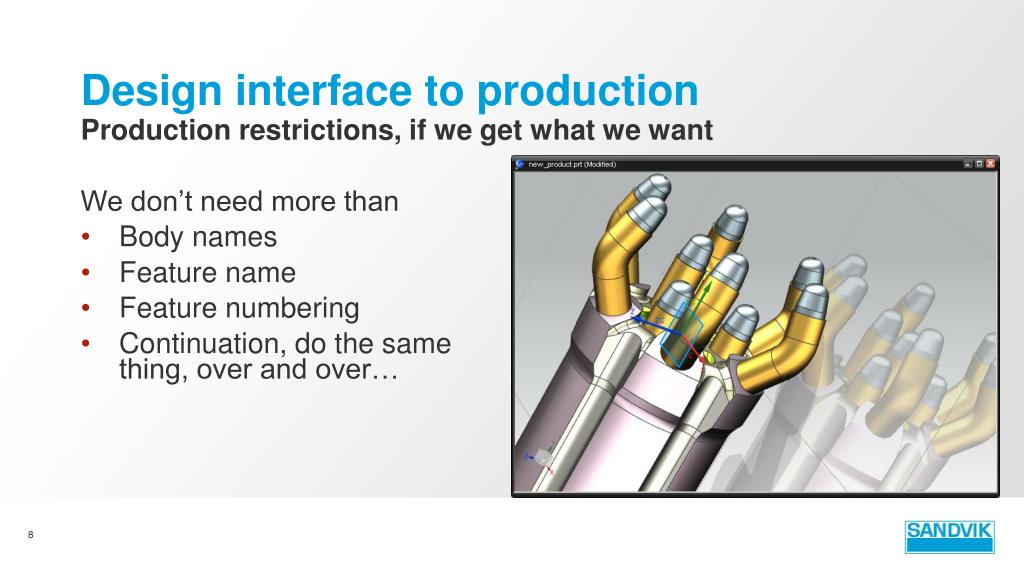

Design interface to production • We don’t need more than • Body names • Feature name • Feature numbering • Continuation, do the same thing, over and over… • Production restrictions, if we get what we want
Design interface to production What’sleft? • And of course, all the default rules No B-surf No spline No sharp inner corners No negative taper No deep small corners No multi angle floors in pocket No steps in sludges No pocket deeper than 2,5 * tooldiameter…. No leaning flushingholes No flushinghole in periphery No flushingholes else than center No freeform surfaces No, no… No, no, no, no…… • Production restrictions, if we get what we want
