Specifying and Verifying Device Drivers

1. Specifying and VerifyingDevice Drivers Wes Weimer George Necula Gregoire Sutre

2. Overview • Background and Motivation • Safety Properties • Events and History Registers • Driver States • Specifications • Verification • Implementation

3. Background and Motivation • Why bother? • PCC-style background • Want a sound analysis • Decided on an all-paths analysis • Similar to PREfix, ESC, Slam, Magick • Check pre- and post-conditions, kernel API • But also specify resource management, etc. • Greg will recast as model checking later

4. Safety Properties • We aim to verify that … • Allocated resources are freed • Over the lifetime of the driver • Enforce acquire order: no deadlocks • Kernel functions are called correctly • Also includes ordering requirements and obligations, like schedule() and signal_pending(). • Certain minimum actions are performed

5. Events • Three broad types: + allocation, - deallocation, ! event • Applied to uninterpreted constructors: irq, dma, memory, schedule • And given program values as arguments: +irq(5), -dma(3), !schedule • Function call and return may be treated as events

6. History Register • Abstract register used to verify programs • Like the “memory register” in PCC/VCGen • Never appears in user-written code • Keeps an ever-increasing list of events • E.g., [ +irq(7) ; !schedule ; +misc(&qpmouse) ] • May refer to it in conditions • E.g., PRE(!historyContains(+irq(i)))

7. Driver States S0: Uninitialized cleanup_module=0 init_module=0 S1: Initialized misc_release=0 misc_open=0 S2: Opened misc_read=* misc_write=* Inv(S0) = true Inv(S1) = historyContains(+misc(any))

8. Driver States (cont’d) • Kernel API guarantees a certain state-like behavior for device drivers • E.g., misc_open will only be called if the driver is in S1 • We associate an invariant with each state • Captures history register values • And global variables in the driver • Must check all paths from S0 to S0. • For resource leaks, etc. • Similar to data-flow analysis

9. Specifications • Write spec in C, just like driver • May use data and control non-determinism • May use pre-conditions: like assert(), but will not fail • Spec is minimal • List only things that must be done • Looks like a “template” device driver • Normal device drivers often written by copying others • Side-conditions govern optional behavior • Like matching alloc/free • Or checking signals after sleeping

10. Specification Example int init_module() { /* user code must look like this */ PRE(!historyContains(+misc(any))); switch (__rand_int_range(0,3)) { case 0: misc_register(any); /* use kernel API */ return 0; case 1: return –5; /* EIO */ case 2: return –6; /* ENXIO */ case 3: return –19; /* ENODEV */ }}

11. Specification Example (2) int misc_fasync(void *fd, void *filp, int on) { PRE(fd != 0 && filp && (on == 1 || on == 0) && current->state == TASK_RUNNING && historyCount(!misc_open) > historyCount(!misc_release)); int retval = fasync_helper(fd, filp, on, any); if (retval < 0) return retval; else return 0; }

12. Kernel API Spec • Model behavior of kernel functions • Like kmalloc(), schedule(), kfree() • May modify history register • Example: int request_irq(int i, void *f, …) { PRE(historyCount(+irq(i)) == historyCount(-irq(i)) && implements(f, irq_handler) && …); if (__rand_int_range(0,1)) { return –5; } else { historyAdd(+irq(i)); return 0; } }

13. Kernel API Spec (2) int kmalloc(int size, int prio) { PRE(size > 0 && size < (128*1024) && (prio & GFP_KERNEL || prio & GFP_ATOMIC) && !(prio & GFP_KERNEL && prio & GFP_ATOMIC)); if (prio & GFP_KERNEL) { int old_state = current->state; current->state = TASK_INTERRUPTIBLE; schedule(); current->state = old_state; historyAdd(!signal_pending); } if (__rand_int_range(0,1) { void *retval = __rand_int_range(1, MAX_INT/4)*4; historyAdd(+memory(retval)); return retval; } else return NULL; }

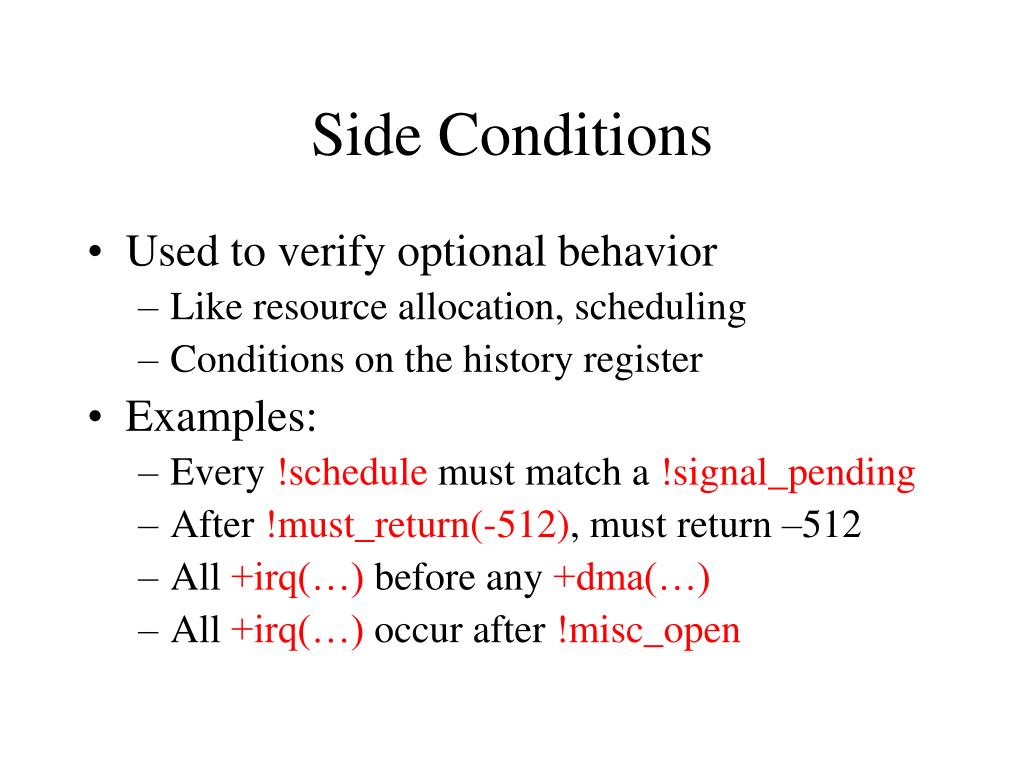

14. Side Conditions • Used to verify optional behavior • Like resource allocation, scheduling • Conditions on the history register • Examples: • Every !schedule must match a !signal_pending • After !must_return(-512), must return –512 • All +irq(…) before any +dma(…) • All +irq(…) occur after !misc_open

15. Story so far … • We have the user source code • We have the history register abstraction • Keep track of the past, etc. • We have a spec for the user code • Minimal, lists things that must be done • We have a spec for the kernel API • We have side conditions

16. Verification • When does the user code meet the spec? • Each user function F “matches up” (defined next) with our spec for function F • If the user calls a kernel function with a pre-condition, the condition will always be satisfied • All of the side conditions hold over the life of the device driver

17. “Matching Up” • Can be phrased as a trace inclusion problem • More on that with the next speaker • We’ll do it as an all-paths analysis • Symbolically execute all paths in user code • Keep track of history register • Remove +resource(X) and –resource(X) • Make sure other important events match

18. How to Verify • Symbolically execute all paths in user code • End up with a set of final states U • Verify pre-conditions, use theorem prover • Symbolically execute all paths in spec • End up with a set of final states S • For every uÎU, find an sÎS such that • They have the same return value • Their history registers match up • If s proves T then u proves T (for a few global T’s)

19. How to Verify: States • Start in S0, then check init_module() • Match each final state against the spec • Check all side-conditions in each final state • Gather all states R with return value 0 • Their LUB becomes the invariant for S1 • Analyze all paths out of S1 (= symbolically execute those functions with that invariant) • Repeat until this terminates.

20. What can go wrong? • User code can call a kernel function and fail to meet the pre-condition • User code can fail to meet a side condition • User code can fail to match up to the spec • If so, report an error! • And hope that it’s not a false positive.

21. Loop Invariants • Used in symbolic execution to model loops • Currently, we guess “true” • or use any other heuristic (e.g., on “for” loops) • Except for the history register • Gather all history changes in the loop body • Add a special history element: • X_copies_of(history_element_list)

22. Does it work? • Sample implementation • Tested on init_module() in 46 misc device drivers (about 300k post-processed each) • 30 successful terminations (25 meet spec) • Others look fine, spec needs to be refined • 16 “no answer after 45 seconds” • All-paths analysis is expensive: O(2n)

23. Conclusions and Future Work • Method for specifying and verifying • Spec looks like original code • Sound, incomplete, expensive • Uses abstract events • Captures allocation, function ordering, other API and behavioral restrictions • Next steps: • folding similar paths • handling concurrency (e.g., irq handlers)
